belt TOYOTA SEQUOIA 2011 2.G Quick Reference Guide

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Engine maintenance10Fuel tank door release and cap9Hood release 10Indicator symbols6-7Instrument cluster 5Instrument panel2-4Keyless entry18
Light control-Instrument panel 9
Accessory meter20Air Conditioning/Heating22-23Audio24-25Auto lock functions112Automatic Transmission 11Cruise control 26Cup holders31Door locks 28Door-Power back19Dynamic Laser Cruise Control27Four-wheel drive 12Garage door opener (HomeLink®)326Lights1& turn signals17Moonroof 20Multi-information display228Parking brake15Power outlets-12V DC 30Power outlets-115V AC30Rear seat entertainment system31Seat adjustments-Front13Seat adjustments-Rear14Seat ventilators/heaters 23Seats-Folding second row seats15Seats-Folding third row seats16Seats-Head restraints 13Steering wheel switches25Telephone controls (Bluetooth®)29Tilt and telescopic steering wheel21“TOW/HAUL” switch 11VSC OFF button 21Window-Back19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33Seat belts32Seat belts-Shoulder belt anchor33Spare tire & tools33
Tire Pressure Monitoring (warning) System 32
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
1Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and
more information.
3HomeLink®is a registered trademark of Johnson Controls, Inc.
INDEX
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 1

6
Charging system warning1
Brake system warning1
AIR BAG ON indicator1
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
AIR BAG OFF indicator1
For details, refer to “Indicators and warning lights,” Section 2-2\
, 2011
Owner’s Manual .
Headlight low/high beam indicator
Turn signal indicator
Low Tire Pressure Warning1
Power steering warning1
Open door warning
Airbag SRS warning1
Master warning
Theft deterrent/Engine immobilizer system indicator Malfunction/Check Engine indicator
1
Engine oil replacement reminder
Low fuel level warning
Roll Sensing of Curtain shield Airbag OFF indicator1
Shift position and shift range indicators
Vehicle Stability Control OFF indicator1
Low windshield washer fluid level warning
OVERVIEW
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 6

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

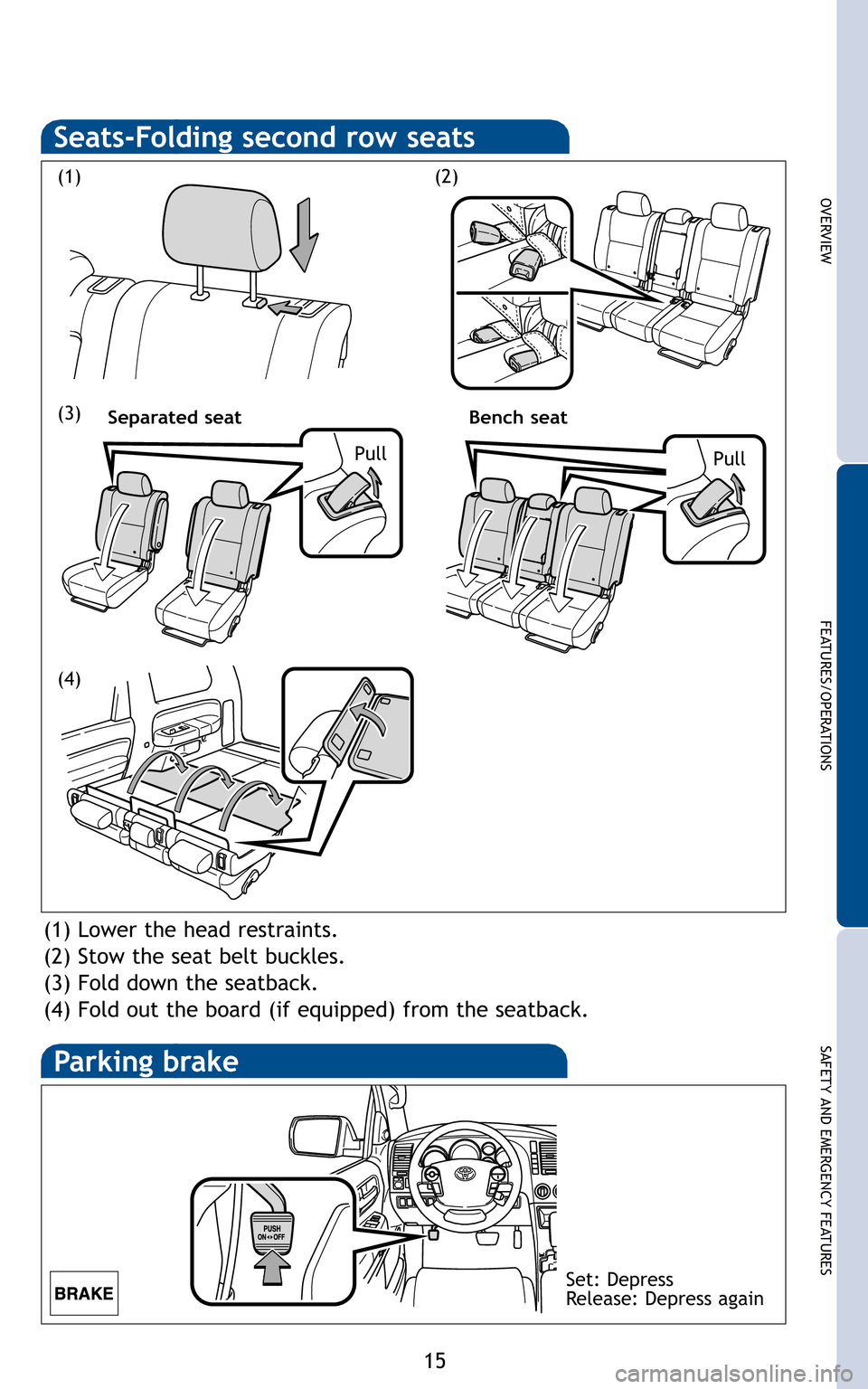

(1) Lower the head restraints.
(2) Stow the seat belt buckles.
(3) Fold down the seatback.
(4) Fold out the board (if equipped) from the seatback.
(1)
(3)
(2)
(4)Pull
Pull
Separated seat
Bench seat
Set: Depress
Release: Depress again
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 15

16
FEATURES/OPERATIONS

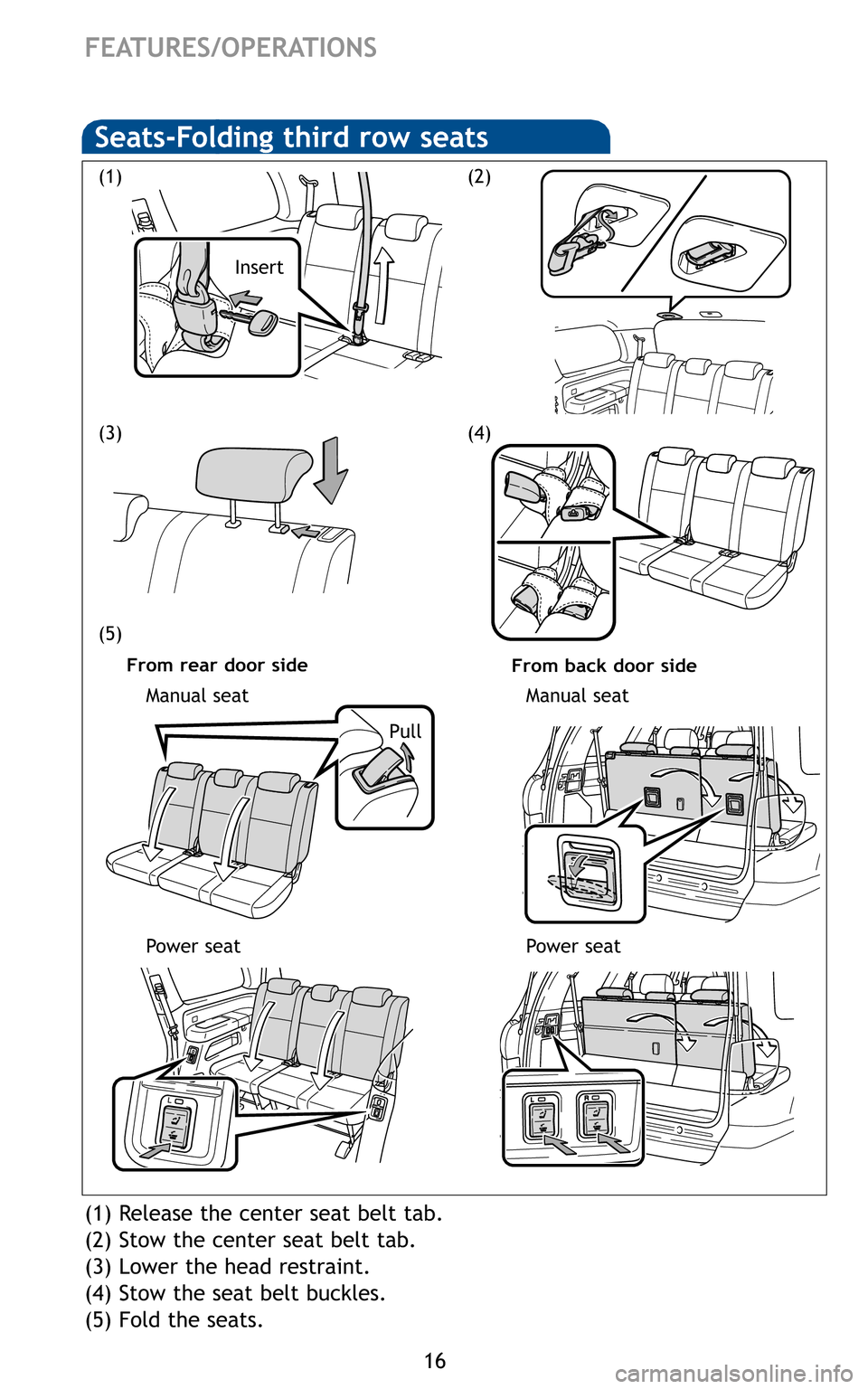

(1) Release the center seat belt tab.
(2) Stow the center seat belt tab.
(3) Lower the head restraint.
(4) Stow the seat belt buckles.
(5) Fold the seats.
(1)
(5)
(3)
(2)
(4)
Power seatPull
Insert
From back door side
From rear door side
Power seat
Manual seatManual seat
122363M1.qxd:Sequoia_11 7/16/10 10:21 PM Page 16

32
SAFETY AND EMERGENCY FEATURES
If belt is fully extended, then retracted even slightly, it cannot be
re-extended beyond that point, unless fully retracted again. This featur\
e
is used to help hold child restraint systems securely.
To find more information about seat belts, and how to install a child
restraint system, refer to the Owner's Manual.
Keep as low on
hips as possible
Take up slack
Too high
System reset initialization
1. Push and hold “ SET” button
until the indicator blinks
three times.
2. Wait a few minutes to allow initialization to complete.
122363M1.qxd:Sequoia_11 7/16/10 10:22 PM Page 32
