display TOYOTA SEQUOIA 2014 2.G Navigation Manual

210
2. SETUP
■DELETING THE CONTACTS IN THE
FAVORITES LIST
1Select “Remove Favorite”.
2Select the desired contacts and select
“Remove”.
3Select “Yes” when the confirmation
screen appears.
4Check that a confirmation screen is
displayed when the operation is com-
plete.Deleting contacts in the favorites list in a
different way (from the “Contacts”
screen)
1Display the phone top screen.
(P.187)
2Select the “Contacts” tab.
3Select  at the beginning of the con-
tact list name to be deleted from the fa-
vorites list.
When selected,  is changed to , and
the data is deleted from the list.
Deleting contacts in the favorites list in a
different way (from the “Contact Details”
screen)
1Display the phone top screen.
(P.187)
2Select the “Contacts”, “Call history”
tab or the “Favorites” tab and select
the desired contact to delete.
3Select “Remove Favorite”.
4Select “Yes” when the confirmation
screen appears.
5Check that a confirmation screen is
displayed when the operation is com-
plete.

211
2. SETUP
7
PHONE
1Display the “Phone/Message Settings”
screen. (P.201)
2Select “Messaging Settings”.
3Select the desired item to be set.

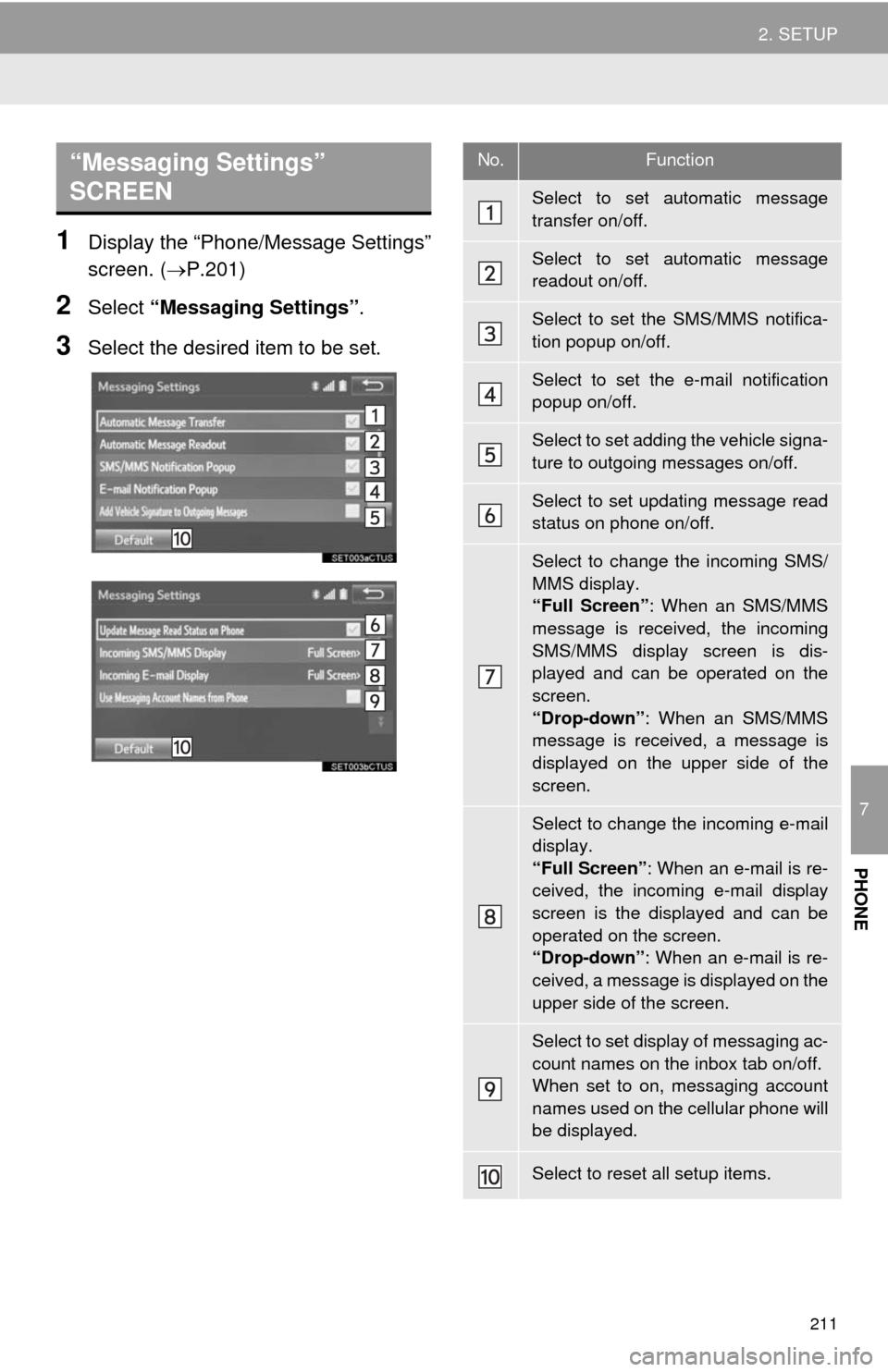

“Messaging Settings”
SCREEN No.Function
Select to set automatic message
transfer on/off.
Select to set automatic message
readout on/off.
Select to set the SMS/MMS notifica-
tion popup on/off.
Select to set the e-mail notification
popup on/off.
Select to set adding the vehicle signa-
ture to outgoing messages on/off.
Select to set updating message read
status on phone on/off.
Select to change the incoming SMS/
MMS display.
“Full Screen”: When an SMS/MMS
message is received, the incoming
SMS/MMS display screen is dis-
played and can be operated on the
screen.
“Drop-down”: When an SMS/MMS
message is received, a message is
displayed on the upper side of the
screen.
Select to change the incoming e-mail
display.
“Full Screen”: When an e-mail is re-
ceived, the incoming e-mail display
screen is the displayed and can be
operated on the screen.
“Drop-down”: When an e-mail is re-
ceived, a message is displayed on the
upper side of the screen.
Select to set display of messaging ac-
count names on the inbox tab on/off.
When set to on, messaging account
names used on the cellular phone will
be displayed.
Select to reset all setup items.

212
2. SETUP
1Display the phone top screen.
(P.187)
2Select .
3Select “Settings”.
1Display the “Phone/Message Settings”
screen. (P.201)
2Select “Phone Display Settings”.
3Select the desired item to be set.
INFORMATION
●Depending on the phone, these func-
tions may not be available.
DISPLAYING THE “Messaging
Settings” SCREEN IN A
DIFFERENT WAY
“Phone Display Settings”
SCREEN
No.Function
Select to change the incoming call
display.
“Full Screen”: When a call is re-
ceived, the hands-free screen is dis-
played and can be operated on the
screen.
“Drop-down”: A message is dis-
played on the upper side of the
screen.
Select to set display of the contact/
history transfer completion message
on/off.
Select to reset all setup items.
INFORMATION
●Depending on the phone, these func-
tions may not be available.

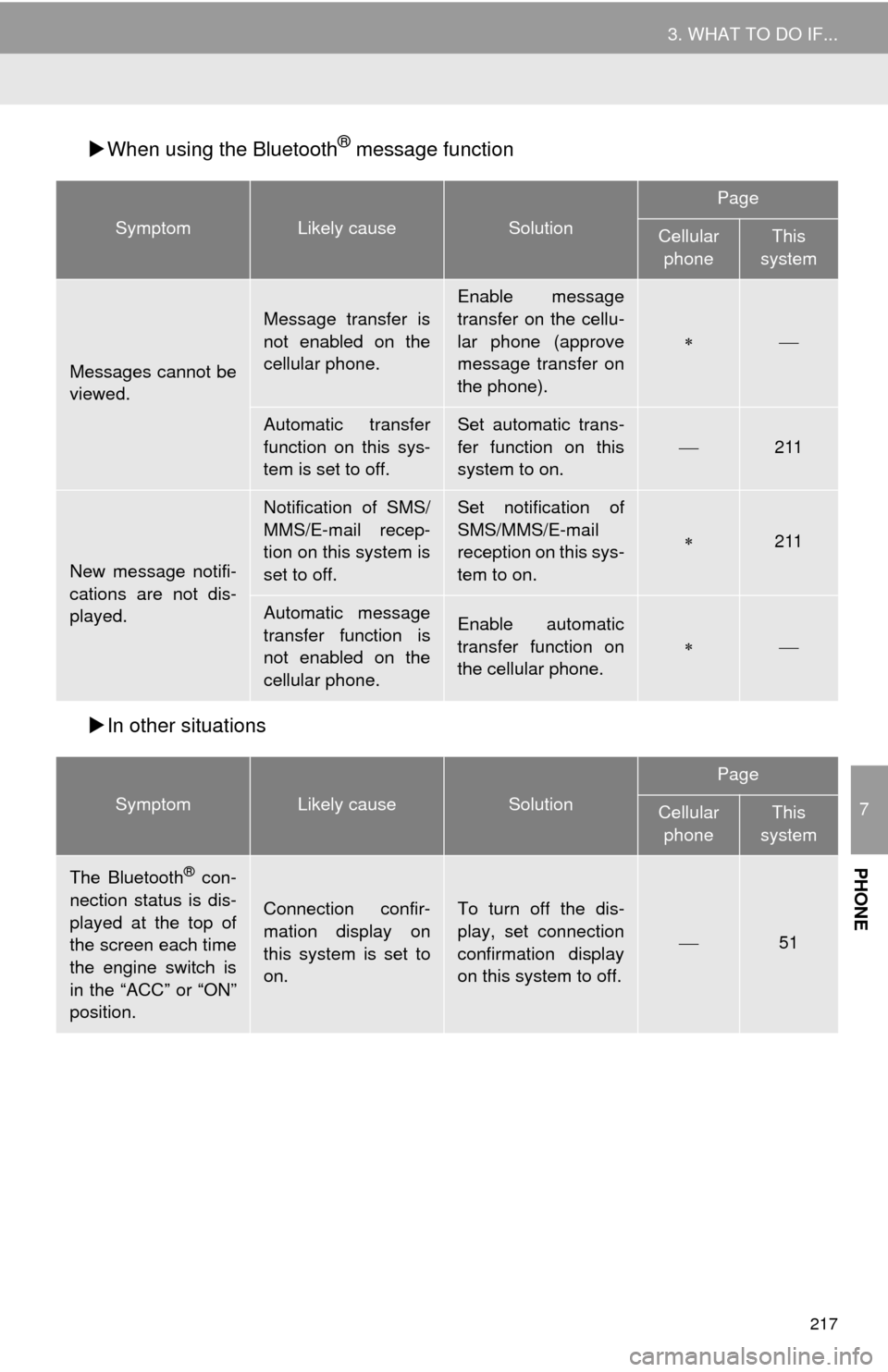

217
3. WHAT TO DO IF...
7
PHONE
When using the Bluetooth® message function
 In other situations
SymptomLikely causeSolution
Page
Cellular
phoneThis
system
Messages cannot be
viewed.
Message transfer is
not enabled on the
cellular phone.
Enable message
transfer on the cellu-
lar phone (approve
message transfer on
the phone).

Automatic transfer
function on this sys-
tem is set to off.Set automatic trans-
fer function on this
system to on.
211
New message notifi-
cations are not dis-
played.
Notification of SMS/
MMS/E-mail recep-
tion on this system is
set to off.Set notification of
SMS/MMS/E-mail
reception on this sys-
tem to on.
211
Automatic message
transfer function is
not enabled on the
cellular phone.Enable automatic
transfer function on
the cellular phone.

SymptomLikely causeSolution
Page
Cellular phoneThis
system
The Bluetooth® con-
nection status is dis-
played at the top of
the screen each time
the engine switch is
in the “ACC” or “ON”
position.
Connection confir-
mation display on
this system is set to
on.To turn off the dis-
play, set connection
confirmation display
on this system to off.
51

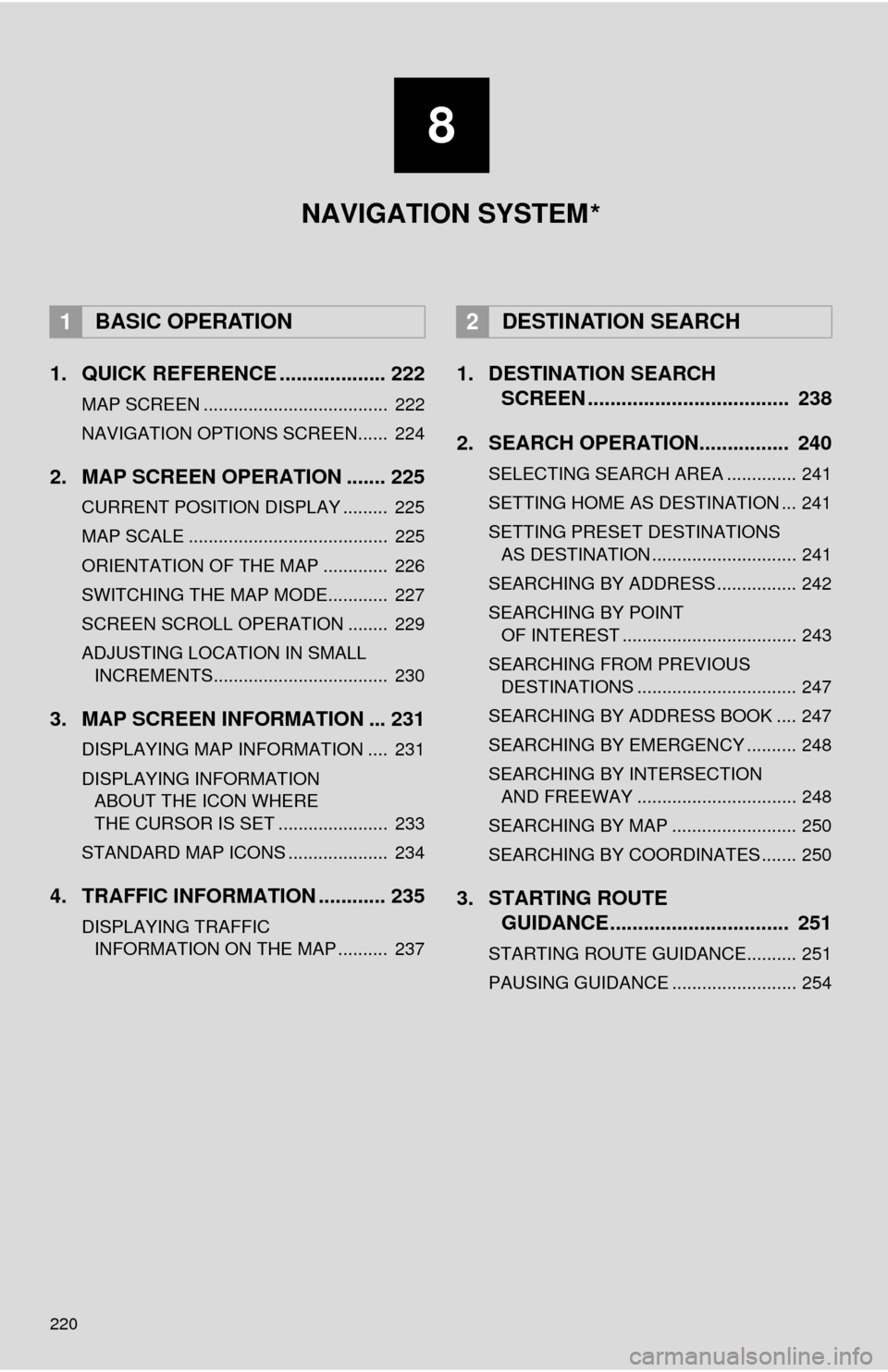

220
1. QUICK REFERENCE ................... 222
MAP SCREEN ..................................... 222
NAVIGATION OPTIONS SCREEN...... 224
2. MAP SCREEN OPERATION ....... 225
CURRENT POSITION DISPLAY ......... 225
MAP SCALE ........................................ 225
ORIENTATION OF THE MAP ............. 226
SWITCHING THE MAP MODE............ 227
SCREEN SCROLL OPERATION ........ 229
ADJUSTING LOCATION IN SMALL INCREMENTS................................... 230
3. MAP SCREEN INFORMATION ... 231
DISPLAYING MAP INFORMATION .... 231
DISPLAYING INFORMATION ABOUT THE ICON WHERE
THE CURSOR IS SET ...................... 233
STANDARD MAP ICONS .................... 234
4. TRAFFIC INFORMATION ............ 235
DISPLAYING TRAFFIC INFORMATION ON THE MAP .......... 237
1. DESTINATION SEARCH SCREEN .................................... 238
2. SEARCH OPERATION.. .............. 240
SELECTING SEARCH AREA .............. 241
SETTING HOME AS DESTINATION ... 241
SETTING PRESET DESTINATIONS
AS DESTINATION ............................. 241
SEARCHING BY ADDRESS ................ 242
SEARCHING BY POINT OF INTEREST ................................... 243
SEARCHING FROM PREVIOUS DESTINATIONS ................................ 247
SEARCHING BY ADDRESS BOOK .... 247
SEARCHING BY EMERGENCY .......... 248
SEARCHING BY INTERSECTION AND FREEWAY ................................ 248
SEARCHING BY MAP ......................... 250
SEARCHING BY COORDINATES ....... 250
3. STARTING ROUTE GUIDANCE ....... ......................... 251
STARTING ROUTE GUIDANCE.......... 251
PAUSING GUIDANCE ......................... 254
1BASIC OPERATION2DESTINATION SEARCH
8
NAVIGATION SYSTEM
*

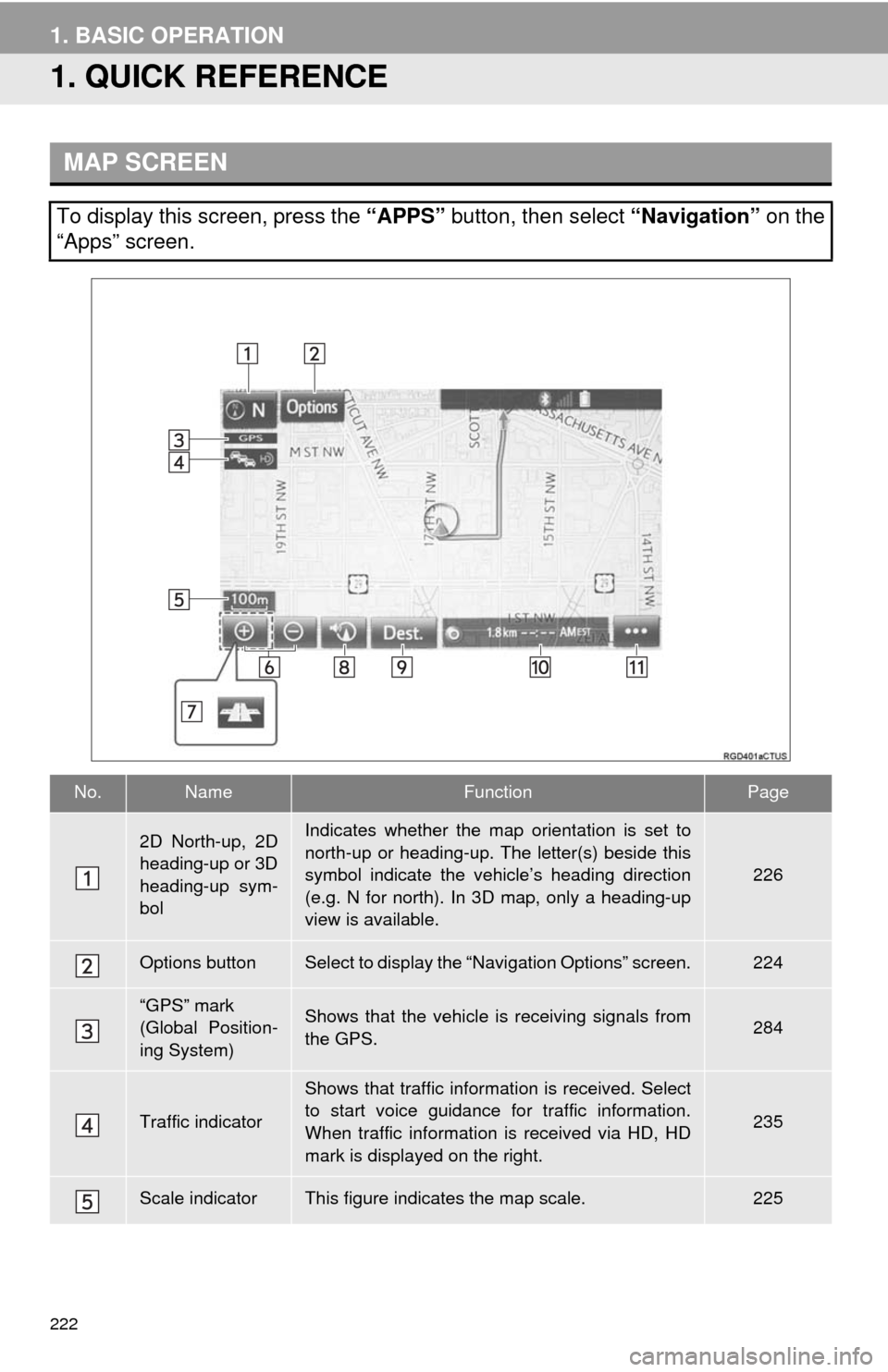

222
1. BASIC OPERATION
1. QUICK REFERENCE
MAP SCREEN
To display this screen, press the “APPS” button, then select “Navigation” on the
“Apps” screen.
No.NameFunctionPage
2D North-up, 2D
heading-up or 3D
heading-up sym-
bolIndicates whether the map orientation is set to
north-up or heading-up. The letter(s) beside this
symbol indicate the vehicle’s heading direction
(e.g. N for north). In 3D map, only a heading-up
view is available.
226
Options buttonSelect to display the “Navigation Options” screen.224
“GPS” mark
(Global Position-
ing System)Shows that the vehicle is receiving signals from
the GPS.284
Traffic indicator
Shows that traffic information is received. Select
to start voice guidance for traffic information.
When traffic information is received via HD, HD
mark is displayed on the right.
235
Scale indicatorThis figure indicates the map scale.225

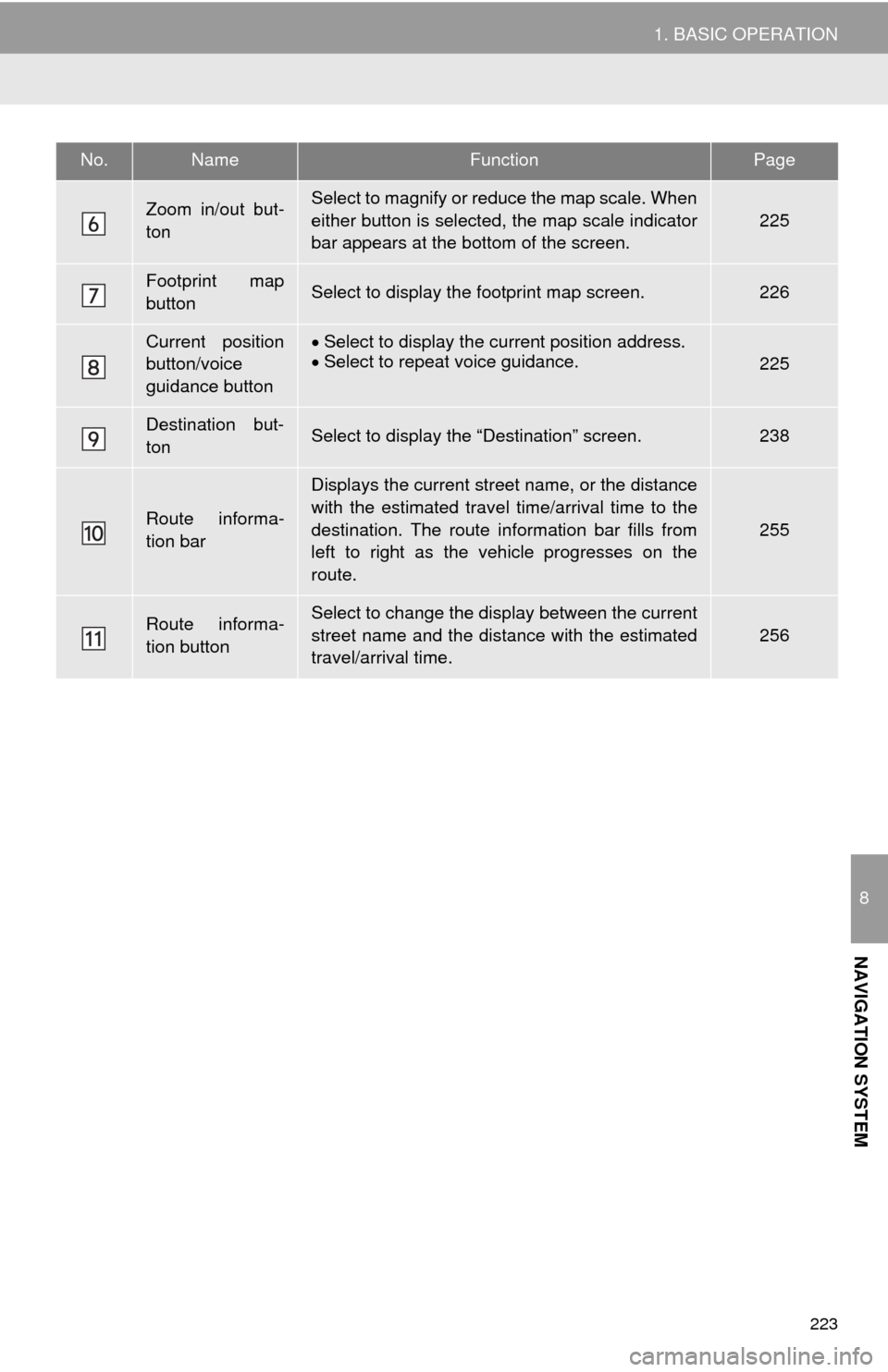

223
1. BASIC OPERATION
8
NAVIGATION SYSTEM
Zoom in/out but-
tonSelect to magnify or reduce the map scale. When
either button is selected, the map scale indicator
bar appears at the bottom of the screen.
225
Footprint map
buttonSelect to display the footprint map screen.226
Current position
button/voice
guidance buttonSelect to display the current position address.
Select to repeat voice guidance.225
Destination but-
tonSelect to display the “Destination” screen.238
Route informa-
tion bar
Displays the current street name, or the distance
with the estimated travel time/arrival time to the
destination. The route information bar fills from
left to right as the vehicle progresses on the
route.
255
Route informa-
tion buttonSelect to change the display between the current
street name and the distance with the estimated
travel/arrival time.
256
No.NameFunctionPage

224
1. BASIC OPERATION

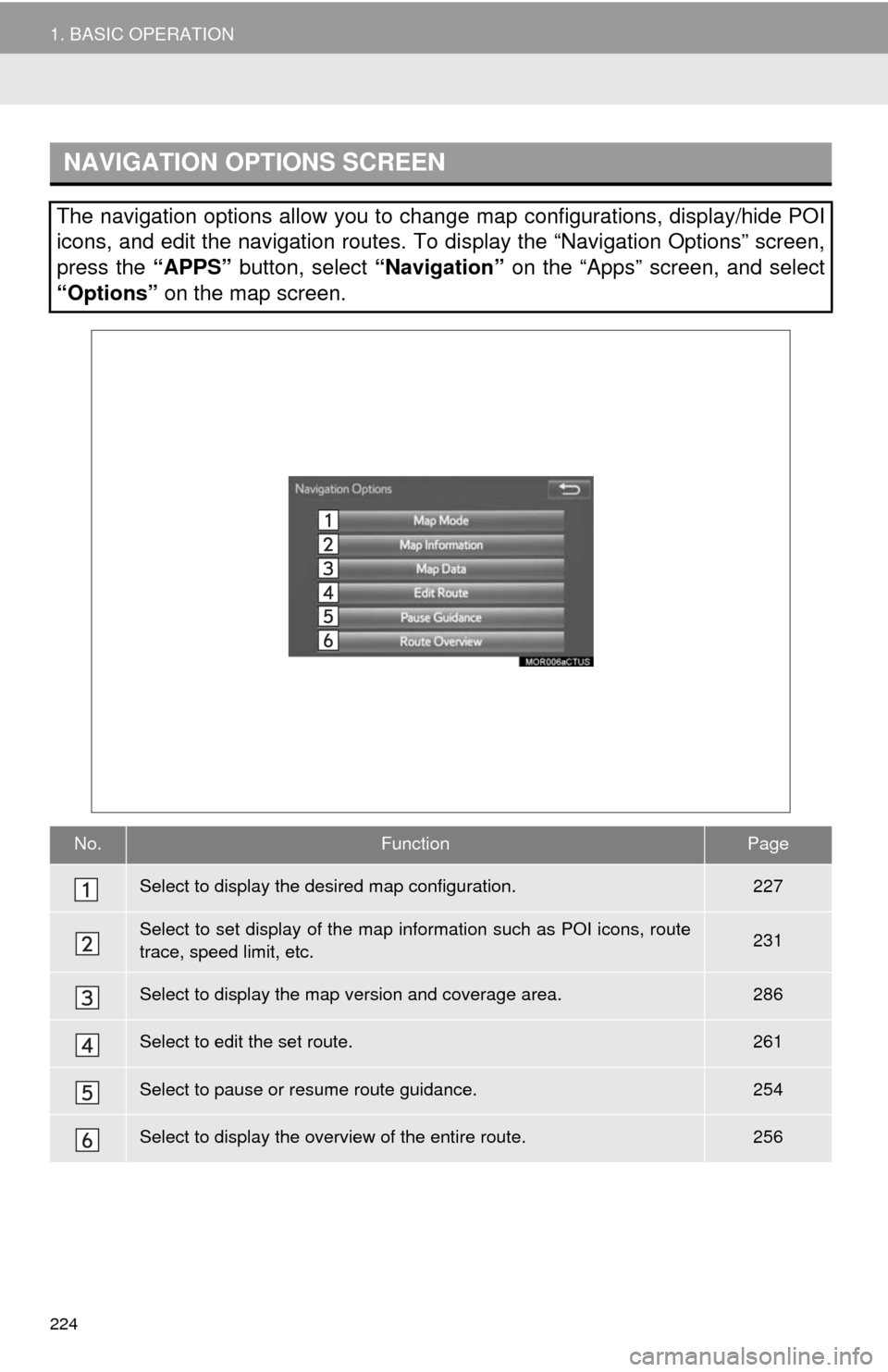

NAVIGATION OPTIONS SCREEN
The navigation options allow you to change map configurations, display/hide POI
icons, and edit the navigation routes. To display the “Navigation Options” screen,
press the “APPS” button, select “Navigation” on the “Apps” screen, and select
“Options” on the map screen.
No.FunctionPage
Select to display the desired map configuration.227
Select to set display of the map information such as POI icons, route
trace, speed limit, etc.231
Select to display the map version and coverage area.286
Select to edit the set route.261
Select to pause or resume route guidance.254
Select to display the overview of the entire route.256

225
1. BASIC OPERATION
8
NAVIGATION SYSTEM
2. MAP SCREEN OPERATION
1Press the “APPS” button.
2Select “Navigation”.
3Check that the current position map is
displayed.
1Select or to change the
scale of the map screen.
The scale indicator bar appears at the bot-
tom of the screen.
Select and hold or to con-
tinue changing the scale of the map
screen.
The scale of the map screen can also be
changed by selecting the scale bar
directly. This function is not available while
driving.
CURRENT POSITION
DISPLAY
To correct the current position manu-
ally:
P. 2 7 6
INFORMATION
●While driving, the current position mark
is fixed on the screen and the map
moves.
●The current position is automatically set
as the vehicle receives signals from the
GPS (Global Positioning System). If the
current position is not correct, it is auto-
matically corrected after the vehicle
receives signals from the GPS.
●After the battery disconnection, or on a
new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the cor-
rect current position is displayed.
MAP SCALE
INFORMATION
●The map scale is displayed above the
zoom in button at the bottom left of the
screen.
●In areas where the footprint map is avail-
able the map scale changes from
to when at the minimum range.

226
1. BASIC OPERATION
1Select on the map screen.
2Check that the footprint map is dis-
played.
To return to the normal map display, select
.
1Select , or .
North-up screen
Heading-up screen
3D screen
FOOTPRINT MAP
For areas covered by the footprint map
(some major cities), a footprint map on
a scale of 75 ft. (25 m) can be selected.
When the map is scaled down to 150 ft.
(50 m), changes to and
can be selected to display the footprint
map.
INFORMATION
●If the map or the current position is
moved to the area which is not covered
by the footprint map, the screen scale
automatically changes to 150 ft. (50 m).
●On the footprint map, a one way street is
displayed by .
●Scrolling on the footprint map is not
available while driving.
Building footprints in the database
were created and provided by
NAVTEQ.
ORIENTATION OF THE MAP
The orientation of the map can be
changed between 2D north-up, 2D
heading-up and 3D heading-up by se-
lecting the orientation symbol dis-
played at the top left of the screen.
