engine TOYOTA SEQUOIA 2016 2.G Quick Reference Guide

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1
2016
Sequoia
INDEX
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND
EMERGENCY FEATURES
Engine maintenance 10
Fuel tank door release and cap 9
Hood release 10
Indicator symbols 6-7
Instrument cluster 5
Instrument panel 2-4
Keyless entry
1 8
Light control-Instrument panel 9
Accessory meter 29
Air Conditioning/Heating 22-23
Audio 24-25
Auto lock/unlock
1 11
Automatic Transmission 11
Bluetooth
® Device Pairing Section 37-46
Blind Spot Monitor (BSM) 13
Cruise control 26
Cup holders 31
Door locks 28
Door-Power back 19
Driving position memory 20
Dynamic Laser Cruise Control 27
Four-wheel drive 12
Garage door opener (HomeLink
®)3 26
Lights1 & turn signals 17
Moonroof 20
Multi-Information Display
2 28
Parking brake 12
Power outlets-12V DC 30
Power outlets-120V AC 30
Rear seat entertainment system 31
Rear view monitor system 25
Seat adjustments-Front 15
Seat adjustments-Rear 14
Seat ventilators/heaters 23
Seats-Folding second row seats 15
Seats-Folding third row seats 16
Seats-Head restraints 13
Telephone controls (Bluetooth
®) 29
Tilt and telescopic steering wheel 21
TOW/HAUL switch 11
VSC OFF switch 21
Window-Back
19Windows 18
Windshield wipers & washers 18
Doors-Child safety locks 33
Floor mat installation 35
Seat belts 32
Seat belts-Shoulder belt anchor 33
Spare tire & tools 33
Star Safety System
TM 34-35
Tire Pressure Monitoring (warning) System 32
1 Visit your Toyota dealer for information on customizing this feature.2 Programmable by customer. Refer to the Owner’s Manual for instructions and more information.3 HomeLink® is a registered trademark of Gentex Corporation.
2016_Sequoia_QRG.r2.indd 17/9/15 11:37 AM

4
Accessory meter
Theft deterrent/Engine immobilizer system indicator
Multimedia system
2
Air Conditioning controls
Outside rearview mirror defogger1/Back window defogger/Windshield
wiper de-icer button1
12V DC power outlet
Seat heater1 and ventilator1 controls
Cigarette lighter
AUX audio jack/USB port
Height control switch
1
AVS switch1
TOW/HAUL button1
Center differential lock/unlock switch1
Front-wheel drive control switch1
Intuitive parking assist button1
Multi-Information Display control buttons1 and/or accessory meter
control buttons1
Emergency flasher button
1 If equipped2 For details, refer to the “Navigation System Owner’s Manual” and
“2016 Entune™ Audio Quick Reference Guide.”
OVERVIEW
Instrument cluster
Tachometer
Speedometer
Service indicator and reminder
Fuel gauge
Voltmeter
Engine oil pressure gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button
Multi-Information Display
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Automatic Transmission fluid temperature gauge*
* If equipped
With Multi-Information Display
Without Multi-Information Display
Center panel area
2016_Sequoia_QRG.r2.indd 47/9/15 11:39 AM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
5
Instrument cluster
Tachometer
Speedometer
Service indicator and reminder
Fuel gauge
Voltmeter
Engine oil pressure gauge
Engine coolant temperature
Odometer/Trip meter and trip meter reset button
Multi-Information Display
Odometer and two trip meters
Automatic Transmission shift position indicator
Automatic Transmission shift range display
Automatic Transmission fluid temperature gauge*
* If equipped
With Multi-Information Display
Without Multi-Information Display
2016_Sequoia_QRG.indd 57/6/15 8:10 PM

6
Indicator symbols
Charging system warning*Brake system warning*
AIR BAG ON indicator
Driver seat belt reminder
(alarm will sound if speed is over 12 mph)
Front passenger seat belt reminder
(alarm will sound if speed is over 12 mph)
AIR BAG OFF indicator*
For details, refer to “Indicators and warning lights,” Section 2-2, 2016 Owner’s
Manual .
Headlight low/high beam indicator
Turn signal indicator
Low Tire Pressure Warning *
Power steering warning*
Open door warning
Airbag SRS warning*
Master warning
Theft deterrent/Engine immobilizer system indicator Malfunction/Check Engine indicator*
Maintenance/Service required indicator
Low fuel level warning
Roll Sensing of Curtain shield Airbag OFF indicator *
Shift position and shift range indicators
Vehicle Stability Control OFF indicator*
TOW/HAUL mode indicator
Low windshield washer fluid level warning
OVERVIEW
* If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
2016_Sequoia_QRG.r2.indd 67/10/15 4:48 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
7
For details, refer to “Indicators and warning lights,” Section 2-2, 2014 Owner’s
Manual .
Anti-lock Brake System warning*
Slip indicator*
High/Low speed four-wheel drive indicator
Center differential lock indicator
Cruise control indicator AUTO Limited Slip Differential indicator *
Height control indicator*
Height control/MANUAL indicator*
* If indicator does not turn off within a few seconds of starting engine, there may be a
malfunction. Have vehicle inspected by your Toyota dealer.
Automatic Transmission fluid temperature warning*
Traction Control OFF indicator*
Blind Spot Monitor (BSM) outside rearview mirror indicators
Fuel tank door position
2016_Sequoia_QRG.r2.indd 77/9/15 11:39 AM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
9
NOTE: If a door is not opened within 60 seconds of unlocking, all doors will relock for
safety.
Fuel tank door release and cap
NOTE: Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “
”
indicator may illuminate.
Turn to open
Store
Pull
Light control-Instrument panel
Brightness
control
-
+
2016_Sequoia_QRG.indd 97/6/15 8:10 PM

10
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”

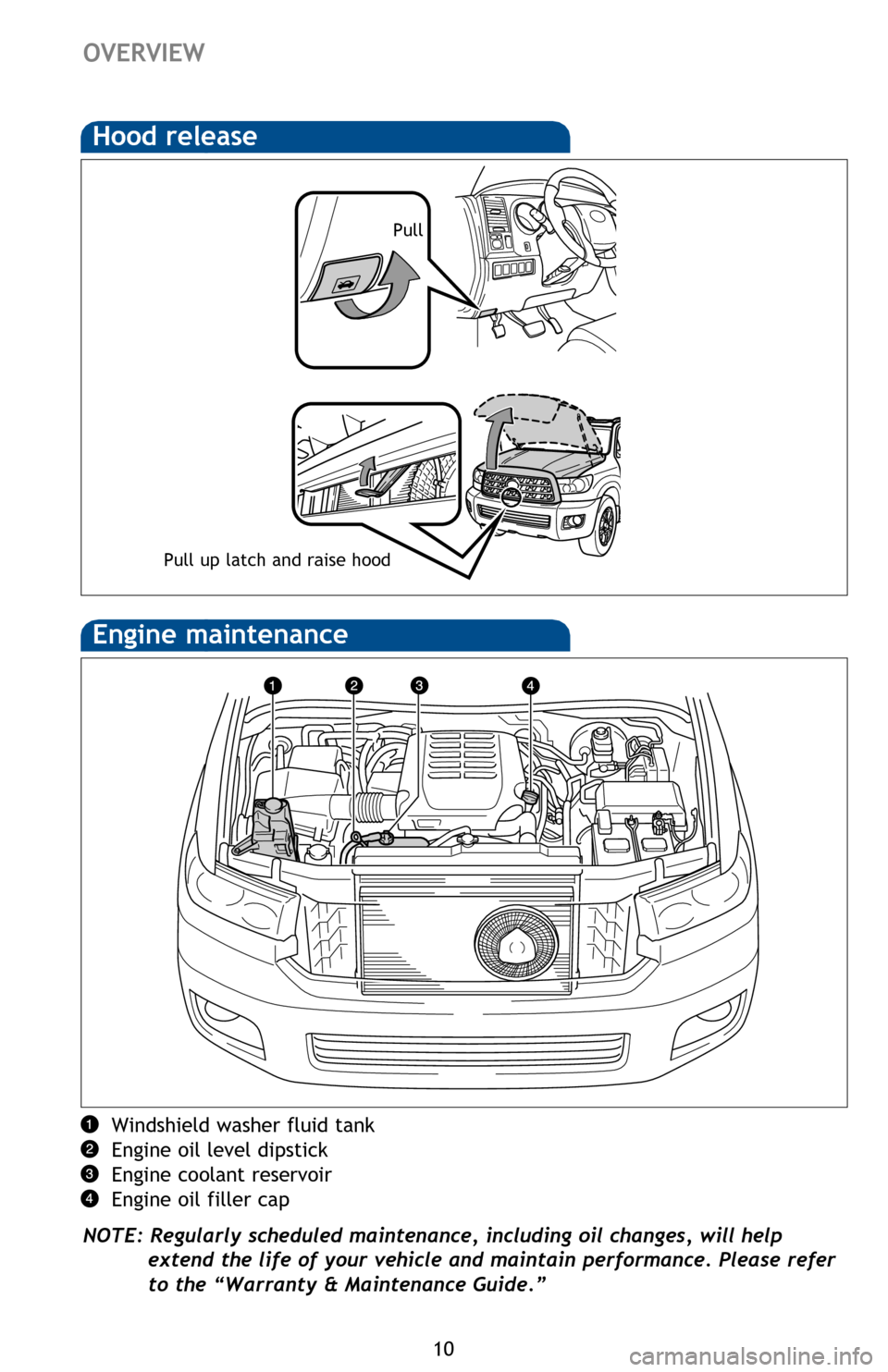

Engine maintenance
OVERVIEWFEATURES/OPERATIONS
Automatic Transmission
* The ignition switch must be “ON” and the brake pedal depressed t\
o shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the
shift lever in the “D” position.
“S” (Sequential) mode
TOW/HAUL switch (if equipped)
“TOW/HAUL” mode can be used when carrying heavy loads. As fuel economy is
reduced while in “TOW/HAUL” mode, deactivating when driving without a load is
recommended.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
Hood release
Pull up latch and raise hood
Pull
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the ignition switch to the “ACC” or “LOCK” position.
Refer to the Owner’s Manual for more details.
2016_Sequoia_QRG.indd 107/6/15 8:10 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
11
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance. Please refer
to the “Warranty & Maintenance Guide.”
FEATURES/OPERATIONS

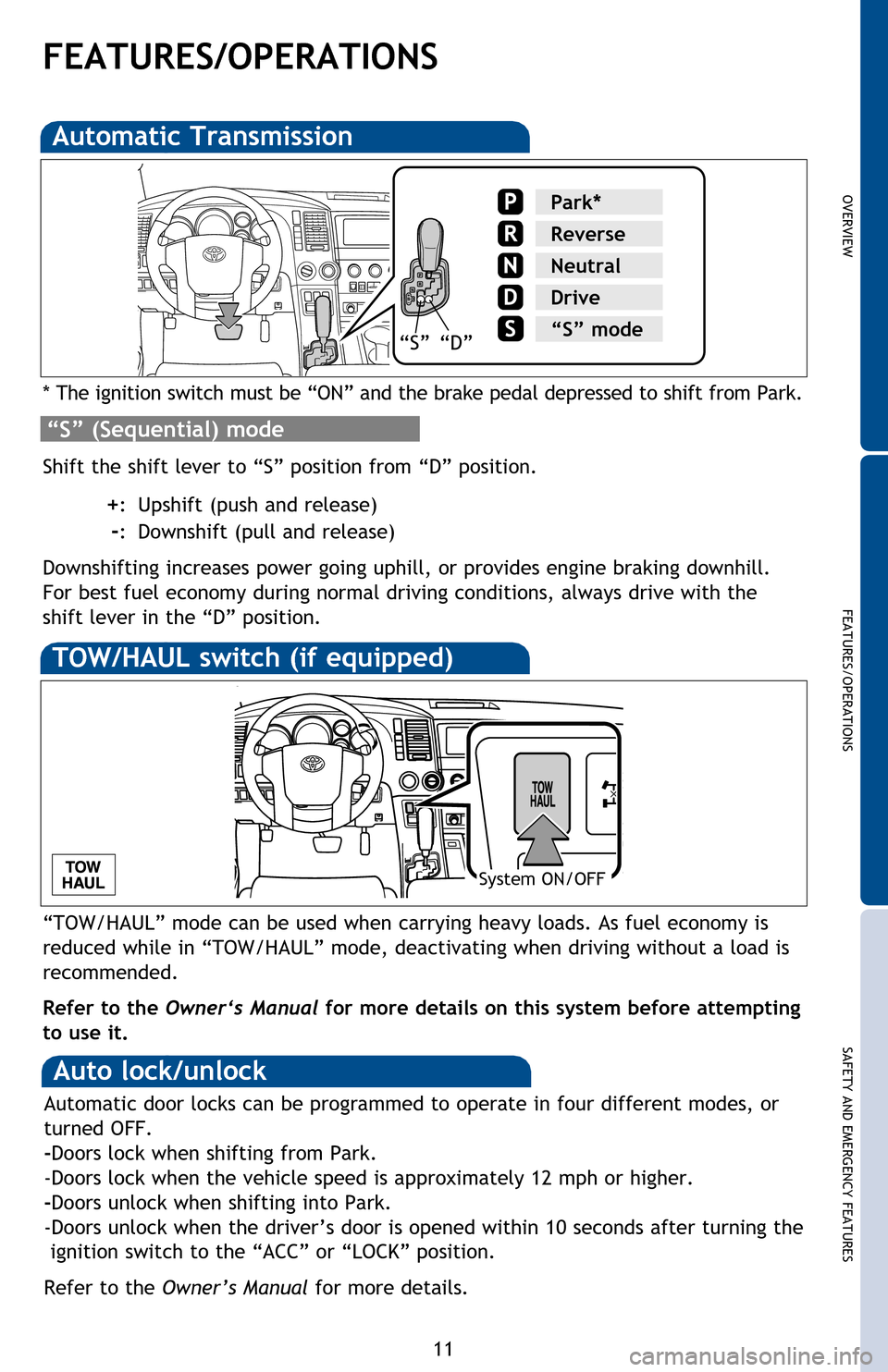

Automatic Transmission
* The ignition switch must be “ON” and the brake pedal depressed t\
o shift from Park.
Shift the shift lever to “S” position from “D” position.

+: Upshift (push and release)

-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking downhill.
For best fuel economy during normal driving conditions, always drive with the
shift lever in the “D” position.
“S” (Sequential) mode
Park*
Reverse
Neutral
Drive
“S” mode“S”“D”
TOW/HAUL switch (if equipped)
“TOW/HAUL” mode can be used when carrying heavy loads. As fuel economy is
reduced while in “TOW/HAUL” mode, deactivating when driving without a load is
recommended.
Refer to the Owner‘s Manual for more details on this system before attempting
to use it.
System ON/OFF
Auto lock/unlock
Automatic door locks can be programmed to operate in four different modes, or
turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds after turning the ignition switch to the “ACC” or “LOCK” position.
Refer to the Owner’s Manual for more details.
2016_Sequoia_QRG.indd 117/6/15 8:10 PM

16
FEATURES/OPERATIONS
(1) Release the center seat belt tab.
(2) Stow the center seat belt tab.
(3) Lower the head restraint.
(4) Stow the seat belt buckles.
(5) Fold the head restraint.
(6) Fold the seats.
(1)
(6)
(3)
(2)

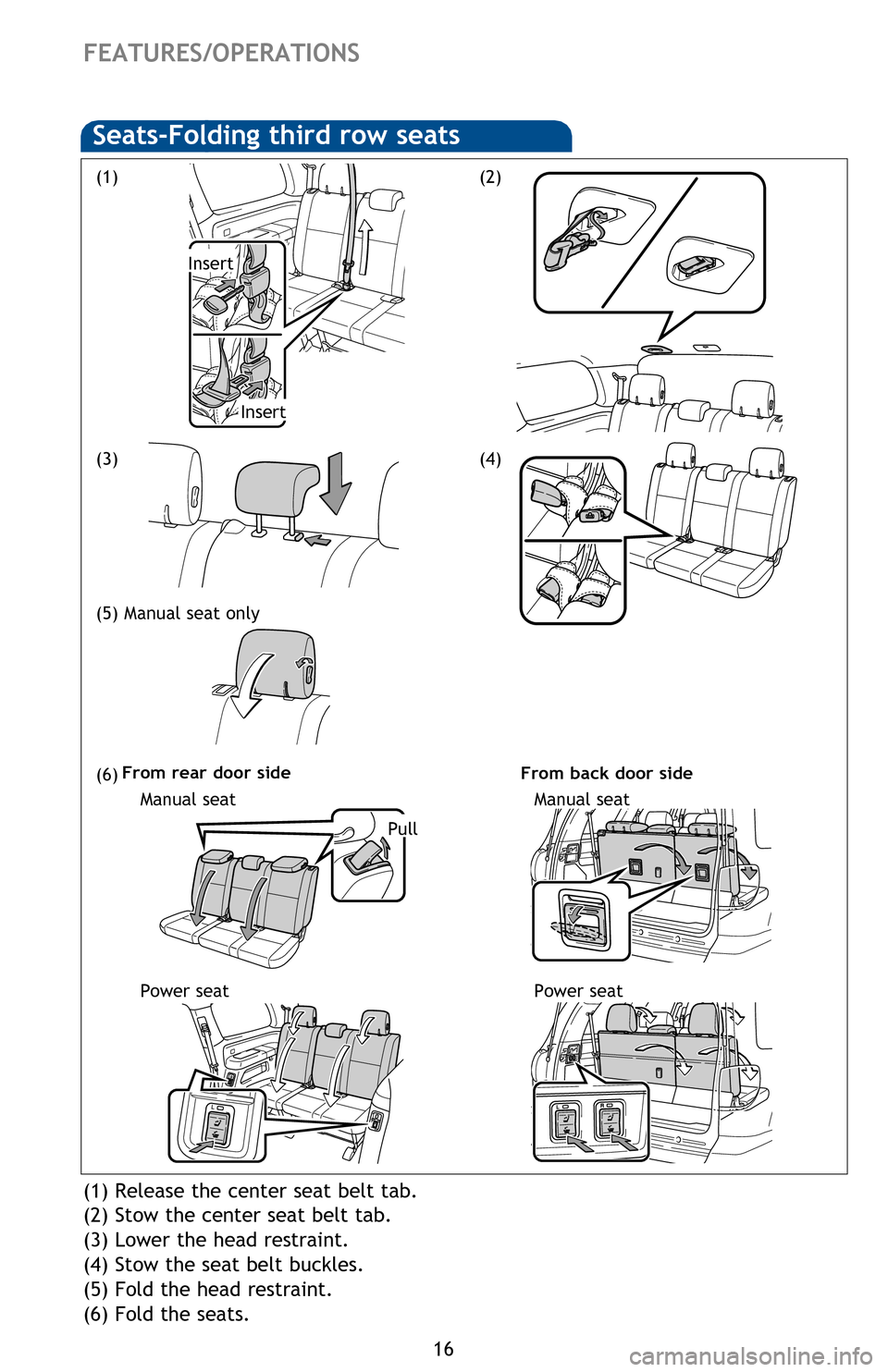

Seats-Folding third row seats
(4)
Power seat
Lights & turn signals
Headlights
Front fog lights (if equipped)
-Daytime Running Light system (DRL) Automatically turns on the front turn signal lights upon starting engine and releasing parking brake.
-Automatic light cut off system Automatically turns lights off after a delay of 30 seconds, or the lock switch on remote may be pushed after locking.
Front fog lights come on only when the
headlights are on low beam.
Parking lights
Pull
Insert
From back door side
From rear door side
Power seat
Manual seatManual seat
Type A
Type C
Insert
(5) Manual seat only
Type AType B
2016_Sequoia_QRG.indd 167/6/15 8:10 PM

OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
17
(1) Release the center seat belt tab.
(2) Stow the center seat belt tab.
(3) Lower the head restraint.
(4) Stow the seat belt buckles.
(5) Fold the head restraint.
(6) Fold the seats.

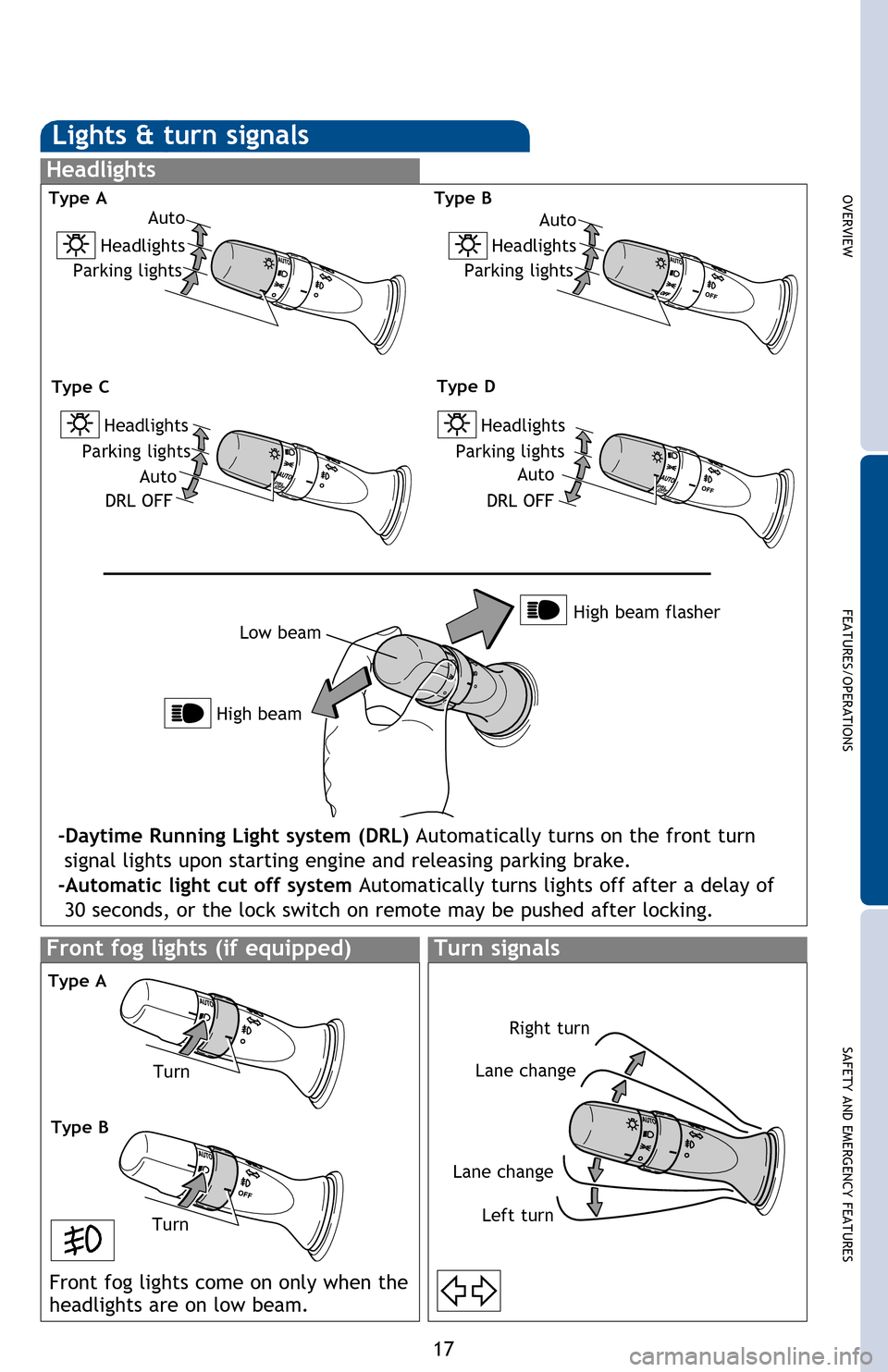

Lights & turn signals
Turn signals
Headlights
High beam Low beam
Front fog lights (if equipped)
-Daytime Running Light system (DRL) Automatically turns on the front turn
signal lights upon starting engine and releasing parking brake.
-Automatic light cut off system Automatically turns lights off after a delay of 30 seconds, or the lock switch on remote may be pushed after locking.
Front fog lights come on only when the
headlights are on low beam.
Right turn
Lane change
Lane change Left turn High beam flasher
Auto
Headlights
Parking lights
Turn
Type A
Type C
Auto
Headlights
Parking lights
DRL OFF
Auto
Headlights
Parking lightsType B
Type D
Type AType B
Turn Auto
Headlights
Parking lights
DRL OFF
2016_Sequoia_QRG.indd 177/6/15 8:10 PM
