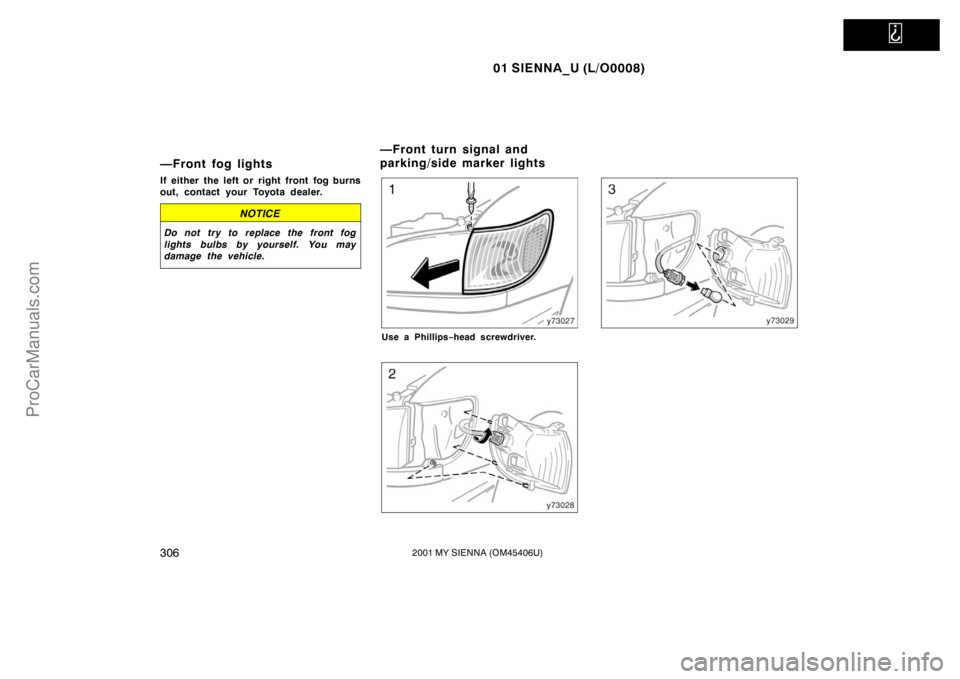

—Front fog lights
If either the left or right front fog burns
out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog
lights bulbs by yourself. You may
damage the vehicle.
Use a Phillips−head screwdriver.
—Front turn signal and
parking/side marker lights
ProCarManuals.com

01 SIENNA_U (L/O0008)
3072001 MY SIENNA (OM45406U)

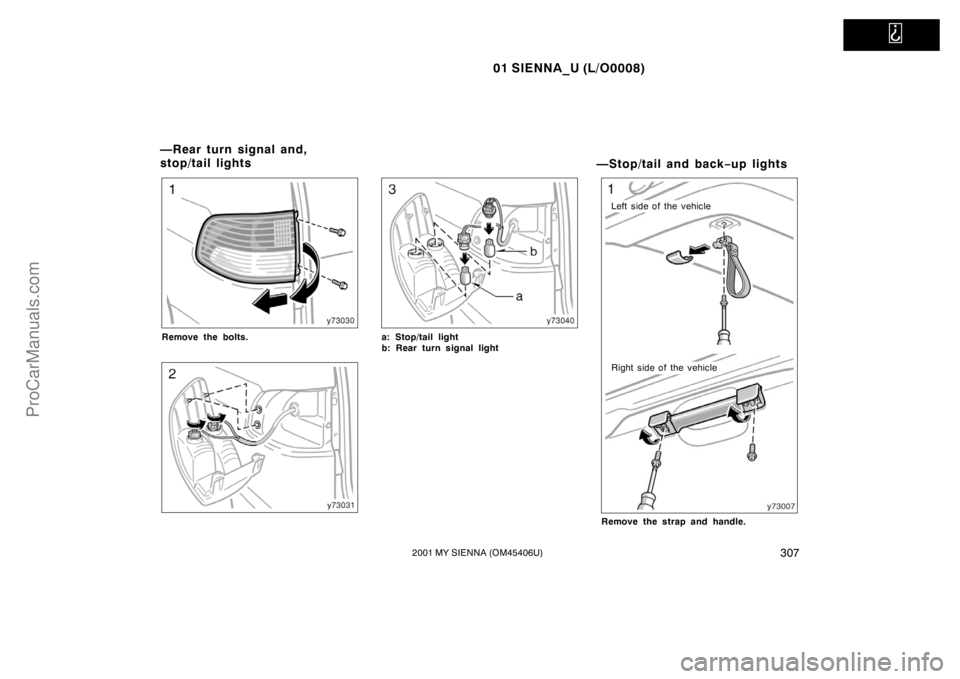

Remove the bolts.a: Stop/tail light
b: Rear turn signal light
—Stop/tail and back−up lights
Left side of the vehicle
Right side of the vehicle
Remove the strap and handle.
—Rear turn signal and,
stop/tail lights
ProCarManuals.com

01 SIENNA_U (L/O0008)
3082001 MY SIENNA (OM45406U)
a: Back−up light
b: Stop/tail light
—License plate lights
Use a Phillips−head screwdriver.
ProCarManuals.com

01 SIENNA_U (L/O0008)
3092001 MY SIENNA (OM45406U)

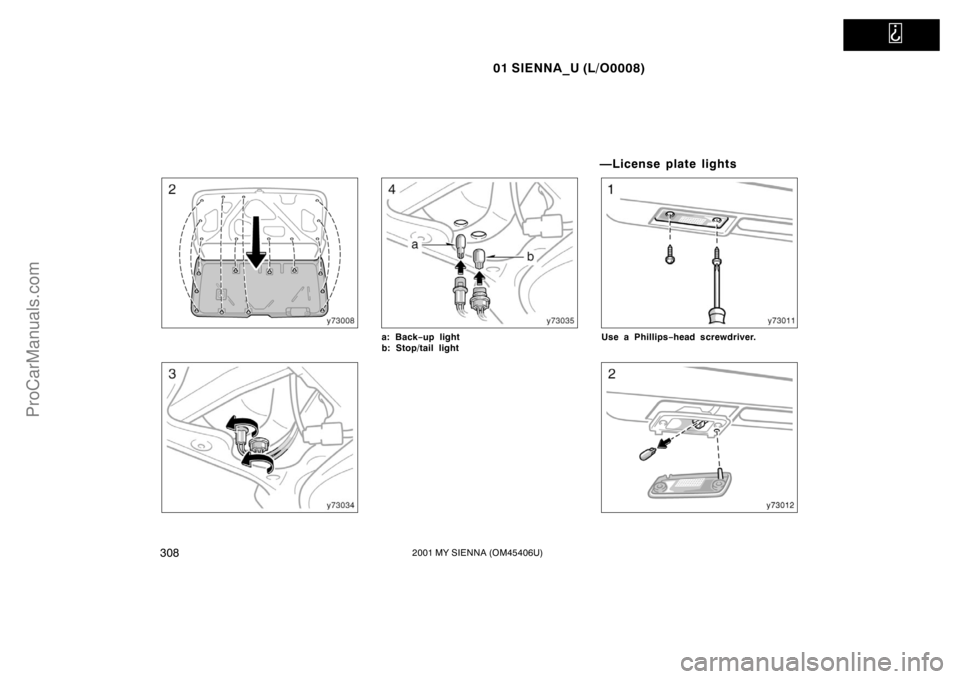

—High mounted stoplight
Use a Phillips−head screwdriver.
ProCarManuals.com

01 SIENNA_U (L/O0008)
3102001 MY SIENNA (OM45406U)
ProCarManuals.com

01 SIENNA_U (L/O0008)
3112001 MY SIENNA (OM45406U)
SPECIFICATIONS
Dimensions and weight312 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine312 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel313 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service specifications313 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tires315 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuses316 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 8
ProCarManuals.com

01 SIENNA_U (L/O0008)
3122001 MY SIENNA (OM45406U)
Dimensions and weight Engine
Model:
1MZ−FE
Type:
6 cylinder V type 4 cycle, gasoline
Bore and stroke, mm (in.):
87.583.0 (3.443.27)
Displacement, cm
3 (cu. in.):
2995 (182.8) Overall width mm (in.)
2900 (114.2) Overall height mm (in.)
1610 (63.4) Wheelbase mm (in.)
Front tread mm (in.) 1565 (61.6)
Rear tread mm (in.)
526 (1160)
∗: Unladen vehicleOverall length mm (in.)
Vehicle capacity weight kg (lb.)
(occupants + luggage)4930 (194.1)
1865 (73.4)
1710 (67.3)
∗
ProCarManuals.com

01 SIENNA_U (L/O0008)
3132001 MY SIENNA (OM45406U)
Fuel
Fuel type:
Unleaded gasoline, Octane Rating 87
(Research Octane Number 91) or higher.
For improved vehicle performance, the
use of premium unleaded gasoline with
an Octane Rating of 91 (Research Oc-
tane Number 96) or higher is recom-
mended.
Fuel tank capacity, L (gal., Imp. gal.):
79 (21, 17.5)
Service specifications
ENGINE
Valve clearance (engine cold), mm (in.):
Intake 0.15—0.25 (0.006—0.010)
Exhaust 0.25—0.35 (0.010—0.014)
Spark plug type:
DENSO SK20R11
NGK IFR6A11
Spark plug gap, mm (in.):
1.1 (0.043)
Drive belt tension measured with Bor-
roughs drive belt tension gauge
No.BT−33−73F (used belt), Ibf:
Generator belt 12510
Power steering pump belt 11520
ENGINE LUBRICATION
Oil capacity (drain and refill), L (qt., Imp.
qt.):
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
Oil grade:
API grade SJ, “Energy−Conserving” or
ILSAC multigrade engine oil is recom-
mended.Recommended oil viscosity (SAE):
5W-30 Preferred
Temperature range anticipated before
next oil change
COOLING SYSTEM
Total capacity, L (qt., Imp. qt.):
10.4 (11.0, 9.2)
Coolant type:
“TOYOTA Long Life Coolant” or equiva-
lent
With ethylene−glycol type coolant for a
proper corrosion protection of aluminum
components
Do not use alcohol type antifreeze or
plain water alone.
ProCarManuals.com

01 SIENNA_U (L/O0008)
3142001 MY SIENNA (OM45406U)
BATTERY
Open voltage
∗ at 20C (68F):
12.6—12.8 V Fully charged
12.2—12.4 V Half charged
11.8—12.0 V Discharged
∗: Voltage that is checked 20 minutes af-
ter the key is removed with all the
lights turned off
Charging rates:
5 A max.
AUTOMATIC TRANSAXLE
Fluid capacity (drain and refill),
L (qt., Imp. qt.):
Up to 4.75 (5.0, 4.2)
Fluid type:
Automatic transmission fluid D−ll or
DEXRONIII (DEXRONII)BRAKES
Minimum pedal clearance when depressed
with the force of 490 N (50 kgf, 110 lbf)
with the engine running, mm (in.):
96 (3.8)
Pedal free play, mm (in.):
1—6 (0.04—0.24)
Pad wear limit, mm (in.):
1.0 (0.04)
Lining wear limit, mm (in.):
1.0 (0.04)
Parking brake adjustment when depressed
with the force of 294 N (30 kgf, 66 lbf):
3—5 clicks
Fluid type:
SAE J1703 or FMVSS No.116 DOT 3
STEERING
Wheel free play:
Less than 30 mm (1.2 in.)
Power steering fluid type:
Automatic transmission fluid DEXRONII
or III
ProCarManuals.com

01 SIENNA_U (L/O0008)
3152001 MY SIENNA (OM45406U)
Tires
Wheel nut torque, N·m (kgf·m, ft·lbf):
104 (10.5, 77)
NOTE: For a complete information on
tires (e.g. replacing tires or re-
placing wheels), see “Checking
tire pressure” through “Aluminum
wheel precautions” in Section 7−2.
Tire size Wheel size
P205/70R15 95S 240 (2.4, 35) 156.5JJ
220 (2.2, 32)
∗
1
240 (2.4, 35)∗
2
T145/80D16 420 (4.2, 60)156.5JJ
164T P215/65R15 95S
Tire size Wheel size
P205/70R15 95S 240 (2.4, 35) 156.5JJ
240 (2.4, 35) 156.5JJ P215/65R15 95S
When driving under the above vehicle load conditions at sustained high speeds above
160 km/h (100 mph), in countries where such speeds are permitted by−law, inflate
the front and rear tires to 240 kPa (2.4 kgf/cm
2 or bar, 35 psi) provided that it does
not exceed the maximum cold tire pressure molded on the tire sidewall.
∗
1: Vehicle load up to 6 passengers∗
2: Up to vehicle capacity weight Normal driving
Trailer towing Tire size and pressure:
Tire pressure,
kPa (kgf/cm
2 or bar, psi)
Tire pressure,
kPa (kgf/cm
2 or bar, psi)
ProCarManuals.com
