TOYOTA SIENNA 2007 XL20 / 2.G Navigation Manual

11
The registered point is shown by on the
map.
To change the icon or name, etc., see “ —
Editing memory points” on page 71.
Up to 106 memory points can be registered.
If there is an attempt to register more than
106, a message appears for confirmation.
To see information about the icon
where the cursor is set
To display information about an icon, set the
cursor on it.POI INFORMATION
When the cursor is set on a POI icon, the
name and “Info.” are displayed on the top of
the screen.
Touch “Info.”.
Information such as the name, address, and
phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination.

12 If there is already a set destination, “Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
To register this POI as a memory point, touch
“Mark”. (See page 70.)
If
is touched, the registered tele-
phone number can be called.
INFORMATION
The desired Point of Interest can be dis-
played on the map screen. (See “ — Dis-
play POI icons” on page 58.)
MEMORY POINT INFORMATION
When the cursor is set on a memory point
icon, the name and “Info.” are displayed on
the top of the screen.
Touch “Info.”.
Information such as the name, address, and
phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination.If there is already a set destination, “Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
To edit a memory point, touch “Edit”. (See “
— Editing memory points” on page 71.)
To delete a memory point, touch “Delete”.
If
is touched, the registered tele-
phone number can be called.

13 DESTINATION INFORMATION
When the cursor is set on a destination icon,
the name and “Info.” are displayed on the top
of the screen.
Touch “Info.”.
Information such as the name, address, and
phone number are displayed.
To delete a destination, touch “Delete”.
If
is touched, the registered tele-
phone number can be called.
— Switching the screens
Any one of the screen configurations can be
selected.
1. Touch this touchscreen button to dis-
play the following screen.
2. To select the desired screen configura-
tion, touch one of the following touch
screen buttons.

14 Depending on the conditions, certain screen
configuration buttons cannot be selected.
:To display the single map screen.
(See page 14.)
:To display the dual map screen. (See
page 14.)
:To display the compass mode
screen. (See page 15.)
:To display the turn list screen. (See
page 50.)
:To display the arrow screen. (See
page 50.)
:To display the freeway information
screen. (See page 48.)
:To display the intersection guidance
screen or the guidance screen on the
freeway. (See page 49.)
Screen configurations
SINGLE MAP
This is a regular map screen.
While on a different screen, touching
will display the single map screen.
The screen shows the single map.DUAL MAP
A map can be displayed split in two.
While on a different screen, touching
will display the dual map screen.
The screen shows the dual map. The map on
the left is the main map.
The right side map can be edited by touching
any specific point on the right side map.

15
This screen can perform the following proce-
dures:
1. Changing the map scale
2. Displaying the POI icon
3. Changing the orientation of the map
Touch “OK” when you complete editing.
The screen returns to the dual map screen.COMPASS MODE
Current vehicle position is indicated with a
compass, not with a map.
While on a different screen, touching
will display the compass mode screen.
Information about the destination and current
position, as well as a compass, is displayed
on the screen.
The destination mark is displayed in the direc-
tion of the destination. When driving, refer to
the longitude and latitude coordinates and the
compass, to make sure that your vehicle is
headed in the direction of the destination.
INFORMATION
When the vehicle goes out of the disc
area, the guidance screen changes into
compass mode.
— Map scale
Touch or to change the scale of
the map display. The scale bar and indicator
at the bottom of the screen indicates the map
scale menu. The scale range is 150 feet (50
m) to 250 miles (400 km).
Touch
or until the scale bar
changes normally. By continuing to touch the
touch−screen button, the scale bar changes
smoothly.
The scale of the map display can be changed
by touching the scale bar directly. It is not
available while driving.
The map scale is displayed under the north−
up symbol or heading−up symbol at the top
left of the screen.

16
INFORMATION
When the map scale is at the maximum
range of 250 miles (400 km), is not
shown. When the map scale is at the
minimum range of 150 feet (50 m),
is not shown. However, in the area
where the foot print map is contained,
when the map scale is changed to 150
feet (50 m), changes to .
— Foot print map
For the area which is covered by the foot print
map (Some areas in the following cities; De-
troit, Chicago, N.Y., L.A), you can switch to
the foot print map on a scale of 75 feet (25 m).
To switch to the foot print map
changes into when the map is
scaled down to 150 feet (50 m).
To display the foot print map, touch .
To delete the foot print map display, touch
.
INFORMATION
If the map or the current position is
moved to the area which is not cov-
ered by the foot print map, the screen
scale automatically changes to 150
feet (50 m).
On the foot print map, a one way
street is displayed by .
It is not possible to perform scrolling
on the foot print map (onetouch
scroll) while driving.

17

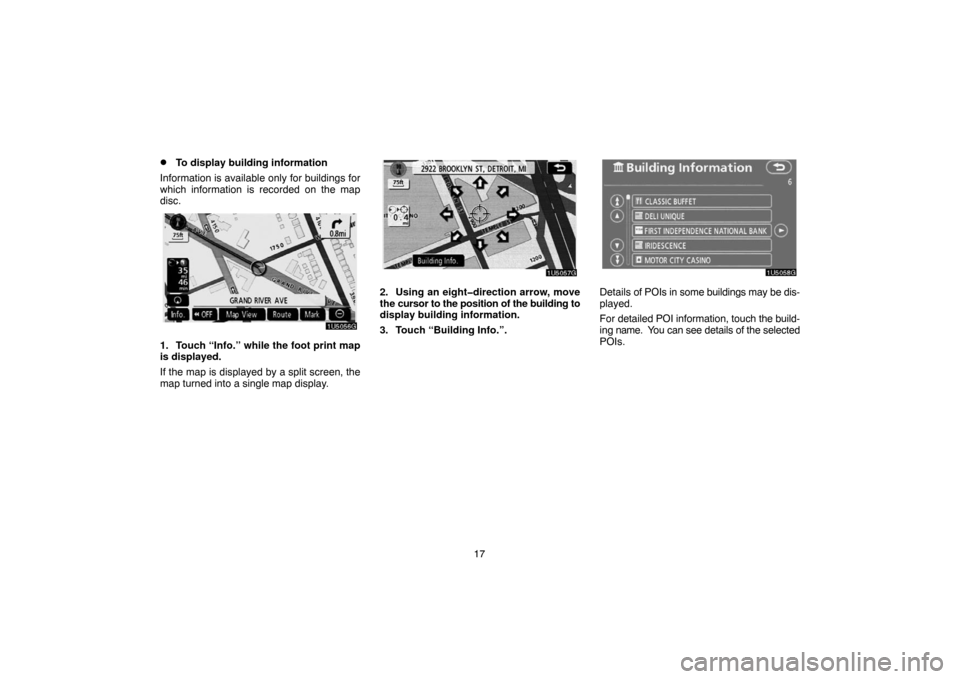

To display building information
Information is available only for buildings for
which information is recorded on the map
disc.
1. Touch “Info.” while the foot print map
is displayed.
If the map is displayed by a split screen, the
map turned into a single map display.
2. Using an eightdirection arrow, move
the cursor to the position of the building to
display building information.
3. Touch “Building Info.”.Details of POIs in some buildings may be dis-
played.
For detailed POI information, touch the build-
ing name. You can see details of the selected
POIs.

18

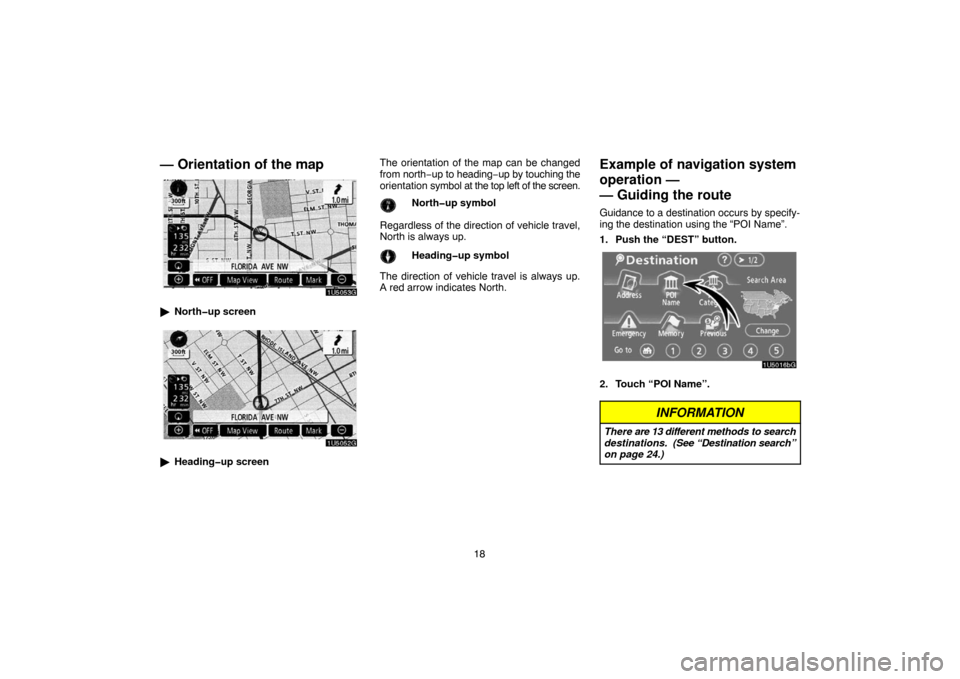

— Orientation of the map
Northup screen
Headingup screenThe orientation of the map can be changed
from north−up to heading−up by touching the
orientation symbol at the top left of the screen.
Northup symbol
Regardless of the direction of vehicle travel,
North is always up.
Headingup symbol
The direction of vehicle travel is always up.
A red arrow indicates North.
Example of navigation system
operation —
— Guiding the route
Guidance to a destination occurs by specify-
ing the destination using the “POI Name”.
1. Push the “DEST” button.
2. Touch “POI Name”.
INFORMATION
There are 13 different methods to search
destinations. (See “Destination search”
on page 24.)

19

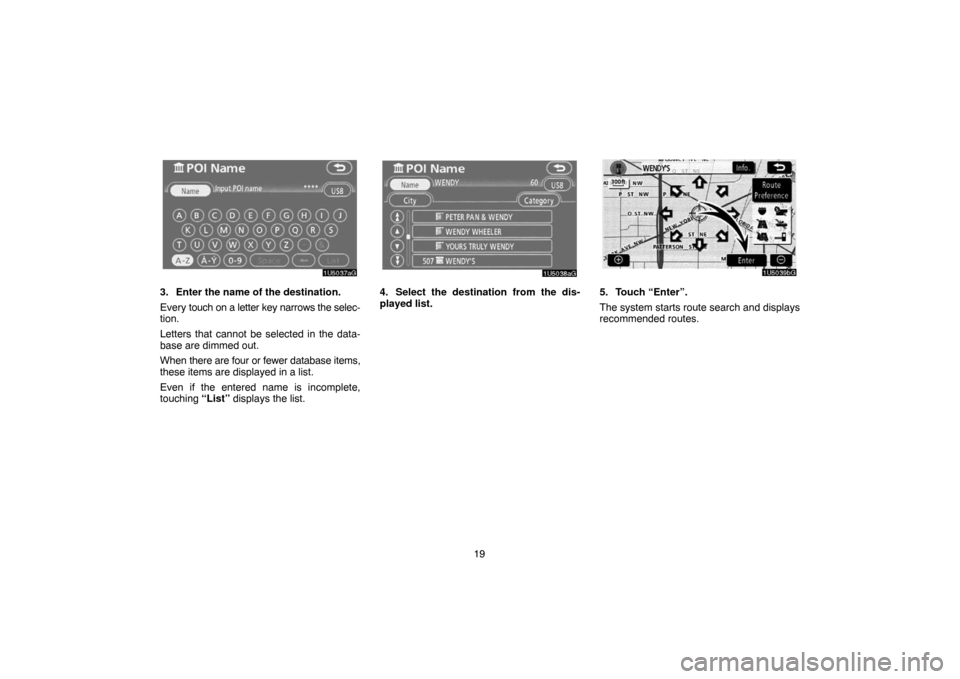

3. Enter the name of the destination.
Every touch on a letter key narrows the selec-
tion.
Letters that cannot be selected in the data-
base are dimmed out.
When there are four or fewer database items,
these items are displayed in a list.
Even if the entered name is incomplete,
touching “List” displays the list.4. Select the destination from the dis-
played list.5. Touch “Enter”.
The system starts route search and displays
recommended routes.

20

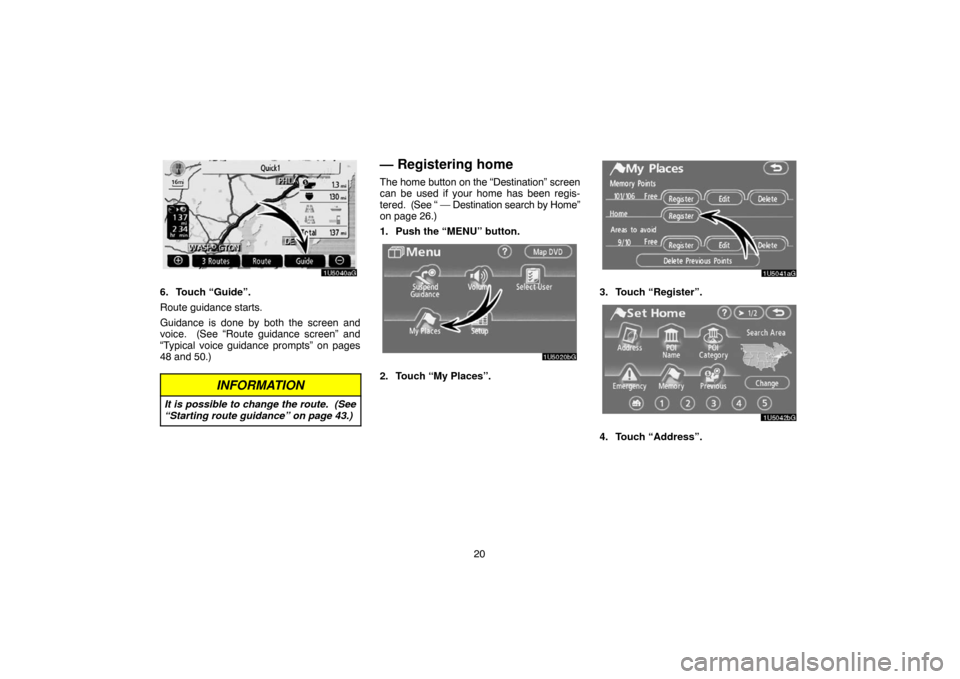

6. Touch “Guide”.
Route guidance starts.
Guidance is done by both the screen and
voice. (See “Route guidance screen” and
“Typical voice guidance prompts” on pages
48 and 50.)
INFORMATION
It is possible to change the route. (See
“Starting route guidance” on page 43.)
— Registering home
The home button on the “Destination” screen
can be used if your home has been regis-
tered. (See “ — Destination search by Home”
on page 26.)
1. Push the “MENU” button.
2. Touch “My Places”.
3. Touch “Register”.
4. Touch “Address”.
