TOYOTA SIENNA 2007 XL20 / 2.G Navigation Manual

71
3. Touch “OK”.
To edit registered information, see “ — Editing
memory points” on page 71.
INFORMATION
Up to 106 memory points can be regis-
tered.
— Editing memory points
The icon, attribute, name, location and/or
telephone number of a registered memory
point can be edited.
1. Touch “Edit”.
2. Touch the desired memory point but-
ton.
3. Touch the touchscreen button to be
edited.
“Icon”: To select icons to be displayed on the
map. (See page 72.)
“Quick Access”: To set an attribute.
Memory points with a set attribute can be
used as a “Quick access” or “Home” button.
(See page 73.)
“Name”: To edit memory point names. The
names can be displayed on the map. (See
page 74.)
“Location”: To edit location information.
(See page 74.)
“Phone #”: To edit telephone numbers. (See
page 75.)
4. Touch “OK”.

72
To change “Icon”
1. Touch “Icon” on the “Memory Point”
screen.
2. Touch the desired icon.
Turn the page by touching “Page 1”, “Page
2” or “with Sound”.SOUND ICONS
When the vehicle approaches the memory
point, the selected sound will be heard.
1. Touch “with Sound” on the “Change
Icon” screen.
2. Touch the desired sound icon.
The next screen appears when “Bell (with
Direction)” is touched.
Touch either or to adjust the direc-
tion. Touch “Enter”.
The bell sounds only when the vehicle ap-
proaches this point in the direction that has
been set.

73
To change “Quick Access”
It is possible to change attributes of the quick
access points. Memory points with a set at-
tribute can be used as a “Quick access” or
“Home” touch−screen button. (See “ — Des-
tination search by Home” on page 26 and “ —
Destination search by Quick access” on page
27.)
1. Touch “Quick Access” on the “Memory
Point” screen.2. Touch the desired attribute.
It is possible to replace a registered attribute.
3. To replace the attribute, touch “Yes”.
To return to the previous screen, touch
“No” or
.
INFORMATION
One “Home” and five “Quick access”
can be set.
DELETING “Quick Access”
1. Touch “Del.”.
2. To delete an attribute, touch “Yes”. To
return to the previous screen, touch “No”
or
.

74
To change “Name”
1. Touch “Name” on the “Memory Point”
screen.
2. Enter the name using the alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.DISPLAYING MEMORY POINT NAMES
The name of a memory point that may be dis-
played on the map can be set.To show the name, touch “ON” on the
“Memory Point” screen. To not show it,
touch “OFF”.
To change “Location”
1. Touch “Location” on the “Memory
Point” screen.
2. Touch the eight directional touch
screen button to move the cursor to the
desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.

75

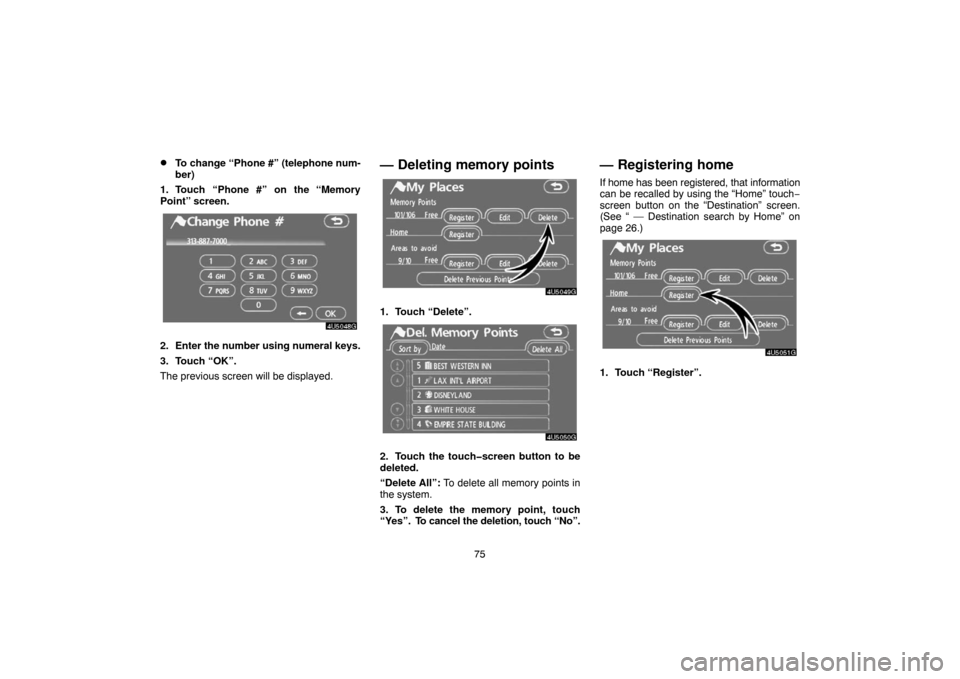

To change “Phone #” (telephone num-
ber)
1. Touch “Phone #” on the “Memory
Point” screen.
2. Enter the number using numeral keys.
3. Touch “OK”.
The previous screen will be displayed.
— Deleting memory points
1. Touch “Delete”.
2. Touch the touchscreen button to be
deleted.
“Delete All”: To delete all memory points in
the system.
3. To delete the memory point, touch
“Yes”. To cancel the deletion, touch “No”.

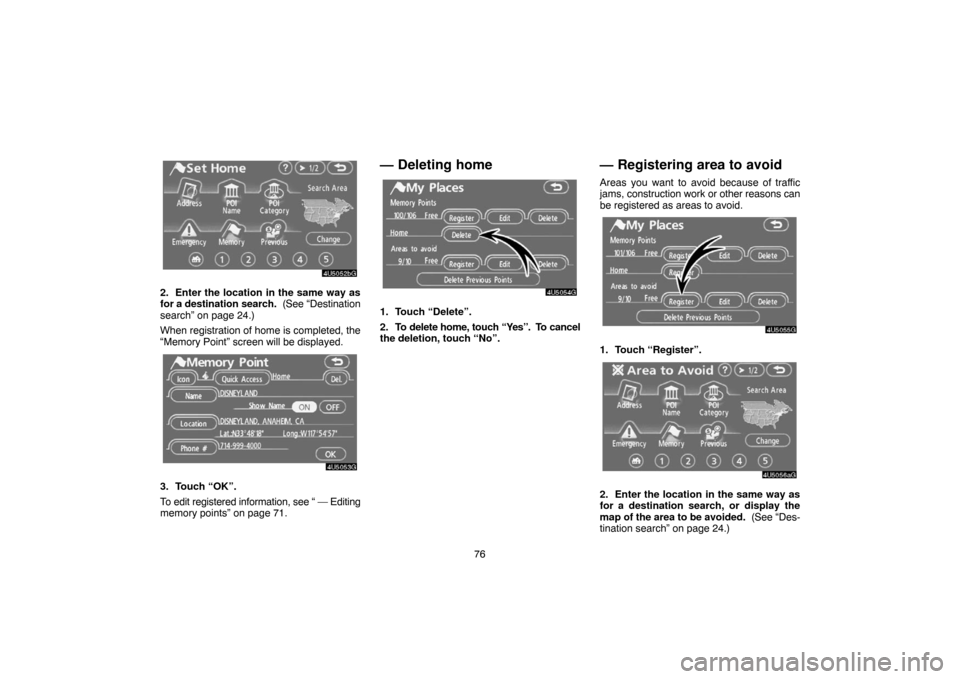

— Registering home
If home has been registered, that information
can be recalled by using the “Home” touch−
screen button on the “Destination” screen.
(See “ — Destination search by Home” on
page 26.)
1. Touch “Register”.

76
2. Enter the location in the same way as
for a destination search. (See “Destination
search” on page 24.)
When registration of home is completed, the
“Memory Point” screen will be displayed.
3. Touch “OK”.
To edit registered information, see “ — Editing
memory points” on page 71.
— Deleting home
1. Touch “Delete”.
2. To delete home, touch “Yes”. To cancel
the deletion, touch “No”.
— Registering area to avoid
Areas you want to avoid because of traffic
jams, construction work or other reasons can
be registered as areas to avoid.
1. Touch “Register”.
2. Enter the location in the same way as
for a destination search, or display the
map of the area to be avoided. (See “Des-
tination search” on page 24.)

77

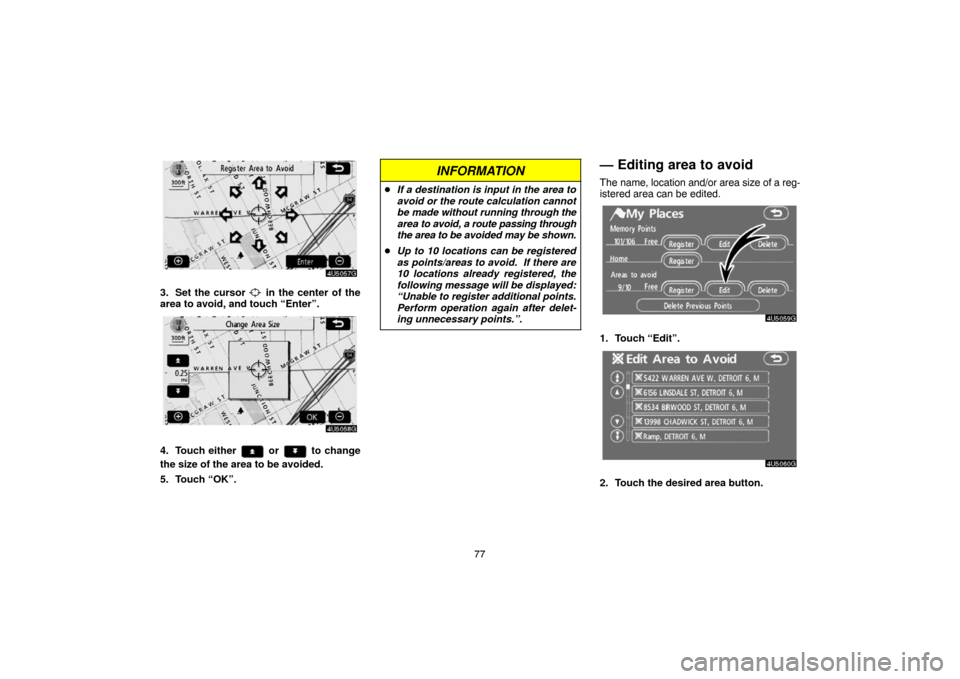

3. Set the cursor in the center of the
area to avoid, and touch “Enter”.
4. Touch either or to change
the size of the area to be avoided.
5. Touch “OK”.
INFORMATION
If a destination is input in the area to
avoid or the route calculation cannot
be made without running through the
area to avoid, a route passing through
the area to be avoided may be shown.
Up to 10 locations can be registered
as points/areas to avoid. If there are
10 locations already registered, the
following message will be displayed:
“Unable to register additional points.
Perform operation again after delet-
ing unnecessary points.”.
— Editing area to avoid
The name, location and/or area size of a reg-
istered area can be edited.
1. Touch “Edit”.
2. Touch the desired area button.

78

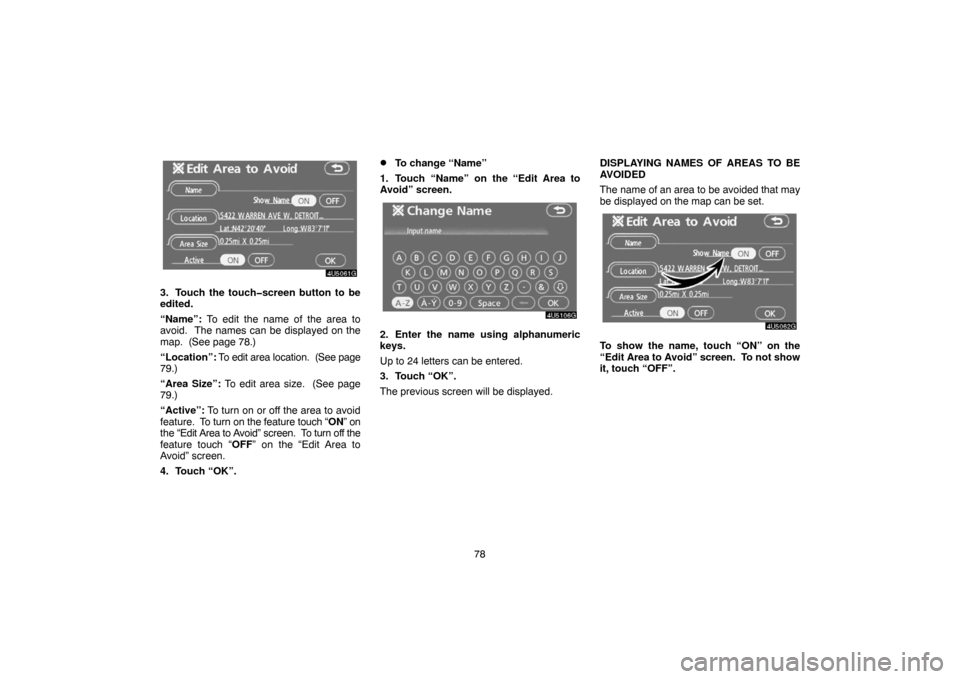

3. Touch the touchscreen button to be
edited.
“Name”: To edit the name of the area to
avoid. The names can be displayed on the
map. (See page 78.)
“Location”: To edit area location. (See page
79.)
“Area Size”: To edit area size. (See page
79.)
“Active”: To turn on or off the area to avoid
feature. To turn on the feature touch “ON” on
the “Edit Area to Avoid” screen. To turn off the
feature touch “OFF” on the “Edit Area to
Avoid” screen.
4. Touch “OK”.
To change “Name”
1. Touch “Name” on the “Edit Area to
Avoid” screen.
2. Enter the name using alphanumeric
keys.
Up to 24 letters can be entered.
3. Touch “OK”.
The previous screen will be displayed.DISPLAYING NAMES OF AREAS TO BE
AVOIDED
The name of an area to be avoided that may
be displayed on the map can be set.To show the name, touch “ON” on the
“Edit Area to Avoid” screen. To not show
it, touch “OFF”.

79

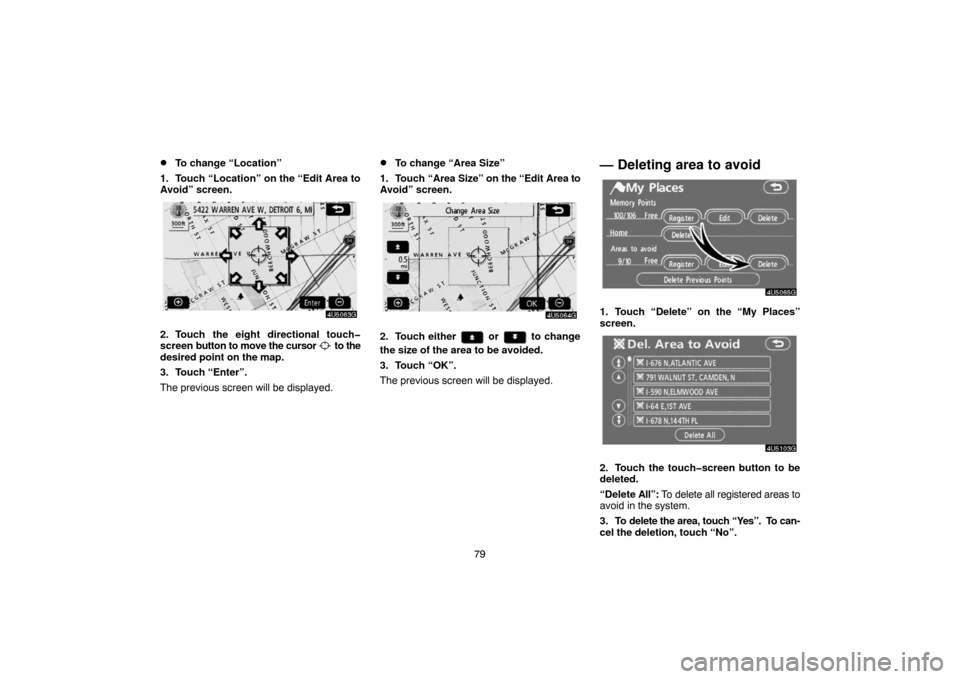

To change “Location”
1. Touch “Location” on the “Edit Area to
Avoid” screen.
2. Touch the eight directional touch
screen button to move the cursor to the
desired point on the map.
3. Touch “Enter”.
The previous screen will be displayed.
To change “Area Size”
1. Touch “Area Size” on the “Edit Area to
Avoid” screen.
2. Touch either or to change
the size of the area to be avoided.
3. Touch “OK”.
The previous screen will be displayed.
— Deleting area to avoid
1. Touch “Delete” on the “My Places”
screen.
2. Touch the touchscreen button to be
deleted.
“Delete All”: To delete all registered areas to
avoid in the system.
3. To delete the area, touch “Yes”. To can-
cel the deletion, touch “No”.

80

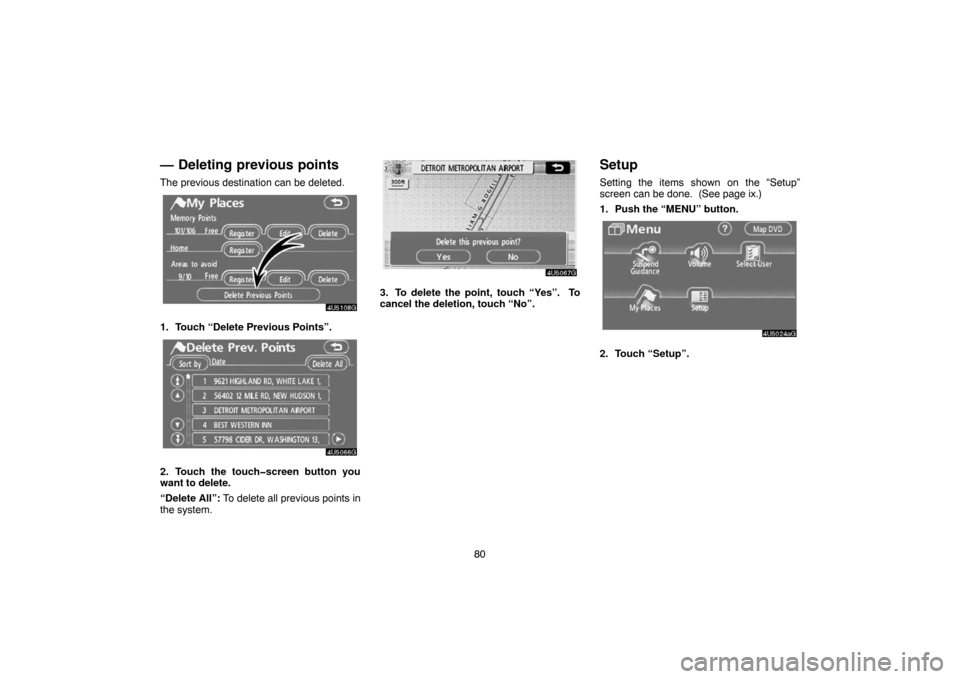

— Deleting previous points
The previous destination can be deleted.
1. Touch “Delete Previous Points”.
2. Touch the touchscreen button you
want to delete.
“Delete All”: To delete all previous points in
the system.
3. To delete the point, touch “Yes”. To
cancel the deletion, touch “No”.
Setup
Setting the items shown on the “Setup”
screen can be done. (See page ix.)
1. Push the “MENU” button.
2. Touch “Setup”.
