TOYOTA SIENNA 2010 XL30 / 3.G Owner's Guide
Manufacturer: TOYOTA, Model Year: 2010, Model line: SIENNA, Model: TOYOTA SIENNA 2010 XL30 / 3.GPages: 592, PDF Size: 11.19 MB
Page 31 of 592
31
1-2. Opening, closing and locking the doors
1
Before driving
■
Certification for wireless remote control
For vehicles sold in the U.S.A.
NOTE:
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) this device may not cause harmful interfer-
ence, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
NOTICE:
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. How-
ever, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
● Reorient or relocate the receiving antenna.
● Increase the separation between the equipment and receiver.
● Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
● Consult the dealer or an experienced radio/TV technician for help.
FCC WARNING:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate the equipment. For vehicles sold in Canada
NOTE:
Operation is subject to the following two conditions: (1) this device may not
cause interference, and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of the device.
Page 32 of 592
32 1-2. Opening, closing and locking the doors
■When riding in an aircraft
When bringing a wireless remote control onto an aircraft, make sure you do
not press any buttons on the wireless remote control while inside the aircraft
cabin. If you are carrying a wireless remote control in your bag etc, ensure
that the buttons are not likely to be pressed accidentally. Pressing a button
may cause the wireless remote control to emit radio waves that could inter-
fere with the operation of the aircraft.
NOTICE
■To prevent wireless remote control damage
●Do not subject the wireless remote control to strong shocks, expose them
to high temperatures by placing them in direct sunlight, or get them wet.
● Do not expose the wireless remote control to electromagnetic materials or
attach any material that blocks electromagnetic waves to the wireless
remote control surface.
● Do not disassemble the wireless remote control.
Page 33 of 592
33
1
1-2. Opening, closing and locking the doors
Before driving

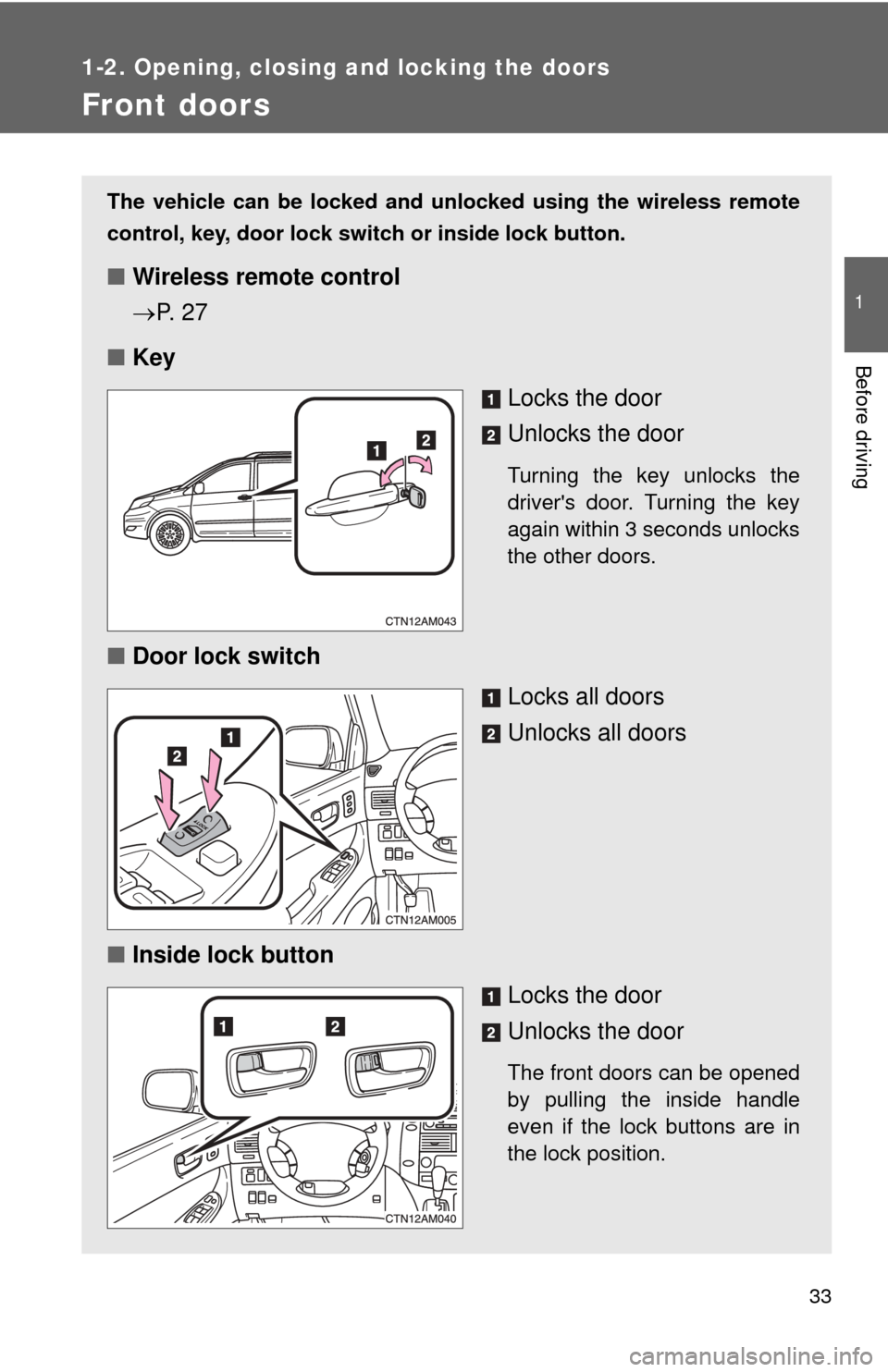

Front doors
The vehicle can be locked and unlocked using the wireless remote
control, key, door lock switch or inside lock button.
■Wireless remote control
P. 2 7
■ Key
Locks the door
Unlocks the door
Turning the key unlocks the
driver's door. Turning the key
again within 3 seconds unlocks
the other doors.
■Door lock switch
Locks all doors
Unlocks all doors
■ Inside lock button
Locks the door
Unlocks the door
The front doors can be opened
by pulling the inside handle
even if the lock buttons are in
the lock position.
Page 34 of 592
34 1-2. Opening, closing and locking the doors
Locking the front doors from the outside without the wireless
remote control or keyMove the inside door lock button to the lock position.
Close the door.
The doors cannot be locked when the key is in the engine switch and
either of the front door is open.
Automatic door locking and unlocking systems
The following functions can be set or cancelled:
The shift position linked door locking function works when all doors
are closed.
FunctionOperation
Shift position linked
door locking function Shifting the shift lever out of P locks all
doors.
Shift position linked
door unlocking function Shifting the shift lever to P unlocks all doors.
Speed linked door lock-
ing function
All doors are locked when the vehicle speed is
approximately 12 mph (20 km/h) or higher.
Driver's door linked door
unlocking function All doors are unlocked when the driver's door
is opened within 10 seconds after turning the
engine switch to “ACC” or “LOCK”.
STEP1
STEP2
Page 35 of 592
35
1-2. Opening, closing and locking the doors
1
Before driving
■
Setting and canceling the functions
To switch between set and canceled, follow the procedure below:
Close all the doors and turn the engine switch to the “ON”
position. (Perform step 2 within 10 seconds.) Shift the shift lever to P or N, and
press and hold the driver's door
lock switch (
or ) for approx-
imately 5 seconds and then
release.
The shift lever and switch posi-
tions corresponding to the
desired function to be set are
shown as follows.
Use the same procedure to can-
cel the function.
When the setting or canceling operation is complete, all doors are
locked and then unlocked.
STEP1
STEP2
FunctionShift lever positionDoor lock switch position
Shift position linked door lock-
ing function P
Shift position linked door
unlocking function
Speed linked door locking func-
tion
N
Driver's door linked door unlock-
ing function
Page 36 of 592
36 1-2. Opening, closing and locking the doors
■When all the doors are locked with the wireless remote control or key
The doors cannot be unlocked with the door lock switch.
The door lock switch can be reset by unlocking all the doors with the wire-
less remote control or key.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. unlocking function using a key) can be changed.
(Customizable features P. 565)
CAUTION
■To prevent an accident
Observe the following precautions while driving the vehicle.
Failing to do so may result in a door opening and an occupant falling out,
resulting in death or serious injury.
●Always use a seat belt.
● Always lock the doors.
● Ensure that all doors are properly closed.
● Do not pull the inside handle of the doors while driving.
The doors may be opened and the passengers are thrown out of the vehi-
cle and it may result in serious injury or death.
Be especially careful for the front doors, the doors may be opened even if
the inside lock buttons are in locked position.
Page 37 of 592
37
1
1-2. Opening, closing and locking the doors
Before driving

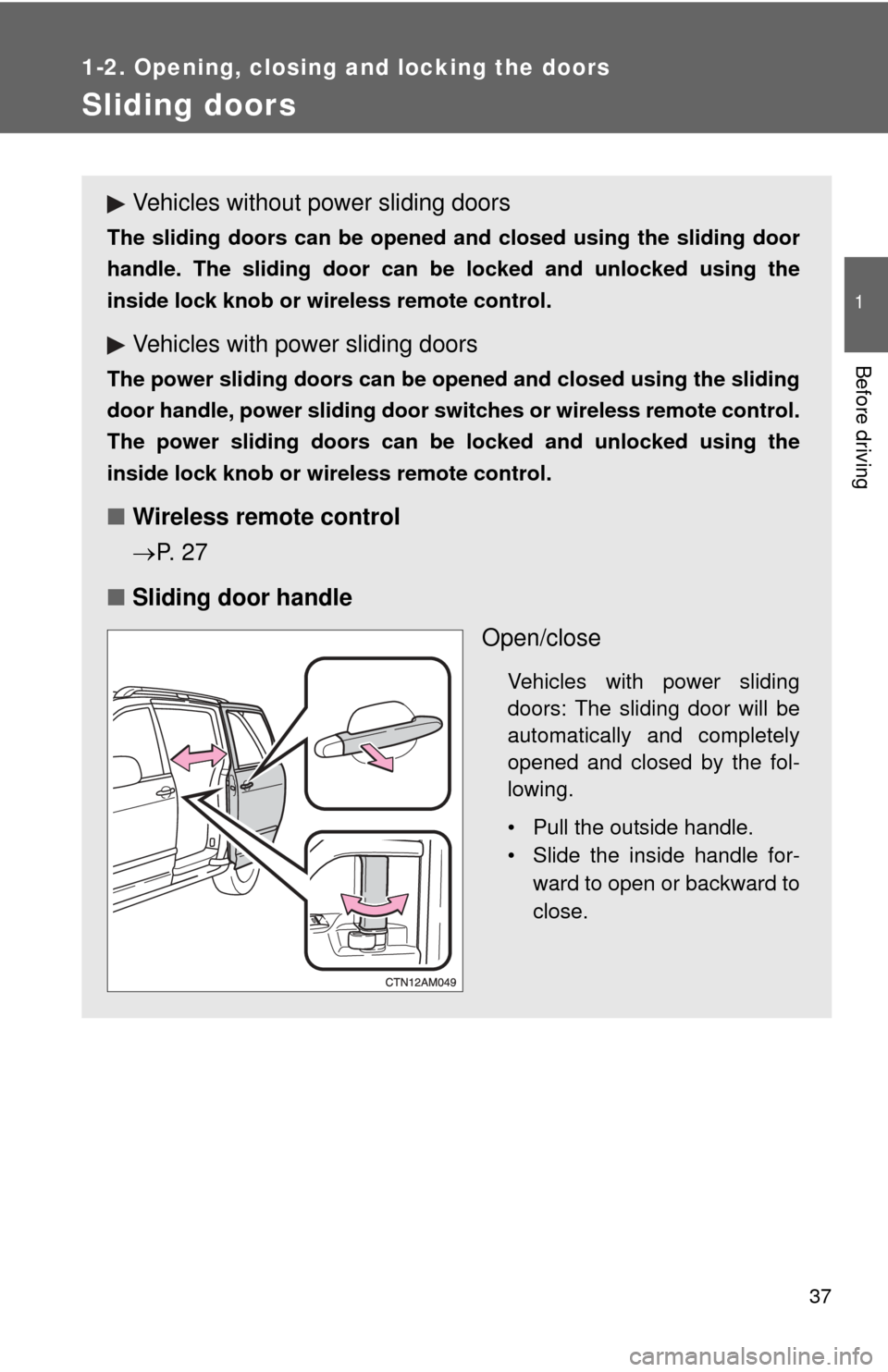

Sliding doors
Vehicles without power sliding doors
The sliding doors can be opened and closed using the sliding door
handle. The sliding door can be locked and unlocked using the
inside lock knob or wireless remote control.
Vehicles with power sliding doors
The power sliding doors can be opened and closed using the sliding
door handle, power sliding door switches or wireless remote control.
The power sliding doors can be locked and unlocked using the
inside lock knob or wireless remote control.
■ Wireless remote control
P. 2 7
■ Sliding door handle
Open/close
Vehicles with power sliding
doors: The sliding door will be
automatically and completely
opened and closed by the fol-
lowing.
• Pull the outside handle.
• Slide the inside handle for-ward to open or backward to
close.
Page 38 of 592
38 1-2. Opening, closing and locking the doors

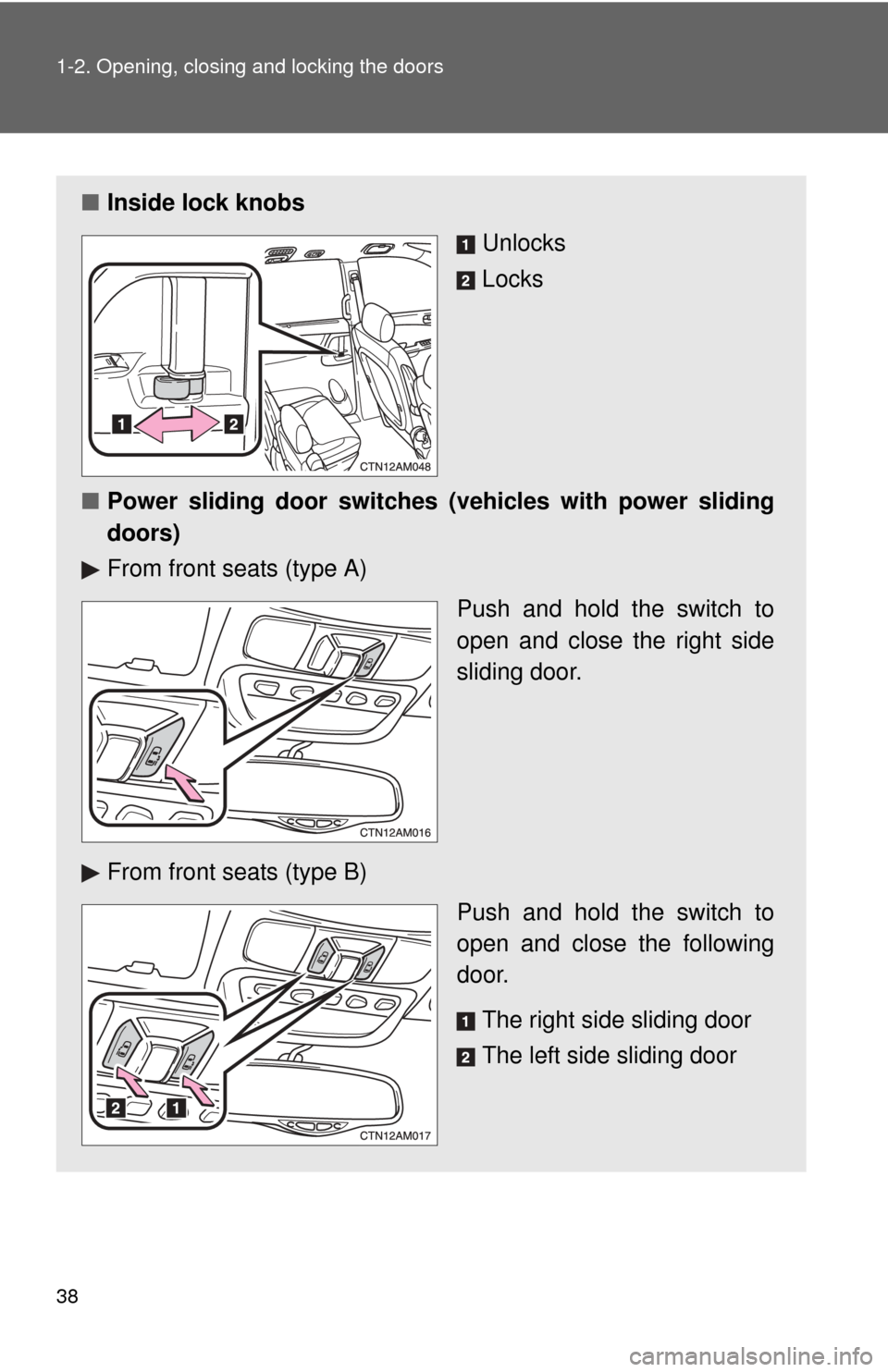

■Inside lock knobs
Unlocks
Locks
■ Power sliding door switches (v ehicles with power sliding
doors)
From front seats (type A)
Push and hold the switch to
open and close the right side
sliding door.
From front seats (type B) Push and hold the switch to
open and close the following
door.
The right side sliding door
The left side sliding door
Page 39 of 592
39
1-2. Opening, closing and locking the doors
1
Before driving
Canceling the power slidi
ng door system (if equipped)
Turn the main switch off to dis-
able the power sliding door sys-
tem.Off
The sliding doors can be opened
and closed manually.
On
The power sliding door can be
opened and closed with the
power sliding door switches for
the front occupants or wireless
remote control even if the sliding
door child-protectors are locked.
Locking the sliding doors from the outside without the wireless remote control
Move the inside lock knob to the lock position.
Close the sliding door.
From rear seats
Push the switch to open and
close each sliding door.
STEP1
STEP2
Page 40 of 592
40 1-2. Opening, closing and locking the doors
Sliding door child-protector locksThe sliding door cannot be
opened from inside the vehicle
when the child-protector lock is
set.
These locks can be set to prevent
children from opening the sliding
doors. Push down on each sliding
door switch to lock both sliding
doors.
■The power sliding door can be op erated when (vehicles with power
sliding doors)
● The engine switch is in the “ON” position and the shift lever is in P.
● The power sliding door is unlocked.
● The sliding door child-protector lock is not set. (However, the switch for
the front occupants still operates the power sliding door.)
■ The situations in which the slid ing door does not open completely
The left side sliding door (if equipped)
does not open when the fuel filler door is
opened.
The sliding door will stop at half-opened
position when the sliding door window is
opened more than approximately 6 in. (15
cm).
