BASIC FUNCTIONS
7
The registered point is shown by on the
map.
To change the icon or name, etc., see page
68.
You can register up to 106 memory points. If
you attempt to register more than 106, a mes-
sage appears for confirmation.

To see information about the icon
where the cursor is set
To display information about an icon, set the
cursor on it.
POI INFORMATION
When the cursor is set on a POI icon, the
name and
Info.º switch are displayed on
the top of the screen.
Touch the Info.º switch.
Information such as the name, address, and
phone number are displayed.
If you touch the
Enter º switch, the posi-
tion of cursor is set as a destination.
If there is already a preset destination, the
Add to º switch and the Replace
º switch are displayed.
When there is already a preset destination,
using the
Add to º switch to set an addi-
tional destination, will set the new one as the
first point of arrival.
To register this POI as a memory point, touch
the
Markº switch. (For details, see page
66.)

BASIC FUNCTIONS
8
INFORMATION
The desired Point of Interest can be dis-played on the map screen. (For details,see page 49.)
MEMORY POINT INFORMATION
When the cursor is set on a memory point
icon, the name and
Info.º switch are dis-
played on the top of screen.
Touch the Info.º switch.
Information such as the name, location, and
phone number are displayed.
If you touch the
Enter º switch, the posi-
tion of cursor is set as a destination. If there is already a set destination, the
Add
to
º switch and the Replace º
switch are displayed.
When there is already a preset destination,
using the
Add to º switch to set an addi-
tional destination, will set the new one as the
first point of arrival.
To edit a memory point, touch the
Editºswitch. (For details, see page 68.)

BASIC FUNCTIONS
9
Map scale
Touch the or switch to change
the scale of the map display. The scale bar
and indicator at the bottom of the screen indi-
cates the map scale menu. The scale ranges
150 feet (50 m) to 250 miles (400 km).
Touch the
or switch until the
scale bar changes normally. If you continue
to touch on the switch, the scale bar changes
smoothly.
You can change the scale of the map display
by touching the scale bar directly. It is not
available during driving.
The map scale is displayed under the north-
up symbol or heading-up symbol at the top
left of the screen.
INFORMATION
When the map scale is at the maximum range of 250 miles (400 km), is notshown. When the map scale is at theminimum range of 150 feet (50 m), is not shown. However, in the area
where the foot print map is contained,
when the map scale is changed to 150feet (50 m), the switch changes tothe switch.
Orientation of the map
North-up screen
Heading-up screen

BASIC FUNCTIONS
10
You can change the orientation of the map
from north-up to heading-up by touching
the orientation symbol at the top left of the
screen.
North-up symbol
Regardless of the direction of vehicle travel,
North is always up.
Heading-up symbol
The direction of vehicle travel is always up.
A red arrow indicates North.
Limitations of the navigation
system
This navigation system calculates the cur-
rent vehicle position using satellite sig-
nals, various vehicle signals, map data,
etc. However, the accurate position may
not be shown depending on the satellite
condition, road configuration, vehicle
condition or other circumstances.
The Global Positioning System (GPS) devel-
oped and operated by the U.S. Department of
Defense provides an accurate current vehicle
position using 3 to 4 satellites. The GPS sys-
tem has a certain level of inaccuracy. While
the navigation system will compensate for
this most of the time, occasional positioning
errors up to 300 feet (100 m) can and should
be expected. Generally, position errors will
be corrected within a few seconds.
When your vehicle is receiving signals from
the satellites, the GPSº mark appears at the
top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle posi-
tion on the map display. Tunnels, tall build-
ings, trucks, or even the placement of objects
on the instrument panel may obstruct the
GPS signals.
The installation of window tinting may also ob-
struct the GPS signals. Most window tinting
contains some metallic content that will inter-
fere with the GPS signal reception. We ad-
vice against the use of window tinting on ve-
hicles equipped with navigation systems.
The GPS satellites may not send signals due
to repairs or improvements being made to
them.

BASIC FUNCTIONS
12
(b) Inappropriate route
guidance may occur in the
following cases:

When turning at an intersection off the
designated route guidance.

If you set more than one destination but
skip any of them, auto reroute will display
a route returning to the destination on the
previous route.

When turning at an intersection, there is
no route guidance.

When passing through the intersection,
there is no route guidance.

During auto reroute, the route guidance
may not be available for the next turn to
the right or left.

It may take a long time to operate auto re-
route during high speed driving. In auto
reroute, a detour route may be shown.

After auto reroute, the route may not be
changed.

An unnecessary U-turn may be shown or
announced.

A location may have multiple names and
the system will announce one or more.

Some routes may not be searched.

If the route to your destination includes
gravel, unpaved roads or alleys, the route
guidance may not be shown.

Your destination point might be shown on
the opposite side of the street.

When a portion of the route has regula-
tions prohibiting the entry of the vehicle
that vary by time or season or other rea-
son.

The road and map data stored in your nav-
igation system may not be complete or
may not be the latest version.
After replacing the tire, implement the op-
eration described in the
Tire change
calibrationº. (For details, see page 78.)
This navigation system uses the tire turning
data and is designed to work with factory-
specified tires for your vehicle. Installing tires
that are larger or smaller than the originally
equipped diameter may cause inaccurate
display of the vehicle's position. The tire pres-
sure also affects the diameter of the tires so
please make sure the tire pressure of all four
tires is correct.
Map database information and
updates
This system uses the maps of DENSO.
W GDT, Geographic Data Technology,
Inc.
Data by infoUSA Copyright W2002, All
Rights Reserved.
W 2002 VISA Corporation
National Research Bureau W2002
END USER LICENSE AGREEMENT
PLEASE READ THIS AGREEMENT
CAREFULLY BEFORE USING THE
NAVIGATION SYSTEM
THIS IS A LI CENSE AGREEMENT FOR
YOUR COPY OF THE MAP DAT ABASE
(The DATABASEº), ORIGINALLY
MADE BY G eographic Data T echnology,
Inc. (GDTº), USED IN THE
NAVIGATION SYSTEM. BY USING THE
DATABASE, YOU ACCEPT AND
AGREE TO ALL TERMS AND
CONDITIONS SET FORTH BELOW.
OWNERSHIP
The DATABASE and the copyrights and
intellectual property or neighboring rights
therein are owned by GDT or its
licensors.

BASIC FUNCTIONS
16
Disclaimer of Liability: DENSO SHALL
NOT BE LIABLE TO YOU FOR ANY
CLAIM, DEMAND OR ACTION,
IRRESPECTIVE OF ITS NATURE,
ALLEGING ANY LOSS, INJURY OR
DAMAGES, WHETHER DIRECT,
INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES,
INCLUDING ANY LOSS OF PROFIT,
REVENUE OR CONTRACTS ARISING
OUT OF YOUR POSSESSION, USE OF
OR INABILITY TO USE THIS
INFORMATION, ANY DEFECT IN THE
INFORMATION, OR THE BREACH OF
THESE TERMS OR CONDITIONS,
WHETHER IN AN ACTION IN
CONTRACT OR TORT OR BASED ON
A WARRANTY, EVEN IF DENSO OR
ITS LICENSORS HAVE BEEN
ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. Some states,
territories and countries do not allow
certain liability exclusions or damages
limitations, so to that extent the above
may not apply to you.Indemnity. You agree to indemnify,
defend and hold DENSO and its
licensors (including their respective
licensors, suppliers, assignees,
subsidiaries, affiliated companies, and
the respective officers, directors,
employees, shareholders, agents and
representatives of each of them) free and
harmless from and against any liability,
loss, injury (including injuries resulting in
death), demand, action, cost, expense,
or claim of any kind or character,
including but not limited to attorney's
fees, arising out of or in connection with
any use or possession by you of this
information.
END USER NOTICE
The marks of companies displayed by
this product to indicate business
locations are the marks of their
respective owners. The use of such
marks in this product does not imply any
sponsorship, approval, or endorsement
by such companies of this product. There are two types of areas available for
route guidance. In one type of area, pri-
marily around metropolitan centers, de-
tailed route guidance is available for the
entire area. In the other type of area, all
roads are displayed on the map but route
guidance is limited. The navigation route
might lack precision because the data (no
right turns, one-way traffic, etc.) is not
complete. It is still possible to reach the
destination by following the arrow direc-
tion
and distance as shown on the bottom
left of the screen. The arrow points in the
direction of the destination. The distance
shown is as measured in a straight line
from the current vehicle position to the
destination area.
In order to provide you with as accurate map
information as possible, we are always gath-
ering information such as road repairs and
doing site investigation. However, the names
of roads, streets, facilities, and their locations
are often changed. In some places, construc-
tion on roads may be in progress. For that
reason, information on some areas in this
system might be different from the actual
location.

BASIC FUNCTIONS
17
The map database is normally updated once
a year. Contact your dealer for information
about the availability and pricing of an update.

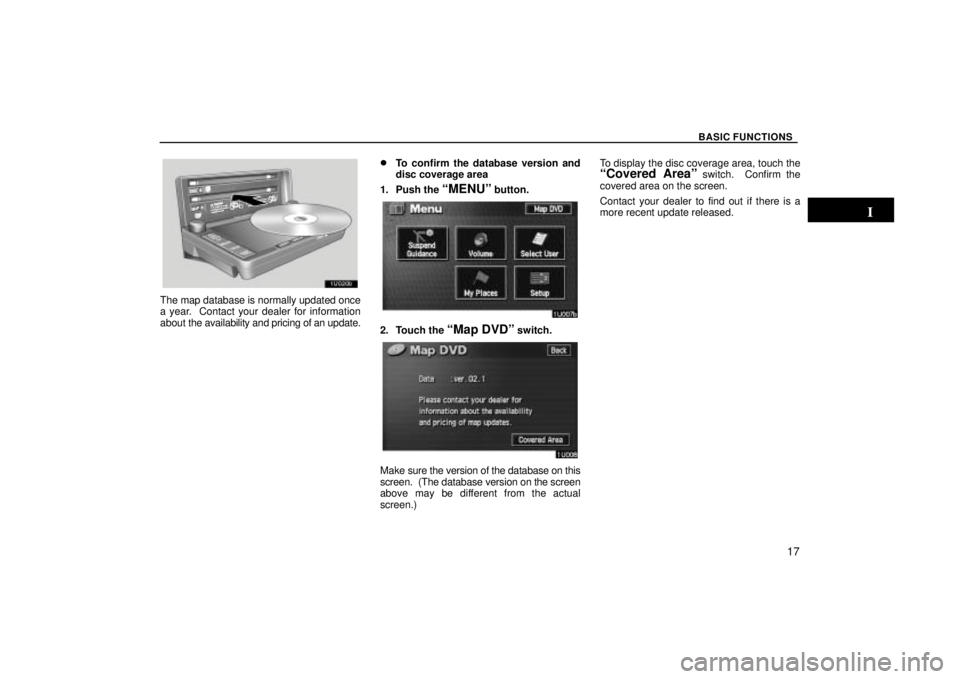

To confirm the database version and
disc coverage area
1. Push the
MENUº button.
2. Touch the Map DVDº switch.
Make sure the version of the database on this
screen. (The database version on the screen
above may be different from the actual
screen.) To display the disc coverage area, touch the
Covered Areaº switch. Confirm the
covered area on the screen.
Contact your dealer to find out if there is a
more recent update released.

BASIC FUNCTIONS
18

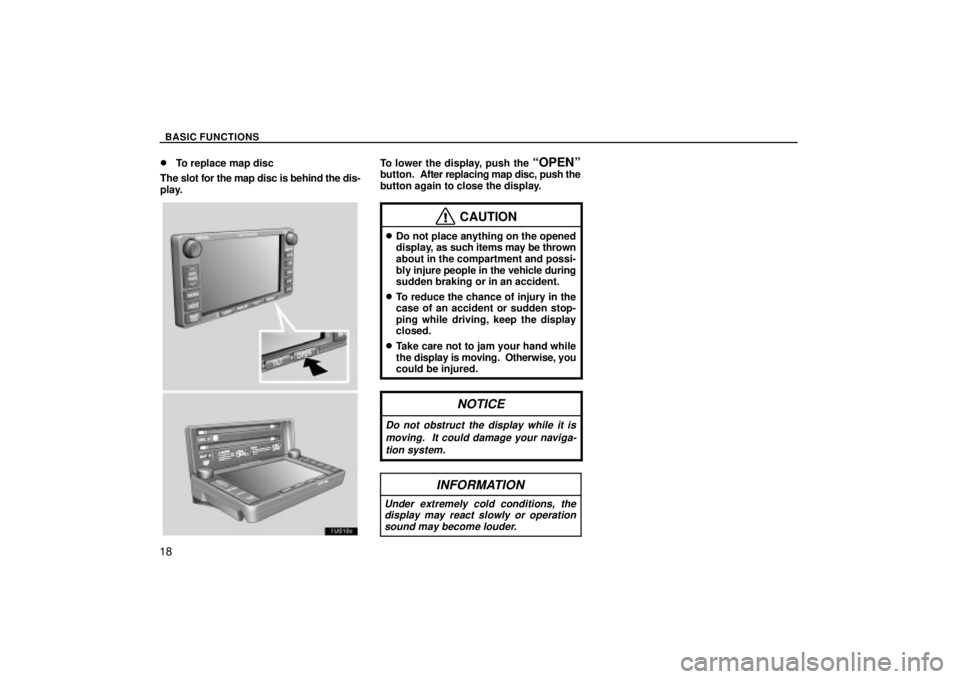

To replace map disc
The slot for the map disc is behind the dis-
play.To lower the display, push the OPENºbutton. After replacing map disc, push the
button again to close the display.
CAUTION

Do not place anything on the opened
display, as such items may be thrown
about in the compartment and possi-
bly injure people in the vehicle during
sudden braking or in an accident.

To reduce the chance of injury in the
case of an accident or sudden stop-
ping while driving, keep the display
closed.

Take care not to jam your hand while
the display is moving. Otherwise, you
could be injured.
NOTICE
Do not obstruct the display while it is moving. It could damage your naviga-tion system.
INFORMATION
Under extremely cold conditions, thedisplay may react slowly or operationsound may become louder.

DESTINATION INPUT AND ROUTE GUIDANCE
20
Destination input Ð
Push the DESTº button and the Des-
tinationº screen appears.
You can use one of 13 different methods to
enter your destination. (See pages 22
through 37.)
INFORMATION
When inputting the destination, the response to the switch may be slow.
The route for returning may not be thesame as that for going.
The route guidance to the destinationmay not be the shortest route nor aroute without traffic congestion.
Route guidance may not be availableif there is no road data for the speci-fied location.
When setting the destination on amap with a scale larger than 0.5 mile(800 m), the map scale changes to 0.5
mile (800 m) automatically. Set the destination again.
To select an Addressº, POI
Nameº
, Freeway Ent./Exitº,
Intersectionº or Phone #º in a
different area, it is necessary to change the search area.
If you enter a destination, the roadnearest to the point you selected isset as the destination.
CAUTION
While you are driving, be sure to obey
traffic regulations and keep the road
conditions in mind. If a traffic sign on
the road has been changed, the route
guidance may provide wrong informa-
tion.
Ð Selecting the search area
The Destinationº screen allows you to select
the area to search for your destination.
Touch the
Changeº switch on the
Destinationº screen to display a map of
the United States and Canada divided into
11 areas. See page 12 for map database in-
formation and updates.
Touch one of the US1º through CANºswitches to select a search area. Touch
the OKº switch and the Destinationº
screen returns.

DESTINATION INPUT AND ROUTE GUIDANCE
22
Ð Destination input by Home
Touch the home switch on the Destina-
tionº screen.
The screen changes and displays the map
location of your home and the route pref-
erence. (See  Ð Entering destinationº on
page 38.)
To use this function, it is necessary to set the
Attributeº for the memory point. (To register
the Homeº, see page 70.)
INFORMATION
Guidance starts from your current posi-tion to your home if you touch the
En-
terº
switch even while driving.
Ð Destination input by Quick
access
Touch any of the quick access switches
on the Destinationº screen.
The screen changes and displays the map
location of the quick access point and the
route preference. (See  Ð Entering des-
tinationº on page 38.)
To use this function, it is necessary to set the
Attributeº for each memory point. (To regis-
ter the Quick Accessº, see page 70.)
INFORMATION
Guidance starts from your current posi-
tion to the quick access point if youtouch the
Enterº switch even while
driving.
Ð Destination input by
Addressº
There are 2 ways to input a destination by
address.
Touch the
Addressº switch on the
Destinationº screen.
