CD player TOYOTA tC 2012 Accessories, Audio & Navigation (in English)

Owner’s Manual
for AM/FM/HD Radio broadcast/CD Player with iPod/
USB/Bluetooth audio/Pandora/VTR/AUX control
Audio System
TOYOTA PART NO. PT546-00121

3
3

Features
CD playback
Music CD/CD-R/CD-RW playback is
possible.
MP3 file playback
You can play back MP3 files
recorded on CD-ROM/CD-R/CD-RW
(ISO9660 Level 1/Level  standard
recordings) or USB portable audio
player/USB memory.
Supply of this product only con-
veys a license for private, non-
commercial use and does not
convey a license nor imply any
right to use this product in any
commercial (i.e. revenue-gen-
erating) real-time broadcasting
(terrestrial, satellite, cable and/or
any other media), broadcasting/
streaming via internet, intranets
and/or other networks or in other
electronic content distribution
systems, such as pay-audio or
audio-on-demand applications.
An independent license for such
use is required. For details,
please visit
http://w w w.mp3licensing.com.
•
WMA file playback
You can play back WMA files
recorded on CD-ROM/CD-R/CD-RW
(ISO9660 Level 1/Level  standard
recordings) or USB portable audio
player/USB memory.
iPod compatibility
When you use this unit, you can
control an iPod, iPod classic, iPod
nano, iPod touch, iPhone. (Refer to
page 30.)
About WMA
Windows Media is either a
registered trademark or trademark
of Microsof t Corporation in
the United States and/or other
countries.
This product includes technology
owned by Microsof t Corporation
and cannot be used or distributed
without a license from Microsof t
Licensing, Inc.
NOTICE
This unit may not operate
correctly depending on the
application used to encode
WMA files.

6
6

Contents
Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3About WMA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3About iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4About XM Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4About HD Radio Technology. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4About Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Impor tant information about this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5To ensure the correct audio system operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5The Safety of Your Ears is in Your Hands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5Basic Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7Common Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14Listening to the RADIO. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16Listening to the HD Radio broadcast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0Listening to a XM Satellite Radio broadcast. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Listening to a CD. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4Listening to a MP3/ WMA Disc and USB Por table audio player/USB Memor y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6About handling the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30Connecting the iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31Disconnecting the iPod . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31Listening to the iPod. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33Listening to the Bluetooth Audio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36Listening to Pandora . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40Watching the V TR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4Connecting an ex ternal amplifier. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45Using the AUX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46Setting Up Audio-Visual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48Setting Up the Sound Quality. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53Connecting a Bluetooth Cell Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56Using Hands-Free Phoning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .58Setting Up the Phone. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .61Using the Phonebook. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6Using Voice Recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63MP3 and WMA files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64MP3 additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65WMA additional information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65About folders and MP3/ WMA files. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66USB por table audio player/ USB memor y compatibility. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .67CD player and care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68CD-R and CD-RW discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .69DualDiscs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70Error indications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70Changing or disconnecting your batter y. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74

15
15

Refer to Listening to the RADIO (page 16) for details on using FM/HD Radio broadcast / XM Satellite Radio.
Refer to Listening to the HD Radio broadcast (page 20) for details on using the unique features of the XM Satellite Radio.
Refer to Listening to a CD (page 24) for details on listening to CDs.
Refer to Listening to a MP3/ WMA DISC and USB Portable audio player/USB memory (page 26) for details on listening to MP3/ WMA discs, and using USB portable audio players and memory
Refer to Listening to the iPod (page 33) for details on listening to an iPod.
Refer to Listening to the Bluetooth Audio (page 36) for details on listening to Bluetooth audio.
Refer to Listening to Pandora (page 40) for details on listening to Pandora.
Refer to Watching the V TR (page 42) for details on watching the V TR.
Refer to Using the AUX (page 46) for details on using AUX.
Adjusting the Volume
Turn the MULTI SELECTOR to the left to turn the volume down and to the right to turn the volume up. When songs or stations change without any change in the volume, carry out the operations above after touching [].
•
Setting up the audio
Touch on [] to display the audio setup screen (Refer to page 48).
Delete the Audio Screen
If you press [POWER], the display will disappear and the screen will change to black. If you press it again, the source screen that is being selected will be displayed. If the display does not disappear, press [POWER] after touching on [].
•
•

4
4

Listening to a CD
You can listen to CDs using the
methods explained below.
CAUTION
Compact disc players use an
invisible laser beam which
could cause hazardous radiation
exposure if directed outside
the unit. Be sure to operate the
player correctly.
NOTICE
Never try to disassemble or oil any part of the compact disc player. Do not insert anything except a compact disc into the slot.
Use 1-cm disc. Do not use 8-cm disc or an adapter for 8-cm disc.During times of abnormal temperatures, when an
abnormal energy source is used, if abnormalities arise during read-in, or if there is some sort of abnormality with the unit itself, the CD may cease to play back, and you also may not be able to switch to another source. Remove the CD to switch to another source.Only one CD can be loaded.
•
•
•
•

6
6

Listening to a MP3/
WMA Disc and USB
Portable Audio
Player/USB Memory
Explanations regarding how to
use your MP3/ WMA disc and USB
PORTABLE Audio Player/USB
Memory are contained below.
Details regarding MP3 and WMA
files (page 64).
CAUTION
Compact disc players use an
invisible laser beam which
could cause hazardous radiation
exposure if directed outside
the unit. Be sure to operate the
player correctly.

7
7

Handling MP3/WMA discs
Load a MP3/ WMA disc.Load a MP3/ WMA disc in the disc slot.The MP3/ WMA disc will begin to play.Removing the MP3/ WMA discPress [].
About handling the USB
portable audio player/USB
memory
• For information on USB portable
audio player/USB memory restric-tions, refer to page 67 “USB port-able audio player/USB memory compatibility”.
• For information on restrictions on
folders in the USB portable audio player/USB memory, refer to page 66 “About folders and MP3/ WMA files”.
•
•
Connecting the USB portable
audio player/USB memory
• Connect the USB portable audio player/USB memory to the USB port of the USB connector.
• For instructions on connecting and
disconnecting the iPod, refer to page 31 “Connecting the iPod” and page 31 “Disconnecting the iPod”.
Playing MP3, WMA Disc and
USB Portable Audio Player and
USB Memory Files
Touch [] to play back either an MP3 disc, a WMA disc and USB portable audio player or the USB memory.
Selecting a File
Any of the methods described below can be used to select files from an MP3 disc, a WMA disc and USB portable audio player or the USB memory.
Selecting the previous/next fileTouch [] to return to the begin-ning of the file that is being played. Touch [] again to play the previ-ous file. Touch [] to play the next file.
•
•
•
A quick method for selecting the previous/next file Touch [] to change the MULTI SELECTOR to TUNE mode, then turn MULTI SELECTOR to the left to begin playback of the previous file. Turning MULTI SELECTOR to the right will begin playback of the next file. • If the volume changes, touch [] and then turn the MULTI SELECTOR back and forth.
Selecting files from the listTouch [Files] and then select the song you want to listen to by touch-ing on it. Touch [Folders] to display the folder list.

8
8

Playing MP3, WMA Disc and
USB Portable Audio Player and
USB Memory Files in Random
Order
Each time you touch [RAND] MP3, WMA disc and USB portable audio player and USB memory files are played back as described below.
Normal playback d files in the folder are
played in random order d all files on the
disc are played in random order (d normal
playback)
Repeating Files
Each time you touch [RPT] MP3, WMA disc and USB portable audio player/USB memory files are played as described below.
Normal playback d playback of files is
repeated d files in the folder are played in
random order* (d normal playback)* If the random function is available, this is skipped.
Pausing Playback of Files
Touch on [] while the file is playing. Touch it again and playback resumes.
•
•
•
Touch [] while the list is being displayed and then after setting the MULTI SELECTOR to tune mode, turn MULTI SELECTOR to the left to move the cursor to the previous song. Turning MULTI SELECTOR to the right will move the cursor to the next song. Press the POWER button to play the song that has been selected.• If the volume changes when you turn the MULTI SELECTOR, touch [] and then go through the same procedures.
Scrolling through the pages of the listTouch [] while the list is being dis-played to display the previous page. Touch [] while the list is being dis-played to display the next page.
Returning from the list display to the display for the file that is being
played Touch []. Touch [] or [] when the names of all the songs will not fit on the list display to display letters in a scrolling format.

37
37

Registering Bluetooth Audio
Device
There are two methods for register-ing Bluetooth audio device to this system, both of which are explained below. If another Bluetooth audio device has already been connected, you will need to cancel this connection prior to beginning the registration process.You will mainly be working with your Bluetooth audio device to register it with the system. For details, see the user manual for your Bluetooth audio device.
Sending your pass key for registration
1. Touch [
] d [Bluetooth] d
[Connect Audio Player] d [Add
New]. If a device has already been
connected, a screen will appear
seeking confirmation of whether
this connection is to be cancelled
or not. Touch [YES].
2. Using the Bluetooth audio, search
for the Bluetooth- enabled device
and then select this unit ([CAR
MULTIMEDIA]).
3. Send the Passkey that appears
on the screen from the Bluetooth
audio device to the system.
If the Passkey has been sent
correctly, Bluetooth audio will
register it to the system and it will
be connected.
•Registering via SSP (Secure Simple Pairing)
1. Touch [
] d [Bluetooth] d
[Connect Audio Player] d [Add
New]. If a device has already been
connected, a screen will appear
seeking confirmation of whether
this connection is to be cancelled
or not. Touch [YES].
2. Using the Bluetooth audio, search
for the Bluetooth- enabled device
and then select this unit ([CAR
MULTIMEDIA]). • For some types of devices and authentication methods, number authentication or other means of verification may be required.
• Bluetooth 2.0 or higher is required
Connecting a Bluetooth Audio DeviceOnce the Bluetooth audio device is registered to the System, connec-tion takes place automatically. Up to five Bluetooth audio devices can be registered on the system. You can select the device that you want to listen to and it will be connected.Touch [] d [Bluetooth] d [Connect Audio Player] to display a list of devices. Touch the Bluetooth audio device that you want to connect.
Selecting Files
Any of the methods used below can be used to select Bluetooth audio files.
Selecting the previous/next fileTouch [] to return to the begin-ning of the file that is being played back. Touch [] again to play back the previous file. Touch [] to play back the next file.
A quick method for selecting the
previous/next fileTouch [] to change the MULTI SELECTOR to TUNE mode, then turn MULTI SELECTOR to the left to begin playback of the previous file. Turning MULTI SELECTOR to the right will begin playback of the next file.• If the volume changes when you turn the MULTI SELECTOR, touch [] and then turn the MULTI SELECTOR back and forth.
•

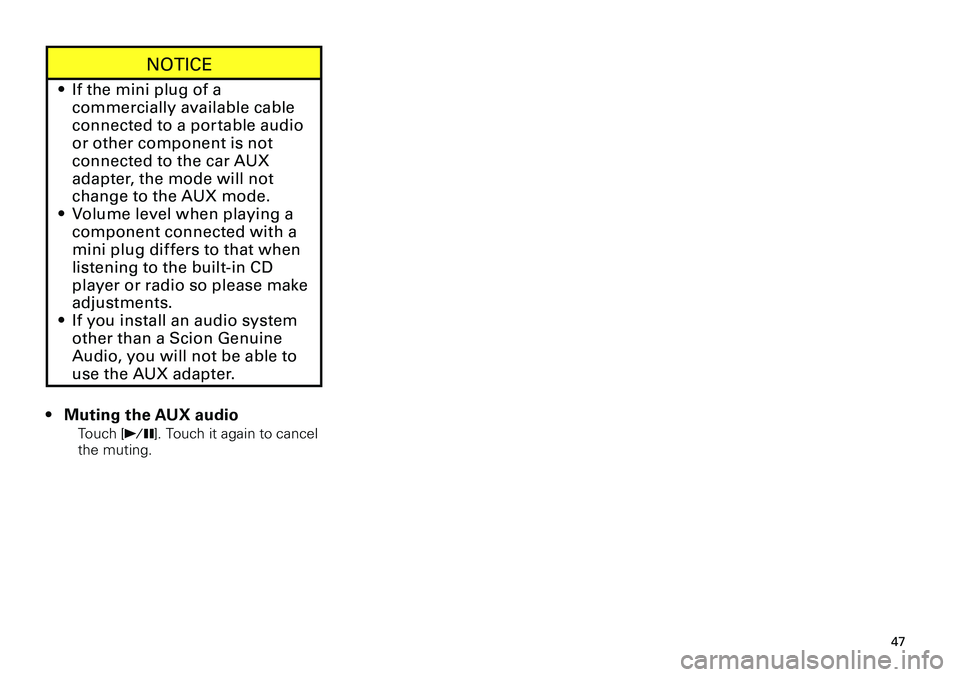

47
47

NOTICE
If the mini plug of a
commercially available cable
connected to a portable audio
or other component is not
connected to the car AUX
adapter, the mode will not
change to the AUX mode.
Volume level when playing a
component connected with a
mini plug dif fers to that when
listening to the built-in CD
player or radio so please make
adjustments.
If you install an audio system
other than a Scion Genuine
Audio, you will not be able to
use the AUX adapter.
•
•
•
Muting the AUX audio
Touch []. Touch it again to cancel the muting.
•
