phone TOYOTA TUNDRA 2008 2.G Navigation Manual

BASIC FUNCTIONS
272008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) POI INFORMATION

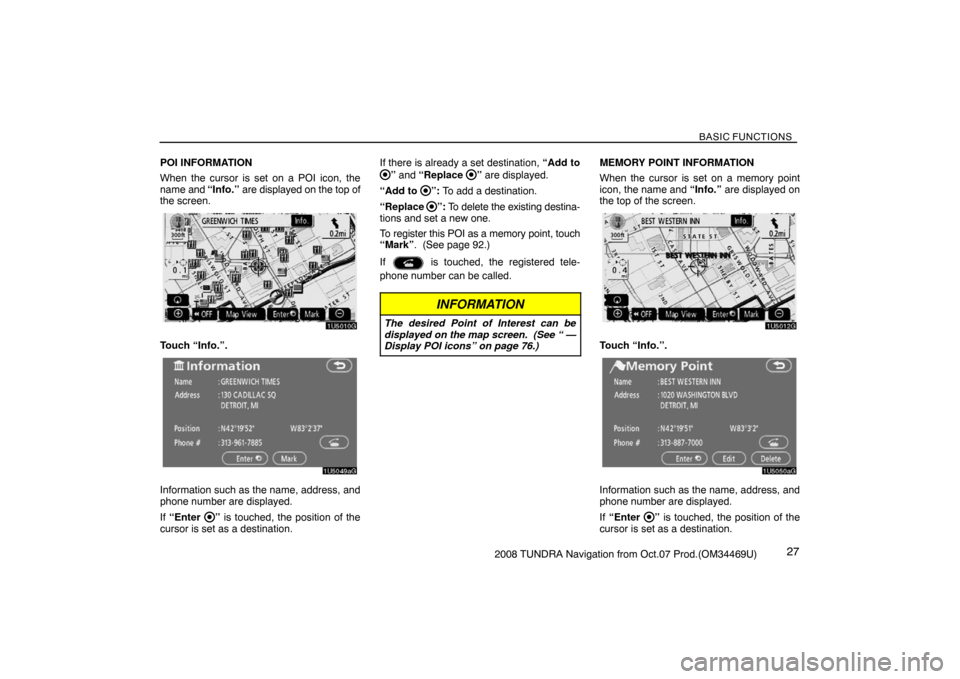

When the cursor is set on a POI icon, the
name and “Info.” are displayed on the top of
the screen.
1U5010G
Touch “Info.”.
1U5049aG
Information such as the name, address, and
phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination.If there is already a set destination, “Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
To register this POI as a memory point, touch
“Mark”. (See page 92.)
If
is touched, the registered tele-
phone number can be called.
INFORMATION
The desired Point of Interest can be
displayed on the map screen. (See “ —
Display POI icons” on page 76.)
MEMORY POINT INFORMATION
When the cursor is set on a memory point
icon, the name and “Info.” are displayed on
the top of the screen.
1U5012G
Touch “Info.”.
1U5050aG
Information such as the name, address, and
phone number are displayed.
If “Enter
” is touched, the position of the
cursor is set as a destination.

BASIC FUNCTIONS
282008 TUNDRA Navigation from Oct.07 Prod.(OM34469U) If there is already a set destination, “Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
To edit a memory point, touch “Edit”. (See “
— Editing memory points” on page 93.)
To delete a memory point, touch “Delete”.
If
is touched, the registered tele-

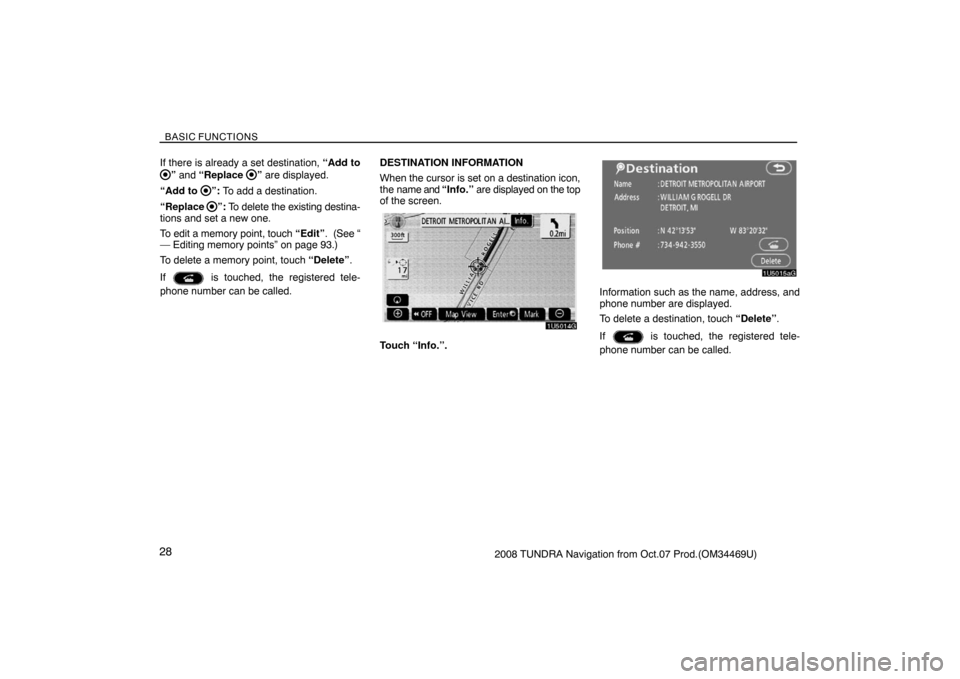

phone number can be called.DESTINATION INFORMATION
When the cursor is set on a destination icon,
the name and “Info.” are displayed on the top
of the screen.1U5014G
Touch “Info.”.
1U5015aG
Information such as the name, address, and
phone number are displayed.
To delete a destination, touch “Delete”.
If
is touched, the registered tele-
phone number can be called.

BASIC FUNCTIONS
382008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
1U5046bG

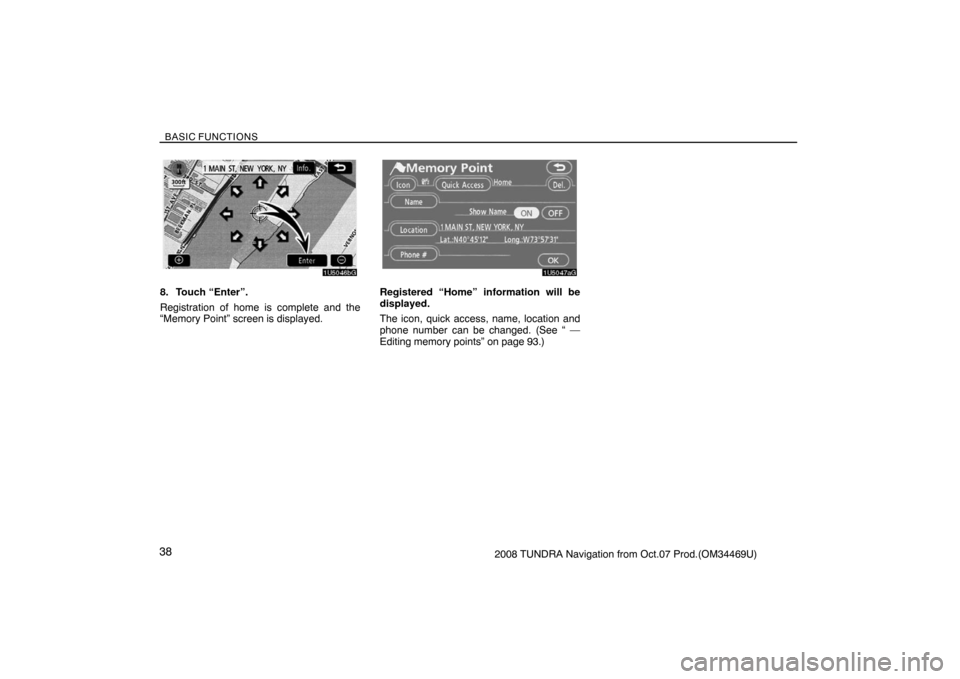

8. Touch “Enter”.
Registration of home is complete and the
“Memory Point” screen is displayed.
1U5047aG
Registered “Home” information will be
displayed.
The icon, quick access, name, location and
phone number can be changed. (See “ —
Editing memory points” on page 93.)

DESTINATION SEARCH
392008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
DESTINATION SEARCH
Quick reference (“Destination” screen)40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search41 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Selecting the search area42 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Home44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by Quick access45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Address”45 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “POI* Name” 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “POI* Category” 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Emergency”56 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Memory”57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Previous”57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Map”58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Intersection”58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Freeway Ent./Exit”59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Coordinates”60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Destination search by “Phone #”60 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting route guidance61 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
*: Point of Interest
∗
: Point of Interest
SECTION 2

DESTINATION SEARCH
412008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
7“Map”
A destination can be selected simply by
touching the location on the displayed map.
58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8“Intersection”
The names of two intersecting streets can be
entered. This is helpful if only the general vi-
cinity, not the specific address, is known.
58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9“Freeway Ent./Exit”
The name of a freeway (interstate) entrance
or exit can be entered. 59. . . . . . . . . . . . . . .
10“?”
Function help for the “Destination” screen can
be viewed on this screen. 23. . . . . . . . . . . . .
11“Change”
To change the search area, touch this touch−
screen button. 42. . . . . . . . . . . . . . . . . . . . . .
12Quick access touchscreen buttons
One of 5 preset destinations can be selected
by touching the screen directly. To use this
function, it is necessary to set the “Quick
Access” for each memory point. (To register
a “Quick Access”, see “ — Editing memory
points” on page 93.) 45. . . . . . . . . . . . . . . . .
13Home touchscreen button
A personal home address can be selected
without entering the address each time. To
use this function, it is necessary to set “Home”
for the memory point. (To register “Home”,
see “ — Registering home” on page 98.)
44 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14“Phone #”
A destination can be entered by the telephone
number. 60. . . . . . . . . . . . . . . . . . . . . . . . . . . .
15“Coordinates”
A destination can be set by using latitude and
longitude as coordinates. 60. . . . . . . . . . . . .

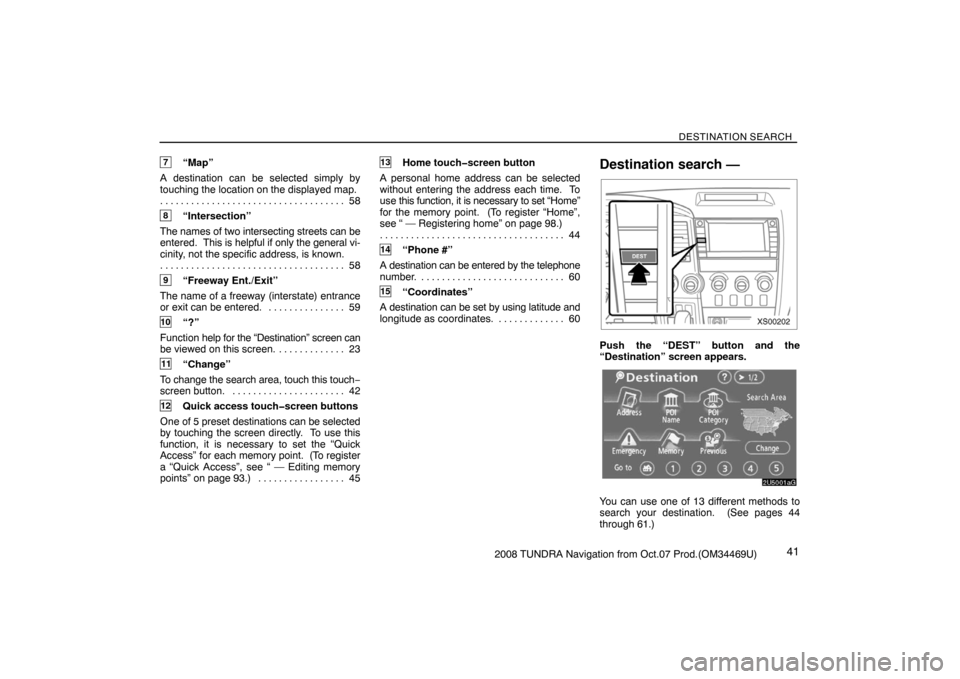

Destination search —
XS00202
Push the “DEST” button and the
“Destination” screen appears.
2U5001aG
You can use one of 13 different methods to
search your destination. (See pages 44
through 61.)

DESTINATION SEARCH
602008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
2U5045aG
5. Touch the touchscreen button of the
desired entrance or exit name.
The screen changes and displays the map
location of the selected destination and the
route preference. (See
“Starting route
guidance” on page 61.)
“Input Name”: An applicable list is displayed
by touching this touch−screen button and in-
putting the name.
— Destination search by
“Coordinates”
1. Push the “DEST” button.
2. Touch “Coordinates” on the
“Destination” screen.
2U5046G
3. Input the latitude and the longitude.
4. When the input is finished, touch
“OK”.
By touching the touch−screen button of the
desired point, the screen changes and dis-
plays the map location of the selected des-
tination and the route preference. (See
“Starting route guidance” on page 61.)
— Destination search by
“Phone #”
1. Push the “DEST” button.
2. Touch “Phone #” on the “Destination”
screen.
2U5047G
3. Input a telephone number.
4. After inputting a telephone number,
touch “OK”.
The screen changes and displays the map
location of the selected destination and the
route preference. (See “Starting route
guidance” on page 61.)
If there is more than one site having the same
number, the following screen will be dis-
played.

DESTINATION SEARCH
612008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
2U5048G
INFORMATION
If there is no match for the telephone
number inputted, a list of identical
numbers with different area codes
will be displayed.
To set a memory point as a destina-
tion using the phone number, the
number must be registered previous-
ly. (See page 97.)
Starting route guidance
After inputting the destination, the screen
changes and displays the map location of the
selected destination and the route prefer-
ence.
2U5049aG
1. When an arrow facing the desired
point is touched, the map scrolls in that di-
rection.
Releasing the finger from the arrow will stop
the scrolling.2. Touch “Enter”.
The system starts route search and displays
recommended routes.
If there is already a set destination, “Add to
” and “Replace ” are displayed.
“Add to
”: To add a destination.
“Replace
”: To delete the existing destina-
tions and set a new one.
“Route Preference”: To change the route
preference. (See page 63.)
“Info.”: If this touch−screen button is dis-
played on the top of the screen, touch it to
view items such as name, address, and
phone number.

ADVANCED FUNCTIONS
932008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
4U5036aG
5. Touch “OK”.
To edit registered information, see “ — Editing
memory points” on page 93.
INFORMATION
Up to 106 memory points can be regis-
tered.

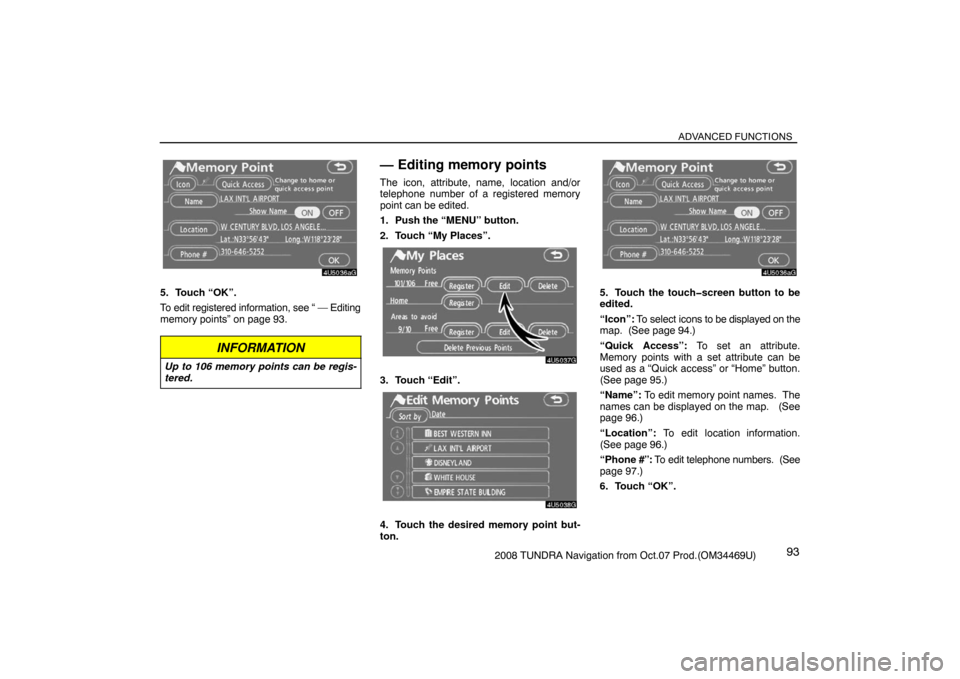

— Editing memory points
The icon, attribute, name, location and/or
telephone number of a registered memory
point can be edited.
1. Push the “MENU” button.
2. Touch “My Places”.
4U5037G
3. Touch “Edit”.
4U5038G
4. Touch the desired memory point but-
ton.
4U5036aG
5. Touch the touchscreen button to be
edited.
“Icon”: To select icons to be displayed on the
map. (See page 94.)
“Quick Access”: To set an attribute.
Memory points with a set attribute can be
used as a “Quick access” or “Home” button.
(See page 95.)
“Name”: To edit memory point names. The
names can be displayed on the map. (See
page 96.)
“Location”: To edit location information.
(See page 96.)
“Phone #”: To edit telephone numbers. (See
page 97.)
6. Touch “OK”.

ADVANCED FUNCTIONS
972008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)

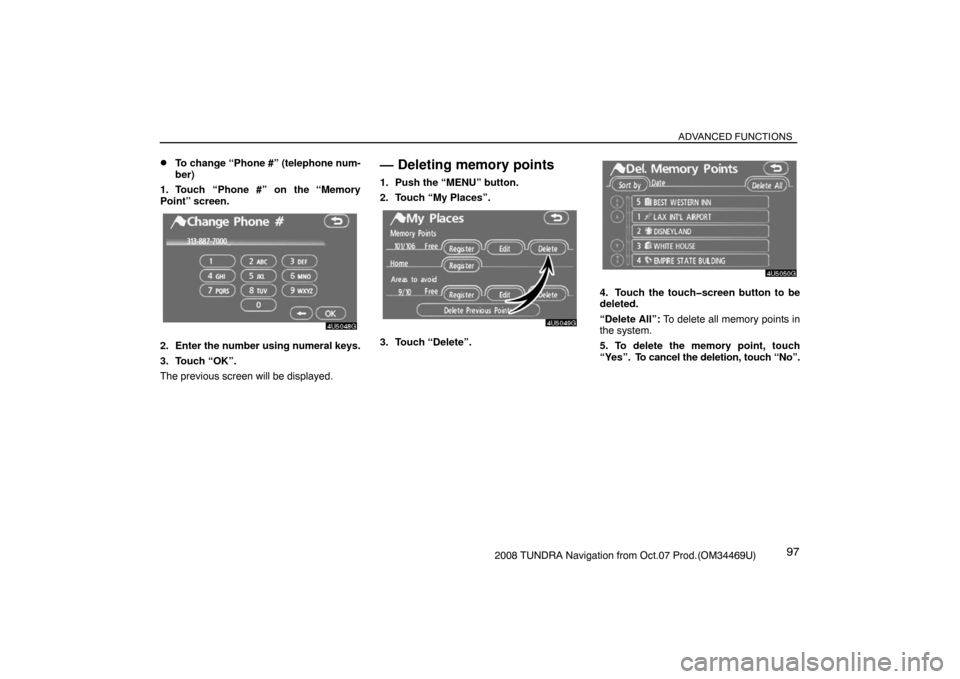

To change “Phone #” (telephone num-
ber)
1. Touch “Phone #” on the “Memory
Point” screen.
4U5048G
2. Enter the number using numeral keys.
3. Touch “OK”.
The previous screen will be displayed.
— Deleting memory points
1. Push the “MENU” button.
2. Touch “My Places”.
4U5049G
3. Touch “Delete”.
4U5050G
4. Touch the touchscreen button to be
deleted.
“Delete All”: To delete all memory points in
the system.
5. To delete the memory point, touch
“Yes”. To cancel the deletion, touch “No”.

OTHER FUNCTIONS
11 32008 TUNDRA Navigation from Oct.07 Prod.(OM34469U)
OTHER FUNCTIONS
Maintenance information11 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Maintenance information setting11 4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Dealer setting 11 6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Calendar with memo11 7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding a memo11 9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing a memo120 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Memo list121 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hands−free system (for cellular phone)122 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Enter a Bluetooth phone126 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Call on the Bluetooth phone129 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Receive on the Bluetooth phone135 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Talk on the Bluetooth phone135 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Change the settings of the Bluetooth phone137 . . . . . . . . . . . . . . . . . . . . . . . . .
Set a Bluetooth phone160 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Speech command system165 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Help screen167 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen adjustment168 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screen setting169 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Delete personal data171 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Beep setting172 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Select language172 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 5
