steering TOYOTA TUNDRA 2010 2.G Navigation Manual

TELEPHONE AND INFORMATION
122
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Handsfree
system allows you to make
or receive a call without taking your
hands off the steering wheel by con-
necting your cellular phone.
This system supports Bluetooth .
Bluetooth  is a wireless data system by
which you can call without your cellular
phone being connected with a cable or
placed on a cradle.
If your cellular phone does not support
Bluetooth , this system can not function.
The operating procedure of the phone is
explained here.
For registering and setting of the phone,
see “Telephone settings” on page 254.
CAUTION
While driving, do not use a cellular
phone or connect the Bluetooth
phone.
NOTICE
Do not leave your cellular phone in
the car. The temperature indoor may
be high and damage the phone.
INFORMATION
In the following conditions, the sys-
tem may not function.
 The cellular phone is turned off.
 The current position is outside
the communication area.
 The cellular phone is not connec-
ted.
 The cellular phone has a low bat-
tery.
Even if your cellular phone sup-
ports both handsfree and audio
Bluetooth  connections, it may
not be able to connect to the
handsfree connection at the
same time.
When using Bluetooth audio and
handsfree at the same time, the
following problems may occur.
 The Bluetooth connection may
be cut.
 Noise may be heard on the
Bluetooth  audio playback.
Bluetooth is a registered trademark of
Bluetooth SIG, Inc.
Telephone
(Handsfree system for
cellular phone)

TELEPHONE AND INFORMATION
123
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
INFORMATION
This system supports the following
service.
Bluetooth  Specification
Ver.1.1 or higher
(Recommended: Ver.2.0+EDR or
higher)
 Profiles
HFP (Hands Free Profile)
Ver.1.0 or higher
(Recommended: Ver .1.5 or higher)
 OPP (Object Push Profile)
Ver.1.1
 PBAP (Phone Book Access Pro-
file) Ver.1.0
If your cellular phone does not
support HFP, you cannot enter the
Bluetooth  phone, and take OPP or
PBAP service individually.
Please go to “http://www.toyota.lets-
talk.com/” to find approved
Bluetooth  phones for this system.
U008AHNS
By pushing the telephone switch above,
you can receive a call or hang up without
taking your hands off the steering wheel.
U005AHNS
 Microphone (Type A)
U006AHNS
Microphone (Type B)

TELEPHONE AND INFORMATION
131
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Reconnecting the Bluetooth
phone
If the Bluetooth phone is discon-
nected with a poor reception from the
Bluetooth  network when the engine
switch is in the “ACC” or “ON” position
the system automatically reconnects
the Bluetooth phone. In this case, the
connection result is not displayed.
If the Bluetooth is disconnected on pur-
pose such as you turned your cellular
phone off, this does not happen. Recon-
nect it by the following methods.
Select the Bluetooth  phone again.
Enter the Bluetooth  phone. After you enter the Bluetooth
phone,
you can call by using handsfree sys-
tem. You can call using the 6 methods
described below.
By dial
You can call by inputting the phone
number.
This cannot be operated while driving.
1. Push the “INFO/PHONE” button.
You can also push
of the steering
wheel to display the “Phone” screen.
2. Touch “Phone”.
— Call on the Bluetooth
phone

TELEPHONE AND INFORMATION
132
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
3. Touch the desired key to input the
phone number.
Each time you touch
, an inputted
digit is deleted.
When you touch “Redial” , the number you
called last is inputted.
Touch
or push of the steering
wheel.
By phonebook
You can call by phonebook data which
is transferred from your cellular phone.
The system has one phonebook for
each telephone. You can register up to
1000 numbers in total of phonebooks.
This cannot be operated while driving.
1. Touch “Contacts”.
2. Select the desired data from the list.

TELEPHONE AND INFORMATION
133
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
3. Select the desired number from the
list.
Touch
or push of the steering
wheel. When the phonebook is empty
1. Touch “Contacts”.
2. Touch “Yes” if you want to transfer
new contacts from a cellular phone.
Touch “No” if you want to edit the
phonebook.

TELEPHONE AND INFORMATION
135
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
3. Touch or push of the steer-
ing wheel. You can call using the latest call history
item.
1. Push
of the steering wheel to dis-
play the “Phone” screen.
2. Push
of the steering wheel to dis-
play the “Call History” screen.
3. Push
of the steering wheel to se-
lect the latest history item.
4. Touch
or push of the steer-
ing wheel to call the latest history item.
When you call by phonebook, the
name (if registered) is displayed.
When you call the same number continuously, only the newest
number is registered.
When a phone number registered in the phonebook is received, the
name and the number are displayed.
Unnoticed phone number such as a
public phone is not memorized in
the system.
A international phone call may not be made depending on the cellular
phone which you have.

TELEPHONE AND INFORMATION
137
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
Example: Call
MIKE.
You: Push the talk switch.
System: “After the beep, please say a
command.” “Such as “Go
Home”, “Destination”,
“Phone”,
“Audio” or “Command List”.”
“(beep)”
You: “Phone.”
System: “Phone.” “Say a command.” “Such as
“Dial by Number”, “Dial by
Name”, “Redial”,
“Call Back” or “Connect
Phone”.”
“(beep)”
You: “Dial by Name.”
System: “Dial by Name.” “Say a name from your contact list.”
“(beep)”
You: “MIKE.”
System: “MIKE.” “Say the type of
number.” “Such as
“Mobile”, “Home”,
“Work” or “Other”.”
“(beep)”
You: “Home.”
System: “MIKE.” “Home.”
“Push the off− hook switch to
dial or say “Dial”.”
“(beep)”
You: “Dial.”
System: “Dial.”
Now, you can call MIKE. Calling without the voice recognition
After the entry number is displayed, you
can also call by pushing
of the steering
wheel or touching “Dial”.
Cancelling the voice recognition
The voice recognition will be cancelled
when you do the following.
Keep on pushing the talk switch.
Push of the steering wheel.
Touch “Cancel” . (Except for recogniz-
ing the command.)
Say “Cancel”.

TELEPHONE AND INFORMATION
138
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)
By POI∗ call
You can call by touching when it is
displayed on the screen from naviga-
tion system. (See “POI INFORMA TION”
on page 36 for details.)
∗: Point of Interest
When a call is received, this screen is
displayed with a sound. Touch
or
push
of the steering wheel to talk on
the phone.
To refuse to receive the call:
Touch
or push of the steering
wheel.
To adjust the volume of received call: Touch “
–” or “+” or use the volume
switch of the steering wheel.
On the international phone call, the other
party’s name may not be displayed cor-
rectly depending on the cellular phone
which you have.
— Receive on the
Bluetooth  phone

TELEPHONE AND INFORMATION
139
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

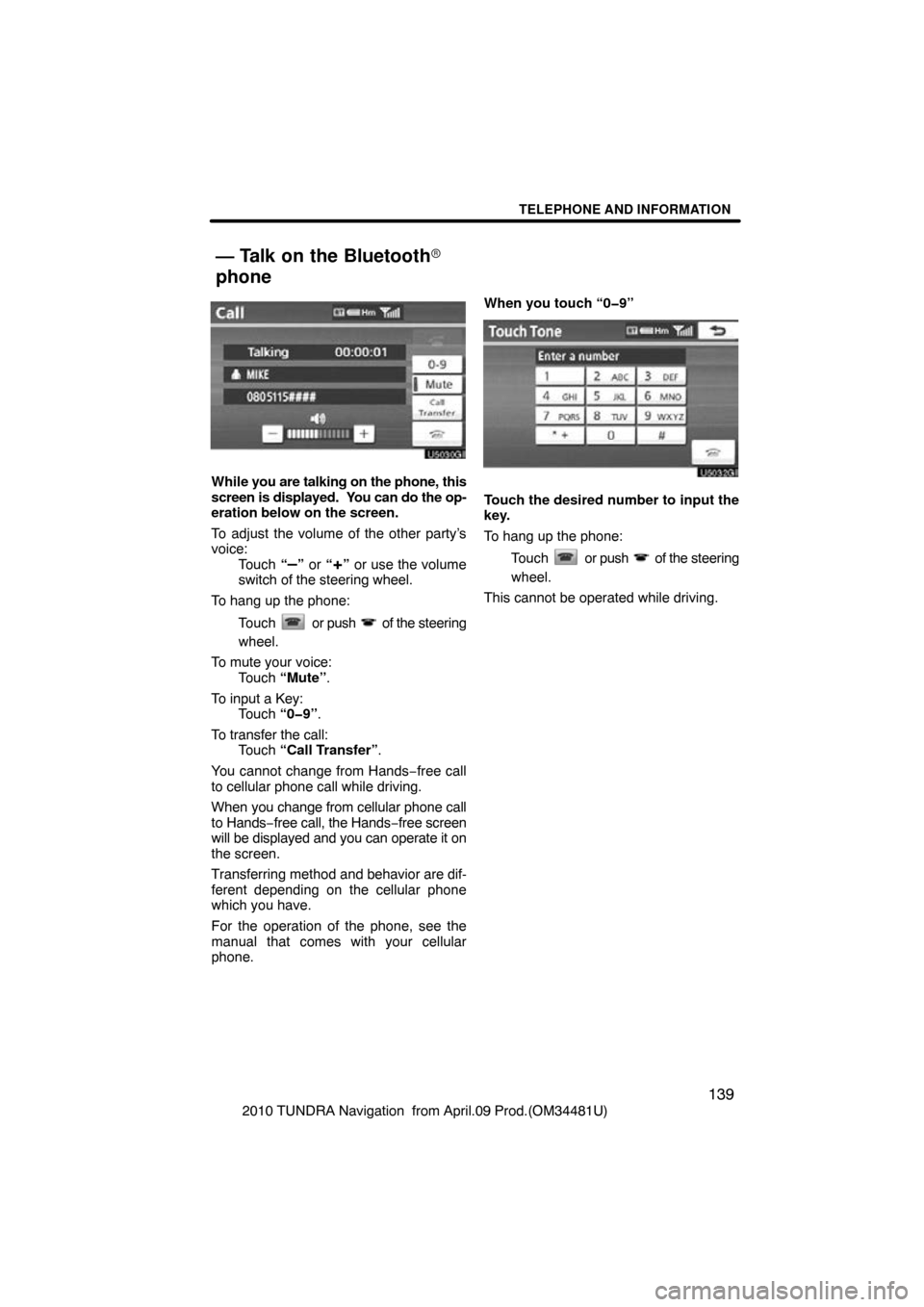

While you are talking on the phone, this
screen is displayed. You can do the op-
eration below on the screen.
To adjust the volume of the other party’s
voice: Touch “
–” or “+” or use the volume
switch of the steering wheel.
To hang up the phone:
Touch
or push of the steering
wheel.
To mute your voice: Touch “Mute”.
To input a Key: Touch “09”.
To transfer the call: Touch “Call Transfer” .
You cannot change from Hands −free call
to cellular phone call while driving.
When you change from cellular phone call
to Hands− free call, the Hands −free screen
will be displayed and you can operate it on
the screen.
Transferring method and behavior are dif-
ferent depending on the cellular phone
which you have.
For the operation of the phone, see the
manual that comes with your cellular
phone. When you touch “09”
Touch the desired number to input the
key.
To hang up the phone:
Touch
or push of the steering
wheel.
This cannot be operated while driving.
— Talk on the Bluetooth
phone

TELEPHONE AND INFORMATION
140
2010 TUNDRA Navigation from April.09 Prod.(OM34481U)

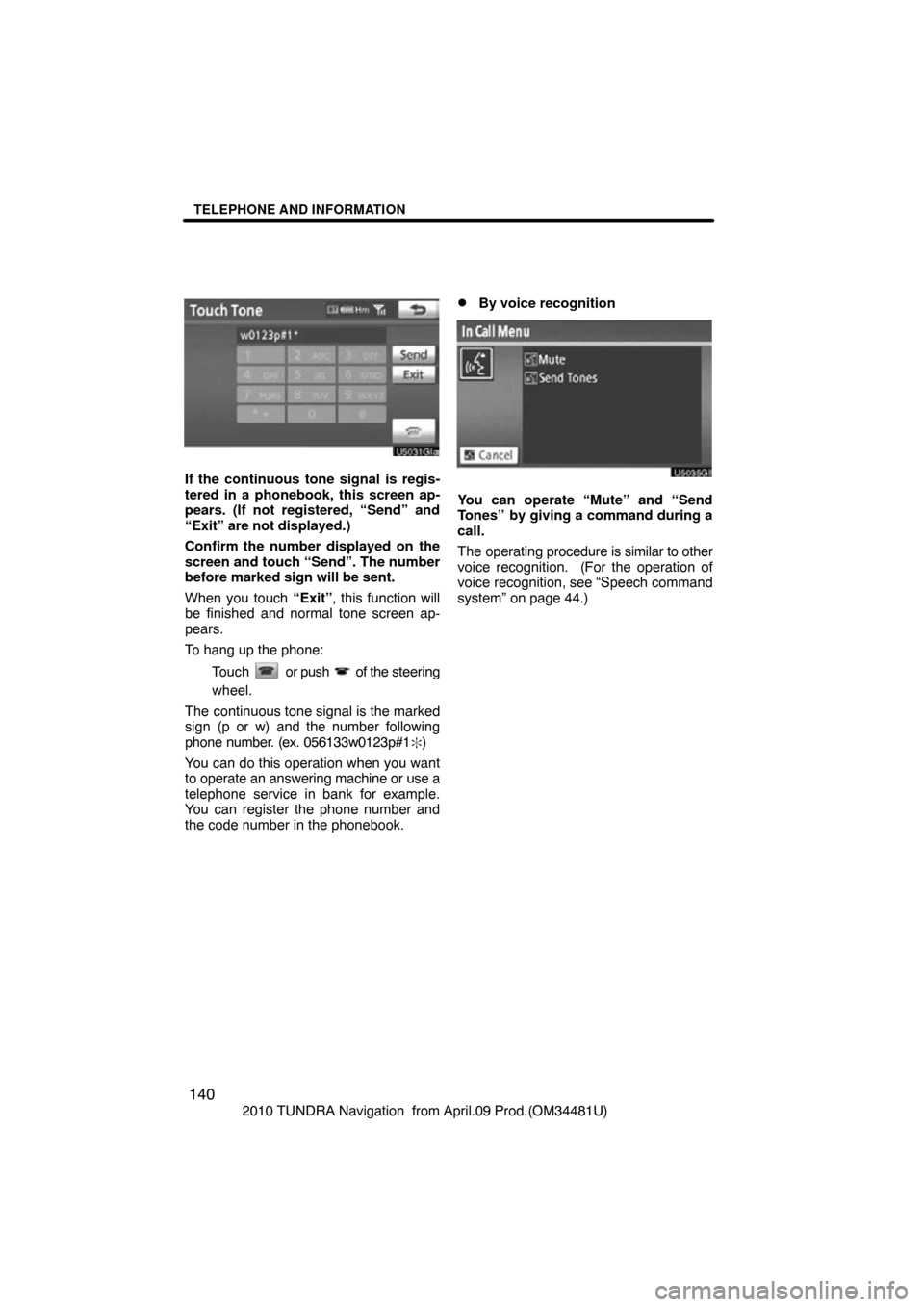

If the continuous tone signal is regis-
tered in a phonebook, this screen ap-
pears. (If not registered, “Send” and
“Exit” are not displayed.)
Confirm the number displayed on the
screen and touch “Send”. The number
before marked sign will be sent.
When you touch “Exit”, this function will
be finished and normal tone screen ap-
pears.
To hang up the phone:
Touch
or push of the steering
wheel.
The continuous tone signal is the marked
sign (p or w) and the number following
phone number. (ex. 056133w0123p#1
)
You can do this operation when you want
to operate an answering machine or use a
telephone service in bank for example.
You can register the phone number and
the code number in the phonebook.
By voice recognition
You can operate “Mute” and “Send
Tones” by giving a command during a
call.
The operating procedure is similar to other
voice recognition. (For the operation of
voice recognition, see “Speech command
system” on page 44.)
