TOYOTA TUNDRA 2019 Accessories, Audio & Navigation (in English)

251
NAVIGATION SYSTEM
8
6. TIPS FOR THE NAVIGATION SYSTEM
1. GPS (GLOBAL POSITIONING SYSTEM)
LIMITATIONS OF THE
NAVIGATION SYSTEM
The Global Positioning System (GPS) de-
veloped and operated by the U.S. Depart-
ment of Defense provides an accurate
current position, normally using 4 or more
satellites, and in some case 3 satellites.
The GPS system has a certain level of in-
accuracy. While the navigation system
compensates for this most of the time, oc-
casional positioning errors of up to 300 ft.
(100 m) can and should be expected. Gen-
erally, position errors will be corrected
within a few seconds. When the vehicle is receiving signals from

satelli tes,

the “GPS” mark appears at the
top left of the screen.
The GPS signal may be physically ob-
structed, leading to inaccurate vehicle po-
sition on the map screen. Tunnels, tall
buildings, trucks, or even the placement of
objects on the control panel may obstruct
the GPS signals.
The GPS satellites may not send signals
due to repairs or improvements being
made to them.
Even when the navigation system is re-
ceiving clear GPS signals, the vehicle po-
sition may not be shown accurately or
inappropriate route guidance may occur in
some cases.
This navigation system calculates the
current position using satellite signals,
various vehicle signals, map data, etc.
However, an accurate position may not
be shown depending on satellite condi-
tions, road configuration, vehicle con-
dition or other circumstances.
NOTICE
● The installation of window tinting may
obstruct the GPS signals. Most window
tinting contains some metallic content
that will interfere with GPS signal recep-
tion of the antenna in the instrument
panel. We advise against the use of win-
dow tinting on vehicles equipped with
navigation systems.

252
6. TIPS FOR THE NAVIGATION SYSTEM
Accurate current position may not be
shown in the following cases:
• When driving on a small angled Y- sha ped

road.
• When driving on a winding road.
• When driving on a slippery road such as
i n

sand, gravel, snow, etc.
• When driving on a long straight road.
• When freeway and surface streets run in
pa ra

llel.
• After moving by ferry or vehicle carrier.
• When a long route is searched during
hi gh

speed driving.
• When driving without setting the current
po sit

ion calibration correctly.
• After repeating a change of direction by
go ing

forward and backward, or turning
on a turntable in a parking lot.
• When leaving a covered parking lot or
pa rk

ing garage.
• When a roof carrier is installed.
• When driving with tire chains installed.
• When the tires are worn.
• After replacing a tire or tires.
• When using tires that are smaller or
l arger

than the factory specifications.
• When the tire pressure in any of the 4
t ir

es is not correct.
Inappropriate route guidance may occur in
the following cases:
• When turning at an intersection off the
d esi

gnated route guidance.
• If you set more than 1 destination but
sk ip

any of them, auto reroute will dis-
play a route returning to the destination
on

the previous route.
• When turning at an intersection for which
t here

is no route guidance.
• When passing through an intersection
f or

which there is no route guidance.
• During auto reroute, the route guidance
ma y

not be available for the next turn to
the right or left.
• During high speed driving, it may take a
l ong

time for auto reroute to operate. In
auto reroute, a detour route may be
shown.
• After auto reroute, the route may not be
ch ange

d.
• If an unnecessary U-turn is shown or
a nnou

nced.
• If a location has multiple names and the
sy ste

m announces 1 or more of them.
• When a route cannot be searched.
• If the route to your destination includes
g r

avel, unpaved roads or alleys, the
route guidance may not be shown.
• Your destination point might be shown
o n t

he opposite side of the street.
• When a portion of the route has regula-
tions prohibiting the entry of the vehicle
t hat

vary by time or season or other rea -
sons.
• The road and map data stored in the
n a

vigation system may not be complete
or may not be the latest version.
 If the vehicle cannot receive GPS sig-
nals, the current position can be
adjusted manually. For information on
setting the current position calibration:
 P. 2 4 3
 After replacing a tire: P. 2 4 4
INFORMATION
● This navigation system uses tire turning
data and is designed to work with fac-
tory-specified tires for the vehicle.
Installing tires that are larger or smaller
than the originally equipped diameter
may cause inaccurate display of the cur-
rent position. The tire pressure also
affects the diameter of the tires, so make
sure that the tire pressure of all 4 tires is
correct.

253
6. TIPS FOR THE NAVIGATION SYSTEM
NAVIGATION SYSTEM
8
2. MAP DATABASE VERSION AND COVERED AREA
MAP INFORMATION
1Press the “APPS” button.
2Select “Navigation” .
3Select “Options”.
4Select “Map Data” .
5Check that the map data screen is dis -
played.
Coverage areas and legal information
can be displayed and map data can be
updated.
No.Function
Map version
Select to display map coverage ar-
eas.
Select to display legal information.
INFORMATION
● Map data updates are available for a
fee. Contact your Toyota dealer for fur-
ther information.

ABOUT THE MAP DATA
254
6. TIPS FOR THE NAVIGATION SYSTEM
Map data for the navigation system is
contained in a SD card that is inserted
in the SD card slot.
Do not eject the SD card, as doing so
may deactivate the navigation system.
WA R N I N G
● SD cards
• Keep away from children. These are
small and if swallowed by a child they
can cause choking.
NOTICE
● Failure to follow the precautions below
may result in damage to the SD cards or
the SD card slot.
• Do not insert anything other than an
SD card into the SD card slot.
• Do not stick labels or stickers on SD
card. There is a possibility that it may
become impossible to eject the SD
card from inside the slot.
• Do not handle an SD card with wet
hands. Doing so may cause electric
shock or a malfunction.
• Do not allow hands or metal objects to
contact the interface pins of SD cards.
• Do not place SD cards on the instru- ment panel, on any place with direct
sunlight or in areas with a lot of mois-
ture.
• Do not use SD cards in any place
where static electricity or electric noise
adversely affects SD cards. This may
cause data corruption or data loss.
• Always place the SD card in its storage
case when not in use.
● Do not edit or delete the map data on
the SD card, as doing so may deactivate
the navigation system.
INFORMATION
● microSDHC Logo is a trademark of SD-
3C,LLC.

9
255
1
2
3
4
5
6
7
8
9

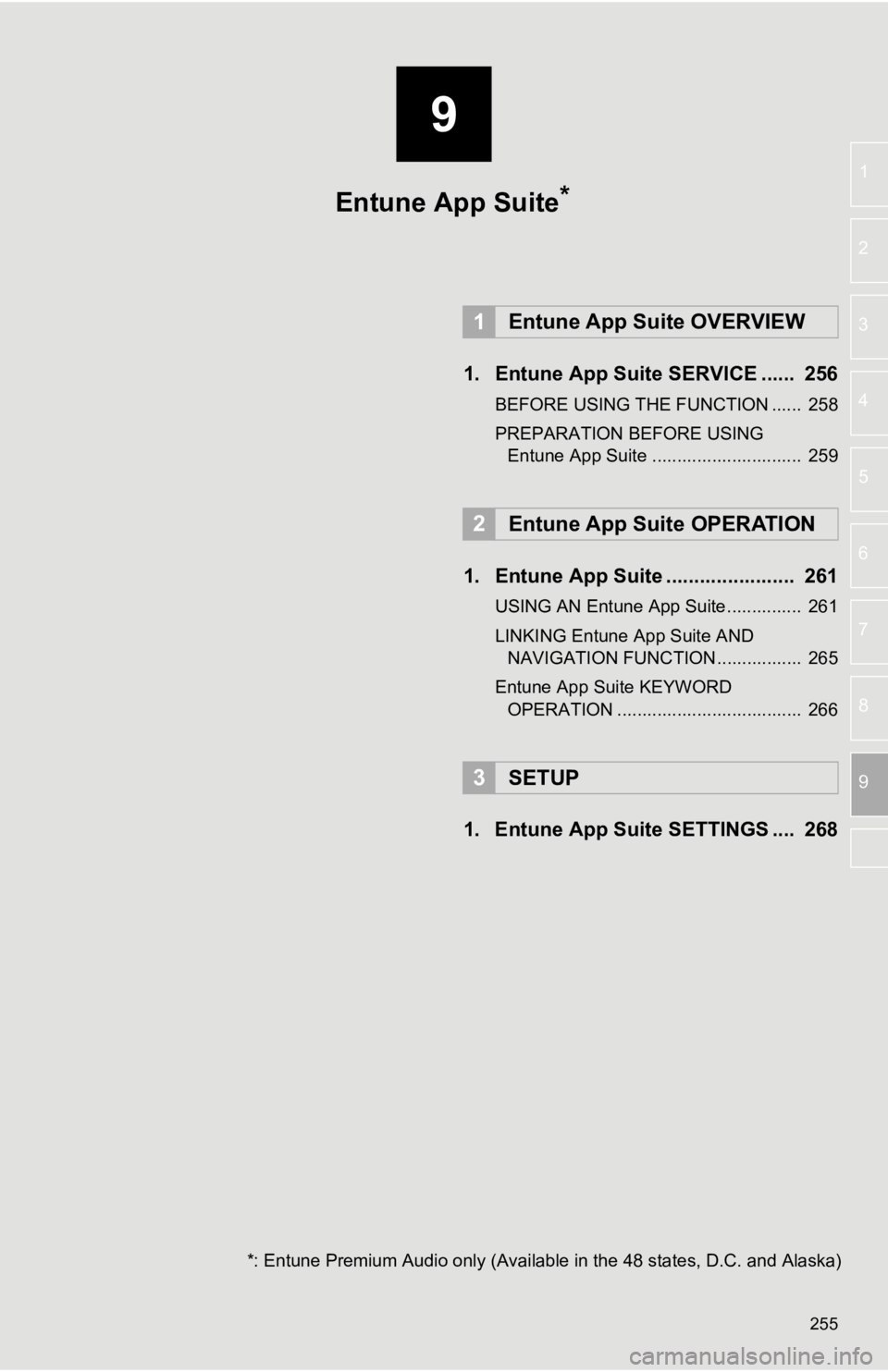

1. Entune App Suite SERVICE ...... 256
BEFORE USING THE FUNCTION ...... 258
PREPARATION BEFORE USING 
Entune App Suite .............................. 259
1. Entune App Suite ....................... 261
USING AN Entune App Suite............... 261
LINKING Entune App Suite AND NAVIGATION FUNCTION ................. 265
Entune App Suite KEYWORD 
OPERATION ..................................... 266
1. Entune App Suite SETTINGS .... 268
1Entune App Suite OVERVIEW
2Entune App Suite OPERATION
3SETUP
Entune App Suite
*: Entune Premium Audio only (Available in the 48 states, D.C. and Alaska)
*

256
1. Entune App Suite OVERVIEW
1. Entune App Suite SERVICE
USB*1
Entune App Suite is a service that enables downloadable applications to be dis-
played on and operated from the multimedia screen. Before Entune App Suite can
be used, a few actions need to be performed first. ( P.259)

No.NameFunction
*2
●The actual service availability is dependent on the network condition.
257
1. Entune App Suite OVERVIEW
Entune App Suite
9
Content providerProvides content to the multimedia system via a cellular phone.
Application serverProvides downloadable application to the multimedia system
via a cellular phone.
Cellular phone
Using the Entune App Suite appl ication, communication is re-
layed between the multimedia system, the application server
and the content provider.
For known compatible phones, refer to http://www.toyota.com/
entune/.
Applications
Downloaded Entune App Suite applications provide access to
audio/visual content from a content provider when connected
via a compatible phone with a data connection.
Multimedia systemContent received, via a cellular phone, from the content provid -
er’s server are displayed on the screen. The multimedia system
is equipped with an application player to run applications.
*
1: iPhone only
*2: For known compatible phones, refer to http://www.toyota.com/e ntune/.
INFORMATION

258
1. Entune App Suite OVERVIEW
User registration is required to start using
the Entune App Suite service.
 Ent une App Suite does not require an acti
-
vat
ion fee or monthly recurring fees.
 Servi ces requiring a separate contract can

als
o be used.*
*: For details, refer to http://
www.toyota.com/entune/ or call 1-800-
331-4331.
 Entune App Suite is available in the con -
tiguous United States, D.C. and Alaska.
 The following personal data can be
deleted from the system and returned to
their default settings:
• Downloaded applications
• Downloaded application content
BEFORE USING THE
FUNCTION
SUBSCRIPTION
AVAILABILITY OF SERVICE
INFORMATION
● When using Entune App Suite, depend-
ing on the details of your cellular phone
contract, data usage fees may apply.
Confirm data usage fees before using
this service.
● In this section, the required actions to
activate applications, connect a cellular
phone to the navigation system and reg-
istration steps for Entune App Suite are
explained. For details regarding Entune
App Suite operations and each of the
applications, refer to http://www.toy-
ota.com/entune/.
● The actual service availability is depen-
dent on the cellular network condition.
INITIALIZING PERSONAL
DATA
The personal data used in applications
can be removed from the multimedia
system. ( P.61)
INFORMATION
●Once initialized, data will be erased from
the system. Pay close attention when
initializing the data.

PREPARATION BEFORE
USING Entune App Suite
1User registration
2Download the Entune App Suite ap-
plication to your cellular phone.
3Register the cellular phone to the mul-
timedia system.
4Download Entune App Suite applica-
tions to the multimedia system.
259
1. Entune App Suite OVERVIEW
Entune App Suite
9
Perform the following actions.
In order to use Entune App Suite, the fol-
lowing action

s must first be performed:
User registration with a service contract
( P.259)
 Downl oad the Entune App Suite applica
-
t io

n onto your cellular phone, and login to
the app
lication. ( P.259)
 Register a Blueto oth
® phone with the
hands-free system. ( P. 4 2 )
 Download Entune App Suite applications
to t

he multimedia system. ( P. 2 6 0 )
1Perform user registration at http://
www.toyota.com/entune/.
1Download the Entune App Suite appli -
cation to your cellular phone.
2Run the Entune App Suite application
on your cellular phone.
3Enter the information required into the
Entune App Suite application. Login to
the application.
SETUP REQUIRED TO USE
Entune App Suite
USER REGISTRATION
REGISTERING THE Entune App
Suite APPLICATION
INFORMATION
● Applications can only be used when the
Entune App Suite application has been
downloaded to your cellular phone and
the application is running.
● Entune App Suite operational
procedures can also be confirmed by
visiting http://www.toyota.com/entune/
.
● In order to use applications, it is neces-
sary to run the Entune App Suite appli-
cation on your cellular phone.
● For known phone compatibility
information, refer to http://
www.toyota.com/entune/.
● If an Entune App Suite application is
used while iPod audio is being played
back, system operation may become
unstable.

260
1. Entune App Suite OVERVIEW
1The actions on P.259 need to be per -
formed before Entune App Suite appli -
cations can be downloaded.
2Once your phone is running the Entune
App Suite application with a valid ac -
count logged in and is connected to the
multimedia
system, an on-screen pop-
up will be displayed offering to begin
downloading Entune App Suite appli -
cations to the multimedia system. After
do wnlo

ad has started, see P.262 for
more information.
DOWNLOADING Entune App
Suite APPLICATIONS
