Page 141 of 688
1411-7. Safety information
1
Before driving
VENZA_OM_OM73030U_(U) Types of child restraints
Child restraint systems are classi fied into the following 3 types
according to the age and size of the child.
Rear facing Infant seat/convertible seat
Forward facing Convertible seat
Page 142 of 688
1421-7. Safety information
VENZA_OM_OM73030U_(U) Booster seat
■ When installing the child restrain t system on the front passenger seat
■ Selecting an appropriat e child restraint system
● Use a child restraint system appropriate for the child until the child
becomes large enough to properly w ear the vehicle’s seat belt.
● If a child is too large for a child restraint system, sit the child on a rear
seat and use the vehicle’s seat belt. ( P. 81)When you have to use a child restraint
system on the front passenger seat,
adjust the following:
● The seatback to the most upright posi-
tion
● The seat cushion to the fully rearward
● The seat belt height to the lowest posi-
tion
Page 143 of 688

1431-7. Safety information
1
Before driving
VENZA_OM_OM73030U_(U) CAUTION■ Child restraint precautions
● For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
depending on the age and size of the child. Holding a child in your arms is
not a substitute for a child restraint system. In an accident, the child can be
crushed against the windshield, or between you and the vehicle’s interior.
● Toyota strongly urges the use of a proper child restraint system that con-
forms to the size of the child, installed on the rear seat. According to acci-
dent statistics, the child is safer when properly restrained in the rear seat
than in the front seat.
● Never install a rear-facing child restraint system on the front passenger
seat even if “AIR BAG OFF” indicator light illuminates. In the event of an
accident, the force of the rapid inflation of the front passenger airbag can
cause death or serious injury to the child if the rear-facing child restraint
system is installed on the front passenger seat.
● A forward-facing child restraint system may be installed on the front pas-
senger seat only when it is unavoidable. A child restraint system that
requires a top tether strap should not be used in the front passenger seat
since there is no top tether strap anchor for the front passenger seat.
Adjust the seatback as upright as possible and always move the seat as
far back as possible even if “AIR BAG OFF” indicator light is illuminated,
because the front passenger airbag could inflate with considerable speed
and force. Otherwise, the child may be killed or seriously injured.
Page 144 of 688

1441-7. Safety information
VENZA_OM_OM73030U_(U) CAUTION■ Child restraint precautions
● Do not use the seat belt extender when installing a child restraint system
on the front or rear passenger seat. If installing a child restraint system
with the seat belt extender connected to the seat belt, the seat belt will not
securely hold the child restraint system, which could cause death or seri-
ous injury to the child or other passengers in the event of a sudden stop,
sudden swerve or an accident.
● Do not allow the child to lean his/her head or any part of his/her body
against the door or the area of the seat, front, center and rear pillars or
roof side rail from which the side airbags or curtain shield airbags deploy
even if the child is seated in the child restraint system. It is dangerous if
the side airbags and curtain shield airbags inflate, and the impact could
cause death or serious injury to the child.
● Make sure you have complied with all installation instructions provided by
the child restraint manufacturer and that the system is properly secured. If
it is not secured properly, it may cause death or serious injury to the child
in the event of a sudden stop, sudden swerve or an accident.
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that
could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
Page 145 of 688
1451-7. Safety information
1
Before driving
VENZA_OM_OM73030U_(U) CAUTION■ When the child restrain t system is not in use
● Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the restraint unsecured in the passenger compart-
ment.
● If it is necessary to detach the child restraint system, remove it from the
vehicle or store it securely in the luggage compartment. This will prevent it
from injuring passengers in the event of a sudden stop, sudden swerve or
an accident.

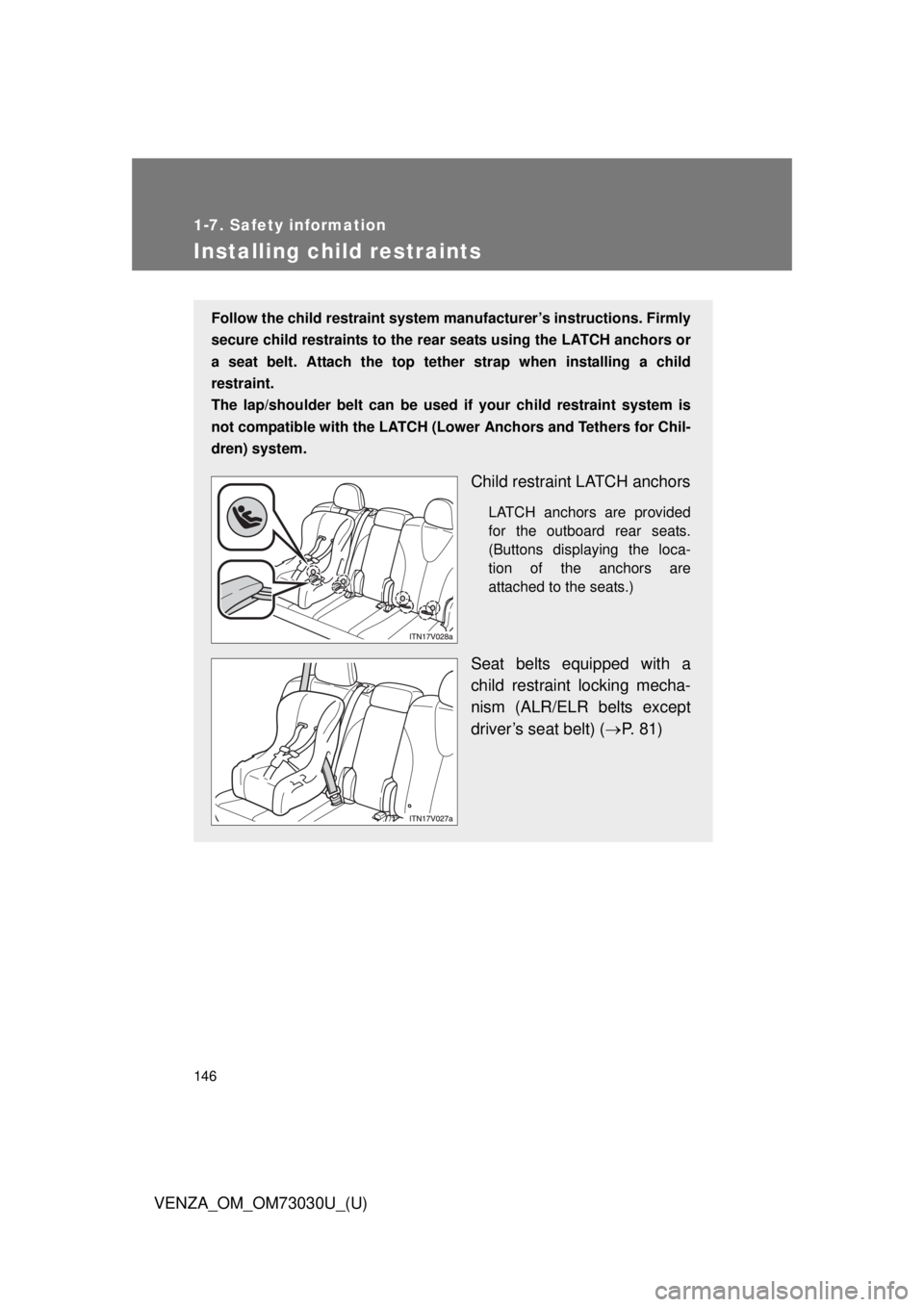

Page 146 of 688
1461-7. Safety information
VENZA_OM_OM73030U_(U)Installing child restraints Follow the child restraint system manufacturer’s instructions. Firmly
secure child restraints to the r ear seats using the LATCH anchors or
a seat belt. Attach the top teth er strap when installing a child
restraint.
The lap/shoulder belt can be used if your child restraint system is
not compatible with the LATCH (Low er Anchors and Tethers for Chil-
dren) system.
Child restraint LATCH anchors LATCH anchors are provided
for the outboard rear seats.
(Buttons displaying the loca-
tion of the anchors are
attached to the seats.)
Seat belts equipped with a
child restraint locking mecha-
nism (ALR/ELR belts except
driver’s seat belt) ( P. 81)
Page 147 of 688
1471-7. Safety information
1
Before driving
VENZA_OM_OM73030U_(U) Installation with LATCH system
Fold the seatback while pulling
the lever. Return the seatback
and secure it as upright as possi-
ble (1st lock position). Adjust the
seatback to the 3rd lock position.
( P. 70)
1st lock position
3rd lock positionAnchor bracket (for top tether
strap) Anchor brackets are provided
for all rear seats.
STEP 1
Page 148 of 688
1481-7. Safety information
VENZA_OM_OM73030U_(U) Type A
Widen the gap between
the seat cushion and
seatback slightly.
Latch the hooks of the
lower straps onto the
LATCH anchors. The bars are installed in the
clearance between the seat
cushion and seatback.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower anchorage system.Canada only STEP2
STEP3
STEP4
Page 149 of 688
1491-7. Safety information
1
Before driving
VENZA_OM_OM73030U_(U) Type B
Widen the gap between
the seat cushion and
seatback slightly.
Latch the buckles onto
the LATCH anchors. The bars are installed in the
clearance between the seat
cushion and seatback.
If the child restraint has a
top tether strap, the top
tether strap should be
latched onto the top
tether strap anchor.
For owners in Canada:
The symbol on a child restraint
system indicates the presence of
a lower anchorage system.Canada only STEP2
STEP3
STEP4
Page 150 of 688
1501-7. Safety information
VENZA_OM_OM73030U_(U) Installing child restraints using a seat belt (child restraint lock
function belt)
■ Rear-facing Infant seat/convertible seat
Place the child restraint system
on the rear seat facing the rear
of the vehicle.
Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.STEP 1
STEP 2
