TOYOTA VENZA 2016 Owners Manual

5314-3. Do-it-yourself maintenance
4
Maintenance and care

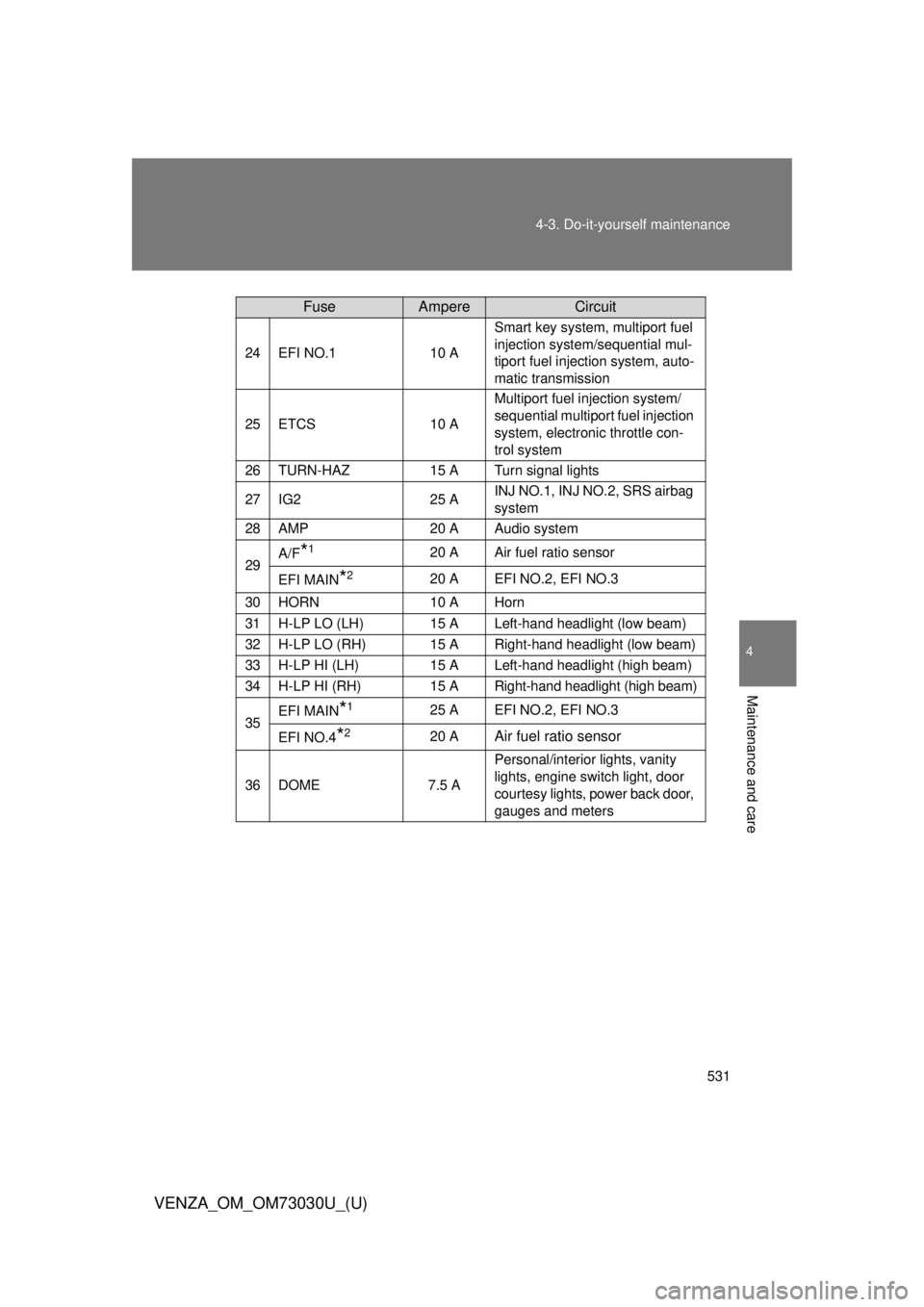

VENZA_OM_OM73030U_(U) 24 EFI NO.1 10 A Smart key system, multiport fuel
injection system/sequential mul-
tiport fuel inje ction system, auto-
matic transmission
25 ETCS 10 A Multiport fuel injection system/
sequential multiport fuel injection
system, electronic throttle con-
trol system
26 TURN-HAZ 15 A Turn signal lights
27 IG2 25 A INJ NO.1, INJ NO.2, SRS airbag
system
28 AMP 20 A Audio system
29 A/F
* 1
20 A Air fuel ratio sensor
EFI MAIN
* 2
20 A EFI NO.2, EFI NO.3
30 HORN 10 A Horn
31 H-LP LO (LH) 15 A Left-hand headlight (low beam)
32 H-LP LO (RH) 15 A Right-hand headlight (low beam)
33 H-LP HI (LH) 15 A Left-hand headlight (high beam)
34 H-LP HI (RH) 15 A Right-hand headlight (high beam)
35 EFI MAIN
* 1
25 A
EFI NO.2, EFI NO.3
EFI NO.4
* 2
20 A
Air fuel ratio sensor
36 DOME 7.5 A Personal/interior lights, vanity
lights, engine switch light, door
courtesy lights, power back door,
gauges and metersFuse Ampere Circuit

5324-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) * 1
: Vehicles with 2GR-FE engine
* 2
: Vehicles with 1AR-FE engine
* 3

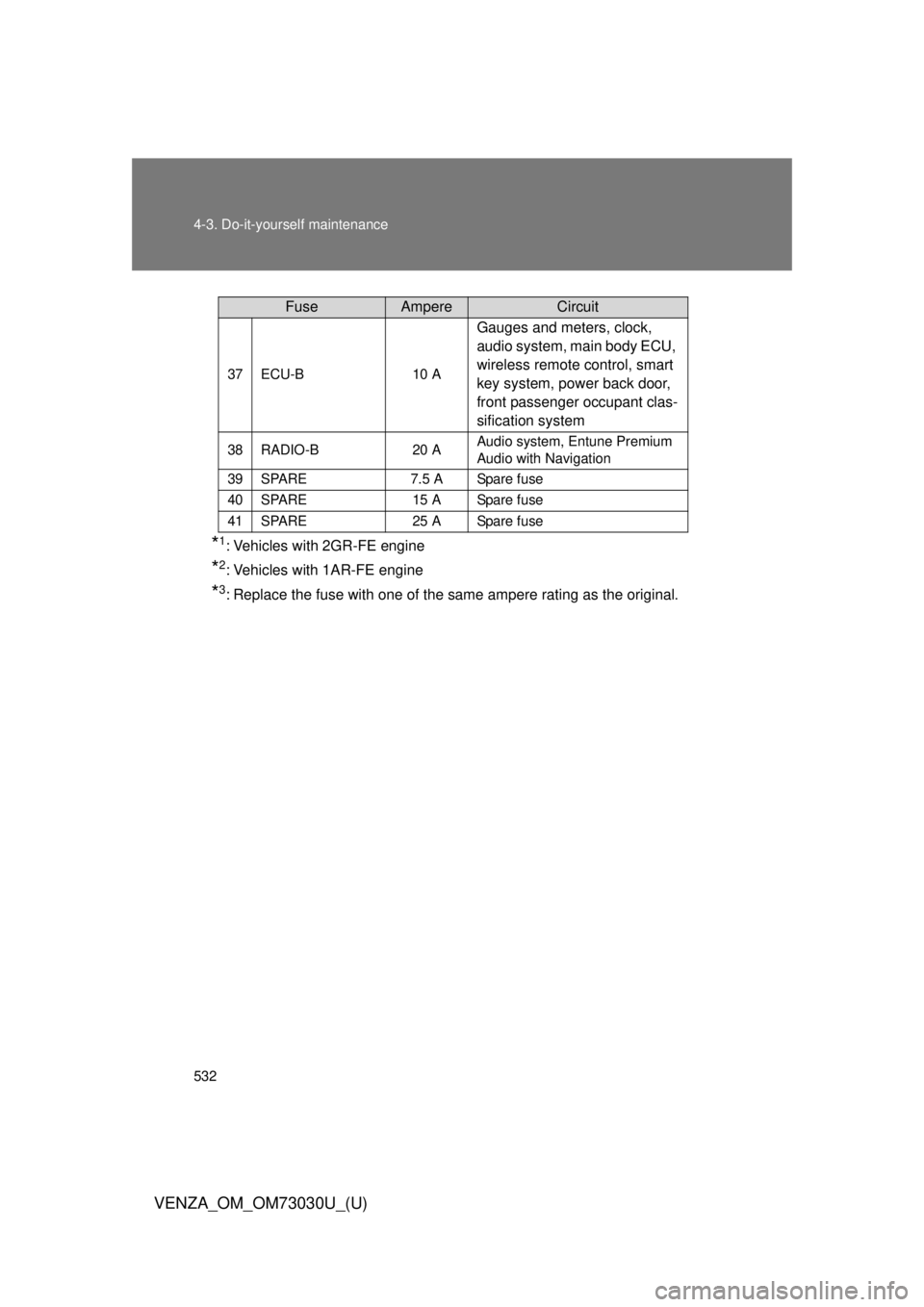

: Replace the fuse with one of the same ampere rating as the original. 37 ECU-B 10 A
Gauges and meters, clock,
audio system, main body ECU,
wireless remote control, smart
key system, power back door,
front passenger occupant clas-
sification system38 RADIO-B 20 A Audio system, Entune Premium
Audio with Navigation
39 SPARE 7.5 A Spare fuse
40 SPARE 15 A Spare fuse
41 SPARE 25 A Spare fuseFuse Ampere Circuit

5334-3. Do-it-yourself maintenance
4
Maintenance and care

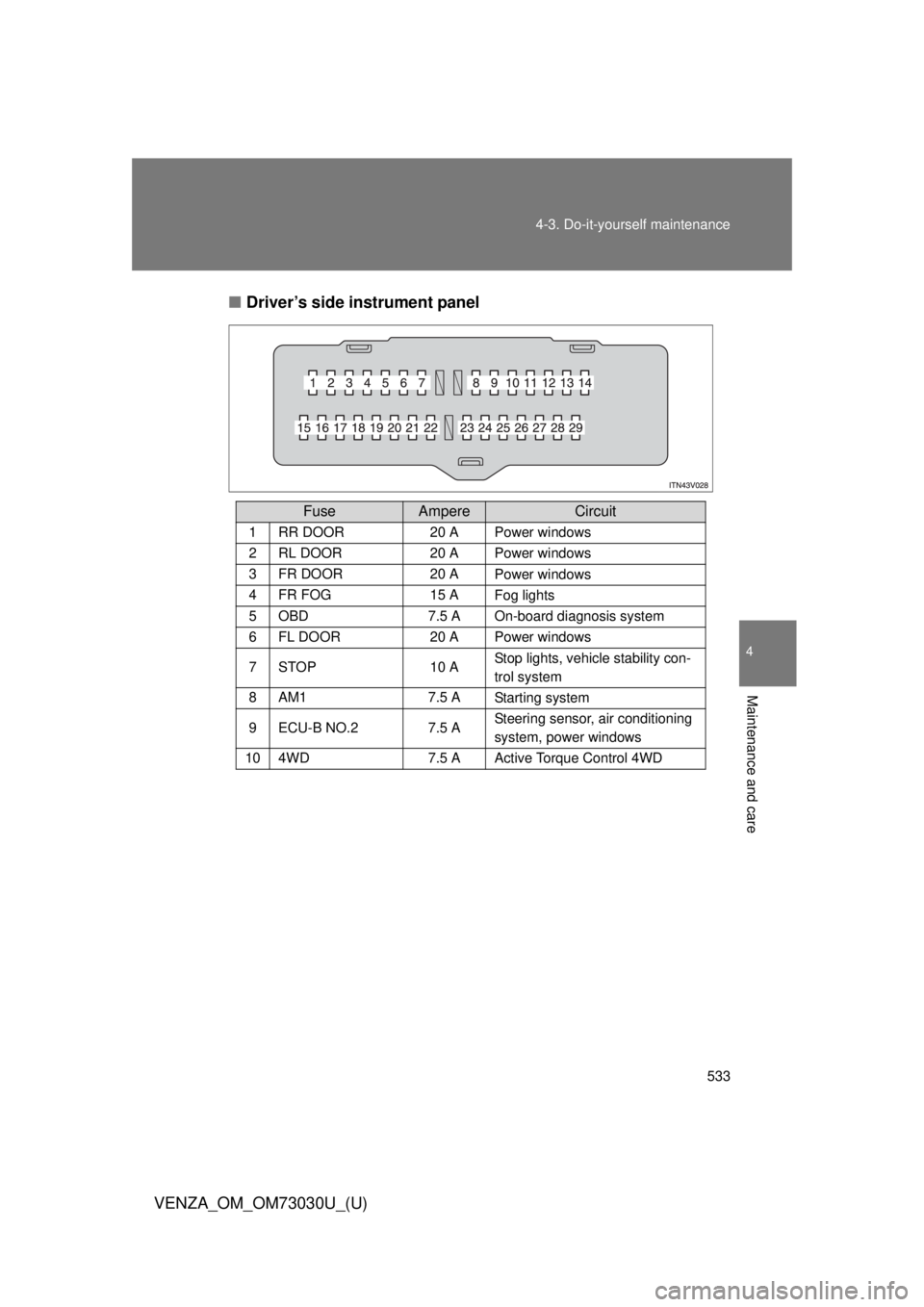

VENZA_OM_OM73030U_(U) ■ Driver’s side instrument panel
Fuse Ampere Circuit1 RR DOOR 20 A
Power windows
2 RL DOOR 20 A
Power windows
3 FR DOOR 20 A
Power windows
4 FR FOG 15 A
Fog lights
5 OBD 7.5 A
On-board diagnosis system
6 FL DOOR 20 A
Power windows
7 STOP 10 A Stop lights, vehicle stability con-
trol system
8 AM1 7.5 A
Starting system
9 ECU-B NO.2 7.5 A Steering sensor, air conditioning
system, power windows
10 4WD 7.5 A
Active Torque Control 4WD

5344-3. Do-it-yourself maintenance

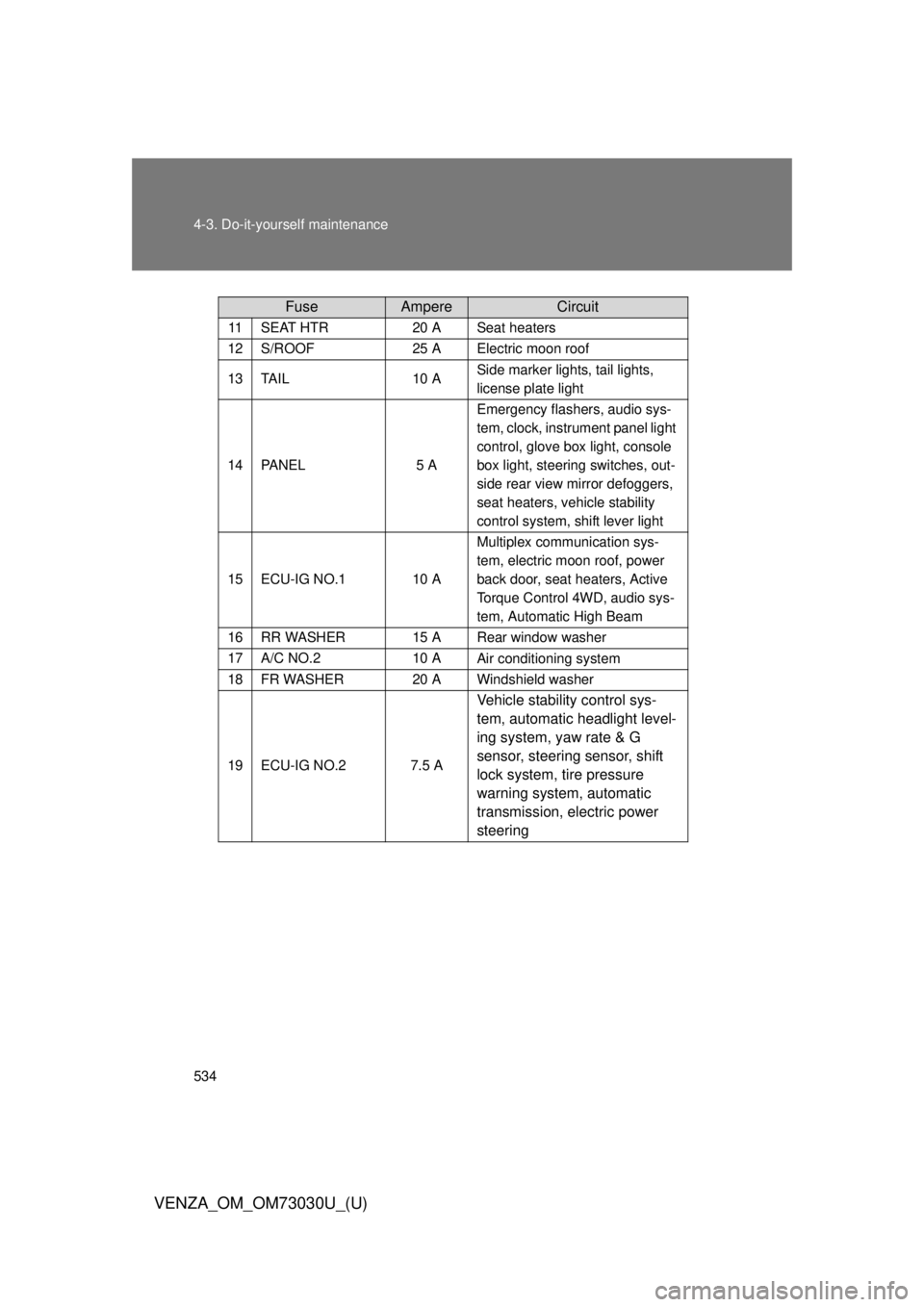

VENZA_OM_OM73030U_(U) 11 SEAT HTR 20 A
Seat heaters
12 S/ROOF 25 A
Electric moon roof
13 TA I L 10 A Side marker lights, tail lights,
license plate light
14 PA N E L 5 A Emergency flashers, audio sys-
tem, clock, instrument panel light
control, glove box light, console
box light, steering switches, out-
side rear view mirror defoggers,
seat heaters, vehicle stability
control system, shift lever light
15 ECU-IG NO.1 10 A Multiplex communication sys-
tem, electric moon roof, power
back door, seat heaters, Active
Torque Control 4WD, audio sys-
tem, Automatic High Beam
16 RR WASHER 15 A
Rear window washer
17 A/C NO.2 10 A
Air conditioning system
18 FR WASHER 20 A
Windshield washer
19 ECU-IG NO.2 7.5 A Vehicle stability control sys-
tem, automatic headlight level-
ing system, yaw rate & G
sensor, steering sensor, shift
lock system, tire pressure
warning system, automatic
transmission, electric power
steeringFuse Ampere Circuit

5354-3. Do-it-yourself maintenance
4
Maintenance and care

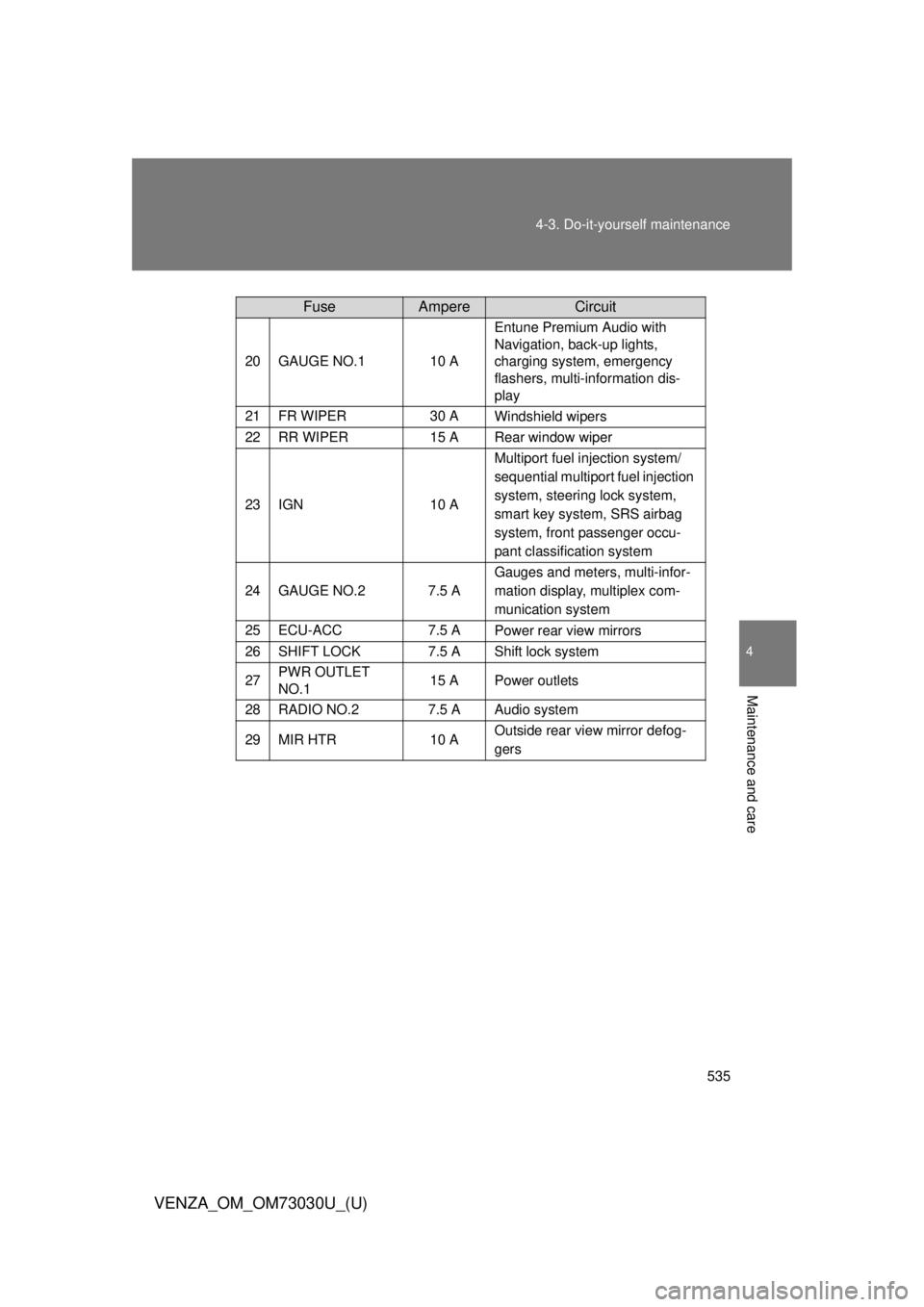

VENZA_OM_OM73030U_(U) 20 GAUGE NO.1 10 A Entune Premium Audio with
Navigation, back-up lights,
charging system, emergency
flashers, multi-information dis-
play
21 FR WIPER 30 A
Windshield wipers
22 RR WIPER 15 A
Rear window wiper
23 IGN 10 A Multiport fuel injection system/
sequential multiport fuel injection
system, steering lock system,
smart key system, SRS airbag
system, front passenger occu-
pant classification system
24 GAUGE NO.2 7.5 A Gauges and meters, multi-infor-
mation display, multiplex com-
munication system
25 ECU-ACC 7.5 A
Power rear view mirrors
26 SHIFT LOCK 7.5 A
Shift lock system
27 PWR OUTLET
NO.1 15 A
Power outlets
28 RADIO NO.2 7.5 A
Audio system
29 MIR HTR 10 A Outside rear view mirror defog-
gersFuse Ampere Circuit

5364-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) ■ After a fuse is replaced
● If the lights do not turn on even after the fuse has been replaced, a bulb
may need replacement. (  P. 537)
● If the replaced fuse blows again, have the vehicle inspected by your
Toyota dealer.
■ If there is an overload in the circuits
The fuses are designed to blow, protecting the wiring harness from damage.
CAUTION■ To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failing to do so may cause damage to the vehicle, and possibly a fire or
injury.
● Never use a fuse of a higher amperage rating than indicated, or use any
other object in place of a fuse.
● Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
● Do not modify fuses or the fuse box.
NOTICE■ Before replacing fuses
Have the cause of electrical overload determined and repaired by your
Toyota dealer.

5374-3. Do-it-yourself maintenance
4
Maintenance and care

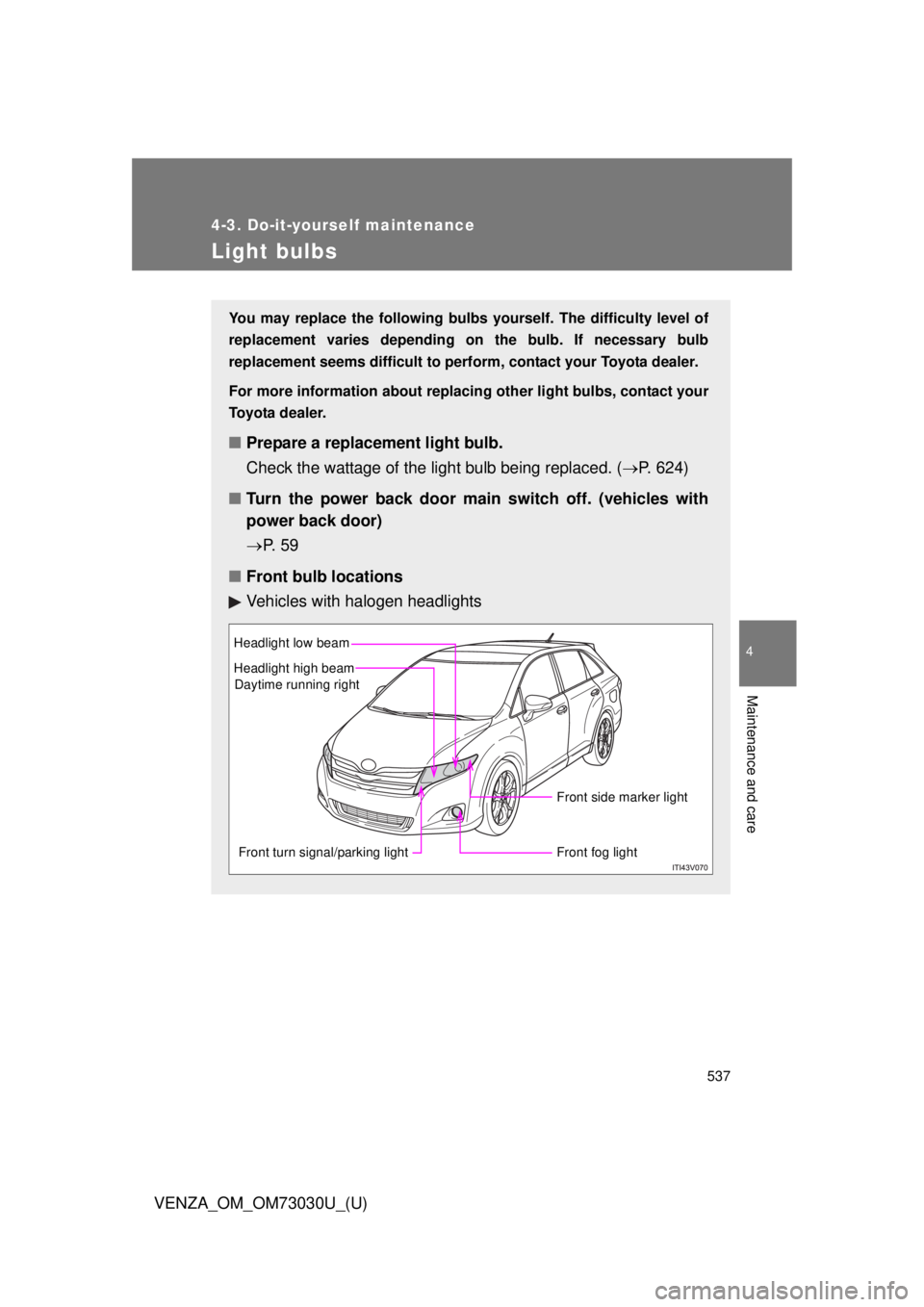

VENZA_OM_OM73030U_(U) Light bulbs You may replace the following bulbs yourself. The difficulty level of
replacement varies depending on the bulb. If necessary bulb
replacement seems difficult to perfor m, contact your Toyota dealer.
For more information about replacing other light bulbs, contact your
Toyota dealer.
■ Prepare a replacement light bulb.
Check the wattage of the light bulb being replaced. (  P. 624)
■ Turn the power back door main switch off. (vehicles with
power back door)
 P. 5 9
■ Front bulb locations
Vehicles with halogen headlights Headlight low beam
Headlight high beam
Front turn signal/parking light Front fog light Front side marker lightDaytime running right

5384-3. Do-it-yourself maintenance

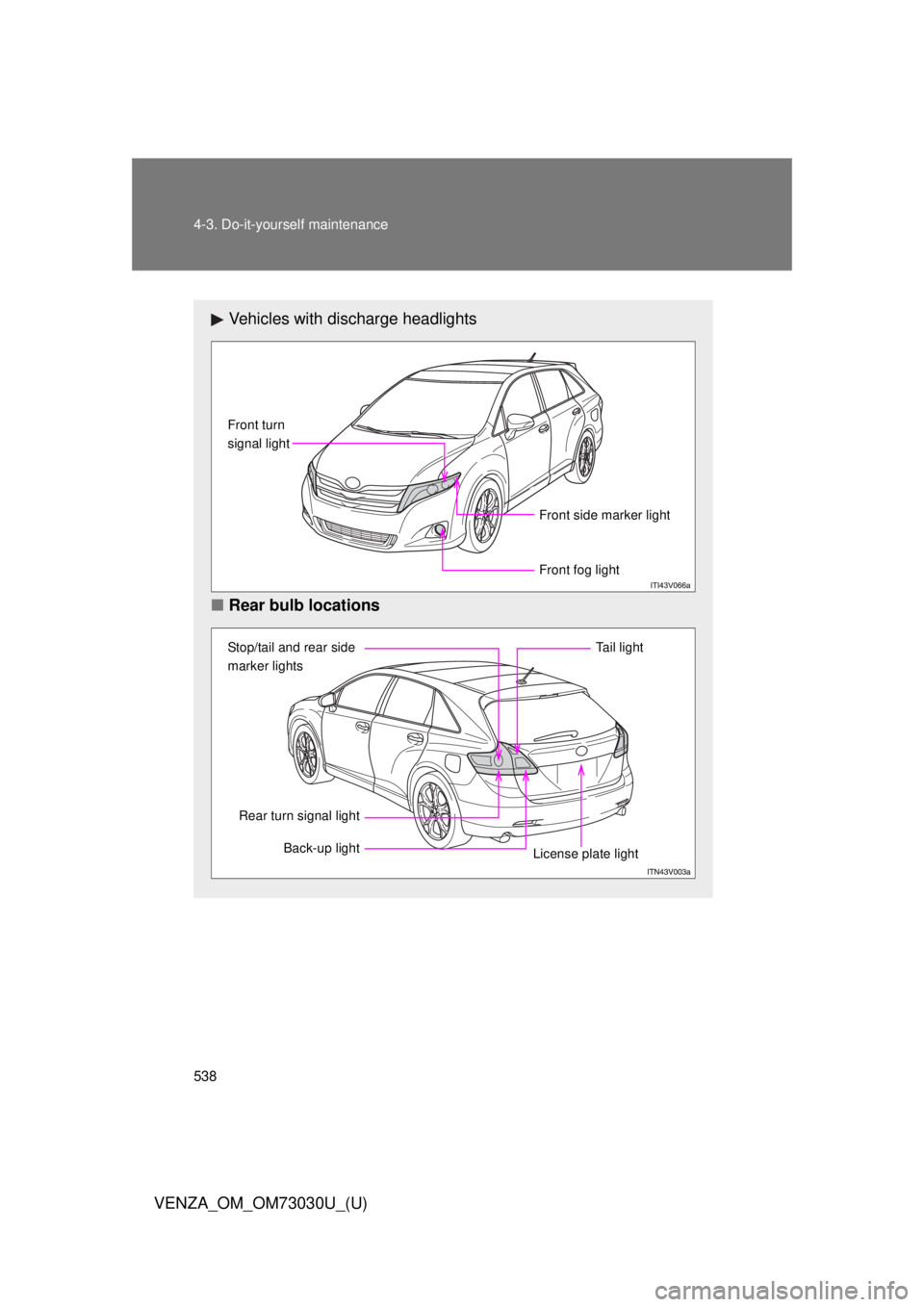

VENZA_OM_OM73030U_(U) Vehicles with discharge headlights
■ Rear bulb locations Front fog lightFront turn
signal light
Front side marker light
Stop/tail and rear side
marker lights
Back-up light Tail light
License plate lightRear turn signal light

5394-3. Do-it-yourself maintenance
4
Maintenance and care

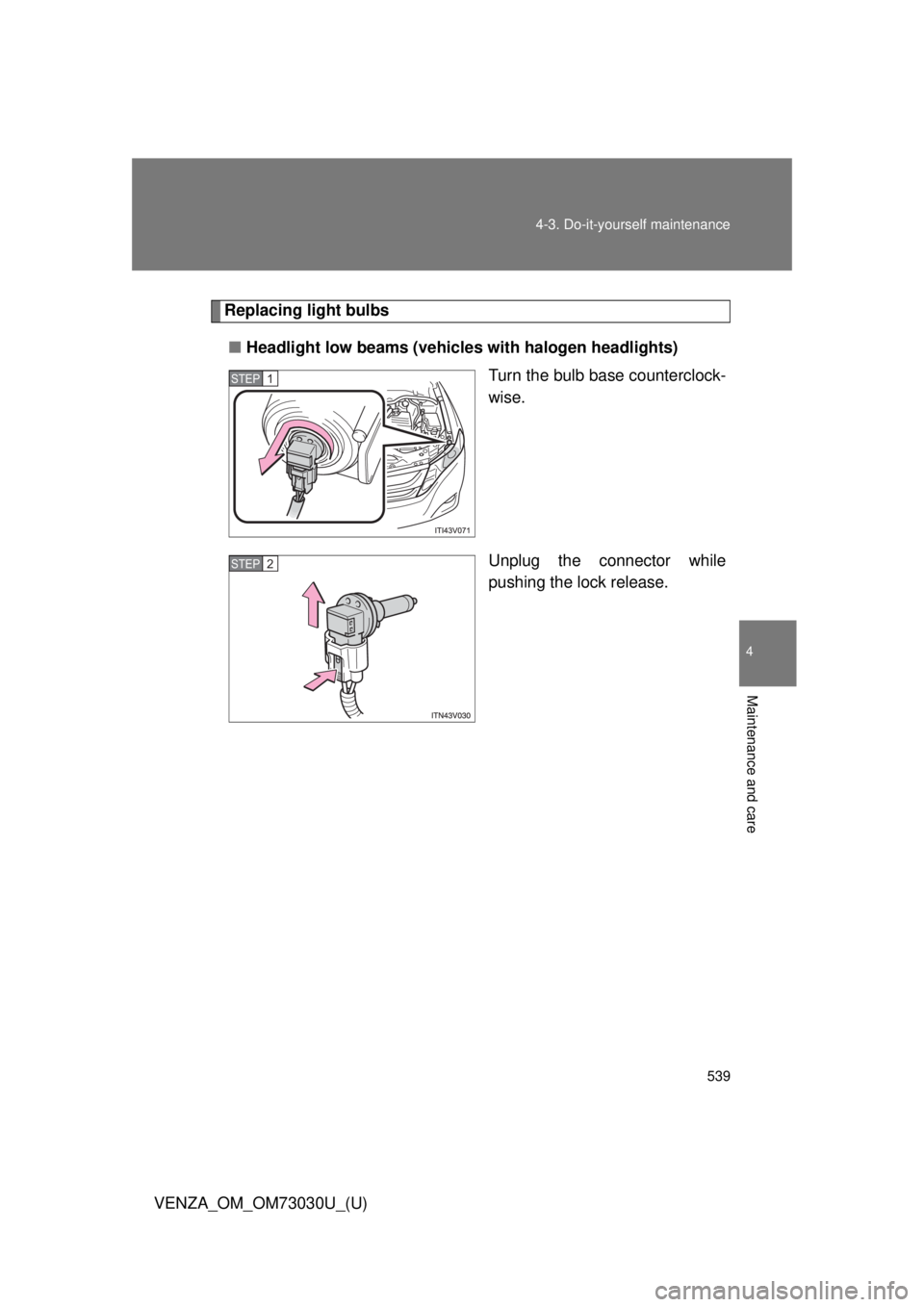

VENZA_OM_OM73030U_(U) Replacing light bulbs
■ Headlight low beams (vehicle s with halogen headlights)
Turn the bulb base counterclock-
wise.
Unplug the connector while
pushing the lock release.STEP 1
STEP 2

5404-3. Do-it-yourself maintenance

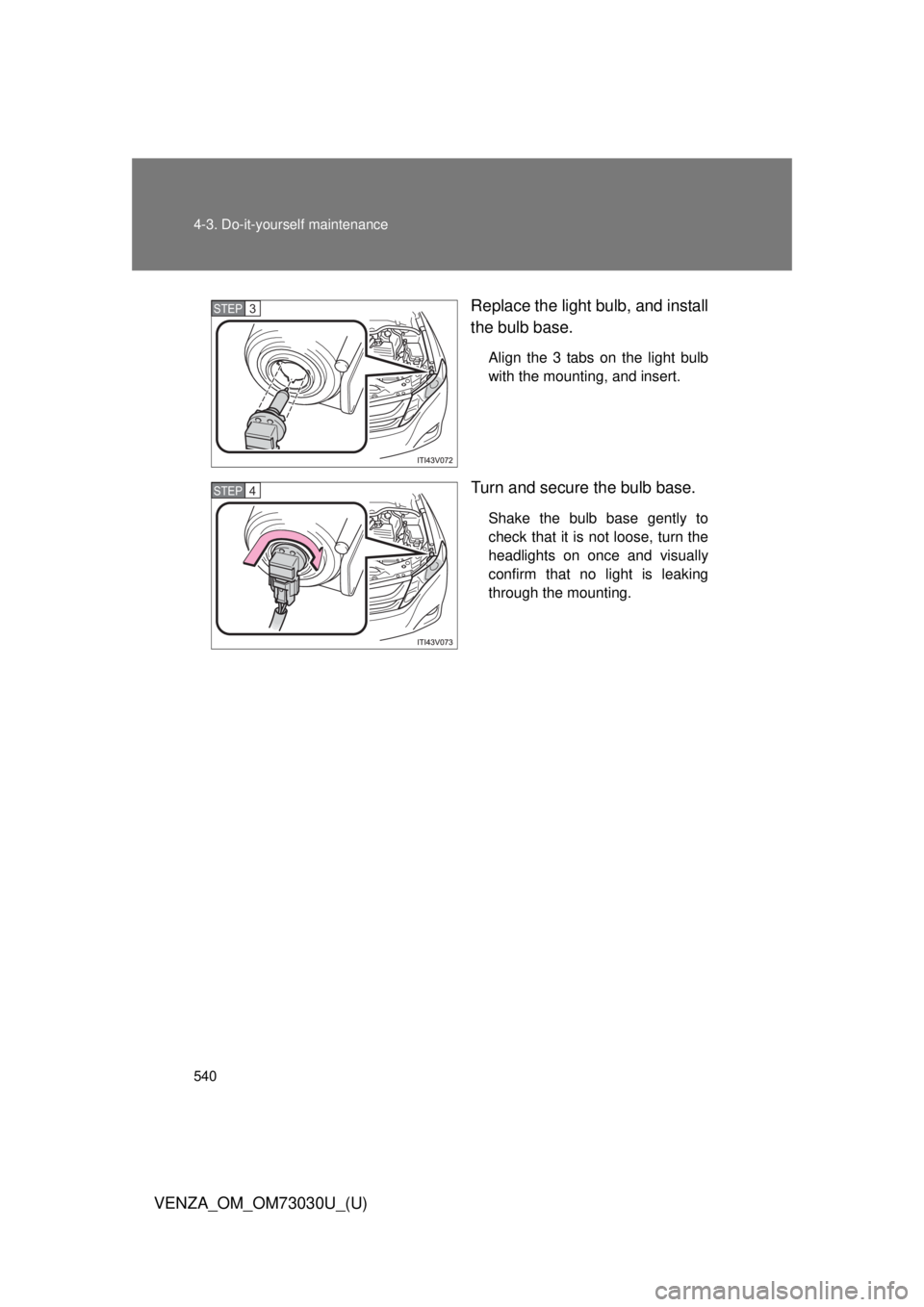

VENZA_OM_OM73030U_(U) Replace the light bulb, and install
the bulb base. Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base. Shake the bulb base gently to
check that it is not loose, turn the
headlights on once and visually
confirm that no light is leaking
through the mounting.STEP 3
STEP 4
