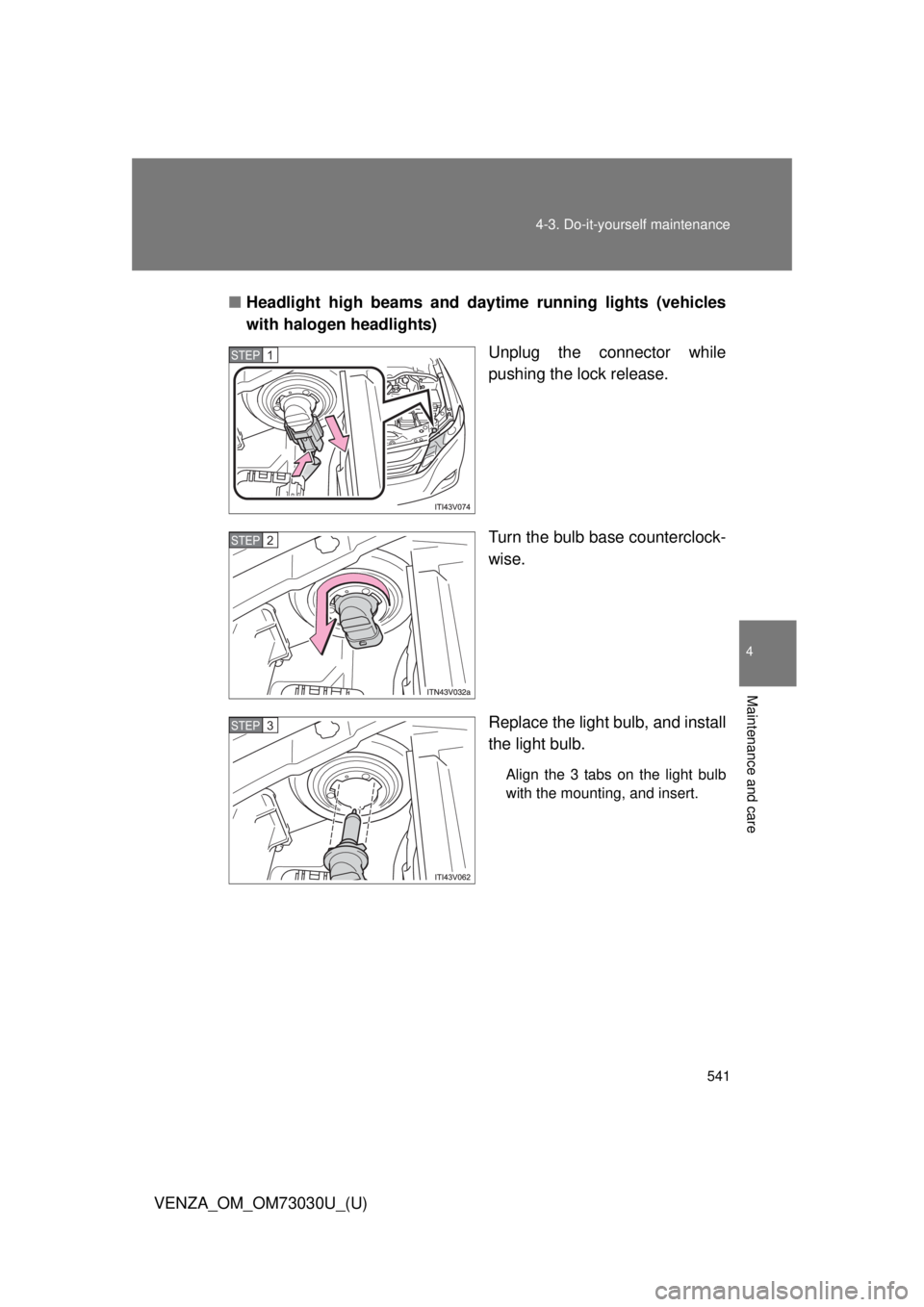

VENZA_OM_OM73030U_(U) ■ Headlight high beams and d aytime running lights (vehicles
with halogen headlights)
Unplug the connector while
pushing the lock release.
Turn the bulb base counterclock-
wise.
Replace the light bulb, and install
the light bulb. Align the 3 tabs on the light bulb
with the mounting, and insert.STEP 1
STEP 2
STEP 3

5424-3. Do-it-yourself maintenance

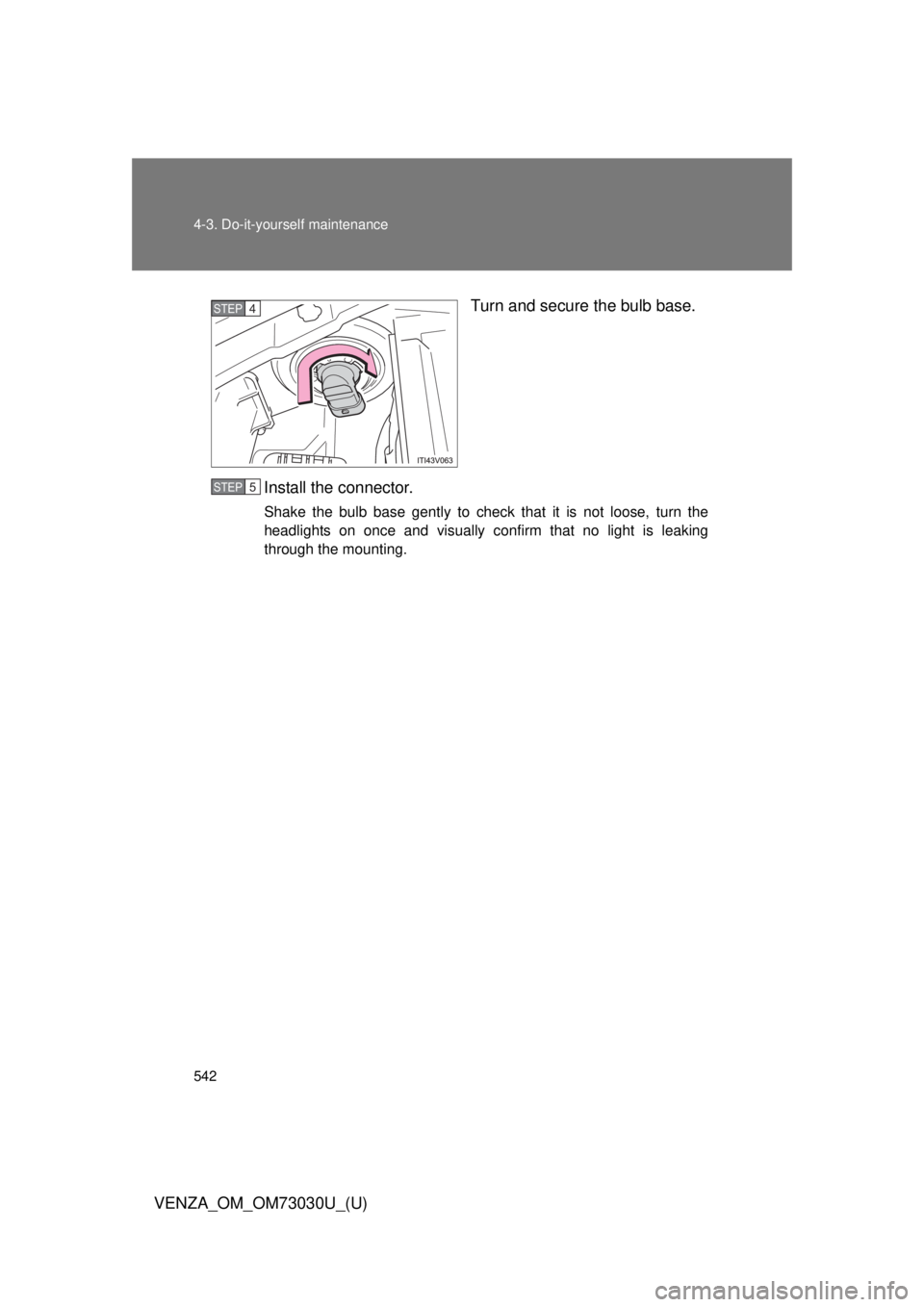

VENZA_OM_OM73030U_(U) Turn and secure the bulb base.
Install the connector. Shake the bulb base gently to check that it is not loose, turn the
headlights on once and visually confirm that no light is leaking
through the mounting. STEP 4
STEP 5

5434-3. Do-it-yourself maintenance
4
Maintenance and care

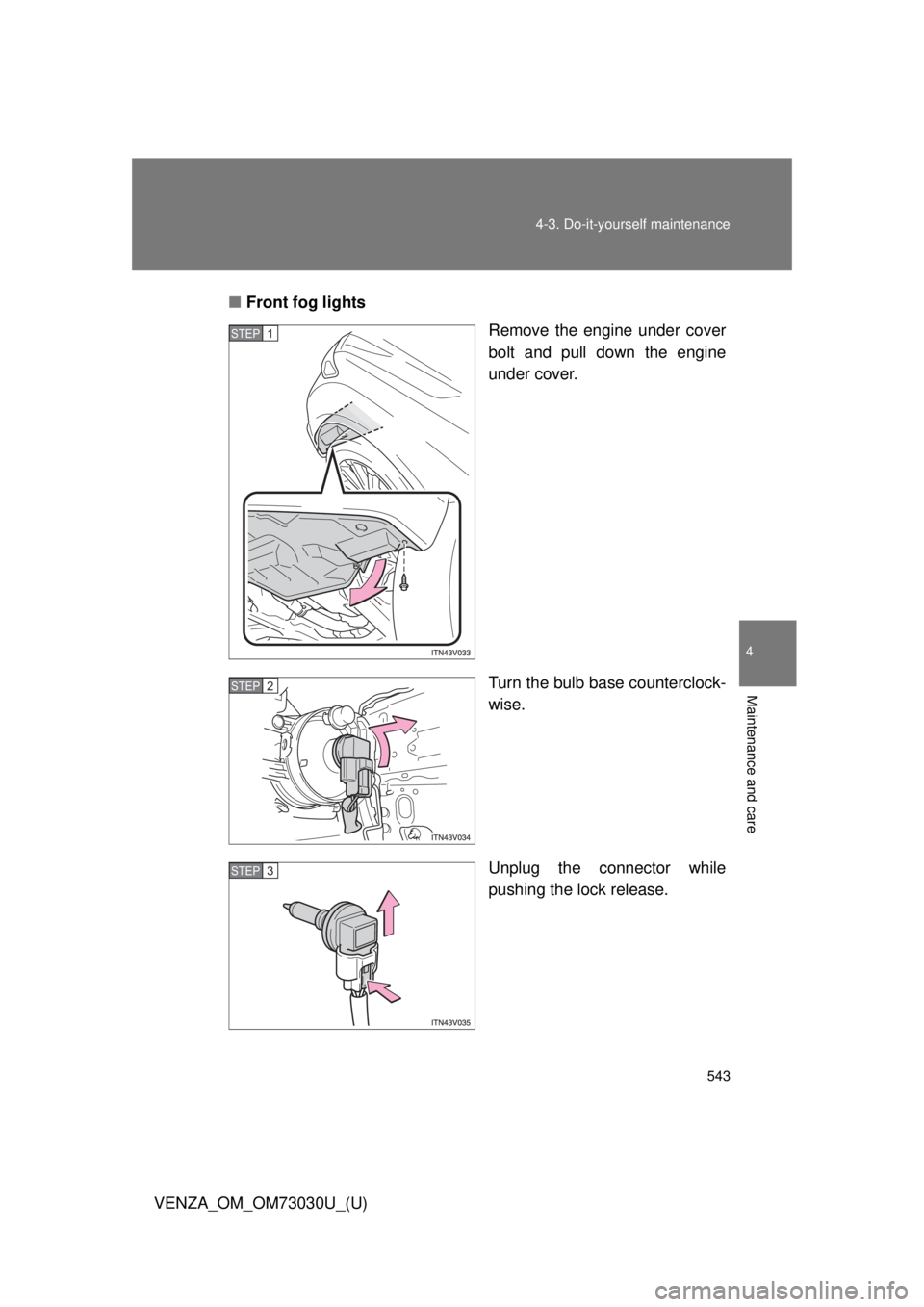

VENZA_OM_OM73030U_(U) ■ Front fog lights
Remove the engine under cover
bolt and pull down the engine
under cover.
Turn the bulb base counterclock-
wise.
Unplug the connector while
pushing the lock release.STEP 1
STEP 2
STEP 3

5444-3. Do-it-yourself maintenance

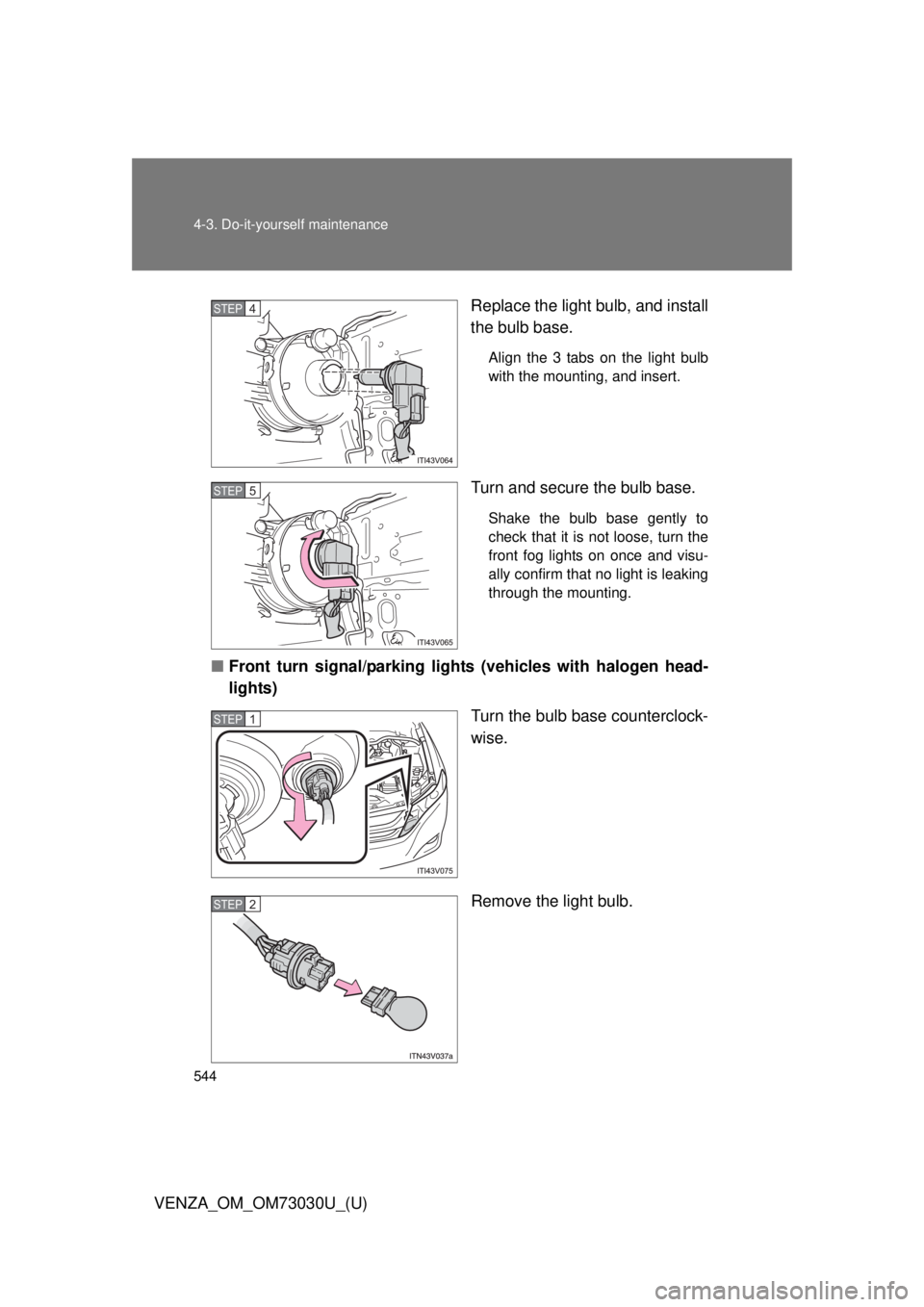

VENZA_OM_OM73030U_(U) Replace the light bulb, and install
the bulb base. Align the 3 tabs on the light bulb
with the mounting, and insert.
Turn and secure the bulb base. Shake the bulb base gently to
check that it is not loose, turn the
front fog lights on once and visu-
ally confirm that no light is leaking
through the mounting.
■ Front turn signal/parking lights (vehicles with halogen head-
lights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP 4
STEP 5
STEP 1
STEP 2

5454-3. Do-it-yourself maintenance
4
Maintenance and care

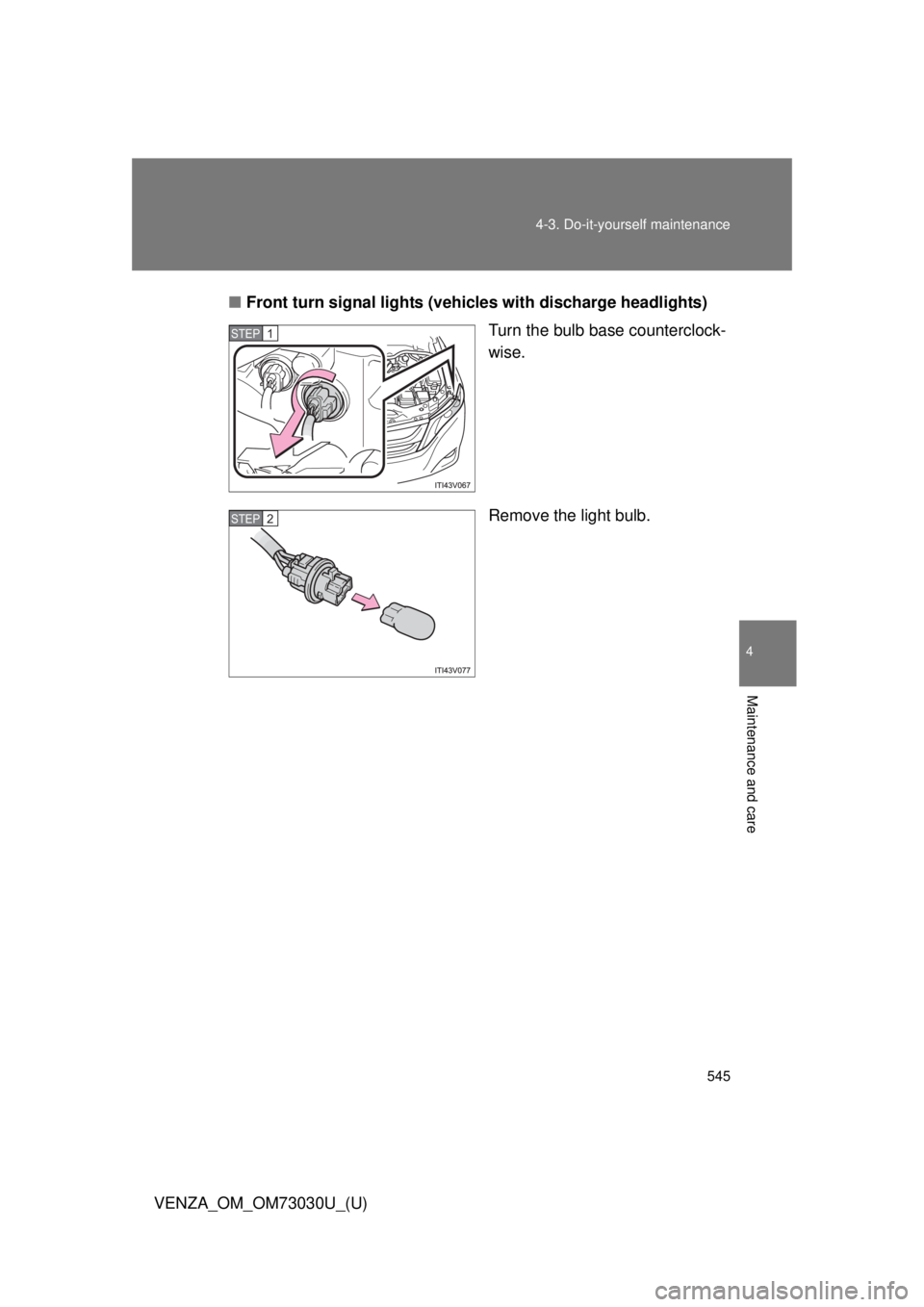

VENZA_OM_OM73030U_(U) ■ Front turn signal lights (vehicles with discharge headlights)
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP 1
STEP 2

5464-3. Do-it-yourself maintenance

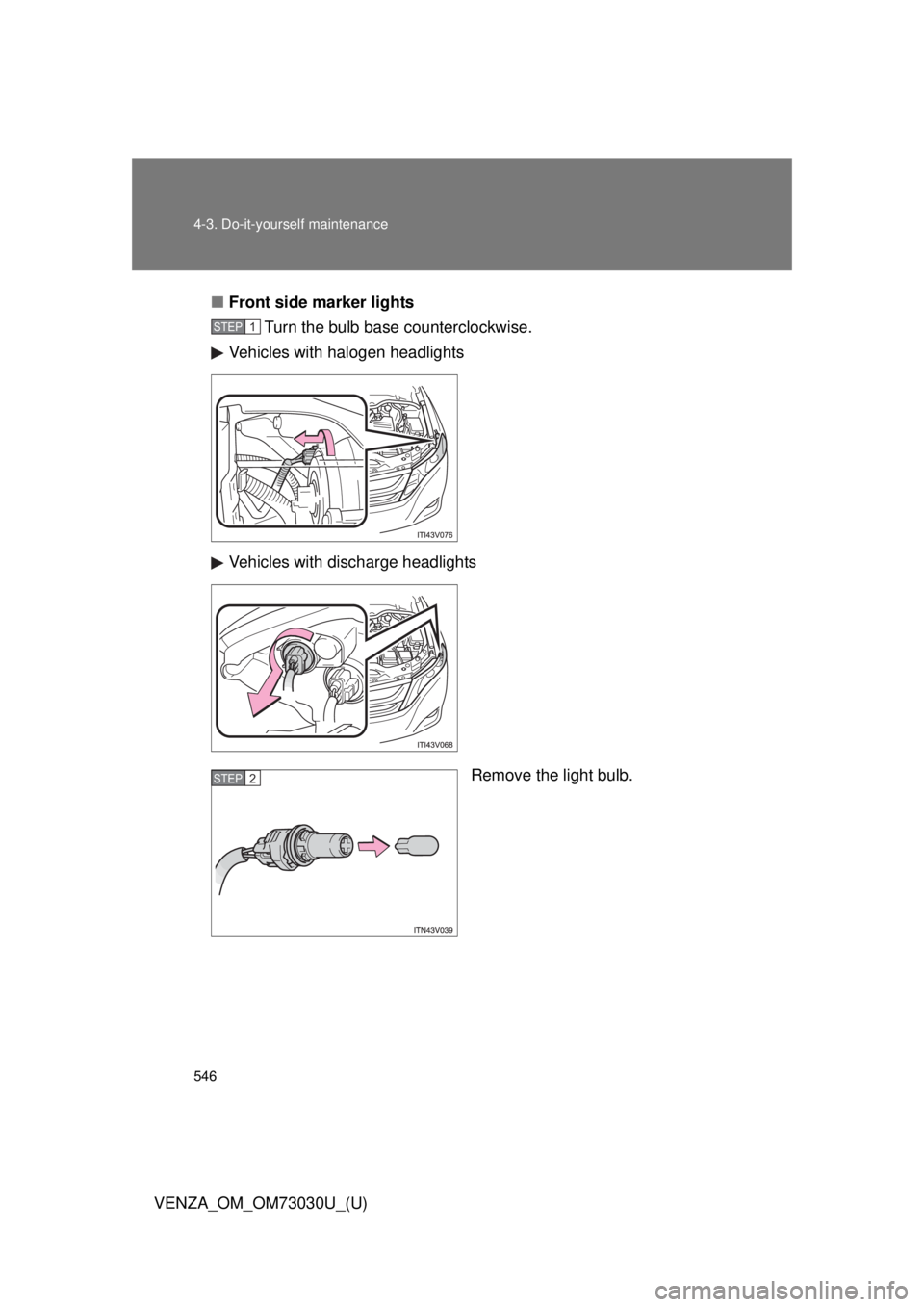

VENZA_OM_OM73030U_(U) ■ Front side marker lights
Turn the bulb base counterclockwise.
Vehicles with halogen headlights
Vehicles with discharge headlights
Remove the light bulb.STEP 1
STEP 2

5474-3. Do-it-yourself maintenance
4
Maintenance and care

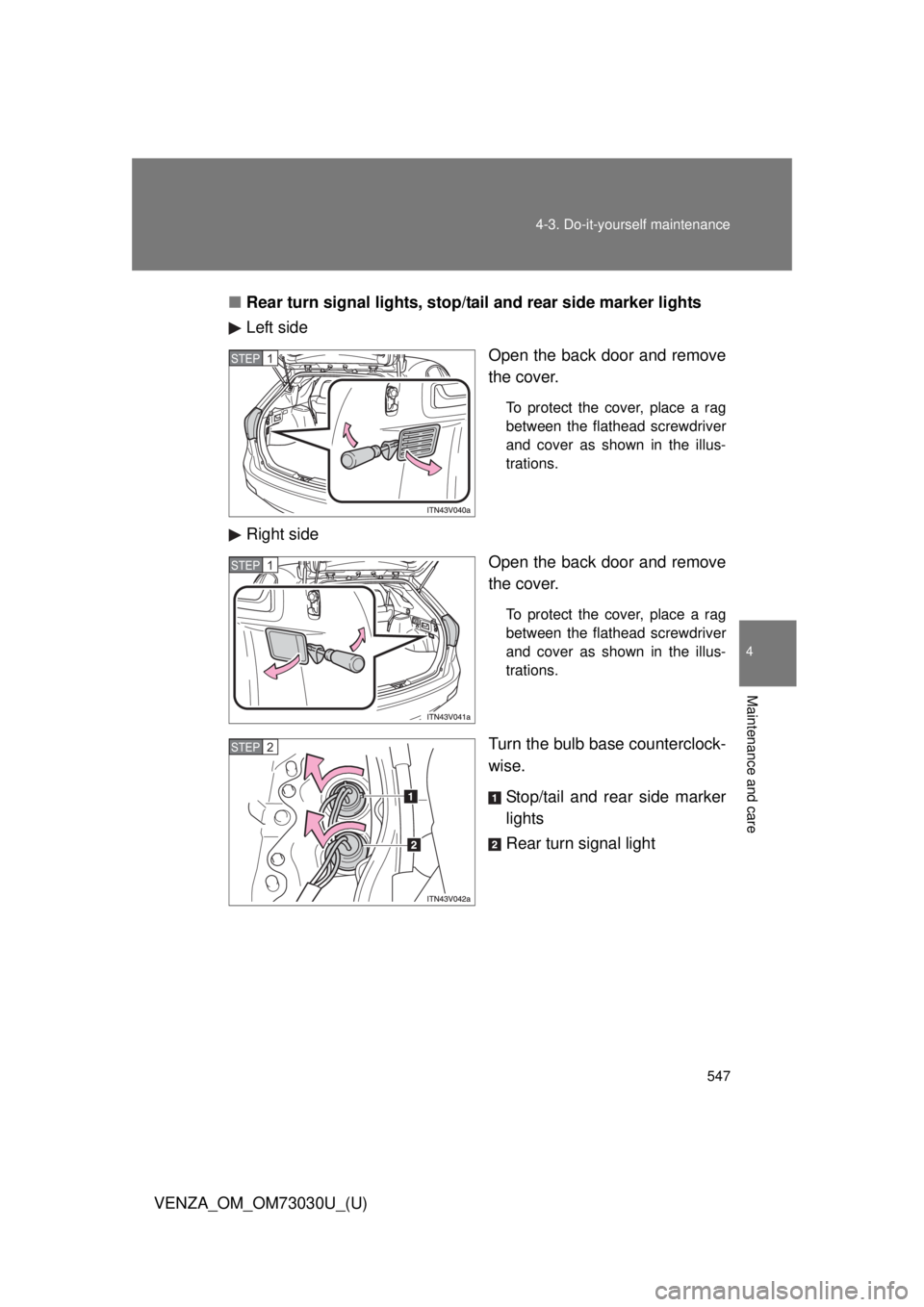

VENZA_OM_OM73030U_(U) ■ Rear turn signal lights, stop/ta il and rear side marker lights
Left side
Open the back door and remove
the cover. To protect the cover, place a rag
between the flathead screwdriver
and cover as shown in the illus-
trations.
Right side
Open the back door and remove
the cover. To protect the cover, place a rag
between the flathead screwdriver
and cover as shown in the illus-
trations.
Turn the bulb base counterclock-
wise.
Stop/tail and rear side marker
lights
Rear turn signal lightSTEP 1
STEP 1
STEP 2

5484-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) Remove the light bulb.
Stop/tail and rear side marker
lights
Rear turn signal light

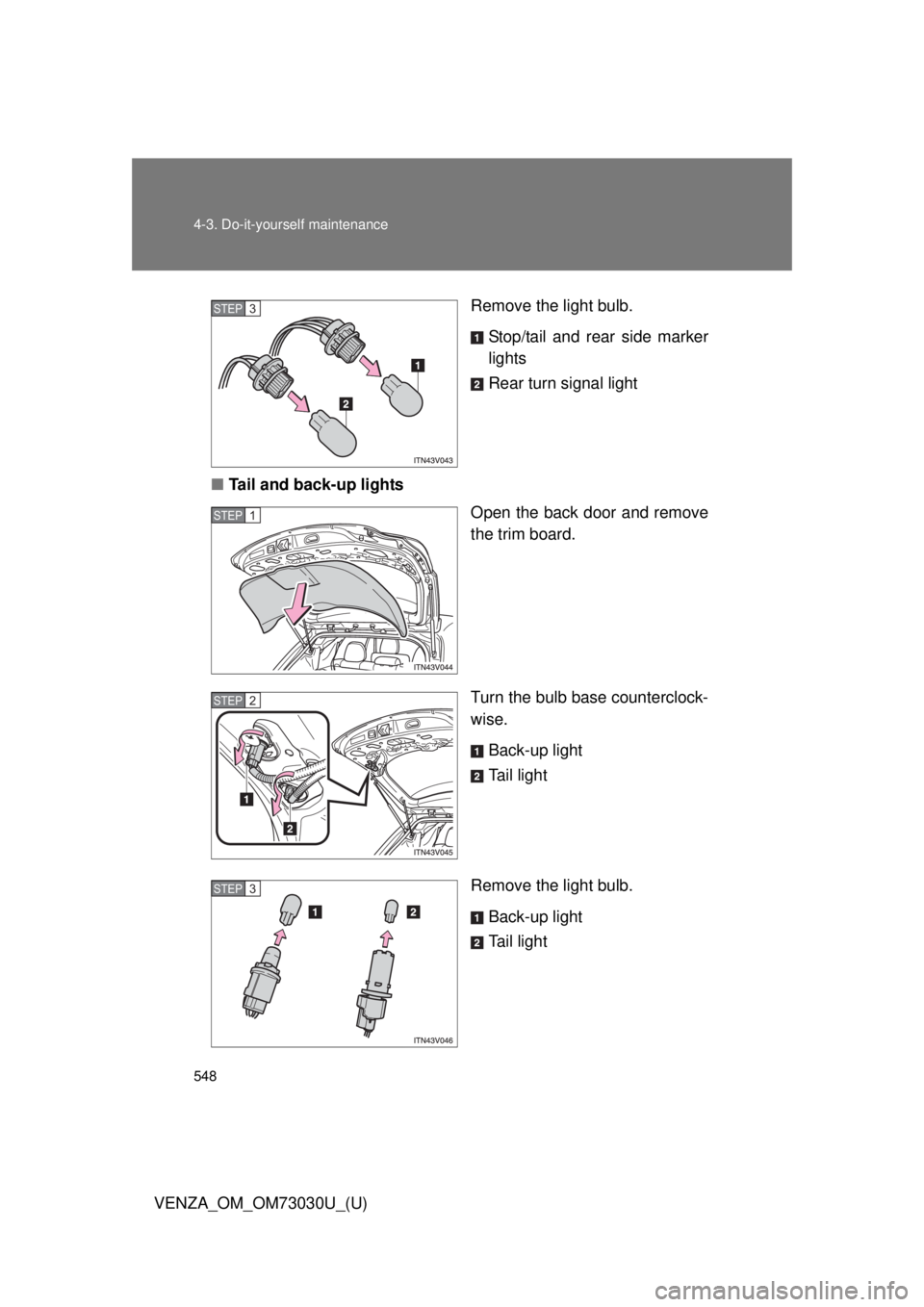

■ Tail and back-up lights
Open the back door and remove
the trim board.
Turn the bulb base counterclock-
wise.
Back-up light
Tail light
Remove the light bulb.
Back-up light
Tail lightSTEP 3
STEP 1
STEP 2
STEP 3

5494-3. Do-it-yourself maintenance
4
Maintenance and care

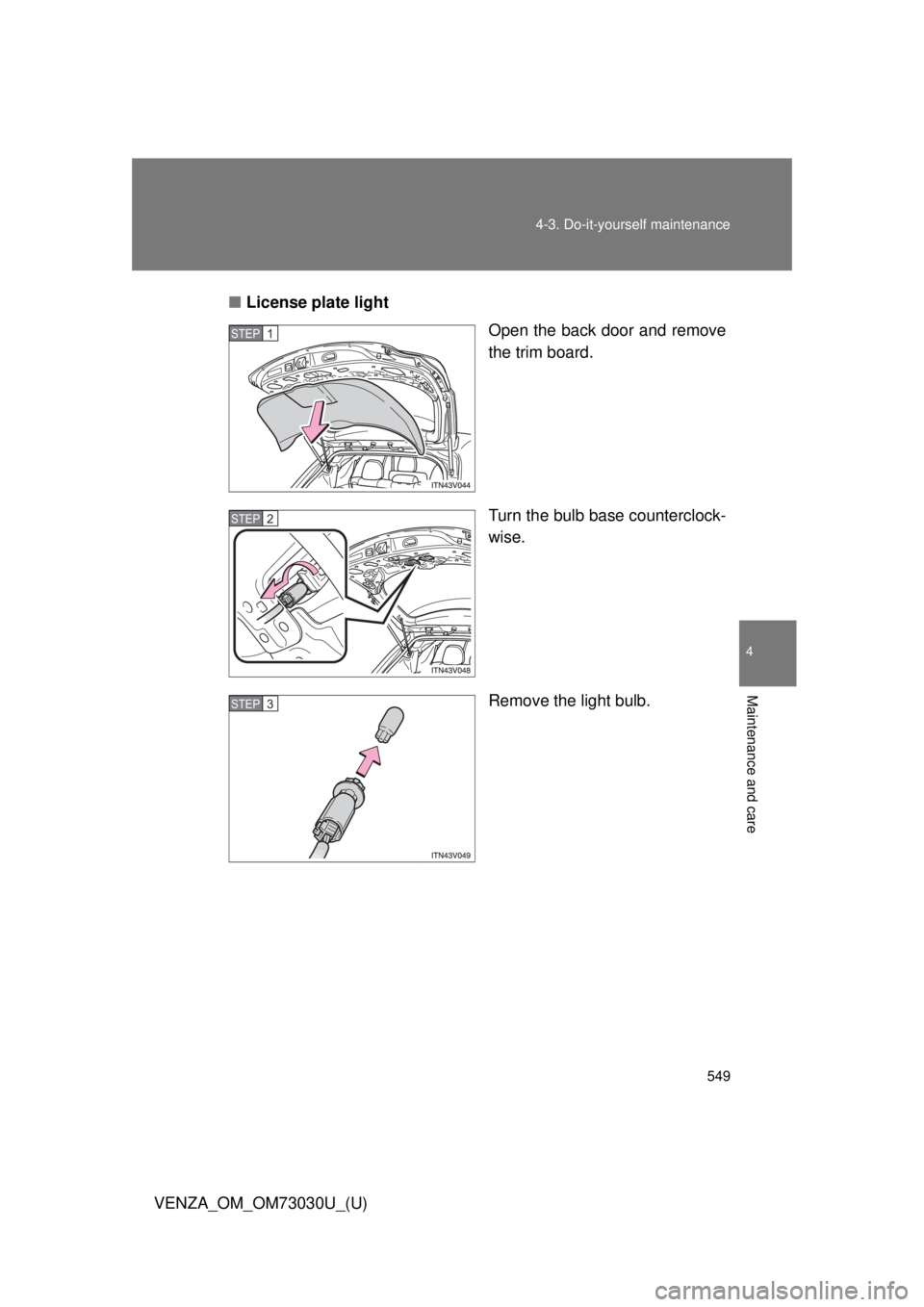

VENZA_OM_OM73030U_(U) ■ License plate light
Open the back door and remove
the trim board.
Turn the bulb base counterclock-
wise.
Remove the light bulb.STEP 1
STEP 2
STEP 3

5504-3. Do-it-yourself maintenance
VENZA_OM_OM73030U_(U) ■ Bulbs other than the above
If any of the bulbs listed below has burnt out, have your Toyota
dealer replace it.
● Headlight low and high beams (v ehicles with discharge head-
lights)
● Daytime running/parking lights (vehicles with discharge head-
lights)
● High mounted stoplight
● Foot lights
● Side turn signal lights■ Condensation build-up on the inside of the lens
Temporary condensation build-up on the inside of the headlight lens does
not indicate a malfunction. Contact your Toyota dealer for more information
in the following situations:
● Large drops of water are built up on the inside of the lens.
● Water has built up inside the headlight.
■ LED light bulbs
The daytime running/parking rights (vehicles with discharge headlights),
high mounted stoplight and foot lights consist of a number of LEDs. If any
LEDs burn out, take your vehicle to your Toyota dealer to have the light
replaced.
■ High-intensity discharge (HID ) headlights (if equipped)
If voltage to the high-intensity discharge bulbs is insufficient, the light may
not come on, or may go out temporarily. The high-intensity discharge bulbs
will come on when normal power is restored.
