TOYOTA VENZA 2016 Owners Manual

5
When trouble arises
5815-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) Taking out the spare tire
Loosen the center fastener that
secures the spare tire.
Replacing a flat tire
Chock the tires.STEP 1
Flat tire Wheel chock positions
Front Left-hand side Behind the rear right-hand side tire
Right-hand side Behind the rear left-hand side tire
Rear Left-hand side In front of the front right-hand side tire
Right-hand side In front of the front left-hand side tire

5825-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) Slightly loosen the wheel nuts
(one turn).
Turn the tire jack portion “A” by
hand until the notch of the jack is
in contact with the jack point.
Raise the vehicle until the tire is
slightly raised off the ground.STEP 2
STEP 3
STEP 4

5
When trouble arises
5835-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) Remove all the wheel nuts and
the tire. When resting the tire on the
ground, place the tire so that the
wheel design faces up to avoid
scratching the wheel surface.
Installing the spare tire
Remove any dirt or foreign mat-
ter from the wheel contact sur-
face. If foreign matter is on the wheel
contact surface, the wheel nuts
may loosen while the vehicle is
in motion, and the tire may
come off the vehicle.
Install the spare tire and loosely
tighten each nut by hand to
approximately the same amount.
Tighten the wheel nuts until the
tapered portion comes into
loose contact with the disc
wheel sheet.STEP 5
STEP 1
STEP 2
Tapered portion
Disc
wheel
sheet

5845-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) Lower the vehicle.
Firmly tighten each nut two or
three times in the order shown in
the illustration. Tightening torque:
76 ft•lbf (103 N•m, 10.5 kgf•m)
Stow the flat tire, tire jack and all tools. STEP 3
STEP 4
STEP 5

5
When trouble arises
5855-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) ■
The compact spare tire ●
The compact spare tire is identifi ed by the label “TEMPORARY USE
ONLY” on the tire sidewall.
Use the compact spare tire temporarily only in an emergency.●
Make sure to check the tire inflation pressure of the compact spare
tire. (  P. 623)■
When using the compact spare tire
As the spare tire is not equipped with the tire pressure warning valve and
transmitter, low inflatio n pressure of the spare tire will not be warned.
Also, if you replace the compact spare tire after the tire pressure warning
light comes on, the light remains on.■
If you have a flat front tire on a road covered with snow or ice
Install the compact spare tire on the rear of the vehicle. Perform the fol-
lowing steps and fit tire chains to the front tires.
Replace a rear tire with the compact spare tire.
Replace the flat front tire with the tire removed from the rear of
the vehicle.
Fit tire chains to the front tires. STEP 1
STEP 2
STEP 3

5865-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) CAUTION■
Using the tire jack
Improper use of the tire jack may lead to death or serious injuries due to
the vehicle suddenly falling off the jack. ●
Do not use the tire jack for any pu rpose other than replacing tires or
installing and removing tire chains.●
Only use the tire jack that comes with this vehicle for replacing a flat
tire.
Do not use it on other vehicles, and do not use other tire jacks for
replacing tires on this vehicle.●
Always check that the tire jack is securely set to the jack point.●
Do not raise the vehicle while someone is in it.●
When raising the vehicle, do not put an object on or under the jack.●
Do not raise the vehicle to a hei ght greater than that required to
replace the tire.●
Use a jack stand if it is necessary to get under the vehicle.●
Do not put any part of your body under the vehicle supported by a jack.●
Do not start or run the engine while your vehicle is supported by the
jack.
Take particular care when lowering the vehicle to ensure that no one
working on or near the vehicle may be injured.

5
When trouble arises
5875-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) CAUTION■
Replacing a flat tire ●
Do not touch the disc wheels or the area around the brakes immedi-
ately after the vehicle has been driven.
After the vehicle has been driven the disc wheels and the area around
the brakes will be extremely hot. Touching these areas with hands, feet
or other body parts while changing a tire, etc. may result in burns.●
Failure to follow these precautions could cause the wheel nuts to
loosen and the tire to fall off, resulting in death or serious injury.
• Have the wheel nuts tightened with a torque wrench to 76 ft•lbf
(103 N•m, 10.5 kgf•m) as soon as possible after changing wheels.
Failure to follow these precautions could cause the nuts to loosen
and the wheels may fall off, which could lead to an accident causing
death or serious injury.
• Do not attach a heavily damaged wh eel ornament, as it may fly off
the wheel while the vehicle is moving.
• When installing the wheel nuts, be sure to install them with the
tapered ends facing inward. (  P. 519)■
Replacing a flat tire for vehicles with power back door
In cases such as when re placing tires, make sure to turn off the power
back door main switch (  P. 59). Failure to do so may cause the back
door to operate unintentionally if the power back door switch is acciden-
tally touched, resulting in hands and fingers being caught and injured.

5885-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) CAUTION■
When using the compact spare tire ●
Remember that your compact spare tire is specifically designed for
use with your vehicle. Do not use your compact spare tire on another
vehicle.●
Do not use more than one compact spare tire simultaneously.●
Replace the compact spare tire with a standard tire as soon as possi-
ble.●
Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that caus e sudden engine braking.■
Speed limit when using the compact spare tire
Do not drive at speeds in excess of 50 mph (80 km/h) when a compact
spare tire is installed on the vehicle.
The compact spare tire is not designed for driving at hi gh speeds. Failing
to observe this precaution may lead to an accident causing death or seri-
ous injury.■
When the compact spare tire is attached
The vehicle speed may not be correctly detected, and the following sys-
tems may not operate correctly: ●
ABS & Brake assist●
VSC●
TRAC
●
Cruise control system
●
Intuitive parking assist
●
Rear view monitor system (if equipped)
●
Entune Premium Audio with Navigation (if equipped)
Also, not only can the AWD system no t be utilized fully, it may actually
negatively effect the drive-train components (AWD models only).

5
When trouble arises
5895-2. Steps to take in an emergency
VENZA_OM_OM73030U_(U) NOTICE■
Do not drive the vehicle with a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the
wheel beyond repair.■
Be careful when driving over bumps with the compact spare tire
installed on the vehicle
The vehicle becomes lower when driving with the compact spare tire
compared to when drivin g with standard tires. Be careful when driving
over uneven road surfaces.■
Driving with tire chains and the compact spare tire
Do not fit tire chains to the compact spare tire.
Tire chains may damage the vehicle body and adversely affect driving
performance.■
When replacing the tires ●
When removing or fitting the wheels, tires or the tire pressure warning
valve and transmitter, contact your Toyota dealer as the tire pressure
warning valve and transmitter may be damaged if not handled cor-
rectly.●
Replace the grommets for the tire pressure warning valves and trans-
mitters as well.■
To avoid damage to the tire pressure warning valves and transmit-
ters
When a tire is repaired with liquid sealants, the tire pressure warning
valve and transmitter may not operate properly. If a liquid sealant is
used, contact your Toyota dealer or other qualified service shop as soon
as possible. Make sure to replace the tire pressure warning valve and
transmitter when replacing the tire (  P. 507)

5905-2. Steps to take in an emergency

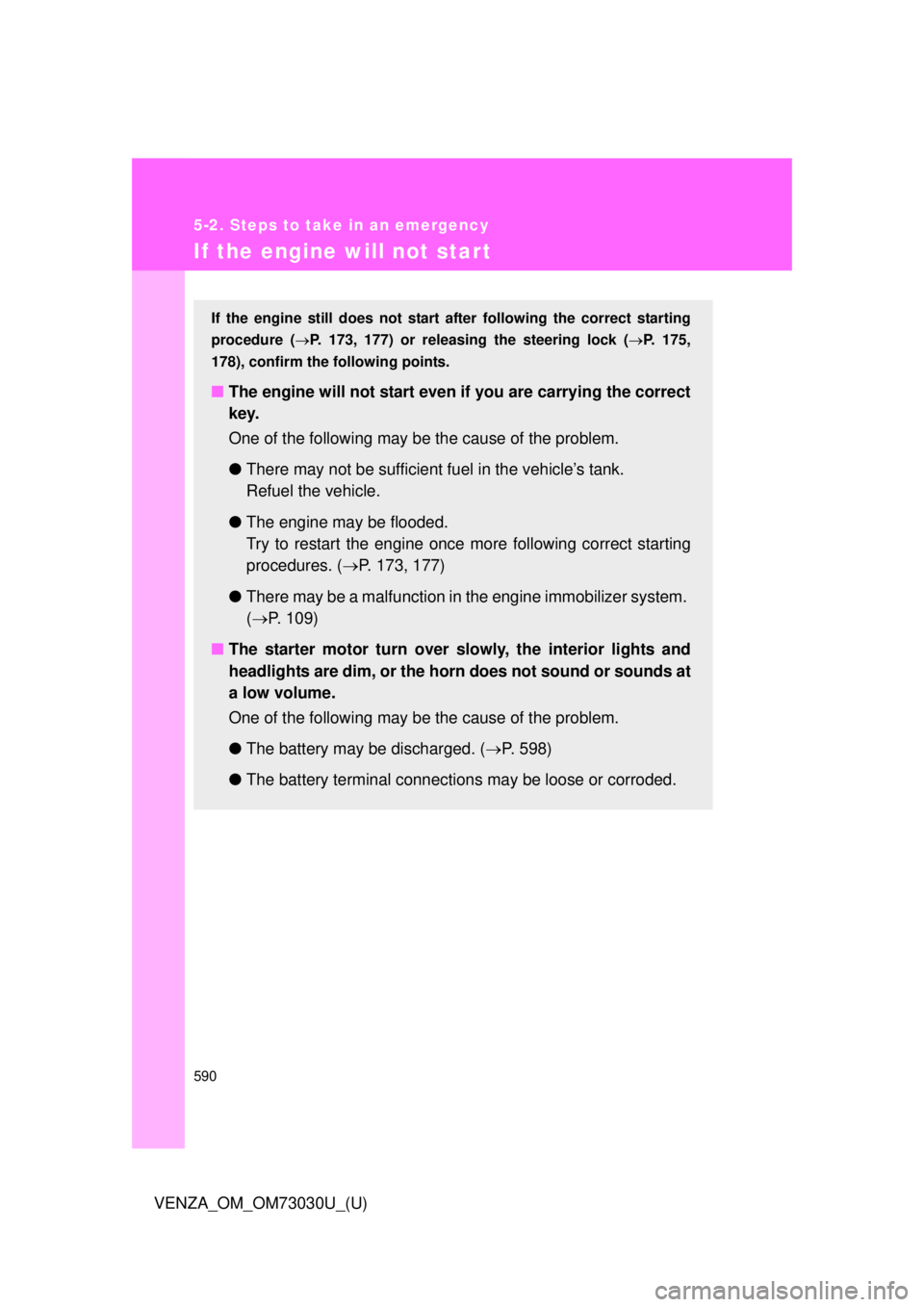

VENZA_OM_OM73030U_(U)If the engine will not star t If the engine still does not start after following the correct starting
procedure (  P. 173, 177) or releasing the steering lock (  P. 175,
178), confirm the following points.
■ The engine will not start even if you are carrying the correct
key.
One of the following may be the cause of the problem.
● There may not be sufficient fuel in the vehicle’s tank.
Refuel the vehicle.
● The engine may be flooded.
Try to restart the engine once more following correct starting
procedures. (  P. 173, 177)
● There may be a malfunction in the engine immobilizer system.
(  P. 109)
■ The starter motor turn over slowly, the interior lights and
headlights are dim, or the horn does not sound or sounds at
a low volume.
One of the following may be the cause of the problem.
● The battery may be discharged. (  P. 598)
● The battery terminal connec tions may be loose or corroded.
