clock TOYOTA VERSO S 2015 Owners Manual

TABLE OF CONTENTSIndex
4
3-1. Using the air conditioning
system and defogger
Manual air conditioning
system .............................. 266
Automatic air conditioning
system .............................. 272
Power heater ...................... 279
Rear window and
outside rear view
mirror defoggers ............... 281
3-2. Using the audio system
Audio system types............. 283
Using the radio.................... 285
Using the CD player............ 289
Playing back MP3 and
WMA discs........................ 294
Operating an iPod ............... 301
Operating a USB
memory............................. 309
Optimal use of the audio
system .............................. 317
Using the AUX port ............. 319
Using the steering wheel
audio switches .................. 3203-3. Using the interior lights
Interior lights list ................. 323
• Personal lights ................. 324
• Personal/interior lights ..... 324
• Interior light ...................... 325
3-4. Using the storage
features
List of storage features....... 326
• Auxiliary box..................... 327
• Glove box ......................... 327
• Bottle holders ................... 329
• Tray .................................. 330
• Cup holders...................... 331
3-5. Other interior features
Sun visors .......................... 332
Vanity mirrors ..................... 333
Clock .................................. 334
Outside temperature
display .............................. 335
Power outlets ..................... 336
Seat heaters ....................... 338
Armrests ............................. 340
Panoramic roof shade ........ 341
Assist grips ......................... 344
Floor mat ............................ 345
Luggage compartment
features ............................ 347
3Interior features

198
2-2. Instrument cluster
Gauges and meters
Tachometer
Displays the engine speed in revolutions per minute.
Speedometer
Displays the vehicle speed.
Outside temperature display
P. 335
Fuel gauge
Displays the quantity of fuel remaining in the tank.
Display change button
P. 199
Odometer, trip meter, Stop & Start system operation time, Stop &
Start system total operation time, meter light control and multi-
information display
P. 199, 210
Clock
P. 334
Clock adjusting buttons
P. 334

260 2-5. Driving information
Guidance
Your vehicle will handle differently when towing a trailer. In order to
avoid accident, death or serious injury, keep the following in mind
when towing:
Checking connections between trailer and lights
Stop the vehicle and check the operation of the connection
between the trailer and lights after driving for a brief period as well
as before starting off.
Practicing driving with a coupled trailer
Get the feel for turning, stopping and reversing with the trailer
coupled by practicing in an area with no or light traffic.
When reversing with a coupled trailer, hold the section of the
steering wheel nearest to you and rotate clockwise to turn the
trailer left or counterclockwise to turn it right. Always rotate a lit-
tle at a time to prevent steering error. Have someone guide you
when reversing to lessen the risk of an accident.
NOTICE
When the rear bumper strengthening material is aluminum
Ensure the steel bracket part does not come directly in contact with that
area.
When steel and aluminum come into contact, there is a reaction similar to
corrosion, which will weaken the section concerned and may result in dam-
age. Apply a rust inhibitor to parts that will come in contact when attaching a
steel bracket.

3Interior features
265
3-1. Using the air
conditioning system
and defogger
Manual air conditioning
system ............................ 266
Automatic air conditioning
system ............................ 272
Power heater .................... 279
Rear window and
outside rear view
mirror defoggers ............. 281
3-2. Using the audio system
Audio system types .......... 283
Using the radio ................. 285
Using the CD player ......... 289
Playing back MP3 and
WMA discs...................... 294
Operating an iPod............. 301
Operating a USB
memory........................... 309
Optimal use of the audio
system ............................ 317
Using the AUX port ........... 319
Using the steering wheel
audio switches ................ 320
3-3. Using the interior lights
Interior lights list................ 323
• Personal lights ................ 324
• Personal/interior
lights ............................... 324
• Interior light ..................... 3253-4. Using the storage
features
List of storage features ..... 326
• Auxiliary box ................... 327
• Glove box ....................... 327
• Bottle holders.................. 329
• Tray ................................ 330
• Cup holders .................... 331
3-5. Other interior features
Sun visors ......................... 332
Vanity mirrors.................... 333
Clock ................................. 334
Outside temperature
display ............................ 335
Power outlets .................... 336
Seat heaters ..................... 338
Armrests ........................... 340
Panoramic roof shade....... 341
Assist grips ....................... 344
Floor mat........................... 345
Luggage compartment
features........................... 347

266
3-1. Using the air conditioning system and defogger
Manual air conditioning system
Adjusting the settings
Adjusting the temperature setting (vehicles without the
button)
Turn the temperature control dial clockwise to increase the tem-
perature.
Adjusting the temperature setting (vehicles with the
button)
Turn the temperature control dial clockwise (warm) or counter-
clockwise (cool).
If is not pressed, the system will blow ambient temperature air or
heated air.
: If equipped
Fan speed control dial Air outlet selection dial
Air conditioning ON/OFF button
(if equipped)Temperature control dial
Outside air or recirculated air mode dial

267 3-1. Using the air conditioning system and defogger
3
Interior features
Adjusting the fan speed
Turn the fan speed control dial clockwise (increase) or counter-
clockwise (decrease).
Set the dial to “0” to turn the fan off.
Selecting the air outlets
Set the air outlet selection dial to an appropriate position.
The positions between the air outlet selections shown below can also be
selected for more detailed adjustment.
Air flows to the upper body.
Air flows to the upper body and
feet.
: Some models

302 3-2. Using the audio system
Selecting a play mode
Press (MENU) to select iPod menu mode.
Turning clockwise changes the play mode in the fol-
lowing order:
“Playlists”“Artists”“Albums”“Songs”“Podcasts”“Genres”
“Composers”“Audiobooks”
Press to select the desired play mode.
Control panel
PlaybackBack
buttonDisplays lists
Selecting a song, fast-forwarding or reversingPower VolumeShuffle playback
Repeat play iPod menu/Song
selector or
displays text
message
iPod
menu
mode
STEP1
STEP2
STEP3

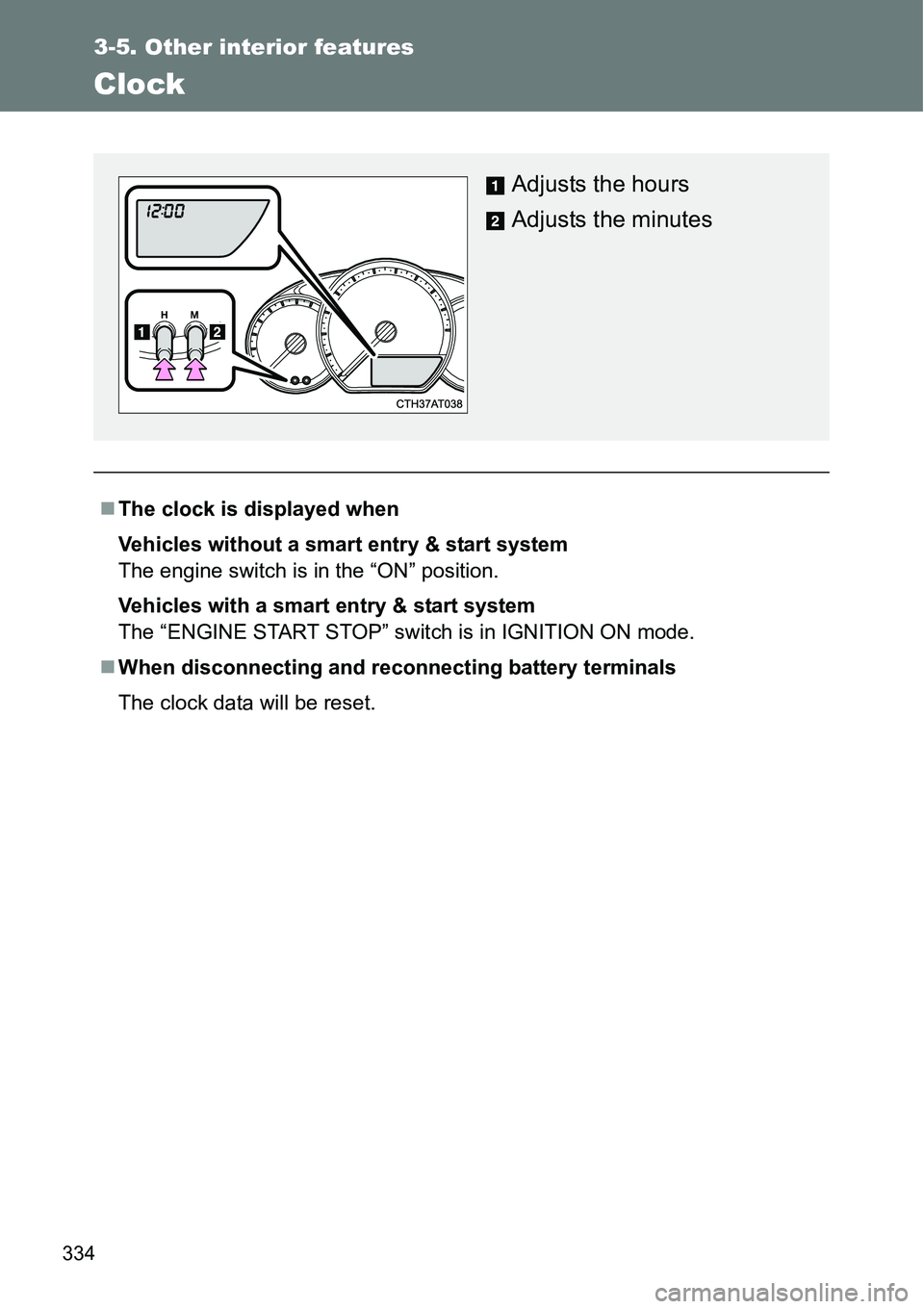

334
3-5. Other interior features
Clock
The clock is displayed when
Vehicles without a smart entry & start system
The engine switch is in the “ON” position.
Vehicles with a smart entry & start system
The “ENGINE START STOP” switch is in IGNITION ON mode.
When disconnecting and reconnecting battery terminals
The clock data will be reset.
Adjusts the hours
Adjusts the minutes

373 4-3. Do-it-yourself maintenance
4
Maintenance and care
Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selectionP. 528
Oil quantity
(Low  Full)1.5 L (1.6 qt., 1.3 Imp. qt.)
Item Clean funnel
Engine oil consumption
A certain amount of engine oil will be consumed while driving. In the follow-
ing situations, oil consumption may increase, and engine oil may need to be
refilled in between oil maintenance intervals.
When the engine is new, for example directly after purchasing the vehicle
or after replacing the engine
If low quality oil or oil of an inappropriate viscosity is used
When driving at high engine speeds or with a heavy load, when towing,
or when driving while accelerating or decelerating frequently
When leaving the engine idling for a long time, or when driving frequently
through heavy traffic
STEP1
STEP2
STEP3

424 4-3. Do-it-yourself maintenance
Replacing light bulbs
Headlights
Remove the cover.
Turn the bulb base counterclock-
wise remove it.
Rear bulb locations
Rear fog light (for
left-hand traffic)/
Back-up light (for
right-hand traffic)
Rear fog light (for
right-hand traffic)/
Back-up light (for
left-hand traffic)
License plate
lights
Rear turn signal lights
STEP1
STEP2
