high beam TOYOTA YARIS 2022 Owners Manual

3
HV Owner's Manual_Europe_M52N30_en
TABLE OF CONTENTS
1
6
5
4
3
2
8
7
3-5. Opening and closing the win-
dows
Power windows ................... 156
4-1. Before driving
Driving the vehicle .............. 160
Cargo and luggage ............. 166
Trailer towing (vehicles without
towing packages - including
Reunion) ........................... 167
Trailer towing (vehicles with tow-
ing packages - except for
Reunion) ........................... 167
4-2. Driving procedures
Power (ignition) s witch (vehicles
without a smart entry & start
system) ............................. 173
Power (ignition) s witch (vehicles
with a smart entry & start sys-
tem) .................................. 175
EV drive mode .................... 179
Hybrid transmission ............ 181
Turn signal lever ................. 184
Parking brake...................... 184
Brake Hold .......................... 187
4-3. Operating the lights and wip-
ers
Headlight switch.................. 190
AHB (Automatic High Beam)
.......................................... 193
Fog light switch ................... 196
Windshield wipers and washer
.......................................... 197
Rear window wiper and washer
.......................................... 200
4-4. Refueling
Opening the fuel tank cap ... 202
4-5. Using the driving support sys-
tems
Toyota Safety Sense ........... 204
PCS (Pre-Collision System) 209
LTA (Lane Tracing Assist) ... 220
Dynamic radar cruise control
with full-speed range ........ 230
Speed limiter ....................... 242
RSA (Road Sign Assist) ...... 244
BSM (Blind Spot Monitor) ... 248
Toyota parking assist-sensor
.......................................... 253
RCTA (Rear Crossing Traffic
Alert) ................................. 260
PKSB (Parking Support Brake)
.......................................... 265
Parking Support Brake function
(static objects) .................. 270
Parking Support Brake function
(rear-crossing vehicles) .... 273
Driving mode select switch . 275
GPF (Gasoline Particulate Filter)
system .............................. 276
Driving assist systems ........ 277
4-6. Driving tips
Hybrid vehicle driving tips ... 282
Winter driving tips ............... 284
4Driving

16
HV Owner's Manual_Europe_M52N30_en
Pictorial index
■Switches (left-hand drive vehicles)
Outside rear view mirror switches ...............................................P.153
Window lock switch ............................................. ..........................P.158
Door lock switches ............................................. ...........................P.136
Power window switches .......................................... ......................P.156
Headlight leveling dial ........................................ ...........................P.192
Automatic High Beam switch*......................................................P.193
Heated steering wheel switch*......................................................P.294
Driving mode select switch..................................... ......................P.275
VSC OFF switch ................................................. ............................P.278
EV drive mode switch ........................................... .........................P.179
Brake hold switch .............................................. ............................P.187
Parking brake switch ........................................... ..........................P.184

23
HV Owner's Manual_Europe_M52N30_en

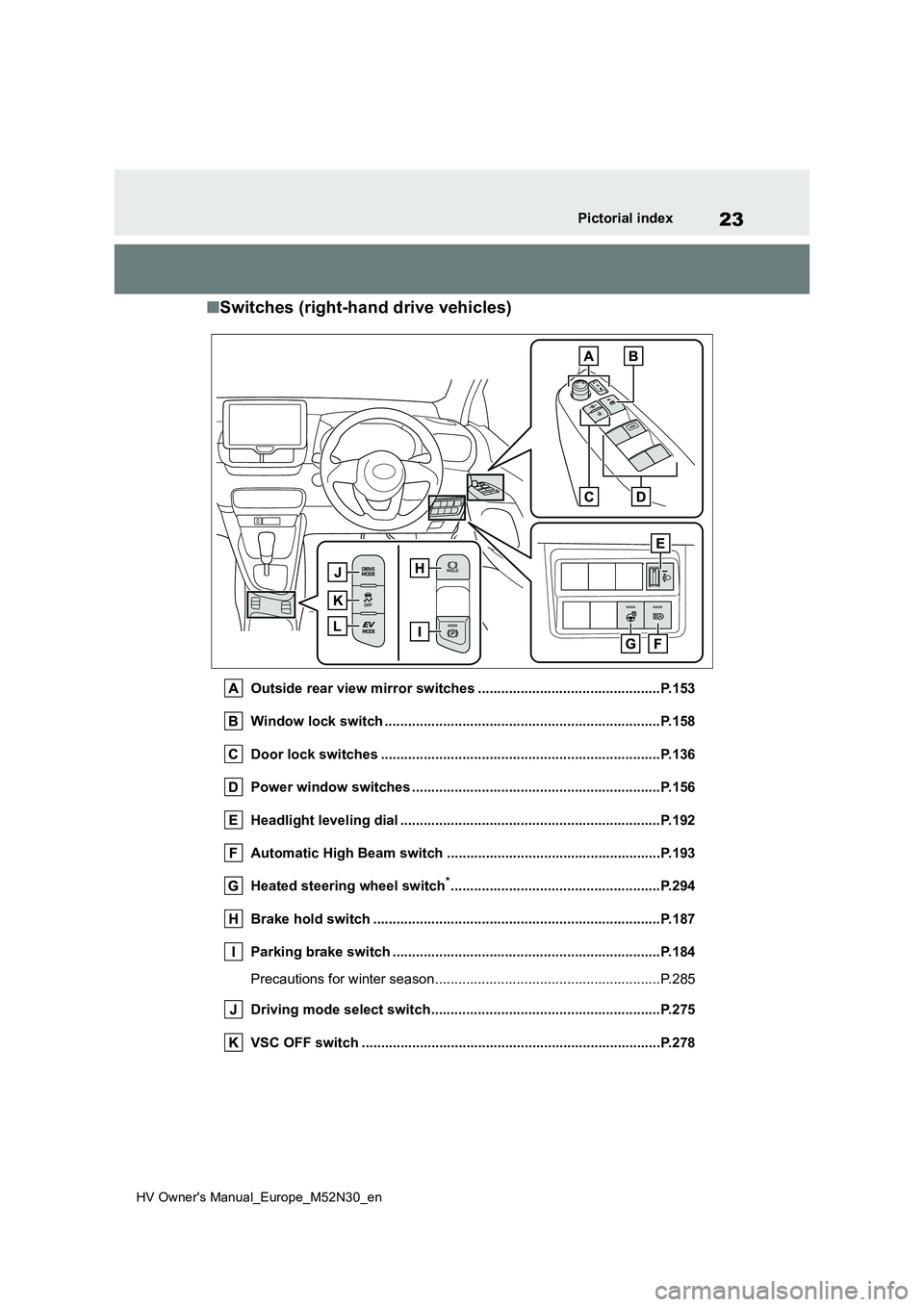

Pictorial index
■Switches (right-hand drive vehicles)
Outside rear view mirror switches ...............................................P.153
Window lock switch ............................................. ..........................P.158
Door lock switches ............................................. ...........................P.136
Power window switches .......................................... ......................P.156
Headlight leveling dial ........................................ ...........................P.192
Automatic High Beam switch ..................................... ..................P.193
Heated steering wheel switch*......................................................P.294
Brake hold switch .............................................. ............................P.187
Parking brake switch ........................................... ..........................P.184
Precautions for winter season.................................. ........................P.285
Driving mode select switch..................................... ......................P.275
VSC OFF switch ................................................. ............................P.278

92
HV Owner's Manual_Europe_M52N30_en
2-1. Instrument cluster
*1: These lights come on when the
power switch is turned to ON to indi-
cate that a system check is being
performed. They will turn off after the
hybrid system is started, or after a
few seconds. There may be a mal-
function in a system if the lights do
not come on, or turn off. Have the
vehicle inspected by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
*2: This light illuminates on the multi-
information display.
The indicators inform the driver of
the operating state of the vehicle’s
various systems.
(Flashes)
Toyota parking assist-sensor
OFF indicator*1 (if equipped)
( P.379)
(Flashes)
“RCTA OFF” indicator*1 (if
equipped) ( P.379)
PKSB OFF indicator*1 (if
equipped) ( P.379)
(Flashes or illuminates)
PCS warning light*1 (if
equipped) ( P.380)
Slip indicator*1 ( P.380)
(Flashes)
Parking brake indicator
( P.380)
(Flashes)
Brake hold operated indica-
tor*1 ( P.381)
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning light not come on when you start the hybrid
system, this could mean that these systems are not available to help pro-tect you in an accident, which could
result in death or serious injury. Have the vehicle inspected by any autho-rized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer immediately if this occurs.
Indicators
Turn signal indicator
( P.184)
Tail light indicator ( P.190)
Headlight high beam indica-
tor ( P.192)
Automatic High Beam indica-
tor (if equipped) ( P.193)
Front fog light indicator (if
equipped) ( P.196)
Rear fog light indicator
( P.196)
PCS warning light*1, 2 (if
equipped) ( P.212)
Cruise control indicator*3 (if
equipped) ( P.230)
Dynamic radar cruise control
indicator*3 (if equipped)
( P.230)
Cruise control “SET” indica-
tor*3 (if equipped) ( P.230)

4
159
HV Owner's Manual_Europe_M52N30_en
4
Driving
Driving
4-1. Before driving
Driving the vehicle ............ 160
Cargo and luggage ........... 166
Trailer towing (vehicles without
towing packages - including
Reunion) ......................... 167
Trailer towing (vehicles with
towing packages - except for
Reunion) ......................... 167
4-2. Driving procedures
Power (ignition) switch (vehi-
cles without a smart entry &
start system) ................... 173
Power (ignition) switch (vehi-
cles with a smart entry & start
system) ........................... 175
EV drive mode .................. 179
Hybrid transmission .......... 181
Turn signal lever ............... 184
Parking brake ................... 184
Brake Hold ........................ 187
4-3. Operating the lights and wip-
ers
Headlight switch ............... 190
AHB (Automatic High Beam)
....................................... 193
Fog light switch ................. 196
Windshield wipers and washer
....................................... 197
Rear window wiper and washer
....................................... 200
4-4. Refueling
Opening the fuel tank cap. 202
4-5. Using the driving support
systems
Toyota Safety Sense ......... 204
PCS (Pre-Collision System)
........................................ 209
LTA (Lane Tracing Assist) . 220
Dynamic radar cruise control
with full-speed range ...... 230
Speed limiter ..................... 242
RSA (Road Sign Assist) .... 244
BSM (Blind Spot Monitor) . 248
Toyota parking assist-sensor
........................................ 253
RCTA (Rear Crossing Traffic
Alert) ............................... 260
PKSB (Parking Support Brake)
........................................ 265
Parking Support Brake function
(static objects) ................ 270
Parking Support Brake function
(rear-crossing vehicles) .. 273
Driving mode select switch 275
GPF (Gasoline Particulate Fil-
ter) system ...................... 276
Driving assist systems ...... 277
4-6. Driving tips
Hybrid vehicle driving tips . 282
Winter driving tips ............. 284

192
HV Owner's Manual_Europe_M52N30_en
4-3. Operating the lights and wipers
1With the headlights on, push the
lever away from you to turn on
the high beams.
Pull the lever toward you to the center
position to turn the high beams off.
2 Pull the lever toward you and
release it to flash the high
beams once.
You can flash the high beams with the
headlights on or off.
This system allows the headlights
to be turned on for 30 seconds
when the power switch is off.
Pull the lever toward you and
release it with the light switch in
or after turning the power
switch off.
The lights are turned off in the fol-
lowing situations.
 The power switch is turned to
ON.
 The light switch is turned on.
 The light switch is pulled toward
you and then released.
The level of the headlights can be
adjusted according to the number
of passengers and the loading con-
dition of the vehicle.
1 Raises the level of the head-
lights
2 Lowers the level of the head-
lights
Turning on the high beam
headlights
Headlamp temporary light-
ing function
Manual headlight leveling
dial

193
4
HV Owner's Manual_Europe_M52N30_en
4-3. Operating the lights and wipers
Driving

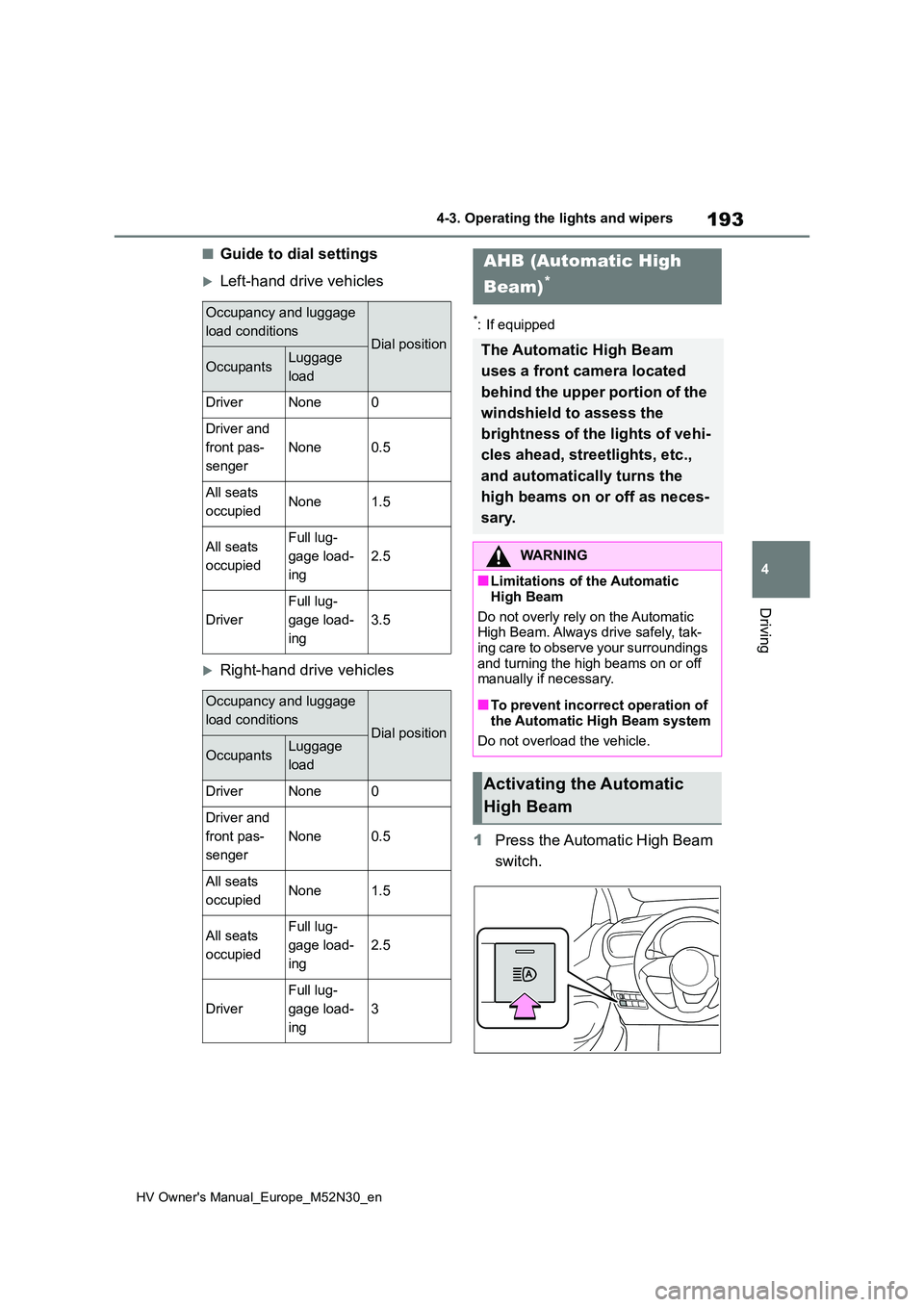

■Guide to dial settings
Left-hand drive vehicles
Right-hand drive vehicles
*: If equipped
1Press the Automatic High Beam
switch.
Occupancy and luggage
load conditionsDial position
OccupantsLuggage
load
DriverNone0
Driver and
front pas-
senger
None0.5
All seats
occupiedNone1.5
All seats
occupied
Full lug-
gage load-
ing
2.5
Driver
Full lug-
gage load-
ing
3.5
Occupancy and luggage
load conditionsDial position
OccupantsLuggage
load
DriverNone0
Driver and
front pas-
senger
None0.5
All seats
occupiedNone1.5
All seats
occupied
Full lug-
gage load-
ing
2.5
Driver
Full lug-
gage load-
ing
3
AHB (Automatic High
Beam)*
The Automatic High Beam
uses a front camera located
behind the upper portion of the
windshield to assess the
brightness of the lights of vehi-
cles ahead, streetlights, etc.,
and automatically turns the
high beams on or off as neces-
sary.
WARNING
■Limitations of the Automatic
High Beam
Do not overly rely on the Automatic High Beam. Always drive safely, tak-
ing care to observe your surroundings and turning the high beams on or off manually if necessary.
■To prevent incorrect operation of
the Automatic High Beam system
Do not overload the vehicle.
Activating the Automatic
High Beam

194
HV Owner's Manual_Europe_M52N30_en
4-3. Operating the lights and wipers

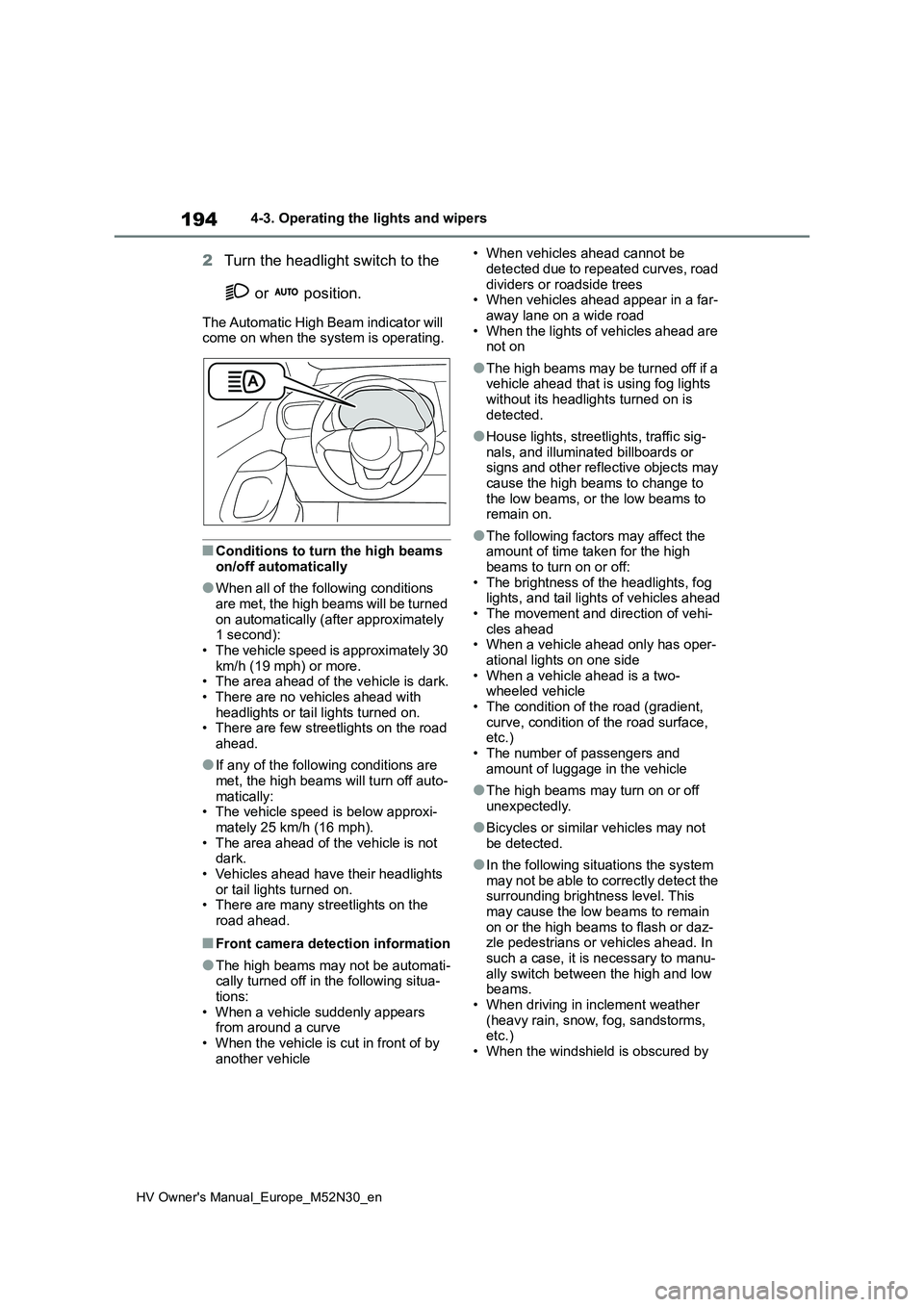

2Turn the headlight switch to the
or position.
The Automatic High Beam indicator will come on when the system is operating.
■Conditions to turn the high beams on/off automatically
●When all of the following conditions are met, the high beams will be turned
on automatically (after approximately 1 second):• The vehicle speed is approximately 30
km/h (19 mph) or more. • The area ahead of the vehicle is dark.• There are no vehicles ahead with
headlights or tail lights turned on. • There are few streetlights on the road ahead.
●If any of the following conditions are met, the high beams will turn off auto-
matically: • The vehicle speed is below approxi-mately 25 km/h (16 mph).
• The area ahead of the vehicle is not dark.• Vehicles ahead have their headlights
or tail lights turned on. • There are many streetlights on the road ahead.
■Front camera detection information
●The high beams may not be automati-cally turned off in the following situa-
tions: • When a vehicle suddenly appears from around a curve
• When the vehicle is cut in front of by another vehicle
• When vehicles ahead cannot be
detected due to repeated curves, road dividers or roadside trees• When vehicles ahead appear in a far-
away lane on a wide road • When the lights of vehicles ahead are not on
●The high beams may be turned off if a vehicle ahead that is using fog lights
without its headlights turned on is detected.
●House lights, streetlights, traffic sig-nals, and illuminated billboards or signs and other reflective objects may
cause the high beams to change to the low beams, or the low beams to remain on.
●The following factors may affect the amount of time taken for the high
beams to turn on or off: • The brightness of the headlights, fog lights, and tail lights of vehicles ahead
• The movement and direction of vehi- cles ahead• When a vehicle ahead only has oper-
ational lights on one side • When a vehicle ahead is a two-wheeled vehicle
• The condition of the road (gradient, curve, condition of the road surface, etc.)
• The number of passengers and amount of luggage in the vehicle
●The high beams may turn on or off unexpectedly.
●Bicycles or similar vehicles may not be detected.
●In the following situations the system may not be able to correctly detect the surrounding brightness level. This
may cause the low beams to remain on or the high beams to flash or daz-zle pedestrians or vehicles ahead. In
such a case, it is necessary to manu- ally switch between the high and low beams.
• When driving in inclement weather (heavy rain, snow, fog, sandstorms, etc.)
• When the windshield is obscured by

195
4
HV Owner's Manual_Europe_M52N30_en
4-3. Operating the lights and wipers
Driving
fog, mist, ice, dirt, etc.
• When the windshield is cracked or damaged• When the front camera is deformed or
dirty • When the temperature of the front camera is extremely high
• When the surrounding brightness level is equal to that of headlights, tail lights or fog lights
• When headlights or tail lights of vehi- cles ahead are turned off, dirty, chang-ing color, or not aimed properly
• When the vehicle is hit by water, snow, dust, etc., from a preceding vehicle
• When driving through an area of inter- mittently changing brightness and darkness
• When frequently and repeatedly driv- ing ascending/descending roads, or roads with rough, bumpy or uneven
surfaces (such as stone-paved roads, gravel roads, etc.)• When frequently and repeatedly tak-
ing curves or driving on a winding road• When there is a highly reflective
object ahead of the vehicle, such as a sign or mirror• When the back of a preceding vehicle
is highly reflective, such as a con- tainer on a truck• When the vehicle’s headlights are
damaged or dirty, or are not aimed properly• When the vehicle is listing or titling
due to a flat tire, a trailer being towed, etc.• When the headlights are changed
between the high beams and low beams repeatedly in an abnormal manner
• When the driver believes that the high beams may be flashing or dazzling pedestrians or other drivers

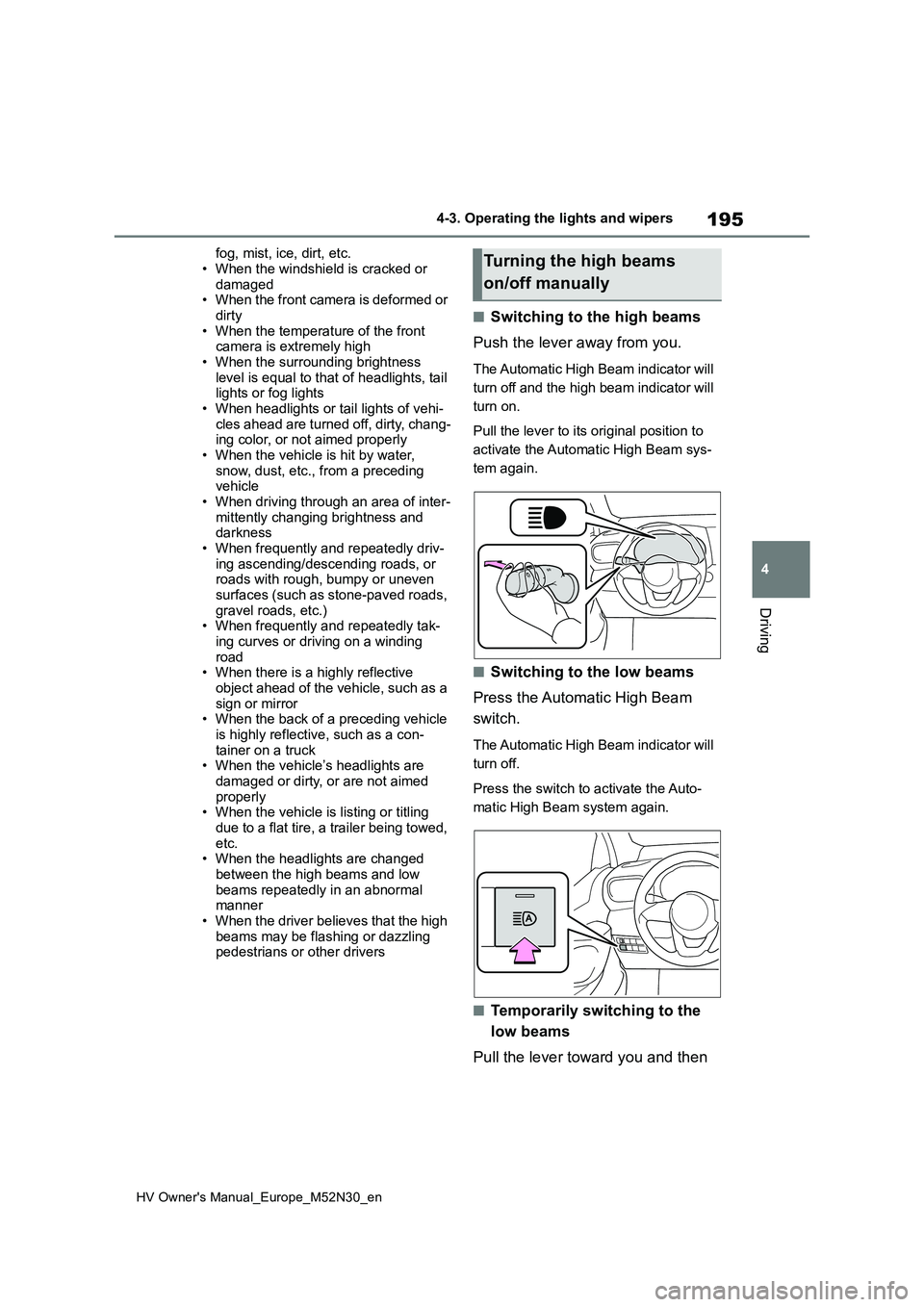

■Switching to the high beams
Push the lever away from you.
The Automatic High Beam indicator will
turn off and the high beam indicator will
turn on.
Pull the lever to its original position to
activate the Automatic High Beam sys-
tem again.
■Switching to the low beams
Press the Automatic High Beam
switch.
The Automatic High Beam indicator will
turn off.
Press the switch to activate the Auto-
matic High Beam system again.
■Temporarily switching to the
low beams
Pull the lever toward you and then
Turning the high beams
on/off manually

196
HV Owner's Manual_Europe_M52N30_en
4-3. Operating the lights and wipers
return it to its original position.
The high beams are on while the lever
is pulled toward you, however, after the
lever is returned to its original position,
the low beams remain on for a certain
amount of time. Afterwards, the Auto-
matic High Beam will be activated
again.
■Temporarily switching to the low
beams
It is recommended to switch to the low beams when the high beam may cause
problems or distress to other drivers or pedestrians nearby.

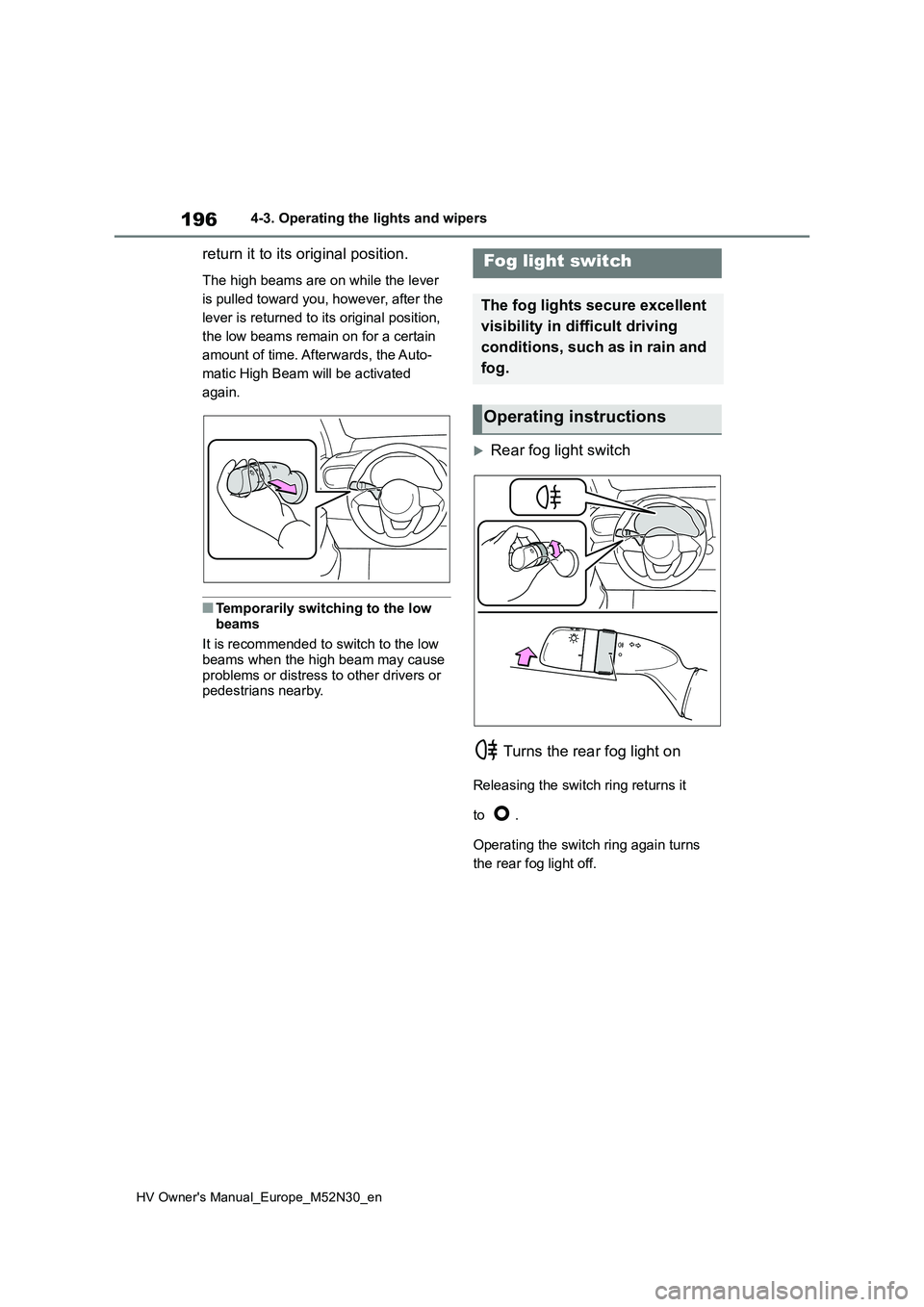

Rear fog light switch
Turns the rear fog light on
Releasing the switch ring returns it
to .
Operating the switch ring again turns
the rear fog light off.
Fog light switch
The fog lights secure excellent
visibility in di fficult driving
conditions, such as in rain and
fog.
Operating instructions
