Page 13 of 303
In brief111Power windows .....................42
2 Exterior mirrors .....................39
3 Central locking system ..........24
4 Side air vents ...................... 148
5 Cruise control .....................175
Speed limiter ....................... 177
Adaptive cruise control .......178
Forward collision alert .........186
6 Turn lights, headlight
flash, low / high beam,
high beam assist .................135
Exit lighting ......................... 138
Parking lights ...................... 136
Buttons for Driver
Information Centre ..............114
7 Instruments ........................ 103
Driver Information Centre .... 114
8 Buttons for Driver
Information Centre ..............114
9 Windscreen wiper and
washer, rear wiper and
washer ................................. 93
10 Centre air vents ................... 14811Info Display ......................... 120
12 Anti-theft alarm system
status LED ........................... 36
13 Hazard warning flashers ....134
14 Glovebox .............................. 72
15 Controls for Info Display
operation ............................. 120
16 Climate control system ........ 140
17 Fuse box ............................ 243
18 Traction Control system .....172
Electronic Stability Control . 173
Parking assist / Advanced
parking assist .....................194
Lane keep assist ................209
Eco button for stop-start
system ................................. 156
19 Manual transmission ..........169
Automatic transmission ......165
20 Power outlet .......................... 98
21 Parking brake ......................170
22 Power button ....................... 152
23 Ignition switch .....................151
24 Steering wheel adjustment ..92
25 Horn ..................................... 9326Bonnet release lever ..........223
27 Storage compartment ...........73
28 Light switch ........................ 129
Headlight range
adjustment ......................... 132
Front / rear fog lights ..........135
Instrument illumination .......136
Page 14 of 303
12In briefExterior lightingAUTO:automatic light control
switches automatically
between daytime running
light and headlight8:sidelights9:headlights
Automatic light control 3 130.
Front fog lights 3 135.
Rear fog light 3 135.
Headlight flash, high beam and
low beamheadlight flash:pull leverhigh beam:push leverlow beam:push or pull lever
High beam 3 132.
Headlight flash 3 132.
LED headlights 3 133.
High beam assist 3 133.
Turn lightslever up:right turn lightslever down:left turn lights
Turn lights 3 135.
Parking lights 3 136.
Page 16 of 303
14In briefWindscreen washer
Pull lever.
Windscreen washer system 3 93.
Washer fluid 3 226.
Wiper blade replacement 3 229.
Rear window wiperOFF:offINT:intermittent operationON:continuous operationRear window washer
Push lever.
Washer fluid is sprayed on the rear
window and the wiper wipes a few
times.
Rear window wiper and washer
3 95.
Page 17 of 303
In brief15Climate control
Heated rear window
The heating is operated by pressing
Ü .
Heated rear window 3 44.
Heated exterior mirrors
Pressing Ü also activates the heated
exterior mirrors.
Heated exterior mirrors 3 40.
Heated windscreen
Operated by pressing ,.
Heated windscreen 3 44.
Demisting and defrosting the
windows
● Press V: the air distribution is
directed towards the windscreen.
● Set fan speed to highest level.
● Set temperature control to warmest level.
● Switch on heated rear window Ü.
● Open side air vents as required and direct them towards the doorwindows.
Air conditioning system 3 140.
Page 18 of 303

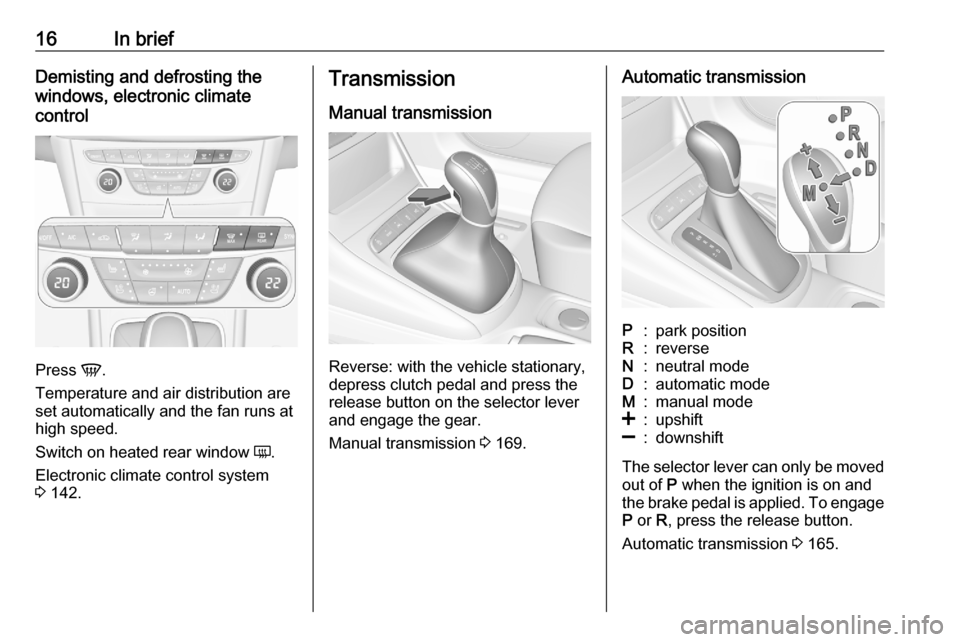

16In briefDemisting and defrosting the
windows, electronic climate
control
Press V.
Temperature and air distribution are
set automatically and the fan runs at
high speed.
Switch on heated rear window Ü.
Electronic climate control system 3 142.
Transmission
Manual transmission
Reverse: with the vehicle stationary,
depress clutch pedal and press the release button on the selector lever
and engage the gear.
Manual transmission 3 169.
Automatic transmissionP:park positionR:reverseN:neutral modeD:automatic modeM:manual mode<:upshift]:downshift
The selector lever can only be moved
out of P when the ignition is on and
the brake pedal is applied. To engage
P or R, press the release button.
Automatic transmission 3 165.
Page 22 of 303
20Keys, doors and windowsKeys, doors and
windowsKeys, locks ................................... 20
Keys .......................................... 20
Radio remote control .................21
Electronic key system ................22
Memorised settings ...................24
Central locking system ..............24
Automatic locking ......................29
Child locks ................................. 30
Doors ........................................... 31
Load compartment ....................31
Vehicle security ............................ 36
Anti-theft locking system ...........36
Anti-theft alarm system ..............36
Immobiliser ................................ 39
Exterior mirrors ............................ 39
Convex shape ........................... 39
Electric adjustment ....................39
Folding mirrors .......................... 40
Heated mirrors ........................... 40
Interior mirrors ............................. 41
Manual anti-dazzle ....................41
Automatic anti-dazzle ................41Windows...................................... 41
Windscreen ............................... 41
Manual windows ........................42
Power windows ......................... 42
Heated rear window ..................44
Heated windscreen ....................44
Sun visors .................................. 44
Roof ............................................. 45
Sunroof ...................................... 45Keys, locks
KeysCaution
Do not attach heavy or bulky itemsto the ignition key.
Replacement keys
The key number is specified on a
detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser
system.
Locks 3 266.
Central locking 3 24.
Starting the engine 3 154.
Radio remote control 3 21.
Electronic key 3 22.
The code number of the adapter for
the locking wheel nuts is specified on
a card. It must be quoted when
ordering a replacement adapter.
Wheel changing 3 257.
Page 29 of 303
Keys, doors and windows27The system locks if any of the
following occurs:
● It has been more than 5 seconds since unlocking.
● The button on an exterior handle has been pressed twice within
3 seconds to unlock the vehicle.
● Any door has been opened and all doors are now closed.
If the driver's door is not closed
properly, the electronic key remains in
the vehicle or the ignition is not off,
locking will not be permitted.
If there have been two or more
electronic keys in the vehicle and the
ignition was on once, the doors will be locked even if just one electronic key
is taken out of the vehicle.
Unlocking and opening the tailgate
The tailgate can be unlocked and
opened hands-free via moving the
foot below the rear bumper or by
pushing the tailgate button under the
brand emblem when the electronic
key is in range. The doors remain
locked.
Load compartment 3 31.Operation with buttons on the
electronic key
The central locking system can also
be operated with the buttons on the
electronic key.
Press c to unlock.
Press e to lock.
Press X twice to unlock and open
only the power tailgate. To prevent
unintended opening of the tailgate,
X must be pressed longer than
during locking or unlocking.
Remote control operation 3 24.
Passive locking
Automatic locking 3 29.
Confirmation
Operation of central locking system is
confirmed by the hazard warning
flashers. A precondition is that the
setting is activated in the vehicle
personalisation 3 123.
Central locking buttons Locks or unlocks all doors, the load
compartment and fuel filler flap from
the passenger compartment via a
switch in the driver's door panel.
Press e to lock.
Press c to unlock.
Page 32 of 303
30Keys, doors and windowsVehicle personalisation 3 123.
The setting can be saved for the
remote control or electronic key being used 3 24.
Passive locking
On vehicles with electronic key
system, this feature locks the vehicle
automatically after several seconds if an electronic key has been
recognised previously inside the
vehicle, all doors have then been
closed and the electronic key does
not remain within the vehicle.
If the electronic key remains in the
vehicle or the ignition is not off,
passive locking will not be permitted.
If there have been two or more
electronic keys in the vehicle and the
ignition was on once, the feature
locks the vehicle if just one electronic
key is taken out of the vehicle.
To prevent passive locking of the
vehicle e.g. when refuelling or if
passengers remain in the vehicle, the
system must be disabled.To disable the system, press the
central locking button c for a few
seconds while one door is open. An
acoustic signal sounds three times to confirm deactivation. The function
remains disabled until the central
locking button e is pressed or the
ignition is switched on.
Activation or deactivation of passive
locking can be set in the menu
Settings I Vehicle in the Info Display.
Info Display 3 120.
Vehicle personalisation 3 123.
The setting can be saved for the electronic key being used 3 24.Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.
Move the pin in the rear door to the front. The door cannot be openedfrom the inside.
To deactivate, move the pin to the
rear position.
Page 34 of 303
32Keys, doors and windowsPower tailgate9Warning
Take care when operating the
power tailgate. Risk of injury,
particularly to children.
Keep a close watch on the
movable tailgate when operating.
Ensure that nothing becomes
trapped during operating and no
one is standing within the moving
area.
The power tailgate can be operated
by:
● Pressing X twice on the
electronic key. To prevent
unintended opening of the
tailgate, X must be pressed
longer than during locking or unlocking.
● Hands-free operation with motion
sensor below the rear bumper.
● The tailgate button under the exterior tailgate moulding andC in the open tailgate.
● The switch C on the inside of
the driver's door.
On vehicles with automatic
transmission, the tailgate can only be operated when the vehicle is
stationary and with selector lever in P.
The turn lights flash and a chime sounds when the power tailgate is
operating.
Notice
Operating the power tailgate does not operate the central locking
system. To open the tailgate with the button on the electronic key, or with
the tailgate button or via hands-free
operation, it is not necessary to
unlock the vehicle. A precondition is
that the electronic key is outside the
vehicle, within a range of approx.
1 m of the tailgate.
Do not leave the electronic key in the
load compartment.
Lock the vehicle after closing if it was
unlocked previously.
Central locking system 3 24.Operation with the electronic key
Press X twice to open or close the
tailgate. To prevent unintended
opening of the tailgate, X must be
pressed longer than during locking or unlocking.
Page 35 of 303
Keys, doors and windows33Hands-free operation with motion
sensor below the rear bumper
To open or close the tailgate, move
the foot below the rear bumper back
and forth in the area shown in the illustration. If equipped with parking
assist, the area is recognisable below
the sensor shown. Do not hold the
foot longer or move too slow below
the bumper. The electronic key must be outside the vehicle, within a range
of approx. 1 m of the tailgate.
9 Danger
Do not touch any vehicle parts
below the vehicle during hands-
free operation. There is a risk of
injury from hot engine parts.
Operation with the tailgate button
under the exterior tailgate moulding
To open the tailgate, press the
tailgate button under the tailgate
moulding until the tailgate starts to
move. If the vehicle is locked, the
electronic key must be outside the
vehicle, within a range of approx.
1 m of the tailgate.
To close, press C in the open
tailgate until the tailgate starts to
move.
