170Driving and operatingthe shift is not executed. This can
cause a message in the Driver
Information Centre.
In manual mode, no automatic
shifting to a higher gear takes place
at high engine revolutions.
Gear shift indication
The symbol R with a number below it
is indicated when gearshifting is
recommended for fuel saving
reasons.
Shift indication appears only in
manual mode.
Electronic driving programmes
● Following a cold start, the operating temperature
programme increases engine
speed to quickly bring the
catalytic converter to the required
temperature.
● The automatic neutral shift function automatically shifts to
idling when the vehicle is stopped with a forward gear engaged andthe brake pedal is pressed.● When SPORT mode is engaged,
the vehicle shifts at higher engine speeds (unless cruise control is
on). SPORT mode 3 177.
● Special programmes automatically adapt the shifting
points when driving up inclines or
down hills.
● When starting off in snowy or icy conditions or on other slippery
surfaces, the electronic
transmission control selects a
higher gear automatically.
Kickdown If the accelerator pedal is pressed
down completely in automatic mode,
the transmission shifts to a lower gear
depending on engine speed.
Overheat protection
In the event of transmission-
overheating due to high outside
temperatures or sporty driving style,
the torque and the maximum speed of the engine can be temporarily
reduced.Fault
In the event of a fault a vehicle
message is displayed in the Driver
Information Centre. Vehicle
messages 3 119.
The transmission no longer shifts automatically. Continued travel is
possible with manual shifting.
Only the highest gear is available.
Depending on the fault, 2nd gear may also be available in manual mode.
Shift only when vehicle is stationary.
Have the cause of the fault remedied
by a workshop.
Interruption of power supply
In the event of an interruption of
power supply, the selector lever
cannot be moved out of the P
position. The ignition key cannot be
removed from the ignition switch.
If the vehicle battery is discharged,
start the vehicle using jump leads
3 265.
If the vehicle battery is not the cause
of the fault, release the selector lever.
1. Apply parking brake.

Driving and operating219The multivalve on the liquid gas tank
automatically limits the fill quantity. If
a larger quantity is added, we
recommend not exposing the vehicle
to the sun until the excess amount
has been used up.

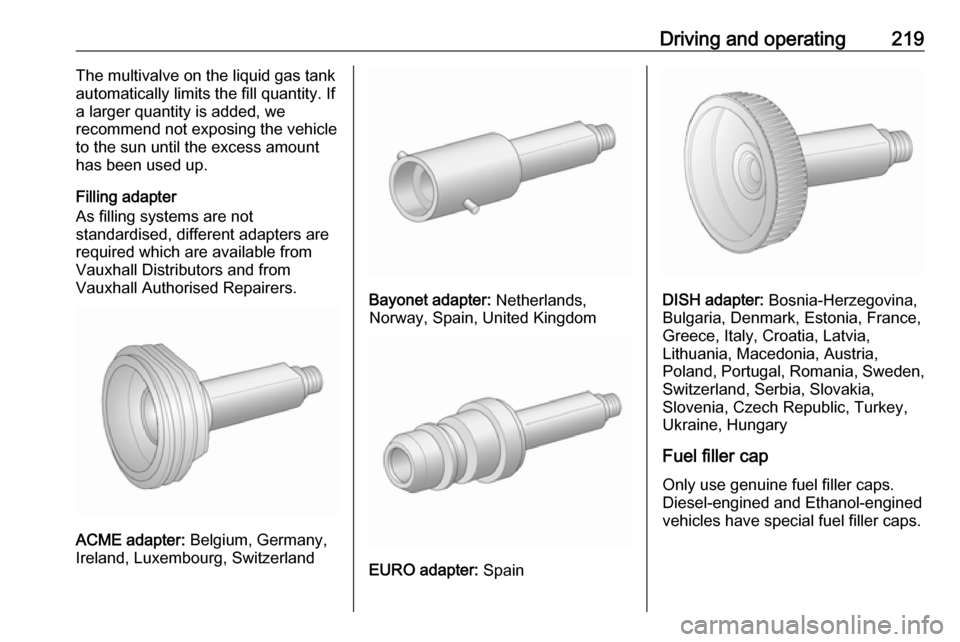

Filling adapter
As filling systems are not
standardised, different adapters are
required which are available from
Vauxhall Distributors and from
Vauxhall Authorised Repairers.
ACME adapter: Belgium, Germany,
Ireland, Luxembourg, Switzerland
Bayonet adapter: Netherlands,
Norway, Spain, United Kingdom
EURO adapter: Spain
DISH adapter: Bosnia-Herzegovina,
Bulgaria, Denmark, Estonia, France,
Greece, Italy, Croatia, Latvia,
Lithuania, Macedonia, Austria,
Poland, Portugal, Romania, Sweden,
Switzerland, Serbia, Slovakia,
Slovenia, Czech Republic, Turkey,
Ukraine, Hungary
Fuel filler cap
Only use genuine fuel filler caps.
Diesel-engined and Ethanol-engined
vehicles have special fuel filler caps.

Vehicle care263even though no label indicates this.
Seek the assistance of a workshop to
check the applicable speed limit.
The spare wheel has a steel rim.Caution
The use of a spare wheel that is smaller than the other wheels or in
combination with winter tyres
could affect driveability. Have the defective tyre replaced as soon as
possible.
The spare wheel is located in the load
compartment beneath the floor
covering.
To remove:
1. Open the floor cover.
2. The spare wheel is secured with a
wing nut. Turn wing nut
anticlockwise and remove the
spare wheel.
Under the spare wheel there is the box with vehicle tools.
3. When, after a wheel change, no wheel is placed in the spare wheel
well, secure the tool box by
turning right back the wing nut and close the floor cover.
Stowing the replaced full size
wheel in the spare wheel well
The spare wheel well is not designed for all permitted tyre sizes. If a wheel
wider than the spare must be stowed
in the spare wheel well, the thread
bolt for mounting the wheel must be
replaced by an extension bolt, located
in the tool box 3 251. To replace the
bolt:
● Remove tool box from the spare wheel well.
● Install the hexagon key of thewheel wrench ensuring that it
locates securely on the bolt.
● Turn the wheel wrench anticlockwise to loosen the bolt.
Remove the bolt.
● Take the extension bolt from the tool box 3 251 and screw it in
hand-tight using the hexagon key of the wheel wrench.

321Child locks ................................... 28
Child restraint installation locations ................................... 65
Child restraints.............................. 63
Child restraint systems ................63
Climate control ............................. 15
Climate control systems .............140
Clock............................................. 89
Collision damage repair ..............315
Colour-Info-Display .....................117
Control indicators........................ 103
Control of the vehicle .................155
Controls ........................................ 85
Convex shape .............................. 37
Coolant and antifreeze ...............274
Cruise control ....................109, 180
Cupholders .................................. 69
Curtain airbag system .................. 61
Curve lighting.............................. 132
D Danger, Warnings and Cautions ...4
Daytime running lights ...............131
Declaration of conformity ............312
DEF ............................................ 164
Diesel exhaust fluid ....................164
Diesel fuel system bleeding .......233
Diesel particle filter .............107, 163
Door open .................................. 110
Doors ............................................ 29Driver assistance systems..........180
Driver Information Centre ...........110
Driving characteristics and towing tips .............................. 221
Driving hints ................................ 155
Dual automatic climate control system ..................................... 147
E Electric adjustment ......................37
Electrical system......................... 244
Electric parking brake .........105, 173
Electric parking brake fault .........105
Electronic driving programmes ..170
Electronic key system ...................22
Electronic Stability Control.......... 176
Electronic Stability Control and Traction Control system ..........107
Electronic Stability Control off..... 107
End-of-life vehicle recovery .......225
Engine compartment fuse box ...246
Engine coolant ........................... 229
Engine coolant temperature ......107
Engine coolant temperature gauge ..................................... 101
Engine data ............................... 281
Engine exhaust .......................... 163
Engine identification ...................277
Engine oil ................... 227, 274, 278
Engine oil pressure ....................108Entry lighting .............................. 138
Event data recorders ..................317
Exit lighting ................................ 138
Exterior care .............................. 270
Exterior light ............................... 109
Exterior lighting ....................12, 128
Exterior mirrors ............................. 37
F
Fault ........................................... 170
First aid ......................................... 80
First aid kit ................................... 80
Fixed air vents ........................... 152
Fog light ..................................... 109
Fog lights ................................... 239
Folding mirrors ............................. 37
Following distance ......................106
Following distance indication ......194
Forward collision alert................. 190
Front airbag system .....................60
Front fog lights ........................... 135
Front seats.................................... 47
Front storage ................................ 70
Front turn signal light ..................235
Fuel............................................. 213
Fuel consumption - CO 2-
Emissions ............................... 220
Fuel for diesel engines ..............213
Fuel for liquid gas operation .......213
Fuel for petrol engines ...............213

322Fuel gauge ................................. 100Fuel selector .............................. 101
Fuses ......................................... 244
G Gauges ......................................... 99
Gear shifting ............................... 106
General information ...................220
Glovebox ..................................... 69
H Halogen headlights ....................235
Hand brake ......................... 172, 173
Hazard warning flashers ............134
Headlight flash ........................... 130
Headlight range adjustment ......131
Headlights................................... 128 Headlights when driving abroad 131
Head restraint adjustment .............8
Head restraints ............................ 45
Heated mirrors ............................. 38
Heated rear window ..................... 42
Heated steering wheel .................85
Heating ........................................ 53
High beam ......................... 109, 129
High beam assist ................109, 130
Hill start assist ........................... 175
Horn ....................................... 13, 86I
Identification plate .....................276
Ignition switch positions .............155
Immobiliser .......................... 36, 109
Indicators ...................................... 99
Information displays.................... 110
Instrument cluster ........................93
Instrument panel fuse box .........248
Instrument panel illumination .....244
Instrument panel illumination control .................................... 136
Instrument panel overview ........... 10
Interactive driving system ...........177
Interior care ............................... 272
Interior lighting ............................ 136
Interior lights ...................... 136, 244
Interior mirrors .............................. 39
Interruption of power supply ......170
Introduction .................................... 3
ISOFIX child restraint systems ....68
J Jump starting ............................. 265
K Key, memorised settings ..............23
Keys ............................................. 20
Keys, locks ................................... 20L
Lane change alert .......................204
Lane departure warning .....106, 212
Lashing eyes ............................... 75
Lighting features .........................138
Light switch ................................ 128
Load compartment ................29, 71
Load compartment cover .............73
Load compartment fuse box ......249
Loading information .....................82
Low fuel ..................................... 108
M Malfunction indicator light ..........105
Manual anti-dazzle ......................39
Manual mode ............................. 169
Manual seat adjustment ...............48
Manual transmission .................. 171
Manual windows ..........................40
Memorised settings ......................23
Mirror adjustment ........................... 8
Misted light covers .....................136
N
New vehicle running-in ..............155
Number plate light .....................243
O Object detection systems ...........196
Odometer ..................................... 99 Oil, engine .......................... 274, 278
