6In briefIn briefInitial drive informationVehicle unlockingUnlocking with key

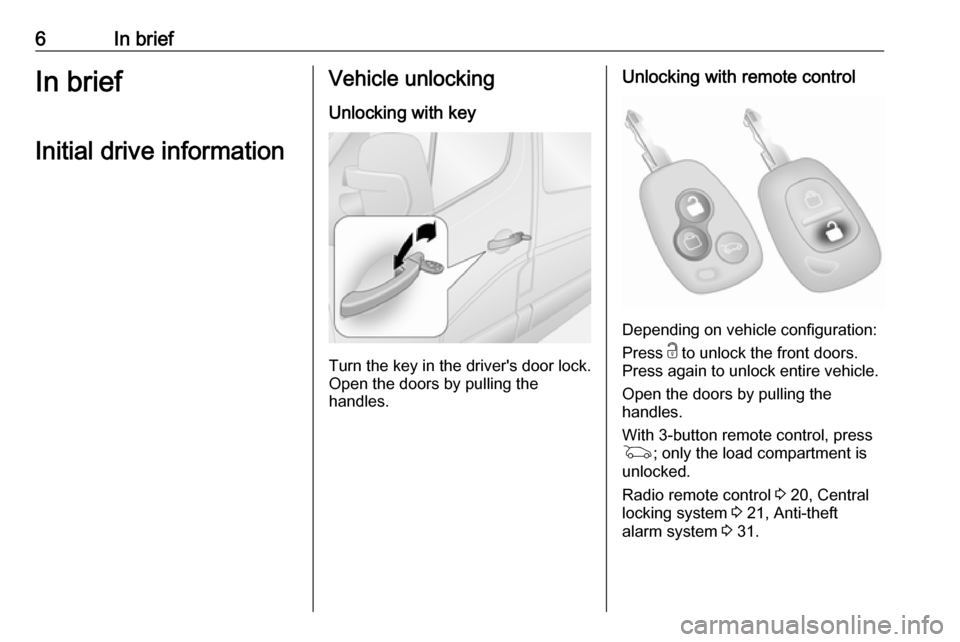

Turn the key in the driver's door lock.
Open the doors by pulling the
handles.
Unlocking with remote control
Depending on vehicle configuration:
Press c to unlock the front doors.
Press again to unlock entire vehicle.
Open the doors by pulling the
handles.
With 3-button remote control, press
G ; only the load compartment is
unlocked.
Radio remote control 3 20, Central
locking system 3 21, Anti-theft
alarm system 3 31.

Keys, doors and windows19Keys, doors and
windowsKeys, locks ................................... 19
Keys .......................................... 19
Car Pass .................................... 19
Radio remote control .................20
Door locks ................................. 21
Manual door locks .....................21
Central locking system ..............21
Power door locks .......................24
Automatic locking ......................25
Child locks ................................. 25
Doors ........................................... 26
Sliding door ............................... 26
Rear doors ................................. 29
Vehicle security ............................ 30
Anti-theft locking system ...........30
Anti-theft alarm system ..............31
Immobiliser ................................ 32
Exterior mirrors ............................ 33
Convex shape ........................... 33
Manual adjustment ....................33
Electric adjustment ....................33
Folding mirrors .......................... 33
Heated mirrors ........................... 34Interior mirrors............................. 34
Manual anti-dazzle ....................34
Windows ...................................... 35
Windscreen ............................... 35
Manual windows ........................35
Power windows ......................... 35
Rear windows ............................ 36
Heated rear window ..................37
Sun visors .................................. 37
Roof ............................................. 37
Glass panel ............................... 37Keys, locks
Keys Replacement keys
The key number is specified in the
Car Pass or on a detachable tag.
The key number must be quoted
when ordering replacement keys as it
is a component of the immobiliser system.
Locks 3 192.
Lock cylinders
Designed to free-wheel if they are forcefully rotated without the correct
key or if the correct key is not fully
inserted. To reset, turn cylinder with
the correct key until its slot is vertical,
remove key and then re-insert it. If the
cylinder still free-wheels, turn the key through 180° and repeat operation.
Car Pass
The Car Pass contains security
related vehicle data and should
therefore be kept in a safe place.

20Keys, doors and windowsWhen the vehicle is taken to a
workshop, this vehicle data is needed in order to perform certain operations.
Radio remote control
Used to operate: ● central locking system
● anti-theft locking system
● anti-theft alarm system
Depending on model, the vehicle may use a 2-button or 3-button remote
control.
The remote control has a range of
approx. 5 metres. It can be affected
by external influences. The hazard
warning flashers confirm operation.
Handle with care, protect it from
moisture and high temperatures and
avoid unnecessary operation.
Fault
If the central locking system cannot
be operated with the remote control,
it may be due to the following:
● The range is exceeded.
● The battery voltage is too low.
● Frequent, repeated operation of the remote control while not in
range, which will require
reprogramming by a workshop.
● Interference from higher-power radio waves from other sources.
Unlocking 3 21.

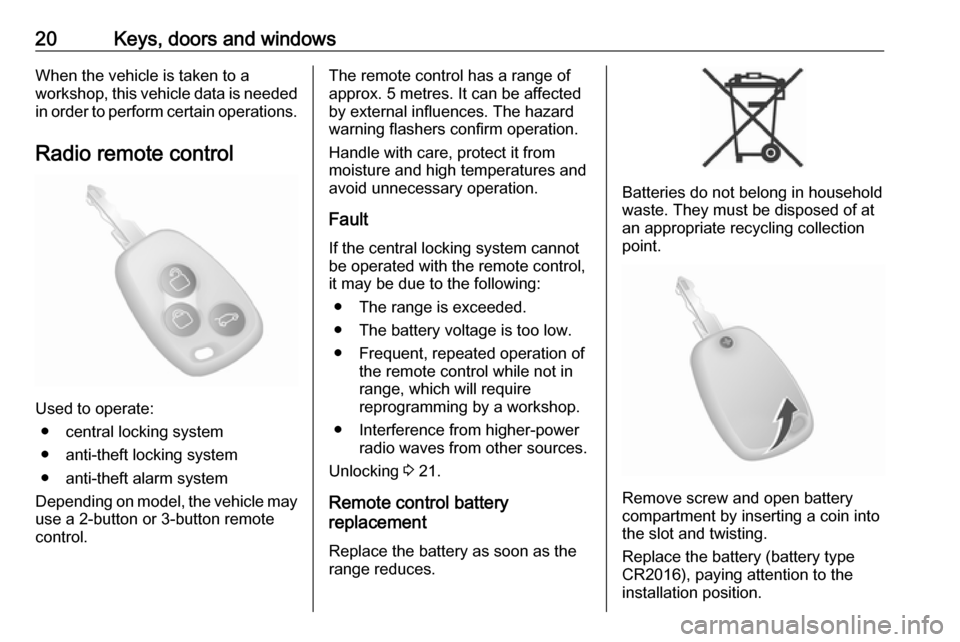

Remote control battery
replacement
Replace the battery as soon as the
range reduces.
Batteries do not belong in household
waste. They must be disposed of at
an appropriate recycling collection
point.
Remove screw and open battery
compartment by inserting a coin into
the slot and twisting.
Replace the battery (battery type
CR2016), paying attention to the
installation position.

Keys, doors and windows21Reattach both halves of cover
ensuring it engages correctly.
Replace screw and tighten.
Door locks

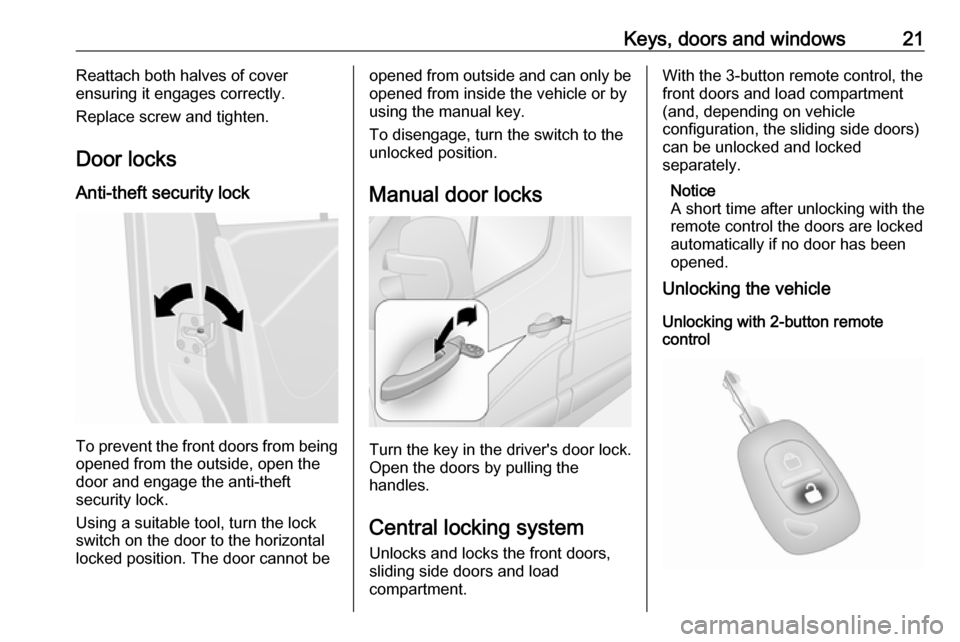

Anti-theft security lock
To prevent the front doors from being opened from the outside, open the
door and engage the anti-theft
security lock.
Using a suitable tool, turn the lock
switch on the door to the horizontal locked position. The door cannot be
opened from outside and can only be
opened from inside the vehicle or by
using the manual key.
To disengage, turn the switch to the
unlocked position.
Manual door locks
Turn the key in the driver's door lock.
Open the doors by pulling the
handles.
Central locking system
Unlocks and locks the front doors,
sliding side doors and load
compartment.
With the 3-button remote control, the front doors and load compartment
(and, depending on vehicle
configuration, the sliding side doors)
can be unlocked and locked
separately.
Notice
A short time after unlocking with the
remote control the doors are locked
automatically if no door has been
opened.
Unlocking the vehicle

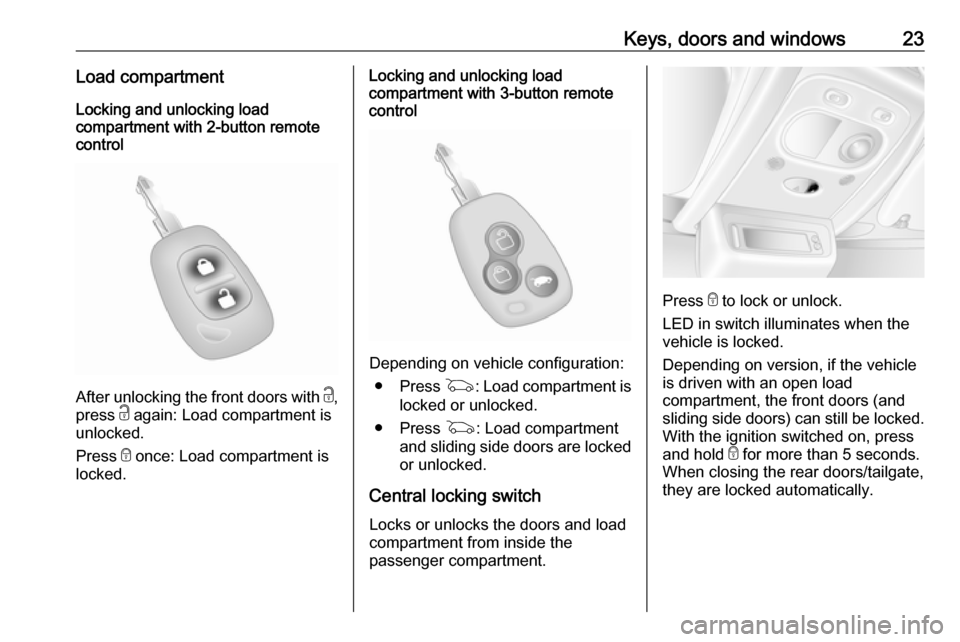

Unlocking with 2-button remote
control

22Keys, doors and windowsPress c to unlock the front doors.
Press again to unlock entire vehicle.

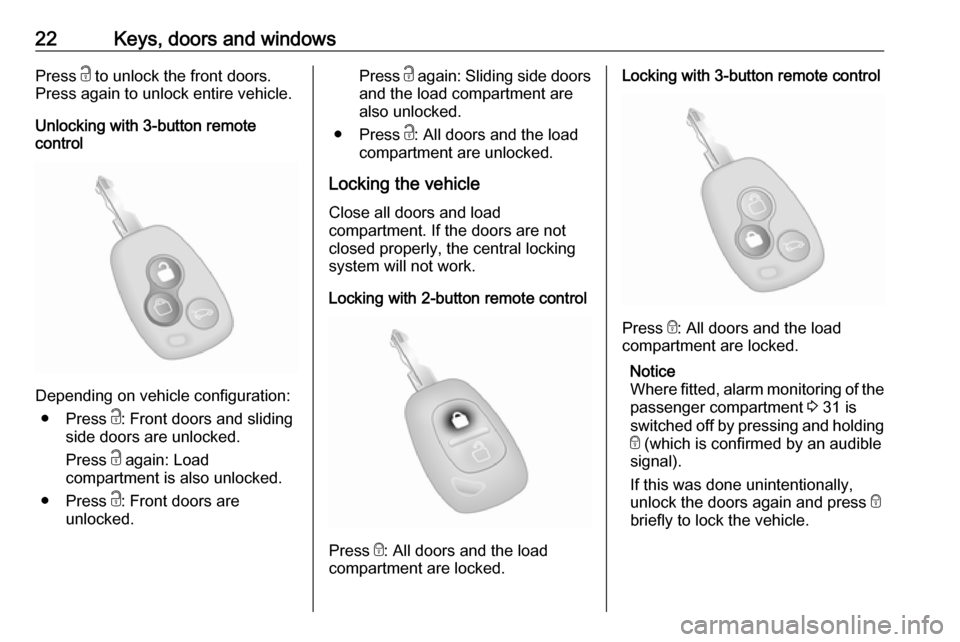

Unlocking with 3-button remote
control
Depending on vehicle configuration:
● Press c: Front doors and sliding
side doors are unlocked.
Press c again: Load
compartment is also unlocked.
● Press c: Front doors are
unlocked.
Press c again: Sliding side doors
and the load compartment are
also unlocked.
● Press c: All doors and the load
compartment are unlocked.
Locking the vehicle
Close all doors and load
compartment. If the doors are not
closed properly, the central locking
system will not work.
Locking with 2-button remote control
Press e: All doors and the load
compartment are locked.
Locking with 3-button remote control
Press e: All doors and the load
compartment are locked.
Notice
Where fitted, alarm monitoring of the passenger compartment 3 31 is
switched off by pressing and holding
e (which is confirmed by an audible
signal).
If this was done unintentionally,
unlock the doors again and press e
briefly to lock the vehicle.

Keys, doors and windows23Load compartmentLocking and unlocking load
compartment with 2-button remote
control
After unlocking the front doors with c,
press c again: Load compartment is
unlocked.
Press e once: Load compartment is
locked.
Locking and unlocking load
compartment with 3-button remote
control
Depending on vehicle configuration:
● Press G: Load compartment is
locked or unlocked.
● Press G: Load compartment
and sliding side doors are locked or unlocked.
Central locking switch
Locks or unlocks the doors and load
compartment from inside the
passenger compartment.
Press e to lock or unlock.
LED in switch illuminates when the
vehicle is locked.
Depending on version, if the vehicle
is driven with an open load
compartment, the front doors (and
sliding side doors) can still be locked. With the ignition switched on, press
and hold e for more than 5 seconds.
When closing the rear doors/tailgate,
they are locked automatically.

24Keys, doors and windowsAutomatic locking when exiting the
vehicle
Depending on version, the e switch
can also be used to lock all doors and the load compartment automatically
when closing the front door and
exiting the vehicle:
Remove key from ignition switch then press and hold the e switch for more
than 5 seconds; vehicle is locked
when the front door is closed.
Automatic locking after driving off
3 25.
Fault in remote control system Unlocking
Manually unlock the front door by
turning the key in the lock.
Switch on the ignition and press the central locking switch e to open all
doors and the load compartment.
Locking
Manually lock the front door by
turning the key in the lock.Fault in central locking system
Unlocking
Manually unlock the front door by
turning the key in the lock. The other
doors can be opened by pulling the
interior handles.
Locking
Push inside locking knob of all doors
except driver's door. Then close the
driver's door and lock it from the
outside with the key.

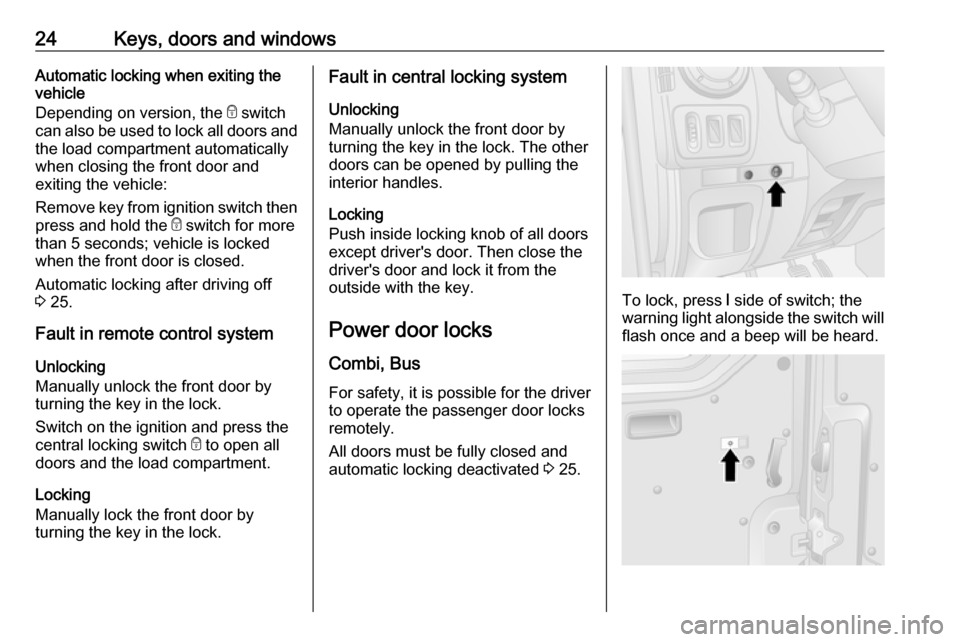

Power door locks
Combi, Bus For safety, it is possible for the driver
to operate the passenger door locks
remotely.
All doors must be fully closed and
automatic locking deactivated 3 25.
To lock, press l side of switch; the
warning light alongside the switch will
flash once and a beep will be heard.

Keys, doors and windows25Warning lights in the appropriate
doors remain illuminated.
To unlock, press 0 side of switch.
Fault
In the event of a fault in the system,
the warning light alongside the switch
remains illuminated and an audible warning will sound.
Check the doors are manually
unlocked (interior door lock switches).
If necessary, have the cause of the
fault remedied by a workshop.
Automatic lockingAutomatic locking after driving off
Depending on version, this security
feature can be configured to
automatically lock all doors and the
load compartment as soon as the
vehicle is driven.
Activation
With the ignition switched on, press
and hold the central locking switch e
for approx. 5 seconds. An audible
signal confirms activation.
LED in switch illuminates when the
vehicle is locked.
Deactivation
With the ignition switched on, press
and hold e for approx. 5 seconds. An
audible signal confirms deactivation.

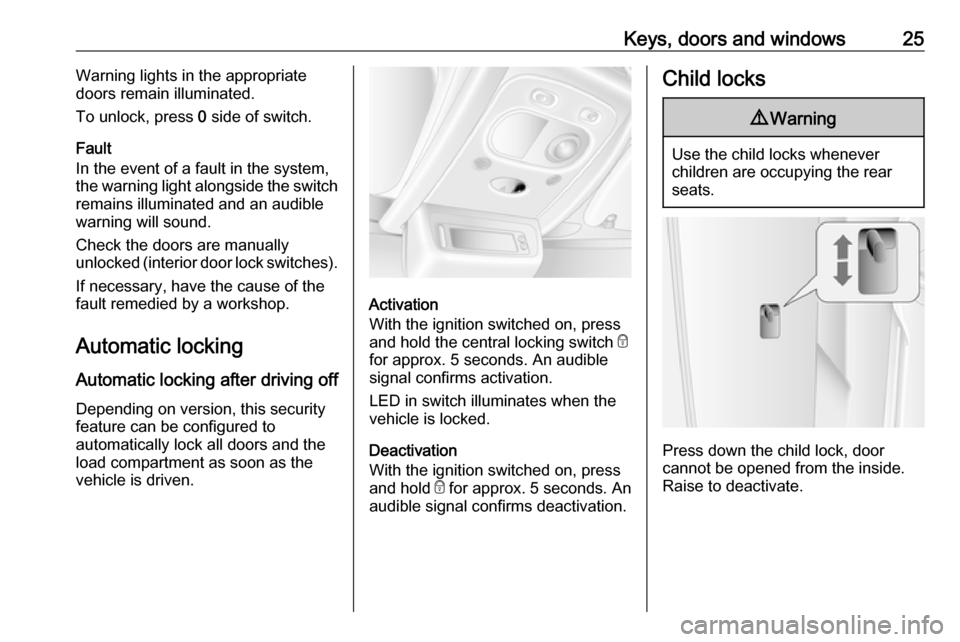

Child locks9 Warning
Use the child locks whenever
children are occupying the rear
seats.

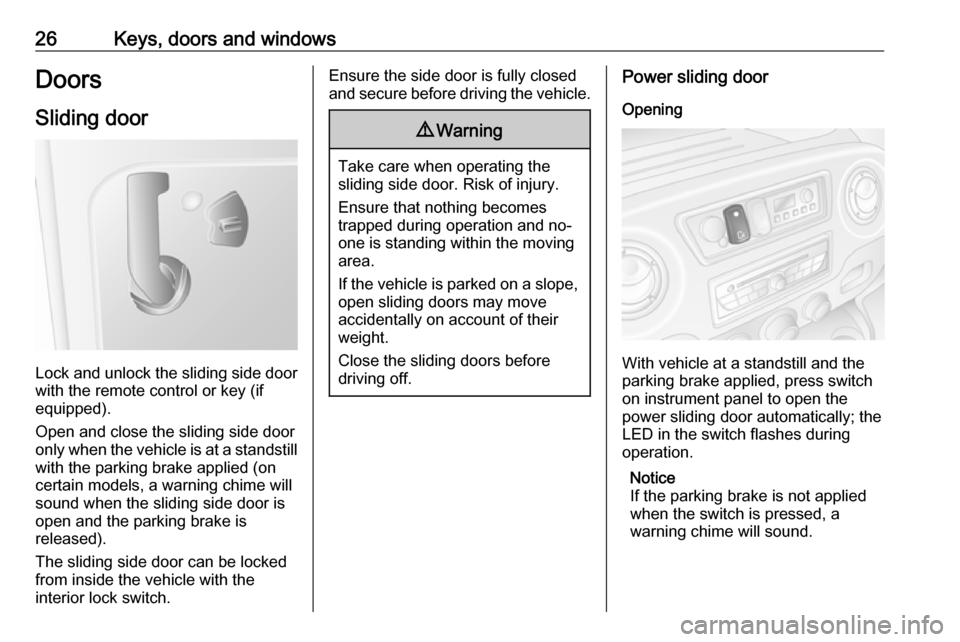

Press down the child lock, door
cannot be opened from the inside.
Raise to deactivate.

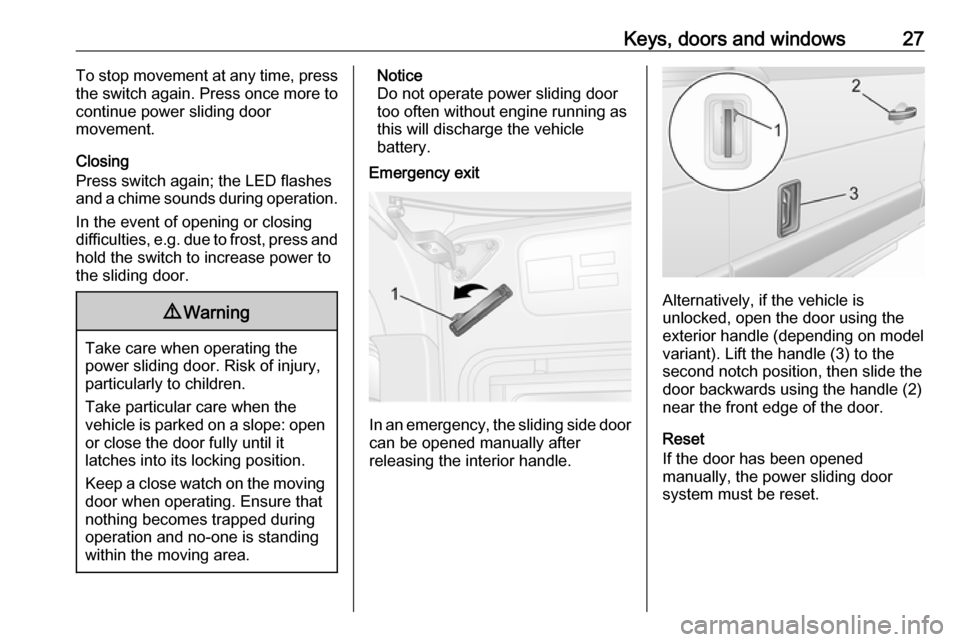

26Keys, doors and windowsDoors
Sliding door
Lock and unlock the sliding side door
with the remote control or key (if
equipped).
Open and close the sliding side door
only when the vehicle is at a standstill with the parking brake applied (on
certain models, a warning chime will
sound when the sliding side door is
open and the parking brake is
released).
The sliding side door can be locked
from inside the vehicle with the
interior lock switch.
Ensure the side door is fully closed
and secure before driving the vehicle.9 Warning
Take care when operating the
sliding side door. Risk of injury.
Ensure that nothing becomes
trapped during operation and no-
one is standing within the moving
area.
If the vehicle is parked on a slope,
open sliding doors may move
accidentally on account of their
weight.
Close the sliding doors before
driving off.
Power sliding door
Opening
With vehicle at a standstill and the
parking brake applied, press switch
on instrument panel to open the
power sliding door automatically; the
LED in the switch flashes during
operation.
Notice
If the parking brake is not applied
when the switch is pressed, a
warning chime will sound.

Keys, doors and windows27To stop movement at any time, press
the switch again. Press once more to
continue power sliding door
movement.
Closing
Press switch again; the LED flashes
and a chime sounds during operation.
In the event of opening or closing
difficulties, e.g. due to frost, press and hold the switch to increase power to
the sliding door.9 Warning
Take care when operating the
power sliding door. Risk of injury,
particularly to children.
Take particular care when the
vehicle is parked on a slope: open
or close the door fully until it
latches into its locking position.
Keep a close watch on the moving door when operating. Ensure thatnothing becomes trapped during
operation and no-one is standing
within the moving area.
Notice
Do not operate power sliding door too often without engine running asthis will discharge the vehicle
battery.
Emergency exit
In an emergency, the sliding side door
can be opened manually after
releasing the interior handle.
Alternatively, if the vehicle is
unlocked, open the door using the exterior handle (depending on modelvariant). Lift the handle (3) to the
second notch position, then slide the
door backwards using the handle (2)
near the front edge of the door.
Reset
If the door has been opened
manually, the power sliding door
system must be reset.
