belt VAUXHALL VIVA 2015.75 Owner's Manual

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 5
In Brief
Initial Drive Information
Unlocking the Vehicle . . . . . . . . . . . 5
Seat Adjustment . . . . . . . . . . . . . . . . 6
Head Restraint Adjustment . . . . . . 7
Safety Belts . . . . . . . . . . . . . . . . . . . . . 7
Mirror Adjustment . . . . . . . . . . . . . . . 7
Steering Wheel Adjustment . . . . . 8
Instrument Panel Overview . . . . . . 9
Exterior Lighting . . . . . . . . . . . . . . . 11
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Windscreen Wiper/Washer . . . . . 13
Climate Controls . . . . . . . . . . . . . . . 14
Transmission . . . . . . . . . . . . . . . . . . 15
Starting the Engine . . . . . . . . . . . . 15
Parking . . . . . . . . . . . . . . . . . . . . . . . . 16
Initial Drive
Information
Unlocking the Vehicle
PressKto unlock the doors and
load compartment. Open the doors
by pulling the handles.
To open the tailgate, push the
touchpad switch under the tailgate
moulding.
Unlocks all doors. The hazard
warning lights will flash twice.
Radio remote control
0Radio
Remote Control 019,
Central locking system
0Central
Locking System 021,
Load compartment
0Load
Compartment 023.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 7
Head Restraint
Adjustment
Press release button, adjust height
and engage.
Safety Belts
Pull out the seat belt and engage in
belt buckle. The seat belt must not
be twisted and must fit close against
the body. The backrest must not be
tilted back too far (maximum
approx. 25°).
To release belt, press red button on
belt buckle.
Seat position
0Seat Position033,
Seat belts
0Safety Belts 035,
Airbag system
0Airbag
System 038.
Mirror Adjustment
Interior Mirror
To reduce dazzle, adjust the lever
on the underside of the mirror
housing.
Interior mirror
0Manual Rearview
Mirror 027.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
In Brief 15
Transmission
Manual gearbox
Reverse: with the vehicle stationary,
depress clutch pedal and engage
the gear.
If the gear does not engage, set the
lever to neutral, release the clutch
pedal and depress again; then
repeat gear selection.
Manual gearbox
0Manual
Gearbox 0145.
Starting the Engine
Check before starting off
.
Tyre pressure and condition0
Tyre Pressure 0179.
. Engine oil level and fluid levels
0Engine Oil 0162.
. All windows, mirrors, exterior
lighting and number plates are
free from dirt, snow and ice and
are operational.
. Proper position of mirrors, seats,
and seat belts
0Convex
Mirrors 026, Seat Position 033,
Three-Point Seat belt 036.
. Brake function at low speed,
particularly if the brakes are wet.
Starting the engine
.
Turn key to position 1.
. Move the steering wheel slightly
to release the steering
wheel lock.
. Operate clutch and brake.
. Automatic transmission in P
or N.
. Do not operate accelerator
pedal.
. Turn key to position 3 and
release Starting the engine.
0
Starting the Engine 0140.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Keys, Doors, and Windows 21
This must be set for each key used.
On vehicles equipped with
Colour-Info-Display, the
personalisation is permanently
activated.
Vehicle personalisation
0Vehicle
Personalisation 082.
Central Locking System
Unlocks and locks doors, load
compartment.
Note: In the event of an accident in
which airbags or belt pretensioners
are deployed, the vehicle is
automatically unlocked.
Unlocking
PressK.
. To unlock only the driver's door,
press
Konce. To unlock all
doors and the load
compartment, press
Ktwice,
or
. press
Konce to unlock all
doors, load compartment.
The setting can be changed in the
menu Settings in the Info-Display.
Vehicle personalisation
0Vehicle
Personalisation 082. The setting can be saved for the
key being used.
Memorised settings
0Memorised
Settings 020.
Locking
Close doors, load compartment and
fuel filler flap.
PressQ.
If the driver's door is not closed
properly, the central locking system
will not work.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 31
Seats and
Restraints
Head Restraints
Head Restraints . . . . . . . . . . . . . . . 31
Front Seats
Seat Position . . . . . . . . . . . . . . . . . . 33
Seat Adjustment . . . . . . . . . . . . . . . 33
Heated Front Seats . . . . . . . . . . . . 35
Safety Belts
Safety Belts . . . . . . . . . . . . . . . . . . . . 35
Three-Point Safety Belt . . . . . . . . 36
Airbag System
Airbag System . . . . . . . . . . . . . . . . . 38
Front Airbag System . . . . . . . . . . . 41
Side Airbag System . . . . . . . . . . . . 42
Curtain Airbag System . . . . . . . . . 42
Airbag On-Off Switch . . . . . . . . . . 43
Child Restraints
Child Restraint Systems . . . . . . . 44
Child Restraint InstallationLocations . . . . . . . . . . . . . . . . . . . . . 46
ISOFIX Child Restraint Systems . . . . . . . . . . . . . . . . . . . . . . 49
Top Tether Child Restraint Systems . . . . . . . . . . . . . . . . . . . . . . 51Head Restraints
Position
{Warning
Only drive with the head restraint
set to the proper position.
The upper edge of the head
restraint should be at upper head
level. If this is not possible for
extremely tall people, set to highest
position, and set to lowest position
for small people.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 33
Front Seats
Seat Position
{Warning
Only drive with the seat correctly
adjusted.
.Sit with buttocks as far back
against the backrest as possible.
Adjust the distance between the
seat and the pedals so that legs
are slightly angled when pressing the pedals. Slide the
front passenger seat as far back
as possible.
. Sit with shoulders as far back
against the backrest as possible.
Set the backrest rake so that it is
possible to easily reach the
steering wheel with arms slightly
bent. Maintain contact between
shoulders and the backrest
when turning the steering wheel.
Do not angle the backrest too far
back. We recommend a
maximum rake of approx. 25°.
. Adjust the steering wheel
0
Steering Wheel Adjustment 060.
. Set the seat high enough to
have a clear field of vision on all
sides and on all display
instruments. There should be at
least one hand of clearance
between your head and the
headlining. Your thighs should
rest lightly on the seat without
pressing into it.
. Adjust the head restraint
0
Head Restraints 031. .
Adjust the height of the seat belt
0Three-Point Seat belt 036.
Seat Adjustment
{Danger
Do not sit nearer than 25 cm to
the steering wheel, to permit safe
airbag deployment.
{Warning
Never adjust seats while driving
as they could move
uncontrollably.
{Warning
Never store any objects under the
seats.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 35
Heated Front Seats
Activate seat heating by pressingL
for the respective front seat.
Activation is indicated by the LED in
the button.
Pressing
Lonce more deactivates
seat heating.
The passenger seat may take
longer to heat up.
Seat heating is operational when
engine is running and during an
Autostop.
Stop-start system
0Automatic
Engine Start/Stop Feature 0141.
Safety Belts
The seat belts are locked during
heavy acceleration or deceleration
of the vehicle holding the occupants
in the sitting position. Therefore the
risk of injury is considerably
reduced.
{Warning
Fasten safety belt before
each trip.
(Continued)
Warning (Continued)
In the event of an accident,
people not wearing safety belts
endanger their fellow occupants
and themselves.
Seat belts are designed to be used
by only one person at a time.
0
Child Restraint Systems 044.
Periodically check all parts of the
belt system for damage, pollution
and proper functionality.
Have damaged components
replaced. After an accident, have
the belts and triggered belt
pretensioners replaced by a
workshop.
Note
Make sure that the belts are not
damaged by shoes or sharp-edged
objects or trapped. Prevent dirt from
getting into the belt retractors.
Seat belt reminder
> 0Safety
Belt Reminders 069.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
36 Seats and Restraints
Seat belt reminder
Front seats are equipped with a
seat belt reminder, indicated for
driver seat by control indicator
>in
the tachometer and for passenger
seat by the control indicators in the
Driver Information Centre
0Safety
Belt Reminders 069.
Belt force limiters
Stress on the body is reduced by
the gradual release of the belt
during a collision.
Belt pretensioners
In the event of a head-on or
rear-end collision of a certain
severity, the seat belts are
tightened.
{Warning
Incorrect handling (e.g. removal
or fitting of belts) can trigger the
belt tensioners with risk of injury. Deployment of the belt
pretensioners is indicated by
illumination of control indicator
9
0
Safety Belt Reminders 069.
Triggered belt pretensioners must
be replaced by a workshop. Belt
pretensioners can only be
triggered once.
Note
Do not affix or install accessories or
other objects that may interfere with
the operation of the belt
pretensioners. Do not make any
modifications to belt pretensioner
components as this will invalidate
the vehicle type approval.
Three-Point Safety Belt
Fastening seat belt
Withdraw the belt from the retractor,
guide it untwisted across the body
and insert the latch plate into the
buckle. Tighten the lap belt regularly
whilst driving by pulling the
shoulder belt
Seat belt reminder
0Safety Belt
Reminders 069.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
Seats and Restraints 37

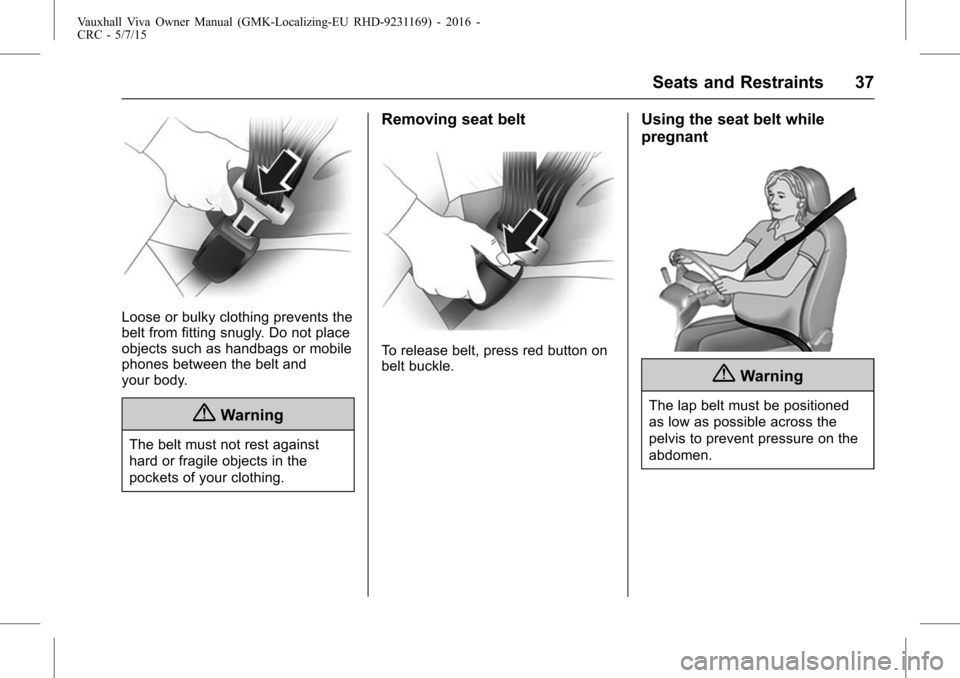

Loose or bulky clothing prevents the
belt from fitting snugly. Do not place
objects such as handbags or mobile
phones between the belt and
your body.
{Warning
The belt must not rest against
hard or fragile objects in the
pockets of your clothing.
Removing seat belt
To release belt, press red button on
belt buckle.
Using the seat belt while
pregnant
{Warning
The lap belt must be positioned
as low as possible across the
pelvis to prevent pressure on the
abdomen.

Vauxhall Viva Owner Manual (GMK-Localizing-EU RHD-9231169) - 2016 -
CRC - 5/7/15
38 Seats and Restraints
Airbag System
The airbag system consists of a
number of individual systems
depending on the scope of
equipment.
When triggered the airbags inflate
within milliseconds. They also
deflate so quickly that it is often
unnoticeable during the collision.
{Warning
If handled improperly the airbag
systems can be triggered in an
explosive manner.
Note
The airbag systems and belt
pretensioner control electronics are
located in the centre console area.
Do not put any magnetic objects in
this area.
Do not stick anything on the airbag
covers and do not cover them with
other materials. Each airbag is triggered only once.
Have deployed airbags replaced by
a workshop. Furthermore, it might
be necessary to have the steering
wheel, the instrument panel, parts of
the panelling, the door seals,
handles and the seats replaced.
Do not make any modifications to
the airbag system as this will
invalidate the vehicle type approval.
When the airbags inflate, escaping
hot gases may cause burns.
Control indicator9for airbag
systems
0Airbag and Seat belt
Tensioner Light 070.
Child restraint systems on
front passenger seat with
airbag systems
Warning according to ECE R94.02:
EN: NEVER use a rearward-facing
child restraint on a seat protected by
an ACTIVE AIRBAG in front of it;
DEATH or SERIOUS INJURY to the
CHILD can occur.
DE: Nach hinten gerichtete
Kindersitze NIEMALS auf einem
Sitz verwenden, der durch einen
davor befindlichen AKTIVEN
AIRBAG geschützt ist, da dies den
