key VAUXHALL VIVARO 2016.5 User Guide

24Keys, doors and windowsWith the 3-button remote control, the
front doors and load compartment/
sliding side doors (where fitted) can
be unlocked and locked separately.
For safety reasons, the vehicle
cannot be locked if the key is in the
ignition switch.
Notice
If no door is opened within approx.
2 minutes after the vehicle has been unlocked, the vehicle is re-locked
automatically.
Close doors and load compartment. If
the doors are not closed properly, the central locking system will not work.
Refer to "Manual key operation"
below for further information.
Remote control operation
Operation of central locking system
with the remote control is confirmed

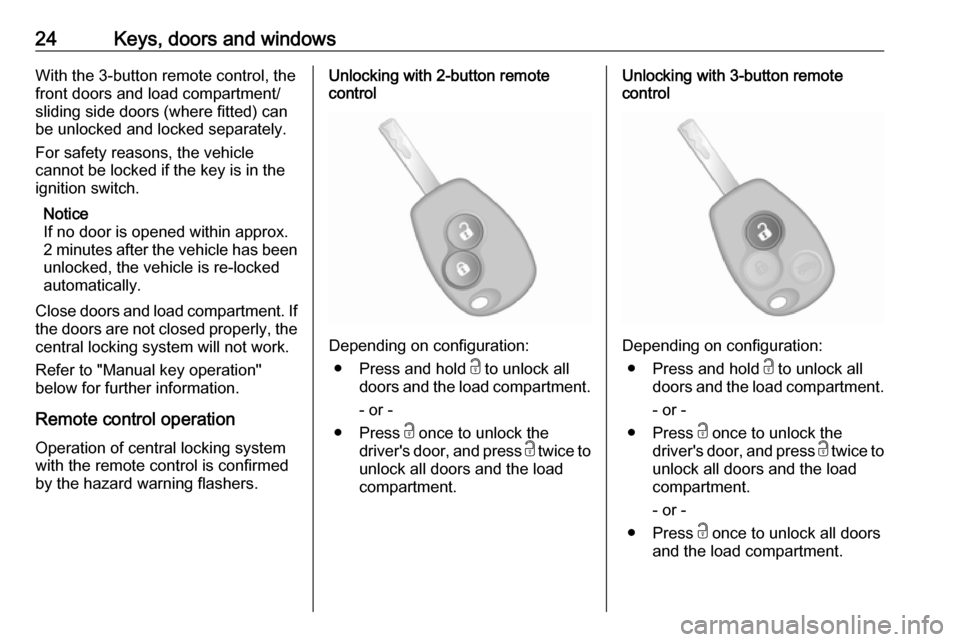

by the hazard warning flashers.Unlocking with 2-button remote
control
Depending on configuration:
● Press and hold c to unlock all
doors and the load compartment.
- or -
● Press c once to unlock the
driver's door, and press c twice to
unlock all doors and the load compartment.
Unlocking with 3-button remote
control
Depending on configuration:
● Press and hold c to unlock all
doors and the load compartment.
- or -
● Press c once to unlock the
driver's door, and press c twice to
unlock all doors and the load compartment.
- or -
● Press c once to unlock all doors
and the load compartment.

Keys, doors and windows25Locking with 2-button remote control
Press e: All doors and the load
compartment are locked.
Locking with 3-button remote control
Press e: All doors and the load
compartment are locked.
Notice
Where fitted, alarm monitoring of the passenger compartment 3 35 is
switched off by pressing and holding
e (which is confirmed by an audible
signal).
If this was done unintentionally,
unlock the doors again and press e
briefly to lock the vehicle.
Load compartment locking and
unlocking with 2-button remote
controlDepending on configuration, press c
once or twice to unlock the load compartment (and sliding side doors).
Press e to lock the load compartment
(and, depending on version, the
sliding side doors).
Load compartment locking and
unlocking with 3-button remote
control
Press G to lock or unlock load
compartment (and, depending on
version, the sliding side doors).

26Keys, doors and windowsElectronic key system operationFor handsfree operation, the
electronic key must be outside the
vehicle, within a range of approx.
one metre of the front doors or load
compartment.
Notice
There is no button for handsfree
operation in the exterior door handle
of the sliding side door.
There must be no electronic key left
inside the vehicle and no additional
electronic key in the detection zones, or handsfree operation of the central
locking system will not work.
Operation of central locking system
with the electronic key is confirmed by
the hazard warning flashers.9 Danger
Never leave an electronic key
inside the vehicle when children or animals are left in the vehicle, to
avoid unintended operation of
windows, doors or engine. Risk of
fatal injury.
Unlocking with electronic key -
handsfree operation
Press the button on any exterior door
handle and pull the handle to open.
The vehicle only unlocks when at least 3 seconds have passed sincelocking using handsfree operation.
Handsfree operation is automatically disabled when the electronic keybuttons have been operated. To re-
enable handsfree operation, restart
the engine.
Unlocking with electronic key buttons
Press c to unlock all doors and the
load compartment.
Locking with electronic key -
handsfree operation
Press the button on any exterior door
handle. All doors and the load
compartment are locked.
The vehicle only locks when at least
3 seconds have passed since
unlocking using handsfree operation.

Keys, doors and windows27Handsfree operation is automatically
disabled when the electronic key buttons have been operated. To re-
enable handsfree operation, restart
the engine.
Locking with electronic key buttons
Press e to lock all doors and the load
compartment.
Load compartment locking and
unlocking with electronic key -
handsfree operation
Press the button on the exterior door
handle to lock or unlock the rear
doors/tailgate (and sliding side doors)
when the electronic key is within
range of the detection zone (approx.
one metre).
The rear doors/tailgate (and sliding side doors) only lock/unlock when at
least 3 seconds have passed since
the button was last pressed.
Handsfree operation is automatically
disabled when the electronic key buttons have been operated. To re-
enable handsfree operation, restart
the engine.
Load compartment locking and
unlocking with electronic key buttonsPress G to lock/unlock the rear
doors/tailgate (and sliding side
doors).
Electronic key system 3 22.
Manual key operation
Manually lock or unlock the doors by
turning the key in the lock.
Rear doors
In the event the rear doors are locked
manually after the vehicle has been
unlocked with remote control button
c , lock the entire vehicle again by
pressing e to reset central locking
system. Otherwise pressing c may
not unlock the rest of the vehicle.

28Keys, doors and windowsAfter manually unlocking the rear
doors when the rest of the vehicle is
locked, it may be necessary to press
e twice to lock the entire vehicle.
Central locking switch Locks or unlocks the doors and loadcompartment from the passenger
compartment.
Press e to lock the vehicle. Activation
is indicated by the LED in the button.
When closing any open door, the door
is locked automatically.
Press e again to unlock the vehicle.
If the vehicle is driven with an open
load compartment, the front doors
(and sliding side doors) can still be
locked. With the ignition switched on,
press and hold e for approx.
5 seconds. When closing the rear
doors/tailgate, they are locked
automatically.
Automatic locking 3 28.
Handsfree operation is automatically disabled when e is pressed. To re-
enable handsfree operation, restart
the engine.
Electronic key system 3 22.
Slam door locks
Certain models feature load
compartment locks which are isolated for added security.
With slam door locks, while the doors can be locked and unlocked using the
remote control or electronic key, the
load compartment must be manually
opened by turning the key in the lock.
Rear doors 3 30.Automatic locking
Automatic locking after driving off
This security feature can be
configured to automatically lock the
doors and load compartment as soon as the vehicle is driven.
Activation
With the ignition switched on, press and hold e on the central locking
switch for approx. 5 seconds. An
audible signal confirms activation.
Deactivation
With the ignition switched on, press and hold e on the central locking
switch for approx. 5 seconds. An
audible signal confirms deactivation.
Central locking switch 3 23.

Keys, doors and windows29Child locks
The child safety lock for the sliding
side door is located on its rearward
facing edge.
To prevent the sliding side door from being opened from the inside, open
the door and engage the child lock.
9 Warning
Use the child locks whenever
children are occupying the rear
seats, to prevent unintentional
opening from the inside.
Using a suitable tool, turn the child
lock switch in the sliding side door to
the locked position; the door cannot
be opened from the inside.
The child lock remains engaged even after unlocking the vehicle with the
remote control. The door can only be
opened from outside.
To disengage, turn the child lock
switch to the unlocked position.Doors
Sliding door
Open and close the sliding side door
only when the vehicle is at a standstill
with the parking brake applied.
Pull the interior handle towards the
rear to unlock and open.
The door can be locked from inside
the vehicle with the interior lock
switch.
Central locking system 3 23.

30Keys, doors and windows9Warning
Take care when operating the
sliding side door. Risk of injury.
Ensure that nothing becomes
trapped during operation and no-
one is standing within the moving
area.
If the vehicle is parked on a slope,
open sliding doors may move
accidentally on account of their
weight.
Close the sliding doors before
driving off.
Rear doors
The rear doors can only be opened if
the vehicle is unlocked. Central
locking system, manual key operation 3 23.
To open the left-hand rear door, pull
the outside handle.
The door is opened from inside the
vehicle by pulling the interior handle.
The right-hand rear door is released
using the lever.
9 Warning
The rear lights may be obscured if
the rear doors are open and the
vehicle is parked on the roadside.
Make other road users aware of the vehicle, by using a warning
triangle or other equipment
specified in the road traffic
regulations.
The doors are retained in the 90º
position by locking stays. To open the
doors to 180º or further, pull the door
release handles and swing open to
the desired position.
9 Warning
Ensure extended opening doors
are secured when fully opened.
Opened doors may slam closed due to the force of the wind!

Keys, doors and windows31
When closing the doors, secure eachlocking stay to the catch on the door
frame.
Always close the right-hand door
before the left-hand door.
Door locks 3 23, Central locking
system 3 23.
Driving with an open load
compartment
To drive with the right-hand rear door open, e.g. if long objects need to be
transported, open the left-hand
followed by the right-hand rear door,
then close the left-hand rear door.
Engage the interior lock in its housing
by turning the handle clockwise to the locked position. The door is bolted
and cannot be opened from outside.
Disengage the lock by turning the
handle anticlockwise, to enable the
door to be opened.

32Keys, doors and windowsCaution
Always make sure that the load in
the vehicle is securely stowed
when driving with an open load compartment.
For further information, refer to
"Loading information" 3 73.
Always comply with local or national regulations.
Load compartment
Tailgate
Opening
After unlocking, press tailgate button
and lift tailgate to the fully open
position.
The tailgate can be also opened from inside the vehicle by operating the
tailgate interior release.
Notice
In very cold climates, the opening
assistance provided by the tailgate
hydraulic struts may be reduced.
Central locking system 3 23.
Closing
Close tailgate using the interior strap. Ensure tailgate is fully closed.
Central locking system 3 23.
Emergency tailgate opening from
inside the vehicle
Depending on model, prise off the
cover on the inside of the tailgate.

Keys, doors and windows33Then grasp the metal string and pull
it downwards to unlock. Push the
tailgate to open.
General hints for operating
tailgate9 Danger
Do not drive with the tailgate open
or ajar, e.g. when transporting
bulky objects, since toxic exhaust
gases, which can not be seen or
smelled, could enter the vehicle.
This can cause unconsciousness
and even death.
Caution
Before opening the tailgate, check overhead obstructions, e.g. a
garage door, to avoid damage to
the tailgate.
Ensure there is adequate
clearance both above (at least
2.15 metres) and behind when
opening tailgate.
Notice
The installation of certain heavy
accessories onto the tailgate may
affect its ability to remain open.Vehicle security
Anti-theft locking system9 Warning
Do not use the system if there are
people in the vehicle! The doorscannot be unlocked from the
inside.
The system deadlocks all doors and the load compartment.
All doors and the load compartment
must be closed or the system cannot
be activated.
Notice
The anti-theft locking system cannot be activated when the hazard
warning lights or sidelights are
switched on.
Activation and deactivation are not possible with the central locking
switch.
Central locking system 3 23.
