Adaptive Front Lighting System (AFS) malfunction. See an authorized Volkswagen dealer or an authorized Volkswagen Service Facility
 Headlight range adjustment malfunction. See an authorized Volkswagen dealer or an authorized Volkswagen Service Facility
 Parking lights switched on.
; One or more license plate lights burned out.
Replace the light bulbs that aren't working
⇒ page 656. If all light bulbs are OK, see an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.
Fog lights switched on.
Z

electrodes can wear down and the gap between them will get wider. The HID lamp’s control unit then increases the voltage to keep the arc’s brightness constant. However, the commonly called “Xenon” bulbs will also ultimately burn out. Before they burn out, HID lamps can flicker. A message will then appear in the MFI. This is your reminder to see an authorized Volkswagen dealer or an authorized Volkswagen Service Facility to check the headlights.

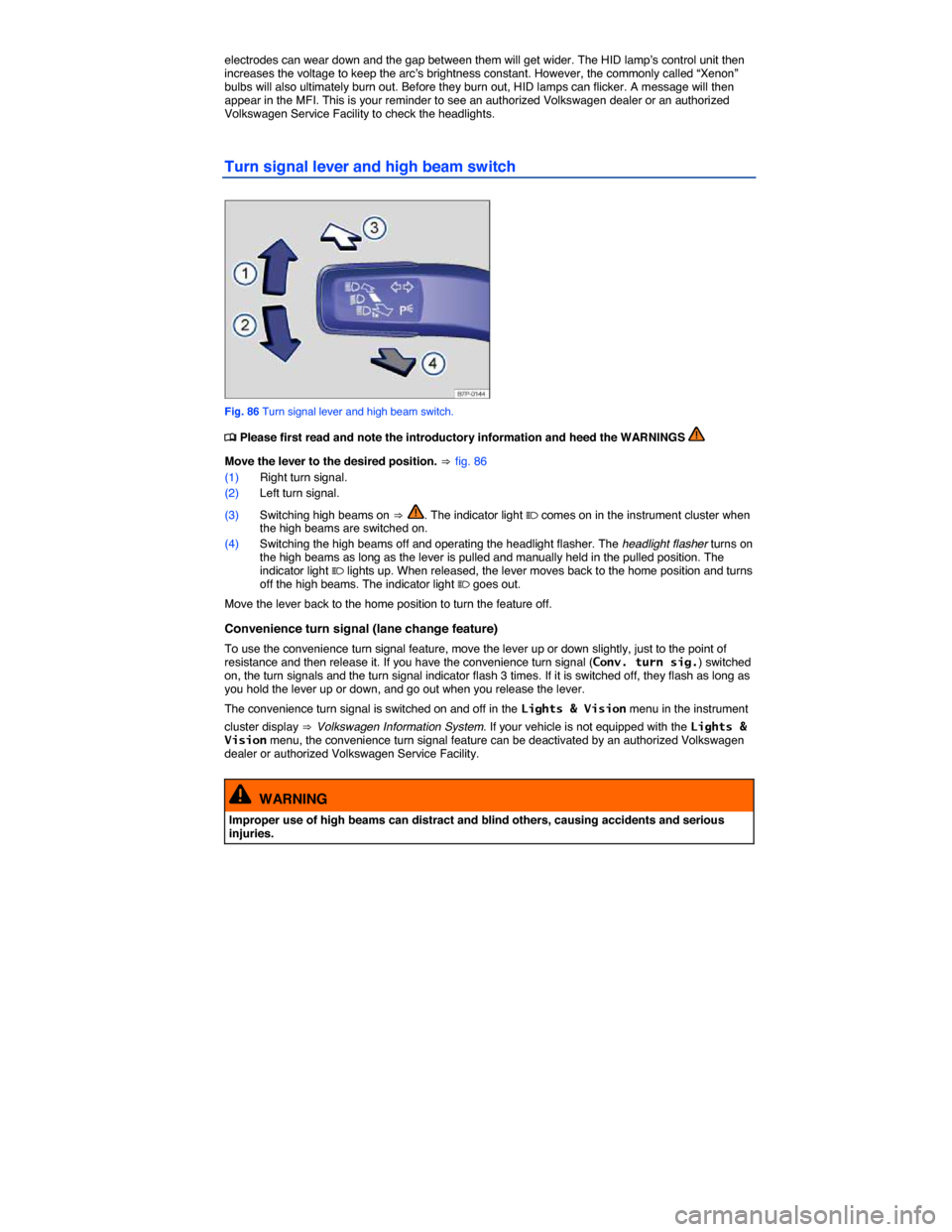

Turn signal lever and high beam switch

Fig. 86 Turn signal lever and high beam switch.

(5) Opening for jump starting.
(6) Warning label for high-voltage hybrid components.
(7) Engine compartment seal.
Engine compartment covers (1) and (3) must be removed in the following situations:
x Replacing light bulbs in the left headlight assembly.
Engine compartment covers (1) and (2) must be removed in the following situations:
x Replacing light bulbs in the right headlight assembly.
x Adding engine coolant to the low temperature coolant circuit ⇒ Checking coolant level and refilling coolant.
Removing engine compartment cover
When removing any part of the engine compartment cover, always pull carefully on the relevant
attachment points ⇒ .
x Open the engine hood

WARNING
The engine compartment of any motor vehicle is a potentially dangerous area and can cause serious personal injury.
x Always use extreme caution when doing any work in the engine compartment. Always follow commonly accepted safety practices and use common sense. Never risk personal injury.
x Never perform any work in the engine compartment unless you know exactly how to carry out the job and have the correct technical information and the correct tools.
x If you are uncertain about what to do, have the work performed by an authorized Volkswagen dealer, an authorized Volkswagen Service Facility, or another qualified workshop. Serious personal injury may result from improperly performed work.
x We strongly recommend that you always have HID – High Intensity Discharge (Xenon) headlights and H7 bulbs replaced by a qualified technician. Serious personal injury may result from improperly performed work.
x Never open or close the engine hood if steam or coolant is escaping. Hot steam or coolant can cause serious burns. Always wait until you no longer see or hear steam or coolant escaping from the engine.
x Always let the engine cool down completely before carefully opening the hood.
x Hot parts of the engine and the exhaust system will burn skin on contact.
x When the engine has cooled down and you are ready to open the hood:
– Apply the electronic parking brake and shift the transmission into Park (P).
– Take the vehicle key out of the ignition.
– On vehicles with Keyless Access, make sure that the remote control vehicle key is out of range of the vehicle and that the vehicle cannot be started by depressing the starter button.
– Always keep children and others away from the engine compartment and never leave them unsupervised.
x The engine coolant system is under pressure when the engine is hot. Never unscrew the coolant expansion tank cap when the engine is hot. Hot coolant can spray out and cause severe burns and other serious injuries.
– Turn the cap slowly and very carefully in a counterclockwise direction while applying light downward pressure on the top of the cap.
– Always protect your face, hands, and arms from hot escaping coolant or steam by covering the cap with a large, thick rag.
x Never spill fluids on the engine or exhaust system when refilling. Spilling fluids onto hot parts of the engine or exhaust system can cause a fire.

Frequently asked questions
If you suspect a malfunction or vehicle damage, read and follow the following advice before contacting an authorized Volkswagen dealer or an authorized Volkswagen Service Facility. You may also find helpful information under “Characteristics” and “Checklist” in the index.

Description Possible causes among others Possible remedy
Engine does not start.
Vehicle battery dead. – Perform jump start – Charge vehicle battery
The wrong remote control vehicle key is used. Use a valid remote control vehicle key
Fuel level too low. Refuel
AdBlue fill level too low. Refill AdBlue
Vehicle cannot be locked or unlocked using remote control vehicle key.
– Battery in remote control vehicle key dead. – Too far away from vehicle. (out of range). – Buttons have been pressed too many times.
– Replace battery –. Move closer to vehicle. – Synchronize remote control vehicle key – Lock or unlock vehicle manually
Unusual noises. Cold engine, brake-assistance systems, electronic parking brake.
Check the “Noises” entry in the keyword index.
Odd driving behavior. Assistance systems activated. Check the “Assistance systems” entry in the keyword index.
Driver seat and outer mirrors move when vehicle is unlocked.
Convenience settings are stored. Correct convenience settings
Memory-seat settings are stored. – Reassign seat setting – Clear memory-seat memory
Front seats cannot be adjusted with power controls.
Vehicle battery dead. Charge vehicle battery
Fuse blown. Check fuse and replace if necessary
No jack in vehicle or no collapsible spare tire or tire mobility set in vehicle.
Equipment differs depending on vehicle. No direct corrective action possible because this depends on the equipment. Contact an authorized Volkswagen dealer or an authorized Volkswagen Service Facility for assistance
Vehicle has mobility tires.
Features do not work as described in this Manual.
Settings were changed in the Volkswagen Information System or Infotainment System.
Check and reset to factory settings if necessary or
Headlights do not light up the road as they should.
– Headlights incorrectly adjusted. – Light bulbs burned out. – Low beams not switched on.
– Adjust headlight range – Change light bulbs – Switch on low beams
Electrical appliances do not work.
Vehicle battery charge too low. Charge vehicle battery
Remaining fuel level too low. Refuel

WARNING
Improper replacement of burned out headlights and other light bulbs can cause serious personal injury.
x Stop! Always read and heed the WARNINGS before doing any work in the engine
compartment ⇒ Working in the engine compartment. The engine compartment of any motor vehicle is a potentially dangerous area, and work in this area can lead to serious personal injury.
x HID – High Intensity Discharge (Xenon) get power from a high-voltage source that can cause severe personal injury and even death if handled improperly.
x H7 bulbs and HID – High Intensity Discharge (Xenon) are under high pressure and can explode if handled improperly.
x Always let a burned out light bulb cool down before replacing it.
x Never replace a light bulb unless you are familiar with all of the necessary procedures. In particular, never remove a headlight unless you know exactly how to carry out the job and have the correct tools and light bulbs.
x If you are uncertain about what to do, have the work performed by an authorized Volkswagen dealer, an authorized Volkswagen Service Facility, or another qualified workshop. Serious personal injury may result from improperly performed work.
x We strongly recommend that you always have HID - High Intensity Discharge (Xenon) lamps and H7 bulbs replaced by a qualified technician.
x Do not touch the glass of light bulbs with your bare hands. Fingerprints left on the bulb evaporate due to the heat when the bulb is switched on and cause the reflector to “cloud”.
x There are sharp edges on and around the headlight housing in the engine compartment and the taillight housing. Wear hand protection if you replace bulbs.
NOTICE
After replacing a headlight bulb or other light bulb, always make sure that the rubber covers or plastic caps have been properly and securely reinstalled to help prevent water from getting into the electrical connections and headlight housing and damaging the electrical system.
Indicator lights

WARNING
Disregarding the safety-related checklist may lead to accidents and serious injuries.
x Always review and follow the checklist. Follow accepted safety practices and use common sense.
NOTICE
Always insert and remove lamps carefully to avoid damage to the vehicle paint or to other parts of the vehicle.
Replacing headlight bulbs

Fig. 332 In the engine compartment: Covers and bulbs in the left headlight assembly.

Please carry out each step only in the order specified:
(3)(5)
Turn signal (halogen) Turn signal (xenon headlight)
4. Pull the bulb holder out towards the rear along with the light bulb. Pull the bulb holder up and out of its catch, turn it counterclockwise about 20°, and remove it towards the rear along with the light bulb.
5. Pull the light bulb straight out of bulb holder. Pull the light bulb and base straight out of bulb holder.
6. Replace the burned out light bulb with a new bulb of the same type.
7. Insert the bulb holder into the headlight and slide it in completely. With the lamp holder turned about 20° counterclockwise, inert it into the headlight assembly and push it in all the way. Turn the lamp holder clockwise as far as it goes and push it down into the catch.
8. Fit rubber cover (B) onto back of headlight. Reinstall the plastic cover with control unit (C). Make sure that the plastic cover clicks into place.
The illustrations show the left headlight assembly from the rear. The right headlight assembly is the mirror image of the left headlight assembly.
Different models may have different lights, and the location and design of covers, bulb holders, and bulbs may be in a different location than shown in the illustrations.
You cannot replace the LEDs in LED daytime running lights. Contact your authorized Volkswagen dealer or an authorized Volkswagen Service Facility for assistance.
Replacing light bulbs in the front bumper

Fig. 333 In front right wheel housing: Replacing light bulb in headlight assembly.
