set clock VOLVO C30 2010 Owner´s Manual

02 Instruments and controls
Personal settings
02
82
Control panel
A
D
B
C
E
G026307
Display
Menu button
Exit button
Enter button
Menu navigation controlsPersonal settings can be made for some of the
car's functions, such as the central locking
system, climate control, and the audio system.
Please refer to page 237 for more information
on the audio functions that can be adjusted.
The settings are presented in the display (A).
To access the menu and adjust settings1.
Press MENU (B).
2.
Scroll to
Car Settings using the menu nav-
igation control (E).
3.
Press ENTER (D).
4. Select an alternative using the menu navi-
gation control (E).
5. Confirm your selection by pressing
ENTER.
To exit the menu
Press EXIT (C).
Available settings
Clock adjustTo set the time:
1. Use the number keys or the up/down arrow
keys on the navigation control (E) to
change the hour or minute.2. Select hour(s) or minute(s) to be changed
with the left/right arrow keys.
3.
Press ENTER to start the clock.
NOTE
If you are currently using the 12-hour time
setting, use the up/down arrow keys to
select AM/PM after the minute-setting has
been adjusted.
Lock confirmation lightWhen the car is locked/unlocked with the
remote key, the direction indicators can be
selected to flash to confirm the action. The
alternatives On/Off are available for both lock-
ing and unlocking.
AutolockWhen the car starts to move, the doors and
liftgate can be locked automatically. The alter-
natives On/Off are available.
NOTE
Pulling the handle twice on a door unlocks
and opens that door.
UnlockThere are two alternatives for unlocking:

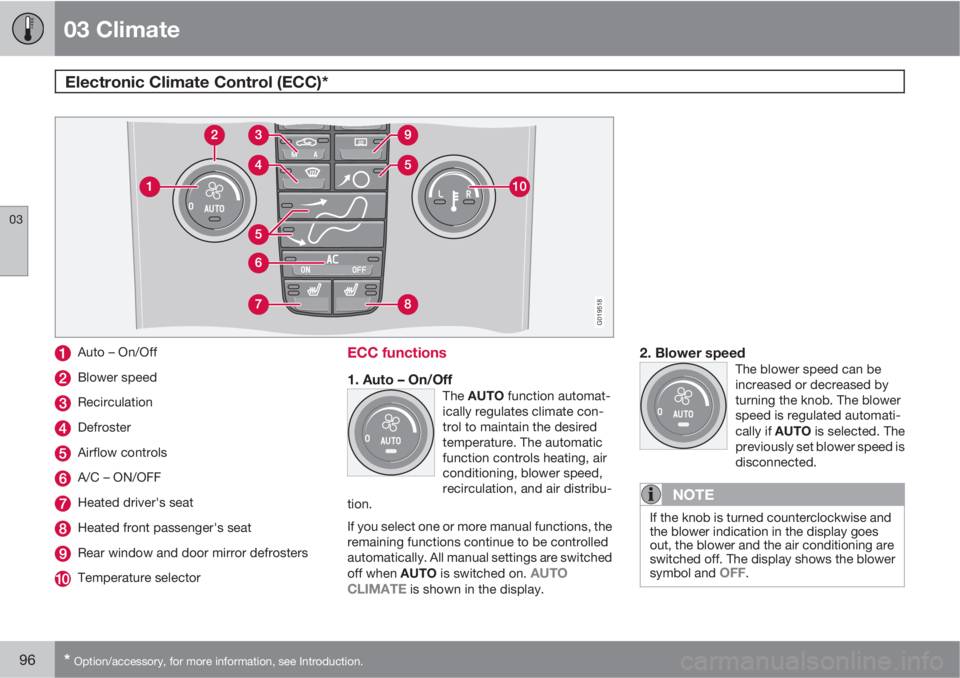

03 Climate
Electronic Climate Control (ECC)*
03
96* Option/accessory, for more information, see Introduction.
G019518
Auto – On/Off
Blower speed
Recirculation
Defroster
Airflow controls
A/C – ON/OFF
Heated driver's seat
Heated front passenger's seat
Rear window and door mirror defrosters
Temperature selector
ECC functions
1. Auto – On/OffThe AUTO function automat-
ically regulates climate con-
trol to maintain the desired
temperature. The automatic
function controls heating, air
conditioning, blower speed,
recirculation, and air distribu-
tion.
If you select one or more manual functions, the
remaining functions continue to be controlled
automatically. All manual settings are switched
off when AUTO is switched on.
AUTO
CLIMATE is shown in the display.
2. Blower speedThe blower speed can be
increased or decreased by
turning the knob. The blower
speed is regulated automati-
cally if AUTO is selected. The
previously set blower speed is
disconnected.
NOTE
If the knob is turned counterclockwise and
the blower indication in the display goes
out, the blower and the air conditioning are
switched off. The display shows the blower
symbol and
OFF.

05 Locks and alarm
Keyless drive*
05
128* Option/accessory, for more information, see Introduction.
Locking or unlocking the vehicle with the
key blade
G020225
Keyless drive keyhole cover
The driver's door on vehicles equipped with
keyless drive can be locked or unlocked with
the remote key's detachable key blade if nec-
essary, see page 123 for information on remov-
ing the key blade from the remote key. To
access the keyhole in the driver's door:
•Pry off the keyhole cover by inserting the
key blade or a small screwdriver in the hole
on the underside of the cover (indicated by
the arrow in the inset illustration).
•Insert the key blade as far as possible in the
driver's door lock. Turn the key blade
clockwise approximately one-quarter turnto unlock the driver's door only. This will
trigger the alarm.
•To disable the alarm: Press the Unlock
button on the keyless drive remote key. If
the batteries in the remote are weak,
remove the keyless drive start control from
the ignition switch by pressing the catch
(see the illustration on page 148) and pull-
ing the control out of the ignition switch.
Insert the ignition key section of a keyless
drive remote key in the ignition switch.
Keyless drive remote key and driver's
seat memory
This function is only available on vehicles
equipped with the optional power driver's seat.
•When you leave the car with a keyless drive
remote key in your possession and lock
any door, the position of the driver's seat
will be stored in the seat's memory.
•The next time a door is opened by a person
with the same remote key in his/her pos-
session, the driver's seat will automatically
move to the position that it was in when the
door was most recently locked.
NOTE
If several people carrying keyless drive
remote keys approach the vehicle at the
same time, the driver's seat will assume the
position it was in for the person who opens
a door first.
Keyless drive information messagesIf anyone leaves the vehicle with the only key-
less drive remote key in his or her possession
while the ignition is switched on, a message will
be shown in the information display and an
audible signal will sound.
NOTE
This message will only be displayed if the
start control is in position I or II.
The message will be erased from the display
and the audible signal will stop when the
remote key has been returned to the vehicle
and one of the following has occurred:
•A door has been opened and closed
•The start control has been turned to posi-
tion 0
•The READ button (see page 60 for the
location of this button) has been pressed.

05 Locks and alarm
Locking and unlocking
05
131 Locking/unlocking the vehicle from the
inside
G007451
The switches near the door opening handles on
either door can be used to lock or unlock both
doors and the liftgate, open the windows in the
doors
1, and to set the alarm.

Unlocking: Press the upper section of the
switch. A long press (for several seconds)
also opens the windows in the doors.

Locking: Press the lower section of the
lock button.
NOTE
•The ignition key must be in position I or
higher (see page 145) before the win-
dows in the doors can be opened using
the switches in the front doors.
•The doors cannot be opened by pulling
up the lock buttons.
•If both doors are closed when a lock
button is pressed, the alarm will not be
armed.
•Each door can also be locked manually
using the lock button on that particular
door. This applies only if the car has not
been locked from the outside.
•The doors can also be unlocked (and
the door opened) by pulling the handle
in the door twice.
Locking the glove compartment
G020034
The glove compartment can only be locked
and unlocked using the detachable key blade
on the remote key, see page 123 for informa-
tion on removing the key blade from the remote
key.
Insert the key blade in the glove compart-
ment lock.
Turn the key blade 90 degrees clockwise.
Remove the key blade from the lock.
Unlock the glove compartment in the reverse
order.
1This function must be set to On in the Personal settings menu (see page 83)

10 Audio
Audio functions
10
238
The text LOADING will be displayed while the
system loads the files (folder structure) on the
device. This may take a short time.
When information about the files (the folder
structure) on the device has been loaded, the
resulting list includes information on the artist,
genre and song title.
To navigate in the folder structure, press
ENTER and scroll up and down the folders
using the arrow buttons (on the audio system
control panel or on the steering wheel keypad).
Press the right arrow button to select a folder.
Press the left arrow button to go up a level in
the folder structure. Press ENTER to go down
a level in the folder structure.
Tracks can be selected in two ways:

Turn the Tuning knob (no. 4 in the illustra-
tion on page 241) clockwise or counter-
clockwise.

Use the right or left arrow keys on the nav-
igation control (no. 5 in the illustration on
page 241) to select the desired track. The
arrow keys on the steering wheel keypad
can also be used in the same way.NOTE
The system supports playback of files in the
most common versions of formats such as
mp3, wma, and wav. However, there may be
versions of these formats that the system
does not support.
The system also supports a number of
iPodŸ models produced in 2005 or later.
iPodŸ Shuffle is not supported.
USB flash driveTo simplify the use of a USB flash drive, it is
advisable to only store music files on the drive.
It will take considerably longer for the system
to index the files on the drive if it contains any-
thing other than compatible music files.
NOTE
The system supports removable media that
uses the USB 2.0 standard and the FAT32
file system and can index up to 500 folders
and a maximum of 64,000 files. The device
must have at least 256 Mb of memory.
MP3 playerMany MP3 players have a file indexing system
that is not supported by the vehicle's audio
system. In order to use an MP3 player, the sys-
tem must be set to USB Removable device/
Mass Storage Device.
iPodŸ
An iPodŸ receives current and its battery is
charged through the connecting cord. How-
ever, if the iPod's battery is completely
drained, it should be recharged before the
iPodŸ is connected to the audio system.
NOTE
When an iPodŸ is used as a sound source,
the vehicle's audio system has a menu
structure similar to the one in the iPodŸ. See
the iPod's manual for detailed information.
For further information, refer to the accessory
manual USB/iPodŸ Music Interface.
Sound settings
Optimal sound reproductionThe audio system is calibrated for optimal
sound reproduction through the use of digital
signal processing. This calibration takes into
account the speakers, amplifier, cabin acous-
tics, the seating position of the listener, etc., for
each combination of vehicle and audio system.
There is also dynamic calibration that takes
into account the setting of the volume control,
radio reception, and the vehicle's speed. The
sound settings described in this manual, such
as
BASS, TREBLE, and EQUALIZER are only

12 Index
12
277
Bulbs, replacing....................................... 219
C
Capacities, fluids..................................... 267
Capacity weight............................... 180, 265
Cargo area
steel grid............................................. 117
Cargo area cover.............................117, 118
Cargo area net......................................... 119
Catalytic converter, three-way................. 274
CD changer.............................................. 249
CD player................................................. 249
Cell phone, hands-free connection......... 254
Central locking system - remote key....... 122
Chains...................................................... 182
Changing a wheel.................................... 185
Child restraints
recalls and registration......................... 46
Child restraint systems.............................. 37
booster cushions.................................. 43
ISOFIX/LATCH anchors........................ 44
top tether anchors................................ 45Child safety................................................ 35
booster cushions.................................. 43
child restraint systems.......................... 37
Climate system
air distribution....................................... 99
air vents................................................ 92
Electronic Climate Control.................... 96
manual climate control......................... 93
passenger compartment filter.............. 90
refrigerant.....................................90, 267
Climate system, general information......... 90
Clock
setting................................................... 82
Coat hanger............................................. 112
Cold weather precautions........................ 139
Compact disc care..................................251
Compass in rearview mirror....................... 77
Conserving electrical current................... 140
Coolant.................................................... 267
changing............................................. 214
checking level of................................. 214
Courtesy lighting...................................... 110
Crash mode............................................... 34
Cruise control............................................ 69
Cup holders.....................................111, 113Curb weight.....................................180, 265
D
Detachable key blade.............................. 124
Dimensions.............................................. 264
Disconnecting the front passenger’s air-
bag............................................................. 26
Display.......................................................60
Dolby Pro Logic II (DPL II)........................ 239
Door mirrors............................................... 78
Driving economically................................ 138
Driving through water..............................139
DSTC, stability system............................ 155
E
Economical driving.................................. 138
Electrical current – conserving................ 140
Electrically operated moonroof.................. 80
Electrical system...................................... 272
Electronic Brake Force Distribution
(EBD)........................................................ 154
