VOLVO S90 TWIN ENGINE 2019 Owners Manual

SPECIFICATIONS
}}
639
Vehicle Emission Control Information. USmodels. Your Volvo is designed to meet all appli-cable emission standards, as evidenced by thecertification label on the underside of the hood.For further information regarding these regula-tions, please consult your Volvo retailer.
Vehicle Emission Control Information.Canadian models. Your Volvo is designed tomeet all applicable emission standards, as evi-denced by the certification label on the undersideof the hood. For further information regardingthese regulations, please consult your Volvoretailer.
Vehicle Identification Number (VIN). TheVIN plate is located on the top left surface of thedashboard. The Vehicle Identification Number(VIN) should always be quoted in all correspond-ence concerning your vehicle with the retailer andwhen ordering parts.
Tire inflation pressures. This label indicatesthe correct inflation pressures for the tires thatwere on the vehicle when it left the factory.
Federal Motor Vehicle Safety Standards(FMVSS) specifications (USA) and Ministry ofTransport (CMVSS) standards (Canada). YourVolvo is designed to meet all applicable safetystandards, as evidenced by the certification labelon the driver's side B-pillar (the structural mem-ber at the side of the vehicle, at the rear of thedriver's door opening). This label also includescodes for paint color, etc. For further informationregarding these regulations, please consult yourVolvo retailer. U.S. models have the upper decal;Canadian models have the lower one.

||
SPECIFICATIONS
640
Engine oil. This label contains the recom-mended engine oil specifications.
Decal A/C. Refrigerant R134a.

NOTE
The decals shown in the Owner's Manual donot claim to be exact reproductions of thosefound in the vehicle. The purpose is to showapproximately how they look and about wherethey are located on the vehicle. The informa-tion that applies for your vehicle in particularis found on the decal on the vehicle.
Related information
Air conditioning specifications (p. 648)

SPECIFICATIONS
}}
641
Dimensions
The vehicle's length, height, etc. are shown inthe table.
Dimensionsmm inches
AGround clearanceA1415.6
BWheelbase3061 120.5
C Length5083 200.1
D Load length, floor,
folded backrestB2098 82.6
E Load length, floor 1149 45.2
FHeightC1450 57.1
Dimensionsmm inches
G Load height43517.1
H Wheel track, front1628D
1618E
1617F
64.1D
63.7E
63.7F
I Wheel track, rear1629D
1619E
1618F
64.1D
63.7E
63.7F
Dimensionsmm inches
J Load width, floor1014 39.9
K Width1879G
1890H
74.0G
74.4H

||
SPECIFICATIONS
642
Dimensionsmm inches
L Width incl. rearviewmirrors201979.5
M Width incl. folded rear-view mirrors1895 74.6
AAt curb weight + 2 people. (Varies slightly depending on tiredimensions, chassis, etc.)BDoes not apply to vehicles with 3 or 4 seats.CIncluding roof antenna, at curb weight.DVehicles with 17/18-inch wheels.EVehicles with 19-inch wheels.FVehicles with 20-inch wheels.GChassis width.HAt door moldings.

Related information
Weights (p. 643)

SPECIFICATIONS
643
Weights
The following table lists important weight datafor your vehicle.
CategoryUSA
(lbs)
Canada
(kg)
Gross vehicle weight57752620
Capacity weight950430
Permissible axle weights, front28651300
Permissible axle weights, rear30401380
Curb weight4600–46302090–2100
Max. roof load220100

CAUTION
When loading the vehicle, the maximumgross vehicle weight and permissible axleweights may not be exceeded.

Related information
Type designations (p. 638)
Towing capacity and tongue weight(p. 644)

SPECIFICATIONS
644
Towing capacity and tongue weightTowing capacity and tongue weight are shownin the tables below.
CategoryUSA
(lbs)
Canada
(kg)
Max. trailer weightsWithout brakes:1650750
With brakes:2000900
Max. tongue weight20090

CAUTION
The maximum trailer weights listed areonly applicable for altitudes up to 3280 ft(1,000 m) above sea level. With increas-ing altitude the engine power and there-fore the car's climbing ability are impairedbecause of the reduced air density, sothe maximum trailer weight has to bereduced accordingly. The weight of thecar and trailer must be reduced by 10%for every further 3280 ft (1,000 m) (orpart thereof).

Related information
Type designations (p. 638)
Weights (p. 643)

SPECIFICATIONS
645
Engine specifications
Engine specifications (output, etc.) for eachengine variant are shown in the table below. Thespecifications for Special Edition vehicles mayvary.
Twin Engine vehicles are powered by both agasoline engine and an electric motor (ERAD –Electric Rear Axle Drive).

NOTE
Not all engines are available on all markets.
EngineEngine codeAOutput
(kW/rps)
Output
(hp/rpm)
Torque
(Nm/rps)
Torque
(ft. lbs./rpm)
Number of cylinders
T8 Twin EngineB4204T28233/100 313/6000 400/37–90 295/2200–54004
AThe engine code, component and manufacturer serial numbers can be found on the engine.

Electric motor
Max. output: 65 kW (87 hp).
Torque: 240 Nm.

Related information
Type designations (p. 638)
Engine oil specifications (p. 646)
Coolant specifications (p. 647)

SPECIFICATIONS
646
Engine oil specifications
Fully synthetic engine oil of at leastACEA A5/B5 must be used. Lower oil gradesmay not offer the same fuel economy, engineperformance or engine protection.
Volvo recommends:

General
See the Service and warranty booklet for infor-mation about oil change intervals.

NOTE
This vehicle is delivered from the factory withsynthetic oil.
Do not use oil additives.
Oil viscosity
The wrong oil viscosity can shorten engine serv-ice life during normal use. SAE 5W-30 providesgood fuel economy and engine protection. Seethe viscosity chart.
Viscosity chart

Extreme driving conditions
Volvo's VCC RBS0-2AE/SAE 0W20 oil is recom-mended for extreme conditions.

Oil volume
The oil volume for the engine is:
Liter (approx)5.6
US qts (approx)5.9

Related information
Type designations (p. 638)
Checking and filling engine oil (p. 598)
Engine oil (p. 597)

SPECIFICATIONS
647
Coolant specifications
Recommended grade: Volvo-approved pre-mixed coolant. If concentrated coolant is used,mix with 50% water. Consult a Volvo retailer ifyou have any questions.
To avoid deterioration of the cooling system,engine trouble, etc., only approved Volvo coolantshould be used.

WARNING
Do not ingest. May cause damage to organs(kidneys). The product contains ethylene gly-col, inhibitor, emetic, water, etc.

Related information
Refilling coolant (p. 599)
Transmission fluid specifications
Under normal driving conditions, the transmis-sion fluid will not need to be changed during itsservice life. However, it may need to be changedif the vehicle is driven frequently in adverse driv-ing conditions.
Automatic transmission
Prescribed transmission fluid:AW1

Related information
Type designations (p. 638)
Brake fluid specifications
The medium in the hydraulic brake system iscalled brake fluid and is used to transfer brakingforce from e.g. pressure on the brake pedal via amaster brake cylinder to one or more slave cylin-ders, which in turn act on a mechanical brake.
Recommended grade: Volvo Original or similarfluid that meets a combination of Dot 4, 5.1 andISO 4925 class 6.

NOTE
Changing or filling brake fluid should beentrusted to an authorized Volvo workshop.

Related information
Engine compartment overview (p. 596)

SPECIFICATIONS
648

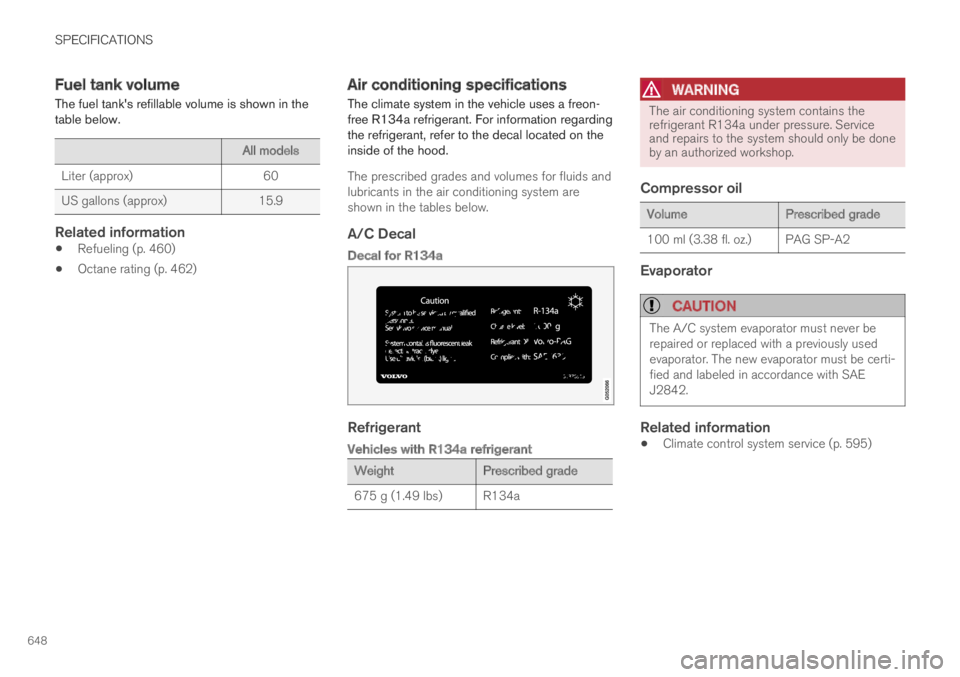

Fuel tank volume
The fuel tank's refillable volume is shown in thetable below.
All models
Liter (approx)60
US gallons (approx)15.9

Related information
Refueling (p. 460)
Octane rating (p. 462)
Air conditioning specifications
The climate system in the vehicle uses a freon-free R134a refrigerant. For information regardingthe refrigerant, refer to the decal located on theinside of the hood.
The prescribed grades and volumes for fluids andlubricants in the air conditioning system areshown in the tables below.

A/C Decal
Decal for R134a
Refrigerant
Vehicles with R134a refrigerant
WeightPrescribed grade
675 g (1.49 lbs) R134a
WARNING
The air conditioning system contains therefrigerant R134a under pressure. Serviceand repairs to the system should only be doneby an authorized workshop.

Compressor oil
VolumePrescribed grade
100 ml (3.38 fl. oz.) PAG SP-A2

Evaporator
CAUTION
The A/C system evaporator must never berepaired or replaced with a previously usedevaporator. The new evaporator must be certi-fied and labeled in accordance with SAEJ2842.

Related information
Climate control system service (p. 595)
