VOLVO S90 TWIN ENGINE 2020 Owners Manual

KEY, LOCKS AND ALARM
}}
* Option/accessory.259
–Move your foot in a kicking motion * under
the rear bumper.
ClosingTo close the power trunk lid, do one of the fol- lowing:
–Press the button on the lower edge of
the trunk lid to close 14
.
> The trunk lid will close automatically and remain unlocked.
NOTE
The button remains active 24 hours after the tailgate was opened. After thistime, the tailgate must be closed man-ually.
If the tailgate has been open for morethan 30 minutes, it will automaticallyclose slowly.
–Press and hold the button on the
remote key.
> The trunk lid closes automatically and an audible signal sounds - the trunk lid will remain unlocked.
–Press and hold the button on the
dashboard.
> The trunk lid closes automatically and an audible signal sounds - the trunk lid will remain unlocked.
–Move your foot in a kicking motion * under
the rear bumper.
> The trunk lid closes automatically and an audible signal sounds - the trunk lid will remain unlocked.
14Vehicles equipped with keyless locking and unlocking * have a button for closing and a button for closing and locking.

||
KEY, LOCKS AND ALARM
* Option/accessory.
260
Closing and locking
–Press the button on the lower edge of
the trunk lid to close and simultaneously lock 14
both the trunk lid and doors (all
doors must be closed in order to lock).
> The trunk lid closes automatically – the trunk lid and doors lock, and the alarm is armed.
NOTE
One of the vehicle's remote keys must be within range for locking and unlock-ing to be possible.
When the keyless locking or closing
*
functions are used, three audible signals
will sound if the key is not detected close enough to the tailgate.
CAUTION
When operating the trunk lid manually, open and close it slowly. If you encounterresistance, do not use force. This couldlead to damage and loss of function.
Interrupting closingInterrupt closing by doing one of the follow- ing:
Press the button on the dashboard.
Press the button on the remote key.
Press the close button on the underside ofthe trunk lid.
Press the rubberized pressure plate on theunderside of the tailgate's outer handle.
Using a foot movement
*.
The trunk lid will stop closing and return to itsfully open position. The trunk lid can then beopened or closed manually.
Pinch protectionIf anything obstructs the tailgate with enoughforce to prevent it from closing, pinch protec-tion will be activated.
The trunk lid will stop and then return toits fully open position. A long audible sig-nal will sound.
WARNING
Be aware of the risk of serious injury when operating the trunk lid. Before opening or closing, make sure that no one is near the trunk lid's range ofmotion. Serious injury could occur. Always operate the trunk lid with caution.
Related information

Opening and closing the trunk lid with foot movement
* (p. 261)
Remote key range (p. 239)
14
Vehicles equipped with keyless locking and unlocking * have a button for closing and a button for closing and locking.

KEY, LOCKS AND ALARM
* Option/accessory.261

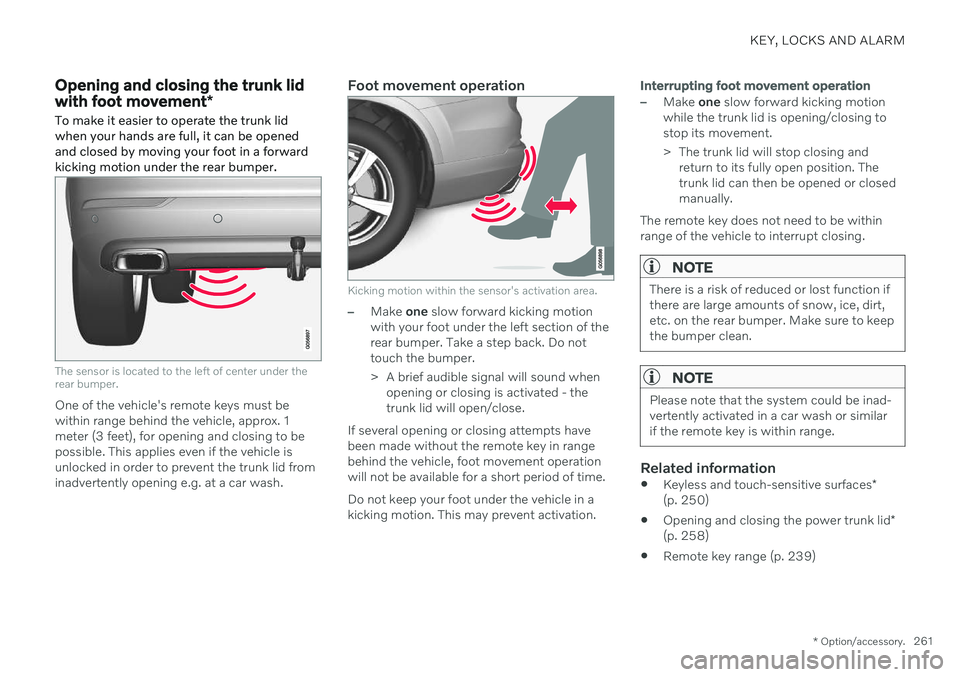

Opening and closing the trunk lid with foot movement *
To make it easier to operate the trunk lid when your hands are full, it can be openedand closed by moving your foot in a forwardkicking motion under the rear bumper.
The sensor is located to the left of center under the rear bumper.
One of the vehicle's remote keys must be within range behind the vehicle, approx. 1meter (3 feet), for opening and closing to bepossible. This applies even if the vehicle isunlocked in order to prevent the trunk lid frominadvertently opening e.g. at a car wash.
Foot movement operation
Kicking motion within the sensor's activation area.
–Make one slow forward kicking motion
with your foot under the left section of the rear bumper. Take a step back. Do nottouch the bumper.
> A brief audible signal will sound when opening or closing is activated - the trunk lid will open/close.
If several opening or closing attempts havebeen made without the remote key in rangebehind the vehicle, foot movement operationwill not be available for a short period of time. Do not keep your foot under the vehicle in a kicking motion. This may prevent activation.
Interrupting foot movement operation
–Make one slow forward kicking motion
while the trunk lid is opening/closing to stop its movement.
> The trunk lid will stop closing and return to its fully open position. The trunk lid can then be opened or closedmanually.
The remote key does not need to be withinrange of the vehicle to interrupt closing.
NOTE
There is a risk of reduced or lost function if there are large amounts of snow, ice, dirt,etc. on the rear bumper. Make sure to keepthe bumper clean.
NOTE
Please note that the system could be inad- vertently activated in a car wash or similarif the remote key is within range.
Related information
Keyless and touch-sensitive surfaces
*
(p. 250)
Opening and closing the power trunk lid
*
(p. 258)
Remote key range (p. 239)

KEY, LOCKS AND ALARM
262
Private Locking The trunk lid and rear seat backrests can be locked using the private locking function, e.g.when the vehicle is left at a workshop or witha valet. This function prevents the trunk lidfrom being opened and locks the rear seatbackrests in the upright position.
The function button for pri- vate locking is located in thecenter display's Functionview. Depending on the cur-rent status of the lock,
Private Locking Unlockedor Private Locking Lockedwill be displayed.
Related information
Activating and deactivating private locking (p. 262)
Activating and deactivating private locking
Private locking is activated using the function button in the center display and a PIN code.
NOTE
For the valet lock function to be activated the car must be in at least ignition mode I.
Two codes are used for private locking:
A security code, which is created the first time the function is used.
A PIN code, which is changed each timethe function is activated.
Entering security code before initial
use
The first time the function is used, a securitycode must be selected. This code can then beused to deactivate private locking if theselected PIN code has been forgotten or lost.The security code functions as a PUK (secur-ity) code for all PIN codes used for privatelocking. Save the security code in a safe place. To create a security code:
1. Tap the button for private locking in Func-
tion view.
> A pop-up window will appear.
2. Enter the desired security code and press
Confirm.
> The security code is saved. The private locking function is now ready for activa- tion.
Activating private locking
NOTE
The rear seat must be in the upright posi- tion when private locking is activated inorder for the seats to lock.

KEY, LOCKS AND ALARM
}}
263
1. Tap the button for private locking in Func-
tion view.
> A pop-up window will appear.
2. Enter the code you would like to use to unlock the trunk lid and rear seats and tap
Confirm.
> The trunk lid and rear seats will lock. A green indicator light will illuminate next to the button in Function view to con-firm locked status.
Deactivating private locking1. Tap the button for private locking in Func- tion view.
> A pop-up window will appear. 2. Enter the code used for locking and tap
Confirm.
> The trunk lid and rear seats will unlock. The green indicator light next to the button in Function view will go out toconfirm unlocked status.
Forgotten PIN codeIf you have forgotten your PIN code or enteredit incorrectly more than three times, the secur-ity code can be used to deactivate privatelocking. If the vehicle is unlocked using Volvo On Call or the Volvo On Call app, private locking willbe automatically deactivated.
Forgotten security code
If you have forgotten your security code, con- tact an authorized Volvo retailer for assistancedeactivating private locking.
Related information
Private Locking (p. 262)
Alarm The alarm emits sound and light signals if anyone without a valid remote key attemptsto break into the vehicle or interferes with thestart battery or alarm siren.
When armed, the alarm will be triggered if:
the hood, trunk lid or any door is opened.
a battery cable is disconnected.
the alarm siren is disconnected.
Alarm signalsThe following occurs if the alarm is triggered:
A siren will sound for 30 seconds or until the alarm is turned off.
The hazard warning flashers will flash for5 minutes or until the alarm is turned off.
If the reason the alarm was triggered is notrectified, the alarm cycle will repeat up to 10 times 15
.
15 Certain markets only.

||
KEY, LOCKS AND ALARM
* Option/accessory.
264
Alarm indicator
A red indicator light on the dashboard shows the status of the alarm:
Indicator off - the alarm is disarmed.
Indicator flashes once every two seconds -the alarm is armed.
The indicator flashes quickly after thealarm has been disabled for up to30 seconds or until the ignition is put in
I
mode – the alarm has been triggered.
In the event of alarm system failureIf a problem is detected in the alarmsystem, a symbol and the message
Alarm system failure Service
required will appear in the instru-
ment panel. Contact a workshop - an author- ized Volvo workshop is recommended.
NOTE
Do not attempt to repair or alter any of the components in the alarm system yourself.Any such attempt could affect the termsand conditions of your insurance policy.
Related information
Arming and disarming the alarm (p. 264)
Arming and disarming the alarm
The alarm is armed when the vehicle is locked.
Arming the alarmLock and arm the vehicle by
pressing the lock button on the remote key
.
touch the marked surface on the outside of the door handle or the rubberized pres- sure plate on the trunk lid 16
.
If the vehicle is equipped with both keyless locking/unlocking * and power trunk lid, the
button
on the lower edge of the trunk lid
can also be used to lock and arm the vehicle.
A red LED light on the dashboard will flash every other second when the vehicle is locked and thealarm is armed.

KEY, LOCKS AND ALARM
* Option/accessory.265
Disarming the alarmUnlock and disarm the vehicle alarm by
pressing the unlock button on the remote key
.
grip a door handle or lightly press the trunk lid's rubberized button 16
.
Disarming the alarm without a functioning
remote key
The vehicle can be unlocked and disarmed even if the remote key is not functioning, e.g. ifthe battery is discharged.
1. Open the driver's door using the detacha- ble key blade.
> This will trigger the alarm.
Location of the backup key reader in the cup holder.
2. Place the remote key on the key symbol inthe backup reader in the tunnel console's cup holder. 3. Turn the start knob clockwise and release.
> The alarm will be disarmed.
Turning off a triggered alarm–Press the unlock button on the remote key or put the ignition into mode I by turning
the start knob clockwise and then releas-ing it.
Automatically arming and disarming the alarm
Automatically arming the alarm helps prevent inadvertently leaving the vehicle without alarmprotection. If the vehicle is unlocked using the remote key (and the alarm is disarmed) but none of thedoors or trunk lid is opened within twominutes, the alarm will be automaticallyrearmed. The vehicle will also re-lock. On some markets, the alarm will be automati- cally armed following a slight delay after thedriver's door has been opened and closedwithout being locked. To change this setting:1. Tap
Settings in the center display's Top
view.
2. Tap
My CarLocking.
3. Select
Passive Arming Deactivation to
temporarily deactivate the function.
Related information
Alarm (p. 263)
16
Vehicles with keyless locking and unlocking *.

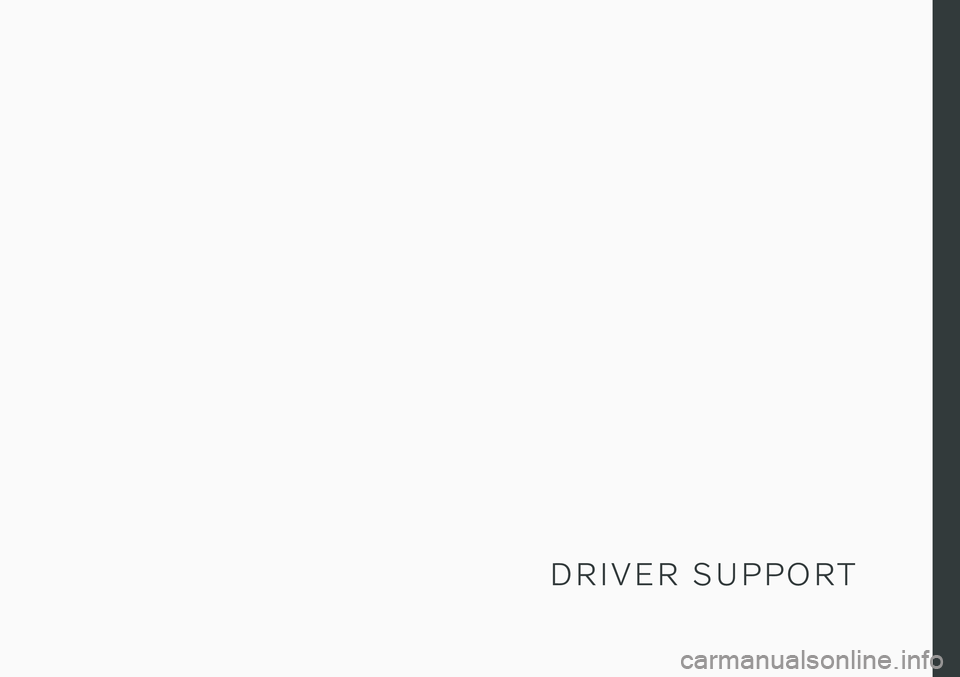

D R I V E R S U P P O R T

DRIVER SUPPORT
* Option/accessory.
268
Driver support systems
The vehicle is equipped with a number of driver support systems that can provide thedriver with active or passive assistance in var-ious situations.
The systems can, for example, help the driver:
maintain a set speed
maintain a set time interval to the vehicle ahead
help prevent a collision by warning thedriver and applying the brakes
park the vehicle.
Some of the systems are standard and othersare options. This also varies from market tomarket.
Related information
IntelliSafe – driver support and safety(p. 29)
Speed-dependent steering wheel resis-tance (p. 268)
Curve Speed Assist (CSA)
* (p. 302)
Electronic Stability Control (p. 269)
Distance Alert
* (p. 273)
Cruise control (p. 275)
Adaptive Cruise Control
* (p. 278)
Pilot Assist
* (p. 287)
Radar sensor (p. 305)
Camera (p. 308)
City Safety
™ (p. 314)
Rear Collision Warning
* (p. 328)
BLIS
* (p. 329)
Cross Traffic Alert
* (p. 333)
Road Sign Information
* (p. 337)
Driver Alert Control (p. 342)
Lane Keeping Aid (p. 344)
Steering assistance at risk of collision(p. 351)
Park Assist
* (p. 357)
Park Assist Camera
* (p. 362)
Park Assist Pilot
* (p. 370)
Speed-dependent steering wheel resistance Speed-dependent power steering increases the steering wheel resistance in pace withthe vehicle's speed, which can help give thedriver an enhanced feeling of control and sta-bility.
Steering is stiffer on highways. When parking and at low speeds, it will be easier to movethe steering wheel.
NOTE
In rare situations, the power steering may become too hot andrequire temporary cooling – dur-ing such time the power steering
will work at reduced output and the steer-ing wheel may feel more difficult to move. The message
Power steering Assistance
temporarily reduced will be displayed
along with this symbol in the instrument panel.
While the power steering is working at reduced power, the driver support func-tions and systems with steering assistanceare not available.
