· If your car is equipped with the optional Trip Computer, utilizing the fuel consumption modes can help you "learn"
how to drive more economically.
Other factors which decrease gas mileage are:
· Worn or dirty spark plugs
· Incorrect spark plug gap
· Dirty air cleaner
· Dirty engine oil and clogged oil filter
· Dragging brakes
· Incorrect front end alignment
Some of the above mentioned items and others are checked at the standard Maintenance Service intervals.
NOTE : (D)rive or 5th gear (manual transmissions) should be used as often as possible to help improve fuel economy.
Before a long distance trip
It is always worthwhile to have your car checked at a Volvo retailer before driving long distances. Your retailer will
also be able to supply you with bulbs, fuses, spark plugs and wiper blades for your use in the event that problems
occur.
If you prefer to check the car yourself, please note the following:
· Check that engine runs smoothly and that fuel consumption is normal.
· Check engine oil, coolant levels, and for possible fuel leakage.
· Check transmission oil level.
· Check condition of drive belts.
· Check state of charge of battery.
· Examine tires carefully (the spare tire as well), and replace those that are worn. Check tire pressures.
· The brakes, front wheel alignment, and steering gear should be checked by your Volvo retailer only.
· Check all lights, including high beams.
· Reflective warning triangles are legal requirement in some countries.
· Have a word with your Volvo retailer if you intend to drive in countries where it may be difficult to obtain correct
fuel.
· Consider your destination. If you will be driving through an area where snow or ice are likely to occur, consider
snow tires.
pg. 71 Starting the engine
Starting and stopping
1. Fasten the seat belt.
WARNING!
Before starting, check that the seat, steering wheel and mirrors are adjusted properly. Make sure the brake pedal can
be depressed completely. Move the seat closer if necessary. Refer to section "front seats".
2. Apply the parking brake, if not already set. The gear selector (automatic transmission) is locked in the (P)ark
position (SHIFT LOCK).
Manual transmission: the clutch must be fully depressed.
3. Without touching the accelerator pedal, turn the ignition key to the starting position. Allow the starter to operate
for up to 5 seconds (turbo: 10 seconds). Release the key as soon as the engine starts. If the engine fails to start, repeat
step 3.
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_08a.htm[4/4/2013 10:24:57 PM]

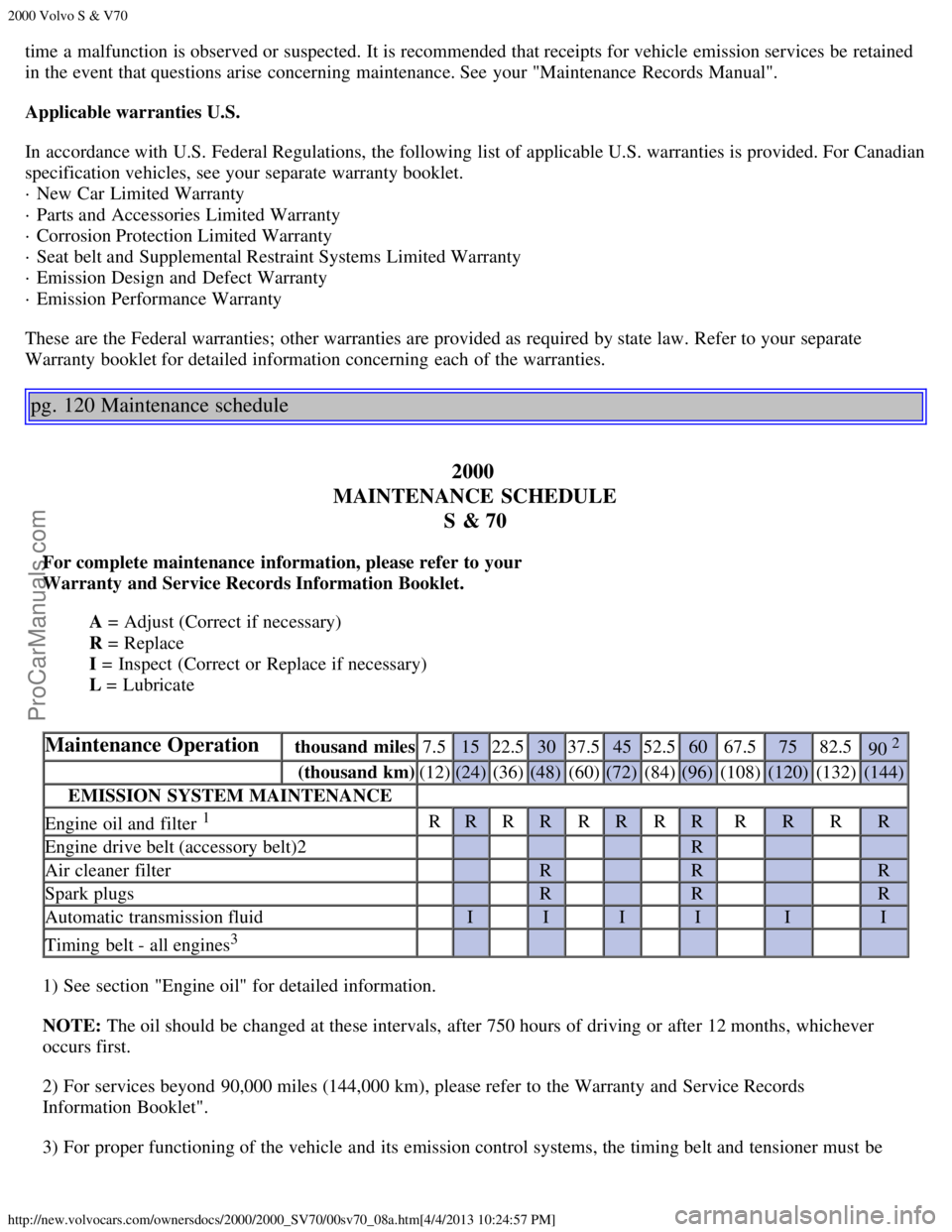

time a malfunction is observed or suspected. It is recommended that receipts for vehicle emission services be retained
in the event that questions arise concerning maintenance. See your "Maintenance Records Manual".
Applicable warranties U.S.
In accordance with U.S. Federal Regulations, the following list of applicable U.S. warranties is provided. For Canadian
specification vehicles, see your separate warranty booklet.
· New Car Limited Warranty
· Parts and Accessories Limited Warranty
· Corrosion Protection Limited Warranty
· Seat belt and Supplemental Restraint Systems Limited Warranty
· Emission Design and Defect Warranty
· Emission Performance Warranty
These are the Federal warranties; other warranties are provided as required by state law. Refer to your separate
Warranty booklet for detailed information concerning each of the warranties.
pg. 120 Maintenance schedule
2000
MAINTENANCE SCHEDULE S & 70
For complete maintenance information, please refer to your
Warranty and Service Records Information Booklet.
A = Adjust (Correct if necessary)
R = Replace
I = Inspect (Correct or Replace if necessary)
L = Lubricate
Maintenance Operationthousand miles 7.51522.5 3037.5 4552.5 6067.5 7582.5
90 2
(thousand km)(12)(24) (36)(48) (60)(72) (84)(96) (108) (120)(132)(144)
EMISSION SYSTEM MAINTENANCE
Engine oil and filter
1R R RR RR RR R RRR
Engine drive belt (accessory belt)2 R
Air cleaner filter R R R
Spark plugs R R R
Automatic transmission fluid I I I I I I
Timing belt - all engines
3
1) See section "Engine oil" for detailed information.
NOTE: The oil should be changed at these intervals, after 750 hours of driving or after 12 months, whichever
occurs first.
2) For services beyond 90,000 miles (144,000 km), please refer to the Warranty and Service Records
Information Booklet".
3) For proper functioning of the vehicle and its emission control systems, the timing belt and tensioner must be
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_09.htm[4/4/2013 10:25:03 PM]
Displacement2.3 liters
Compression ratio8.5:1
Number of valves 20
Designation: Volvo B 5244 T2
Output 261 hp at 5700 rpm (195 KW/95 rps)
Max. torque 258 ft. lbs. at 2400-5100 rpm (350 Nm/4085 rps)
Number of cylinders 5
Bore 3.19" (81 mm)
Stroke 3.54" (90 mm)
Displacement 2.3 liters
Compression ratio 8.5:1
Number of valves 20
All specifications are subject to change without notice.
pg. 136 Specifications
Cooling system
Type: Positive pressure, closed system
Thermostat begins to open at 186° F (90° C)
Turbo -charged models 180° F (87° C)
Coolant: Volvo original coolant/antifreeze
Capacity: 7.6 US qts. (7.2 liters)
Turbo -charged models 7.4 US qts. (7.0 liters)
Fuel system
The engine is equipped with a multiport fuel injection system.
Distributor ignition system
Firing order: 12453
Distributor ignition setting: Not adjustable
Spark plugs: Bosch FR7DC or Champion RC9YC
Spark plug gap: 0.028" (0.7 mm)
Turbo -charged models: Champion RC8PYP (or equivalent)
Spark plug gap: 0.03" (0.75 mm)
Tightening torque: 18.4 ft. lbs. +/ 3.7 ft. lbs. (25 Nm +/ 5 Nm)
WARNING!
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_09.htm[4/4/2013 10:25:03 PM]
The distributor ignition system operates at very high voltages. Special safety precautions must be followed to
prevent injury. Always turn the ignition off when:
· Replacing distributor ignition components e.g. plugs, coil, etc.
· Do not touch any part of the distributor ignition system while the engine is running. This may result in unintended
movements and body injury.
Replacing spark plugs
The spark plugs should be changed every 30,000 miles (48,000 km). However, city driving or fast highway driving
may necessitate changing after 15,000 miles (24,000 km) of driving. When installing new plugs, be sure to fit the right
type and use correct torque, see "Specifications". When changing the plugs, check that the suppressor connectors are in
good condition. Cracked or damaged connectors should be replaced. When changing the spark plugs, clean the
terminals and the rubber seals.
Front suspension
Spring strut suspension with integrated shock absorbers and control arms linked to the support frame. Powerassisted
rack and pinion steering. Safety type steering column.
The alignment specifications apply to an unladen car but include fuel, coolant and spare wheel.
Toe-in measured on the wheel rims: 2.4 mm +/ 0.7 mm
Toe-in measured on tire sides: 2.9 +/ 0.9 mm
Rear suspension
Deltalink individual rear wheel suspension with longitudinal support arms, double link arms and track rods.
Toein measured on the tire sides: 4° +/ 10°
All specifications are subject to change without notice.
pg. 137 Specifications
Power transmission
Manual transmission: M 56 H
Singledisc dry plate clutch. Allsynchromesh on all gears including reverse; integrated final drive. Operation via a floor
mounted gear lever.
Final drive ratio 4.00:1
Reduction ratios
1st gear 3.07:1
2nd gear 1.77:1
3rd gear 1.19:1
4th gear 0.87:1
5th gear 0.70:1
ProCarManuals.com

2000 Volvo S & V70
http://new.volvocars.com/ownersdocs/2000/2000_SV70/00sv70_12.htm[4/4/2013 10:25:31 PM]
Seat belt maintenance16
Seat belts2,3,13
Seat belts - cleaning116
Seats51
Securing cargo64
Service reminder indicator21,23
Servicing122,123
Shift lock71
Shiftlock73,75
Shiftlock release (override)110
Side cargo net63
Side Impact Protection System (SIPS)8
Side-view mirrors - heated27
SIPS8
Snow chains89
Snow tires89
Spare tire96
Spare tire (sedan)57
Spare tire (wagon)58
Spark plugs136
Specifications133
Spool-out (seat belt)13
SRS5,6,7
SRS diagnostic system22
SRS warning light5,21,22
Stability and Traction Control (STC)21,23,27,84
Start inhibitor (immobilizer)44
Starting the engine71
Steering wheel adjustment36
Steering wheel lock25
Storage compartments56
Studded tires89
Sun roof27,54,110
T
Tachometer20
Tailgate (opening/locking)49
lock button49
Tailgate wiper/washer28
Temperature gauge20
Temporary spare tire96
Tire pressure90
Tires88
Tires - changing94
