VOLVO XC70 2013 Owner´s Manual

06 Infotainment
Radio
06
* Option/accessory, for more information, see Introduction.229

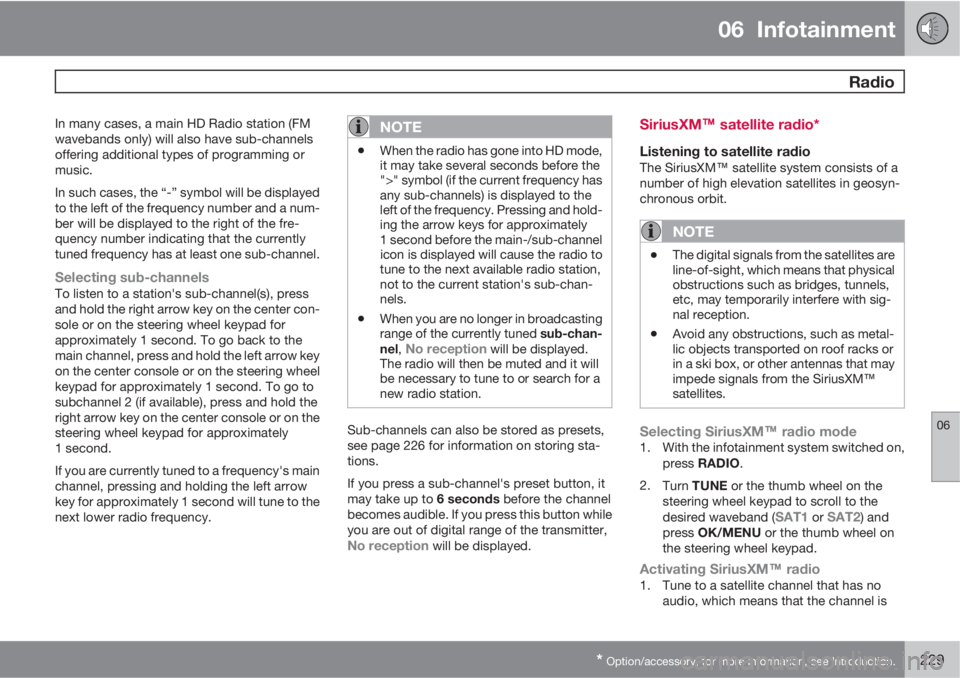

In many cases, a main HD Radio station (FM
wavebands only) will also have sub-channels
offering additional types of programming or
music.
In such cases, the “-” symbol will be displayed
to the left of the frequency number and a num-
ber will be displayed to the right of the fre-
quency number indicating that the currently
tuned frequency has at least one sub-channel.
Selecting sub-channelsTo listen to a station's sub-channel(s), press
and hold the right arrow key on the center con-
sole or on the steering wheel keypad for
approximately 1 second. To go back to the
main channel, press and hold the left arrow key
on the center console or on the steering wheel
keypad for approximately 1 second. To go to
subchannel 2 (if available), press and hold the
right arrow key on the center console or on the
steering wheel keypad for approximately
1 second.
If you are currently tuned to a frequency's main
channel, pressing and holding the left arrow
key for approximately 1 second will tune to the
next lower radio frequency.
NOTE
•When the radio has gone into HD mode,
it may take several seconds before the
">" symbol (if the current frequency has
any sub-channels) is displayed to the
left of the frequency. Pressing and hold-
ing the arrow keys for approximately
1 second before the main-/sub-channel
icon is displayed will cause the radio to
tune to the next available radio station,
not to the current station's sub-chan-
nels.
•When you are no longer in broadcasting
range of the currently tuned sub-chan-
nel,
No reception will be displayed.
The radio will then be muted and it will
be necessary to tune to or search for a
new radio station.
Sub-channels can also be stored as presets,
see page 226 for information on storing sta-
tions.
If you press a sub-channel's preset button, it
may take up to 6 seconds before the channel
becomes audible. If you press this button while
you are out of digital range of the transmitter,
No reception will be displayed.
SiriusXM
E satellite radio*
Listening to satellite radio
The SiriusXM
E satellite system consists of a
number of high elevation satellites in geosyn-
chronous orbit.
NOTE
•The digital signals from the satellites are
line-of-sight, which means that physical
obstructions such as bridges, tunnels,
etc, may temporarily interfere with sig-
nal reception.
•Avoid any obstructions, such as metal-
lic objects transported on roof racks or
in a ski box, or other antennas that may
impede signals from the SiriusXM
E
satellites.
Selecting SiriusXM
E radio mode1. With the infotainment system switched on,
press RADIO.
2.
Turn TUNE or the thumb wheel on the
steering wheel keypad to scroll to the
desired waveband (
SAT1 or SAT2) and
press OK/MENU or the thumb wheel on
the steering wheel keypad.
Activating SiriusXM
E radio1. Tune to a satellite channel that has no
audio, which means that the channel is

06 Infotainment
Radio
06
230
unsubscribed and the text Subscription
update needed is displayed (see also
"Selecting a channel").
2.
Call SiriusXM
E at 1-888-539-SIRIUS
(7474).
3. If you tune to an unsubscribed channel, the
SiriusXM
E ID will be displayed. The Sir-
iusXM
E ID can also be accessed from the
menu (press OK/MENU, turn TUNE to
scroll to the
Advanced settings menu,
press OK/MENU, scroll to SIRIUS ID and
press OK/MENU to display the number).
4.
Updating subscription will be displayed
while the subscription is being updated,
after which the display will return to the
normal view.
SiriusXM
E
E ID
The SiriusXM
E ID (sometimes referred to as
the Electronic Serial Number or ESN) is
required when contacting the SiriusXM
E Call
Center. It is used to activate your account and
when making any account transactions.
Selecting a channel category1.
Turn TUNE to display a list of channels.
2.
Press EXIT.3.
Turn TUNE to scroll through the list of cat-
egories and press OK/MENU to make a
selection.
> The channels in the selected category
are displayed.
NOTE
•The category All is default, which ena-
bles you to scroll through the entire list
of available satellite channels.
•The channel categories are automati-
cally updated several times a year. This
takes approximately two minutes and
will interrupt normal broadcasting. A
message will be displayed while updat-
ing is in progress. Information on chan-
nel or feature updates is available at
www.siriusxm.com.
Selecting a channelThere are three ways of tuning in a channel:
•Using the left and right arrow keys to go to
the next channel. Skipped channels (see
page 232) will be excluded.
•By turning the TUNE control and selecting
a channel from the list
•Through direct channel entry.
NOTE
•The numbers of skipped or locked
channels will not be displayed.
•If a channel is locked, the access code
must be entered before the channel can
be selected. See "Unlocking a channel"
on page 232.
Direct channel entry
The SiriusXM
E satellite channels are in numer-
ical order throughout all of the categories. To
access a channel directly:
1.
Turn TUNE to access the channel list.
2. Use the keypad buttons to enter the chan-
nel's number.
3.
Press OK/MENU. The radio will tune to this
channel, even if it belongs to a category
other than the currently selected one.
Scanning
Scan automatically searches through the list of
satellite channels. The search will only be car-
ried out in the selected category, see
page 226 for more detailed information on the
scan function.
Storing a channelA total of 20 satellite channels can be stored;
10 channels each for SAT1 and SAT2, see

06 Infotainment
Radio
06
231
page 226 for detailed information on storing
channels.
•A long press on one of the number keys
stores the currently tuned channel on that
key.
•A short press on a number key while the
radio is in SAT1 or SAT2 mode will tune to
the preset satellite channel stored on that
button, regardless of the currently selected
channel category.
Searching for and storing songs
The Song Seek function provides notification
when SiriusXM
E is broadcasting the songs
selected in song memory.
Song memory ena-
bles you to store the name of the song for
future advance notification when that song is
being played.
Song seekWhen a satellite radio channel plays one of the
songs stored in the song memory while the
Song seek feature is activated, the listener will
be alerted by a text message and an audible
signal.
Press OK/MENU to listen to the song or EXIT
to cancel.
To activate/deactivate the song seek function:
1.
Press OK/MENU.2.
Turn TUNE to scroll to
Song memory and
press OK/MENU.
3.
Turn TUNE to scroll to
Song Seek and
press OK/MENU to activate or deactivate
the function.
NOTE
When the song has ended, the radio will
remain tuned to the channel on which the
song was played.
Song memoryUp to ten songs can be saved in the system's
memory.
To add the currently playing song to the list:
1.
Press OK/MENU.
2.
Scroll to
Song memory and press OK/
MENU.
3.
Scroll to
Add current song to song
memory and press OK/MENU.
If a new song is selected when the memory is
full, you will be prompted to delete a song from
the list. To do so:
1.
Press OK/MENU.
2.
Turn TUNE to scroll through the list of
songs. Select a song and press OK/
MENU to delete it from the list.
Radio textThis text provides information about the song
that is currently playing. To turn this feature on
or off, press OK/MENU and scroll to
Show
radio text and press OK/MENU to toggle
between on or off.
Advanced SiriusXM
E settings
This menu function enables you to make set-
tings on certain SiriusXM
E satellite radio func-
tions. To access this menu:
1.
Press OK/MENU.
2.
Scroll to the
Advanced settings menu
and press OK/MENU.
WARNING
Settings should be made when the vehicle
is at a standstill.
The following settings can be made in the sat-
ellite menus:
•Channel skip settings can be made
•Channel lock settings can be made
•The channel access code can be displayed
or changed (see also "Locking a channel"
on page 232)
•Your SiriusXM
E ID can be displayed
•Reset SiriusXM
E settings

06 Infotainment
Radio
06
232
Skip optionsThis function is used to remove a channel from
the list of available channels.
Skipping a channel1.
Press OK/MENU.
2.
Scroll to the
Advanced settings menu.
3.
Press OK/MENU to enter the
Skip
options menu.
4.
Press OK/MENU to enter
Channel skip
list.
5.
Press OK/MENU to select
All categoriesor turn TUNE to scroll to a category and
press OK/MENU to select it.
6.
Press OK/MENU to select
Skip all
channels in the category or turn TUNE
to scroll to a channel and press OK/
MENU to select or deselect it. Multiple
channels can be selected.
Unskip all channelsThis removes all channels from the skip list and
makes them available for selection.
Temporary unskip all channelsThis function will temporarily unskip all chan-
nels and make them available for selection. The
channels remain on the skip list and will againbe skipped the next time the ignition is
switched on.
Channel lockAccess to specific channels can be restricted
(locked). A locked channel will not provide
audio, song titles, or artist information.
NOTE
All channels are initially unlocked.
Locking a channel1.
Press OK/MENU.
2.
Scroll to the
Advanced settings menu.
3.
Press OK/MENU and turn TUNE to scroll
to the
Lock options menu and press OK/
MENU.
4. Use the keypad in the central control panel
to enter the channel access code
2 and
press OK/MENU.
5.
Press OK/MENU to enter the
Channel
lock list.
6.
Press OK/MENU to select
All categoriesor turn TUNE to scroll to a category and
press OK/MENU to select it.7.
Press OK/MENU to select
Lock all
channels in the category or turn TUNE
to scroll to a channel and press OK/
MENU to select it. Multiple channels can
be selected.
The selected channel is now locked and a
checked box will be displayed to indicate this.
It will be necessary to enter the channel access
code
2 in order to listen to a locked channel.
Unlocking a channel
A channel's access code2 is required to unlock
a channel.
Unlock all channelsThis permanently removes all channels from
the locked list and makes them available for
selection.
Temporarily unlock all channelsThis function will temporarily unlock all chan-
nels and make them available for selection. The
channels remain on the locked list and will
again be locked the next time the ignition is
switched on.
CHANGE CODEThis function makes it possible to change the
channel access code. The default code is
0000.
To change the code:
2The default code is 0000. If you have changed the code and forgotten it, see the section "If you have forgotten the access code."

06 Infotainment
Radio
06
233
1.
Select Change code in the Lock
options menu and press OK/MENU.
2.
Enter the new code and press OK/MENU.
3.
Confirm the new code and press OK/
MENU.
If an incorrect code is entered, the text
Incorrect code is displayed.
If you have forgotten the access code:
1.
Select
SIRIUS ID in the Advanced
settings menu and press OK/MENU.
2.
Press and hold the OK/MENU button for
several seconds.
3. The current code will be displayed.
Your Volvo retailer can also provide you with
assistance.
SiriusXM
E
E ID
This function displays the 12-digit SiriusXM
E
activation ID.

06 Infotainment
Media player
06
234
CD/DVD1 functions
Center console control panel
Disc slot
MEDIA button, the most recently used
active source will start when MEDIA is
pressed. Pressing this key from Media
mode's main view will display a shortcut
menu.
Eject
Keypad
TUNE:Turn to navigate among menu
selections/folders/tracks (or turn the
thumb wheel on the steering wheel key-
pad).
OK/MENU: Press to confirm your selec-
tion or access the menus for the currently
selected source (e.g.,
Disc) or press the
thumb wheel on the steering wheel key-
pad.
Left/right arrow keys: Fast back/forward
and change track or chapter2.
The media player supports and can play the
following main types of discs and files:
•Purchased CDs (CD Audio)
•Home-burned CDs with audio and /or
video files
•Home-burned DVDs with audio and /or
video files
•Purchased DVDs
For a list of compatible formats, see
page 237.
Media menu selections can be made from the
center console or the steering wheel keypad.
For more information about the infotainment
menu system, see page 216.
For general information regarding menu navi-
gation, see page 218 and menu overview see
page 222.
Playing a disc
Press MEDIA ans scroll to Disc. Press OK/
MENU or the thumb wheel on the steering
wheel keypad. If there is a disc in the player, it
will begin playing automatically. Otherwise,
Insert disc will be displayed. Insert the disc
into the slot with the text side upward and it will
begin playing automatically.
If a disc with audio/video files is inserted, its
folder structure will be read by the system. It
may take several seconds until the disc begins
playing, depending on its quality and the
amount of information it contains.
Disc ejectFor reasons of traffic safety, an ejected disc
must be removed within 12 seconds or it will
be automatically drawn back into the slot.
PauseWhen the infotainment system volume is
turned off completely or the sound is muted,
the player will pause. It will resume playing
when the volume is turned up again or if the
sound is unmuted. Pause is also available via
the menu system, select
Play/Pause.
1The media player can only play DVDs in models equipped with the optional navigation system.2DVDs only

06 Infotainment
Media player
06
* Option/accessory, for more information, see Introduction.235
Navigating a disc and playing tracks
CD audio discs
Turn TUNE to access the disc's playlist and to
navigate in this list. Press OK/MENU to con-
firm a choice and begin listening. Press EXIT
to cancel. Press and hold EXIT to return to the
playlist's root level.
The
/ buttons on the center console or
steering wheel keypad can also be used to
change tracks.
Home-burned CD/DVD audio/video filesTurn TUNE to access the disc's playlist and to
navigate in this list. Press OK/MENU to con-
firm a choice and begin listening. Use EXIT to
stop or to go back in the disc's folder structure.
Press and hold EXIT to return to the playlist's
root level.
The
/ buttons on the center console or
steering wheel keypad* can also be used to
change audio/video files.
The following symbols are used in the display:
•- audio files
•- video files
•- foldersWhen a file has been played, the player will
continue to play the rest of the files (of the same
type) in the current folder. When all of the files
in the folder have been played, the player will
automatically go to the next folder and play the
files in it (unless
Repeat folder is activated).
The system automatically detects and changes
settings if a disc containing only audio or only
video files is inserted in the player and will play
these files. However, the system will not
change settings if a disc containing both audio
and video files is inserted and the player will
continue to play the current type of file.
NOTE
Video images will only be visible when the
vehicle is not moving. When the vehicle is
traveling faster than approximately 4 mph
(6 km/h),
No visual media available while
driving will be displayed. Sound from the
film will still be audible and video images will
be shown again when the vehicle stops.
NOTE
Some copy protected audio files or home-
burned audio files may not be read by the
player.
DVD videosFor information, see page 234.
Fast forward/reverse
Press and hold the / buttons to fast
forward/reverse. This is done at one speed for
audio files but several speeds can be chosen
for video files. Press the
/ buttons sev-
eral times to increase the speed. Release the
button to return to normal viewing speed.
Scan3
This function plays the first ten seconds of
each track/audio file. To start scanning:
1.
Press OK/MENU.
2.
Scroll to
Scan.
> The first ten seconds of each track/
audio file will be played.
3.
Stop scanning by pressing EXIT. The cur-
rent track/audio file will continue playing.
Random3
This function plays the tracks in random order
(shuffle). The random tracks/sound files can be
scrolled through in the normal way. To listen to
tracks in random order:
1.
Press OK/MENU,
3Not video DVDs

06 Infotainment
Media player
06
236
2.
Scroll to Random
3.
Press OK/MENU to activate/deactivate
the random play function.
Press the
/ buttons on the center con-
sole or steering wheel keypad to change
tracks/audio files.
Repeat folder4
This function makes it possible to play files in
a folder repeatedly. When the last file has been
played, the first file will begin again. To acti-
vate:
1.
Press OK/MENU.
2.
Turn TUNE to
Repeat folder.
3.
Press OK/MENU to activate/deactivate
the function.
Playing video DVDs
Play
When playing a video DVD, a disc menu may
appear on the display, giving you access to
extra functions and settings such as choice of
subtitle and language, scene selection, etc.
NOTE
Video images will only be visible when the
vehicle is not moving. When the vehicle is
traveling faster than approximately 4 mph
(6 km/h),
No visual media available while
driving will be displayed. Sound from the
film will still be audible and video images will
be shown again when the vehicle stops.
Navigating in a DVD's menus
Buttons in the center console control panel,
shown above, are used to navigate in a DVD's
menus.
Changing chapters or titleTurnTUNE to access the list of chapters and
navigate in this list (the film will pause if it iscurrently playing). Press OK/MENU to choose
a chapter and return to the normal view in the
display (if a film was playing, it will resume).
Press EXIT to access the list of titles.
In the list of titles, turn TUNE to make a selec-
tion and press OK/MENU to confirm. This also
returns you to the list of chapters. Press EXIT
to cancel and return to the normal view (without
having made a selection).
It is also possible to change chapters by press-
ing
/ on the center console control
panel or on the steering wheel keypad.
Advanced settings
Angle
If the DVD supports this function, it is possible
to select a camera angle for a certain scene.
This can be done in DVD mode under DVD disc
menu
Advanced settingsAngle.
DivXŸ Video On DemandThe media player can be registered to play
DivX VOD files from home-burned discs or
USB. The registration code can be found by
pressing the MY CAR button, and going to
Settings
InformationDivX® VOD
code. See page 189 for more information
about the menu system.
4Applies to audio/video files on home-burned discs/USB only.

06 Infotainment
Media player
06
237
See also www.divx.com/vod for more informa-
tion.
Screen settingsScreen settings can be made (when the vehicle
is not moving) for:
•Brightness
•Contrast
1.
Press OK/MENU and choose
settings and confirm by pressing OK/
MENU.
2.
Turn TUNE to the desired setting and
press OK/MENU.
3.
Change the setting by turning TUNE and
confirm the change by pressing OK/
MENU.
Press OK/MENU or EXIT to return to the
screen settings list.
To return to the factory settings, select
Reset .
Compatible formatsThe media player can play a number of differ-
ent types of files and disc formats, and is com-
patible with the formats listed in the following
table.
NOTE
Dual format (double-sided discs) such as
DVD Plus or CD-DVD are thicker than nor-
mal discs and may not play in your infotain-
ment system.
If a disc containing both CDDA and MP3
tracks is played, all MP3 tracks will be
ignored.
Audio
formatsCD-Audio, mp3, wma,
aac, m4a
Video for-
matsCD-Video, DVD-Video, divx,
avi, asf

06 Infotainment
AUX/USB sockets
06
238
Connecting external devices
Sockets for auxiliary devices in the storage com-
partment between the front seats
An auxiliary device, such as an iPodŸ or MP3
player can be connected to the infotainment
system via one of the sockets in the center
console storage compartment. A device con-
nected to the USB socket can be operated
using the vehicle's infotainment system con-
trols.
There is a notch at the right rear of the center
console for routing wires to external devices.
This notch helps prevent the wires from being
pinched when the cover is closed.
An iPod
Ÿ or an MP3 player with rechargeable
batteries will also be charged if the device isconnected to the USB socket (if the vehicle's
ignition is on or if the engine is running).
To connect a device:
1.
Press MEDIA and turn TUNE to select the
desired source (
iPod, USB or AUX). Press
OK/MENU.
> For example, if a USB device has been
selected, the text
Connect USB will be
displayed.
2. Connect the device to one of the sockets
in the center console storage compartment
(see the illustration).
The text
Reading USB will be displayed while
the system reads the device's folders. This may
take a short time, depending on the folder
structure and the number of files.
When this information has been loaded, track
information will be displayed and a track can
be selected.
NOTE
•The system supports a number of
iPodŸ models produced in 2005 or later.
•In order to help avoid damage to the
USB socket, it will be switched off if
there is a short circuit or if the con-
nected device uses too much current
(which can happen if the device does
not comply with the USB standard). The
USB socket will reactivate the next time
the ignition is switched on if the problem
no longer exists. If the problem persists,
contact a trained and authorized Volvo
service technician.
Media menu selections can be made from the
center console or the steering wheel keypad,
see page 216 for more information.
Navigating and playing tracks1
Turn TUNE to access the device's playlist and
to navigate in this list. Press OK/MENU to
either select a sub-folder or confirm a choice
and begin playback. Press EXIT to cancel and
exit the playlist or to go back in the folder struc-
ture. Press and hold EXIT to go to the highest
level in the playlist.
1USB and iPodŸ only
