YAMAHA AEROX50 2013 Owner's Manual

INSTRUMENT AND CONTROL FUNCTIONS
3-5
3 4. When the minutes digits start
flashing, push the “RESET/SE-
LECT” button to set the minutes.
5. Push the “RESET/SELECT” but-
ton for at least three seconds to
start the clock.
TIPAfter setting the clock, be sure to push
the “RESET/SELECT” button for at
least three seconds before turning the
key to “ ”, otherwise the clock will not
be set.Odometer and tripmeter modes

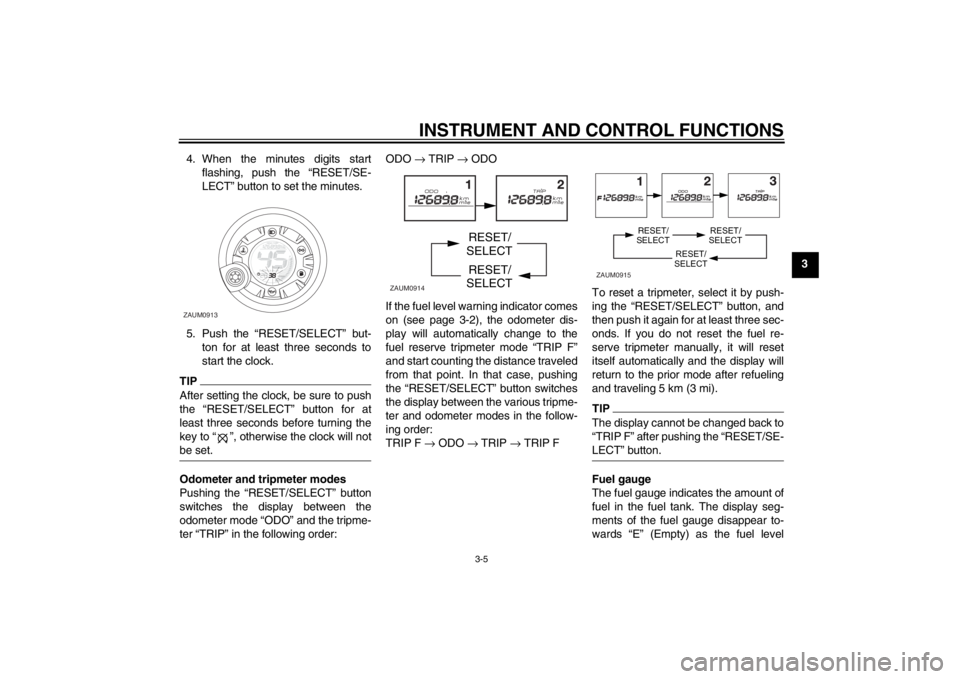

Pushing the “RESET/SELECT” button
switches the display between the
odometer mode “ODO” and the tripme-
ter “TRIP” in the following order:ODO → TRIP → ODO
If the fuel level warning indicator comes
on (see page 3-2), the odometer dis-
play will automatically change to the
fuel reserve tripmeter mode “TRIP F”
and start counting the distance traveled
from that point. In that case, pushing
the “RESET/SELECT” button switches
the display between the various tripme-
ter and odometer modes in the follow-
ing order:
TRIP F → ODO → TRIP → TRIP FTo reset a tripmeter, select it by push-
ing the “RESET/SELECT” button, and
then push it again for at least three sec-
onds. If you do not reset the fuel re-
serve tripmeter manually, it will reset
itself automatically and the display will
return to the prior mode after refueling
and traveling 5 km (3 mi).
TIPThe display cannot be changed back to
“TRIP F” after pushing the “RESET/SE-
LECT” button.Fuel gauge
The fuel gauge indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel gauge disappear to-
wards “E” (Empty) as the fuel level
ZAUM0913
ZAUM0914
RESET/
SELECT
RESET/
SELECT
ZAUM0915
RESET/
SELECT
RESET/
SELECT
RESET/
SELECT
U1PHE0E0.book Page 5 Wednesday, August 29, 2012 4:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-6
3decreases. When only one segment is
left near “E”, the fuel level warning indi-
cator comes on. Refuel as soon as pos-
sible.
TIPThe display segment containing the let-
ter ‘E’ (Empty) stays on continuously
and is not an indicator of fuel level in the
fuel tank.Self-diagnosis device
This model is equipped with a self-diag-
nosis device for the fuel electrical cir-
cuit.
If a problem is detected in the fuel elec-
trical circuit, all LCD segments of the
fuel gauge and the fuel level warning in-dicator will flash alternately. If this oc-
curs, have a Yamaha dealer check the
vehicle.
EAU1234B

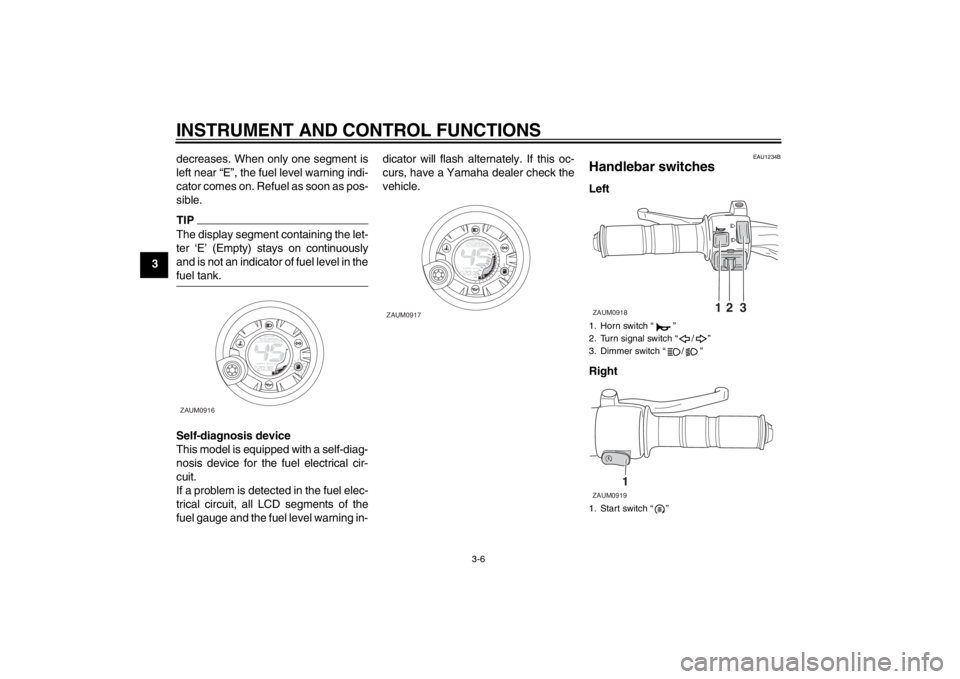

Handlebar switches Left
Right
ZAUM0916
ZAUM0917
1. Horn switch “ ”
2. Turn signal switch “ / ”
3. Dimmer switch “ / ”
1. Start switch “ ”ZAUM0918
12
3
1
ZAUM0919
U1PHE0E0.book Page 6 Wednesday, August 29, 2012 4:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
EAU12400
Dimmer switch “ / ”
Set this switch to “ ” for the high
beam and to “ ” for the low beam.
EAU12460
Turn signal switch “ / ”
To signal a right-hand turn, push this
switch to “ ”. To signal a left-hand
turn, push this switch to “ ”. When re-
leased, the switch returns to the center
position. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “ ”
Press this switch to sound the horn.
EAUM1132
Start switch “ ”
Push this switch while applying the
front or rear brake to crank the engine
with the starter. See page 5-1 for start-
ing instructions prior to starting the en-
gine.
EAU12901
Front brake lever The front brake lever is located on the
right side of the handlebar. To apply the
front brake, pull this lever toward the
throttle grip.
EAU12951
Rear brake lever The rear brake lever is located on the
left side of the handlebar. To apply the
rear brake, pull this lever toward the
handlebar grip.
1. Front brake lever
1
ZAUM0791
1. Rear brake lever
1
ZAUM0085
U1PHE0E0.book Page 7 Wednesday, August 29, 2012 4:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-8
3
EAUM2900
Fuel and 2-stroke engine oil
tank caps The fuel tank cap and the 2-stroke en-
gine oil tank cap are located under the
seat. (See page 3-11.)Fuel tank cap
To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, turn it clock-
wise.
2-stroke engine oil tank capTo remove the 2-stroke engine oil tank
cap, pull it off.
To install the 2-stroke engine oil tank
cap, push it into the oil tank opening.
WARNING
EWA10141
Make sure that the fuel and 2-stroke
engine oil tank caps are properly in-
stalled before riding the scooter.
Leaking fuel is a fire hazard.

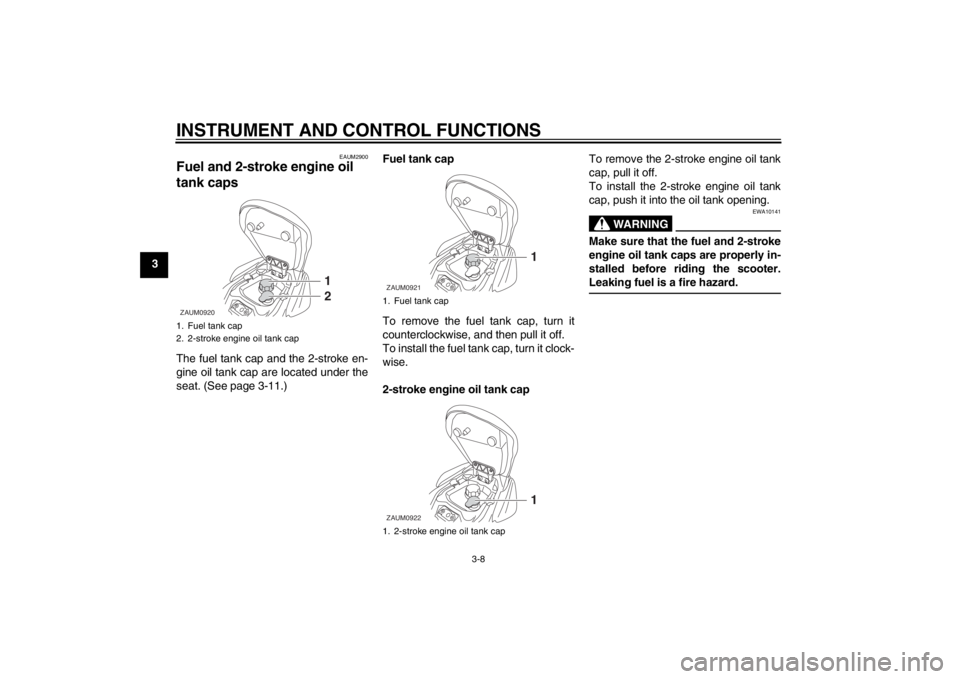

1. Fuel tank cap
2. 2-stroke engine oil tank capZAUM0920
1
2
1. Fuel tank cap
1. 2-stroke engine oil tank capZAUM0921
1
ZAUM0922
1
U1PHE0E0.book Page 8 Wednesday, August 29, 2012 4:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-9
3
EAU13221
Fuel Make sure there is sufficient gasoline in
the tank.
WARNING
EWA10881
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.1. Before refueling, turn off the en-
gine and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the vi-
cinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters and
clothes dryers.
2. Do not overfill the fuel tank. When
refueling, be sure to insert the
pump nozzle into the fuel tank filler
hole. Stop filling when the fuel
reaches the bottom of the filler
tube. Because fuel expands when
it heats up, heat from the engine or
the sun can cause fuel to spill out
of the fuel tank.3. Wipe up any spilled fuel immedi-
ately. NOTICE: Immediately wipe
off spilled fuel with a clean, dry,
soft cloth, since fuel may deteri-
orate painted surfaces or plastic
parts.
[ECA10071]
4. Be sure to securely close the fuel
tank cap.
WARNING
EWA15151
Gasoline is poisonous and can
cause injury or death. Handle gaso-
line with care. Never siphon gaso-
line by mouth. If you should swallow
some gasoline or inhale a lot of gas-
oline vapor, or get some gasoline in
your eyes, see your doctor immedi-ately. If gasoline spills on your skin,
wash with soap and water. If gaso-
line spills on your clothing, change
your clothes.
EAUM2730
Your Yamaha engine has been de-
signed to use premium unleaded gaso-
line with a research octane number of
95 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different
brand. Use of unleaded fuel will extend
spark plug life and reduce maintenance
costs.

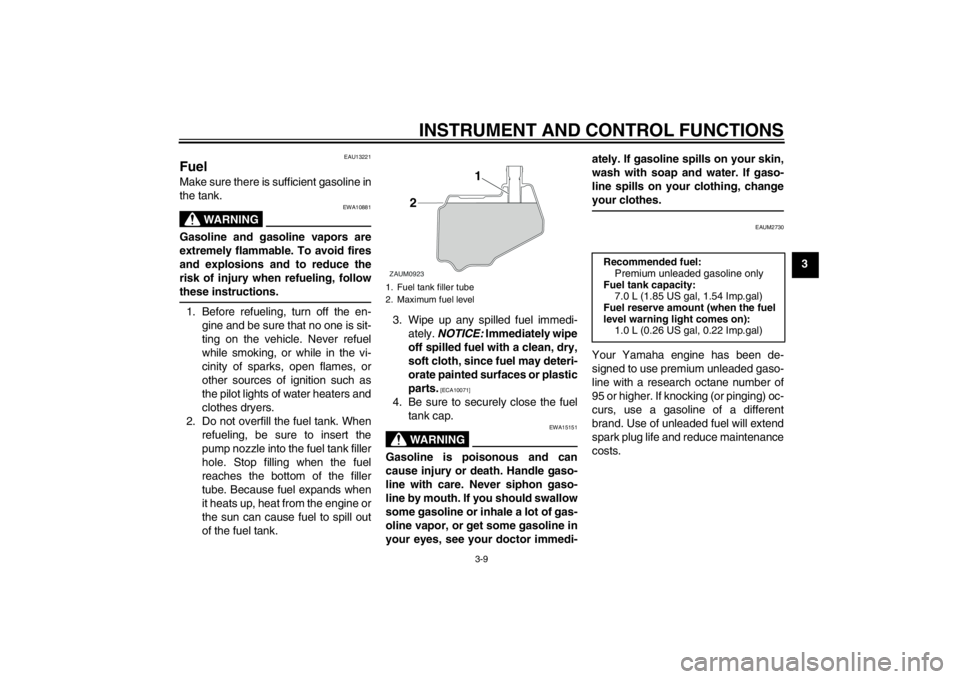

1. Fuel tank filler tube
2. Maximum fuel levelZAUM0923
1
2
Recommended fuel:
Premium unleaded gasoline only
Fuel tank capacity:
7.0 L (1.85 US gal, 1.54 Imp.gal)
Fuel reserve amount (when the fuel
level warning light comes on):
1.0 L (0.26 US gal, 0.22 Imp.gal)
U1PHE0E0.book Page 9 Wednesday, August 29, 2012 4:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-10
3
EAU13433
Catalytic converter This model is equipped with a catalytic
converter in the exhaust system.
WARNING
EWA10862
The exhaust system is hot after op-
eration. To prevent a fire hazard or
burns:●
Do not park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
●
Park the vehicle in a place
where pedestrians or children
are not likely to touch the hot
exhaust system.
●
Make sure that the exhaust sys-
tem has cooled down before do-
ing any maintenance work.
●
Do not allow the engine to idle
more than a few minutes. Long
idling can cause a build-up of
heat.
NOTICE
ECA10701
Use only unleaded gasoline. The use
of leaded gasoline will cause unre-
pairable damage to the catalytic
converter.
EAUM1151

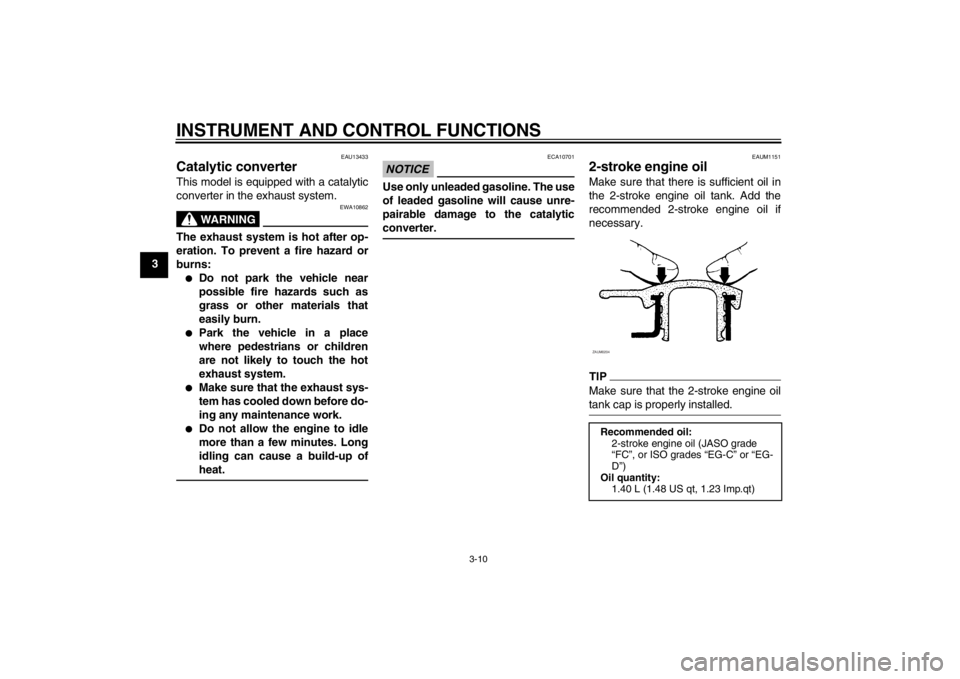

2-stroke engine oil Make sure that there is sufficient oil in
the 2-stroke engine oil tank. Add the
recommended 2-stroke engine oil if
necessary.TIPMake sure that the 2-stroke engine oil
tank cap is properly installed.Recommended oil:
2-stroke engine oil (JASO grade
“FC”, or ISO grades “EG-C” or “EG-
D”)
Oil quantity:
1.40 L (1.48 US qt, 1.23 Imp.qt)ZAUM0204
U1PHE0E0.book Page 10 Wednesday, August 29, 2012 4:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-11
3
EAU37650
Kickstarter If the engine fails to start by pushing the
start switch, try to start it by using the
kickstarter. To start the engine, fold out
the kickstarter lever, move it down light-
ly with your foot until the gears engage,
and then push it down smoothly but
forcefully.
EAUM2830
Seats Passenger seat
To open the passenger seat1. Place the scooter on the center-
stand.
2. Insert the key into the main switch,
and then turn it counterclockwise.
TIPDo not push inward when turning the
key.3. The passenger seat will fold up au-
tomatically.NOTICE
ECAM1110
Be sure to remove all objects on the
passenger seat before opening. Ob-
jects left on the seat may fall and
break or be damaged when the seat
opens.

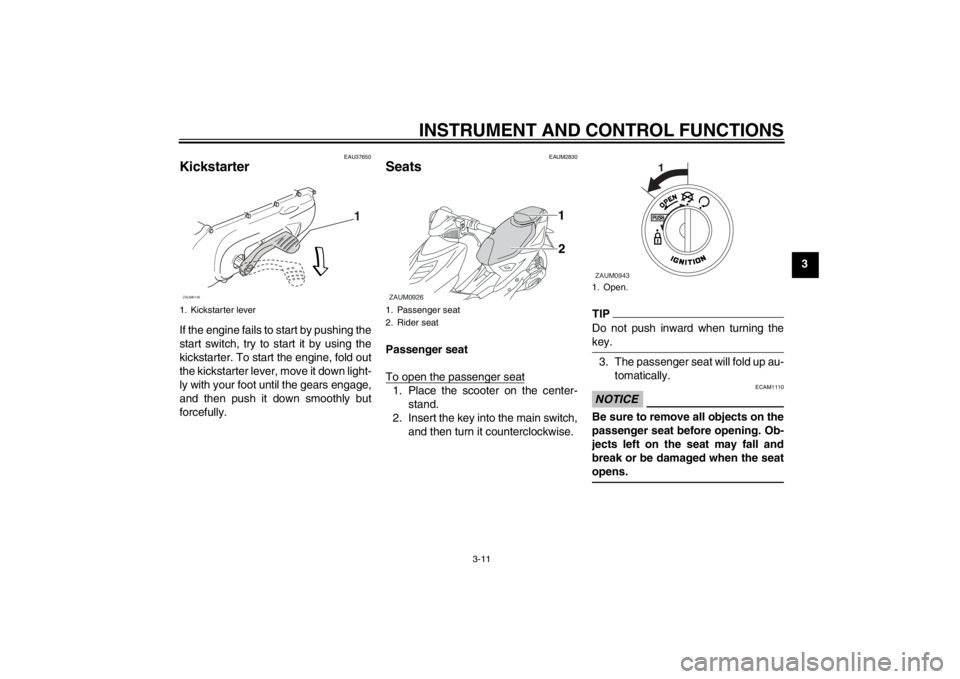

1. Kickstarter lever
1
ZAUM0146
1. Passenger seat
2. Rider seatZAUM0926
2 1
1. Open.ZAUM0943
U1PHE0E0.book Page 11 Wednesday, August 29, 2012 4:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-12
3
To close the passenger seat
1. Fold the passenger seat down,
and then push it down to lock it in
place.
2. Remove the key from the main
switch if the scooter will be left un-
attended.TIPMake sure that the passenger seat is
properly secured before riding.Rider seat
To open the rider seat1. Open the passenger seat.
2. Fold the rider seat up.To close the rider seat
1. Fold the rider seat down.
2. Close the passenger seat.TIPMake sure that the rider seat is properly
secured before riding.
EAUM2800
Storage compartment There is a storage compartment under
the rider seat. (See page 3-11.)
WARNING
EWA10961
●
Do not exceed the load limit of 3
kg (7 lb) for the storage com-
partment.
●
Do not exceed the maximum
load of 185 kg (408 lb) for the ve-
hicle.
NOTICE
ECA10081
Keep the following points in mind
when using the storage compart-
ment.

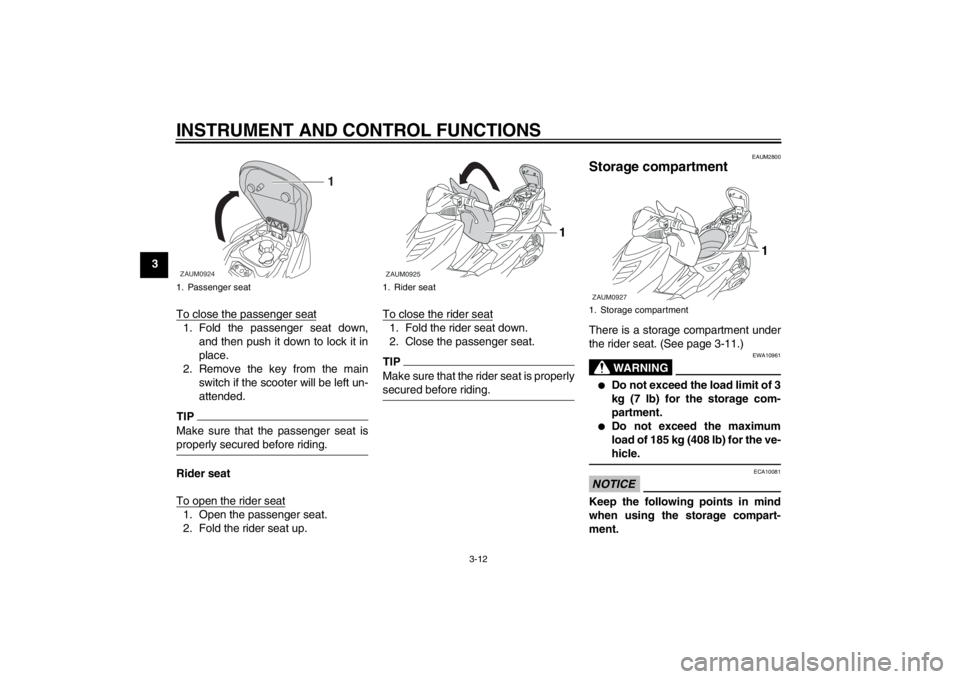

1. Passenger seatZAUM0924
1
1. Rider seatZAUM0925
1
1. Storage compartmentZAUM0927
1
U1PHE0E0.book Page 12 Wednesday, August 29, 2012 4:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-13
3
●
Since the storage compartment
accumulates heat when ex-
posed to the sun and/or the en-
gine heat, do not store anything
susceptible to heat, consum-
ables or flammable items inside
it.
●
To avoid humidity from spread-
ing through the storage com-
partment, wrap wet articles in a
plastic bag before storing them
in the compartment.
●
Since the storage compartment
may get wet while the scooter is
being washed, wrap any articles
stored in the compartment in a
plastic bag.
●
Do not keep anything valuable
or breakable in the storage com-
partment.
To store a helmet in the storage com-
partment, place the helmet with the
front facing forward.TIP●
Some helmets cannot be stored in
the storage compartment because
of their size or shape.
●
Do not leave your scooter unat-
tended with the seat open.
EAU14833
Adjusting the shock absorber
assembly (if equipped)This shock absorber assembly is
equipped with a spring preload adjust-
ing ring.NOTICE
ECA10101
To avoid damaging the mechanism,
do not attempt to turn beyond the
maximum or minimum settings.Adjust the spring preload as follows.
To increase the spring preload and
thereby harden the suspension, turn
the adjusting ring in direction (a). To de-
crease the spring preload and thereby
soften the suspension, turn the adjust-
ing ring in direction (b).
U1PHE0E0.book Page 13 Wednesday, August 29, 2012 4:42 PM

INSTRUMENT AND CONTROL FUNCTIONS
3-14
3Align the appropriate notch in the ad-
justing ring with the position indicator
on the shock absorber.
WARNING
EWA10221
This shock absorber assembly con-
tains highly pressurized nitrogen
gas. Read and understand the fol-
lowing information before handling
the shock absorber assembly.●
Do not tamper with or attempt to
open the cylinder assembly.
●
Do not subject the shock ab-
sorber assembly to an open
flame or other high heat source.
This may cause the unit to ex-
plode due to excessive gas
pressure.
●
Do not deform or damage the
cylinder in any way. Cylinder
damage will result in poor
damping performance.
●
Do not dispose of a damaged or
worn-out shock absorber as-
sembly yourself. Take the shock
absorber assembly to a Yamaha
dealer for any service.
1. Spring preload adjusting ring
2. Position indicatorSpring preload setting:Minimum (soft):1
Standard:
2
Maximum (hard): 4(b) (a)1ZAUM0961
1
2
3
4
2
U1PHE0E0.book Page 14 Thursday, September 6, 2012 3:30 PM
