Q SAFETY INFORMATION
tric failure could result, which could
cause a dangerous loss of lights or
engine power.
Gasoline and exhaust gas
8GASOLINE IS HIGHLY FLAM-
MABLE:
9Always turn the engine off
when refueling.
9Take care not to spill any
gasoline on the engine or
exhaust system when refueling.
9Never refuel while smoking or
in the vicinity of an open flame.
8Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of con-
sciousness and death within a
short time. Always operate your
scooter in an area that has adequate
ventilation.
8Always turn the engine off before
leaving the scooter unattended and
remove the key from the main
switch. When parking the scooter,
note the following:
9The engine and exhaustsystem may be hot, therefore,
park the scooter in a place
where pedestrians or children
are not likely to touch these hot
areas.
9Do not park the scooter on a
slope or soft ground, otherwise
it may fall over.
9Do not park the scooter near a
flammable source (e.g., a
kerosene heater, or near an
open flame), otherwise it could
catch fire.
8If you should swallow any gasoline,
inhale a lot of gasoline vapor, or
allow gasoline to get into your eyes,
see your doctor immediately. If any
gasoline spills on your skin or cloth-
ing, immediately wash the affected
area with soap and water and
change your clothes.
EAU10371
Further safe-riding points8Be sure to signal clearly when mak-
ing turns.ZAUM00**Turn leftZAUM00**Turn right
5ML-F8199-E1ch1.pmd2004/10/04, 20:07 4

1-5
1
2
3
4
5
6
7
8
9
Q QQ Q
Q SAFETY INFORMATION8Braking can be extremely difficult
on a wet road. Avoid hard braking,
because the scooter could slide.
Apply the brakes slowly when stop-
ping on a wet surface.
8Slow down as you approach a cor-
ner or turn. Once you have com-
pleted a turn, accelerate slowly.
8Be careful when passing parked
cars. A driver might not see you and
open a door in your path.
8Railroad crossings, streetcar rails,
iron plates on road construction
sites, and manhole covers become
extremely slippery when wet. Slow
down and cross them with caution.
Keep the scooter upright, otherwise
it could slide out from under you.
8The brake pads could get wet when
you wash the scooter. After wash-
ing the scooter, check the brakes
before riding.
8Always wear a helmet, gloves, trou-
sers (tapered around the cuff and
ankle so they do not flap), and a
bright colored jacket.
8Do not carry too much luggage on
the scooter. An overloaded scooter
is unstable.
5ML-F8199-E1ch1.pmd2004/10/04, 20:07 5

1-6
1
2
3
4
5
6
7
8
9
Q QQ Q
Q SAFETY INFORMATION
5ML-F8199-E1ch1.pmd2004/10/04, 20:07 6

2-1
1
2
3
4
5
6
7
8
9
DESCRIPTION
EAU10410
Left view
EAU10400
DESCRIPTION1. Luggage hook
2. Battery(Page:6-23)
3. Storage compartment(Page:3-8)
4. Tail/brake light(Page:6-27)
5. Rear turn signal light(Page:6-28)
6. Air filter(Page:6-11)
7. Kickstarter(Page:3-7)
8. V-belt case air filter(Page:6-11)
9. Fuel tank cap(Page:3-5)
1
23
4
5 6 7 8 9
5ML-F8199-E1ch2.pmd2004/10/04, 20:07 1

2-2
1
2
3
4
5
6
7
8
9
DESCRIPTION
EAU10420
Right view1. Front turn signal light(Page6-28)
2. Main fuse(Page:6-25)
3. Headlight(Page:6-26)
4. Centerstand(Page:6-21)
5. Fuse box(Page:6-25)
1
2
3
45
5ML-F8199-E1ch2.pmd2004/10/04, 20:07 2

2-3
1
2
3
4
5
6
7
8
9
DESCRIPTION
EAU10430
Controls and instruments1.Rear brake lever (Page3-4)
2.Left handlebar switches(Page:3-3)
3.Indicator lights(Page:3-2)
4.Speedometer unit(Page:3-3)
5.Fuel gauge(Page:3-3)
6.Right handlebar switches(Page:3-3)
7.Front brake lever(Page:3-4)
8.Main switch(Page:3-1)
12
34
56
7
8
5ML-F8199-E1ch2.pmd2004/10/04, 20:07 3

3-1
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
EAU10460
Main switch/steering lockZAUM00**
OFFON
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU10660
OFF
All electrical systems are off. The key
can be removed.
EAUT1422
ON
All electrical circuits are supplied with
power; the meter lighting, taillight, and
auxiliary light come on, and the engine
can be started. The key cannot be re-
moved.NOTE:
The headlights come on automatically
when the engine is started and stay on
until the key is turned to “OFF” or the
sidestand is moved down.
EAU10680
LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.To loc
k the steer
ing
ZAUM00**
OFFON
1
1. Push1. Turn the handlebars all the way to
the left.
2. Push the key in from the “OFF” po-
sition, and then turn it to “LOCK”
while still pushing it.
3. Remove the key.
To unloc
k the steer
ing
1
2
ZAUM00**1. Tur n
2. ReleasePush the key in, and then turn it to “OFF”
while still pushing it.
EWA10060
wNever turn the key to “OFF” or
“LOCK” while the vehicle is moving,
otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident. Make
sure that the vehicle is stopped be-
fore turning the key to “OFF” or
“LOCK”.
EAU10443
INSTRUMENT AND CONTROL FUNCTIONS
5ML-F8199-E1ch3.pmd2004/10/04, 20:07 1

3-2
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS

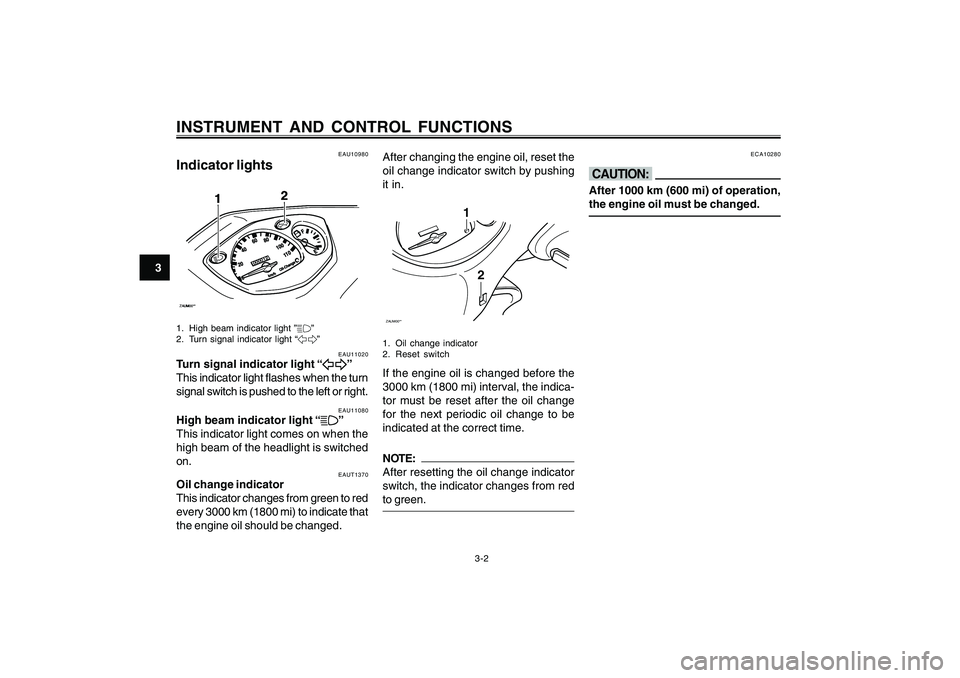

EAU10980
Indicator lightsZAUM00**
12
ZAUM00**
12
1. High beam indicator light ”&”
2. Turn signal indicator light “5”
EAU11020
Turn signal indicator light “
5 55 5
5”
This indicator light flashes when the turn
signal switch is pushed to the left or right.
EAU11080
High beam indicator light “
& && &
&”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAUT1370
Oil change indicator
This indicator changes from green to red
every 3000 km (1800 mi) to indicate that
the engine oil should be changed.After changing the engine oil, reset the
oil change indicator switch by pushing
it in.
ZAUM00**
1
2
1. Oil change indicator
2. Reset switchIf the engine oil is changed before the
3000 km (1800 mi) interval, the indica-
tor must be reset after the oil change
for the next periodic oil change to be
indicated at the correct time.NOTE:
After resetting the oil change indicator
switch, the indicator changes from red
to green.
ECA10280
cCAfter 1000 km (600 mi) of operation,
the engine oil must be changed.
5ML-F8199-E1ch3.pmd2004/10/04, 20:07 2

3-3
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS
EAU11620
Speedometer unitZAUM00**
12
1. Speedometer
2. Fuel gaugeThe speedometer unit is equipped with
a speedometer and an odometer. The
speedometer shows riding speed. The
odometer shows the total distance trav-
eled.
EAU12150
Fuel gaugeThe fuel gauge indicates the amount of
fuel in the fuel tank. The needle moves
towards “E” (Empty) as the fuel level
decreases. When the needle reaches the
red line, refuel as soon as possible.NOTE:
Do not allow the fuel tank to empty it-
self completely.
EAU12343
Handlebar switchesZAUM00**
1
2
3
1. Dimmer switch “%/&“
2. Turn signal switch “4/6”
3. Horn switch “*”ZAUM00**
1
1. Start switch “,”
5ML-F8199-E1ch3.pmd2004/10/04, 20:07 3

3-4
1
2
3
4
5
6
7
8
9
INSTRUMENT AND CONTROL FUNCTIONS

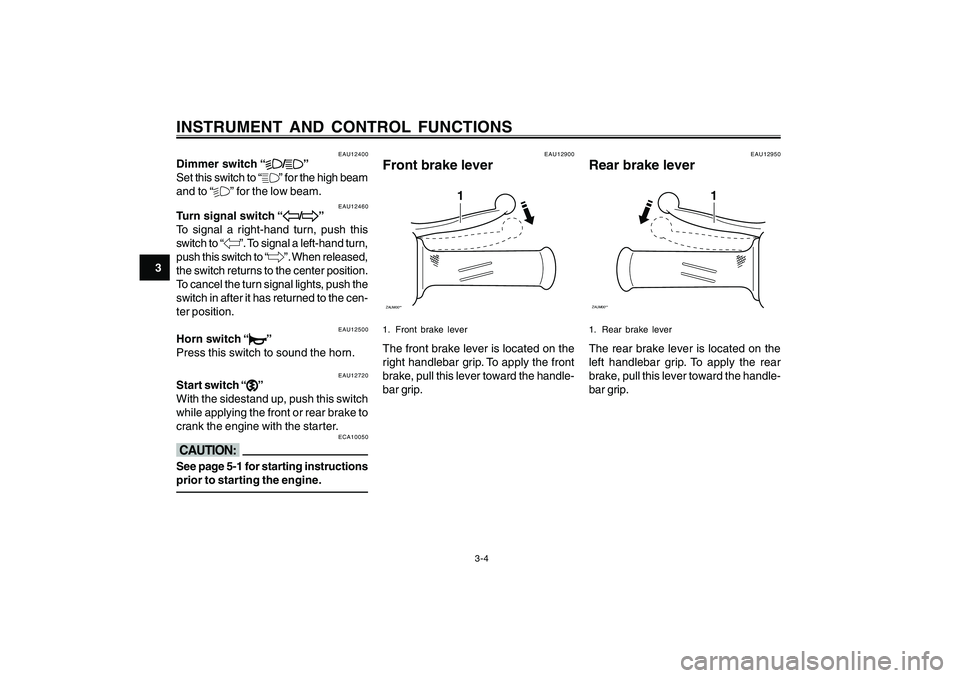

EAU12400
Dimmer switch “
% %% %
%/
& && &
&”
Set this switch to “&” for the high beam
and to “%” for the low beam.
EAU12460
Turn signal switch “
4 44 4
4/
6 66 6
6”
To signal a right-hand turn, push this
switch to “4”. To signal a left-hand turn,
push this switch to “6”. When released,
the switch returns to the center position.
To cancel the turn signal lights, push the
switch in after it has returned to the cen-
ter position.
EAU12500
Horn switch “
* ** *
*”
Press this switch to sound the horn.
EAU12720
Start switch “
, ,, ,
,”
With the sidestand up, push this switch
while applying the front or rear brake to
crank the engine with the starter.
ECA10050
cCSee page 5-1 for starting instructions
prior to starting the engine.
EAU12900
Front brake leverZAUM00**
1
1. Front brake leverThe front brake lever is located on the
right handlebar grip. To apply the front
brake, pull this lever toward the handle-
bar grip.
EAU12950
Rear brake leverZAUM00**
1
1. Rear brake leverThe rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the handle-
bar grip.
