OPERATION AND IMPORTANT RIDING POINTS
5-4
5
EAU17212

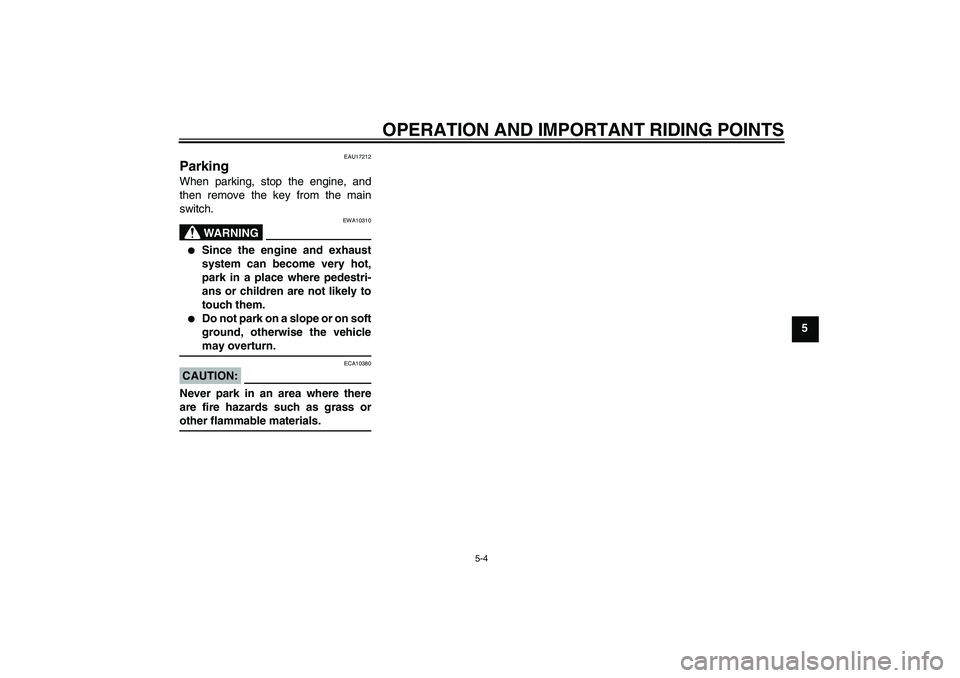

Parking When parking, stop the engine, and
then remove the key from the main
switch.
WARNING
EWA10310


Since the engine and exhaust
system can become very hot,
park in a place where pedestri-
ans or children are not likely to
touch them.


Do not park on a slope or on soft
ground, otherwise the vehiclemay overturn.
CAUTION:
ECA10380
Never park in an area where there
are fire hazards such as grass orother flammable materials.
U4P5E1E0.book Page 4 Monday, September 11, 2006 1:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-1
6
EAU17240

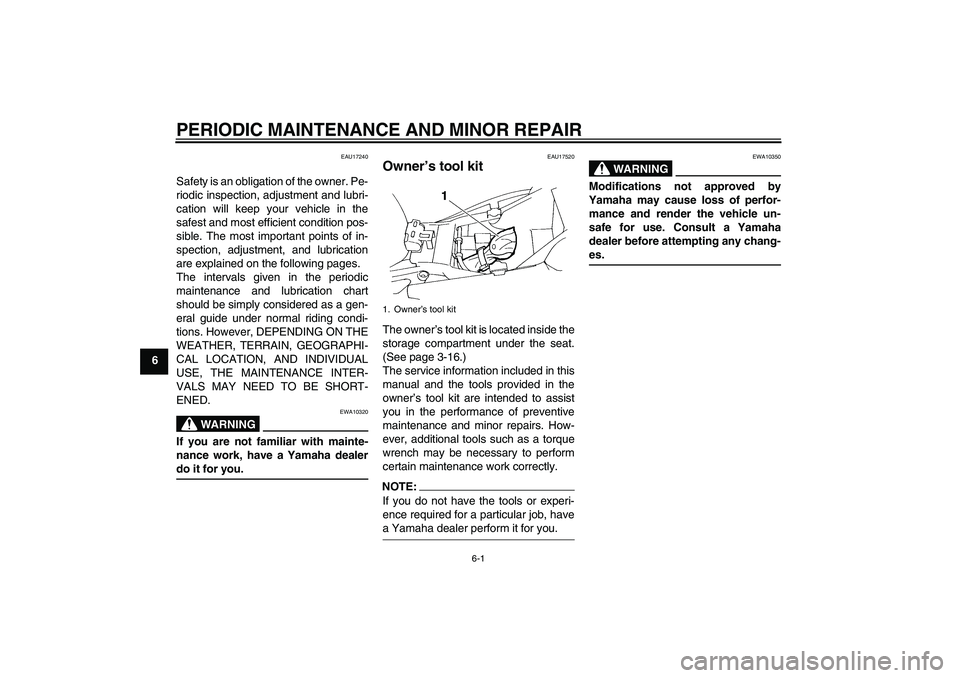

Safety is an obligation of the owner. Pe-
riodic inspection, adjustment and lubri-
cation will keep your vehicle in the
safest and most efficient condition pos-
sible. The most important points of in-
spection, adjustment, and lubrication
are explained on the following pages.
The intervals given in the periodic
maintenance and lubrication chart
should be simply considered as a gen-
eral guide under normal riding condi-
tions. However, DEPENDING ON THE
WEATHER, TERRAIN, GEOGRAPHI-
CAL LOCATION, AND INDIVIDUAL
USE, THE MAINTENANCE INTER-
VALS MAY NEED TO BE SHORT-
ENED.
WARNING
EWA10320
If you are not familiar with mainte-
nance work, have a Yamaha dealerdo it for you.
EAU17520
Owner’s tool kit The owner’s tool kit is located inside the
storage compartment under the seat.
(See page 3-16.)
The service information included in this
manual and the tools provided in the
owner’s tool kit are intended to assist
you in the performance of preventive
maintenance and minor repairs. How-
ever, additional tools such as a torque
wrench may be necessary to perform
certain maintenance work correctly.NOTE:If you do not have the tools or experi-
ence required for a particular job, havea Yamaha dealer perform it for you.
WARNING
EWA10350
Modifications not approved by
Yamaha may cause loss of perfor-
mance and render the vehicle un-
safe for use. Consult a Yamaha
dealer before attempting any chang-es.
1. Owner’s tool kit
U4P5E1E0.book Page 1 Monday, September 11, 2006 1:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU17705

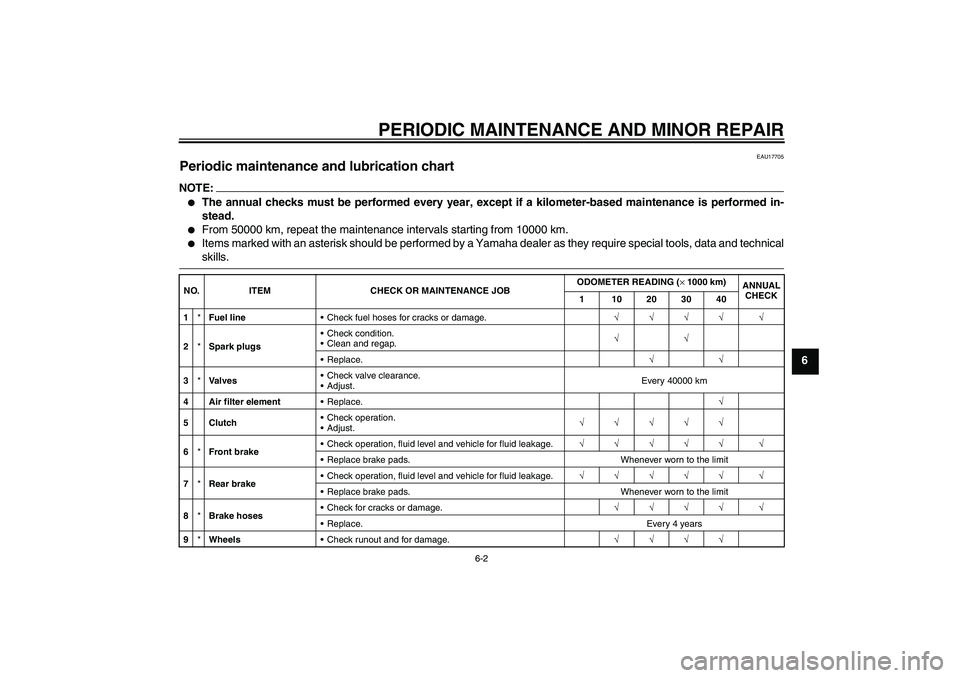

Periodic maintenance and lubrication chart NOTE:

The annual checks must be performed every year, except if a kilometer-based maintenance is performed in-
stead.


From 50000 km, repeat the maintenance intervals starting from 10000 km.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
1*Fuel lineCheck fuel hoses for cracks or damage.√√√√ √
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.Every 40000 km
4 Air filter elementReplace.√
5ClutchCheck operation.
Adjust.√√√√√
6*Front brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit
8*Brake hosesCheck for cracks or damage.√√√√ √
Replace. Every 4 years
9*WheelsCheck runout and for damage.√√√√
U4P5E1E0.book Page 2 Monday, September 11, 2006 1:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6

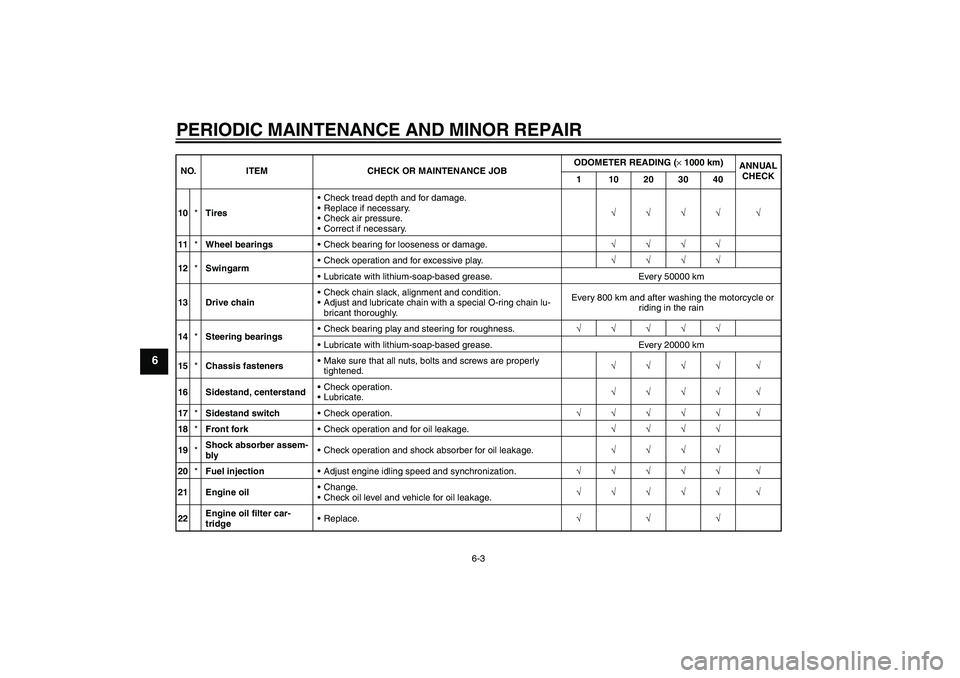

10*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
11*Wheel bearingsCheck bearing for looseness or damage.√√√√
12*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 50000 km
13 Drive chainCheck chain slack, alignment and condition.
Adjust and lubricate chain with a special O-ring chain lu-
bricant thoroughly. Every 800 km and after washing the motorcycle or
riding in the rain
14*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 20000 km
15*Chassis fastenersMake sure that all nuts, bolts and screws are properly
tightened.√√√√ √
16 Sidestand, centerstandCheck operation.
Lubricate.√√√√ √
17*Sidestand switchCheck operation.√√√√√ √
18*Front forkCheck operation and for oil leakage.√√√√
19*Shock absorber assem-
blyCheck operation and shock absorber for oil leakage.√√√√
20*Fuel injectionAdjust engine idling speed and synchronization.√√√√√ √
21 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
22Engine oil filter car-
tridgeReplace.√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040U4P5E1E0.book Page 3 Monday, September 11, 2006 1:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU18680
NOTE:

Air filter
This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com-
pressed air to avoid damaging it.
The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.


Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
23*Cooling systemCheck coolant level and vehicle for coolant leakage.√√√√ √
Change. Every 3 years
24*Front and rear brake
switchesCheck operation.√√√√√ √
25Moving parts and ca-
blesLubricate.√√√√ √
26*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
27*Air induction systemCheck the air cut-off valve, reed valve, and hose for dam-
age.
Replace the entire air induction system if necessary.√√√√ √
28*Muffler and exhaust
pipeCheck the screw clamp for looseness.√√√√√
29*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
U4P5E1E0.book Page 4 Monday, September 11, 2006 1:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5

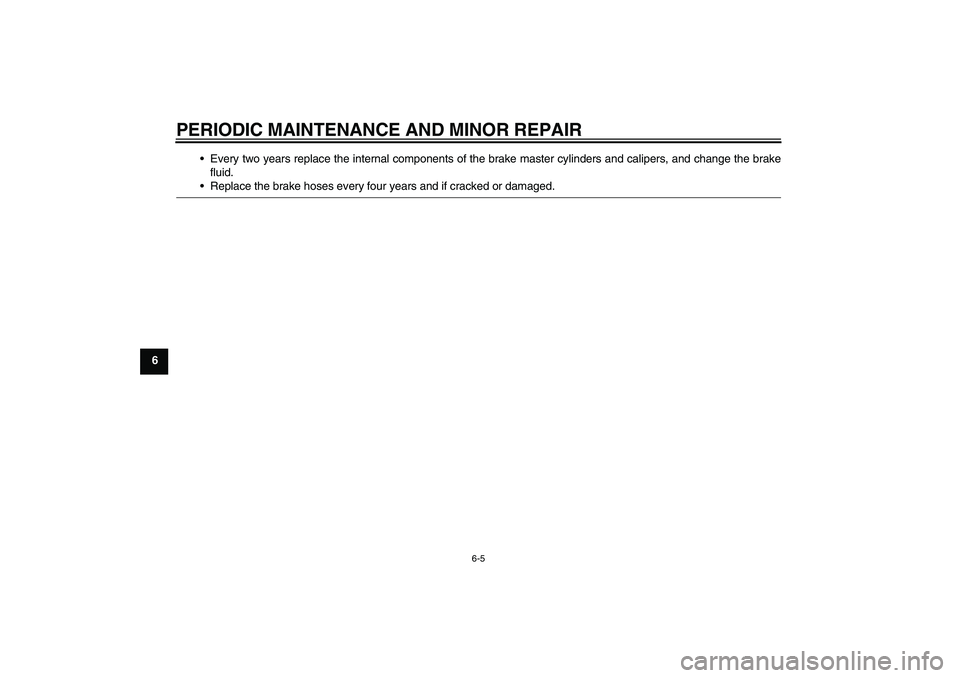

6Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.
Replace the brake hoses every four years and if cracked or damaged.
U4P5E1E0.book Page 5 Monday, September 11, 2006 1:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6
EAU18771

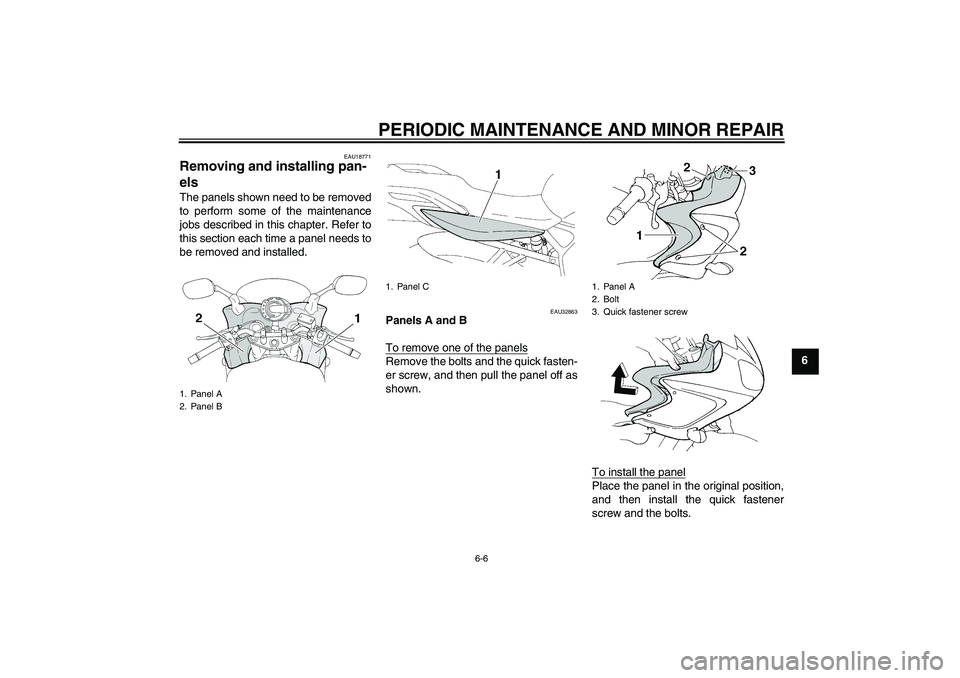

Removing and installing pan-
els The panels shown need to be removed
to perform some of the maintenance
jobs described in this chapter. Refer to
this section each time a panel needs to
be removed and installed.
EAU32863
Panels A and B
To remove one of the panelsRemove the bolts and the quick fasten-
er screw, and then pull the panel off as
shown.
To install the panel
Place the panel in the original position,
and then install the quick fastener
screw and the bolts.
1. Panel A
2. Panel B
1. Panel C
1. Panel A
2. Bolt
3. Quick fastener screw
U4P5E1E0.book Page 6 Monday, September 11, 2006 1:33 PM

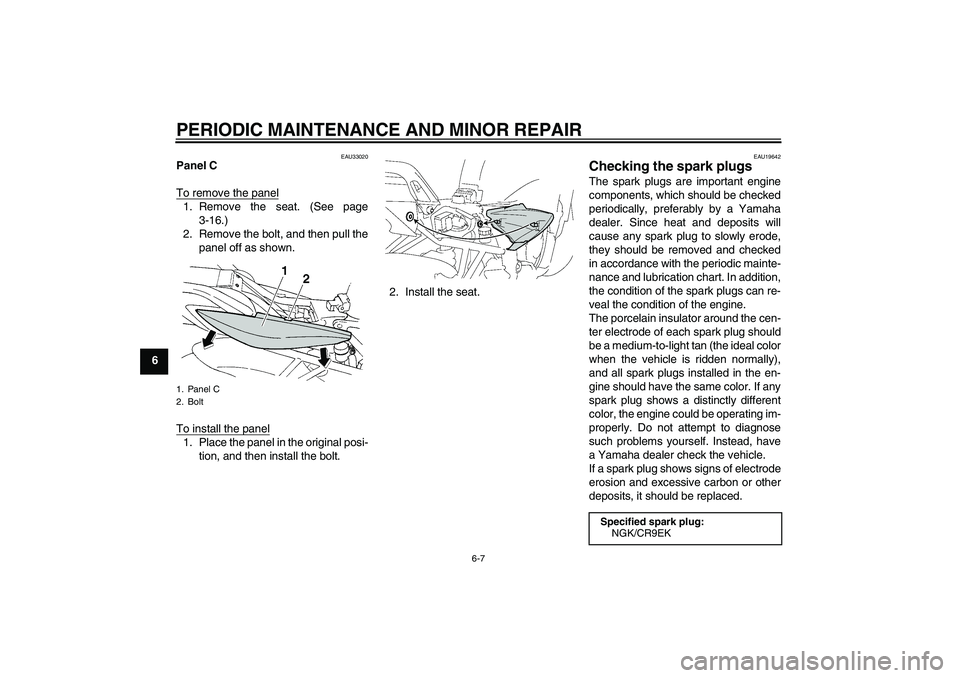

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
EAU33020
Panel C
To remove the panel1. Remove the seat. (See page
3-16.)
2. Remove the bolt, and then pull the
panel off as shown.
To install the panel1. Place the panel in the original posi-
tion, and then install the bolt.2. Install the seat.
EAU19642
Checking the spark plugs The spark plugs are important engine
components, which should be checked
periodically, preferably by a Yamaha
dealer. Since heat and deposits will
cause any spark plug to slowly erode,
they should be removed and checked
in accordance with the periodic mainte-
nance and lubrication chart. In addition,
the condition of the spark plugs can re-
veal the condition of the engine.
The porcelain insulator around the cen-
ter electrode of each spark plug should
be a medium-to-light tan (the ideal color
when the vehicle is ridden normally),
and all spark plugs installed in the en-
gine should have the same color. If any
spark plug shows a distinctly different
color, the engine could be operating im-
properly. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the vehicle.
If a spark plug shows signs of electrode
erosion and excessive carbon or other
deposits, it should be replaced.
1. Panel C
2. Bolt
Specified spark plug:
NGK/CR9EK
U4P5E1E0.book Page 7 Monday, September 11, 2006 1:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-8

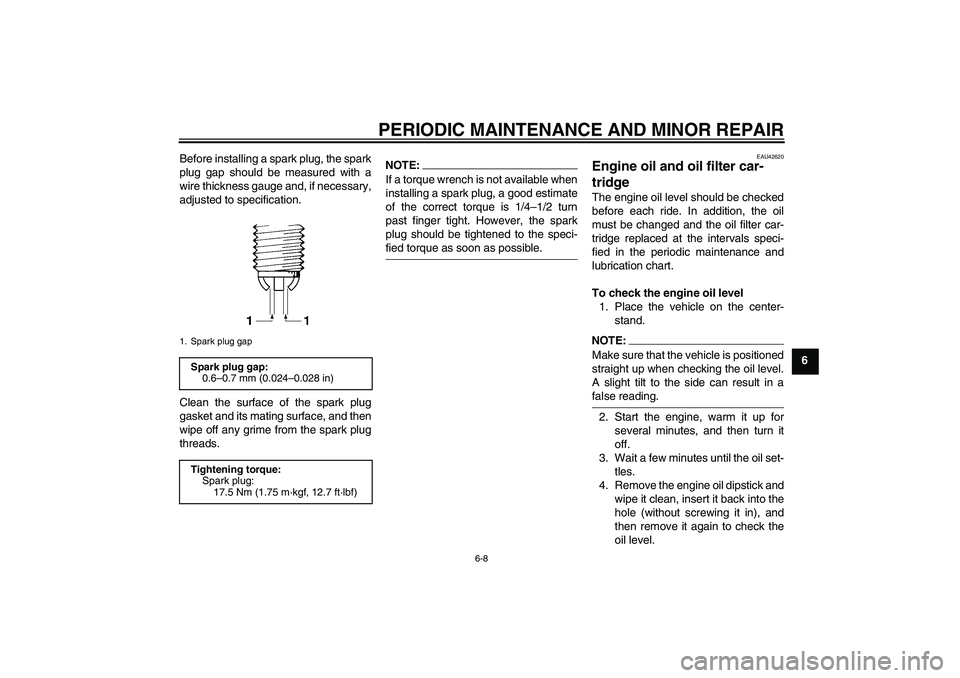

6 Before installing a spark plug, the spark
plug gap should be measured with a
wire thickness gauge and, if necessary,
adjusted to specification.
Clean the surface of the spark plug
gasket and its mating surface, and then
wipe off any grime from the spark plug
threads.
NOTE:If a torque wrench is not available when
installing a spark plug, a good estimate
of the correct torque is 1/4–1/2 turn
past finger tight. However, the spark
plug should be tightened to the speci-fied torque as soon as possible.
EAU42620
Engine oil and oil filter car-
tridge The engine oil level should be checked
before each ride. In addition, the oil
must be changed and the oil filter car-
tridge replaced at the intervals speci-
fied in the periodic maintenance and
lubrication chart.
To check the engine oil level
1. Place the vehicle on the center-
stand.NOTE:
Make sure that the vehicle is positioned
straight up when checking the oil level.
A slight tilt to the side can result in afalse reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
3. Wait a few minutes until the oil set-
tles.
4. Remove the engine oil dipstick and
wipe it clean, insert it back into the
hole (without screwing it in), and
then remove it again to check the
oil level.
1. Spark plug gapSpark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Tightening torque:
Spark plug:
17.5 Nm (1.75 m·kgf, 12.7 ft·lbf)
U4P5E1E0.book Page 8 Monday, September 11, 2006 1:33 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-9
6

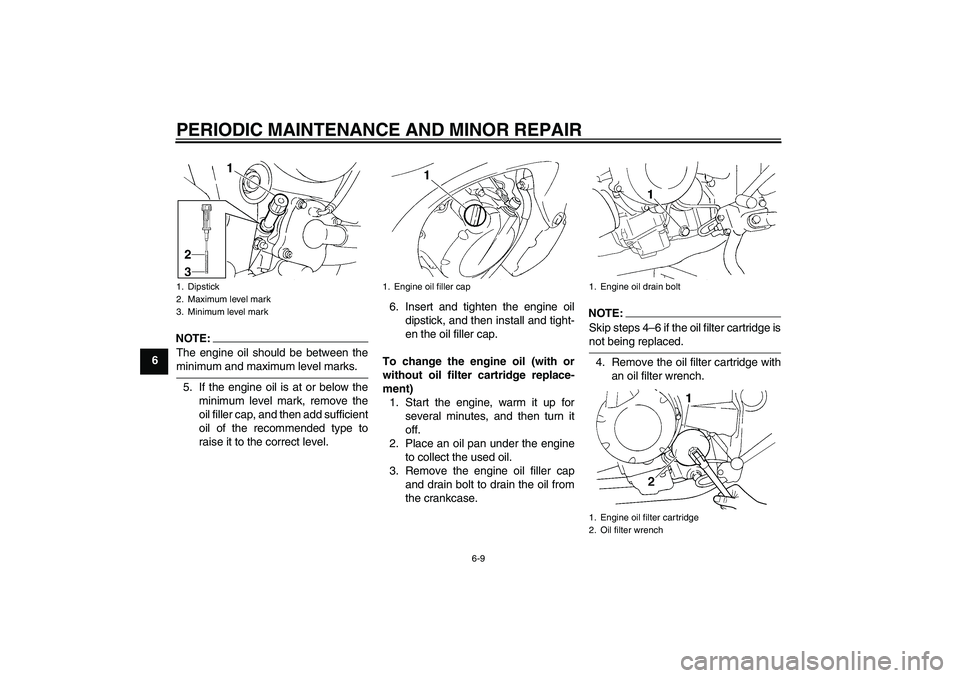

NOTE:The engine oil should be between theminimum and maximum level marks.
5. If the engine oil is at or below the
minimum level mark, remove the
oil filler cap, and then add sufficient
oil of the recommended type to
raise it to the correct level.6. Insert and tighten the engine oil
dipstick, and then install and tight-
en the oil filler cap.
To change the engine oil (with or
without oil filter cartridge replace-
ment)
1. Start the engine, warm it up for
several minutes, and then turn it
off.
2. Place an oil pan under the engine
to collect the used oil.
3. Remove the engine oil filler cap
and drain bolt to drain the oil from
the crankcase.
NOTE:
Skip steps 4–6 if the oil filter cartridge isnot being replaced.
4. Remove the oil filter cartridge with
an oil filter wrench.
1. Dipstick
2. Maximum level mark
3. Minimum level mark
1. Engine oil filler cap
1. Engine oil drain bolt
1. Engine oil filter cartridge
2. Oil filter wrench
