PERIODIC MAINTENANCE AND MINOR REPAIR
6-10
6
NOTE:An oil filter wrench is available at aYamaha dealer.

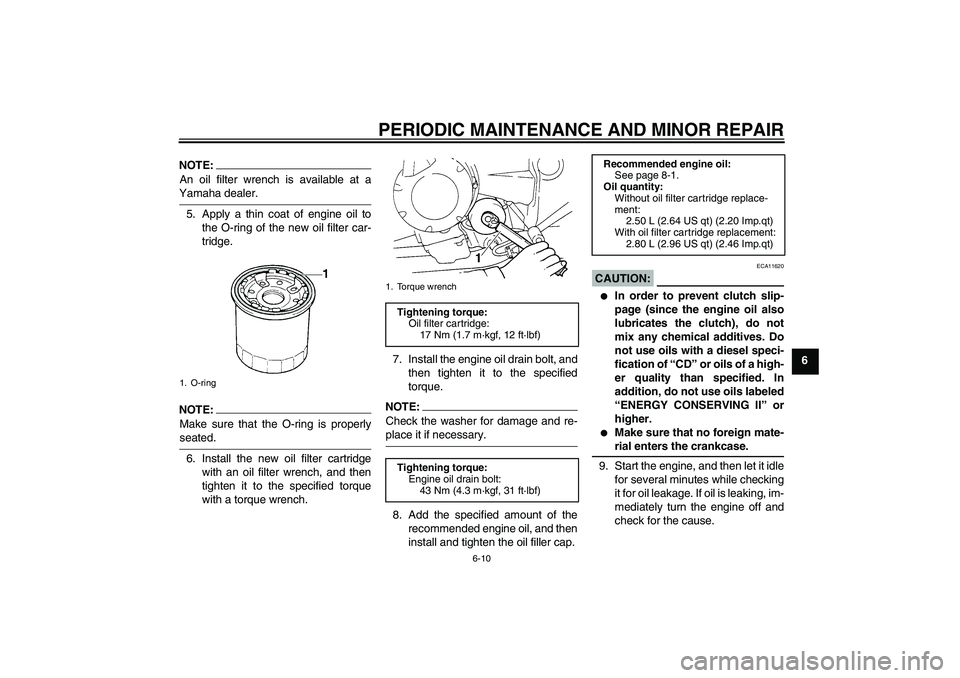

5. Apply a thin coat of engine oil to
the O-ring of the new oil filter car-
tridge.NOTE:Make sure that the O-ring is properlyseated.
6. Install the new oil filter cartridge
with an oil filter wrench, and then
tighten it to the specified torque
with a torque wrench.7. Install the engine oil drain bolt, and
then tighten it to the specified
torque.
NOTE:Check the washer for damage and re-place it if necessary.
8. Add the specified amount of the
recommended engine oil, and then
install and tighten the oil filler cap.
CAUTION:
ECA11620
In order to prevent clutch slip-
page (since the engine oil also
lubricates the clutch), do not
mix any chemical additives. Do
not use oils with a diesel speci-
fication of “CD” or oils of a high-
er quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-rial enters the crankcase.
9. Start the engine, and then let it idle
for several minutes while checking
it for oil leakage. If oil is leaking, im-
mediately turn the engine off and
check for the cause.
1. O-ring
1. Torque wrench
Tightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
43 Nm (4.3 m·kgf, 31 ft·lbf)
Recommended engine oil:
See page 8-1.
Oil quantity:
Without oil filter cartridge replace-
ment:
2.50 L (2.64 US qt) (2.20 Imp.qt)
With oil filter cartridge replacement:
2.80 L (2.96 US qt) (2.46 Imp.qt)
U4P5E1E0.book Page 10 Monday, September 11, 2006 1:33 PM
Page 52 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
NOTE:After the engine is started, the engine
oil level warning light should go off if theoil level is sufficient.CAUTION:
ECA10400
If the oil level warning light flickers
or remains on, immediately turn the
engine off and have a Yamaha dealercheck the vehicle.
10. Turn the engine off, and then
check the oil level and correct it if
necessary.
EAU20070
Coolant The coolant level should be checked
before each ride. In addition, the cool-
ant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU40151
To check the coolant level
The coolant level should be checked as
follows before each ride. In addition,
the coolant must be changed at the in-
tervals specified in the periodic mainte-
nance and lubrication chart.
1. Place the vehicle on the center-
stand.NOTE:
The coolant level must be checked
on a cold engine since the level
varies with engine temperature.
Make sure that the vehicle is posi-
tioned straight up when checking
the coolant level. A slight tilt to theside can result in a false reading.
2. Check the coolant level in the cool-
ant reservoir.
NOTE:The coolant should be between theminimum and maximum level marks.
3. If the coolant is at or below the
minimum level mark, remove the
reservoir cap.1. Coolant reservoir
2. Maximum level mark
3. Minimum level mark
U4P5E1E0.book Page 11 Monday, September 11, 2006 1:33 PM
Page 53 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-12
6 4. Add coolant or distilled water to
raise the coolant to the maximum
level mark, install the coolant res-
ervoir cap.
CAUTION:
ECA10471
If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-wise the cooling system will not
be protected against frost and
corrosion.
If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness ofthe coolant will be reduced.WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.NOTE:
The radiator fan is automatically
switched on or off according to the
coolant temperature in the radia-
tor.
If the engine overheats, see page6-37 for further instructions.
EAU40133
To change the coolant
1. Place the vehicle on the center-
stand and let the engine cool if
necessary.
2. Remove panel A. (See page 6-6.)3. Place a container under the engine
to collect the used coolant.
4. Remove the radiator cap retaining
bolt, radiator cap retainer and radi-
ator cap.
WARNING
EWA10380
Never attempt to remove the radiatorcap when the engine is hot.
5. Remove the coolant reservoir cap.
1. Coolant reservoir capCoolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
1. Radiator cap retaining bolt
2. Radiator cap
3. Radiator cap retainer
U4P5E1E0.book Page 12 Monday, September 11, 2006 1:33 PM
Page 54 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-13
66. Remove the coolant reservoir cov-
er and coolant reservoir by remov-
ing the bolts.
7. Drain the coolant from the coolant
reservoir by turning it upside down.8. Install the coolant reservoir and its
reservoir cover by placing them in
the original position, and then in-
stalling the bolts.
9. Remove the coolant drain bolt to
drain the cooling system.
10. After the coolant is completely
drained, thoroughly flush the cool-
ing system with clean tap water.
11. Install the coolant drain bolt, and
then tighten it to the specified
torque.
NOTE:Check the washer for damage and re-place it if necessary.12. Pour the specified amount of the
recommended coolant into the ra-
diator and reservoir.
CAUTION:
ECA10471
If coolant is not available, use
distilled water or soft tap water
instead. Do not use hard water
or salt water since it is harmful
to the engine.
1. Coolant reservoir cap
2. Coolant reservoir
1. Coolant reservoir cover
2. Bolt
1. Coolant drain bolt
Tightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol anti-
freeze containing corrosion inhibitors
for aluminum engines
Coolant quantity:
Radiator capacity (including all
routes):
2.00 L (2.11 US qt) (1.76 Imp.qt)
Coolant reservoir capacity (up to the
maximum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
U4P5E1E0.book Page 13 Monday, September 11, 2006 1:33 PM
Page 55 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-14
6
If water has been used instead
of coolant, replace it with cool-
ant as soon as possible, other-
wise the cooling system will not
be protected against frost and
corrosion.
If water has been added to the
coolant, have a Yamaha dealer
check the antifreeze content of
the coolant as soon as possible,
otherwise the effectiveness ofthe coolant will be reduced.
13. Install the coolant reservoir cap.
14. Install the radiator cap, radiator
cap retainer and radiator cap re-
taining bolt.15. Start the engine, let it idle for sev-
eral minutes, and then turn it off.
16. Remove the radiator cap to check
the coolant level in the radiator. If
necessary, add sufficient coolant
until it reaches the top of the radia-
tor, and then install the radiator
cap, radiator cap retainer and radi-
ator cap retaining bolt.
17. Check the coolant level in the res-
ervoir. If necessary, remove the
coolant reservoir cap, add coolant
to the maximum level mark, and
then install the cap.
18. Start the engine, and then check
the vehicle for coolant leakage. If
coolant is leaking, have a Yamaha
dealer check the cooling system.
19. Install the panel.
EAU32885
Replacing the air filter element The air filter element should be re-
placed at the intervals specified in the
periodic maintenance and lubrication
chart. Replace the air filter element
more frequently if you are riding in un-
usually wet or dusty areas.
1. Remove the seat. (See page
3-16.)
2. Remove panels A and B. (See
page 6-6.)
3. Remove the fuel tank bolts, and
then lift the fuel tank away from the
air filter case.
4. Remove the air filter case cover by
removing the screws.
1. Radiator cap retaining bolt
2. Radiator cap
3. Radiator cap retainer
1. Bolt
U4P5E1E0.book Page 14 Monday, September 11, 2006 1:33 PM
Page 56 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-15

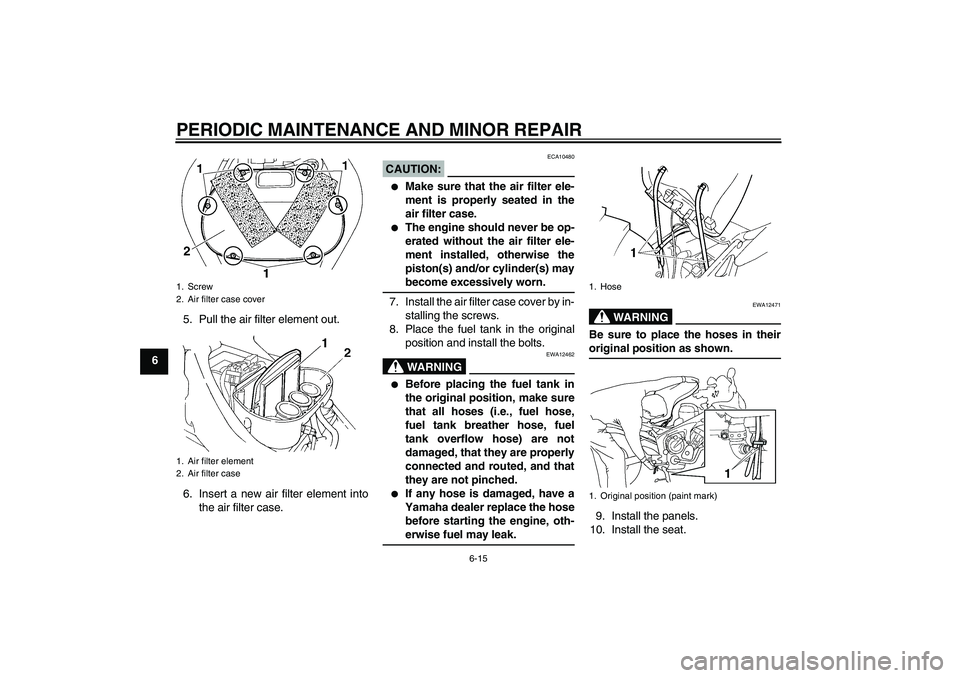

65. Pull the air filter element out.
6. Insert a new air filter element into
the air filter case.
CAUTION:
ECA10480
Make sure that the air filter ele-
ment is properly seated in the
air filter case.
The engine should never be op-
erated without the air filter ele-
ment installed, otherwise the
piston(s) and/or cylinder(s) maybecome excessively worn.
7. Install the air filter case cover by in-
stalling the screws.
8. Place the fuel tank in the original
position and install the bolts.WARNING
EWA12462
Before placing the fuel tank in
the original position, make sure
that all hoses (i.e., fuel hose,
fuel tank breather hose, fuel
tank overflow hose) are not
damaged, that they are properly
connected and routed, and that
they are not pinched.
If any hose is damaged, have a
Yamaha dealer replace the hose
before starting the engine, oth-erwise fuel may leak.
WARNING
EWA12471
Be sure to place the hoses in theiroriginal position as shown.
9. Install the panels.
10. Install the seat.
1. Screw
2. Air filter case cover
1. Air filter element
2. Air filter case
1. Hose
1. Original position (paint mark)
U4P5E1E0.book Page 15 Monday, September 11, 2006 1:33 PM
Page 57 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6
EAU34300

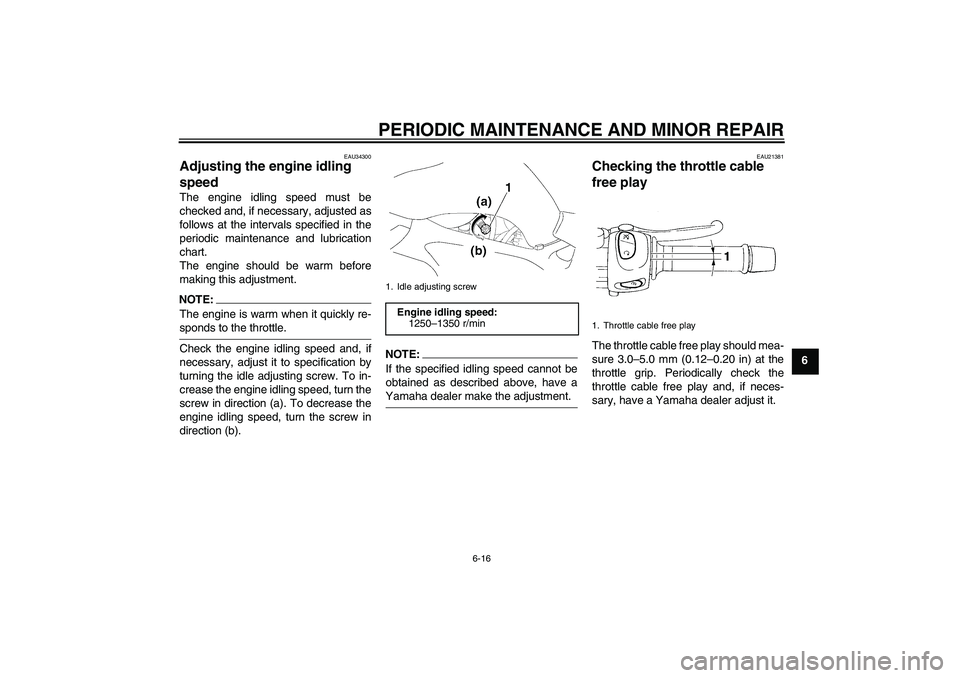

Adjusting the engine idling
speed The engine idling speed must be
checked and, if necessary, adjusted as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
The engine should be warm before
making this adjustment.NOTE:
The engine is warm when it quickly re-sponds to the throttle.
Check the engine idling speed and, if
necessary, adjust it to specification by
turning the idle adjusting screw. To in-
crease the engine idling speed, turn the
screw in direction (a). To decrease the
engine idling speed, turn the screw in
direction (b).
NOTE:
If the specified idling speed cannot be
obtained as described above, have aYamaha dealer make the adjustment.
EAU21381
Checking the throttle cable
free play The throttle cable free play should mea-
sure 3.0–5.0 mm (0.12–0.20 in) at the
throttle grip. Periodically check the
throttle cable free play and, if neces-
sary, have a Yamaha dealer adjust it.
1. Idle adjusting screw
Engine idling speed:
1250–1350 r/min
1. Throttle cable free play
U4P5E1E0.book Page 16 Monday, September 11, 2006 1:33 PM
Page 58 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
6
EAU21401

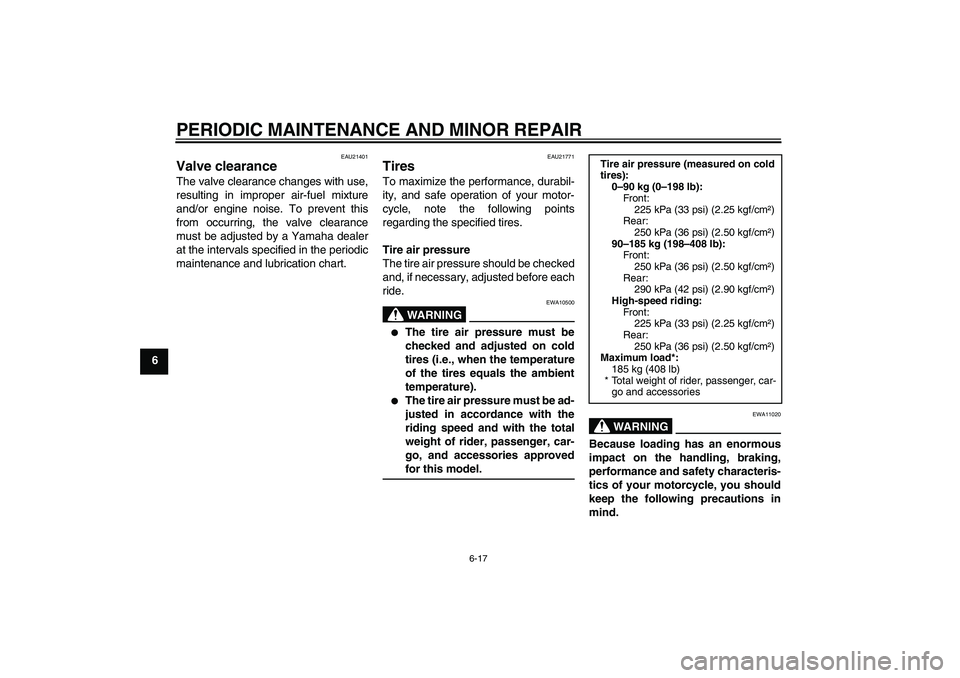

Valve clearance The valve clearance changes with use,
resulting in improper air-fuel mixture
and/or engine noise. To prevent this
from occurring, the valve clearance
must be adjusted by a Yamaha dealer
at the intervals specified in the periodic
maintenance and lubrication chart.
EAU21771
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10500
The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).
The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
WARNING
EWA11020
Because loading has an enormous
impact on the handling, braking,
performance and safety characteris-
tics of your motorcycle, you should
keep the following precautions in
mind.Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Front:
225 kPa (33 psi) (2.25 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)
90–185 kg (198–408 lb):
Front:
250 kPa (36 psi) (2.50 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
225 kPa (33 psi) (2.25 kgf/cm²)
Rear:
250 kPa (36 psi) (2.50 kgf/cm²)
Maximum load*:
185 kg (408 lb)
* Total weight of rider, passenger, car-
go and accessories
U4P5E1E0.book Page 17 Monday, September 11, 2006 1:33 PM
Page 59 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6
NEVER OVERLOAD THE
MOTORCYCLE! Operation of an
overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
that the total weight of rider,
passenger, cargo, and accesso-
ries does not exceed the speci-
fied maximum load for the
vehicle.
Do not carry along loosely
packed items, which can shift
during a ride.
Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.
Adjust the suspension and tire
air pressure with regard to the
load.

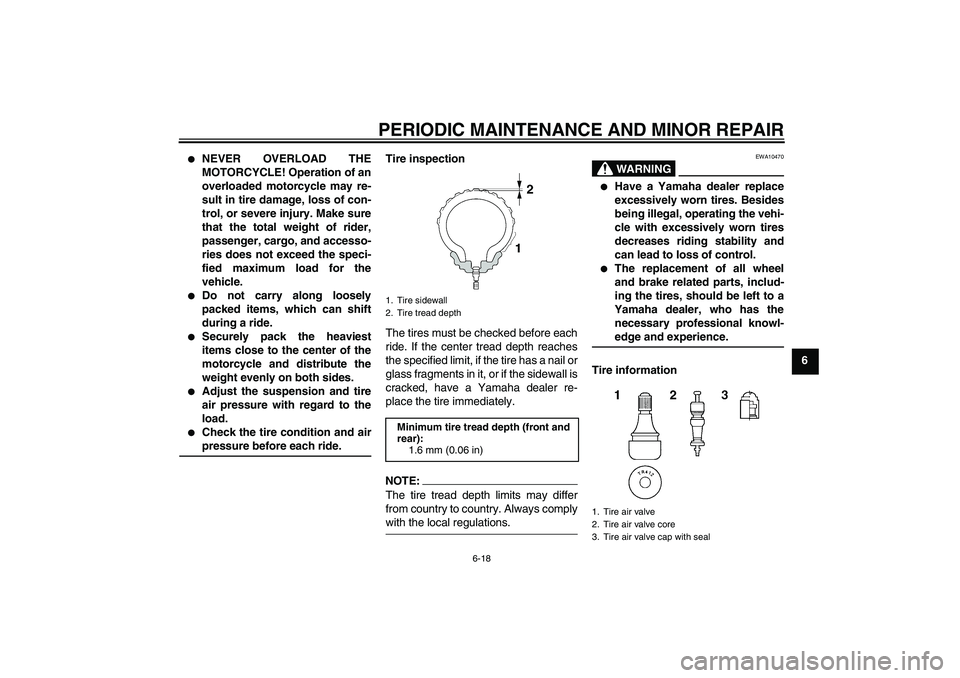

Check the tire condition and airpressure before each ride.Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
NOTE:The tire tread depth limits may differ
from country to country. Always complywith the local regulations.
WARNING
EWA10470
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.
The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-edge and experience.
Tire information
1. Tire sidewall
2. Tire tread depth
Minimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
1. Tire air valve
2. Tire air valve core
3. Tire air valve cap with seal
U4P5E1E0.book Page 18 Monday, September 11, 2006 1:33 PM
Page 60 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6This motorcycle is equipped with cast
wheels and tubeless tires with valves.
WARNING
EWA10480
The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the motor-
cycle cannot be guaranteed.
After extensive tests, only the
tires listed below have been ap-
proved for this model by
Yamaha Motor Co., Ltd.
Always make sure that the valve
caps are securely installed to
prevent air pressure leakage.
Use only the tire valves and
valve cores listed below to
avoid tire deflation during ahigh-speed ride.
WARNING
EWA10600
This motorcycle is fitted with super-
high-speed tires. Note the following
points in order to make the most ef-
ficient use of these tires.
Use only the specified replace-
ment tires. Other tires may run
the danger of bursting at super
high speeds.
Brand-new tires can have a rela-
tively poor grip on certain road
surfaces until they have been“broken in”. Therefore, it is ad-
visable before doing any high-
speed riding to ride conserva-
tively for approximately 100 km
(60 mi) after installing a new tire.
The tires must be warmed up
before a high-speed run.
Always adjust the tire air pres-
sure according to the operatingconditions.
Front tire:
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
BRIDGESTONE/BT020F GG
DUNLOP/D252F
Rear tire:
Size:
180/55 ZR17M/C (73W)
Manufacturer/model:
BRIDGESTONE/BT020R GG
DUNLOP/D252
FRONT and REAR:
Tire air valve:
TR412
Va l ve c o r e :
#9100 (original)
U4P5E1E0.book Page 19 Monday, September 11, 2006 1:33 PM
