YAMAHA GRIZZLY 350 2016 Owners Manual

8-8
8
EBU28392TIPSome maintenance items need more frequent service if you are riding in unusually wet, dusty, sandy or
muddy areas, or at full-throttle.
 Hydraulic brake service
• Regularly check and, if necessary, correct the brake fluid level.
• Every two years replace the internal components of the brake master cylinder and calipers, and chan-
ge the brake fluid.
• Replace the brake hoses every four years and if cracked or damaged. 23 *Throttle lever • Check operation.
• Check throttle lever free play, and adjust if neces-
sary.
• Lubricate cable and lever housing. √√√√√
24 *Front and rear
brake switches
• Check operation and correct if necessary.
√√√√√
25 *Lights and switches • Check operation and correct if necessary.
• Adjust headlight beams. √√√√√
NO. ITEM
CHECK OR MAINTENANCE
JOB INITIAL EVERY
Whichev- er comes first month136612
km (mi) 320
(200) 1300
(800) 2500
(1600) 2500
(1600) 5000
(3200)
hours 20 80 160 160 320U1NS64E0.book Page 8 Thursday, June 25, 2015 8:36 AM

8-9
8
EBU23214Checking the spark plugThe spark plug is an important engine component,
which is easy to check. Since heat and deposits
will cause any spark plug to slowly erode, the
spark plug should be removed and checked in ac-
cordance with the periodic maintenance and lubri-
cation chart. In addition, the condition of the spark
plug can reveal the condition of the engine.
To remove the spark plug1. Remove the spark plug cap. 2. Remove the spark plug as shown, with the
spark plug wrench included in the owner’s
tool kit.
To check the spark plug 1. Check that the porcelain insulator around the center electrode of the spark plug is a medi-
um-to-light tan (the ideal color when the ATV
is ridden normally).1. Spark plug cap
1. Spark plug wrench
U1NS64E0.book Page 9 Thursday, June 25, 2015 8:36 AM

8-10
8
TIPIf the spark plug shows a distinctly different color,
the engine could be operating improperly. Do not
attempt to diagnose such problems yourself. In-
stead, have a Yamaha dealer check the ATV. 2. Check the spark plug for electrode erosionand excessive carbon or other deposits, and
replace it if necessary.
3. Measure the spark plug gap with a wire thick- ness gauge and, if necessary, adjust the gap
to specification.
To install the spark plug1. Clean the surface of the spark plug gasket and its mating surface, and then wipe off any
grime from the spark plug threads.
2. Install the spark plug with the spark plug wrench, and then tighten it to the specified
torque.
Specified spark plug:
NGK/DR8EA
1. Spark plug gapSpark plug gap:0.6–0.7 mm (0.024–0.028 in)
U1NS64E0.book Page 10 Thursday, June 25, 2015 8:36 AM

8-11
8
TIPIf a torque wrench is not available when installing
the spark plug, a good estimate of the correct
torque is 1/4–1/2 turn past finger tight. However,
the spark plug should be tightened to the speci-
fied torque as soon as possible. 3. Install the spark plug cap.EBU2331AEngine oil and oil filter cartridgeThe engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals
specified in the periodic maintenance and lubrica-
tion chart.
To check the engine oil level1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.
TIPIf the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least ten minutes until the oil set-
tles for an accurate reading. 3. Remove the engine oil filler cap, and then wipe the engine oil dipstick off with a clean
rag.
4. Insert the dipstick into the filler hole (without screwing it in), and then remove it again to
check the oil level.
Tightening torque:
Spark plug:18 Nm (1.8 m·kgf, 13 ft·lbf)1. Engine oil filler cap
U1NS64E0.book Page 11 Thursday, June 25, 2015 8:36 AM

8-12
8
TIPThe engine oil should be between the tip of the
dipstick and the maximum level mark. 5. If the engine oil is not between the tip of thedipstick and the maximum level mark, add
sufficient oil of the recommended type to
raise it to the correct level. NOTICE: Be sure
the engine oil is at the correct level, other-
wise engine damage may result.
[ECB00852]
6. Insert the dipstick into the oil filler hole, and then tighten the engine oil filler cap. To change the engine oil (with or without oil fil-
ter cartridge replacement)
1. Place the ATV on a level surface.
2. Start the engine, warm it up for several minu- tes, and then turn it off.
3. Place an oil pan under the engine to collect the used oil.
4. Remove the engine oil filler cap, and then re- move the engine oil drain bolt and its gasket
to drain the oil from the crankcase.1. Engine oil dipstick
2. Maximum level mark
3. Tip of the engine oil dipstick
1. Engine oil drain bolt
2. Gasket
12
U1NS64E0.book Page 12 Thursday, June 25, 2015 8:36 AM

8-13
8
TIPSkip steps 5–7 if the oil filter cartridge is not being
replaced. 5. Remove the oil filter cartridge with an oil filterwrench.
TIPAn oil filter wrench is available at a nearby Yamaha
dealer. 6. Apply a thin coat of engine oil to the O-ring ofthe new oil filter cartridge.TIPMake sure that the O-ring is properly seated.
1. Oil filter cartridge
1
1. Oil filter wrench
1
U1NS64E0.book Page 13 Thursday, June 25, 2015 8:36 AM

8-14
8
7. Install the new oil filter cartridge with an oil fil-
ter wrench, and then tighten it to the specified
torque with a torque wrench.
8. Install the engine oil drain bolt and its newgasket, and then tighten the bolt to the spec-
ified torque.
1. O-ring
1. Torque wrenchTightening torque:Oil filter cartridge:17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque: Engine oil drain bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)
1
U1NS64E0.book Page 14 Thursday, June 25, 2015 8:36 AM

8-15
89. Refill with the specified amount of the recom-
mended engine oil, and then install and tight-
en the engine oil filler cap.
TIPBe sure to wipe off spilled oil on any parts after the
engine and exhaust system have cooled down. NOTICEECB00301In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher. 
Make sure that no foreign material enters the
crankcase.
10. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
11. Turn the engine off, wait at least ten minutes, and then check the oil level and correct it if
necessary.EBU23387Final gear oilThe final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil level must be checked and
the oil changed as follows at the intervals speci-
fied in the periodic maintenance and lubrication
chart.
To check the final gear oil level1. Place the ATV on a level surface.
2. Remove the final gear oil filler bolt and its gas- ket, and then check the oil level in the final
gear case. The oil level should be at the brim
of the filler hole.
Recommended oil:
See page 10-1.
Oil quantity: Without oil filter cartridge replacement:2.20 L (2.33 US qt, 1.94 Imp.qt)
With oil filter cartridge replacement: 2.30 L (2.43 US qt, 2.02 Imp.qt)
U1NS64E0.book Page 15 Thursday, June 25, 2015 8:36 AM

8-16
8
3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to
raise it to the correct level.
4. Check the gasket for damage, and replace it if necessary.
5. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque. To change the final gear oil
1. Place the ATV on a level surface.
2. Remove the final gear case guard by remov- ing the bolts.
3. Place an oil pan under the final gear case to collect the used oil.
4. Remove the final gear oil filler bolt, the final gear oil drain bolt, and their gasket to drain
the oil from the final gear case.

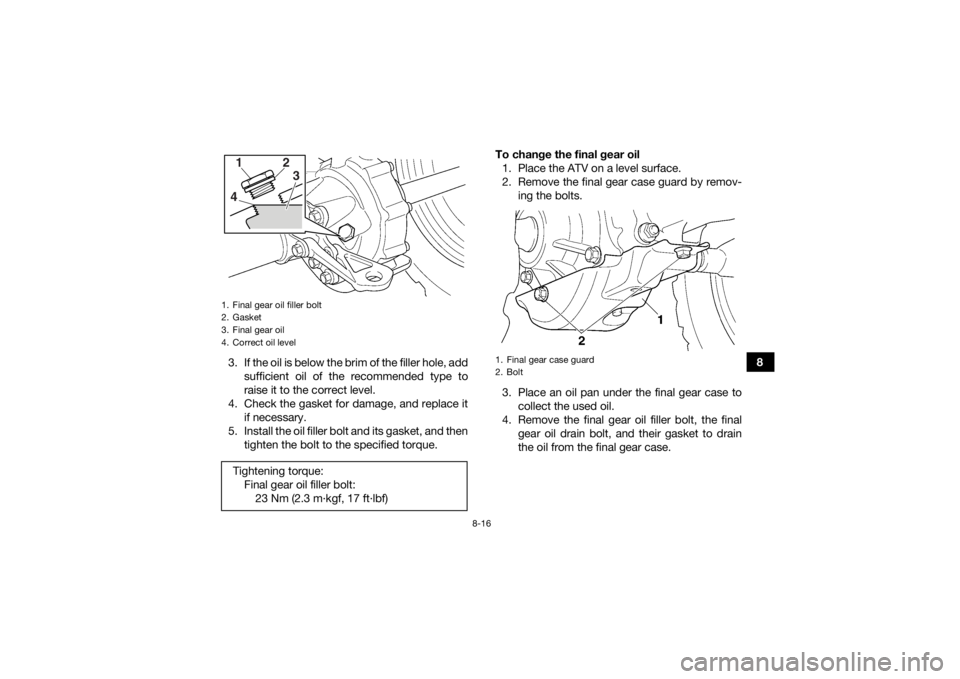

1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelTightening torque:Final gear oil filler bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)1
23
4
1. Final gear case guard
2. Bolt
U1NS64E0.book Page 16 Thursday, June 25, 2015 8:36 AM

8-17
85. Install the drain bolt and its new gasket, and
then tighten the bolt to the specified torque.
6. Refill with the recommended final gear oil to the brim of the filler hole as shown. NOTICE:
Be sure no foreign material enters the final
gear case.
[ECB00422]
7. Check the oil filler bolt gasket for damage, and replace it if necessary.
8. Install the oil filler bolt and its gasket, and then tighten the bolt to the specified torque.

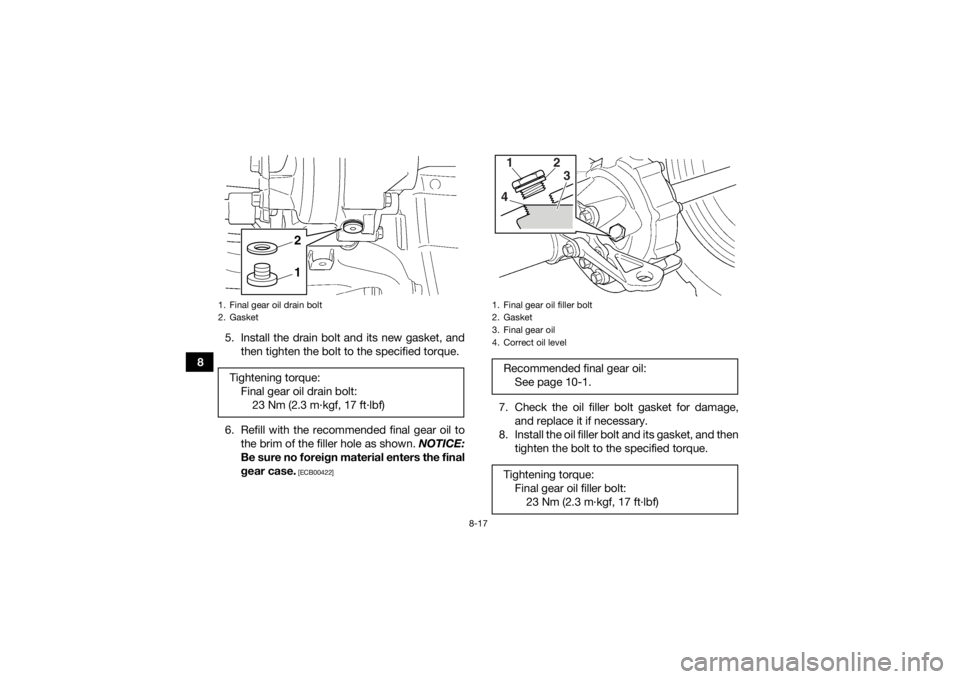

1. Final gear oil drain bolt
2. GasketTightening torque:Final gear oil drain bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)
12
1. Final gear oil filler bolt
2. Gasket
3. Final gear oil
4. Correct oil levelRecommended final gear oil:See page 10-1.
Tightening torque: Final gear oil filler bolt:23 Nm (2.3 m·kgf, 17 ft·lbf)1
23
4
U1NS64E0.book Page 17 Thursday, June 25, 2015 8:36 AM
