oil filter YAMAHA GRIZZLY 700 2007 Owners Manual

Operating the drive select lever and
driving in reverse ...................................... 6-2
Engine break-in .......................................... 6-4
Parking ....................................................... 6-5
Parking on a slope ..................................... 6-5
Accessories and loading ............................ 6-6
RIDING YOUR ATV ...................................... 7-1
GETTING TO KNOW YOUR ATV............... 7-2
RIDE WITH CARE AND GOOD
JUDGEMENT ............................................ 7-2
BE CAREFUL WHERE YOU RIDE ............. 7-9
TURNING YOUR ATV .............................. 7-13
CLIMBING UPHILL ................................... 7-14
RIDING DOWNHILL.................................. 7-17
CROSSING A SLOPE............................... 7-18
CROSSING THROUGH SHALLOW
WATER ................................................... 7-19
RIDING OVER ROUGH TERRAIN ........... 7-22
SLIDING AND SKIDDING ......................... 7-22
WHAT TO DO IF... .................................... 7-23
WHAT TO DO... ........................................ 7-23
PERIODIC MAINTENANCE AND MINOR
REPAIR .......................................................... 8-1
Owner’s manual and tool kit ....................... 8-1Periodic maintenance and lubrication
chart ..........................................................8-3
Removing and installing panels ..................8-8
Checking the spark plug ...........................8-20
Engine oil and oil filter cartridge ................8-22
Final gear oil .............................................8-26
Differential gear oil ....................................8-28
Coolant .....................................................8-30
Cleaning the air filter element ...................8-36
Cleaning the spark arrester ......................8-40
V-belt case drain plug ...............................8-42
Adjusting the engine idling speed .............8-42
Adjusting the throttle cable free play .........8-43
Valve clearance ........................................8-44
Adjusting the drive select lever safety
system cable ...........................................8-44
Checking the front and rear brake pads ...8-44
Checking the rear brake hose
protectors ................................................8-45
Checking the brake fluid level ...................8-46
Changing the brake fluid ...........................8-47
Checking the front and rear brake lever
free play ..................................................8-48
Adjusting the brake pedal free play and
checking the brake pedal position ..........8-49
Axle boots .................................................8-51
Checking and lubricating the cables .........8-51
U3B460E0.book Page 2 Friday, May 12, 2006 2:51 PM

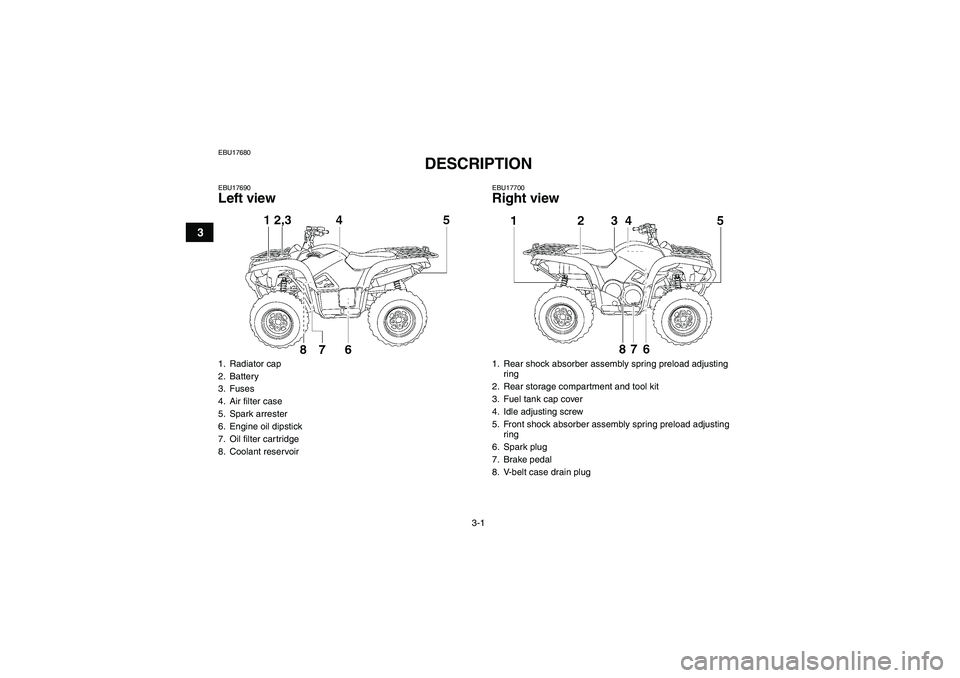

3-1
3
EBU17680
DESCRIPTION
EBU17690Left view
EBU17700Right view
1. Radiator cap
2. Battery
3. Fuses
4. Air filter case
5. Spark arrester
6. Engine oil dipstick
7. Oil filter cartridge
8. Coolant reservoir
1. Rear shock absorber assembly spring preload adjusting
ring
2. Rear storage compartment and tool kit
3. Fuel tank cap cover
4. Idle adjusting screw
5. Front shock absorber assembly spring preload adjusting
ring
6. Spark plug
7. Brake pedal
8. V-belt case drain plug
U3B460E0.book Page 1 Tuesday, May 16, 2006 4:35 PM

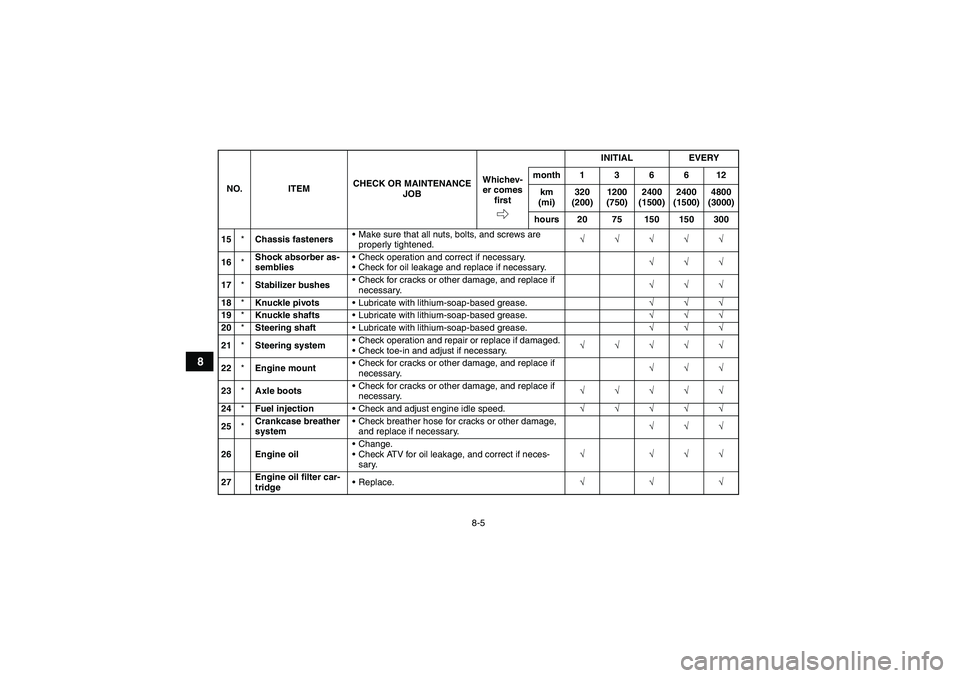

8-5
8
15*Chassis fastenersMake sure that all nuts, bolts, and screws are
properly tightened.√√√√√
16*Shock absorber as-
sembliesCheck operation and correct if necessary.
Check for oil leakage and replace if necessary.√√√
17*Stabilizer bushesCheck for cracks or other damage, and replace if
necessary.√√√
18*Knuckle pivotsLubricate with lithium-soap-based grease.√√√
19*Knuckle shaftsLubricate with lithium-soap-based grease.√√√
20*Steering shaftLubricate with lithium-soap-based grease.√√√
21*Steering systemCheck operation and repair or replace if damaged.
Check toe-in and adjust if necessary.√√√√√
22*Engine mountCheck for cracks or other damage, and replace if
necessary.√√√
23*Axle bootsCheck for cracks or other damage, and replace if
necessary.√√√√√
24*Fuel injectionCheck and adjust engine idle speed.√√√√√
25*Crankcase breather
systemCheck breather hose for cracks or other damage,
and replace if necessary.√√√
26 Engine oilChange.
Check ATV for oil leakage, and correct if neces-
sary.√ √√√
27Engine oil filter car-
tridgeReplace.√√√ NO. ITEMCHECK OR MAINTENANCE
JOBINITIAL EVERY
Whichev-
er comes
firstmonth136612
km
(mi)320
(200)1200
(750)2400
(1500)2400
(1500)4800
(3000)
hours 20 75 150 150 300U3B460E0.book Page 5 Friday, May 12, 2006 2:51 PM

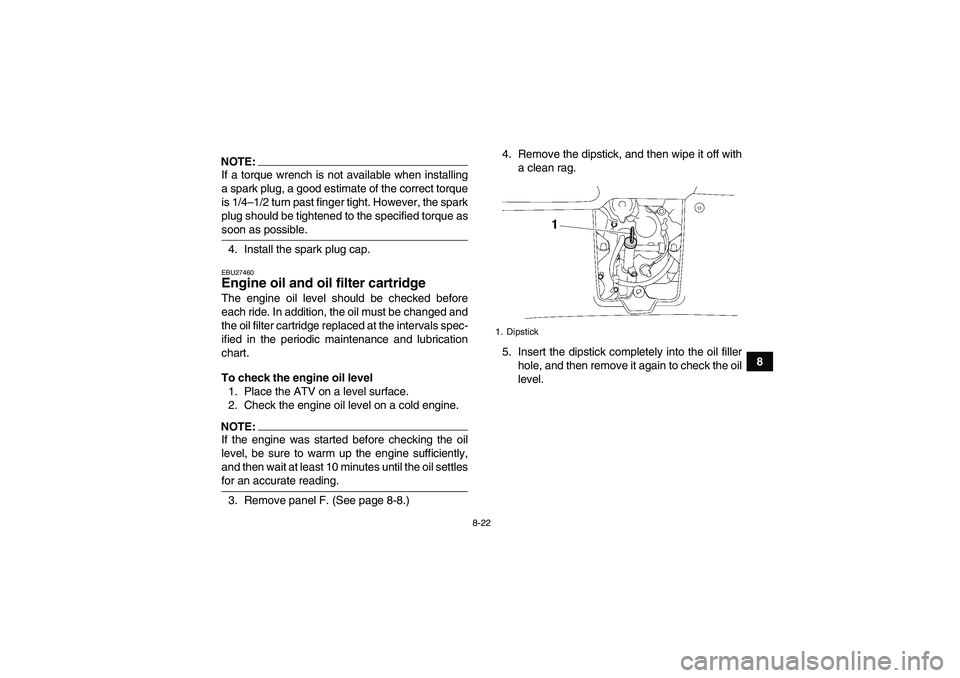

8-22
8
NOTE:If a torque wrench is not available when installing
a spark plug, a good estimate of the correct torque
is 1/4–1/2 turn past finger tight. However, the spark
plug should be tightened to the specified torque assoon as possible.
4. Install the spark plug cap.EBU27460Engine oil and oil filter cartridge The engine oil level should be checked before
each ride. In addition, the oil must be changed and
the oil filter cartridge replaced at the intervals spec-
ified in the periodic maintenance and lubrication
chart.
To check the engine oil level
1. Place the ATV on a level surface.
2. Check the engine oil level on a cold engine.NOTE:If the engine was started before checking the oil
level, be sure to warm up the engine sufficiently,
and then wait at least 10 minutes until the oil settlesfor an accurate reading.
3. Remove panel F. (See page 8-8.)4. Remove the dipstick, and then wipe it off with
a clean rag.
5. Insert the dipstick completely into the oil filler
hole, and then remove it again to check the oil
level.
1. Dipstick
U3B460E0.book Page 22 Friday, May 12, 2006 2:51 PM

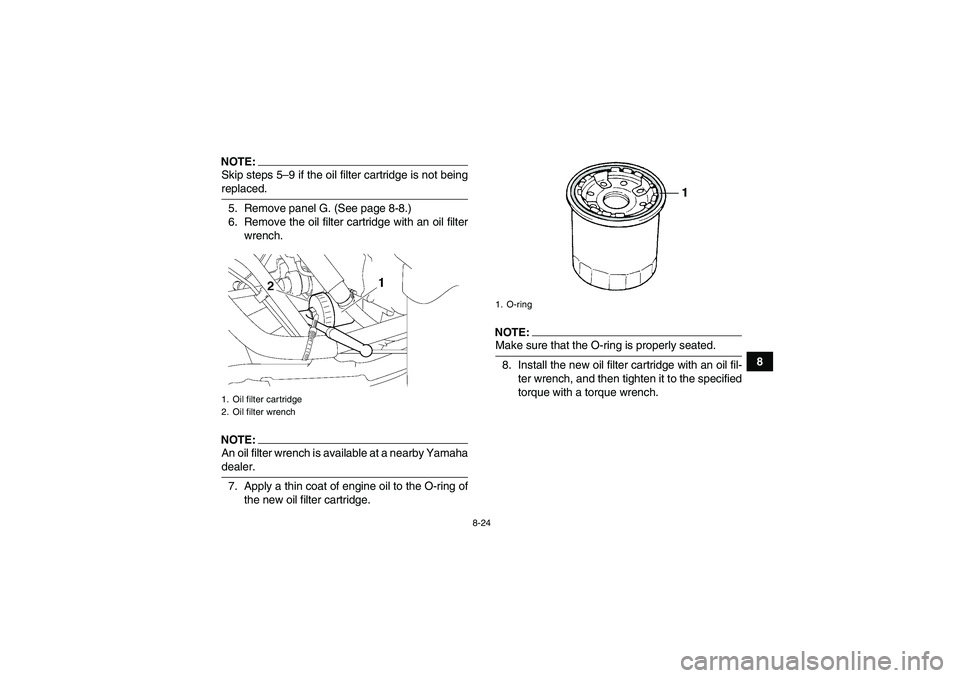

8-24
8
NOTE:Skip steps 5–9 if the oil filter cartridge is not beingreplaced.
5. Remove panel G. (See page 8-8.)
6. Remove the oil filter cartridge with an oil filter
wrench.NOTE:An oil filter wrench is available at a nearby Yamahadealer.
7. Apply a thin coat of engine oil to the O-ring of
the new oil filter cartridge.
NOTE:Make sure that the O-ring is properly seated.
8. Install the new oil filter cartridge with an oil fil-
ter wrench, and then tighten it to the specified
torque with a torque wrench.
1. Oil filter cartridge
2. Oil filter wrench
1. O-ring
U3B460E0.book Page 24 Friday, May 12, 2006 2:51 PM

8-25
8
9. Install panel G.
10. Install the engine oil drain bolt, and then tight-
en it to the specified torque.11. Add the specified amount of the recommend-
ed engine oil, and then insert the dipstick com-
pletely into the oil filler hole.
CAUTION:ECB00300
In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.
Make sure that no foreign material enters thecrankcase.
1. Torque wrenchTightening torque:
Oil filter cartridge:
17 Nm (1.7 m·kgf, 12 ft·lbf)
Tightening torque:
Engine oil drain bolt:
30 Nm (3.0 m·kgf, 22 ft·lbf)
Recommended oil:
See page 10-1.
Oil quantity:
Without oil filter cartridge replacement:
2.00 L (2.11 US qt) (1.76 Imp.qt)
With oil filter cartridge replacement:
2.10 L (2.22 US qt) (1.85 Imp.qt)
U3B460E0.book Page 25 Friday, May 12, 2006 2:51 PM

8-39
8
CAUTION:ECB00440Do not twist the sponge material when squeez-ing it.
7. Check the sponge material and replace it if
damaged.
8. Apply Yamaha foam air filter oil or other qual-
ity foam air filter oil to the sponge material.NOTE:The sponge material should be wet but not drip-ping.
9. Install the mesh and the sponge material into
the air filter case.
10. Insert the projections on the air filter case cov-
er into the holders on the air filter case, and
then install the air filter case cover by hooking
the holders onto the cover.11. Install the panel.
NOTE:The air filter element should be cleaned every 20–
40 hours. It should be cleaned and lubricated more
often if the ATV is operated in extremely dusty ar-
eas. Each time the air filter element maintenance
is performed, check the air inlet of the air filter case
for obstructions. Check the air filter case rubber
joint to the throttle body and the rubber joint mani-
fold fittings for an air-tight seal. Tighten all fittings
securely to avoid the possibility of unfiltered air en-tering the engine.
U3B460E0.book Page 39 Friday, May 12, 2006 2:51 PM

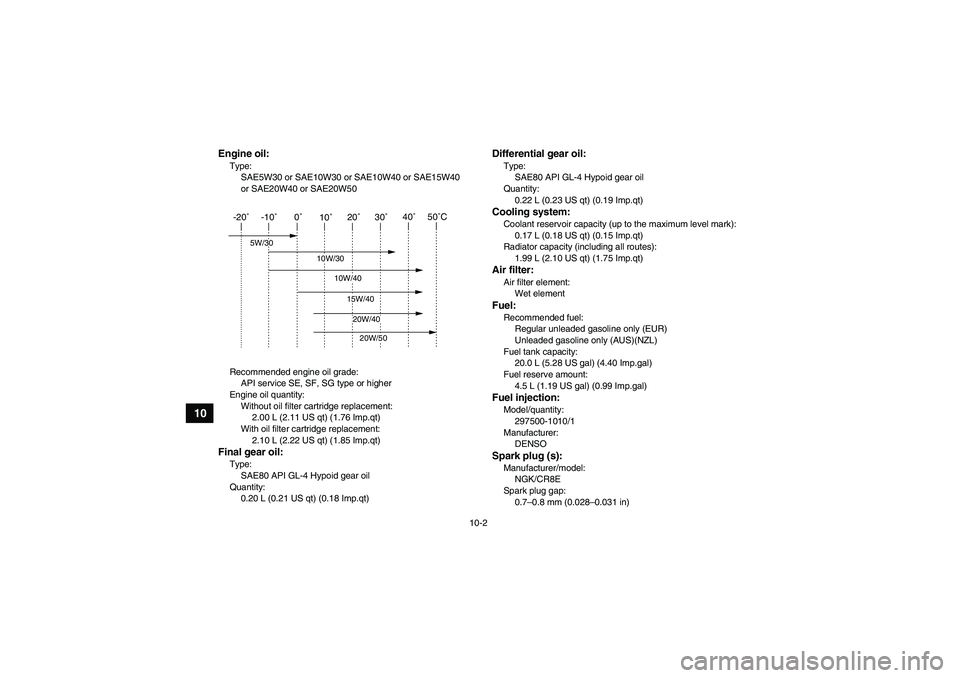

10-2
10
Engine oil:Type:
SAE5W30 or SAE10W30 or SAE10W40 or SAE15W40
or SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SE, SF, SG type or higher
Engine oil quantity:
Without oil filter cartridge replacement:
2.00 L (2.11 US qt) (1.76 Imp.qt)
With oil filter cartridge replacement:
2.10 L (2.22 US qt) (1.85 Imp.qt)Final gear oil:Type:
SAE80 API GL-4 Hypoid gear oil
Quantity:
0.20 L (0.21 US qt) (0.18 Imp.qt)
Differential gear oil:Type:
SAE80 API GL-4 Hypoid gear oil
Quantity:
0.22 L (0.23 US qt) (0.19 Imp.qt)Cooling system:Coolant reservoir capacity (up to the maximum level mark):
0.17 L (0.18 US qt) (0.15 Imp.qt)
Radiator capacity (including all routes):
1.99 L (2.10 US qt) (1.75 Imp.qt)Air filter:Air filter element:
Wet elementFuel:Recommended fuel:
Regular unleaded gasoline only (EUR)
Unleaded gasoline only (AUS)(NZL)
Fuel tank capacity:
20.0 L (5.28 US gal) (4.40 Imp.gal)
Fuel reserve amount:
4.5 L (1.19 US gal) (0.99 Imp.gal)Fuel injection:Model/quantity:
297500-1010/1
Manufacturer:
DENSOSpark plug (s):Manufacturer/model:
NGK/CR8E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
-20˚ -10˚ 0˚
10˚20˚ 30˚40˚50˚C
10W/30
15W/4020W/4020W/50
10W/40
5W/30
U3B460E0.book Page 2 Friday, May 12, 2006 2:51 PM

INDEX
AAccessories and loading ................................................ 6-6
Accessories, auxiliary jack ........................................... 4-22
Air filter element, cleaning ............................................ 8-36
Axle boots .................................................................... 8-51BBattery .......................................................................... 8-55
Brake fluid, changing ................................................... 8-47
Brake fluid level, checking ........................................... 8-46
Brake hose protectors, checking the rear .................... 8-45
Brake lever, front .......................................................... 4-14
Brake levers, checking and lubricating ........................ 8-52
Brake pads, checking the front and rear ...................... 8-44
Brake pedal and rear brake lever ................................. 4-14
Brake pedal, checking and lubricating ......................... 8-53
Brake pedal free play and brake pedal position,
adjusting and checking .............................................. 8-49
Brakes, front and rear .................................................... 5-4CCables, checking and lubricating ................................. 8-51
Carrier, front ................................................................. 4-21
Carrier, rear .................................................................. 4-21
Chassis fasteners .......................................................... 5-7
Cleaning ......................................................................... 9-1
Coolant .................................................................. 5-3, 8-30
Coolant temperature warning light ................................. 4-2DDifferential gear lock indicator light ................................ 4-4Differential gear oil ................................................ 5-3, 8-28
Drive select lever ......................................................... 4-15
Drive select lever and driving in reverse ........................ 6-2
Drive select lever safety system cable, adjusting ........ 8-44
Drive shaft universal joint, lubricating .......................... 8-53
EEngine break-in .............................................................. 6-4
Engine idling speed ..................................................... 8-42
Engine oil ....................................................................... 5-3
Engine oil and oil filter cartridge ................................... 8-22
Engine stop switch ......................................................... 4-7
Engine trouble warning light .......................................... 4-3
EPS warning light .......................................................... 4-3FFinal gear oil ......................................................... 5-3, 8-26
Four-wheel-drive/differential gear lock indicator ............ 4-3
Front and rear brake lever free play, checking ............ 8-48
Fuel ....................................................................... 4-16, 5-3
Fuel tank cap ............................................................... 4-15
Fuses, replacing .......................................................... 8-56HHandlebar switches ....................................................... 4-7
Headlight beam, adjusting ........................................... 8-61
Headlight bulb, replacing ............................................. 8-58
High-range indicator light ............................................... 4-4
Horn switch .................................................................... 4-8IIdentification numbers .................................................. 11-1
U3B460E0.book Page 1 Friday, May 12, 2006 2:51 PM
