engine oil YAMAHA JOG50R 2013 Owners Manual

SAFETY INFORMATION.....................1-1
Further safe-riding points .................1-5
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-3
Controls and instruments .................2-5
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Main switch/steering lock .................3-1
Indicator and warning lights .............3-2
Turn signal indicator lights .............3-2
High beam indicator light .................3-2
Oil level warning light .......................3-3
Speedometer ....................................3-3
Multi-function display .......................3-4
Handlebar switches ..........................3-6
Dimmer switch ..................................3-6
Turn signal switch ............................3-6
Horn switch.......................................3-6
Start switch .......................................3-6
Front brake lever...............................3-6
Rear brake lever................................3-7
Fuel and 2-stroke engine oil
tank caps .......................................3-7
Fuel ...................................................3-8
Catalytic converter............................3-9
2-stroke engine oil ..........................3-10
Kickstarter.......................................3-10
Rider seat........................................3-11Storage compartment.....................3-11
Adjusting the shock absorber
assembly .....................................3-12
Luggage hook .................................3-13
FOR YOUR SAFETY–
PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2
OPERATION AND IMPORTANT
RIDING POINTS..................................5-1
Starting a cold engine ......................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-3
Tips for reducing fuel consumption..5-3
Engine break-in.................................5-4
Parking ..............................................5-4
PERIODIC MAINTENANCE
AND ADJUSTMENT............................6-1
Periodic maintenance and
lubrication chart ............................6-2
Removing and installing the
cowling and panel .........................6-5
Checking the spark plug ..................6-6
Final transmission oil ........................6-7
Coolant .............................................6-8
Air filter element ................................6-9
Adjusting the carburetor .................6-10Adjusting the throttle cable free
play ..............................................6-10
Tires ................................................6-11
Cast wheels ....................................6-12
Checking the front brake lever
free play .......................................6-13
Adjusting the rear brake lever
free play .......................................6-13
Checking the front brake pads
and rear brake shoes ..................6-14
Checking the brake fluid level ........6-15
Changing the brake fluid ................6-16
Checking and lubricating the
throttle grip and cable .................6-16
Lubricating the front and rear
brake levers .................................6-16
Checking and lubricating the
centerstand .................................6-17
Checking the front fork ...................6-18
Checking the steering.....................6-18
Checking the wheel bearings .........6-19
Battery ............................................6-19
Replacing the fuse ..........................6-20
Replacing the headlight bulb
or a front turn signal light bulb ....6-21
Replacing the tail/brake light bulb
or a rear turn signal light bulb .....6-23
Replacing the license plate light
bulb .............................................6-24
Replacing an auxiliary light bulb.....6-24
Troubleshooting ..............................6-25
TABLE OF CONTENTS

INSTRUMENT AND CONTROL FUNCTIONS
3-1
3
EAU10460
Main switch/steering lock
The main switch/steering lock con-
trols the ignition and lighting systems,
and is used to lock the steering. The
various positions are described
below.
EAU10640
“” ON
All electrical circuits are supplied with
power, and the engine can be started.
The key cannot be removed.
TIP
The headlight, meter lighting and tai-
llight come on automatically when the
engine is started.
EAU10661
“” OFF
All electrical systems are off. The key
can be removed.
EWA10061
sWARNING
Never turn the key to “ ” or “ ”
while the vehicle is moving. Other-
wise the electrical systems will be
switched off, which may result in
loss of control or an accident.
EAU10670
The 2-stroke engine oil level warning
light should come on. (See page 3-2).
EAU10681
“ ” LOCK
The steering is locked, and all electri-
cal systems are off. The key can be
removed.T
o lock the steering
1. Push.
2. Turn.
1. Turn the handlebars all the way to
the left.
2. Push the key in from the “ ”
position, and then turn it to “ ”
while still pushing it.
3. Remove the key.

EAU11181
Oil level warning light “ ”
This warning light comes on when the
key is in the “ ” position or if the oil
level in the 2-stroke engine oil tank is
low during operation. If the warning
light comes on during operation, stop
immediately and fill the oil tank with
Yamalube 2 or equivalent 2-stroke
engine oil of either JASO grade “FC”
or ISO grades “EG-C” or “EG-D”. The
warning light should go off after the 2-
stroke engine oil tank has been refi-
lled.
TIP
If the warning light does not come on
when the key is in the “ ” position
or does not go off after the 2-stroke
engine oil tank has been refilled, have
a Yamaha dealer check the electrical
circuit.
ECA16291
NOTICE
Do not operate the vehicle until you
know that the engine oil level is suf-
ficient.
EAUS1530
Speedometer
1. Speedometer
1. Speedometer
1. Speedometer
1. Speedometer
The speedometer shows the riding
speed.
k m/hmph
0
10
203040
50
01020304050 6 0 7 0 8 0
1
CS50Z (for UK only)
k m/hmph
0
10
203040
50
01020304050 6 0 7 0 8 0
1
CS50/CS50M (for UK only)
k m/h
010
20
30405060
70
80
1
CS50Z
k m/h
010
20
30405060
70
80
1
CS50/CS50M
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3

EAU12950
Rear brake lever
1. Rear brake lever
The rear brake lever is located on the
left handlebar grip. To apply the rear
brake, pull this lever toward the hand-
lebar grip.
EAU13202
Fuel and 2-stroke engine oil
tank caps
1. 2-stroke engine oil tank cap
2. Fuel tank cap
The fuel tank cap and the 2-stroke
engine oil tank cap are located under
the seat. (See page 3-11). Fuel tank cap
To remove the fuel tank cap, turn it
counterclockwise, and then pull it off.
To install the fuel tank cap, turn it
clockwise.
2-stroke engine oil tank cap
To remove the 2-stroke engine oil tank
cap, pull it off.
1
2
1
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3

To install the 2-stroke engine oil tank
cap, push it into the oil tank opening.
EWA10141
sWARNING
Make sure that the fuel and 2-stro-
ke engine oil tank caps are properly
installed before riding the scooter.
Leaking fuel is a fire hazard.
EAU13212
Fuel
Make sure there is sufficient gasoline
in the tank.
EWA10881
sWARNING
Gasoline and gasoline vapors are
extremely flammable. To avoid fires
and explosions and to reduce the
risk of injury when refueling, follow
these instructions.
1. Before refueling, turn off the engi-
ne and be sure that no one is sit-
ting on the vehicle. Never refuel
while smoking, or while in the
vicinity of sparks, open flames, or
other sources of ignition such as
the pilot lights of water heaters
and clothes dryers.
2. Do not overfill the fuel tank. Stop
filling when the fuel reaches the
bottom of the filler tube. Because
fuel expands when it heats up,
heat from the engine or the sun
can cause fuel to spill out of the
fuel tank.
1. Fuel tank filler tube
2. Fuel level
3. Wipe up any spilled fuel imme-
diately. NOTICE: Immediately
wipe off spilled fuel with a cle-
an, dry, soft cloth, since fuel
may deteriorate painted surfa-
ces or plastic parts.
[ECA10071]
4. Be sure to securely close the fuel
tank cap.
EWA15151
sWARNING
Gasoline is poisonous and can cau-
se injury or death. Handle gasoline
with care. Never siphon gasoline by
mouth. If you should swallow some
gasoline or inhale a lot of gasoline
vapor, or get some gasoline in your
1
2
ZAUM0020
INSTRUMENT AND CONTROL FUNCTIONS
3-8
3

EAUS1500

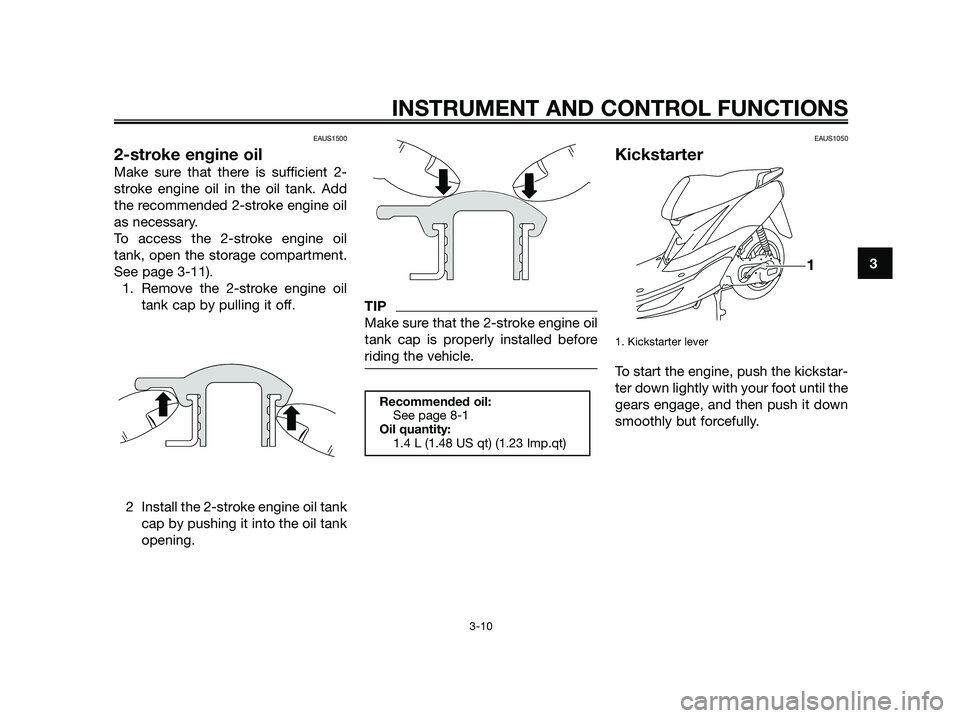

2-stroke engine oil
Make sure that there is sufficient 2-
stroke engine oil in the oil tank. Add
the recommended 2-stroke engine oil
as necessary.
To access the 2-stroke engine oil
tank, open the storage compartment.
See page 3-11).
1. Remove the 2-stroke engine oil
tank cap by pulling it off.
2 Install the 2-stroke engine oil tank
cap by pushing it into the oil tank
opening.
TIP
Make sure that the 2-stroke engine oil
tank cap is properly installed before
riding the vehicle.
EAUS1050
Kickstarter
1. Kickstarter lever
To start the engine, push the kickstar-
ter down lightly with your foot until the
gears engage, and then push it down
smoothly but forcefully.
1
Recommended oil:
See page 8-1
Oil quantity:
1.4 L (1.48 US qt) (1.23 Imp.qt)
INSTRUMENT AND CONTROL FUNCTIONS
3-10
3

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-2
4
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary.3-8
• Check fuel line for leakage.
• Check oil level in oil tank.
2-stroke engine oil• If necessary, add recommended oil to specified level. 3-10
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-7
• Check coolant level in reservoir.
Coolant (CS50Z)• If necessary, add recommended coolant to specified level. 6-8
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
• Check brake pads for wear.
Front brake• Replace if necessary. 6-13, 6-14, 6-15
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
Rear brake• Lubricate cable if necessary.
• Check lever free play.6-13, 6-14
• Adjust if necessary.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
• If necessary, have Yamaha dealer adjust cable free play 6-10, 6-16
and lubricate cable and grip housing.
• Check for damage.
Wheels and tires• Check tire condition and tread depth.
• Check air pressure.6-11, 6-12
• Correct if necessary.

EAU15951
Read the Owner’s Manual carefully to
become familiar with all controls. If
there is a control or function you do
not understand, ask your Yamaha
dealer.
EWA10271
sWARNING
Failure to familiarize yourself with
the controls can lead to loss of
control, which could cause an acci-
dent or injury.
EAU16562
Starting a cold engineECA10250
NOTICE
See page 5-4 for engine break-in
instructions prior to operating the
vehicle for the first time.
1. Turn the key to “ ”, and when
the oil level warning light comes
on, turn it to “ ”.
ECA10240
NOTICE
If the oil level warning light does
not come on, have a Yamaha dealer
check the electrical circuit.
2. Close the throttle completely.3. While applying the front or rear
brake, start the engine by pus-
hing the start switch or by pus-
hing the kickstarter lever down.
NOTICE: For maximum engine
life, never accelerate hard
when the engine is cold!
[ECA11041]
If the engine fails to start by pus-
hing the start switch, release the
switch, wait a few seconds, and
then try again. Each starting
attempt should be as short as
possible to preserve the battery.
Do not crank the engine more
than 5 seconds on any one
attempt. If the engine does not
start with the starter motor, try
using the kickstarter.
ZAUM0367
OPERATION AND IMPORTANT RIDING POINTS
5-1
5

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)
7*Wheels• Check runout and for damage.√√√ √
• Check tread depth and for damage.
8*Tires• Replace if necessary.
√√√ √√
• Check air pressure.
• Correct if necessary.
9*Wheel bearings• Check bearing for looseness
or damage.√√√ √
• Check bearing play and steering
10 *Steering bearingsfor roughness.√√ √√ √
• Lubricate with lithium-soap-
based grease.Every 24000 km (14000 mi)
11 *Chassis fasteners• Make sure that all nuts, bolts and
screws are properly tightened.√√√ √√
12Front brake lever
pivot shaft• Lubricate with silicone grease.√√√ √√
13Rear brake lever • Lubricate with lithium-soap-
pivot shaftbased grease.√√√ √√
14Centerstand• Check operation.
• Lubricate.√√√ √√
15 *Front fork• Check operation and for oil
leakage.√√√ √
16 *Shock absorber • Check operation and shock
assemblyabsorber for oil leakage.√√√ √
17 *Carburetor• Adjust engine idling speed.√√ √√ √ √
18 *Autolube pump• Check operation.
• Bleed if necessary.√√ √√

TIP
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is
1/4–1/2 turn past finger tight. Howe-
ver, the spark plug should be tighte-
ned to the specified torque as soon
as possible.
EAU20064
Final transmission oil
The final transmission case must be
checked for oil leakage before each
ride. If any leakage is found, have a
Yamaha dealer check and repair the
scooter. In addition, the final trans-
mission oil must be changed as
follows at the intervals specified in the
periodic maintenance and lubrication
chart.
1. Start the engine, warm up the
final transmission oil by riding the
scooter for several minutes, and
then stop the engine.
2. Place the scooter on the centers-
tand.
3. Place an oil pan under the final
transmission case to collect the
used oil.
4. Remove the final transmission oil
filler cap and final transmission
drain bolt to drain the oil from the
final transmission case.
1. Final transmission oil filler cap
5. Install the final transmission oil
drain bolt, and then tighten it to
the specified torque.
1. Final transmission oil drain bolt
1
1
11Tightening torque:
Spark plug:
20 Nm (2.0 m•kgf, 14.5 ft•lbf)
PERIODIC MAINTENANCE AND ADJUSTMENT
6-7
6
