Safety information
1-5
1 operator and may limit control
ability, therefore, such accesso-
ries are not recommended.
Use caution when adding electri-
cal accessories. If electrical ac-
cessories exceed the capacity of
the motorcycle’s electrical sys-
tem, an electric failure could re-
sult, which could cause a
dangerous loss of lights or engine
power.
Aftermarket Tires and Rims
The tires and rims that came with your
motorcycle were designed to match
the performance capabilities and to
provide the best combination of han-
dling, braking, and comfort. Other
tires, rims, sizes, and combinations
may not be appropriate. Refer to page
6-16 for tire specifications and more in-
formation on replacing your tires.
Transporting the Motorcycle
Be sure to observe following instruc-
tions before transporting the motorcy-
cle in another vehicle.
Remove all loose items from the
motorcycle.
Check that the fuel cock (if
equipped) is in the “OFF” position
and that there are no fuel leaks.
Point the front wheel straight
ahead on the trailer or in the truck
bed, and choke it in a rail to pre-
vent movement.
Shift the transmission in gear (for
models with a manual transmis-
sion).
Secure the motorcycle with tie-
downs or suitable straps that are
attached to solid parts of the mo-torcycle, such as the frame or up-
per front fork triple clamp (and not,
for example, to rubber-mounted
handlebars or turn signals, or
parts that could break). Choose
the location for the straps carefully
so the straps will not rub against
painted surfaces during transport.
The suspension should be com-
pressed somewhat by the tie-
downs, if possible, so that the mo-
torcycle will not bounce exces-
sively during transport.
UBR3E0E0.book Page 5 Friday, June 19, 2015 1:19 PM

Description
2-1
2
EAU63371
Left view
2134
576
1. Battery (page 6-31)
2. Owner’s tool kit (for ABS models) (page 6-2)
3. Owner’s tool kit (page 6-2)
4. Fuse box (page 6-32)
5. Shift pedal (page 3-13)
6. Engine oil drain bolt (page 6-9)
7. Coolant reservoir (page 6-12)
UBR3E0E0.book Page 1 Friday, June 19, 2015 1:19 PM

Description
2-2
2
EAU63391
Right view
YAMAHA
12
3546
1. Spark plug (page 6-8)
2. Front brake fluid reservoir (page 6-23)
3. Engine oil filter element (page 6-9)
4. Dipstick (page 6-9)
5. Rear brake fluid reservoir (page 6-23)
6. Brake pedal (page 3-14)
UBR3E0E0.book Page 2 Friday, June 19, 2015 1:19 PM

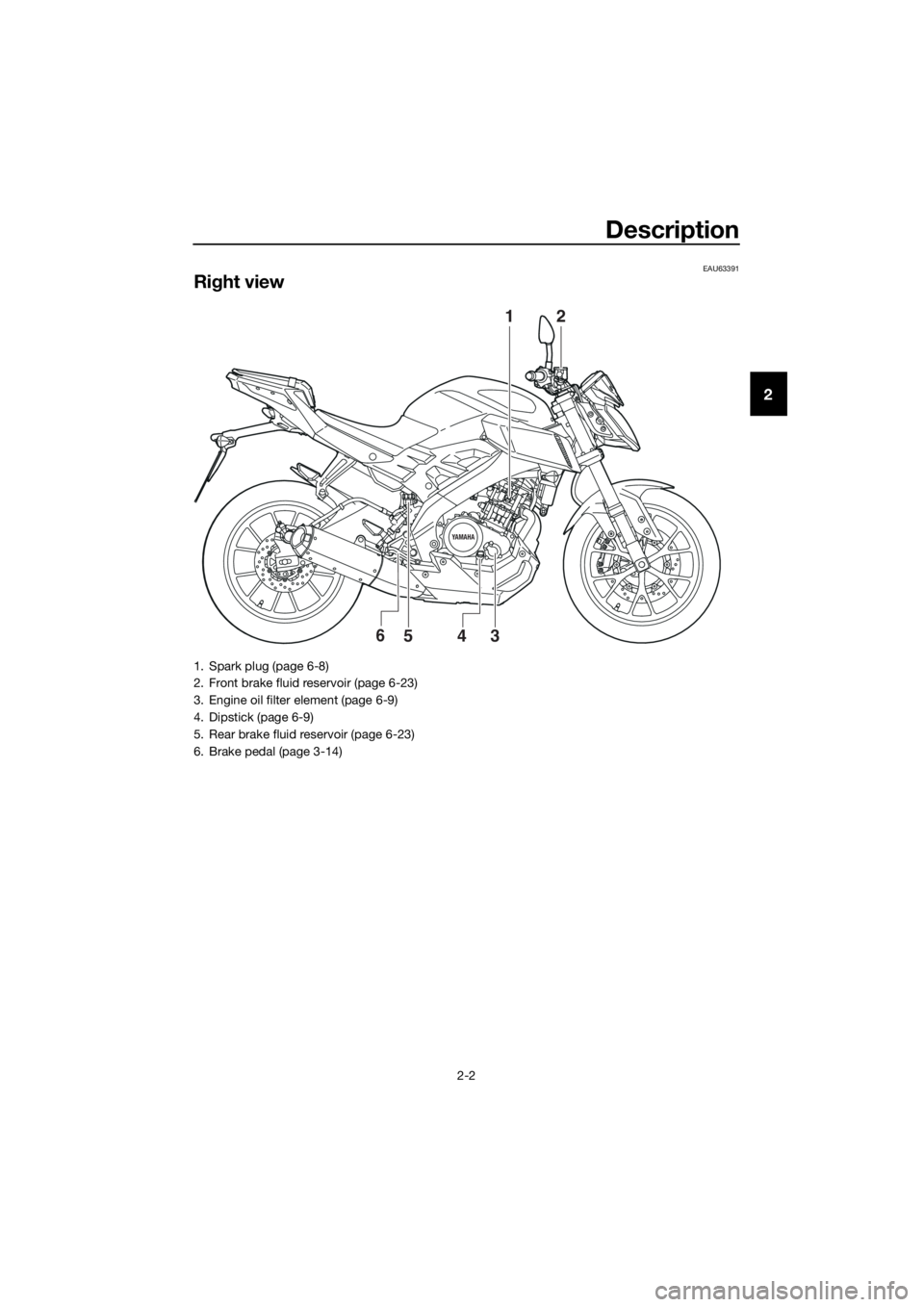

Description
2-3
2
EAU63401

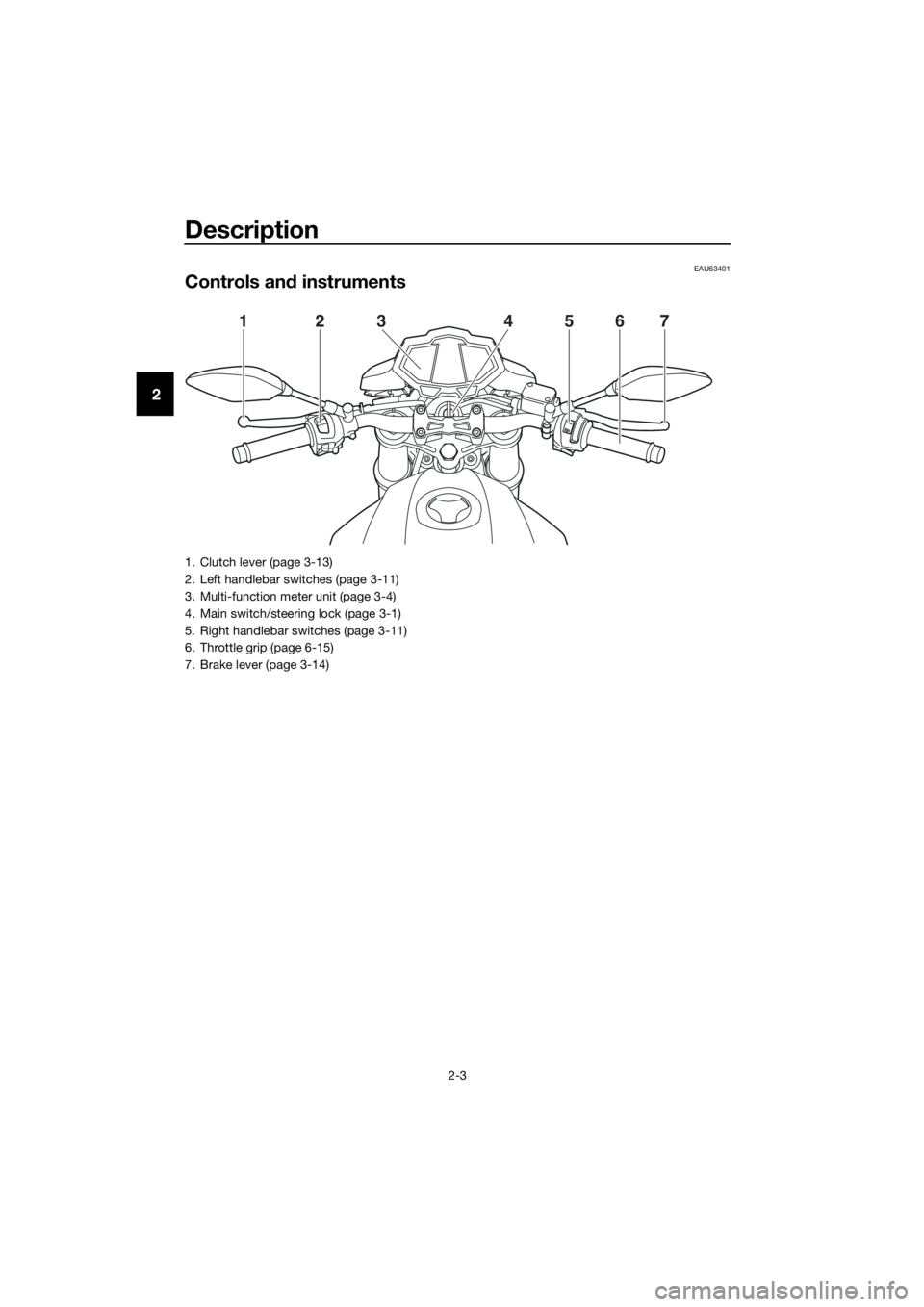

Controls and instruments
1234567
1. Clutch lever (page 3-13)
2. Left handlebar switches (page 3-11)
3. Multi-function meter unit (page 3-4)
4. Main switch/steering lock (page 3-1)
5. Right handlebar switches (page 3-11)
6. Throttle grip (page 6-15)
7. Brake lever (page 3-14)
UBR3E0E0.book Page 3 Friday, June 19, 2015 1:19 PM

Instrument and control functions
3-1
3
EAU10462
Main switch/steering lock
The main switch/steering lock controls
the ignition and lighting systems, and is
used to lock the steering. The various
positions are described below.
EAU36871ON
All electrical circuits are supplied with
power, the meter lighting, taillight, li-
cense plate light and auxiliary lights
come on, and the engine can be start-
ed. The key cannot be removed.
TIP
The headlight comes on automatically
when the engine is started and stays

even if the engine stalls.
EAU10662OFF
All electrical systems are off. The key
can be removed.
WARNING
EWA10062
Never turn the key to “OFF” or
“LOCK” while the vehicle is moving.
Otherwise the electrical systems will
be switched off, which may result in
loss of control or an accident.
EAU10693LOCK
The steering is locked, and all electrical
systems are off. The key can be re-
moved.

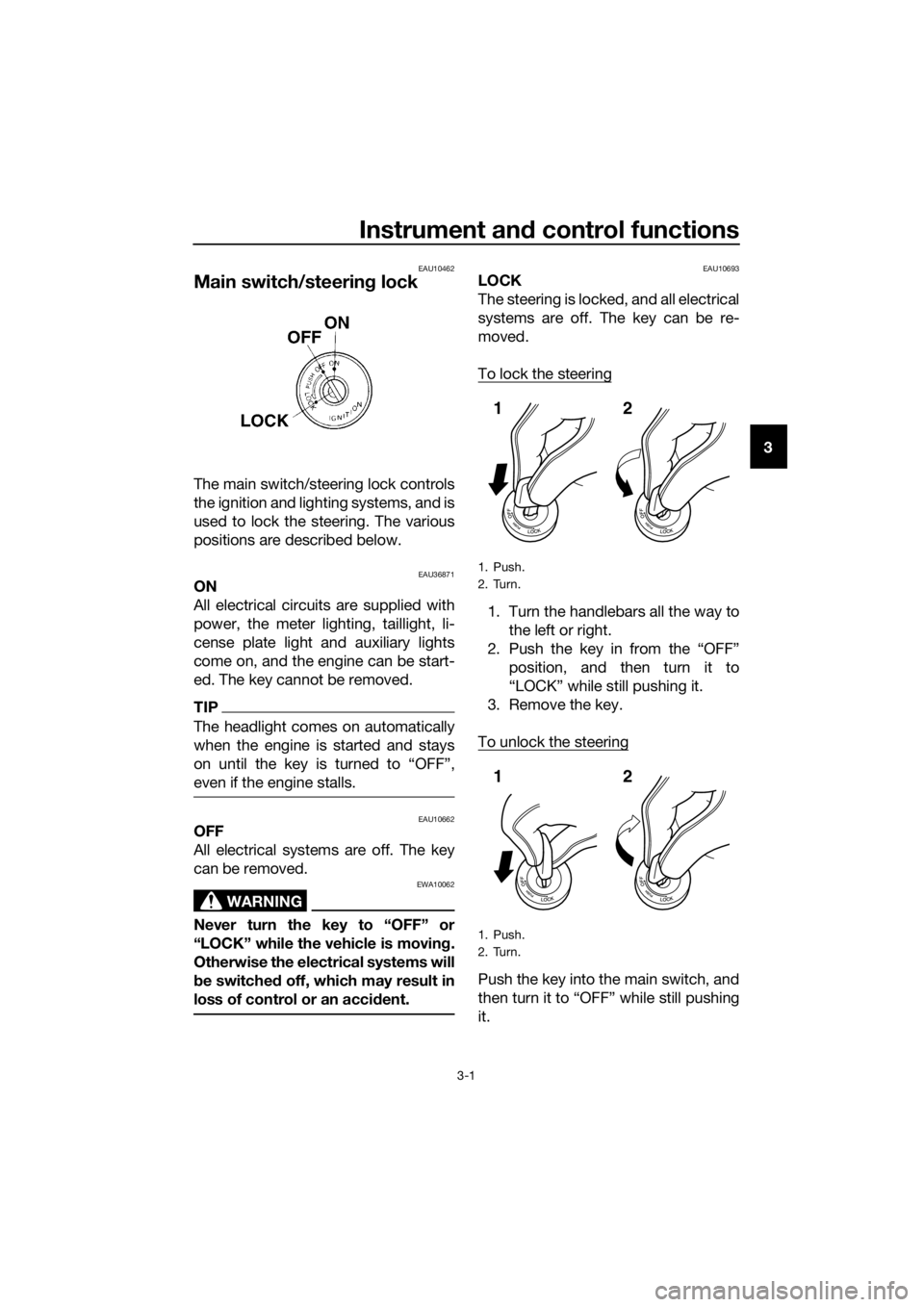

To lock the steering
1. Turn the handlebars all the way to
the left or right.
2. Push the key in from the “OFF”
position, and then turn it to
“LOCK” while still pushing it.
3. Remove the key.
To unlock the steering
Push the key into the main switch, and
then turn it to “OFF” while still pushing
it.
1. Push.
2. Turn.
1. Push.
2. Turn.
12
12
UBR3E0E0.book Page 1 Friday, June 19, 2015 1:19 PM

Instrument and control functions
3-2
3
EAU49398
Indicator lights and warning
lights
EAU11022Turn signal indicator light “ ”
This indicator light flashes when a turn
signal light is flashing.
EAU11061Neutral indicator light “ ”
This indicator light comes on when the
transmission is in the neutral position.
EAU11081High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU11341Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
3.0 L (0.79 US gal, 0.66 Imp.gal). When
this occurs, refuel as soon as possible.The electrical circuit of the warning
light can be checked according to the
following procedure.
1. Turn the key to “ON”.
2. If the warning light does not come
on, have a Yamaha dealer check
the electrical circuit.
EAUT1936Engine trouble warning light “ ”
This warning light flashes or stays on if
an electrical circuit monitoring the en-
gine is not working correctly. If this oc-
curs, have a Yamaha dealer check the
self-diagnosis system.
The electrical circuit of the warning
light can be checked by turning the key
to “ON”. The warning light should
come on for a few seconds, and then
go off.
If the warning light does not come on
initially when the key is turned to “ON”,
or if the warning light remains on, have
a Yamaha dealer check the electrical
circuit.
EAU58530ABS warning light “ ” (for ABS
models)
In normal operation, the ABS warning
light comes on when the key is turned
to “ON”, and goes off after traveling at
a speed of 10 km/h (6 mi/h) or higher.
If the ABS warning light:
does not come on when the key is
turned to “ON”
comes on or flashes while riding
does not go off after traveling at a
speed of 10 km/h (6 mi/h) or high-
er
1. Turn signal indicator light “ ”
2. Neutral indicator light “ ”
3. High beam indicator light “ ”
4. Tachometer high-rpm warning light
5. Fuel level warning light “ ”
6. Engine trouble warning light “ ”
7. Anti-lock Brake System (ABS) warning
light “ ” (for ABS models)
Lo
Hi
1/2
x1000r/min
ZAUM1316SELECTRESET
km/L/100kmMPGkm/h
MPH
ODOFTRIP12OILOIL
1235467
ABS
ABS
UBR3E0E0.book Page 2 Friday, June 19, 2015 1:19 PM

Instrument and control functions
3-3
3 The ABS may not work correctly. If any
of the above occurs, have a Yamaha
dealer check the system as soon as
possible. (See page 3-15 for an expla-
nation of the ABS.)
WARNING
EWA16041
If the ABS warning light does not go
off after traveling at a speed of 10
km/h (6 mi/h) or higher, or if the
warning light comes on or flashes
while riding, the brake system re-
verts to conventional braking. If ei-
ther of the above occurs, or if the
warning light does not come on at
all, use extra caution to avoid possi-
ble wheel lock during emergency
braking. Have a Yamaha dealer
check the brake system and electri-
cal circuits as soon as possible.
EAUM3440Tachometer high-rpm warning light
This light flashes at 9500 r/min to warn
you that the engine speed is about to
enter the high-rpm zone. Once the en-
gine speed reaches 10000 r/min, this
light will come on to warn you that it is
necessary to shift up to avoid engine
damage.
To activate or deactivate the tachome-
ter high-rpm warning light, hold the
“INFO” button pushed, turn the key to
“ON”, and when the tachometer high-
rpm warning light starts flashing, press
the “SELECT” button.
TIP
When activating or deactivating the
warning light the function, after press-
come on to indicate that the function is
activated or the light will go off to indi-
cate that the function is deactivated.
UBR3E0E0.book Page 3 Friday, June 19, 2015 1:19 PM

Instrument and control functions
3-4
3
EAUM3422
Multi-function meter unit
WARNING
EWA12423
Be sure to stop the vehicle before
making any setting changes to the
multi-function meter unit. Changing
settings while riding can distract the
operator and increase the risk of an
accident.
The multi-function meter unit is
equipped with the following:a speedometer
a tachometer
a clock
a fuel meter
a coolant temperature meter
an odometer and tripmeter display
a multi-function display
a self-diagnosis device
TIP
B e s u r e t o t u r n t h e k e y t o “ O N ” b e -
fore using the “SELECT”, “RE-
SET” and “INFO” buttons.
When the key is turned to “ON”, all
display segments of the multi-
function meter unit will momen-
tarily appear in order to test the
electrical circuit. The speedome-
ter, tachometer, fuel meter and
coolant temperature meter will
then perform a display check and
a welcome message will scroll
across the multi-function display.
For the U.K. only: To switch the
speedometer and multi-function
displays between kilometers and
miles, press the “SELECT” and
“RESET” button together, turn the
key to “ON” and then release the
buttons. Press the “SELECT” but-
ton to switch between kilometers
and miles and then press the “SE-
LECT” button for two seconds to
confirm the setting.
1. “INFO” switch
2. “RESET” button
3. “SELECT” button

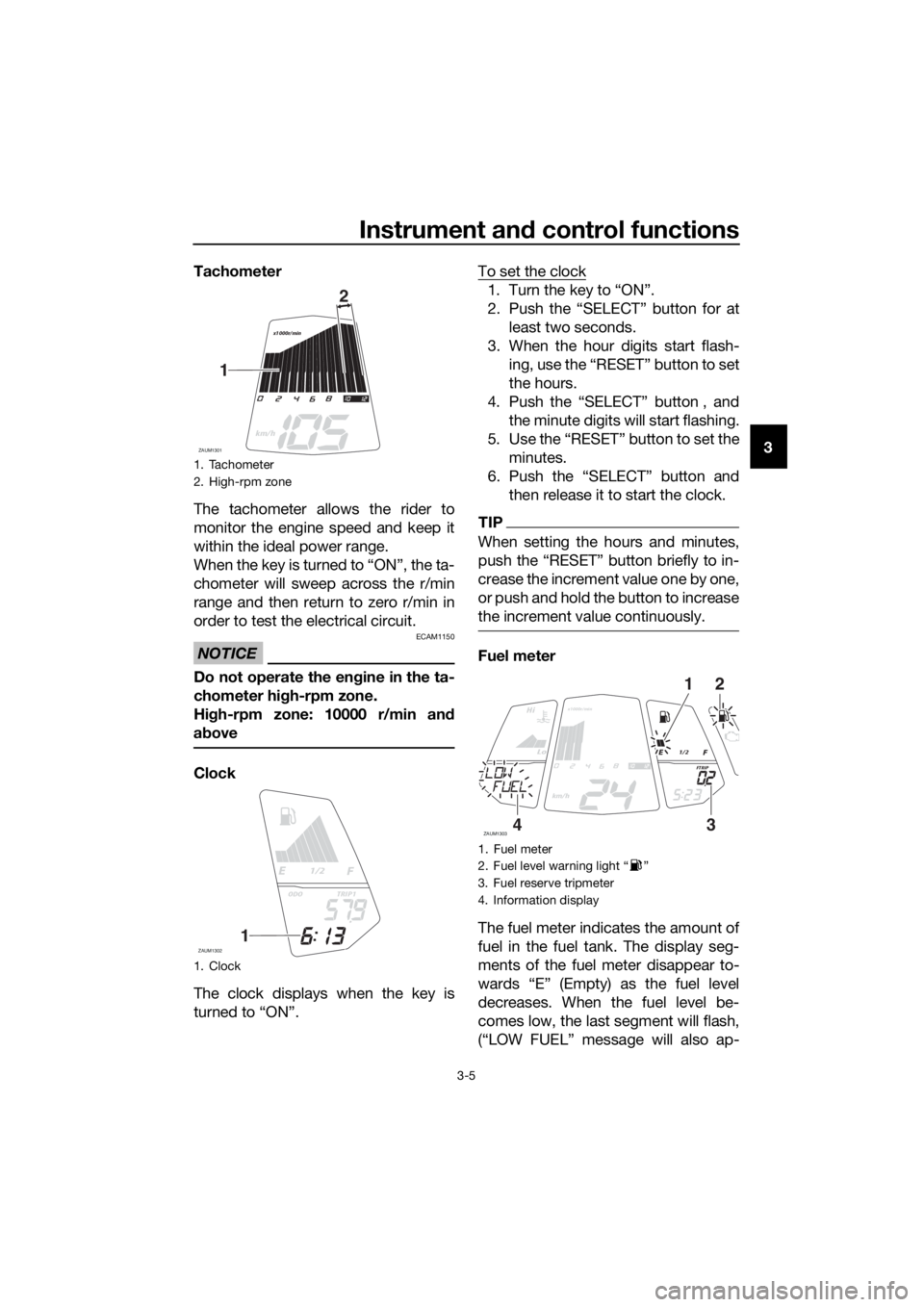

1. Coolant temperature meter
2. Tachometer
3. Fuel meter
4. Odometer/tripmeter/fuel reserve tripmeter
5. Clock
6. Error code display
7. Speedometer
8. Multi-function display
Lo1/2ODO
ZAUM1299
SELECTRESET
INFO
km/L/100kmMPGkm/h
MPH
ODOFTRIPx1000r/minOILOIL
23
1
Lo
Hi
1/2
x1000r/min
ZAUM1300
km/h
ODOOIL
123
45678
UBR3E0E0.book Page 4 Friday, June 19, 2015 1:19 PM

Instrument and control functions
3-5
3 Tachometer
The tachometer allows the rider to
monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer will sweep across the r/min
range and then return to zero r/min in
order to test the electrical circuit.
NOTICE
ECAM1150
Do not operate the engine in the ta-
chometer high-rpm zone.
High-rpm zone: 10000 r/min and
above
Clock
The clock displays when the key is
turned to “ON”. To set the clock
1. Turn the key to “ON”.
2. Push the “SELECT” button for at
least two seconds.
3. When the hour digits start flash-
ing, use the “RESET” button to set
the hours.
4. Push the “SELECT” button , and
the minute digits will start flashing.
5. Use the “RESET” button to set the
minutes.
6. Push the “SELECT” button and
then release it to start the clock.
TIP
When setting the hours and minutes,

crease the increment value one by one,
or push and hold the button to increase
the increment value continuously.
Fuel meter
The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the fuel level be-
comes low, the last segment will flash,
(“LOW FUEL” message will also ap-
1. Tachometer
2. High-rpm zone
1. Clock
x1000r/min
ZAUM1301
km/h
1
2
1/2
ZAUM1302
ODOTRIP1
1
1. Fuel meter
2. Fuel level warning light Ž
3. Fuel reserve tripmeter
4. Information display
Lo
Hi
1/2
x1000r/min
ZAUM1303
km/h
FTRIP
21
34
UBR3E0E0.book Page 5 Friday, June 19, 2015 1:19 PM

Instrument and control functions
3-6
3pear) and the fuel level warning
light “ ” will come on. Refuel as soon
as possible.
TIP
This fuel meter is equipped with a self-
diagnosis system. If a problem is de-
tected in the fuel meter electrical cir-
cuit, the display segments of the fuel
meter will flash eight times, and then
go off for 3 seconds repeatedly. If this
occurs, have a Yamaha dealer check
the electrical circuit.
Coolant temperature meter
With the key in the “ON” position, the
coolant temperature meter indicates
the temperature of the coolant. The
coolant temperature varies with
changes in the weather and engine
load. When the coolant temperature is
near the maximum limit, the second
segment from the top will flash. If the 2
top segments and “ ” start flashing
(“HIGH TEMP” message will also ap-
pear), stop the vehicle and let the en-
gine cool.
NOTICE
ECA10022
Do not continue to operate the en-
gine if it is overheating.
TIP
For radiator-fan-equipped vehi-
cles, the radiator fan(s) automati-
cally switch on or off according to
the coolant temperature in the ra-
diator.
If the engine overheats, see page
6-43 for further instruction.
Odometer and tripmeter display
The odometer and tripmeter display is
equipped with the following:
two tripmeters (which shows the
distance traveled since last set to
zero)
a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came
on)
Pushing the “SELECT” button switch-
es the display between the odometer
mode and the various tripmeter modes
in the following order:
1. Coolant temperature warning indicator “ ”
2. Information display
3. Coolant temperature meter
Lo
Hi
ZAUM1304
31
2
1. Odometer/tripmeter/fuel reserve tripmeter
1/2
ZAUM1305
TRIP1
1
UBR3E0E0.book Page 6 Friday, June 19, 2015 1:19 PM
