Page 10 of 72
TABLE OF CONTENTS
SAFETY INFORMATION
...................1-1
Safe riding ........................................1-1
Location of important labels .............1-4
DESCRIPTION
...................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments..................2-3
INSTRUMENT AND CONTROL
FUNCTIONS
........................................3-1
Handlebar switch .............................3-1
Power reduction plate ......................3-1
Shift pedal ........................................3-1
Brake lever ......................................3-2
Brake pedal .....................................3-2
Fuel tank cap ...................................3-2
Fuel ..................................................3-3
Fuel tank breather hose ...................3-4
2-stroke engine oil ...........................3-4
Fuel cock .........................................3-5
Starter (choke) lever “
1
” .................3-6
Kickstarter ........................................3-6
Seat .................................................3-6
Shock absorber ...............................3-7
PRE-OPERATION CHECKS
...............4-1
Pre-operation check list ...................4-2
OPERATION AND IMPORTANT
RIDING POINTS
.................................. 5-1
Starting and warming up a cold
engine .......................................... 5-1
Starting a warm engine ................... 5-2
Shifting ............................................ 5-2
Engine break-in ............................... 5-3
Parking ............................................ 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR
.................................. 6-1
Owner’s tool kit ................................ 6-1
Periodic maintenance and lubrication
chart ............................................. 6-2
Checking the spark plug .................. 6-5
Removing the power reduction
plate ............................................. 6-6
Transmission oil .............................. 6-7
Cleaning the air filter element ......... 6-8
Cleaning the spark arrester ............. 6-9
Adjusting the carburetor ................ 6-10
Adjusting the engine idling
speed ......................................... 6-11
Adjusting the throttle cable free
play ............................................ 6-11
Tires .............................................. 6-12
Spoke wheels ................................ 6-13
Accessories and replacement
parts ........................................... 6-14
Adjusting the brake lever free
play ............................................ 6-14Adjusting the brake pedal free
play ............................................ 6-15
Checking the front and rear brake
shoes ......................................... 6-16
Drive chain slack ........................... 6-16
Cleaning and lubricating the drive
chain .......................................... 6-18
Checking and lubricating the
cables ........................................ 6-19
Checking and lubricating the throttle
grip and cable ............................ 6-19
Adjusting the Autolube pump ........ 6-19
Checking and lubricating the brake
and shift pedals ......................... 6-20
Checking and lubricating the brake
lever ........................................... 6-20
Checking and lubricating the
sidestand ................................... 6-21
Checking the front fork .................. 6-21
Checking the steering ................... 6-22
Checking the wheel bearings ........ 6-22
Supporting the motorcycle ............ 6-23
Front wheel ................................... 6-23
Rear wheel .................................... 6-26
Troubleshooting ............................ 6-27
Troubleshooting chart ................... 6-28
MOTORCYCLE CARE AND
STORAGE
........................................... 7-1
Care ................................................ 7-1
Storage ........................................... 7-3
Page 19 of 72
DESCRIPTION
2-2
2
3
4
5
6
7
8
9
EAU10420

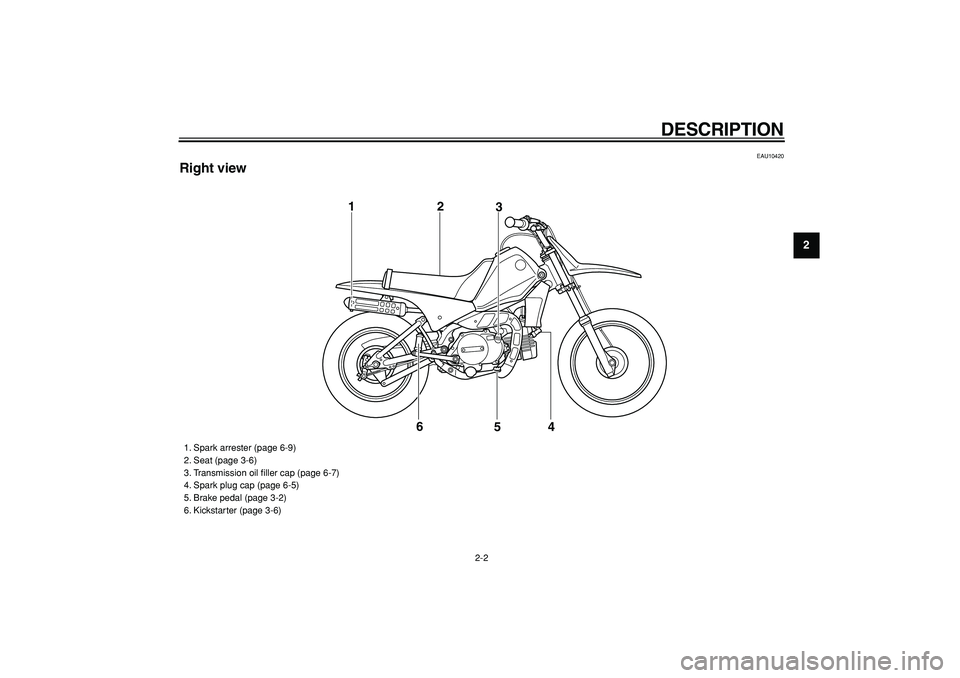

Right view
6 12
3
4 5
1. Spark arrester (page 6-9)
2. Seat (page 3-6)
3. Transmission oil filler cap (page 6-7)
4. Spark plug cap (page 6-5)
5. Brake pedal (page 3-2)
6. Kickstarter (page 3-6)
Page 29 of 72
PRE-OPERATION CHECKS
4-2
2
3
45
6
7
8
9
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
Fuel
Check fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-3
2-stroke engine oil
Check oil level in oil tank.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.3-4
Transmission oil
Check oil level in transmission case.
If necessary, add recommended oil to specified level.6-7
Front brake
Check operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-14, 6-16
Rear brake
Check operation.
Check pedal free play.
Adjust if necessary.6-15, 6-16
Throttle grip
Make sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable
and grip housing.6-11, 6-19
Control cables
Make sure that operation is smooth.
Lubricate if necessary.6-19
Drive chain
Check chain slack.
Adjust if necessary.
Check chain condition.
Lubricate if necessary.6-16, 6-18
Wheels and tires
Check for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-12, 6-13
Page 33 of 72

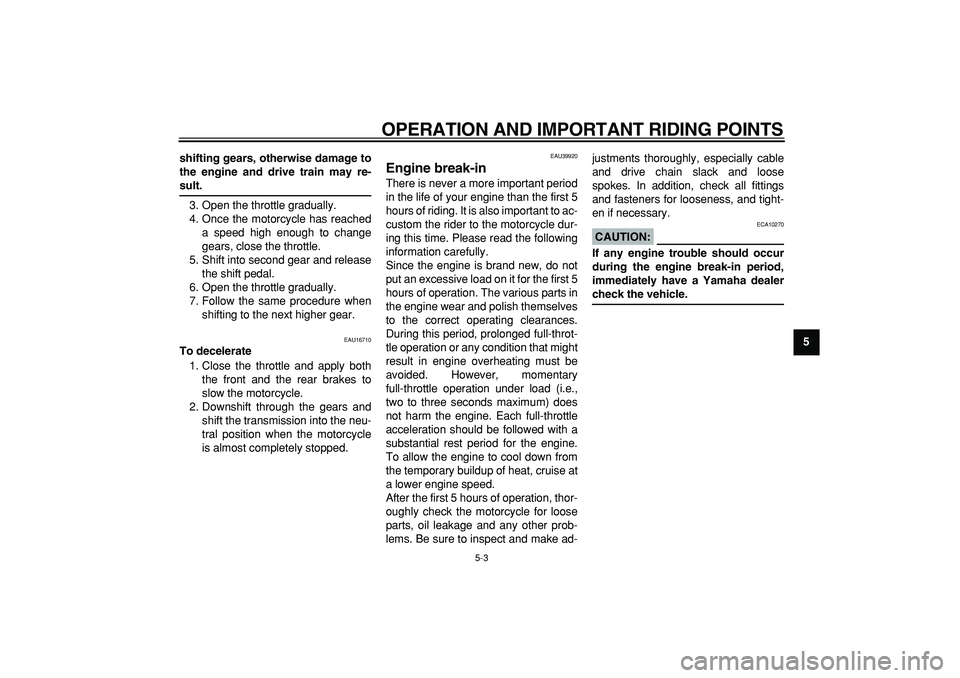

OPERATION AND IMPORTANT RIDING POINTS
5-3
2
3
4
56
7
8
9 shifting gears, otherwise damage to
the engine and drive train may re-
sult.
3. Open the throttle gradually.
4. Once the motorcycle has reached
a speed high enough to change
gears, close the throttle.
5. Shift into second gear and release
the shift pedal.
6. Open the throttle gradually.
7. Follow the same procedure when
shifting to the next higher gear.
EAU16710
To decelerate
1. Close the throttle and apply both
the front and the rear brakes to
slow the motorcycle.
2. Downshift through the gears and
shift the transmission into the neu-
tral position when the motorcycle
is almost completely stopped.
EAU39920
Engine break-in
There is never a more important period
in the life of your engine than the first 5
hours of riding. It is also important to ac-
custom the rider to the motorcycle dur-
ing this time. Please read the following
information carefully.
Since the engine is brand new, do not
put an excessive load on it for the first 5
hours of operation. The various parts in
the engine wear and polish themselves
to the correct operating clearances.
During this period, prolonged full-throt-
tle operation or any condition that might
result in engine overheating must be
avoided. However, momentary
full-throttle operation under load (i.e.,
two to three seconds maximum) does
not harm the engine. Each full-throttle
acceleration should be followed with a
substantial rest period for the engine.
To allow the engine to cool down from
the temporary buildup of heat, cruise at
a lower engine speed.
After the first 5 hours of operation, thor-
oughly check the motorcycle for loose
parts, oil leakage and any other prob-
lems. Be sure to inspect and make ad-justments thoroughly, especially cable
and drive chain slack and loose
spokes. In addition, check all fittings
and fasteners for looseness, and tight-
en if necessary.
CAUTION:
ECA10270
If any engine trouble should occur
during the engine break-in period,
immediately have a Yamaha dealer
check the vehicle.
Page 38 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
1
2
3
4
5
6
7
8
9
NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
17 *Autolube pump
Check operation.Correct if necessary.Bleed.
18Transmission oilCheck for oil leakage .Correct if necessary.Change.
19 *Control cablesApply Yamaha chain and cable lube or
engine oil 10W-30 lightly.
20 *Throttle grip housing
and cableCheck operation and free play.Apply Yamaha chain and cable lube or
engine oil 10W-30 lightly.
21Brake lever pivot shaftApply lithium-soap-based grease (all-pur-
pose grease) lightly.
22Brake pedal pivot
shaftApply lithium-soap-based grease (all-pur-
pose grease) lightly.
23 *Cylinder head and
exhaust systemCheck for leakage.Tighten if necessary.Decarbonize if necessary.
24 *Spark arresterClean. NO. ITEM CHECK OR MAINTENANCE JOBINITIAL THEREAFTER EVERY
10
hours20
hours40
hours80
hours40
hours80
hours160
hours
Page 41 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
2
3
4
5
67
8
9
EAU19942
Transmission oil
The transmission oil level should be
checked before each ride. In addition,
the transmission oil must be changed
at the intervals specified in the periodic
maintenance and lubrication chart.
To check the transmission oil level
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
NOTE:
Make sure that the vehicle is positionedstraight up when checking the oil level.
A slight tilt to the side can result in a
false reading.
2. Wait a few minutes until the oil set-
tles, remove the oil filler cap, wipe
the dipstick clean, insert it back
into the oil filler hole (without
screwing it in), and then remove it
again to check the oil level.
NOTE:
The transmission oil should be be-
tween the minimum and maximum lev-
el marks.
3. If the oil is below the minimum lev-
el mark, add sufficient oil of the
recommended type to raise it to
the correct level.
4. Insert the dipstick into the oil filler
hole, and then tighten the oil filler
cap.
To change the transmission oil
1. Place an oil pan under the trans-
mission to collect the used oil.
2. Remove the oil filler cap and drain
bolt to drain the oil from the trans-
mission.
3. Install the transmission oil drain
bolt, and then tighten it to the spec-
ified torque.
4. Add the specified amount of the
recommended transmission oil,
and then install and tighten the oil
filler cap.
1. Transmission oil filler cap
2. Dipstick
3. Maximum level mark
4. Minimum level mark
2
3
41
1
1. Transmission oil drain bolt
Tightening torque:
Transmission oil drain bolt:
20 Nm (2.0 m·kgf, 14.5 ft·lbf)
1
Page 42 of 72
PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
1
2
3
4
5
6
7
8
9
CAUTION:
ECA10452
In order to prevent clutch slip-
page (since the transmission oil
also lubricates the clutch), do
not mix any chemical additives.
Do not use oils with a diesel
specification of “CD” or oils of a
higher quality than specified. In
addition, do not use oils labeled
“ENERGY CONSERVING II” or
higher.
Make sure that no foreign mate-
rial enters the transmission.
5. Start the engine, and then let it idle
for several minutes while checking
the transmission for oil leakage. If
oil is leaking, immediately turn the
engine off and check for the cause.
EAU41161
Cleaning the air filter element
The air filter element should be cleaned
at the intervals specified in the periodic
maintenance and lubrication chart.
Clean the air filter element more fre-
quently if you are riding in unusually
wet or dusty areas.
1. Remove the air filter case cover by
removing the screws.
2. Pull the air filter element out.3. Remove the sponge material from
the air filter case cover, clean it
with solvent, and then squeeze the
remaining solvent out.
Recommended transmission oil:
See page 8-1.
Oil change quantity:
0.65 L (0.69 US qt) (0.57 Imp.qt)
1. Air filter case cover
2. Screw
2
2
1
1. Sponge material
2. Air filter case cover
1
2
Page 66 of 72
8-1
1
2
3
4
5
6
7
8
9
SPECIFICATIONS
EAU2633G
Dimensions:
Overall length:
1540 mm (60.6 in)
Overall width:
640 mm (25.2 in)
Overall height:
880 mm (34.6 in)
Seat height:
635 mm (25.0 in)
Wheelbase:
1055 mm (41.5 in)
Ground clearance:
185 mm (7.28 in)
Minimum turning radius:
1700 mm (66.9 in)
Weight:
With oil and fuel:
61.0 kg (134 lb)
Engine:
Engine type:
Air cooled 2-stroke
Cylinder arrangement:
Forward-inclined single cylinder
Displacement:
79.0 cm
3
Bore
×
stroke:
47.0
×
45.6 mm (1.85
×
1.80 in)
Compression ratio:
6.60 :1
Starting system:
KickstarterLubrication system:
Separate lubrication (Yamaha autolube)
Type:
YAMALUBE 2 or 2-stroke engine oil (JASO
FC grade) or (ISO EG-C or EG-D grade)
Engine oil quantity:
Quantity:
0.9 L (1.00 US qt) (0.84 Imp.qt)
Transmission oil:
Type:
YAMALUBE 4 (10W30) or SAE10W30 type
SE motor oil
Oil change quantity:
0.65 L (0.69 US qt) (0.57 Imp.qt)
Air filter:
Air filter element:
Wet element
Fuel:
Recommended fuel:
Regular unleaded gasoline only
(AUT)(BEL)(CHE)(DEU)(DNK)(ESP)(FIN)
(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)(PRT)
(SWE)(ZAF)
Unleaded gasoline only (AUS)(NZL)
Fuel tank capacity:
4.9 L (1.29 US gal) (1.08 Imp.gal)
Fuel reserve amount:
1.0 L (0.26 US gal) (0.22 Imp.gal)
Carburetor:
Manufacturer:
MIKUNI
Type
×
quantity:
VM15SC x 1
Spark plug (s):
Manufacturer/model:
NGK/BP6HS (AUS)(NZL)
NGK/BPR6HS
(AUT)(BEL)(CHE)(DEU)(DNK)(ESP)(FIN)
(FRA)(GBR)(GRC)(IRL)(NLD)(NOR)(PRT)
(SWE)(ZAF)
Manufacturer/model:
DENSO/W20FP (AUS)(NZL)
Spark plug gap:
0.6–0.7 mm (0.024–0.028 in)
Clutch:
Clutch type:
Wet, multiple-disc automatic
Transmission:
Primary reduction system:
Helical gear
Primary reduction ratio:
66/21 (3.143)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
32/15 (2.133)
Transmission type:
Constant mesh 3-speed
Operation:
Left foot operation
Gear ratio:
1st:
39/12 (3.250)
2nd:
29/16 (1.812)
Page 69 of 72

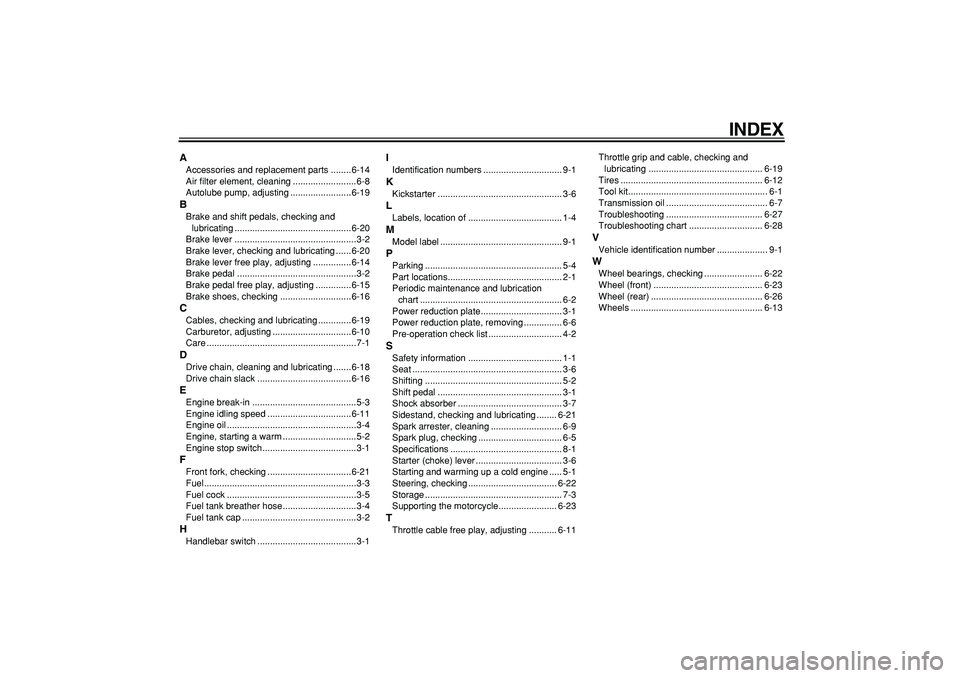

INDEX
A
Accessories and replacement parts ........6-14
Air filter element, cleaning .........................6-8
Autolube pump, adjusting ........................6-19
B
Brake and shift pedals, checking and
lubricating ..............................................6-20
Brake lever ................................................3-2
Brake lever, checking and lubricating ......6-20
Brake lever free play, adjusting ...............6-14
Brake pedal ...............................................3-2
Brake pedal free play, adjusting ..............6-15
Brake shoes, checking ............................6-16
C
Cables, checking and lubricating .............6-19
Carburetor, adjusting ...............................6-10
Care ...........................................................7-1
D
Drive chain, cleaning and lubricating .......6-18
Drive chain slack .....................................6-16
E
Engine break-in .........................................5-3
Engine idling speed .................................6-11
Engine oil ...................................................3-4
Engine, starting a warm .............................5-2
Engine stop switch.....................................3-1
F
Front fork, checking .................................6-21
Fuel ............................................................3-3
Fuel cock ...................................................3-5
Fuel tank breather hose.............................3-4
Fuel tank cap .............................................3-2
H
Handlebar switch .......................................3-1
I
Identification numbers ............................... 9-1
K
Kickstarter ................................................. 3-6
L
Labels, location of ..................................... 1-4
M
Model label ................................................ 9-1
P
Parking ...................................................... 5-4
Part locations............................................. 2-1
Periodic maintenance and lubrication
chart ........................................................ 6-2
Power reduction plate................................ 3-1
Power reduction plate, removing ............... 6-6
Pre-operation check list ............................. 4-2
S
Safety information ..................................... 1-1
Seat ........................................................... 3-6
Shifting ...................................................... 5-2
Shift pedal ................................................. 3-1
Shock absorber ......................................... 3-7
Sidestand, checking and lubricating ........ 6-21
Spark arrester, cleaning ............................ 6-9
Spark plug, checking ................................. 6-5
Specifications ............................................ 8-1
Starter (choke) lever .................................. 3-6
Starting and warming up a cold engine ..... 5-1
Steering, checking ................................... 6-22
Storage ...................................................... 7-3
Supporting the motorcycle....................... 6-23
T
Throttle cable free play, adjusting ........... 6-11Throttle grip and cable, checking and
lubricating ............................................. 6-19
Tires ........................................................ 6-12
Tool kit....................................................... 6-1
Transmission oil ........................................ 6-7
Troubleshooting ...................................... 6-27
Troubleshooting chart ............................. 6-28
V
Vehicle identification number .................... 9-1
W
Wheel bearings, checking ....................... 6-22
Wheel (front) ........................................... 6-23
Wheel (rear) ............................................ 6-26
Wheels .................................................... 6-13
