Page 28 of 106
2-5
E
EJU01015
Engine stop switch
Push this switch 1 (red button) to stop
the engine normally.
EJU01016
Engine shut-off switch
Insert the clip 1, on the end of the engine
shut-off cord 2, under the engine shut-off
switch 3 (black button). The engine will stop
automatically when the clip is removed from
the switch, such as if the operator falls off
the watercraft.
WARNING@ Always attach the engine shut-off cord
to your wrist and the clip to the engine
shut-off switch BEFORE starting the
engine.
To prevent accidental starting of the
engine or unauthorized use by chil-
dren or others, always remove the clip
from the shut-off switch when the
engine is not running.
@
E_F1N-70.book Page 5 Wednesday, July 18, 2001 3:28 PM
Page 51 of 106
3-16
E
3. Attach the clip 1 to the engine shut-off
switch 2. Also, attach the engine
shut-off cord 3 to your left wrist.
WARNING@ Check that the engine shut-off cord is not
frayed or broken, and keep it free from
the handlebars so the engine stops if the
operator falls off. The engine shut-off
cord may not pull free if wrapped around
the handlebars when the operator falls
off, allowing the watercraft to continue to
run and cause an accident.
@
NOTE:@ It is not possible to start the engine with the
clip removed from the engine shut-off
switch.
@
4. Pull and hold the choke knob all the way
out to start a cold engine.
NOTE:@ The choke should not be used when the
engine is warm.
@
5. While lightly squeezing the throttle lever,
push the start switch (green button).
WARNING@ On this watercraft, the engine is con-
nected directly to the jet pump. Starting
the engine immediately generates some
thrust. Apply only enough throttle to
keep the engine running.
@
E_F1N-70.book Page 16 Wednesday, July 18, 2001 3:28 PM

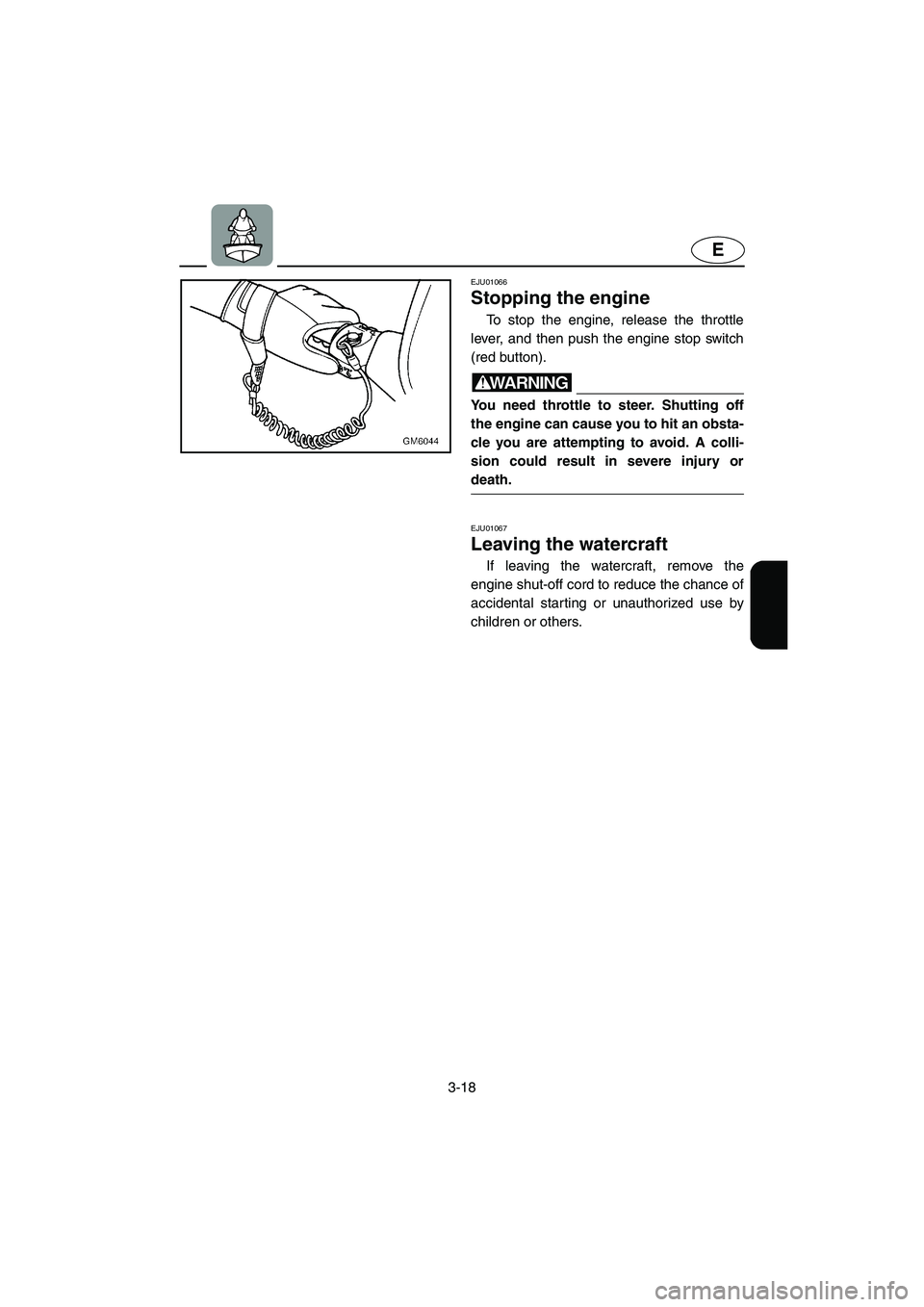

Page 53 of 106
3-18
E
EJU01066
Stopping the engine
To stop the engine, release the throttle
lever, and then push the engine stop switch
(red button).
WARNING@ You need throttle to steer. Shutting off
the engine can cause you to hit an obsta-
cle you are attempting to avoid. A colli-
sion could result in severe injury or
death.
@
EJU01067
Leaving the watercraft
If leaving the watercraft, remove the
engine shut-off cord to reduce the chance of
accidental starting or unauthorized use by
children or others.
E_F1N-70.book Page 18 Wednesday, July 18, 2001 3:28 PM
