PERIODIC MAINTENANCE AND
MINOR REPAIR..............................................37
Tool kit ........................................................38
Periodic maintenance/lubrication ...........39
Engine oil ...................................................41
Air filter ......................................................44
Throttle cable adjustment ........................46
Carburetor adjustment .............................47
Idle speed adjustment ..............................47
Spark plug inspection ..............................48
Front brake adjustment(T105E) ...............50
Front brake adjustment (T105SE) ...........50
Checking the front brake pads
(T105SE) .................................................51
Checking the brake fluid level
(T105SE)..................................................51
Changing the brake fluid (T105SE) .........53
Rear brake adjustment .............................54
Brake light switch adjustment .................55
Checking the brake shoes ........................55
Drive chain slack check ............................56Drive chain slack adjustment ..................57
Drive chain lubrication .............................59
Brake lever and pedal ...............................60
Center and sidestand ...............................60
Front fork inspection ................................61
Battery ........................................................62
Replenishing the battery fluid .................64
Fuse replacement .....................................65
Troubleshooting ........................................66
CLEANING AND STORAGE .........................67
Cleaning .....................................................67
Storage ......................................................67
SPECIFICAITIONS .........................................69
5AV-F8199-E1-1 7/29/03 3:31 PM Page 4

22
PRE-OPERATION CHECKS
Before using this motorcycle, check the following points:
Item Routine Page
Fuel9Check fuel level/top up as required. 24
Engine oil9Check oil level/add oil as required. 25, 41~43
9Check operation, condition and free play. Adjust if necessary.
Front brake9Check fluid level and fluid leakage. Fill with DOT3 or DOT4 50~53
brake fluid if necessary. (T105SE)
Rear brake9Check operation and pedal free play. Adjust if necessary. 54
Throttle grip/Housing9Check for smooth operation. Lubricate/Adjust if necessary.—
Drive chain9Check chain slack and condition. Adjust if necessary. 56~59
Wheels/Tires9Check tire pressure, wear, damage and spoke tightness. 26~27
Control/Meter cable9Check for smooth operation. Lubricate if necessary.—
Brake and shift pedal shafts9Check for smooth operation. Lubricate if necessary. 60
Brake lever pivots9Check for smooth operation. Lubricate if necessary. 60
Center and sidestand pivots9Check for smooth operation. Lubricate if necessary. 60
Fittings/fasteners9Check all chassis fittings and fasteners.
—
9Tighten/Adjust, if necessary.
Lights and signals9Check for proper operation.—
Switches9Check for proper operation.—
Battery9Check fluid level, top-up with distilled water if necessary. 62~64
5AV-F8199-E1-1 7/29/03 3:32 PM Page 22

39
* Valve(s)Check valve clearance. Adjust if necessary.2222
Spark plug Check condition. Clean or replace if necessary.2222
Air filterClean. Replace if necessary.22
* CarburetorCheck idle speed/stater operation.
2222
Adjust if necessary.
*
Fuel lineCheck fuel hose and vacuum pipe for cracks or
22
damage. Replace if necessary.
Engine oilReplace (Warm engine before draining).22EVERY 2,000 km
* Engine oil filterCheck/clean/replace if necessary2222
*Front brakeCheck operation, fluid level and fluid leakage.
22
(T105SE)Replace brake pads if necessary.
*Front brakeCheck operation and adjust brake lever free play.
22
(T105E)Replace brake shoes if necessary.
* Rear brakeCheck operation and adjust brake pedal free play.
22
Replace brake shoes if necessary.
Check rear arm assembly for looseness.
* Rear arm pivotCorrect if necessary. Moderately repack every.2
16,000 km***
* WheelsCheck balance/damage/runout/spoke tightness.
22
Replace if necessary.
* Wheel bearingsCheck bearing assembly for looseness/damage.
22 2
Replace if damaged.
INITIAL EVERY
ITEM REMARKS
500 km 2,000 km 4,000 km 8,000 km

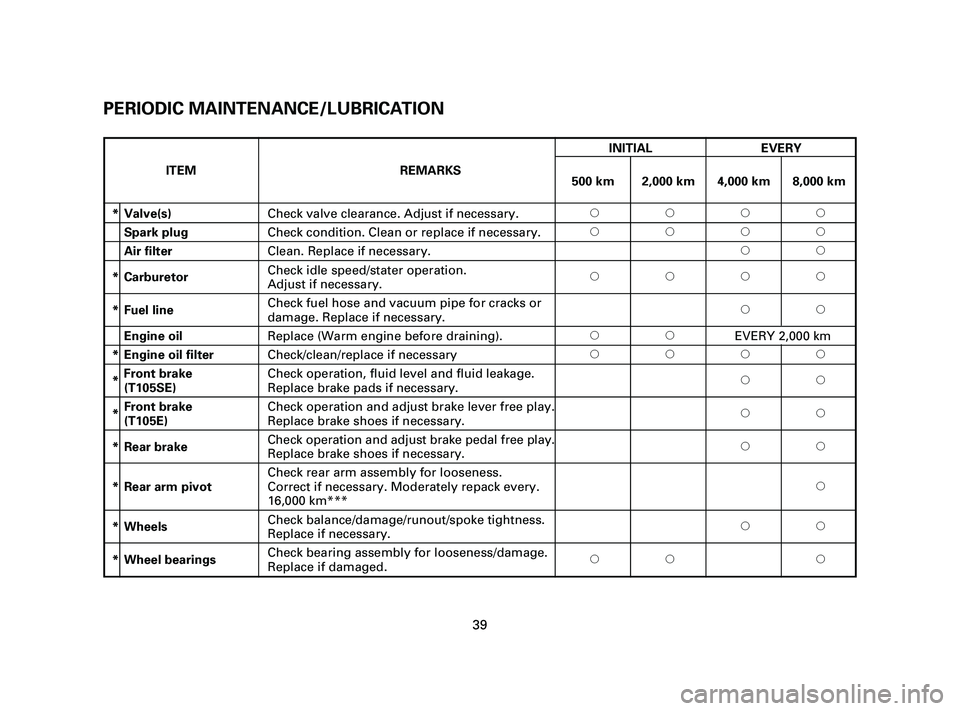

PERIODIC MAINTENANCE/LUBRICATION
5AV-F8199-E1-2 8/1/03 1:47 PM Page 39

51
EAU01119*
Checking the front brake pads (T105SE)
Front brake pad is provided with wear indi-
cator grooves. This indicator allow you to
check the brake pad wear without disas-
sembling the brake. To check the brake pad
wear, check the wear indicator grooves. If
the brake pad wear indicator grooves have
almost disappeared, have a Yamaha dealer
replace the brake pads as a set.
EAU00732
Checking the brake fluid level (T105SE)
Insufficient brake fluid may allow air to
enter the brake system, possibly causing it
to become ineffective.
Before riding, check that the brake fluid is
above the minimum level mark and replen-
ish if necessary. A low brake fluid level
may indicate worn brake pads and/or brake
system leakage. If the brake level is low, be
sure to check the brake pads for wear and
the brake system for leakage.
11
1. Brake pad wear indicator groove (×3)
q
1. Minimum level mark
5AV-F8199-E1-3 8/1/03 1:48 PM Page 51

52
Observe these precautions:
8When checking the fluid level, make
sure that the top of the master cylin-
der is level by turning the handlebars.
8Use only the recommended quality
brake fluid, otherwise the rubber seals
may deteriorate, causing leakage and
poor braking performance.
NOTE:
If DOT 4 is not available, DOT 3 can be
used.
8Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and lead to
poor braking performance.8Be careful that water does not enter
the master cylinder when refilling.
Water will significantly lower the boil-
ing point of the fluid and may result in
vapor lock.
8Brake fluid may deteriorate painted
surfaces or plastic parts. Always clean
up spilled fluid immediately.
8As the brake pads wear, it is normal
for the brake fluid level to gradually
go down. However, if the brake fluid
level goes down suddenly, have a
Yamaha dealer check the cause. Recommended brake fluid: DOT 4
5AV-F8199-E1-3 8/1/03 1:48 PM Page 52

53

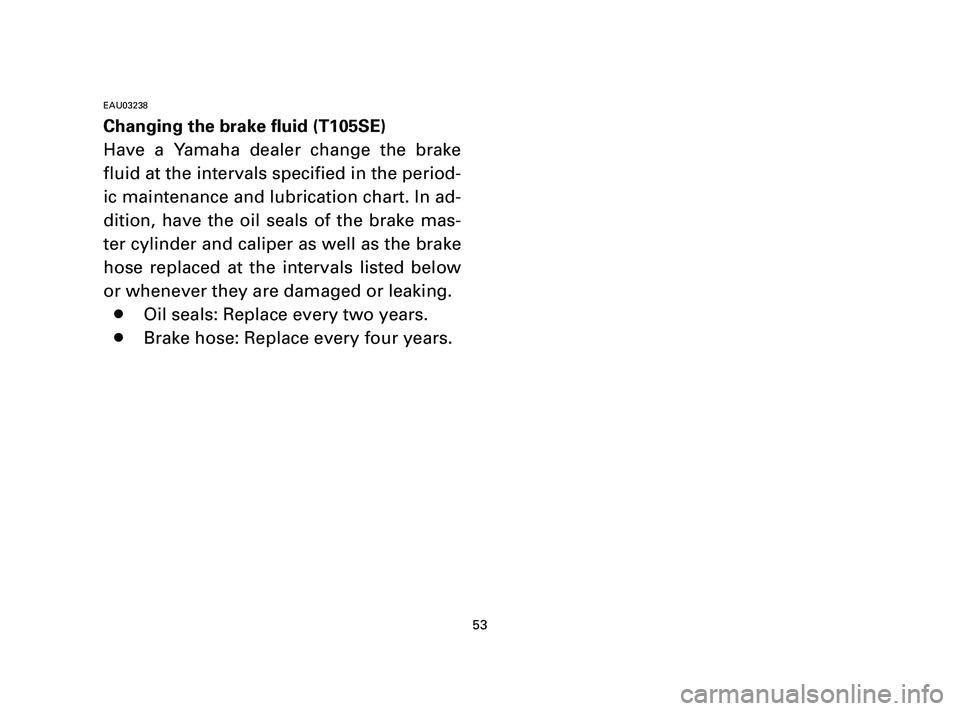

EAU03238
Changing the brake fluid (T105SE)
Have a Yamaha dealer change the brake
fluid at the intervals specified in the period-
ic maintenance and lubrication chart. In ad-
dition, have the oil seals of the brake mas-
ter cylinder and caliper as well as the brake
hose replaced at the intervals listed below
or whenever they are damaged or leaking.
8Oil seals: Replace every two years.
8Brake hose: Replace every four years.
5AV-F8199-E1-3 8/1/03 1:48 PM Page 53
