SPECIFICATIONS
EAU2633H
Dimensions:
Overall length:
2180 mm (85.8 in)
Overall width:
800 mm (31.5 in)
Overall height:
1290 mm (50.8 in)
Seat height:
825 mm (32.5 in)
Wheelbase:
1485 mm (58.5 in)
Ground clearance:
160 mm (6.30 in)
Minimum turning radius:
2900 mm (114.2 in)
Weight:
With oil and fuel:
226.0 kg (498 lb)
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 2-cylinder
Displacement:
897.0 cm
3
Bore
×
stroke:
92.0
×
67.5 mm (3.62
×
2.66 in)
Compression ratio:
10.40 :1
Starting system:
Electric starterLubrication system:
Dry sump
Engine oil:
Type:
SAE10W30, SAE10W40, SAE15W40,
SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SG type or higher, JASO stan-
dard MA
Engine oil quantity:
Without oil filter element replacement:
3.80 L (4.02 US qt) (3.34 Imp.qt)
With oil filter element replacement:
3.90 L (4.12 US qt) (3.43 Imp.qt)
Cooling system:
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
Radiator capacity (including all routes):
1.75 L (1.85 US qt) (1.54 Imp.qt)
Air filter:
Air filter element:
Oil-coated paper element
Fuel:
Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
20.0 L (5.28 US gal) (4.40 Imp.gal)
Fuel reserve amount:
3.5 L (0.92 US gal) (0.77 Imp.gal)
Fuel injector:
Manufacturer:
DENSO
Model/quantity:
3830/2
Spark plug (s):
Manufacturer/model:
NGK/DPR8EA-9
Manufacturer/model:
DENSO/X24EPR-U9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Clutch:
Clutch type:
Wet, multiple-disc
Transmission:
Primary reduction system:
Spur gear
Primary reduction ratio:
67/39 (1.718)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
42/16 (2.625)
Transmission type:
Constant mesh 6-speed
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40
Page 82 of 90

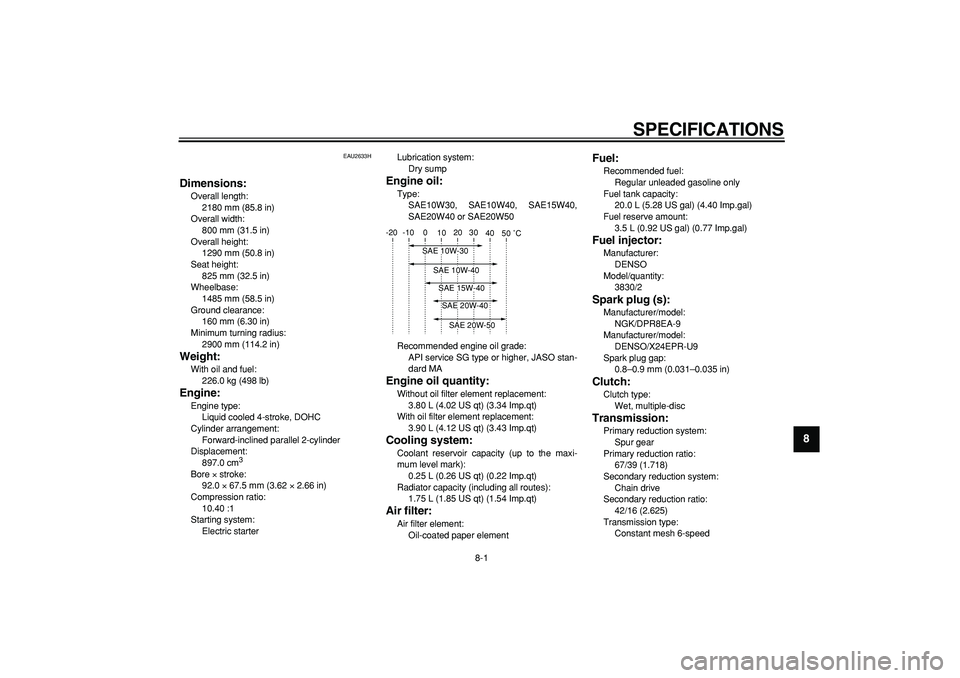

SPECIFICATIONS
8-2
1
2
3
4
5
6
7
8
9

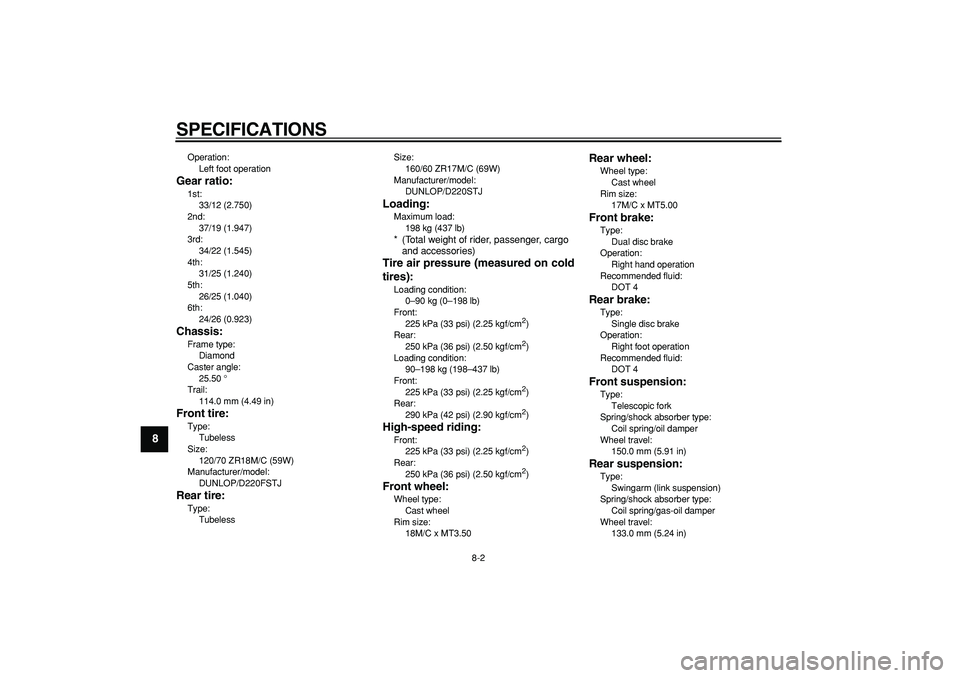

Operation:
Left foot operation
Gear ratio:
1st:
33/12 (2.750)
2nd:
37/19 (1.947)
3rd:
34/22 (1.545)
4th:
31/25 (1.240)
5th:
26/25 (1.040)
6th:
24/26 (0.923)
Chassis:
Frame type:
Diamond
Caster angle:
25.50 °
Trail:
114.0 mm (4.49 in)
Front tire:
Type:
Tubeless
Size:
120/70 ZR18M/C (59W)
Manufacturer/model:
DUNLOP/D220FSTJ
Rear tire:
Type:
TubelessSize:
160/60 ZR17M/C (69W)
Manufacturer/model:
DUNLOP/D220STJ
Loading:
Maximum load:
198 kg (437 lb)
* (Total weight of rider, passenger, cargo
and accessories)
Tire air pressure (measured on cold
tires):
Loading condition:
0–90 kg (0–198 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm
2
)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2
)
Loading condition:
90–198 kg (198–437 lb)
Front:
225 kPa (33 psi) (2.25 kgf/cm
2
)
Rear:
290 kPa (42 psi) (2.90 kgf/cm
2
)
High-speed riding:
Front:
225 kPa (33 psi) (2.25 kgf/cm
2
)
Rear:
250 kPa (36 psi) (2.50 kgf/cm
2
)
Front wheel:
Wheel type:
Cast wheel
Rim size:
18M/C x MT3.50
Rear wheel:
Wheel type:
Cast wheel
Rim size:
17M/C x MT5.00
Front brake:
Type:
Dual disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4
Rear brake:
Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4
Front suspension:
Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
150.0 mm (5.91 in)
Rear suspension:
Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
133.0 mm (5.24 in)
Page 83 of 90

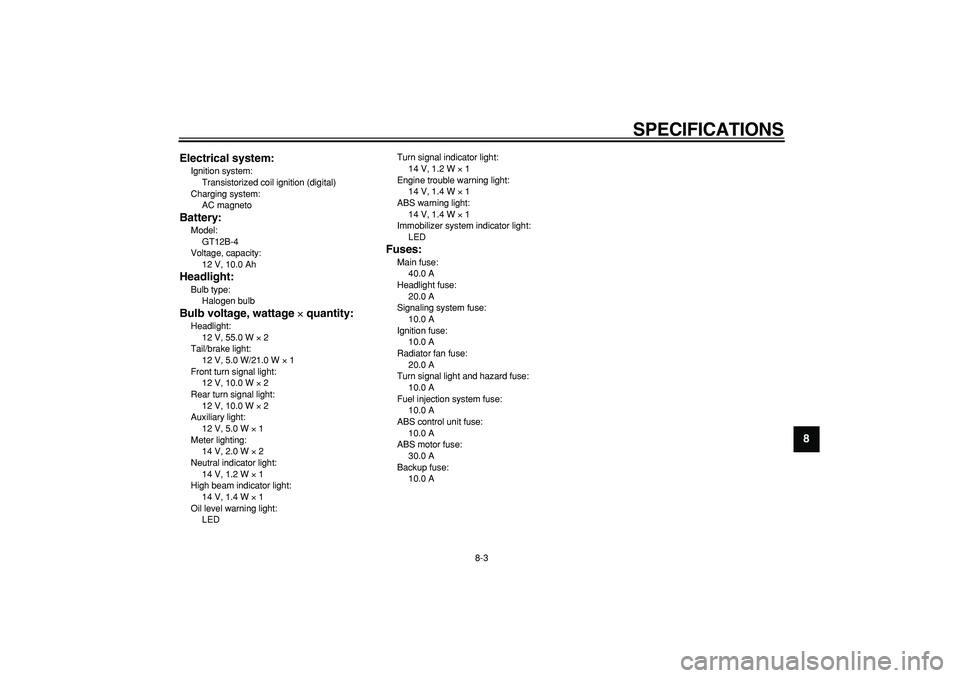

SPECIFICATIONS
8-3
2
3
4
5
6
7
89 Electrical system:
Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magneto
Battery:
Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 55.0 W
×
2
Tail/brake light:
12 V, 5.0 W/21.0 W
×
1
Front turn signal light:
12 V, 10.0 W
×
2
Rear turn signal light:
12 V, 10.0 W
×
2
Auxiliary light:
12 V, 5.0 W
×
1
Meter lighting:
14 V, 2.0 W
×
2
Neutral indicator light:
14 V, 1.2 W
×
1
High beam indicator light:
14 V, 1.4 W
×
1
Oil level warning light:
LEDTurn signal indicator light:
14 V, 1.2 W
×
1
Engine trouble warning light:
14 V, 1.4 W
×
1
ABS warning light:
14 V, 1.4 W
×
1
Immobilizer system indicator light:
LED
Fuses:
Main fuse:
40.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Turn signal light and hazard fuse:
10.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
Backup fuse:
10.0 A
Page 84 of 90

9-1
1
2
3
4
5
6
7
8
9

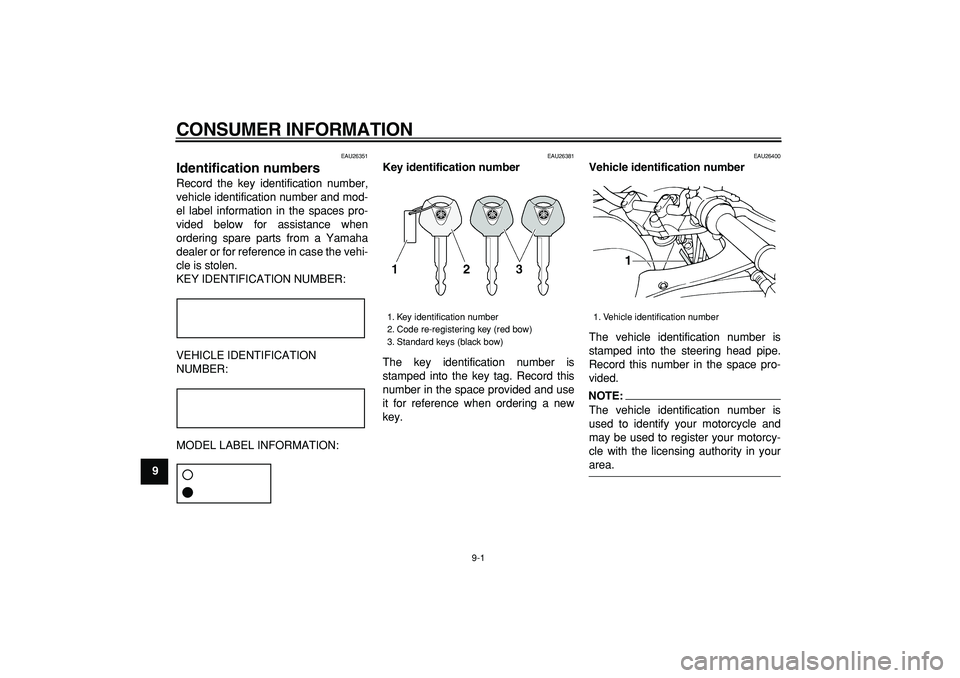

CONSUMER INFORMATION
EAU26351
Identification numbers
Record the key identification number,
vehicle identification number and mod-
el label information in the spaces pro-
vided below for assistance when
ordering spare parts from a Yamaha
dealer or for reference in case the vehi-
cle is stolen.
KEY IDENTIFICATION NUMBER:
VEHICLE IDENTIFICATION
NUMBER:
MODEL LABEL INFORMATION:
EAU26381
Key identification number
The key identification number is
stamped into the key tag. Record this
number in the space provided and use
it for reference when ordering a new
key.
EAU26400
Vehicle identification number
The vehicle identification number is
stamped into the steering head pipe.
Record this number in the space pro-
vided.
NOTE:
The vehicle identification number is
used to identify your motorcycle and
may be used to register your motorcy-
cle with the licensing authority in your
area.
1. Key identification number
2. Code re-registering key (red bow)
3. Standard keys (black bow)
1. Vehicle identification number
1
Page 85 of 90

CONSUMER INFORMATION
9-2
2
3
4
5
6
7
8
9

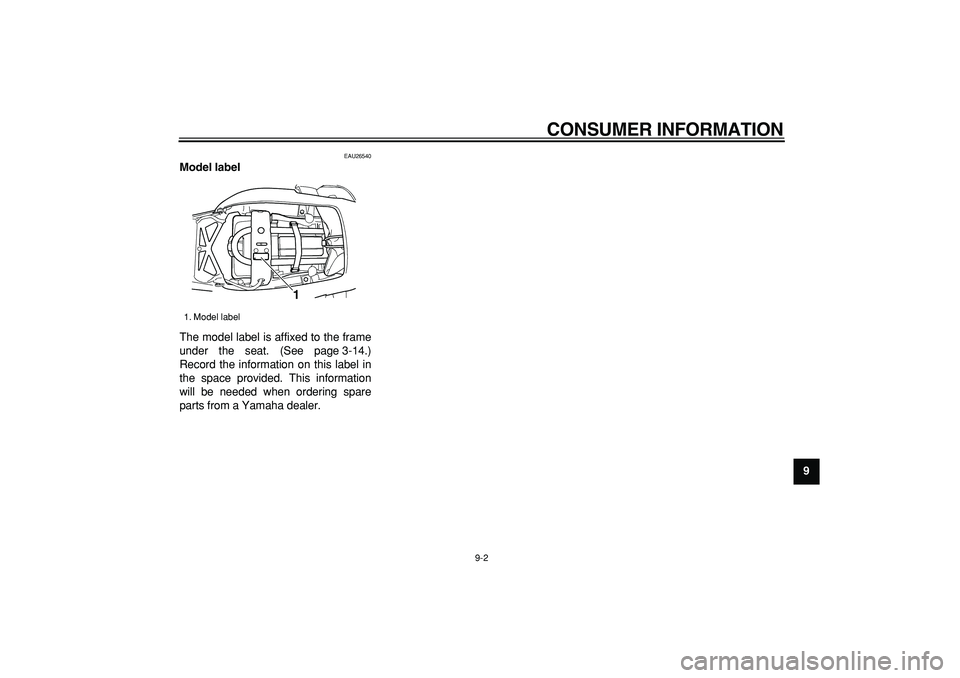

EAU26540
Model label
The model label is affixed to the frame
under the seat. (See page 3-14.)
Record the information on this label in
the space provided. This information
will be needed when ordering spare
parts from a Yamaha dealer.
1. Model label
1
Page 86 of 90

INDEX
A
ABS ........................................................ 3-11
ABS warning light ..................................... 3-4
Air filter element, replacing ..................... 6-12
Anti-theft alarm (optional).......................... 3-8
Auxiliary light bulb, replacing .................. 6-32
B
Battery..................................................... 6-27
Brake and clutch levers, checking and
lubricating ............................................. 6-25
Brake and shift pedals, checking and
lubricating ............................................. 6-24
Brake fluid, changing .............................. 6-21
Brake fluid level, checking ...................... 6-20
Brake lever .............................................. 3-10
Brake pedal ............................................. 3-11
C
Cables, checking and lubricating ............ 6-24
Care .......................................................... 7-1
Catalytic converter .................................. 3-14
Caution, matte color .................................. 7-1
Clutch lever ............................................. 3-10
Clutch lever free play, adjusting .............. 6-18
Coolant.................................................... 6-10
Coolant temperature gauge ...................... 3-6
Cowlings and panels, removing and
installing.................................................. 6-5
D
Dimmer switch .......................................... 3-9
Drive chain, cleaning and lubricating ...... 6-23
Drive chain slack ..................................... 6-21
E
Engine break-in ......................................... 5-3
Engine idling speed................................. 6-14Engine oil and oil filter element ..................6-7
Engine stop switch .....................................3-9
Engine trouble warning light ......................3-4
F
Front and rear brake pads, checking .......6-19
Front fork, adjusting .................................3-15
Front fork, checking .................................6-26
Fuel ..........................................................3-13
Fuel consumption, tips for reducing ...........5-3
Fuel level warning indicator .......................3-4
Fuel tank breather hose ...........................3-13
Fuel tank cap ...........................................3-12
Fuses, replacing ......................................6-29
H
Handlebar switches ...................................3-8
Hazard switch ............................................3-9
Headlight bulb, replacing .........................6-30
High beam indicator light ...........................3-4
Horn switch ................................................3-9
I
Identification numbers................................9-1
Ignition circuit cut-off system ...................3-19
Immobilizer system ....................................3-1
Immobilizer system indicator light ..............3-4
Indicator and warning lights .......................3-3
K
Key identification number ..........................9-1
L
Luggage strap holders .............................3-18
M
Main switch/steering lock ...........................3-2
Model label ................................................9-2
Multi-function display .................................3-7
N
Neutral indicator light................................. 3-4
O
Oil level warning light ................................ 3-4
P
Parking ...................................................... 5-4
Part locations............................................. 2-1
Pass switch ............................................... 3-9
Periodic maintenance and lubrication
chart ........................................................ 6-2
Pre-operation check list ............................. 4-2
R
Rear brake light switch, adjusting............ 6-19
Rear suspension, lubricating ................... 6-25
S
Safety information ..................................... 1-1
Seat ......................................................... 3-14
Shifting ...................................................... 5-2
Shift pedal ............................................... 3-10
Shock absorber assembly, adjusting....... 3-17
Sidestand ................................................ 3-19
Sidestand, checking and lubricating ........ 6-25
Spark plugs, checking ............................... 6-6
Specifications ............................................ 8-1
Starting the engine .................................... 5-1
Start switch ................................................ 3-9
Steering, checking ................................... 6-26
Storage ...................................................... 7-3
Storage compartment .............................. 3-15
Supporting the motorcycle....................... 6-32
T
Tachometer unit ........................................ 3-5
Tail/brake light bulb, replacing................. 6-31
Throttle cable free play, checking............ 6-14
Page 87 of 90

INDEX
Throttle grip and cable, checking and
lubricating ..............................................6-24
Tires .........................................................6-15
Tool kit .......................................................6-1
Troubleshooting .......................................6-33
Troubleshooting charts ............................6-34
Turn signal indicator light ...........................3-3
Turn signal light bulb, replacing ...............6-31
Turn signal switch ......................................3-9
V
Valve clearance .......................................6-15
Vehicle identification number .....................9-1
W
Wheel bearings, checking .......................6-27
Wheels .....................................................6-18
Page 88 of 90

Page 89 of 90

Page 90 of 90

PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2006.6–0.2×1 !
(E)
PRINTED ON RECYCLED PAPER
YAMAHA MOTOR CO., LTD.
PRINTED IN JAPAN
2006.6–0.2×1 !
(E)
