engine YAMAHA TMAX 2009 Service Manual

7-1
1
2
3
4
5
6
7
8
9

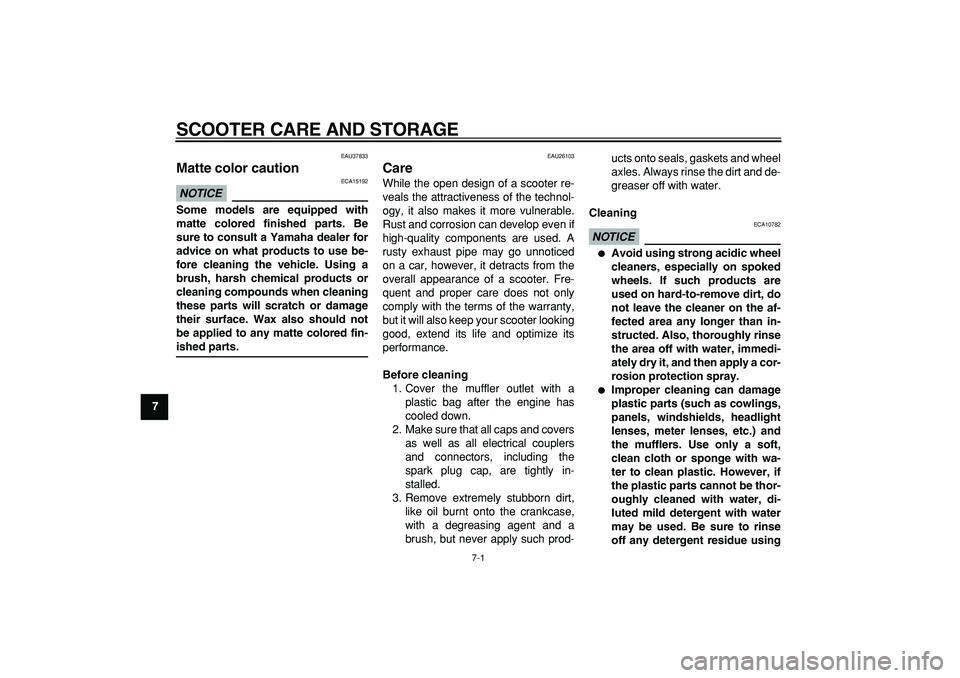

SCOOTER CARE AND STORAGE
EAU37833
Matte color caution
NOTICE

ECA15192
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use be-
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage
their surface. Wax also should not
be applied to any matte colored fin-
ished parts.
EAU26103
Care
While the open design of a scooter re-
veals the attractiveness of the technol-
ogy, it also makes it more vulnerable.
Rust and corrosion can develop even if
high-quality components are used. A
rusty exhaust pipe may go unnoticed
on a car, however, it detracts from the
overall appearance of a scooter. Fre-
quent and proper care does not only
comply with the terms of the warranty,
but it will also keep your scooter looking
good, extend its life and optimize its
performance.
Before cleaning
1. Cover the muffler outlet with a
plastic bag after the engine has
cooled down.
2. Make sure that all caps and covers
as well as all electrical couplers
and connectors, including the
spark plug cap, are tightly in-
stalled.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-ucts onto seals, gaskets and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
NOTICE

ECA10782

Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.

Improper cleaning can damage
plastic parts (such as cowlings,
panels, windshields, headlight
lenses, meter lenses, etc.) and
the mufflers. Use only a soft,
clean cloth or sponge with wa-
ter to clean plastic. However, if
the plastic parts cannot be thor-
oughly cleaned with water, di-
luted mild detergent with water
may be used. Be sure to rinse
off any detergent residue using

SCOOTER CARE AND STORAGE
7-4
2
3
4
5
6
78
9

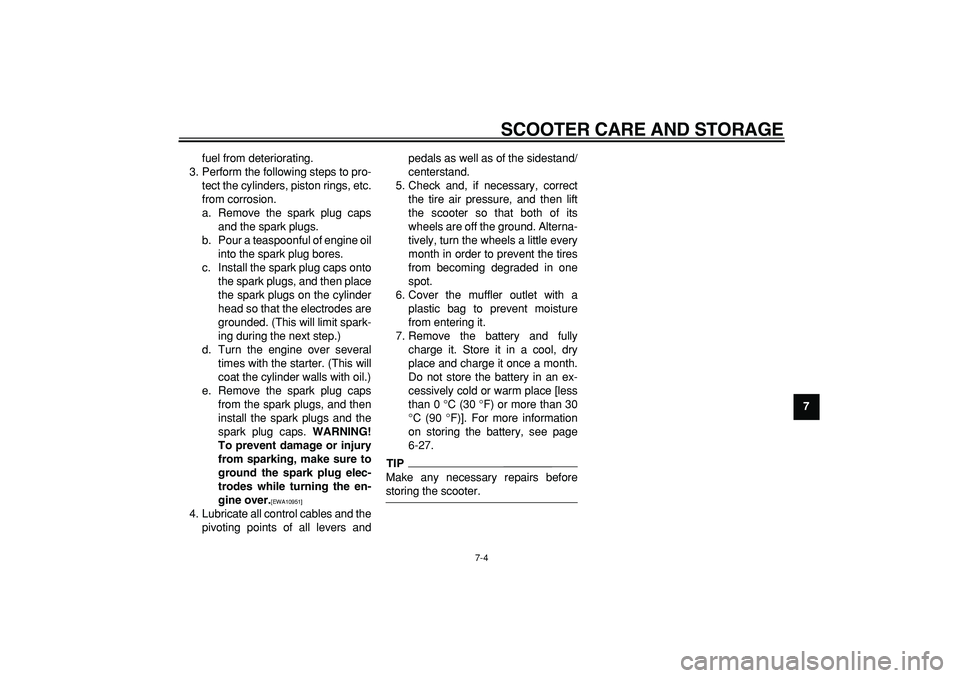

fuel from deteriorating.
3. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and the spark plugs.
b. Pour a teaspoonful of engine oil
into the spark plug bores.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
WARNING!
To prevent damage or injury
from sparking, make sure to
ground the spark plug elec-
trodes while turning the en-
gine over.

[EWA10951]

4. Lubricate all control cables and the
pivoting points of all levers andpedals as well as of the sidestand/
centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the scooter so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlet with a
plastic bag to prevent moisture
from entering it.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-27.
TIP

Make any necessary repairs before
storing the scooter.

8-1
1
2
3
4
5
6
7
8
9

SPECIFICATIONS
EAU2633P
Dimensions:
Overall length:
2195 mm (86.4 in)
Overall width:
775 mm (30.5 in)
Overall height:
1445 mm (56.9 in)
Seat height:
800 mm (31.5 in)
Wheelbase:
1580 mm (62.2 in)
Ground clearance:
125 mm (4.92 in)
Minimum turning radius:
2800 mm (110.2 in)
Weight:
With oil and fuel:
XP500 221.0 kg (487 lb)
XP500A 225.0 kg (496 lb)
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 2-cylinder
Displacement:
499.0 cm
3

Bore
×
stroke:
66.0
×
73.0 mm (2.60
×
2.87 in)
Compression ratio:
11.00 :1Starting system:
Electric starter
Lubrication system:
Dry sump

Engine oil:
Type:
SAE 10W-30 or SAE 10W-40
Recommended engine oil grade:
API service SG type or higher, JASO stan-
dard MA
Engine oil quantity:
Without oil filter cartridge replacement:
2.80 L (2.96 US qt, 2.46 Imp.qt)
With oil filter cartridge replacement:
2.90 L (3.07 US qt, 2.55 Imp.qt)
Chain drive oil:
Type:
SAE 80 API GL-4 Hypoid gear oil
Quantity:
0.70 L (0.74 US qt, 0.62 Imp.qt)
Cooling system:
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt, 0.22 Imp.qt)
Radiator capacity (including all routes):
1.48 L (1.56 US qt, 1.30 Imp.qt)
Air filter:
Air filter element:
Oil-coated paper element
Fuel:
Recommended fuel:
Regular unleaded gasoline onlyFuel tank capacity:
15.0 L (3.96 US gal, 3.30 Imp.gal)
Fuel reserve amount:
3.0 L (0.79 US gal, 0.66 Imp.gal)
Fuel injection:
Throttle body:
Manufacturer:
MIKUNI
Type/quantity:
ACW31-10/1
Spark plug (s):
Manufacturer/model:
NGK/CR7E
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
Clutch:
Clutch type:
Wet, multiple-disc automatic
Transmission:
Primary reduction system:
Spur gear/helical gear
Primary reduction ratio:
52/32
×
36/22 (2.659)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
41/25
×
40/29 (2.262)
Transmission type:
V-belt automatic
Operation:
Centrifugal automatic type

SPECIFICATIONS
8-3
1
2
3
4
5
6
7
8

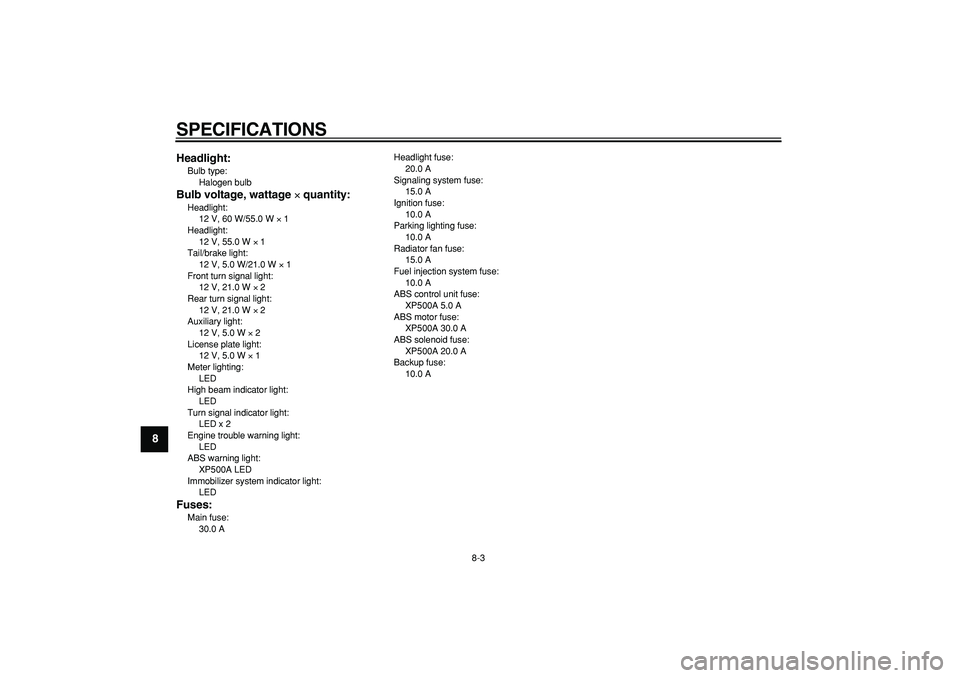

9Headlight:

Bulb type:
Halogen bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 60 W/55.0 W
×
1
Headlight:
12 V, 55.0 W
×
1
Tail/brake light:
12 V, 5.0 W/21.0 W
×
1
Front turn signal light:
12 V, 21.0 W
×
2
Rear turn signal light:
12 V, 21.0 W
×
2
Auxiliary light:
12 V, 5.0 W
×
2
License plate light:
12 V, 5.0 W
×
1
Meter lighting:
LED
High beam indicator light:
LED
Turn signal indicator light:
LED x 2
Engine trouble warning light:
LED
ABS warning light:
XP500A LED
Immobilizer system indicator light:
LED

Fuses:
Main fuse:
30.0 AHeadlight fuse:
20.0 A
Signaling system fuse:
15.0 A
Ignition fuse:
10.0 A
Parking lighting fuse:
10.0 A
Radiator fan fuse:
15.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
XP500A 5.0 A
ABS motor fuse:
XP500A 30.0 A
ABS solenoid fuse:
XP500A 20.0 A
Backup fuse:
10.0 A

INDEX
A
ABS (for ABS models) .............................3-14
ABS warning light (for ABS models) ..........3-3
Acceleration and deceleration ...................5-2
Air filter element, replacing ......................6-17
Anti-theft alarm (optional) ........................3-11
Auxiliary light bulb, replacing ...................6-34
B
Battery .....................................................6-27
Brake fluid, changing ...............................6-24
Brake fluid level, checking .......................6-23
Brake lever, front .....................................3-12
Brake lever, rear ......................................3-13
Brake levers, lubricating ..........................6-25
Braking ......................................................5-3
C
Care ...........................................................7-1
Catalytic converter ...................................3-18
Centerstand and sidestand, checking and
lubricating ..............................................6-25
Chain drive oil ..........................................6-14
Coolant ....................................................6-15
Coolant temperature gauge .......................3-5
D
Dimmer switch .........................................3-11
E
Engine break-in .........................................5-4
Engine idling speed .................................6-17
Engine oil and oil filter cartridge ..............6-11
Engine stop switch...................................3-12
Engine trouble warning light ......................3-3
F
Front and rear brake lever free play ........6-21
Front and rear brake pads, checking .......6-22Front fork, checking ................................. 6-26
Fuel ......................................................... 3-16
Fuel consumption, tips for reducing .......... 5-3
Fuel gauge ................................................ 3-5
Fuel tank cap ........................................... 3-15
Fuses, replacing ...................................... 6-29
H
Handlebar switches ................................. 3-11
Hazard switch .......................................... 3-12
Headlight bulb, replacing ......................... 6-31
Helmet holder .......................................... 3-20
High beam indicator light ........................... 3-3
Horn switch.............................................. 3-12
I
Identification numbers ............................... 9-1
Ignition circuit cut-off system ................... 3-23
Immobilizer system.................................... 3-1
Immobilizer system indicator light ............. 3-4
Indicator and warning lights....................... 3-3
K
Key identification number .......................... 9-1
L
License plate light bulb, replacing ........... 6-33
M
Main switch/steering lock .......................... 3-2
Matte color, caution ................................... 7-1
Model label ................................................ 9-2
Multi-function display ................................. 3-6
P
Panels, removing and installing................. 6-7
Parking ...................................................... 5-4
Part locations............................................. 2-1
Pass switch ............................................. 3-11Periodic maintenance and lubrication
chart ........................................................ 6-3
R
Rear brake lock lever .............................. 3-14
Rear brake lock lever cable, adjusting .... 6-21
Rear view mirrors .................................... 3-22
Rider backrest, adjusting......................... 3-19
S
Safe-riding points ...................................... 1-5
Safety information ..................................... 1-1
Seat ......................................................... 3-18
Shock absorber assembly ....................... 3-22
Sidestand ................................................ 3-23
Spark plugs, checking ............................. 6-10
Specifications ............................................ 8-1
Speedometer............................................. 3-4
Starting off ................................................. 5-2
Starting the engine .................................... 5-1
Start switch.............................................. 3-12
Steering, checking................................... 6-27
Storage...................................................... 7-3
Storage compartments ............................ 3-20
T
Tail/brake light ......................................... 6-32
Throttle cable free play, checking ........... 6-18
Throttle grip and cable, checking and
lubricating ............................................. 6-24
Tires ........................................................ 6-19
Tool kit....................................................... 6-2
Troubleshooting ...................................... 6-34
Troubleshooting charts............................ 6-35
Turn signal indicator lights ........................ 3-3
Turn signal light bulb (front), replacing .... 6-32
Turn signal switch ................................... 3-11
