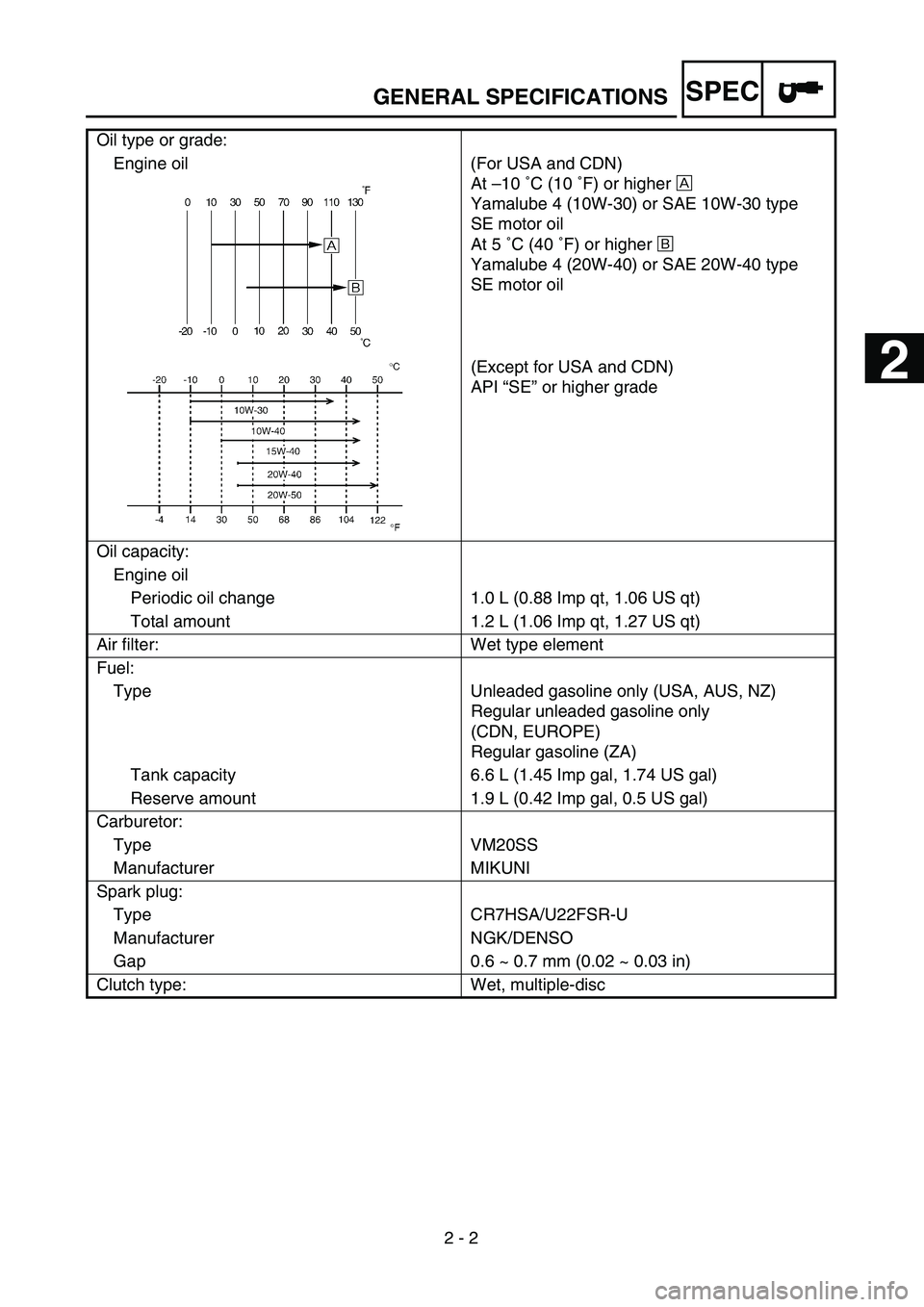

SPEC
2 - 2
GENERAL SPECIFICATIONS
Oil type or grade:
Engine oil (For USA and CDN)
At –10 ˚C (10 ˚F) or higher Å
Yamalube 4 (10W-30) or SAE 10W-30 type
SE motor oil
At 5 ˚C (40 ˚F) or higher ı
Yamalube 4 (20W-40) or SAE 20W-40 type
SE motor oil
(Except for USA and CDN)
API “SE” or higher grade
Oil capacity:
Engine oil
Periodic oil change 1.0 L (0.88 Imp qt, 1.06 US qt)
Total amount 1.2 L (1.06 Imp qt, 1.27 US qt)
Air filter: Wet type element
Fuel:
Type Unleaded gasoline only (USA, AUS, NZ)
Regular unleaded gasoline only
(CDN, EUROPE)
Regular gasoline (ZA)
Tank capacity 6.6 L (1.45 Imp gal, 1.74 US gal)
Reserve amount 1.9 L (0.42 Imp gal, 0.5 US gal)
Carburetor:
Type VM20SS
Manufacturer MIKUNI
Spark plug:
Type CR7HSA/U22FSR-U
Manufacturer NGK/DENSO
Gap 0.6 ~ 0.7 mm (0.02 ~ 0.03 in)
Clutch type: Wet, multiple-disc
2

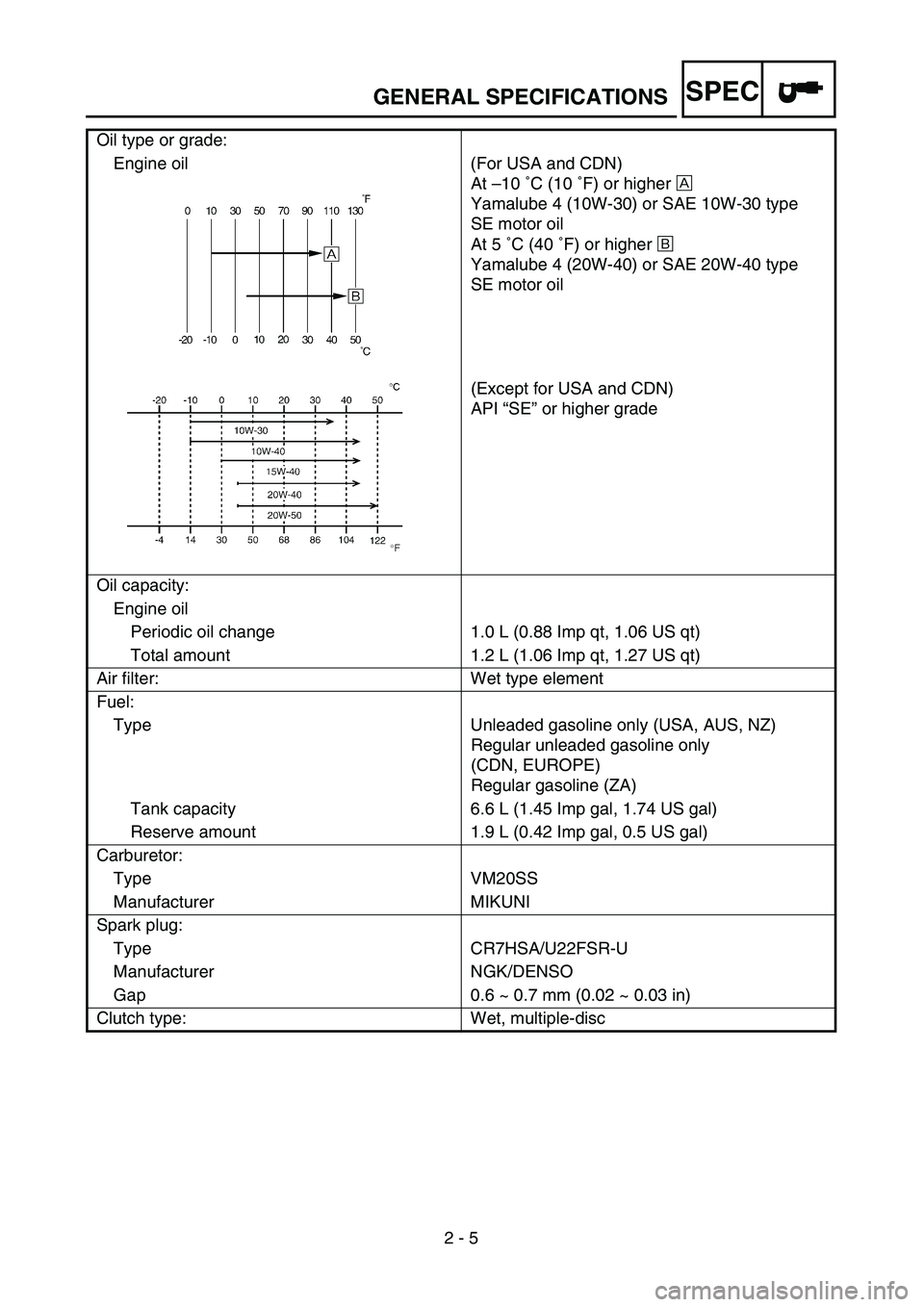

SPEC
2 - 5
GENERAL SPECIFICATIONS
Oil type or grade:
Engine oil (For USA and CDN)
At –10 ˚C (10 ˚F) or higher Å
Yamalube 4 (10W-30) or SAE 10W-30 type
SE motor oil
At 5 ˚C (40 ˚F) or higher ı
Yamalube 4 (20W-40) or SAE 20W-40 type
SE motor oil
(Except for USA and CDN)
API “SE” or higher grade
Oil capacity:
Engine oil
Periodic oil change 1.0 L (0.88 Imp qt, 1.06 US qt)
Total amount 1.2 L (1.06 Imp qt, 1.27 US qt)
Air filter: Wet type element
Fuel:
Type Unleaded gasoline only (USA, AUS, NZ)
Regular unleaded gasoline only
(CDN, EUROPE)
Regular gasoline (ZA)
Tank capacity 6.6 L (1.45 Imp gal, 1.74 US gal)
Reserve amount 1.9 L (0.42 Imp gal, 0.5 US gal)
Carburetor:
Type VM20SS
Manufacturer MIKUNI
Spark plug:
Type CR7HSA/U22FSR-U
Manufacturer NGK/DENSO
Gap 0.6 ~ 0.7 mm (0.02 ~ 0.03 in)
Clutch type: Wet, multiple-disc

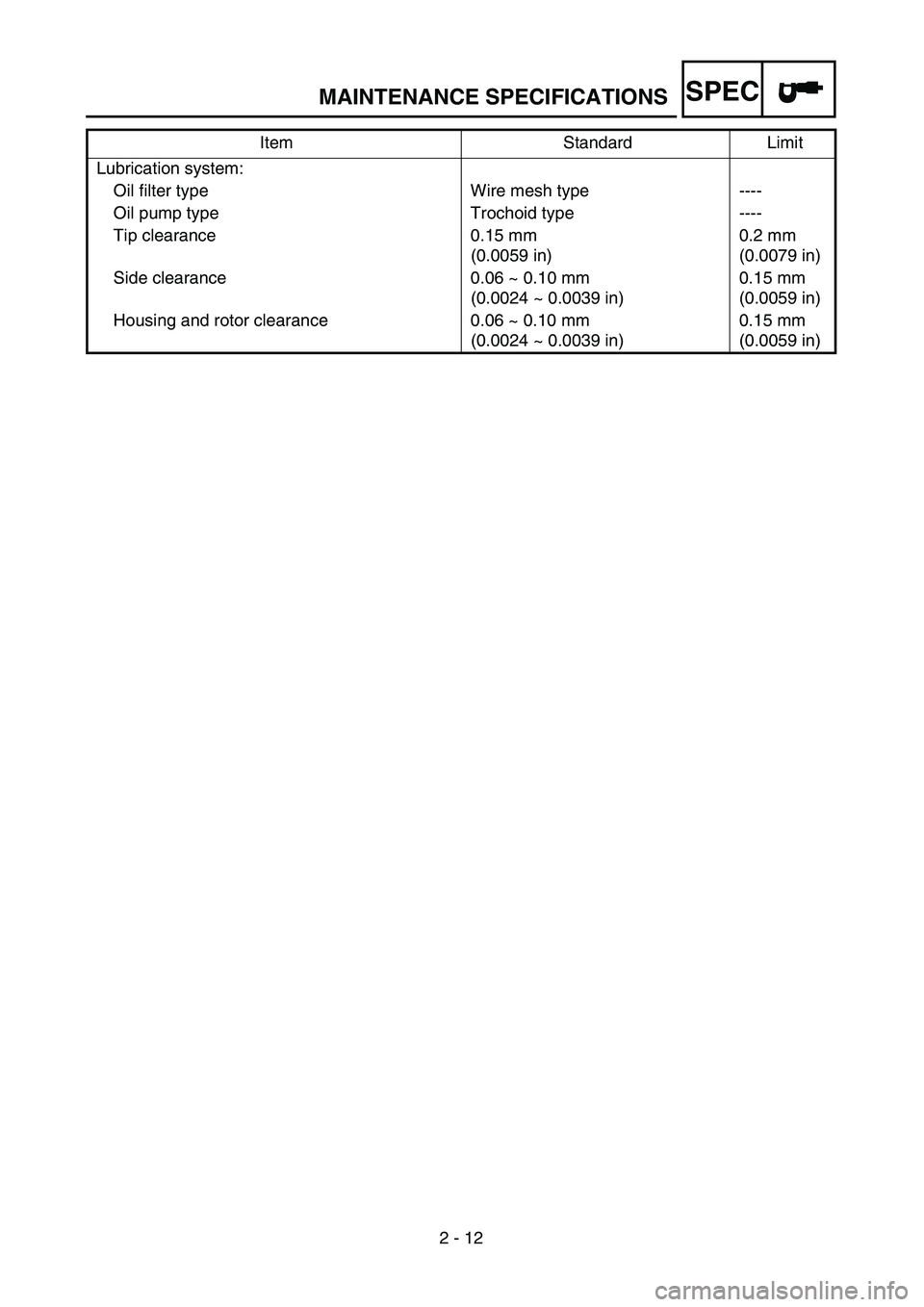

SPEC
2 - 12
MAINTENANCE SPECIFICATIONS
Lubrication system:
Oil filter type Wire mesh type ----
Oil pump type Trochoid type ----
Tip clearance 0.15 mm
(0.0059 in)0.2 mm
(0.0079 in)
Side clearance 0.06 ~ 0.10 mm
(0.0024 ~ 0.0039 in)0.15 mm
(0.0059 in)
Housing and rotor clearance 0.06 ~ 0.10 mm
(0.0024 ~ 0.0039 in)0.15 mm
(0.0059 in) Item Standard Limit

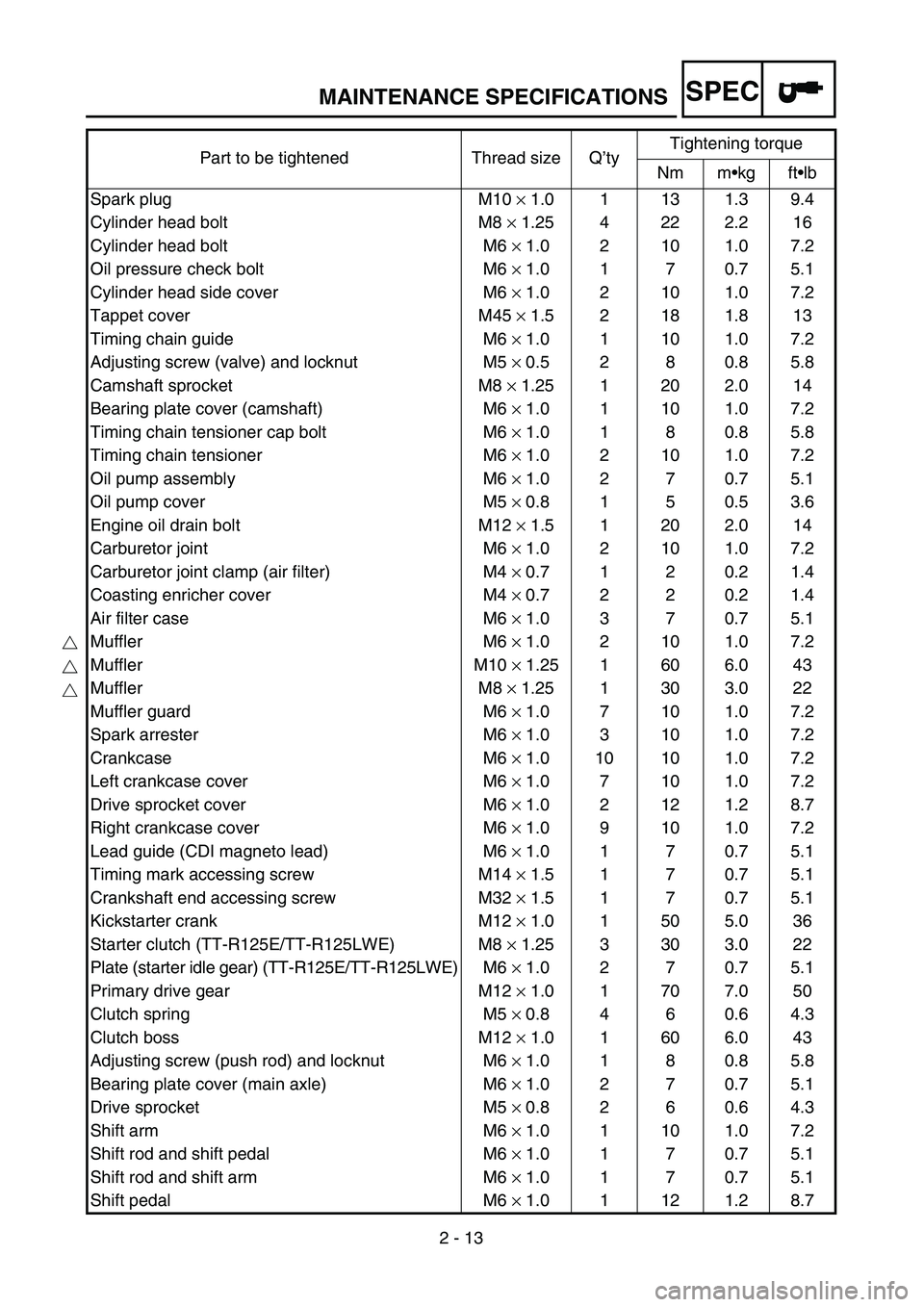

SPEC
2 - 13
MAINTENANCE SPECIFICATIONS
Part to be tightened Thread size Q’tyTightening torque
Nm m•kg ft•lb
Spark plug M10 × 1.0 1 13 1.3 9.4
Cylinder head bolt M8 × 1.25 4 22 2.2 16
Cylinder head bolt M6 × 1.0 2 10 1.0 7.2
Oil pressure check bolt M6 × 1.0 1 7 0.7 5.1
Cylinder head side cover M6 × 1.0 2 10 1.0 7.2
Tappet cover M45 × 1.5 2 18 1.8 13
Timing chain guide M6 × 1.0 1 10 1.0 7.2
Adjusting screw (valve) and locknut M5 × 0.5 2 8 0.8 5.8
Camshaft sprocket M8 × 1.25 1 20 2.0 14
Bearing plate cover (camshaft) M6 × 1.0 1 10 1.0 7.2
Timing chain tensioner cap bolt M6 × 1.0 1 8 0.8 5.8
Timing chain tensioner M6 × 1.0 2 10 1.0 7.2
Oil pump assembly M6 × 1.0 2 7 0.7 5.1
Oil pump cover M5 × 0.8 1 5 0.5 3.6
Engine oil drain bolt M12 × 1.5 1 20 2.0 14
Carburetor joint M6 × 1.0 2 10 1.0 7.2
Carburetor joint clamp (air filter) M4 × 0.7 1 2 0.2 1.4
Coasting enricher cover M4 × 0.7 2 2 0.2 1.4
Air filter case M6 × 1.0 3 7 0.7 5.1
Muffler M6 × 1.0 2 10 1.0 7.2
Muffler M10 × 1.25 1 60 6.0 43
Muffler M8 × 1.25 1 30 3.0 22
Muffler guard M6 × 1.0 7 10 1.0 7.2
Spark arrester M6 × 1.0 3 10 1.0 7.2
Crankcase M6 × 1.0 10 10 1.0 7.2
Left crankcase cover M6 × 1.0 7 10 1.0 7.2
Drive sprocket cover M6 × 1.0 2 12 1.2 8.7
Right crankcase cover M6 × 1.0 9 10 1.0 7.2
Lead guide (CDI magneto lead) M6 × 1.0 1 7 0.7 5.1
Timing mark accessing screw M14 × 1.5 1 7 0.7 5.1
Crankshaft end accessing screw M32 × 1.5 1 7 0.7 5.1
Kickstarter crank M12 × 1.0 1 50 5.0 36
Starter clutch (TT-R125E/TT-R125LWE) M8 × 1.25 3 30 3.0 22
Plate (starter idle gear) (TT-R125E/TT-R125LWE) M6 × 1.0 2 7 0.7 5.1
Primary drive gear M12 × 1.0 1 70 7.0 50
Clutch spring M5 × 0.8 4 6 0.6 4.3
Clutch boss M12 × 1.0 1 60 6.0 43
Adjusting screw (push rod) and locknut M6 × 1.0 1 8 0.8 5.8
Bearing plate cover (main axle) M6 × 1.0 2 7 0.7 5.1
Drive sprocket M5 × 0.8 2 6 0.6 4.3
Shift arm M6 × 1.0 1 10 1.0 7.2
Shift rod and shift pedal M6 × 1.0 1 7 0.7 5.1
Shift rod and shift arm M6 × 1.0 1 7 0.7 5.1
Shift pedal M6 × 1.0 1 12 1.2 8.7

PERIODIC MAINTENANCE CHART FOR THE EMISSION
CONTROL SYSTEM
NOTE:
From 18 months or 7,000 km (4,200 mi) or 210 hours, repeat the maintenance intervals starting from 6 months
or 3,000 km (1,800 mi) or 90 hours.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
For TT-Rs not equipped with an odometer or an hour meter, follow the month maintenance intervals.
For TT-Rs equipped with an odometer or an hour meter, follow the km (mi) or hours maintenance intervals.
Hovewer, keep in mind that if the TT-R isn´t used for a long period of time, the month maintenance intervals
should be followed.
Nº ITEM CHECKS AND MAINTENANCE JOBS
ODOMETER READINGSINITIAL
Fuel lineCheck fuel hoses for cracks or damage.
Replace if necessary. 1
*
Whichever
comer firstmonth
km
(mi)
hours1,000
(600)1612
3,000
(1,800)5,000
(3,000)
30 90 150
Spark plug
Check condition
Adjust gap and clean.
CarburetorCheck engine idling speed an starter operation.
Adjust if necessary.
Exhaust system
Engine oilChange (warm engine before draining).2
*3
*5
7
8
√√
√
√√√
√√
√√√√√
Valve clearenceCheck and adjust valve clearance when engine is cold.
Air filter elementClean with solvent.
Replace if necessary. 4
*
Breather systemCheck ventilation hose for cracks or damage.
Replace if necessary.
*6
Check for leakage.
Tighten if necessary.
Replace gasket if necessary.
√√
√√√
3
INSP
ADJ

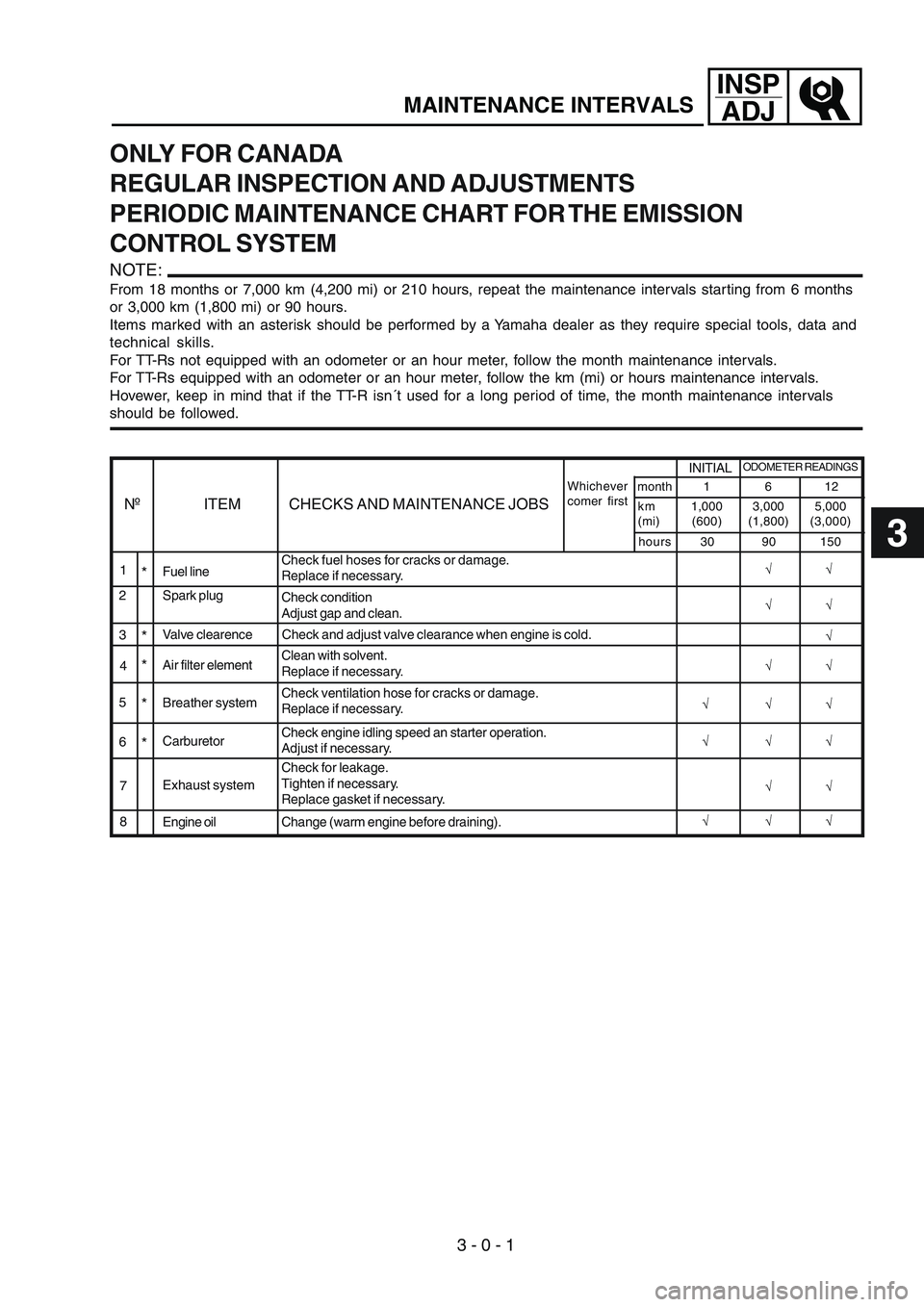

MAINTENANCE INTERVALS
ONLY FOR CANADA
REGULAR INSPECTION AND ADJUSTMENTS
3 - 0 - 1

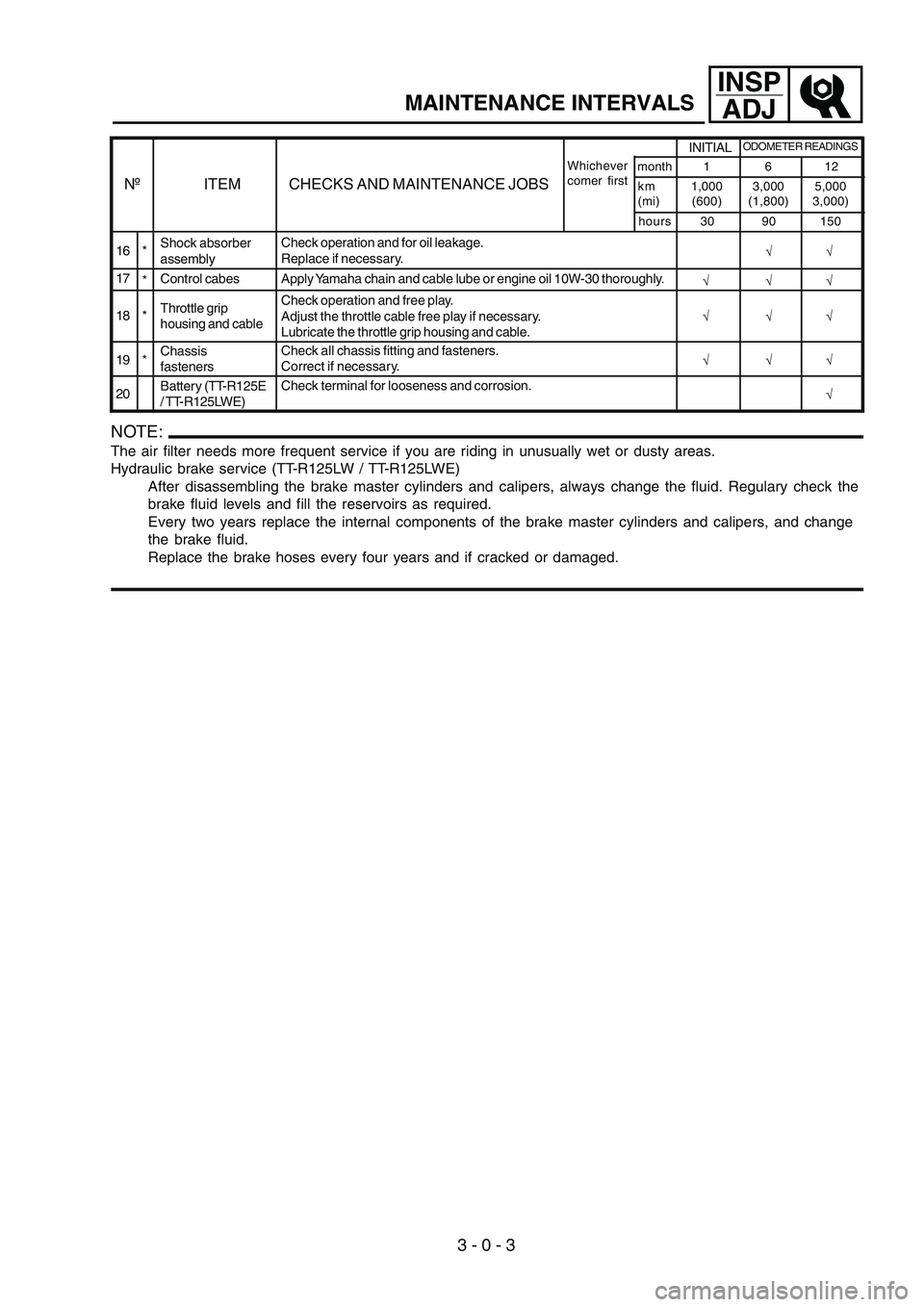

NOTE:
The air filter needs more frequent service if you are riding in unusually wet or dusty areas.
Hydraulic brake service (TT-R125LW / TT-R125LWE)
After disassembling the brake master cylinders and calipers, always change the fluid. Regulary check the
brake fluid levels and fill the reservoirs as required.
Every two years replace the internal components of the brake master cylinders and calipers, and change
the brake fluid.
Replace the brake hoses every four years and if cracked or damaged.
Control cabesApply Yamaha chain and cable lube or engine oil 10W-30 thoroughly.
Throttle grip
housing and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.
Chassis
fastenersCheck all chassis fitting and fasteners.
Correct if necessary.
Battery (TT-R125E
/ TT-R125LWE)Check terminal for looseness and corrosion.
Nº ITEM CHECKS AND MAINTENANCE JOBS
ODOMETER READINGSINITIAL
16
Whichever
comer firstmonth
km
(mi)
hours1,000
(600)1612
3,000
(1,800)5,000
3,000)
30 90 150
Shock absorber
assemblyCheck operation and for oil leakage.
Replace if necessary.*
17
*
18 *
19 *
20
√√
√√√
√√√
√√√
√
INSP
ADJ
MAINTENANCE INTERVALS
3 - 0 - 3

3 - 1
INSP
ADJ
MAINTENANCE INTERVALS

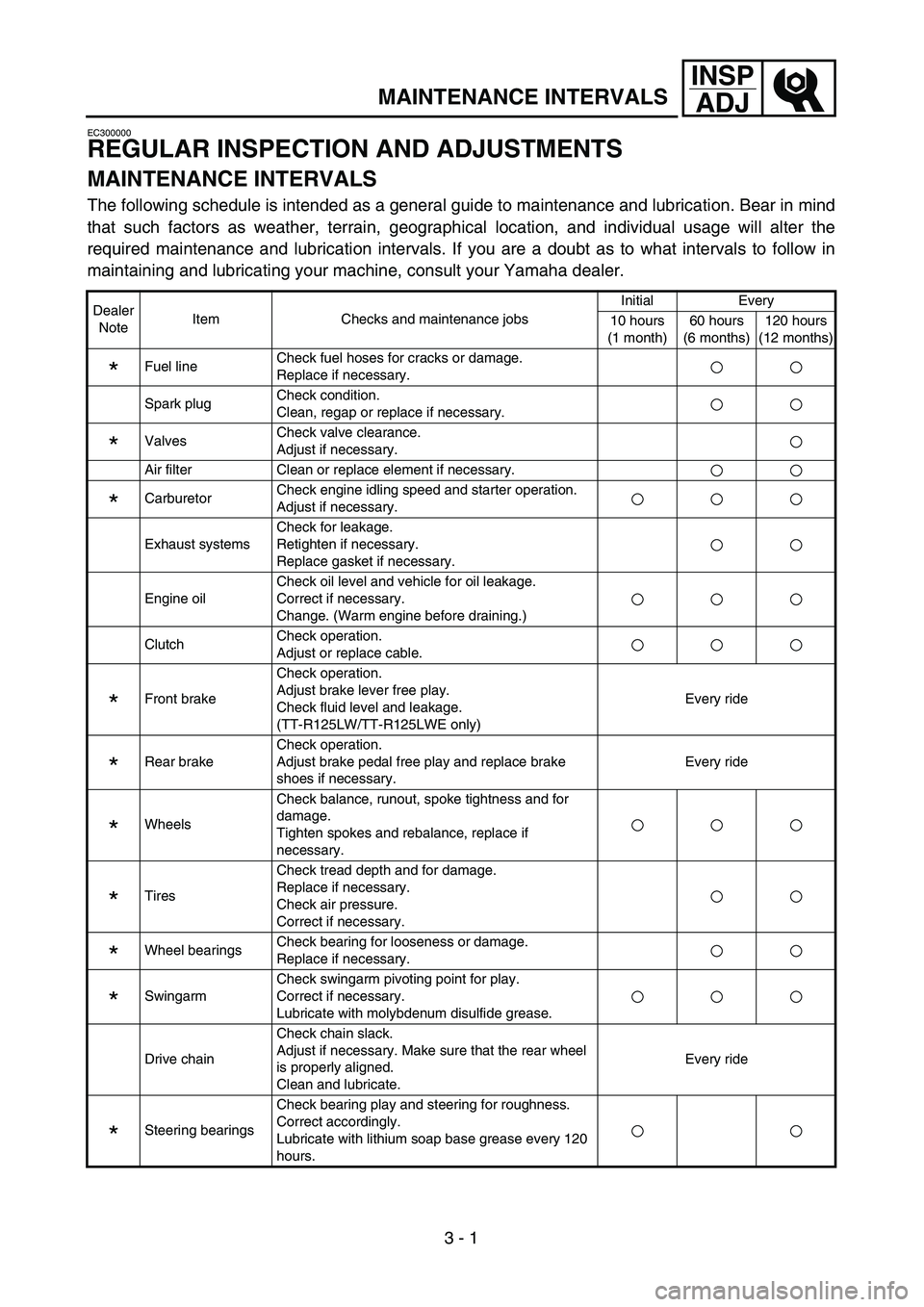

EC300000
REGULAR INSPECTION AND ADJUSTMENTS
MAINTENANCE INTERVALS
The following schedule is intended as a general guide to maintenance and lubrication. Bear in mind
that such factors as weather, terrain, geographical location, and individual usage will alter the
required maintenance and lubrication intervals. If you are a doubt as to what intervals to follow in
maintaining and lubricating your machine, consult your Yamaha dealer.
Dealer
NoteItem Checks and maintenance jobsInitial Every
10 hours
(1 month)60 hours
(6 months)120 hours
(12 months)
*Fuel lineCheck fuel hoses for cracks or damage.
Replace if necessary.
Spark plugCheck condition.
Clean, regap or replace if necessary.
*ValvesCheck valve clearance.
Adjust if necessary.
Air filter Clean or replace element if necessary.
*CarburetorCheck engine idling speed and starter operation.
Adjust if necessary.
Exhaust systemsCheck for leakage.
Retighten if necessary.
Replace gasket if necessary.
Engine oilCheck oil level and vehicle for oil leakage.
Correct if necessary.
Change. (Warm engine before draining.)
ClutchCheck operation.
Adjust or replace cable.
*Front brakeCheck operation.
Adjust brake lever free play.
Check fluid level and leakage.
(TT-R125LW/TT-R125LWE only)Every ride
*Rear brakeCheck operation.
Adjust brake pedal free play and replace brake
shoes if necessary.Every ride
*WheelsCheck balance, runout, spoke tightness and for
damage.
Tighten spokes and rebalance, replace if
necessary.
*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.
*Wheel bearingsCheck bearing for looseness or damage.
Replace if necessary.
*SwingarmCheck swingarm pivoting point for play.
Correct if necessary.
Lubricate with molybdenum disulfide grease.
Drive chainCheck chain slack.
Adjust if necessary. Make sure that the rear wheel
is properly aligned.
Clean and lubricate.Every ride
*Steering bearingsCheck bearing play and steering for roughness.
Correct accordingly.
Lubricate with lithium soap base grease every 120
hours.

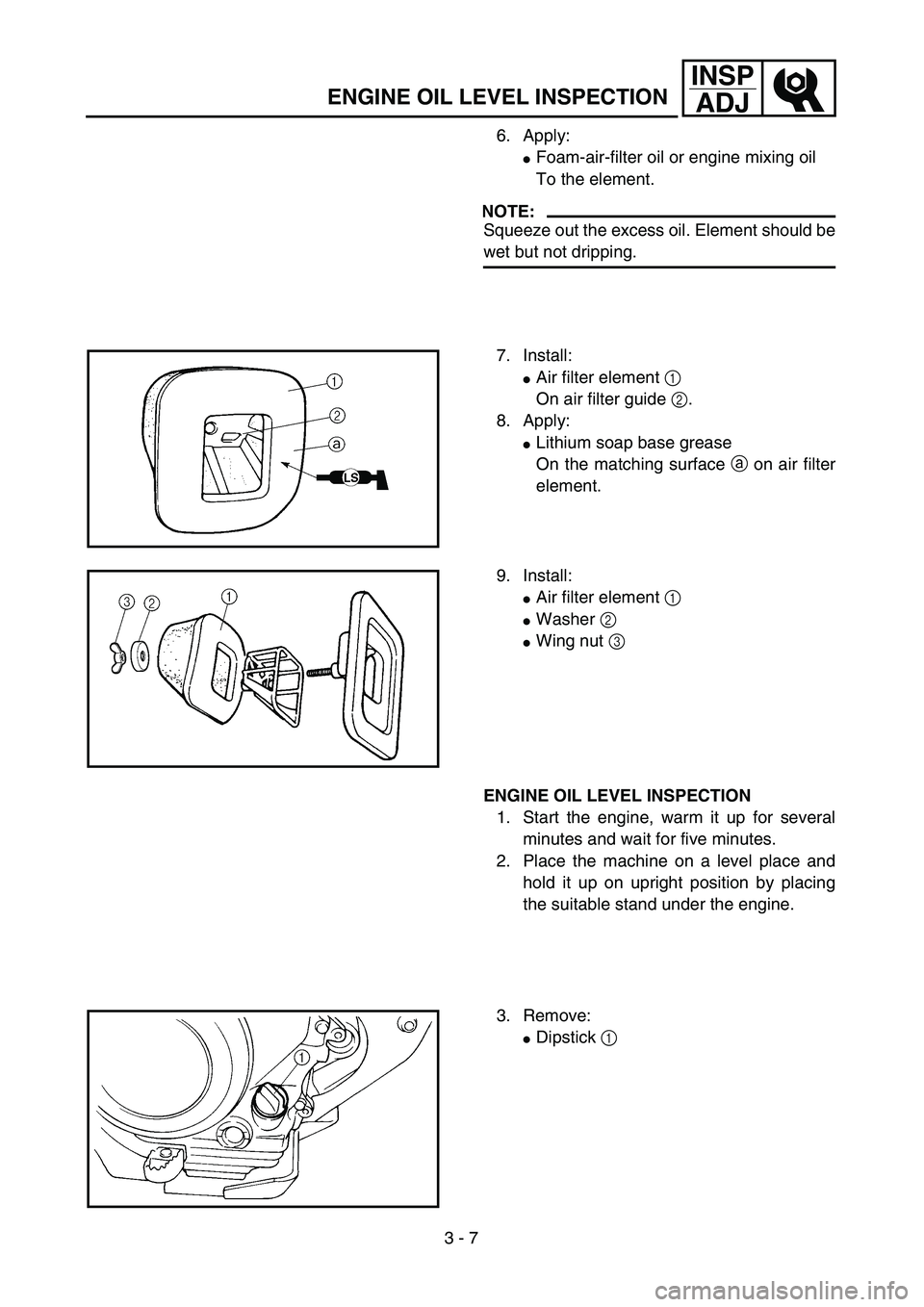

3 - 7
INSP
ADJ
ENGINE OIL LEVEL INSPECTION
6. Apply:
Foam-air-filter oil or engine mixing oil
To the element.
NOTE:
Squeeze out the excess oil. Element should be
wet but not dripping.
7. Install:
Air filter element 1
On air filter guide 2.
8. Apply:
Lithium soap base grease
On the matching surface a on air filter
element.
9. Install:
Air filter element 1
Washer 2
Wing nut 3
ENGINE OIL LEVEL INSPECTION
1. Start the engine, warm it up for several
minutes and wait for five minutes.
2. Place the machine on a level place and
hold it up on upright position by placing
the suitable stand under the engine.
3. Remove:
Dipstick 1

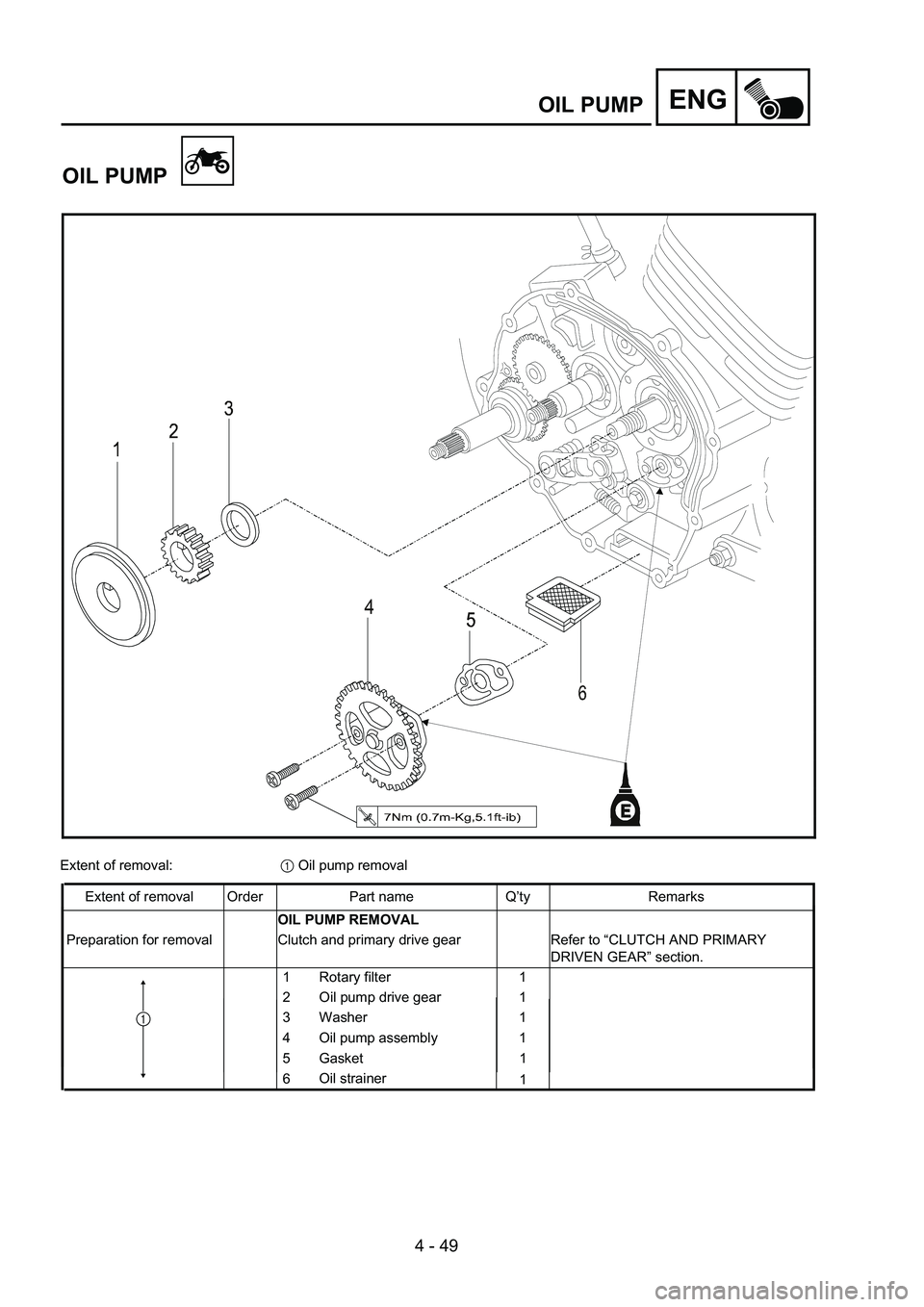

4 - 49
ENGOIL PUMP
OIL PUMP
Extent of removal: 1 Oil pump removal
Extent of removal Order Part name Q’ty Remarks OIL PUMP REMOVAL
Preparation for removal Clutch and primary drive gear Refer to “CLUTCH AND PRIMARY DRIVEN GEAR” section.
1
1
1
1
1
1
1
1 Rotary filter
2 Oil pump drive gear
3
Washer
4 Oil pump assembly
5 Gasket
6 Oil strainer

4 - 51

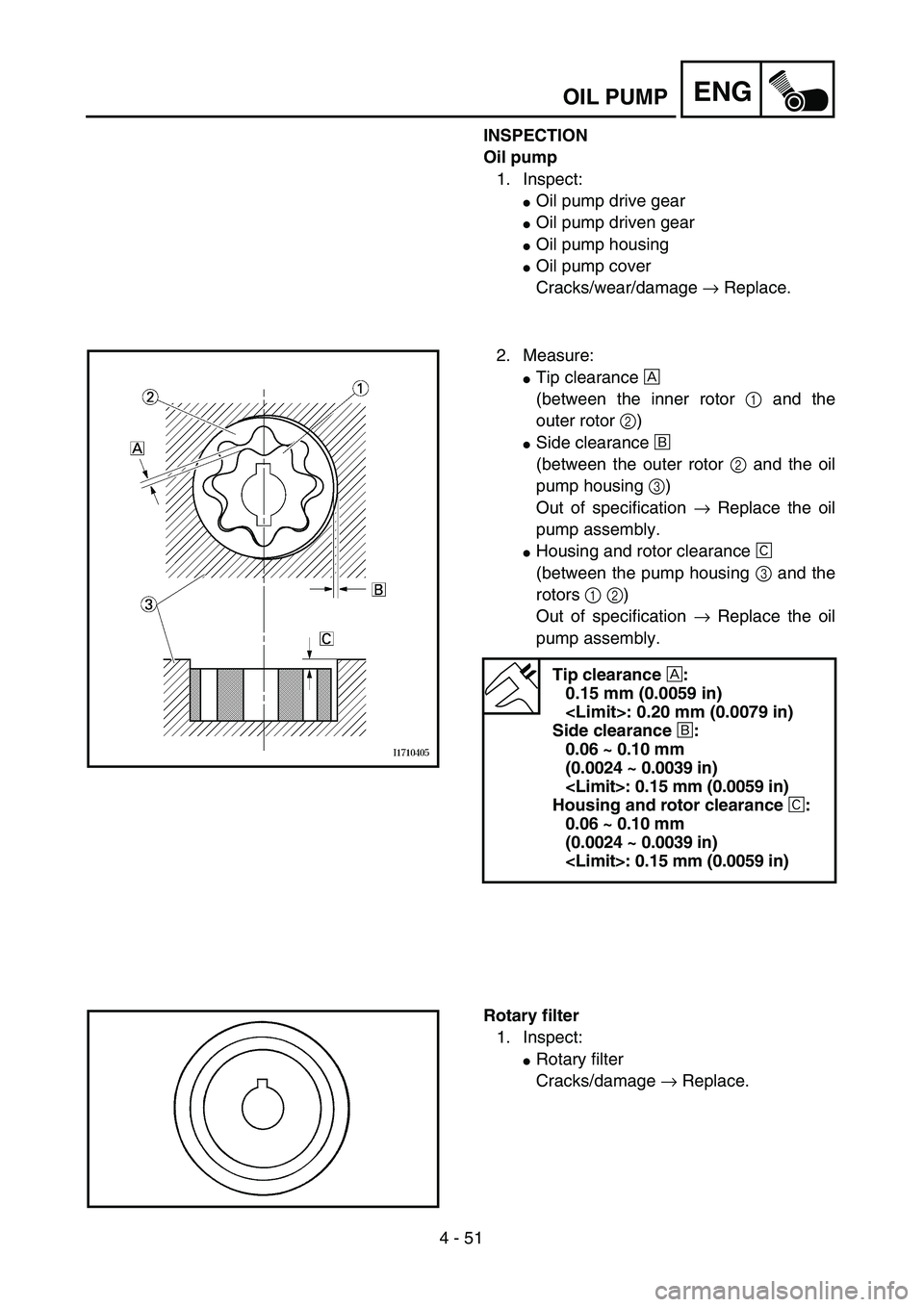

ENGOIL PUMP
INSPECTION
Oil pump
1. Inspect:
Oil pump drive gear
Oil pump driven gear
Oil pump housing
Oil pump cover
Cracks/wear/damage → Replace.
2. Measure:
Tip clearance Å
(between the inner rotor 1 and the
outer rotor 2)
Side clearance ı
(between the outer rotor 2 and the oil
pump housing 3)
Out of specification → Replace the oil
pump assembly.
Housing and rotor clearance Ç
(between the pump housing 3 and the
rotors 1 2)
Out of specification → Replace the oil
pump assembly.
Tip clearance Å:
0.15 mm (0.0059 in)
: 0.20 mm (0.0079 in)
Side clearance ı:
0.06 ~ 0.10 mm
(0.0024 ~ 0.0039 in)
: 0.15 mm (0.0059 in)
Housing and rotor clearance Ç:
0.06 ~ 0.10 mm
(0.0024 ~ 0.0039 in)
: 0.15 mm (0.0059 in)
Rotary filter
1. Inspect:
Rotary filter
Cracks/damage → Replace.
