LOCATION OF IMPORTANT LABELS1-1
1
EAU48115
Read and understand all of the labels on your vehicle. They contain important information for safe and proper operation of
your vehicle. Never remove any labels from your vehicle. If a label becomes difficult to read or comes off, a replacement label
is available from your Yamaha dealer.
For Canada
1,2
3,4
98 7 6 5
U2CJ80E0.book Page 1 Tuesday, June 12, 2012 11:15 AM

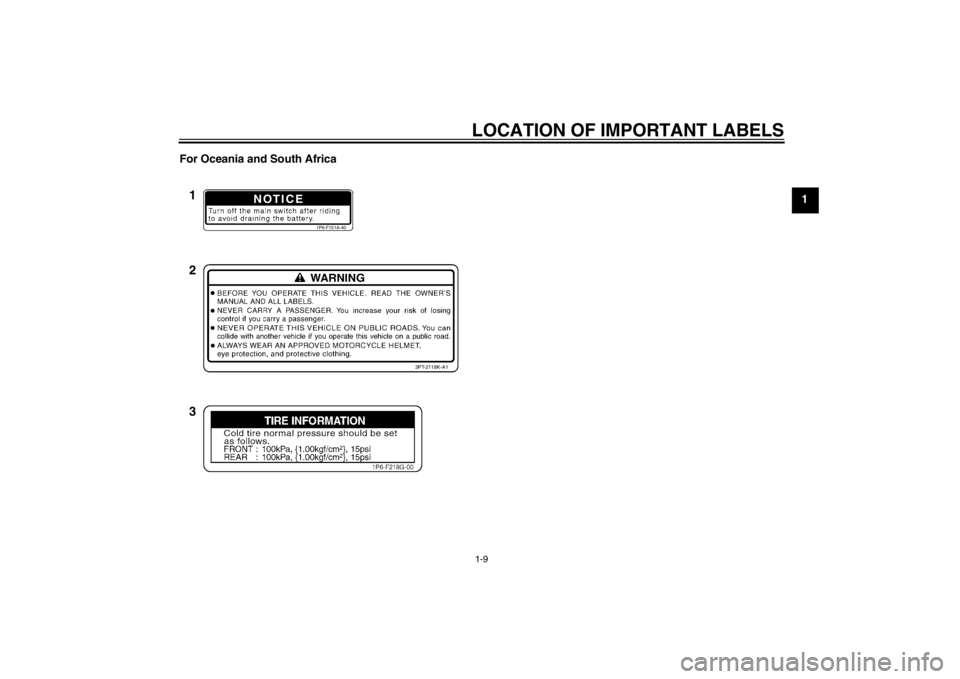

LOCATION OF IMPORTANT LABELS
1-2
1For Canada
NOTICE
1P6-F151A-40
ATTENTION
1P6-F151A-50
3PT-2118K-A1
12
34
56
U2CJ80E0.book Page 2 Tuesday, June 12, 2012 11:15 AM

LOCATION OF IMPORTANT LABELS1-3
1
For Canada
CMVSSCANADANSVAC
TRANSPORT
506
3JK-82377-00
This spark ignition system meets all requirements
of the Canadian Interference Causing Equipment
Regulations.
Ce système d’allumage par étincelle de véhicule
respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.
3PT-2416E-10
THIS VEHICLE IS A RESTRICTED USE
MOTORCYCLE AND IS NOT INTENDED FOR
USE ON PUBLIC HIGHWAYS.
CE VÉHICULE EST UNE MOTOCYCLETTE À
USAGE RESTREINT DONT L’USAGE N’EST PAS
DESTINÉ AUX VOIES PUBLIQUES.
7
9 8
U2CJ80E0.book Page 3 Tuesday, June 12, 2012 11:15 AM

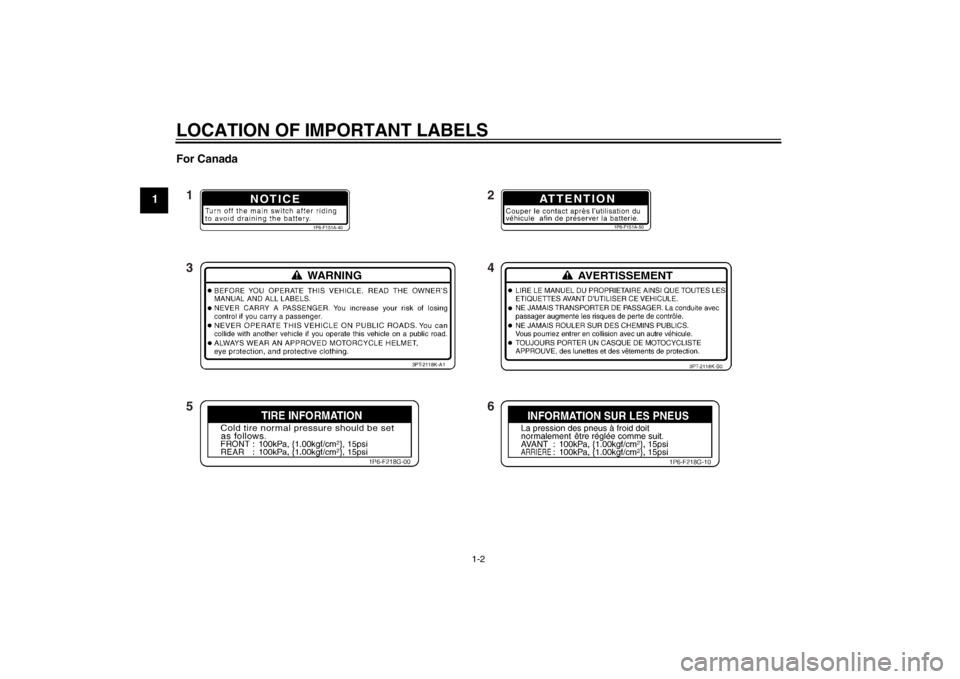

LOCATION OF IMPORTANT LABELS
1-4
1For Europe
1
2,3
65
4
U2CJ80E0.book Page 4 Tuesday, June 12, 2012 11:15 AM

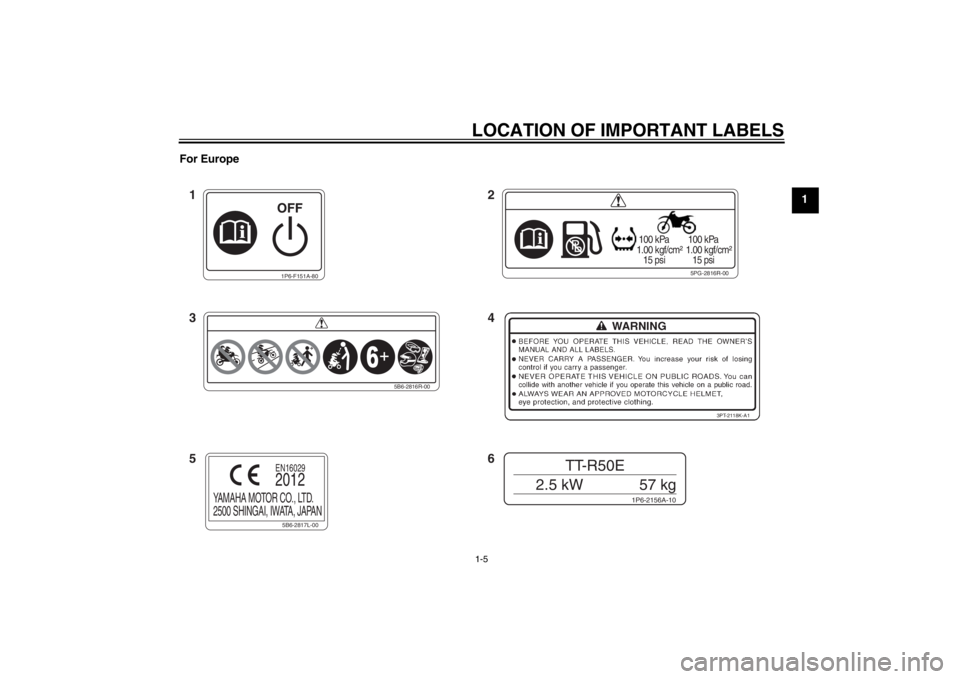

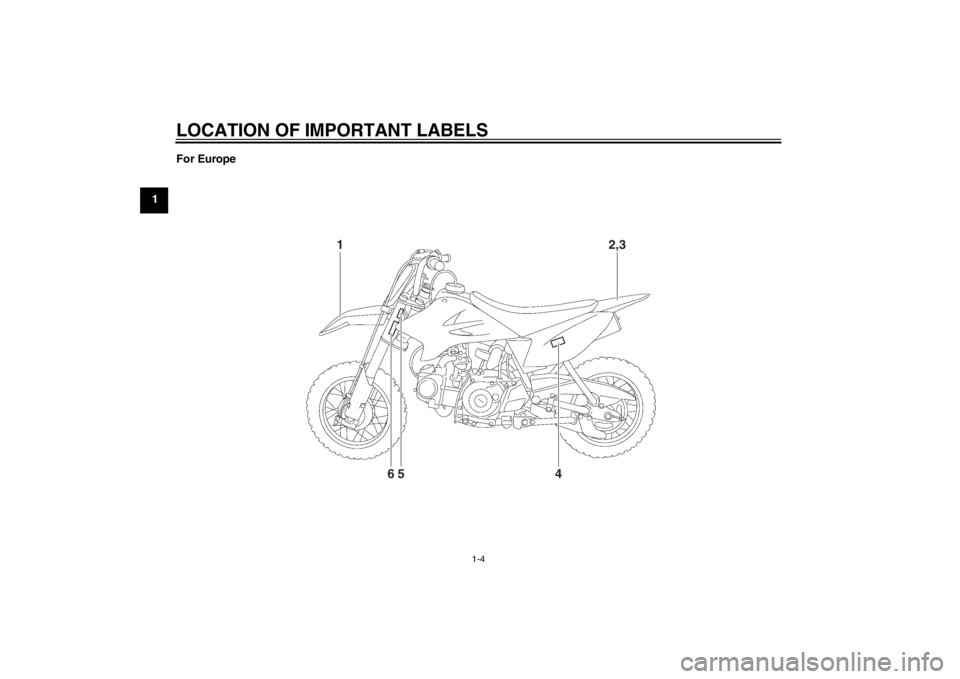

LOCATION OF IMPORTANT LABELS1-5
1
For Europe
1P6-F151A-80
5PG-2816R-00
100 kPa
1.00 kgf/cm²
15 psi
100 kPa
1.00 kgf/cm²
15 psi1P6-2156A-10
TT-R50E
2.5 kW 57 kg
3PT-2118K-A1
5B6-2816R-00
5B6-2817L-00
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
2012EN16029
1
4
56 2
3
U2CJ80E0.book Page 5 Tuesday, June 12, 2012 11:15 AM

LOCATION OF IMPORTANT LABELS
1-6
1Familiarize yourself with the following pictograms and read the explanatory text.
Read the Owner’s manual.
Always use an approved
helmet and protective gear. Never use on paved roads.
Use from 6 years old.
Operation of this motorcycle
by children under the age of 6
increase the risk of severe
injury or death. Never carry passengers.
Adult supervision required for
children. This unit contains high-
pressure nitrogen gas.
Mishandling can cause an
explosion. Do not incinerate,
puncture or open.
Turn off the main switch after
riding to avoid draining the
battery.
U2CJ80E0.book Page 6 Tuesday, June 12, 2012 11:15 AM

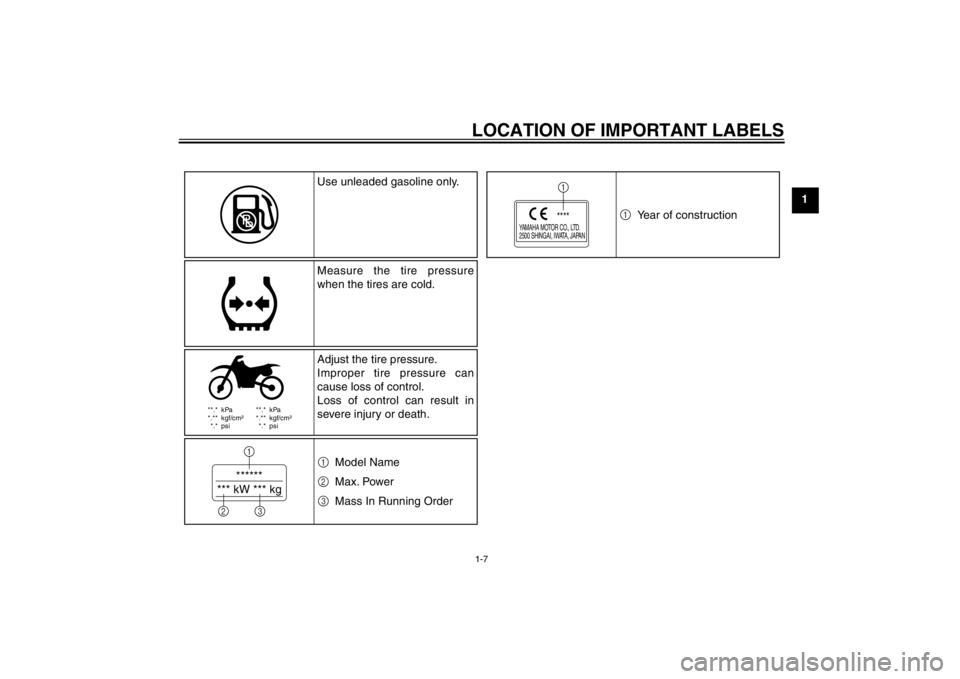

LOCATION OF IMPORTANT LABELS1-7
1
**.* kPa
*.** kgf/cm²*.* psi **.* kPa
*.** kgf/cm²
*.* psi
******
*** kW *** kg1
23
YAMAHA MOTOR CO., LTD.
2500 SHINGAI, IWATA, JAPAN
****1
Use unleaded gasoline only.
Measure the tire pressure
when the tires are cold.
Adjust the tire pressure.
Improper tire pressure can
cause loss of control.
Loss of control can result in
severe injury or death.
1
2
3 Model Name
Max. Power
Mass In Running Order 1
Year of construction
U2CJ80E0.book Page 7 Tuesday, June 12, 2012 11:15 AM

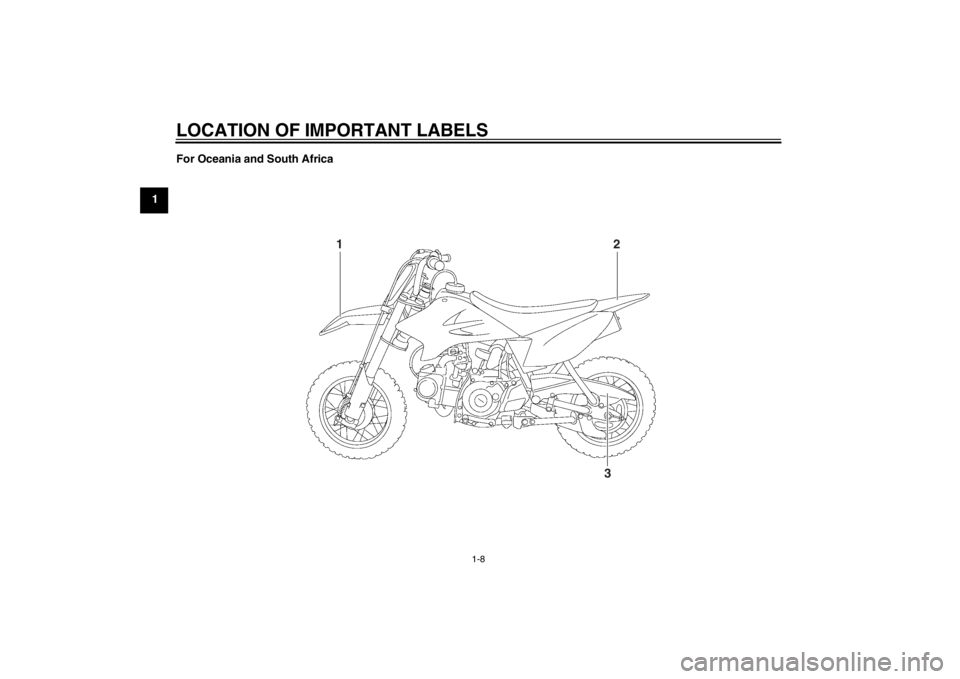

LOCATION OF IMPORTANT LABELS
1-8
1For Oceania and South Africa
1
2
3
U2CJ80E0.book Page 8 Tuesday, June 12, 2012 11:15 AM

LOCATION OF IMPORTANT LABELS1-9
1
For Oceania and South Africa
NOTICE
1P6-F151A-40
3PT-2118K-A1
1
2
3
U2CJ80E0.book Page 9 Tuesday, June 12, 2012 11:15 AM

2-1
2
SAFETY INFORMATION
EAU4121B
Be a Responsible Owner
As the vehicle’s owner, you are respon-
sible for the safe and proper operation
of your motorcycle.
Motorcycles are single-track vehicles.
Their safe use and operation are de-
pendent upon the use of proper riding
techniques as well as the expertise of
the operator. Every operator should
know the following requirements before
riding this motorcycle.
He or she should:●
Obtain thorough instructions from
a competent source on all aspects
of motorcycle operation.
●
Observe the warnings and mainte-
nance requirements in this Own-
er’s Manual.
●
Obtain qualified training in safe
and proper riding techniques.
●
Obtain professional technical ser-
vice as indicated in this Owner’s
Manual and/or when made neces-
sary by mechanical conditions.
●
Never operate a motorcycle with-
out proper training or instruction.
Take a training course. Beginners
should receive training from a cer-
tified instructor. Contact an autho-
rized motorcycle dealer to find out
about the training courses nearest
you.
Safe Riding
Perform the pre-operation checks each
time you use the vehicle to make sure it
is in safe operating condition. Failure to
inspect or maintain the vehicle properly
increases the possibility of an accident
or equipment damage. See page 5-1
for a list of pre-operation checks.
●
This motorcycle is designed for off-
road use only, therefore, it is illegal
to operate it on public streets,
roads, or highways, even a dirt or
gravel one. Off-road use on public
lands may be illegal. Please check
local regulations before riding.
●
This motorcycle is designed to car-
ry the operator only. No passen-
gers.
●
The failure of motorists to detect
and recognize motorcycles in traf-
fic is the predominating cause of
automobile/motorcycle accidents.
Many accidents have been caused
by an automobile driver who did
not see the motorcycle. Making
yourself conspicuous appears to
be very effective in reducing the
chance of this type of accident.
Therefore: Wear a brightly colored jacket.
Use extra caution when you are approaching and passing
through intersections, since in-
tersections are the most likely
places for motorcycle accidents
to occur.
Ride where other motorists can see you. Avoid riding in another
motorist’s blind spot.
Never maintain a motorcycle without proper knowledge. Con-
tact an authorized motorcycle
dealer to inform you on basic
motorcycle maintenance. Cer-
tain maintenance can only be
carried out by certified staff.
