YAMAHA XENTER 125 2012 Repair Manual

1
2
3
4
5
6
7
8
9

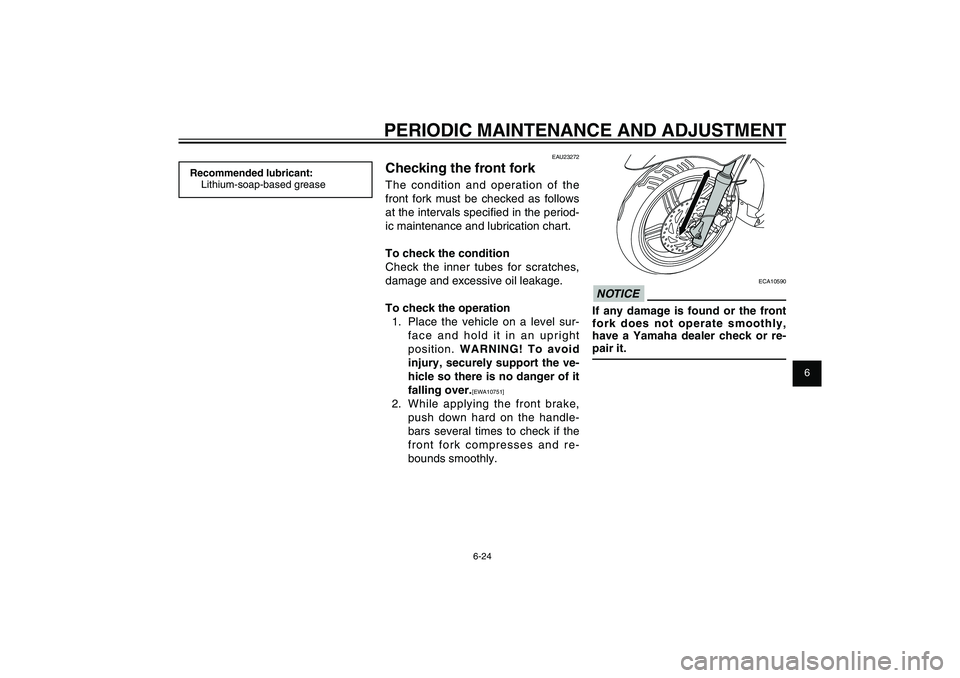

6-24
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
ECA10590
NOTICEIf any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-
pair it.
EAU23272
Checking the front forkThe condition and operation of the
front fork must be checked as follows
at the intervals specifi ed in the period-
ic maintenance and lubrication chart.
To check the condition
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright
position. WARNING! To avoid
injury, securely support the ve-
hicle so there is no danger of it
falling over.
[EWA10751]
2. While applying the front brake,
push down hard on the handle-
bars several times to check if the
front fork compresses and re-
bounds smoothly.
Recommended lubricant:
Lithium-soap-based grease
53B-F8199-E0_CS.indd 6-2453B-F8199-E0_CS.indd 6-24
2011/11/01 12:32:102011/11/01 12:32:10
Process BlackProcess Black

1
2
3
4
5
6
7
8
9

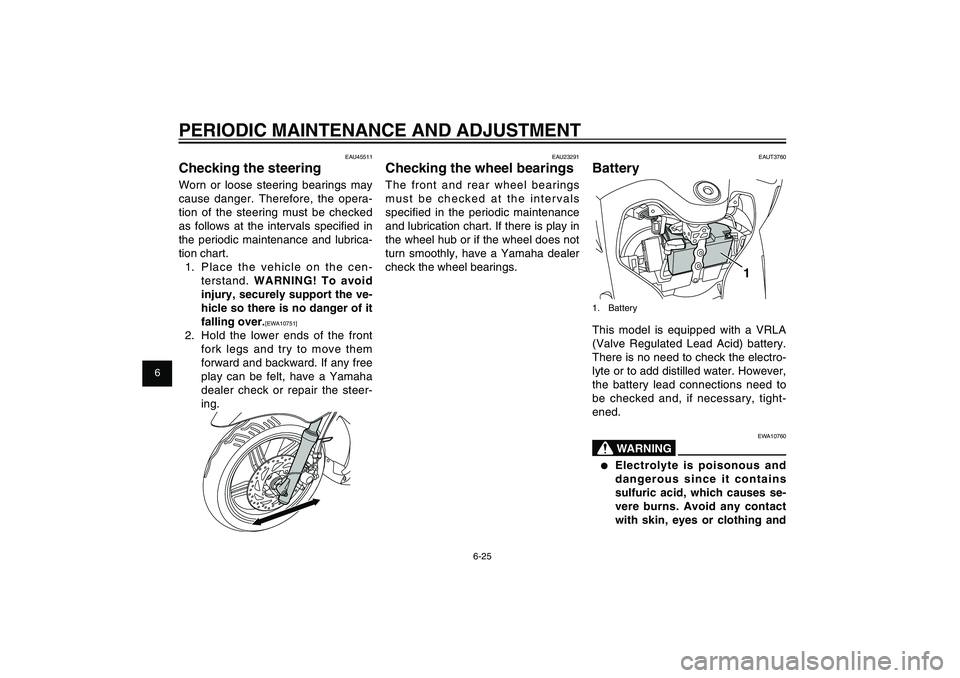

6-25
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
EAUT3760
Battery
1
1. BatteryThis model is equipped with a VRLA
(Valve Regulated Lead Acid) battery.
There is no need to check the electro-
lyte or to add distilled water. However,
the battery lead connections need to
be checked and, if necessary, tight-
ened.
EWA10760
WARNING
●
Electrolyte is poisonous and
dangerous since it contains
sulfuric acid, which causes se-
vere burns. Avoid any contact
with skin, eyes or clothing and
EAU23291
Checking the wheel bearingsThe front and rear wheel bearings
must be checked at the intervals
specifi ed in the periodic maintenance
and lubrication chart. If there is play in
the wheel hub or if the wheel does not
turn smoothly, have a Yamaha dealer
check the wheel bearings.
EAU45511
Checking the steeringWorn or loose steering bearings may
cause danger. Therefore, the opera-
tion of the steering must be checked
as follows at the intervals specifi ed in
the periodic maintenance and lubrica-
tion chart.
1. Place the vehicle on the cen-
terstand. WARNING! To avoid
injury, securely support the ve-
hicle so there is no danger of it
falling over.
[EWA10751]
2. Hold the lower ends of the front
fork legs and try to move them
forward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steer-
ing.
53B-F8199-E0_CS.indd 6-2553B-F8199-E0_CS.indd 6-25
2011/11/01 12:32:102011/11/01 12:32:10
Process BlackProcess Black

1
2
3
4
5
6
7
8
9

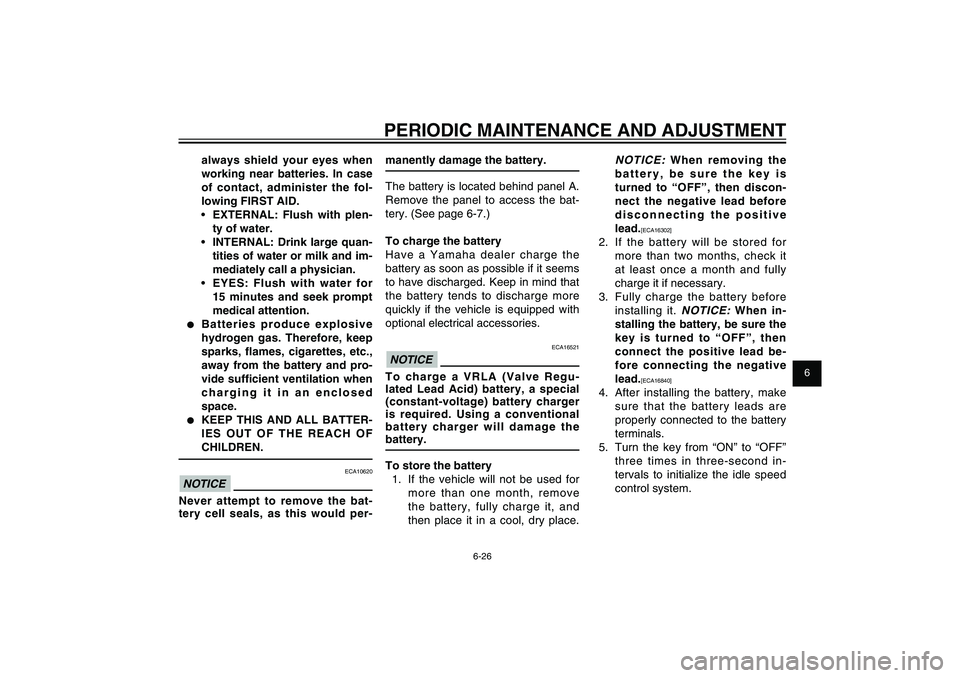

6-26
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
NOTICE:
When removing the
battery, be sure the key is
turned to “OFF”, then discon-
nect the negative lead before
disconnecting the positive
lead.
[ECA16302]
2. If the battery will be stored for
more than two months, check it
at least once a month and fully
charge it if necessary.
3. Fully charge the battery before
installing it.
NOTICE:
When in-
stalling the battery, be sure the
key is turned to “OFF”, then
connect the positive lead be-
fore connecting the negative
lead.
[ECA16840]
4. After installing the battery, make
sure that the battery leads are
properly connected to the battery
terminals.
5. Turn the key from “ON” to “OFF”
three times in three-second in-
tervals to initialize the idle speed
control system.
manently damage the battery.
The battery is located behind panel A.
Remove the panel to access the bat-
tery. (See page 6-7.)
To charge the battery
Have a Yamaha dealer charge the
battery as soon as possible if it seems
to have discharged. Keep in mind that
the battery tends to discharge more
quickly if the vehicle is equipped with
optional electrical accessories.
ECA16521
NOTICETo charge a VRLA (Valve Regu-
lated Lead Acid) battery, a special
(constant-voltage) battery charger
is required. Using a conventional
battery charger will damage the
battery.
To store the battery
1. If the vehicle will not be used for
more than one month, remove
the battery, fully charge it, and
then place it in a cool, dry place.
always shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
• EXTERNAL: Flush with plen-
ty of water.
• INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
• EYES: Flush with water for
15 minutes and seek prompt
medical attention.
●
Batteries produce explosive
hydrogen gas. Therefore, keep
sparks, ames, cigarettes, etc.,
away from the battery and pro-
vide suf cient ventilation when
charging it in an enclosed
space.
●
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OF
CHILDREN.
ECA10620
NOTICENever attempt to remove the bat-
tery cell seals, as this would per-
53B-F8199-E0_CS.indd 6-2653B-F8199-E0_CS.indd 6-26
2011/11/01 12:32:102011/11/01 12:32:10
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
6-27
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
1
1. Spare fuse2. Remove the blown fuse, and then
install a new fuse of the specifi ed
amperage. WARNING! Do not
use a fuse of a higher amper-
age rating than recommended
to avoid causing extensive
damage to the electrical sys-
tem and possibly a re.
[EWA15131] EAUT3750
Replacing the fuses
1
1. Fuse boxThe fuse box is located beside the
battery compartment behind panel A.
(See page 6-7.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
ECA16530
NOTICEAlways keep the battery charged.
Storing a discharged battery can
cause permanent battery damage.
53B-F8199-E0_CS.indd 6-2753B-F8199-E0_CS.indd 6-27
2011/11/01 12:32:102011/11/01 12:32:10
Process BlackProcess Black

1
2
3
4
5
6
7
8
9

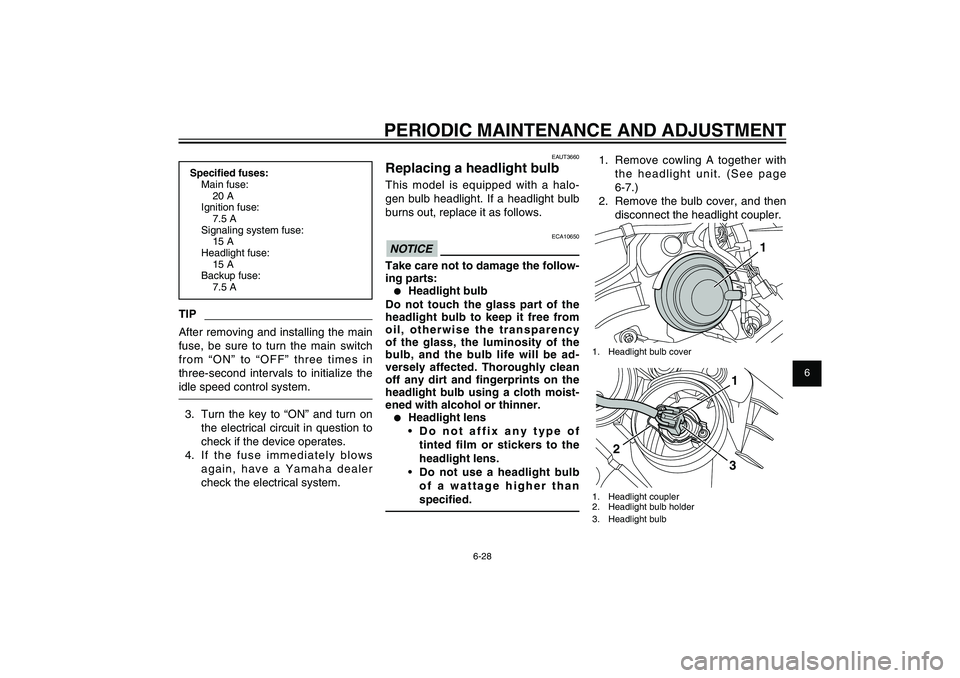

6-28
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
EAUT3660
Replacing a headlight bulbThis model is equipped with a halo-
gen bulb headlight. If a headlight bulb
burns out, replace it as follows.
ECA10650
NOTICETake care not to damage the follow-
ing parts:●
Headlight bulb
Do not touch the glass part of the
headlight bulb to keep it free from
oil, otherwise the transparency
of the glass, the luminosity of the
bulb, and the bulb life will be ad-
versely affected. Thoroughly clean
off any dirt and ngerprints on the
headlight bulb using a cloth moist-
ened with alcohol or thinner.
●
Headlight lens
• Do not affix any type of
tinted film or stickers to the
headlight lens.
• Do not use a headlight bulb
of a wattage higher than
speci ed.1. Remove cowling A together with
the headlight unit. (See page
6-7.)
2. Remove the bulb cover, and then
disconnect the headlight coupler.
1
1. Headlight bulb cover
1
2
3
1. Headlight coupler
2. Headlight bulb holder
3. Headlight bulb
Speci ed fuses:
Main fuse:
20 A
Ignition fuse:
7.5 A
Signaling system fuse:
15 A
Headlight fuse:
15 A
Backup fuse:
7.5 ATIPAfter removing and installing the main
fuse, be sure to turn the main switch
from “ON” to “OFF” three times in
three-second intervals to initialize the
idle speed control system.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
53B-F8199-E0_CS.indd 6-2853B-F8199-E0_CS.indd 6-28
2011/11/01 12:32:102011/11/01 12:32:10
Process BlackProcess Black

1
2
3
4
5
6
7
8
9

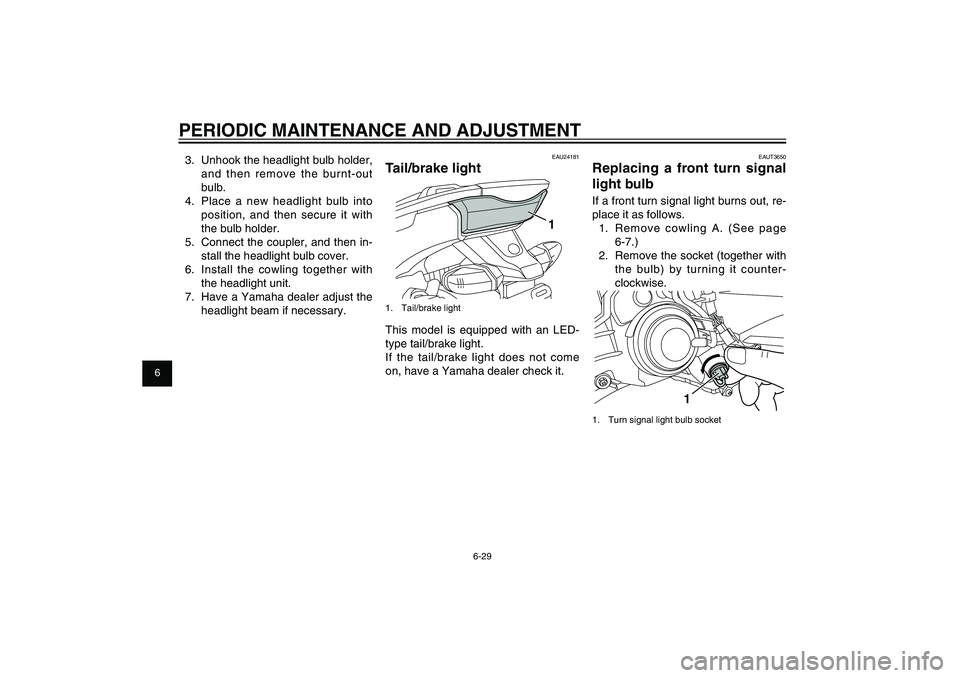

6-29
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
EAU24181
Tail/brake light
1
1. Tail/brake lightThis model is equipped with an LED-
type tail/brake light.
If the tail/brake light does not come
on, have a Yamaha dealer check it.
EAUT3650
Replacing a front turn signal
light bulbIf a front turn signal light burns out, re-
place it as follows.
1. Remove cowling A. (See page
6-7.)
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
1
1. Turn signal light bulb socket
3. Unhook the headlight bulb holder,
and then remove the burnt-out
bulb.
4. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
5. Connect the coupler, and then in-
stall the headlight bulb cover.
6. Install the cowling together with
the headlight unit.
7. Have a Yamaha dealer adjust the
headlight beam if necessary.
53B-F8199-E0_CS.indd 6-2953B-F8199-E0_CS.indd 6-29
2011/11/01 12:32:102011/11/01 12:32:10
Process BlackProcess Black

1
2
3
4
5
6
7
8
9

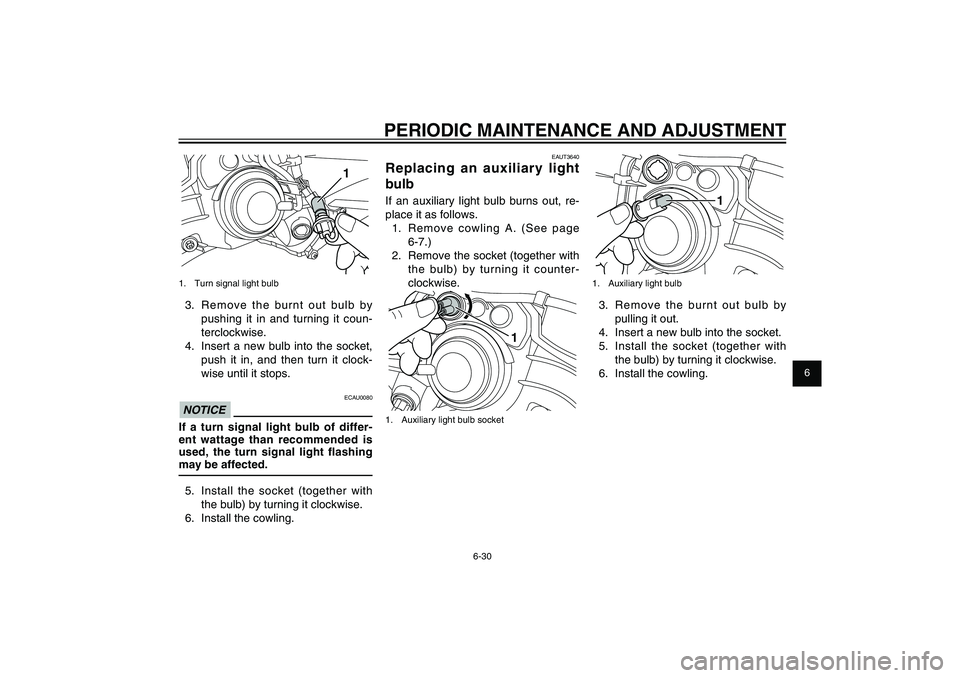

6-30
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
EAUT3640
Replacing an auxiliary light
bulbIf an auxiliary light bulb burns out, re-
place it as follows.
1. Remove cowling A. (See page
6-7.)
2. Remove the socket (together with
the bulb) by turning it counter-
clockwise.
1
1. Auxiliary light bulb socket
1
1. Auxiliary light bulb3. Remove the burnt out bulb by
pulling it out.
4. Insert a new bulb into the socket.
5. Install the socket (together with
the bulb) by turning it clockwise.
6. Install the cowling.
1
1. Turn signal light bulb3. Remove the burnt out bulb by
pushing it in and turning it coun-
terclockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
ECAU0080
NOTICEIf a turn signal light bulb of differ-
ent wattage than recommended is
used, the turn signal light ashing
may be affected.
5. Install the socket (together with
the bulb) by turning it clockwise.
6. Install the cowling.
53B-F8199-E0_CS.indd 6-3053B-F8199-E0_CS.indd 6-30
2011/11/01 12:32:102011/11/01 12:32:10
Process BlackProcess Black

1
2
3
4
5
6
7
8
9

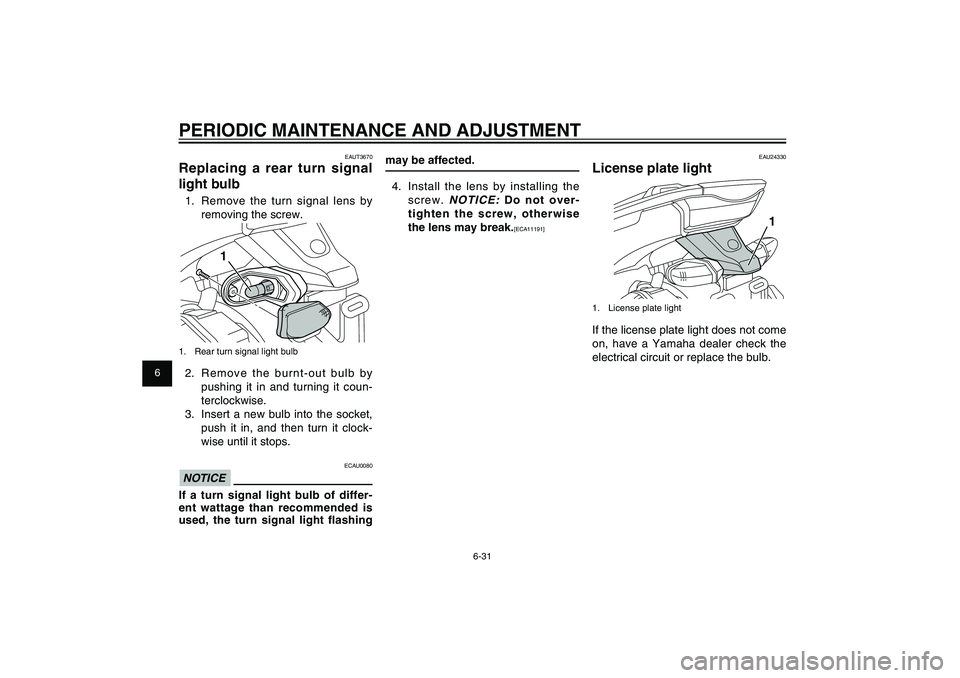

6-31
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
may be affected.
4. Install the lens by installing the
screw.
NOTICE:
Do not over-
tighten the screw, otherwise
the lens may break.
[ECA11191]EAU24330
License plate light
1
1. License plate lightIf the license plate light does not come
on, have a Yamaha dealer check the
electrical circuit or replace the bulb.
EAUT3670
Replacing a rear turn signal
light bulb1. Remove the turn signal lens by
removing the screw.
1
1. Rear turn signal light bulb2. Remove the burnt-out bulb by
pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
ECAU0080
NOTICEIf a turn signal light bulb of differ-
ent wattage than recommended is
used, the turn signal light ashing
53B-F8199-E0_CS.indd 6-3153B-F8199-E0_CS.indd 6-31
2011/11/01 12:32:102011/11/01 12:32:10
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
6-32
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENTare no open flames or sparks in
the area, including pilot lights from
water heaters or furnaces. Gasoline
or gasoline vapors can ignite or
explode, causing severe injury or
property damage.
EAU25881
TroubleshootingAlthough Yamaha scooters receive a
thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your scooter
require any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the scooter prop-
erly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
EWA15141
WARNING
When checking the fuel system, do
not smoke, and make sure there
53B-F8199-E0_CS.indd 6-3253B-F8199-E0_CS.indd 6-32
2011/11/01 12:32:102011/11/01 12:32:10
Process BlackProcess Black

1
2
3
4
5
6
7
8
9
6-33
EAU1722A
PERIODIC MAINTENANCE AND ADJUSTMENT
EAU42704
Troubleshooting chartsStarting problems or poor engine performance
Check the fuel level in
the fuel tank.1. Fuel
There is enough fuel.
There is no fuel.
Check the compression.
Supply fuel.
The engine does not start.
Check the compression.
Operate the electric starter.2. Compression
There is compression.
There is no compression.
Check the ignition.
Have a Yamaha dealer
check the vehicle.
Remove the spark plug
and check the electrodes.3. Ignition
Wipe off with a dry cloth and correct the
spark plug gap, or replace the spark plug.
Have a Yamaha dealer check the vehicle.
The engine does not start.
Have a Yamaha dealer
check the vehicle.
The engine does not start.
Check the battery.
Operate the electric starter.4. Battery
The engine turns over
quickly.
The engine turns over
slowly.
The battery is good.
DryWet
Operate the electric starter.
Check the battery lead connections,
and have a Yamaha dealer charge
the battery if necessary.
53B-F8199-E0_CS.indd 6-3353B-F8199-E0_CS.indd 6-33
2011/11/01 12:32:102011/11/01 12:32:10
Process BlackProcess Black
