EAU46871
TIP
The annual checks must be performed every year, except if a kilometer-based maintenance, or for the UK,
a mileage-based maintenance, is performed instead.
From 30000 km (17500 mi), repeat the maintenance intervals starting from 6000 km (3500 mi).
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
EAU46920

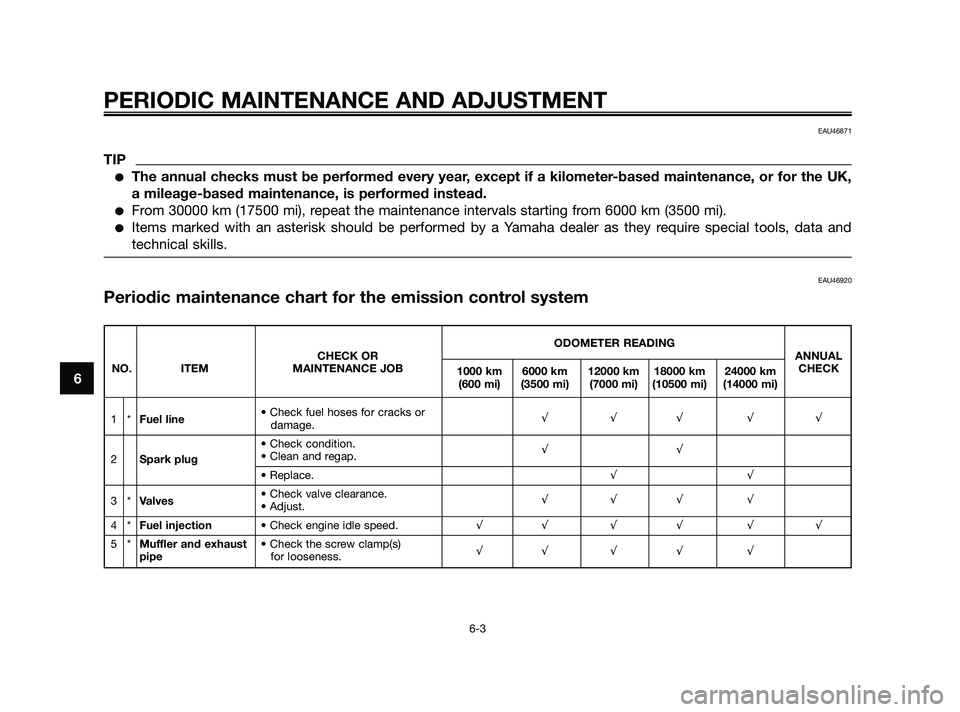

Periodic maintenance chart for the emission control system
PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
ODOMETER READING
CHECK OR ANNUAL
NO. ITEM MAINTENANCE JOB
1000 km 6000 km 12000 km 18000 km 24000 kmCHECK
(600 mi) (3500 mi) (7000 mi) (10500 mi) (14000 mi)
1*Fuel line• Check fuel hoses for cracks or
damage.√√√ √√
• Check condition.
2Spark plug• Clean and regap.√√
• Replace.√√
3*Valves• Check valve clearance.
• Adjust.√√√ √
4*Fuel injection• Check engine idle speed.√√ √ √ √ √
5*Muffler and exhaust • Check the screw clamp(s)
√√ √ √ √
pipefor looseness.
