key YAMAHA XMAX 125 2020 Owner's Manual

Operation and important rid ing points
7-5
7

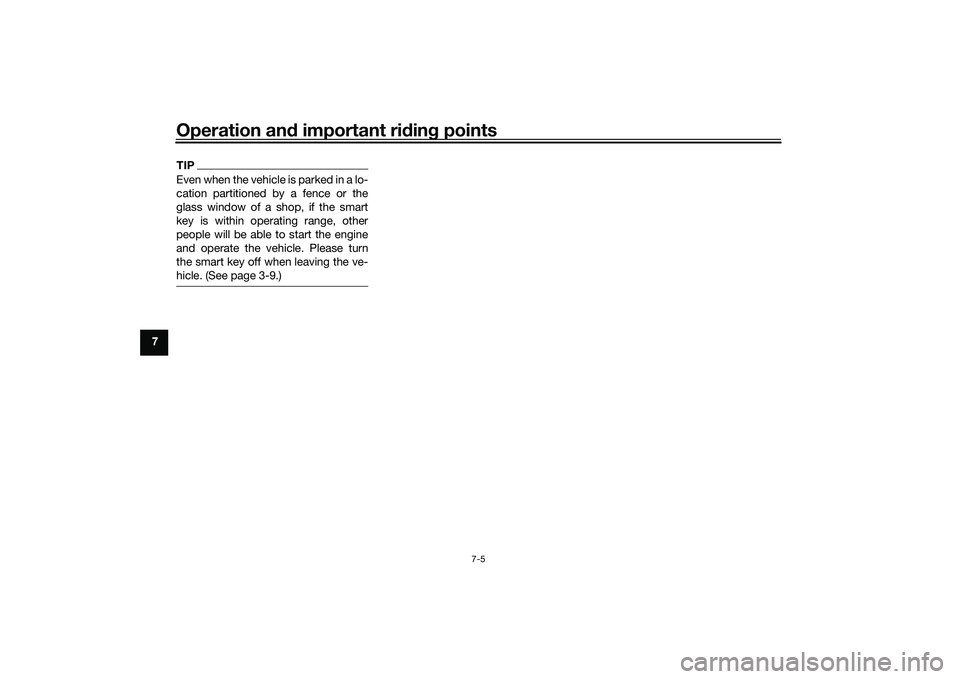

TIPEven when the vehicle is parked in a lo-
cation partitioned by a fence or the
glass window of a shop, if the smart
key is within operating range, other
people will be able to start the engine
and operate the vehicle. Please turn
the smart key off when leaving the ve-
hicle. (See page 3-9.)UB9YE0E0.book Page 5 Wednesday, January 6, 2021 3:03 PM

Periodic maintenance an d a djustment
8-28
8

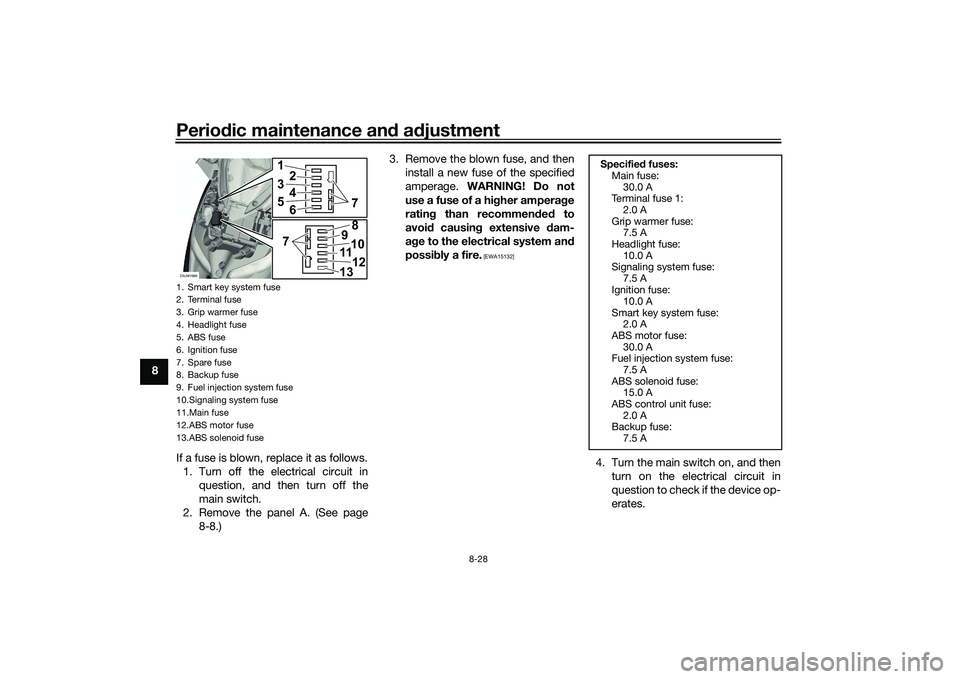

If a fuse is blown, replace it as follows.1. Turn off the electrical circuit in question, and then turn off the
main switch.
2. Remove the panel A. (See page 8-8.) 3. Remove the blown fuse, and then
install a new fuse of the specified
amperage. WARNING! Do not
use a fuse of a hi gher ampera ge
ratin g than recommen ded to
avoi d causin g extensive d am-
a g e to the electrical system an d
possi bly a fire.
[EWA15132]
4. Turn the main switch on, and then
turn on the electrical circuit in
question to check if the device op-
erates.
1. Smart key system fuse
2. Terminal fuse
3. Grip warmer fuse
4. Headlight fuse
5. ABS fuse
6. Ignition fuse
7. Spare fuse
8. Backup fuse
9. Fuel injection system fuse
10.Signaling system fuse
11.Main fuse
12.ABS motor fuse
13.ABS solenoid fuseZAUM1969
1
2
3
4
5
67
789101112
13
Specifie d fuses:
Main fuse:
30.0 A
Te r m i n a l f u s e 1 :
2.0 A
Grip warmer fuse: 7.5 A
Headlight fuse: 10.0 A
Signaling system fuse:
7.5 A
Ignition fuse: 10.0 A
Smart key system fuse: 2.0 A
ABS motor fuse:
30.0 A
Fuel injection system fuse: 7.5 A
ABS solenoid fuse: 15.0 A
ABS control unit fuse:
2.0 A
Backup fuse: 7.5 A
UB9YE0E0.book Page 28 Wednesday, January 6, 2021 3:03 PM

Periodic maintenance an d a djustment
8-31
8
EAU60701
Trou bleshootin gAlthough Yamaha vehicles receive a
thorough inspection before shipment
from the factory, trouble may occur
during operation. Any problem in the
fuel, compression, or ignition systems,
for example, can cause poor starting
and loss of power.
The following troubleshooting charts
represent quick and easy procedures
for checking these vital systems your-
self. However, should your vehicle re-
quire any repair, take it to a Yamaha
dealer, whose skilled technicians have
the necessary tools, experience, and
know-how to service the vehicle prop-
erly.
Use only genuine Yamaha replace-
ment parts. Imitation parts may look
like Yamaha parts, but they are often
inferior, have a shorter service life and
can lead to expensive repair bills.
WARNING
EWA15142
When checkin g the fuel system, d o
not smoke, an d make sure there are
no open flames or sparks in the ar-
ea, inclu din g pilot li ghts from water heaters or furnaces. Gasoline or
g
asoline vapors can i gnite or ex-
plo de, causin g severe injury or prop-
erty damag e.
EAU76551
Smart key system trou bleshootin g
Please check the following items when
the smart key system does not work.  Is the smart key turned on? (See
page 3-5.)
 Is the smart key battery dis-
charged? (See page 3-6.)
 Is the smart key battery installed
correctly? (See page 3-6.)
 Is the smart key being used in a lo-
cation with strong radio waves or
other electromagnetic noise? (See
page 3-1.)
 Are you using the smart key that is
registered to the vehicle?
 Is the vehicle battery discharged?
When the vehicle battery is dis-
charged, the smart key system will
not operate. Please have the vehi-
cle battery charged or replaced.
(See page 8-26.) If the smart key system does not work
after checking the above items, have a
Yamaha dealer check the smart key
system.
TIPSee Emergency mode on page 8-34
for information on starting the engine
without the smart key.
UB9YE0E0.book Page 31 Wednesday, January 6, 2021 3:03 PM

Periodic maintenance an d a djustment
8-34
8
EAU76561
Emer gency mo de When the smart key is lost or dam-
aged, or its battery has discharged, the
vehicle can still be turned on and the
engine started. You will need the smart
key system identification number.
To operate the vehicle in emer gency
mo de
1. Stop the vehicle in a safe place and turn the main switch to “OFF”.
2. Push the main switch knob for 5 seconds until the smart key sys-
tem indicator light flashes once,
then release it. Repeat two more
times. The smart key system indi-
cator light will come on for three
seconds to indicate the transition
to emergency mode. 3. After the smart key system indica-
tor light goes off, input the identifi-
cation number as follows. 4. Inputting the identification number
is done by counting the number of
flashes of the smart key system in-
dicator light.
For example, if the identification
number is 123456:
Push and hold the knob.
↓
The smart key system indicator
light will start to flash.
↓
Release the knob after the smart
key system indicator light flashes
once.
↓
The first digit of the identification
number has been set as “1”.
↓
Push and hold the knob again.
↓
1. Smart key system indicator light “ ”
1. Identification number card
2. Identification numberZAUM1884
1
868588
1
2
UB9YE0E0.book Page 34 Wednesday, January 6, 2021 3:03 PM

Periodic maintenance an d a djustment
8-35
8

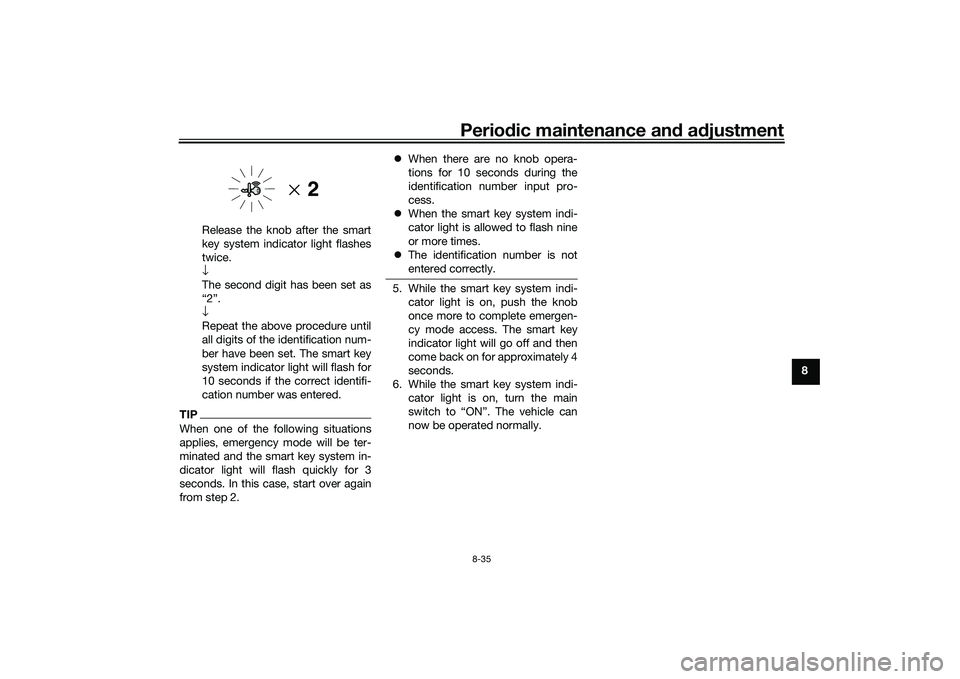

Release the knob after the smart
key system indicator light flashes
twice.
↓
The second digit has been set as
“2”.
↓
Repeat the above procedure until
all digits of the identification num-
ber have been set. The smart key
system indicator light will flash for
10 seconds if the correct identifi-
cation number was entered.
TIPWhen one of the following situations
applies, emergency mode will be ter-
minated and the smart key system in-
dicator light will flash quickly for 3
seconds. In this case, start over again
from step 2. 
When there are no knob opera-
tions for 10 seconds during the
identification number input pro-
cess.
 When the smart key system indi-
cator light is allowed to flash nine
or more times.
 The identification number is not
entered correctly.
5. While the smart key system indi-
cator light is on, push the knob
once more to complete emergen-
cy mode access. The smart key
indicator light will go off and then
come back on for approximately 4
seconds.
6. While the smart key system indi- cator light is on, turn the main
switch to “ON”. The vehicle can
now be operated normally.
UB9YE0E0.book Page 35 Wednesday, January 6, 2021 3:03 PM

12-1
12
Index
AABS warning light ................................... 5-2
Acceleration and deceleration ................ 7-3
Activating the Stop and Start System .... 4-1
Air filter and V-belt case air filter
elements ............................................. 8-14
Anti-lock brake system (ABS)............... 5-14
Auxiliary DC jack .................................. 5-26BBattery .................................................. 8-26
Brake fluid, changing............................ 8-22
Brake fluid level, checking.................... 8-21
Brake lever, front .................................. 5-14
Brake lever, rear ................................... 5-14
Brake levers, lubricating ....................... 8-23
Braking ................................................... 7-3CCables, checking and lubricating ......... 8-23
Canister ................................................ 8-10
Care ........................................................ 9-1
Catalytic converter ............................... 5-20
Centerstand and sidestand, checking and lubricating ................................... 8-24
Coolant ................................................. 8-13DData recording, vehicle......................... 11-2
Diagnostic connector ........................... 11-2
Dimmer/Pass switch............................. 5-12EEmergency mode ................................. 8-34
Engine break-in ...................................... 7-1
Engine oil and oil strainer ..................... 8-10
Engine overheating ............................... 8-33
Engine serial number ............................ 11-1
FFinal transmission oil............................ 8-12
Front and rear brake lever free play, checking ............................................ 8-19
Front and rear brake pads, checking ... 8-20
Front fork, checking ............................. 8-25
Front turn signal light ........................... 8-29
Fuel ...................................................... 5-18
Fuel consumption, tips for reducing ...... 7-4
Fuel tank cap........................................ 5-17
Fuel tank overflow hose ....................... 5-20
Fuses, replacing ................................... 8-27HHandlebar position, adjusting .............. 5-25
Handlebar switches ............................. 5-12
Hazard switch ...................................... 5-13
High beam indicator light ....................... 5-1
Horn switch .......................................... 5-13IIdentification numbers ......................... 11-1
Ignition circuit cut-off system .............. 5-27
Indicator lights and warning lights ......... 5-1KKey, handling of smart and mechanical keys...................................................... 3-3LLicense plate light bulb, replacing ....... 8-30MMain switch ............................................ 3-8
Maintenance and lubrication, periodic... 8-4
Maintenance, emission control system ................................................. 8-3
Malfunction indicator light (MIL)............. 5-1
Matte color, caution ............................... 9-1 Model label ........................................... 11-1
Multi-function display ............................. 5-4
OOperating range of the smart key
system .................................................. 3-2PPanel, removing and installing ................ 8-8
Parking.................................................... 7-4
Part locations.......................................... 2-1
Precautions when using the Stop and Start System ......................................... 4-3SSafe-riding points ................................... 1-5
Safety information................................... 1-1
Shock absorber assemblies, adjusting ............................................. 5-25
Sidestand.............................................. 5-27
Smart key................................................ 3-5
Smart key battery, replacing................... 3-6
Smart key system ................................... 3-1
Smart key system indicator light ............ 5-2
Smart key system, troubleshooting ...... 8-31
Spark plug, checking .............................. 8-9
Specifications ....................................... 10-1
Speedometer .......................................... 5-3
Starting off .............................................. 7-3
Starting the engine ................................. 7-2
Steering, checking ................................ 8-25
Stop and Start System ........................... 4-1
Stop and Start System indicator light..... 5-2
Stop and Start System operation ........... 4-1
Stop and Start System switch .............. 5-13
Stop/Run/Start switch .......................... 5-13
Storage ................................................... 9-3
