PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
EAU22380

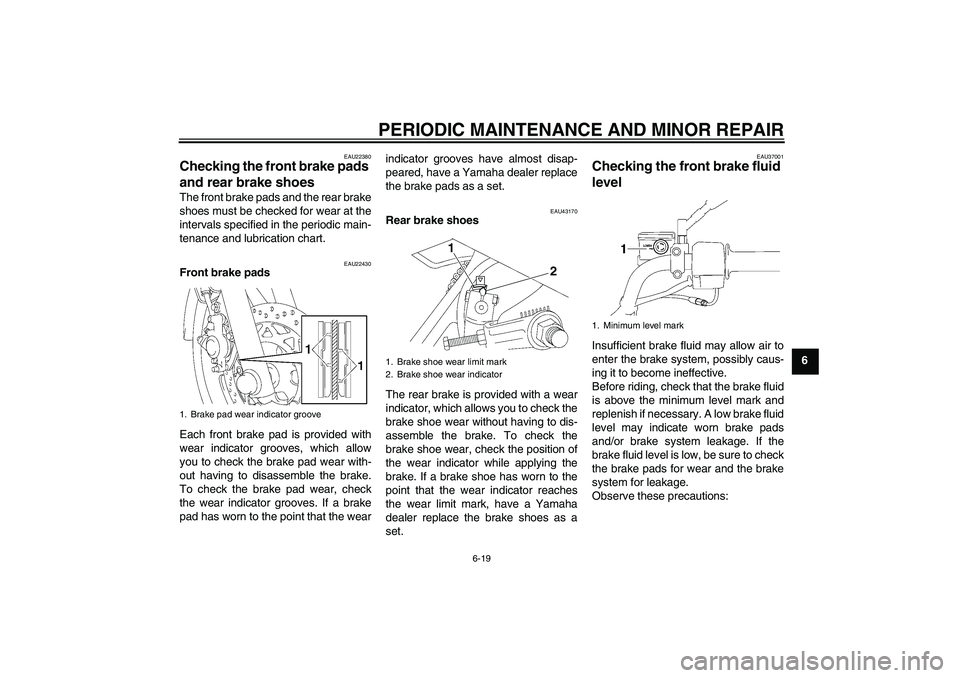

Checking the front brake pads
and rear brake shoes The front brake pads and the rear brake
shoes must be checked for wear at the
intervals specified in the periodic main-
tenance and lubrication chart.
EAU22430
Front brake pads
Each front brake pad is provided with
wear indicator grooves, which allow
you to check the brake pad wear with-
out having to disassemble the brake.
To check the brake pad wear, check
the wear indicator grooves. If a brake
pad has worn to the point that the wearindicator grooves have almost disap-
peared, have a Yamaha dealer replace
the brake pads as a set.
EAU43170
Rear brake shoes
The rear brake is provided with a wear
indicator, which allows you to check the
brake shoe wear without having to dis-
assemble the brake. To check the
brake shoe wear, check the position of
the wear indicator while applying the
brake. If a brake shoe has worn to the
point that the wear indicator reaches
the wear limit mark, have a Yamaha
dealer replace the brake shoes as a
set.
EAU37001
Checking the front brake fluid
level Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:
1. Brake pad wear indicator groove
1. Brake shoe wear limit mark
2. Brake shoe wear indicator
1
2
1. Minimum level mark
U27SE0E0.book Page 19 Friday, February 22, 2008 8:54 AM
Page 52 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6

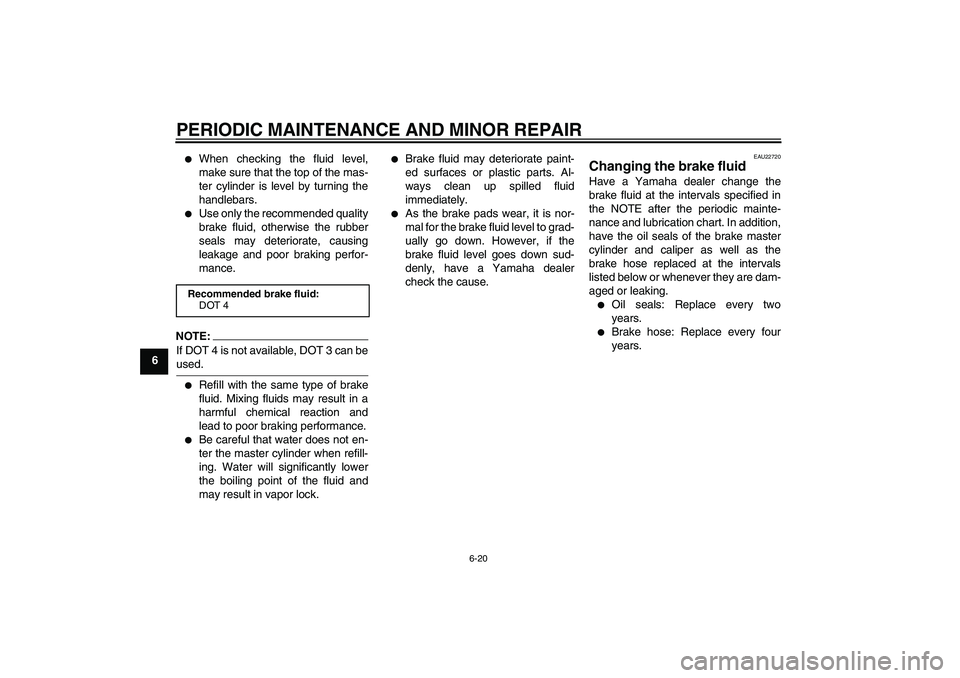

When checking the fluid level,
make sure that the top of the mas-
ter cylinder is level by turning the
handlebars.
Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.
NOTE:If DOT 4 is not available, DOT 3 can beused.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.
Be careful that water does not en-
ter the master cylinder when refill-
ing. Water will significantly lower
the boiling point of the fluid and
may result in vapor lock.
Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAU22720
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the NOTE after the periodic mainte-
nance and lubrication chart. In addition,
have the oil seals of the brake master
cylinder and caliper as well as the
brake hose replaced at the intervals
listed below or whenever they are dam-
aged or leaking.
Oil seals: Replace every two
years.
Brake hose: Replace every four
years.
Recommended brake fluid:
DOT 4
U27SE0E0.book Page 20 Friday, February 22, 2008 8:54 AM
Page 53 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6
EAU22760

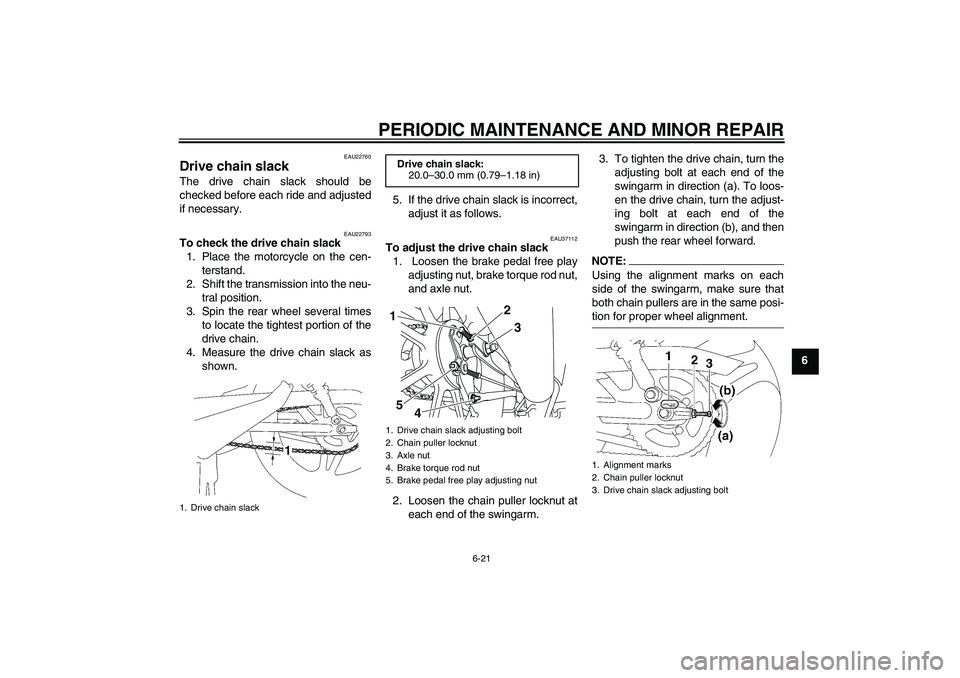

Drive chain slack The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22793
To check the drive chain slack
1. Place the motorcycle on the cen-
terstand.
2. Shift the transmission into the neu-
tral position.
3. Spin the rear wheel several times
to locate the tightest portion of the
drive chain.
4. Measure the drive chain slack as
shown.5. If the drive chain slack is incorrect,
adjust it as follows.
EAU37112
To adjust the drive chain slack
1. Loosen the brake pedal free play
adjusting nut, brake torque rod nut,
and axle nut.
2. Loosen the chain puller locknut at
each end of the swingarm.3. To tighten the drive chain, turn the
adjusting bolt at each end of the
swingarm in direction (a). To loos-
en the drive chain, turn the adjust-
ing bolt at each end of the
swingarm in direction (b), and then
push the rear wheel forward.
NOTE:Using the alignment marks on each
side of the swingarm, make sure that
both chain pullers are in the same posi-tion for proper wheel alignment.
1. Drive chain slack
Drive chain slack:
20.0–30.0 mm (0.79–1.18 in)
1. Drive chain slack adjusting bolt
2. Chain puller locknut
3. Axle nut
4. Brake torque rod nut
5. Brake pedal free play adjusting nut
4
5 12
3
1. Alignment marks
2. Chain puller locknut
3. Drive chain slack adjusting bolt
U27SE0E0.book Page 21 Friday, February 22, 2008 8:54 AM
Page 54 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-22
6

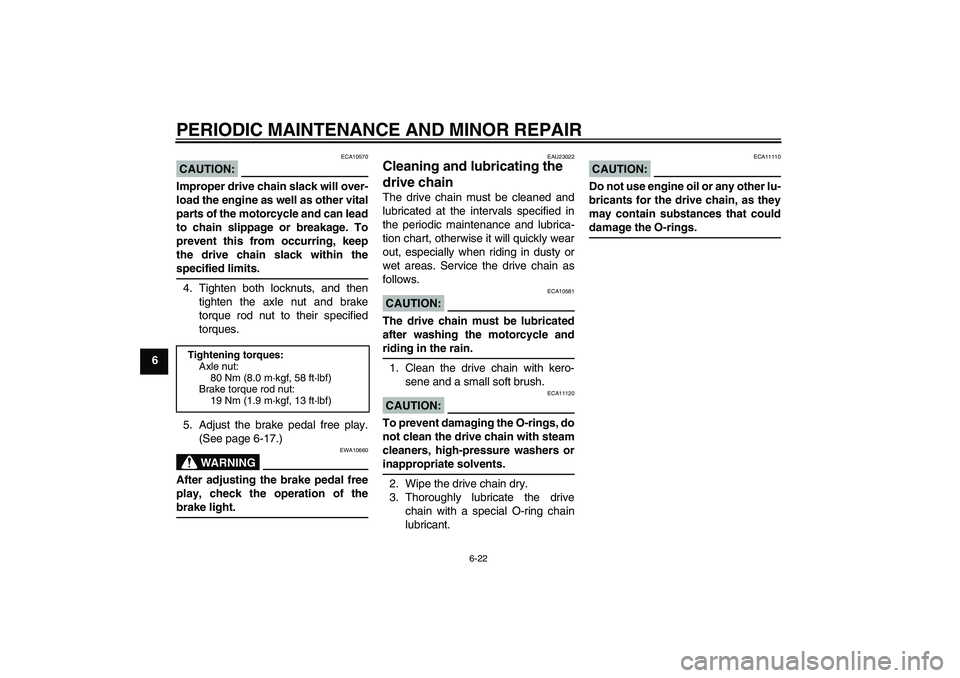

CAUTION:
ECA10570
Improper drive chain slack will over-
load the engine as well as other vital
parts of the motorcycle and can lead
to chain slippage or breakage. To
prevent this from occurring, keep
the drive chain slack within thespecified limits.
4. Tighten both locknuts, and then
tighten the axle nut and brake
torque rod nut to their specified
torques.
5. Adjust the brake pedal free play.
(See page 6-17.)
WARNING
EWA10660
After adjusting the brake pedal free
play, check the operation of thebrake light.
EAU23022
Cleaning and lubricating the
drive chain The drive chain must be cleaned and
lubricated at the intervals specified in
the periodic maintenance and lubrica-
tion chart, otherwise it will quickly wear
out, especially when riding in dusty or
wet areas. Service the drive chain as
follows.CAUTION:
ECA10581
The drive chain must be lubricated
after washing the motorcycle andriding in the rain.
1. Clean the drive chain with kero-
sene and a small soft brush.CAUTION:
ECA11120
To prevent damaging the O-rings, do
not clean the drive chain with steam
cleaners, high-pressure washers orinappropriate solvents.
2. Wipe the drive chain dry.
3. Thoroughly lubricate the drive
chain with a special O-ring chain
lubricant.
CAUTION:
ECA11110
Do not use engine oil or any other lu-
bricants for the drive chain, as they
may contain substances that coulddamage the O-rings.
Tightening torques:
Axle nut:
80 Nm (8.0 m·kgf, 58 ft·lbf)
Brake torque rod nut:
19 Nm (1.9 m·kgf, 13 ft·lbf)
U27SE0E0.book Page 22 Friday, February 22, 2008 8:54 AM
Page 55 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6

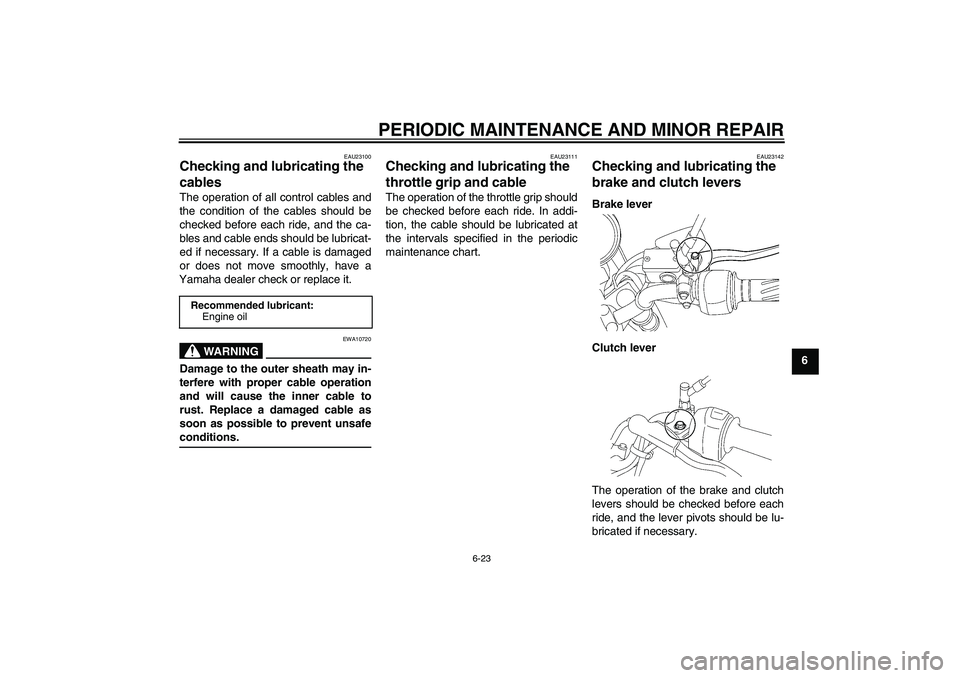

EAU23100
Checking and lubricating the
cables The operation of all control cables and
the condition of the cables should be
checked before each ride, and the ca-
bles and cable ends should be lubricat-
ed if necessary. If a cable is damaged
or does not move smoothly, have a
Yamaha dealer check or replace it.
WARNING
EWA10720
Damage to the outer sheath may in-
terfere with proper cable operation
and will cause the inner cable to
rust. Replace a damaged cable as
soon as possible to prevent unsafeconditions.
EAU23111
Checking and lubricating the
throttle grip and cable The operation of the throttle grip should
be checked before each ride. In addi-
tion, the cable should be lubricated at
the intervals specified in the periodic
maintenance chart.
EAU23142
Checking and lubricating the
brake and clutch levers Brake lever
Clutch lever
The operation of the brake and clutch
levers should be checked before each
ride, and the lever pivots should be lu-
bricated if necessary.
Recommended lubricant:
Engine oil
U27SE0E0.book Page 23 Friday, February 22, 2008 8:54 AM
Page 56 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6

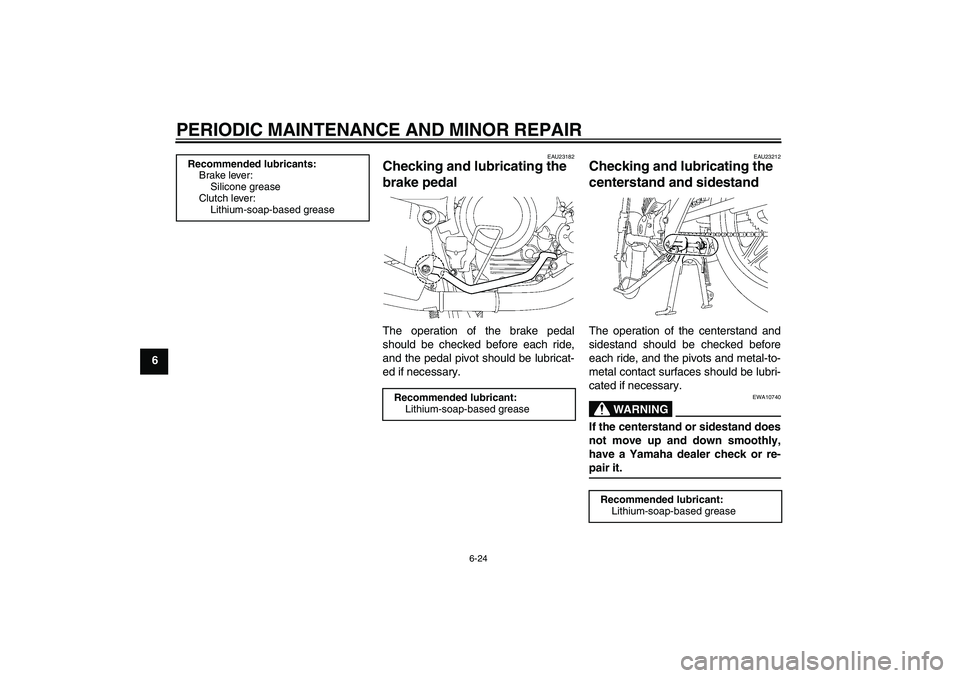

EAU23182
Checking and lubricating the
brake pedal The operation of the brake pedal
should be checked before each ride,
and the pedal pivot should be lubricat-
ed if necessary.
EAU23212
Checking and lubricating the
centerstand and sidestand The operation of the centerstand and
sidestand should be checked before
each ride, and the pivots and metal-to-
metal contact surfaces should be lubri-
cated if necessary.
WARNING
EWA10740
If the centerstand or sidestand does
not move up and down smoothly,
have a Yamaha dealer check or re-pair it.
Recommended lubricants:
Brake lever:
Silicone grease
Clutch lever:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
Recommended lubricant:
Lithium-soap-based grease
U27SE0E0.book Page 24 Friday, February 22, 2008 8:54 AM
Page 57 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6

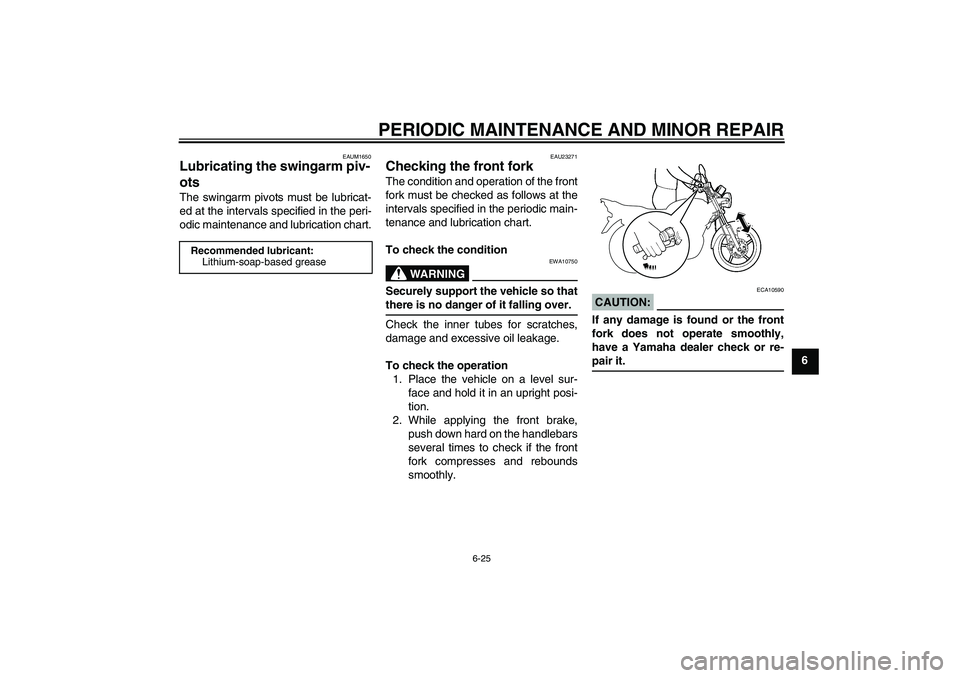

EAUM1650
Lubricating the swingarm piv-
ots The swingarm pivots must be lubricat-
ed at the intervals specified in the peri-
odic maintenance and lubrication chart.
EAU23271
Checking the front fork The condition and operation of the front
fork must be checked as follows at the
intervals specified in the periodic main-
tenance and lubrication chart.
To check the condition
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
Check the inner tubes for scratches,
damage and excessive oil leakage.
To check the operation
1. Place the vehicle on a level sur-
face and hold it in an upright posi-
tion.
2. While applying the front brake,
push down hard on the handlebars
several times to check if the front
fork compresses and rebounds
smoothly.
CAUTION:
ECA10590
If any damage is found or the front
fork does not operate smoothly,
have a Yamaha dealer check or re-pair it.
Recommended lubricant:
Lithium-soap-based grease
U27SE0E0.book Page 25 Friday, February 22, 2008 8:54 AM
Page 58 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6

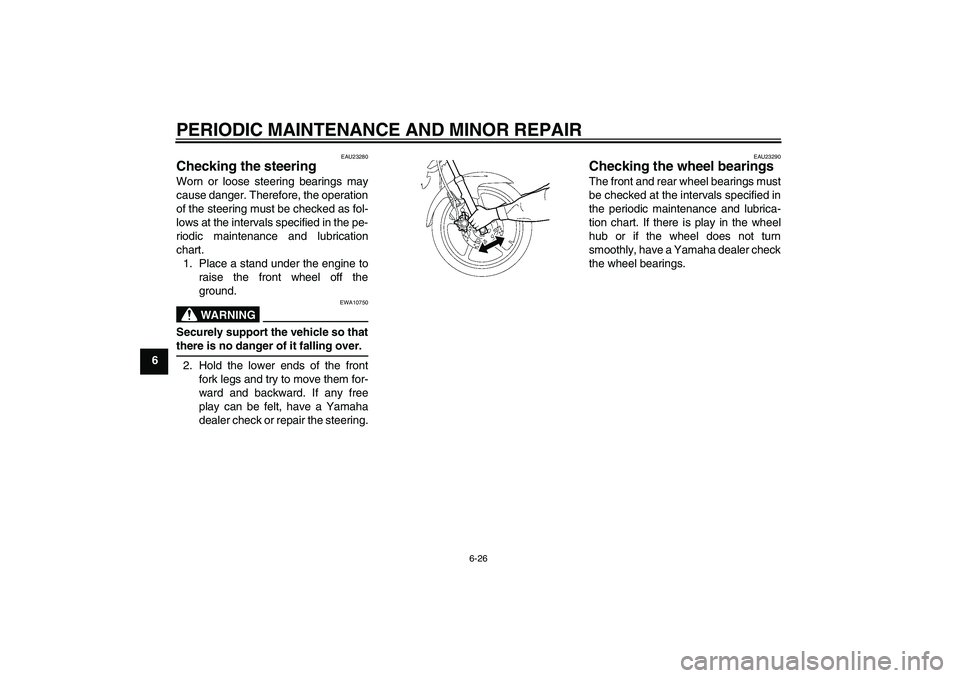

EAU23280
Checking the steering Worn or loose steering bearings may
cause danger. Therefore, the operation
of the steering must be checked as fol-
lows at the intervals specified in the pe-
riodic maintenance and lubrication
chart.
1. Place a stand under the engine to
raise the front wheel off the
ground.
WARNING
EWA10750
Securely support the vehicle so thatthere is no danger of it falling over.
2. Hold the lower ends of the front
fork legs and try to move them for-
ward and backward. If any free
play can be felt, have a Yamaha
dealer check or repair the steering.
EAU23290
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
U27SE0E0.book Page 26 Friday, February 22, 2008 8:54 AM
Page 59 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6

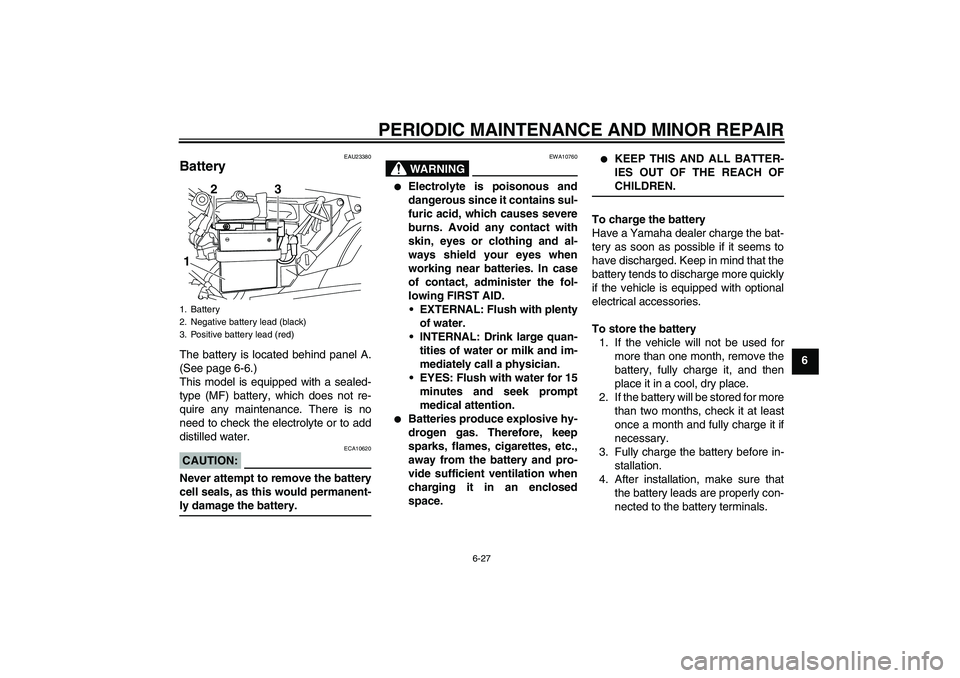

EAU23380
Battery The battery is located behind panel A.
(See page 6-6.)
This model is equipped with a sealed-
type (MF) battery, which does not re-
quire any maintenance. There is no
need to check the electrolyte or to add
distilled water.CAUTION:
ECA10620
Never attempt to remove the battery
cell seals, as this would permanent-ly damage the battery.
WARNING
EWA10760
Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
1. Battery
2. Negative battery lead (black)
3. Positive battery lead (red)
2
3
1
U27SE0E0.book Page 27 Friday, February 22, 2008 8:54 AM
Page 60 of 82
PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
CAUTION:
ECA10630
Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.
To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional battery
charger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealercharge your battery.
EAU43211
Replacing the fuse The fuse is located behind panel A.
(See page 6-6.)
To access the fuse, remove the starter
relay coupler.The spare fuse is located on the rear of
the starter relay holder.
To access the spare fuse, remove the
starter relay (together with its holder) by
pulling it out, then turn the starter relay
over.
If the fuse is blown, replace it as fol-
lows.
1. Turn the key to “OFF” and turn off
all electrical circuits.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.1. Starter relay coupler
1. Fuse
2. Starter relay
11
2
1. Starter relay
2. Starter relay holder
3. Spare fuseSpecified fuse:
15.0 A
2
13
U27SE0E0.book Page 28 Friday, February 22, 2008 8:54 AM
