TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Main switch/steering lock ................3-1
Indicator and warning lights ............3-2
Speedometer unit ...........................3-3
Tachometer ....................................3-3
Self-diagnosis device ......................3-3
Fuel gauge ......................................3-4
Handlebar switches ........................3-4
Clutch lever .....................................3-5
Shift pedal .......................................3-5
Brake lever .....................................3-5
Brake pedal ....................................3-6
Fuel tank cap ..................................3-6
Fuel .................................................3-7
Catalytic converters ........................3-8
Kickstarter .......................................3-9
Adjusting the shock absorber
assemblies ..................................3-9
Carrier ...........................................3-10
Sidestand ......................................3-10
Ignition circuit cut-off system ........3-11FOR YOUR SAFETY –
PRE-OPERATION CHECKS............. 4-1
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
ADJUSTMENT................................... 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance chart for the
emission control system ............. 6-2
General maintenance and
lubrication chart .......................... 6-3
Removing and installing panels ..... 6-6
Checking the spark plug ................. 6-7
Engine oil ....................................... 6-9
Cleaning the air filter element ...... 6-10
Checking the engine idling
speed ........................................ 6-12
Checking the throttle cable free
play ........................................... 6-12
Valve clearance ............................ 6-13
Tires ............................................. 6-13
Cast wheels .................................. 6-15Adjusting the clutch lever free
play ........................................... 6-15
Checking the front brake lever free
play ........................................... 6-16
Adjusting the brake pedal free
play ........................................... 6-16
Checking the shift pedal .............. 6-17
Brake light switches ..................... 6-17
Checking the front brake pads
and rear brake shoes ............... 6-18
Checking the front brake fluid
level .......................................... 6-19
Changing the brake fluid .............. 6-20
Drive chain slack .......................... 6-20
Cleaning and lubricating the drive
chain ......................................... 6-22
Checking and lubricating the
cables ....................................... 6-22
Checking and lubricating the
throttle grip and cable ............... 6-23
Checking and lubricating the
brake and clutch levers ............ 6-23
Checking and lubricating the
brake pedal ............................... 6-24
Checking and lubricating the
centerstand and sidestand ....... 6-24
Lubricating the swingarm
pivots ........................................ 6-25
Checking the front fork ................. 6-25
Checking the steering .................. 6-26
Checking the wheel bearings ....... 6-26U51DE0E0.book Page 1 Monday, November 2, 2009 10:34 AM

FOR YOUR SAFETY – PRE-OPERATION CHECKS
4-1
4
EAU15596
Inspect your vehicle each time you use it to make sure the vehicle is in safe operating condition. Always follow the inspection
and maintenance procedures and schedules described in the Owner’s Manual.
WARNING
EWA11151
Failure to inspect or maintain the vehicle properly increases the possibility of an accident or equipment damage.
Do not operate the vehicle if you find any problem. If a problem cannot be corrected by the procedures provided in
this manual, have the vehicle inspected by a Yamaha dealer.Before using this vehicle, check the following points:
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Refuel if necessary.
Check fuel line for leakage.3-7
Engine oilCheck oil level in engine.
If necessary, add recommended oil to specified level.
Check vehicle for oil leakage.6-9
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-18, 6-19
Rear brakeCheck operation.
Check pedal free play.
Adjust if necessary.6-16, 6-18
ClutchCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-15
U51DE0E0.book Page 1 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-3
6
EAU17717
General maintenance and lubrication chart NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
1 Air filter elementClean.√√
Replace.√√
2ClutchCheck operation.
Adjust.√√√√√
3*Front brakeCheck operation, fluid level and
vehicle for fluid leakage.√√√√√√
Replace brake pads. Whenever worn to the limit
4*Rear brakeCheck operation and adjust brake
pedal free play.√√√√√√
Replace brake shoes. Whenever worn to the limit
5*Brake hoseCheck for cracks or damage.√√√√√
Replace. Every 4 years
6*WheelsCheck runout and for damage.√√√√
7*TiresCheck tread depth and for dam-
age.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√√
8*Wheel bearingsCheck bearing for looseness or
damage.√√√√
9*Swingarm pivot
bushesCheck bush assemblies for loose-
ness.√√√√
Lubricate with lithium-soap-based
grease.Every 10000 km (6000 mi)
U51DE0E0.book Page 3 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-5
6
EAU18660
TIP

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
Every two years replace the internal components of the brake master cylinder and caliper, and change the brake fluid.
Replace the brake hoses every four years and if cracked or damaged.
20 Engine oilChange.
Check oil level and vehicle for oil
leakage.√√√√√√
21*Front and rear brake
switchesCheck operation.√√√√√√
22Moving parts and
cablesLubricate.√√√√√
23*Throttle grip hous-
ing and cableCheck operation and free play.
Adjust the throttle cable free play
if necessary.
Lubricate the throttle grip housing
and cable.√√√√√
24*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING
ANNUAL
CHECK 1000 km
(600 mi)6000 km
(3500 mi)12000 km
(7000 mi)18000 km
(10500 mi)24000 km
(14000 mi)
U51DE0E0.book Page 5 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-19
6
EAU37001

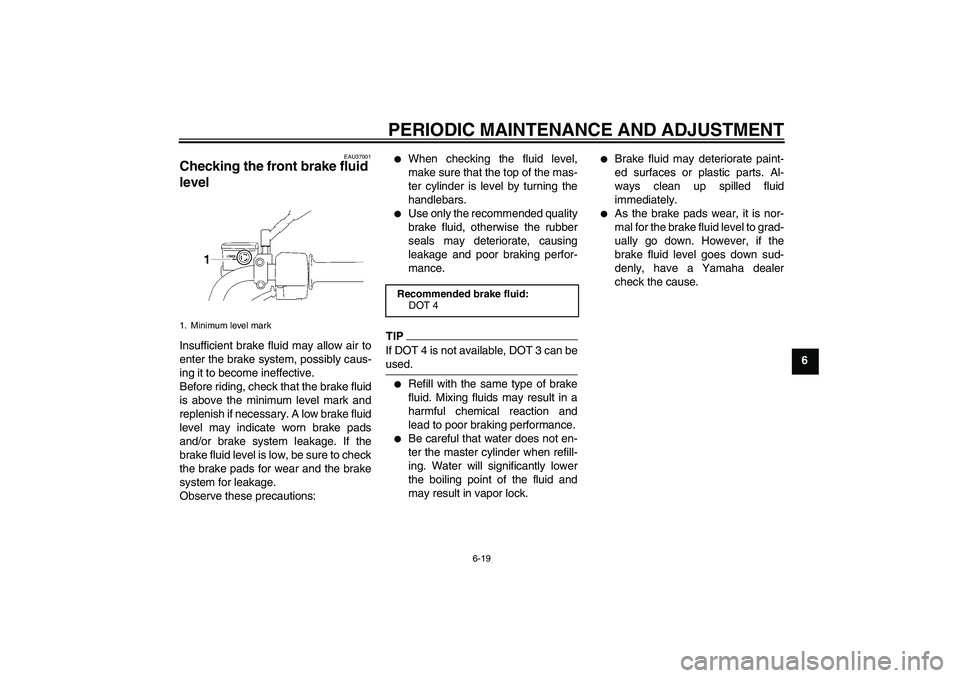

Checking the front brake fluid
level Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.
Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:


When checking the fluid level,
make sure that the top of the mas-
ter cylinder is level by turning the
handlebars.


Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.
TIPIf DOT 4 is not available, DOT 3 can be
used.

Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.


Be careful that water does not en-
ter the master cylinder when refill-
ing. Water will significantly lower
the boiling point of the fluid and
may result in vapor lock.


Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.


As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
1. Minimum level mark
Recommended brake fluid:
DOT 4
U51DE0E0.book Page 19 Monday, November 2, 2009 10:34 AM

PERIODIC MAINTENANCE AND ADJUSTMENT
6-20
6
EAU22721
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the TIP after the periodic maintenance
and lubrication chart. In addition, have
the oil seals of the brake master cylin-
der and caliper as well as the brake
hose replaced at the intervals listed be-
low or whenever they are damaged or
leaking.

Oil seals: Replace every two
years.


Brake hose: Replace every four
years.
EAU22760
Drive chain slack The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU22793
To check the drive chain slack
1. Place the motorcycle on the cen-
terstand.
2. Shift the transmission into the neu-
tral position.
3. Spin the rear wheel several times
to locate the tightest portion of the
drive chain.
4. Measure the drive chain slack as
shown.5. If the drive chain slack is incorrect,
adjust it as follows.
EAUP0060
To adjust the drive chain slack
1. Remove the brake torque rod cot-
ter pin, and then loosen the brake
pedal free play adjusting nut,
brake torque rod nut, and axle nut.
2. Loosen the drive chain puller lock-
nut at each end of the swingarm.
1. Drive chain slack
Drive chain slack:
20.0–30.0 mm (0.79–1.18 in)1. Drive chain slack adjusting bolt
2. Drive chain puller locknut
3. Axle nut
4. Brake torque rod nut
5. Brake torque rod cotter pin
6. Brake pedal free play adjusting nut
1
2
34
5
6
U51DE0E0.book Page 20 Monday, November 2, 2009 10:34 AM

SPECIFICATIONS
8-2
8
5th:
21/24 (0.875)
Chassis:Frame type:
Diamond
Caster angle:
26.33 °
Trail:
92.0 mm (3.62 in)Front tire:Type:
Tubeless
Size:
2.75-18 42P
Manufacturer/model:
CHENG SHIN/C-910Rear tire:Type:
Tubeless
Size:
90/90-18 57P
Manufacturer/model:
CHENG SHIN/C-905Loading:Maximum load:
153 kg (337 lb)
(Total weight of rider, passenger, cargo and
accessories)Tire air pressure (measured on cold
tires):Loading condition:
0–90 kg (0–198 lb)
Front:
175 kPa (1.75 kgf/cm², 25 psi)Rear:
200 kPa (2.00 kgf/cm², 29 psi)
Loading condition:
90–153 kg (198–337 lb)
Front:
175 kPa (1.75 kgf/cm², 25 psi)
Rear:
280 kPa (2.80 kgf/cm², 41 psi)
Front wheel:Wheel type:
Cast wheel
Rim size:
J18M/C x MT1.85Rear wheel:Wheel type:
Cast wheel
Rim size:
J18M/C x MT1.85Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 3 or 4Rear brake:Type:
Drum brake
Operation:
Right foot operationFront suspension:Type:
Telescopic forkSpring/shock absorber type:
Coil spring/oil damper
Wheel travel:
120.0 mm (4.72 in)
Rear suspension:Type:
Swingarm
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
105.0 mm (4.13 in)Electrical system:Ignition system:
TCI
Charging system:
AC magnetoBattery:Model:
YTX7L-BS
Voltage, capacity:
12 V, 6.0 AhHeadlight:Bulb type:
Halogen bulbBulb voltage, wattage × quantity:Headlight:
12 V, 35 W/35 W × 1
Tail/brake light:
12 V, 5.0 W/21.0 W × 1
Front turn signal light:
12 V, 10.0 W × 2
Rear turn signal light:
12 V, 10.0 W × 2
U51DE0E0.book Page 2 Monday, November 2, 2009 10:34 AM

INDEX
AAir filter element, cleaning .................... 6-10
Auxiliary light bulb, replacing ................ 6-31BBattery .................................................. 6-26
Brake and clutch levers, checking and
lubricating ........................................... 6-23
Brake fluid, changing ............................ 6-20
Brake fluid level, checking .................... 6-19
Brake lever ............................................. 3-5
Brake light switches .............................. 6-17
Brake pads and shoes, checking.......... 6-18
Brake pedal ............................................ 3-6
Brake pedal, checking and
lubricating ........................................... 6-24
Brake pedal free play, adjusting ........... 6-16CCables, checking and lubricating .......... 6-22
Care ........................................................ 7-1
Carrier................................................... 3-10
Catalytic converters ................................ 3-8
Centerstand and sidestand, checking
and lubricating .................................... 6-24
Clutch lever............................................. 3-5
Clutch lever free play, adjusting ........... 6-15DDimmer switch ........................................ 3-4
Drive chain, cleaning and lubricating .... 6-22
Drive chain slack .................................. 6-20EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-12
Engine oil ................................................ 6-9
Engine trouble warning light ................... 3-2
FFront brake lever free play, checking .... 6-16
Front fork, checking...............................6-25
Fuel ......................................................... 3-7
Fuel consumption, tips for reducing ........ 5-3
Fuel gauge .............................................. 3-4
Fuel tank cap........................................... 3-6
Fuse, replacing...................................... 6-28HHandlebar switches ................................. 3-4
Headlight bulb, replacing....................... 6-29
High beam indicator light......................... 3-2
Horn switch ............................................. 3-4IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-11
Indicator and warning lights .................... 3-2KKickstarter ............................................... 3-9MMain switch/steering lock ........................ 3-1
Maintenance and lubrication, periodic..... 6-3
Maintenance, emission control system ... 6-2
Matte color, caution .................................7-1
Model label .............................................. 9-1NNeutral indicator light .............................. 3-2PPanels, removing and installing .............. 6-6
Parking ....................................................5-4
Part locations .......................................... 2-1SSafety information ...................................1-1
Self-diagnosis device .............................. 3-3Shifting .................................................... 5-2
Shift pedal ............................................... 3-5
Shift pedal, checking............................. 6-17
Shock absorber assemblies, adjusting ... 3-9
Sidestand .............................................. 3-10
Spark plug, checking .............................. 6-7
Specifications.......................................... 8-1
Speedometer unit ................................... 3-3
Starting the engine.................................. 5-1
Start switch ............................................. 3-4
Steering, checking ................................ 6-26
Storage ................................................... 7-3
Swingarm pivots, lubricating ................. 6-25
TTachometer............................................. 3-3
Tail/brake light bulb, replacing .............. 6-30
Throttle cable free play, checking ......... 6-12
Throttle grip and cable, checking and
lubricating ........................................... 6-23
Tires ...................................................... 6-13
Tool kit .................................................... 6-1
Troubleshooting .................................... 6-35
Troubleshooting chart ........................... 6-36
Turn signal indicator lights ...................... 3-2
Turn signal light bulb, replacing ............ 6-31
Turn signal switch ................................... 3-4VValve clearance .................................... 6-13
Vehicle identification number .................. 9-1WWheel bearings, checking..................... 6-26
Wheel (front) ......................................... 6-32
Wheel (rear) .......................................... 6-33
Wheels .................................................. 6-15
U51DE0E0.book Page 1 Monday, November 2, 2009 10:34 AM
