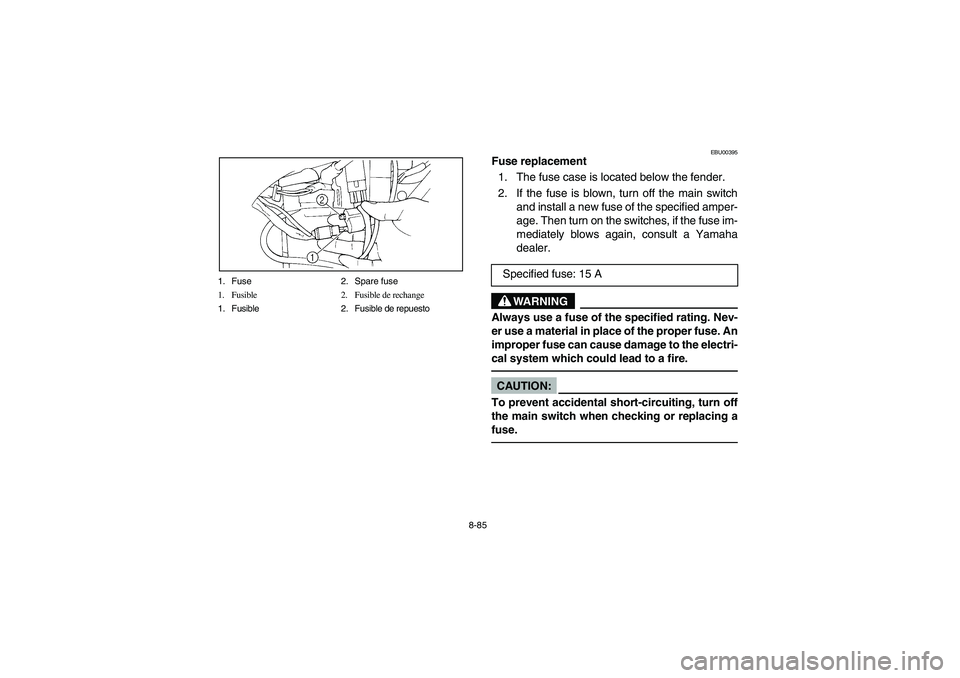

8-85 1. Fuse 2. Spare fuse
1. Fusible 2. Fusible de rechange
1. Fusible 2. Fusible de repuesto
EBU00395
Fuse replacement
1. The fuse case is located below the fender.
2. If the fuse is blown, turn off the main switch
and install a new fuse of the specified amper-
age. Then turn on the switches, if the fuse im-
mediately blows again, consult a Yamaha
dealer.
WARNING
Always use a fuse of the specified rating. Nev-
er use a material in place of the proper fuse. An
improper fuse can cause damage to the electri-
cal system which could lead to a fire.CAUTION:
To prevent accidental short-circuiting, turn off
the main switch when checking or replacing a
fuse.Specified fuse: 15 A
